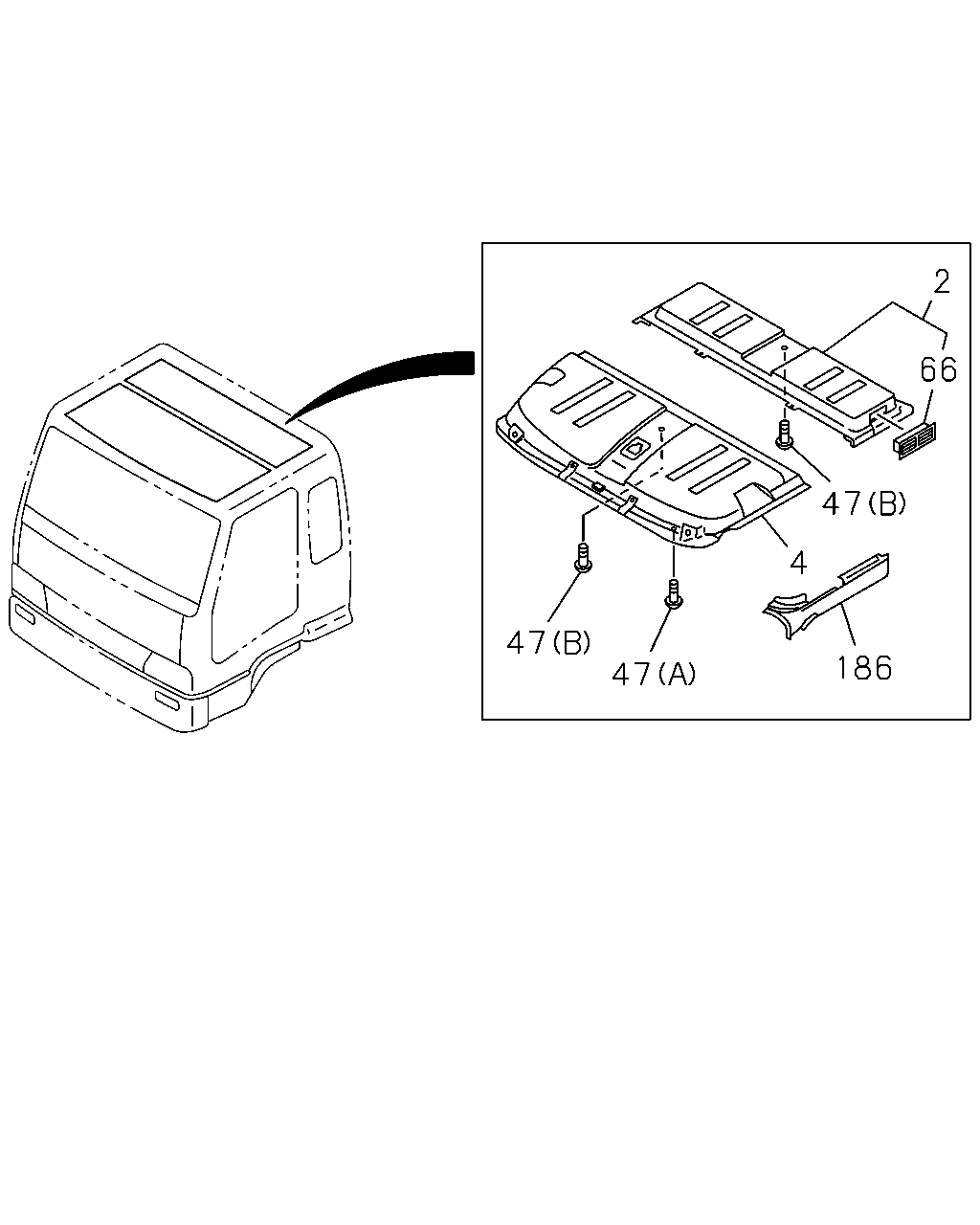

6-66 — HEAD LINING AND TRIM (#24951) — 44 parça

2 66 47 4 47 186 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINING; HD,ROOF RR PROVISIONAL PACKAGE<NLY> HIGH ROOF<S2F>	1-73318-708-2	01	1	0609-
2	LINING; HD,ROOF RR LOW ROOF<6XQ>	1-73318-573-3	01	1	0609-
2	LINING; HD,ROOF RR HIGH ROOF<S2F> EXC. PROVISIONAL PACKAGE<NLY>	1-73318-598-5	01	1	0609-
4	LINING; ROOF,FRT PROVISIONAL PACKAGE<NLY> HIGH ROOF<S2F>	8-97893-788-3	01	1	0609-
4	LINING; ROOF,FRT LOW ROOF<6XQ>	1-73318-572-3	01	1	0609-
4	LINING; ROOF,FRT HIGH ROOF<S2F> EXC. PROVISIONAL PACKAGE<NLY>	8-97865-577-4	01	1	0609-
47	CLIP; HEADLINING HIGH ROOF<S2F> (D) D6X23 LIGHT GRAY	1-73318-629-0	12	1	0609-
47	CLIP; HEADLINING HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (C) D7.7X25 LIGHT GRAY	1-73317-371-0	06	1	0609-
47	CLIP; HEADLINING (B) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0609-
47	CLIP; HEADLINING LOW ROOF<6XQ> (A) D6X23 LIGHT GRAY	1-73318-629-0	08	1	0609-
66	GRILLE; AIR OUTLET LOW ROOF<6XQ>	1-73318-608-0	02	1	0609-
66	GRILLE; AIR OUTLET HIGH ROOF<S2F>	1-73317-366-1	01	1	0609-
66	GRILLE; AIR OUTLET HIGH ROOF<S2F>	1-73317-367-1	01	1	0609-
186	TRIM; ROOM,CANT RAIL SIDE PROVISIONAL PACKAGE<NLY>	1-73348-962-1	01	1	0609-
186	TRIM; ROOM,CANT RAIL SIDE LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY>	1-73348-962-1	01	1	0609-
186	TRIM; ROOM,CANT RAIL SIDE PROVISIONAL PACKAGE<NLY>	1-73348-963-1	01	1	0609-
186	TRIM; ROOM,CANT RAIL SIDE LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY>	1-73348-963-1	01	1	0609-
186	TRIM; ROOM,CANT RAIL SIDE HIGH ROOF<S2F> EXC. PROVISIONAL PACKAGE<NLY>	1-73348-918-2	01	1	0609-
186	TRIM; ROOM,CANT RAIL SIDE HIGH ROOF<S2F> EXC. PROVISIONAL PACKAGE<NLY>	1-73348-919-2	01	1	0609-

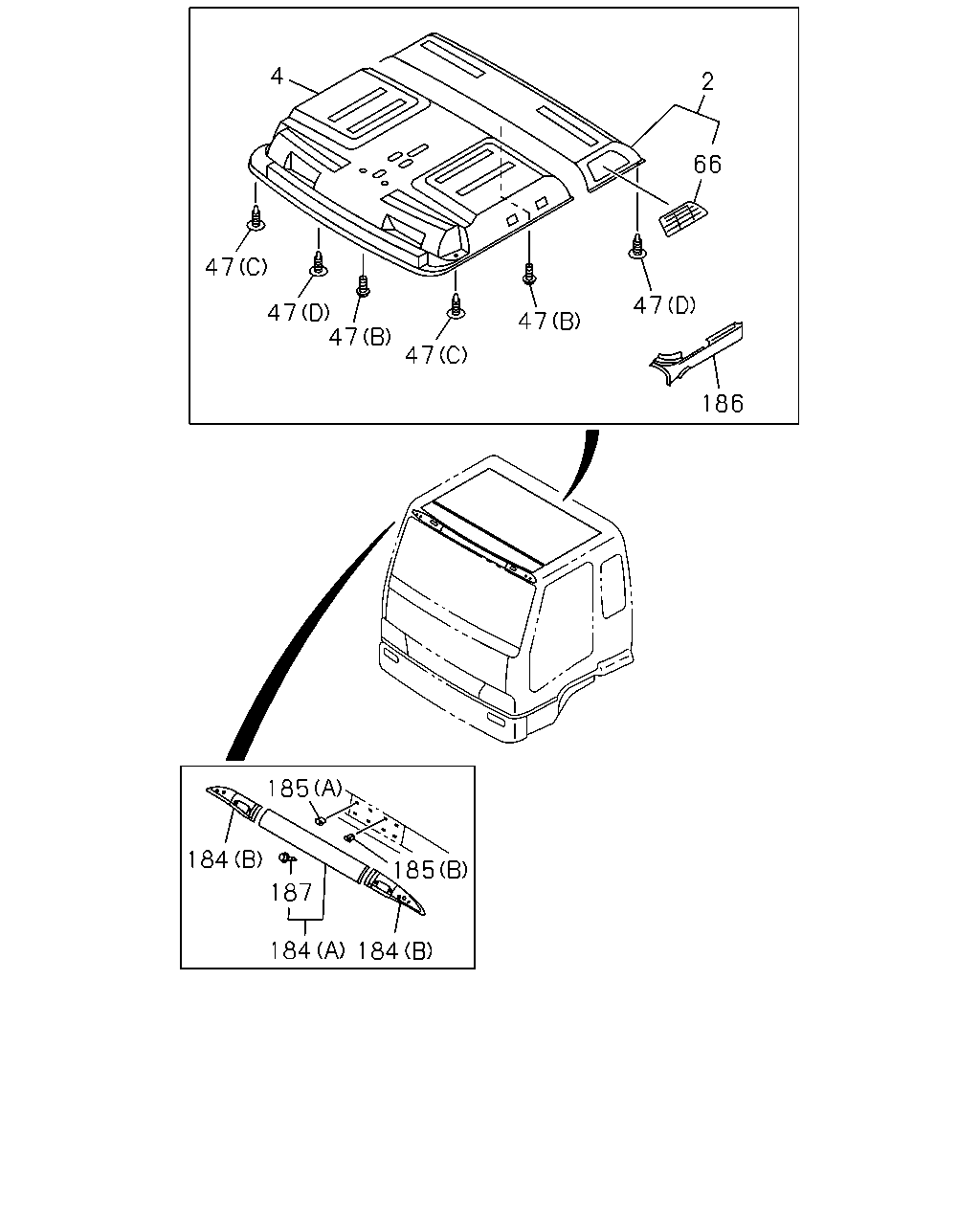

4 2 66 47 47 47 47 47 47 186 185 184 185 187 184 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINING; HD,ROOF RR PROVISIONAL PACKAGE<NLY> HIGH ROOF<S2F>	1-73318-708-2	01	1	0609-
2	LINING; HD,ROOF RR LOW ROOF<6XQ>	1-73318-573-3	01	1	0609-
2	LINING; HD,ROOF RR HIGH ROOF<S2F> EXC. PROVISIONAL PACKAGE<NLY>	1-73318-598-5	01	1	0609-
4	LINING; ROOF,FRT PROVISIONAL PACKAGE<NLY> HIGH ROOF<S2F>	8-97893-788-3	01	1	0609-
4	LINING; ROOF,FRT LOW ROOF<6XQ>	1-73318-572-3	01	1	0609-
4	LINING; ROOF,FRT HIGH ROOF<S2F> EXC. PROVISIONAL PACKAGE<NLY>	8-97865-577-4	01	1	0609-
47	CLIP; HEADLINING HIGH ROOF<S2F> (D) D6X23 LIGHT GRAY	1-73318-629-0	12	1	0609-
47	CLIP; HEADLINING HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (C) D7.7X25 LIGHT GRAY	1-73317-371-0	06	1	0609-
47	CLIP; HEADLINING (B) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0609-
47	CLIP; HEADLINING LOW ROOF<6XQ> (A) D6X23 LIGHT GRAY	1-73318-629-0	08	1	0609-
66	GRILLE; AIR OUTLET LOW ROOF<6XQ>	1-73318-608-0	02	1	0609-
66	GRILLE; AIR OUTLET HIGH ROOF<S2F>	1-73317-366-1	01	1	0609-
66	GRILLE; AIR OUTLET HIGH ROOF<S2F>	1-73317-367-1	01	1	0609-
184	ORNAMENT; ROOF HIGH ROOF<S2F> (B)	1-73318-580-0	02	1	0609-
184	ORNAMENT; ROOF HIGH ROOF<S2F> (B)	1-73318-581-0	02	1	0609-
184	ORNAMENT; ROOF HIGH ROOF<S2F> (A)	1-73318-587-0	01	1	0609-
185	GROMMET; ORNAMENT HIGH ROOF<S2F> (A)	1-79198-012-0	06	1	0609-
185	GROMMET; ORNAMENT HIGH ROOF<S2F> (B)	1-79198-013-0	02	1	0609-
186	TRIM; ROOM,CANT RAIL SIDE PROVISIONAL PACKAGE<NLY>	1-73348-962-1	01	1	0609-
186	TRIM; ROOM,CANT RAIL SIDE LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY>	1-73348-962-1	01	1	0609-
186	TRIM; ROOM,CANT RAIL SIDE PROVISIONAL PACKAGE<NLY>	1-73348-963-1	01	1	0609-
186	TRIM; ROOM,CANT RAIL SIDE LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY>	1-73348-963-1	01	1	0609-
186	TRIM; ROOM,CANT RAIL SIDE HIGH ROOF<S2F> EXC. PROVISIONAL PACKAGE<NLY>	1-73348-918-2	01	1	0609-
186	TRIM; ROOM,CANT RAIL SIDE HIGH ROOF<S2F> EXC. PROVISIONAL PACKAGE<NLY>	1-73348-919-2	01	1	0609-
187	PIN; ORNAMENT HIGH ROOF<S2F> D4.2X13	1-09983-161-0	08	1	0609-
