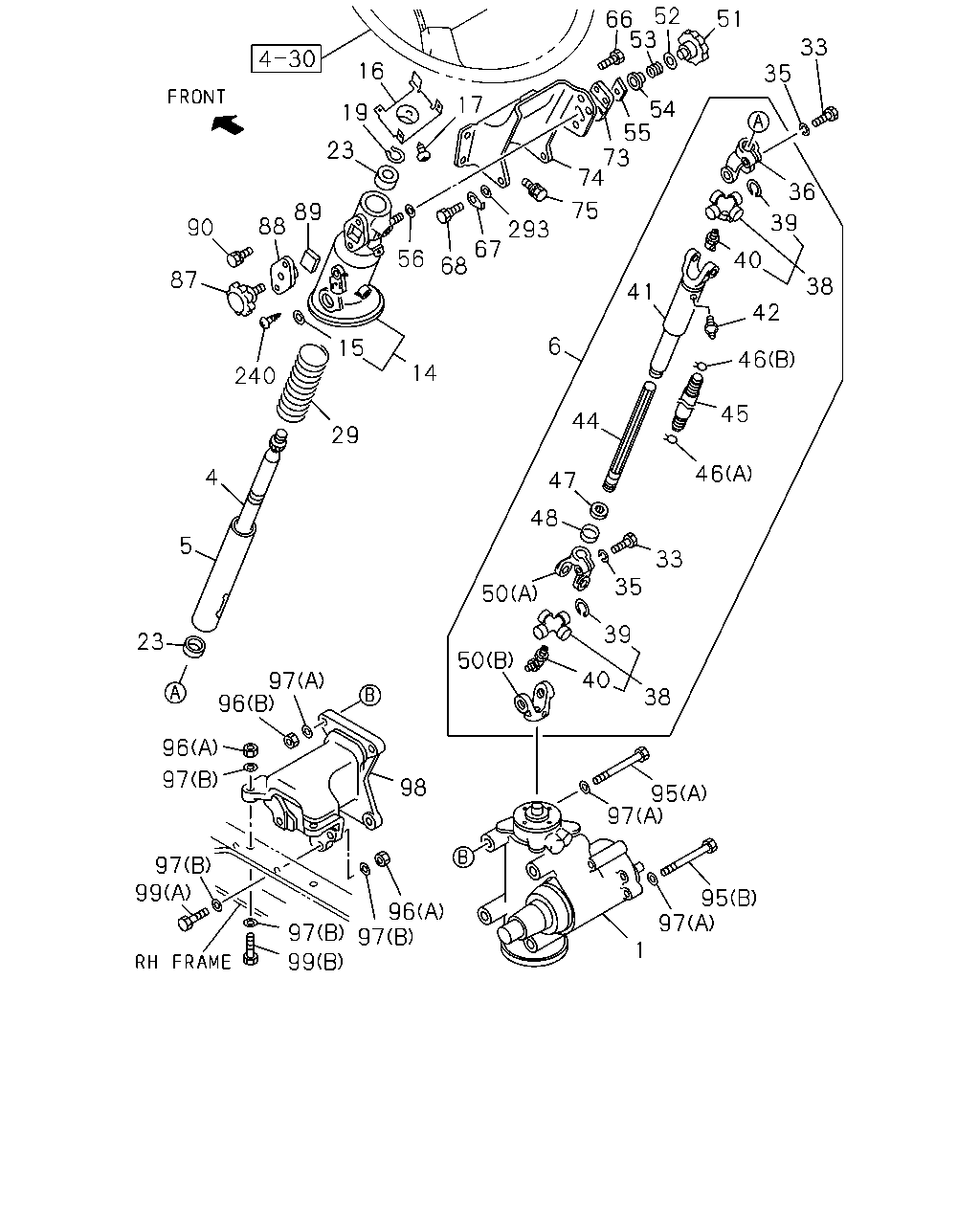

4-31 — STEERING COLUMN AND SHAFT
(#2495) — 58 parça
66
52
53
51
33
35
16
17
54
55
73
74
19
23
36
75
89
88
39
90
293
67
68
56
40
87
38
41
42
6
15
46
14
240
45
44
29
46
4
47
48
5
33
35
50
39
23
50
40
97
96
38
96
97
98
95
97
97
99
95
97
96
97
97
1
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
1-44000-761-3
01
1
9002-9306
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
1-44000-805-2
01
1
9307-
4
SHAFT; STRG
1-44131-118-1
01
1
9002-
5
COLUMN; STRG
1-44211-043-1
01
1
9002-
6
SHAFT; STRG LWR
1-44130-352-2
01
1
9002-
14
CASE ASM; STRG SHAFT
1-44221-046-3
01
1
9002-
15
WASHER; TILT CENTER
1-44227-077-1
02
1
9002-
16
BRACKET; COMB SW
1-44227-074-2
01
1
9002-
17
SCREW; BRKT
M5X10 PAN-HD
9-93490-510-0
03
1
9002-
19
RING; SNAP,STRG SHAFT
ID=23.4 T=1.5
1-09588-140-0
02
1
9002-
23
BEARING; BALL,STRG SHAFT
1-09800-157-0
02
1
9002-
29
SPRING; COLUMN
1-09583-223-0
01
1
9002-
33
BOLT; STRG SHAFT TO UNIT
M10X35
1-09009-126-1
02
1
9002-
35
WASHER; LK,STRG SHAFT
ID=10.2
9-09150-810-0
02
1
9002-
36
YOKE; STRG SHAFT
1-44135-179-0
01
1
9002-
38
JOURNAL; STRG SHAFT
1-44135-098-0
02
1
9002-
39
RING; SNAP,JOURNAL
T=1.2
1-09587-061-1
08
1
9002-
40
NIPPLE; GREASE,JOURNAL
1-09380-004-0
02
1
9002-
41
YOKE; SLEEVE,STRG
1-44135-143-0
01
1
9002-
42
NIPPLE; GREASE,SLEEVE YOKE
M6 STRAIGHT
9-09031-006-0
01
1
9002-
44
SHAFT; SPLINE,STRG
1-44131-109-2
01
1
9002-
45
BOOT; STRG SHAFT
1-44139-064-0
01
1
9002-
46
CLIP; BOOT
(A)
1-09704-086-1
01
1
9002-
46
CLIP; BOOT
(B)
1-09704-087-2
01
1
9002-
47
WASHER; CORK,STRG SHAFT
1-44139-050-0
01
1
9002-
48
RETAINER; FELT RING SLEEVE
1-44139-075-0
01
1
9002-
50
YOKE; SPLINE,STRG SHAFT
(A)
1-44135-090-1
01
1
9002-
50
YOKE; SPLINE,STRG SHAFT
(B)
1-44135-179-0
01
1
9002-
51
KNOB; TILT
1-44227-099-0
01
1
9002-
52
WASHER; PL,ADJ LEVER
1-44227-086-0
01
1
9002-
53
SPRING; TILT KNOB
1-09580-343-0
01
1
9002-
54
GUIDE; SPR
1-44227-072-0
01
1
9002-
55
PLATE; GUIDE
1-44227-091-0
01
1
9002-
56
WASHER; LOCATING PLATE
1-09503-127-1
01
1
9002-
66
BOLT; STRG COLUMN
M6X20 W/LK WASHER
9-01900-620-0
03
1
9002-9204
66
BOLT; STRG COLUMN
M6X20 W/LK WASHER
0-50040-620-0
03
1
9205-
67
WASHER; LK,BRKT,STRG COLUMN
1-44227-082-0
02
1
9002-
68
PIN; TILT CENTER
1-44227-080-1
02
1
9002-
73
PLATE; LOCATING
1-44227-092-0
01
1
9002-
74
BRACKET; SUPPORT,STRG
1-44221-047-1
01
1
9002-
75
BOLT; STRG COLUMN
M8X25 W/LK&PL WASHER
9-01970-825-0
04
1
9002-9005
75
BOLT; STRG COLUMN
M8X25 W/LK&PL WASHER
0-50140-825-0
04
1
9006-
87
KNOB; TELESCOPIC
1-44227-098-0
01
1
9002-
88
FLANGE; KNOB
1-44227-056-1
01
1
9002-
89
PLUNGER; STRG COLUMN
1-44227-093-0
01
1
9002-
90
BOLT; FLANGE
M8X18 W/LK WASHER
9-01900-818-0
02
1
9002-9204
90
BOLT; FLANGE
M8X18 W/LK WASHER
0-50040-818-0
02
1
9205-
95
BOLT; STRG UNIT
(A) M16X177
1-09000-426-0
02
1
9002-
95
BOLT; STRG UNIT
(B) M16X166
1-09000-427-0
02
1
9002-
96
NUT; STRG UNIT
(A) M14
9-99110-514-0
06
1
9002-
96
NUT; STRG UNIT
(B) M16
9-99110-516-0
02
1
9002-
97
WASHER; PL,STRG UNIT
(A) ID=16.2
1-09503-223-0
06
1
9002-
97
WASHER; PL,STRG UNIT
(B) ID=15
9-09651-069-0
12
1
9002-
98
BRACKET; STRG GEAR BOX
1-44226-108-3
01
1
9002-
99
BOLT; BRKT TO FRAME
(B) M14X55
1-09000-425-0
04
1
9002-
99
BOLT; BRKT TO FRAME
(A) M14X55
9-92061-455-0
02
1
9002-
240
SCREW; CLIP
M6X8 W/LK WASHER
1-09981-040-0
01
1
9002-
293
WASHER; TILT CENTER
1-44227-077-1
02
1
9002-
