◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11029 - FTR(RHD) EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#24948) — 17 parça

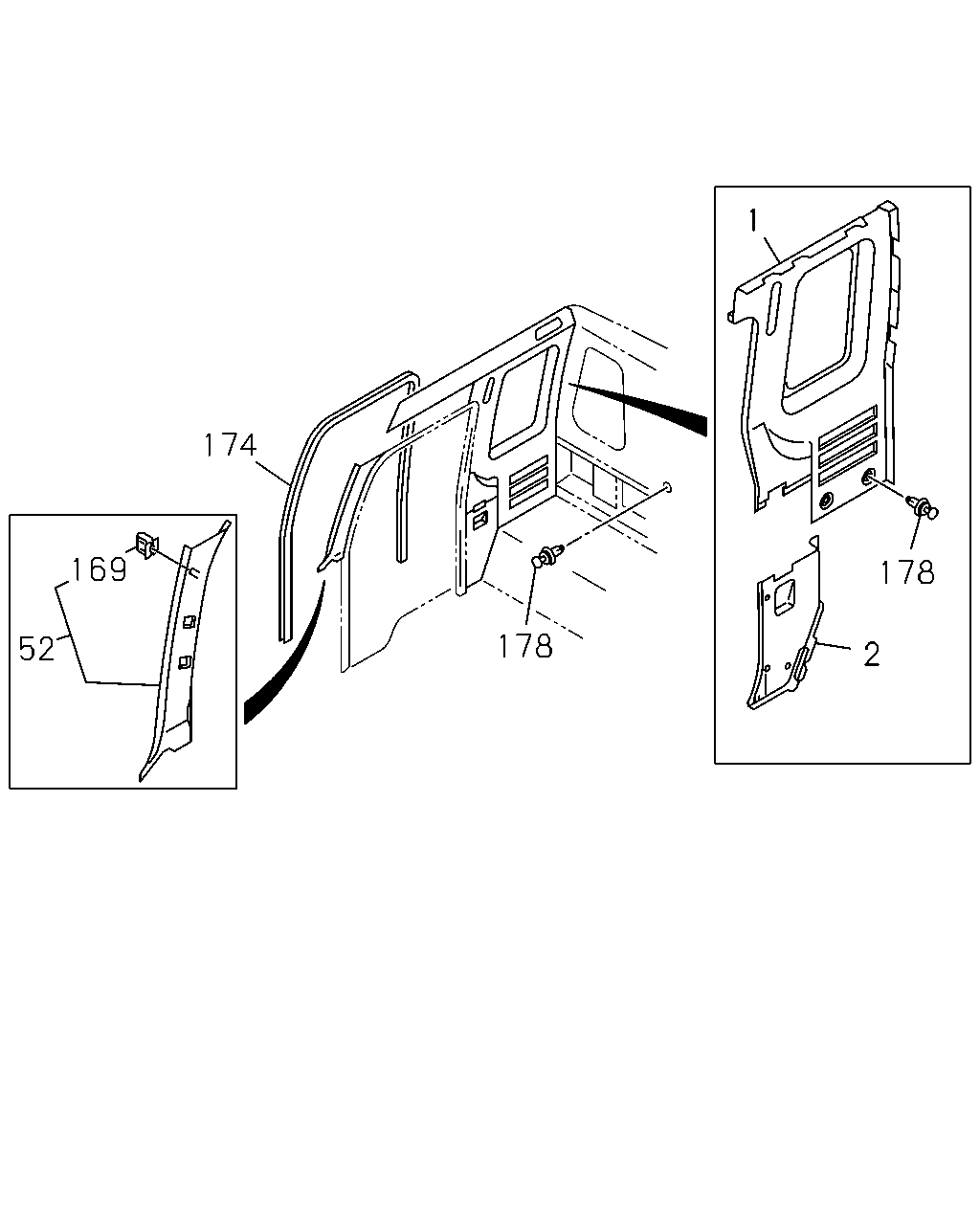

çizim 86684
1 174 169 178 178 52 2
BalonParca AdiParca NoAdetTipApplied Date
1 TRIM; ROOM,QUARTER WINDOW UPR
PROVISIONAL PACKAGE<NLY> 		1-73348-995-3 01 1 0609-
1 TRIM; ROOM,QUARTER WINDOW UPR
LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-995-3 01 1 0609-
1 TRIM; ROOM,QUARTER WINDOW UPR
PROVISIONAL PACKAGE<NLY> 		1-73348-996-3 01 1 0609-
1 TRIM; ROOM,QUARTER WINDOW UPR
LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-996-3 01 1 0609-
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-934-7 01 1 0609-
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-941-7 01 1 0609-
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> 		1-73348-977-2 01 1 0609-
2 TRIM; ROOM,QUARTER WINDOW LWR
LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-977-2 01 1 0609-
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> 		1-73348-978-2 01 1 0609-
2 TRIM; ROOM,QUARTER WINDOW LWR
LOW ROOF<6XQ> EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-978-2 01 1 0609-
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-926-3 01 1 0609-
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. PROVISIONAL PACKAGE<NLY>,LOW ROOF<6XQ> 		1-73348-927-3 01 1 0609-
52 COVER; TRIM,FRT PILLAR 1-73347-833-0 01 1 0609-
52 COVER; TRIM,FRT PILLAR 1-73348-939-0 01 1 0609-
169 CLIP; TRIM COVER,FRT PILLAR 8-94313-458-0 02 1 0609-
174 FINISHER; BODY SIDE 1-76718-175-4 02 1 0609-
178 CLIP; TRIM COVER
OD=6.2 LIGHT GRAY 		1-09983-178-0 09 1 0609-
