◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11029 - FTR(RHD) EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#24940) — 146 parça

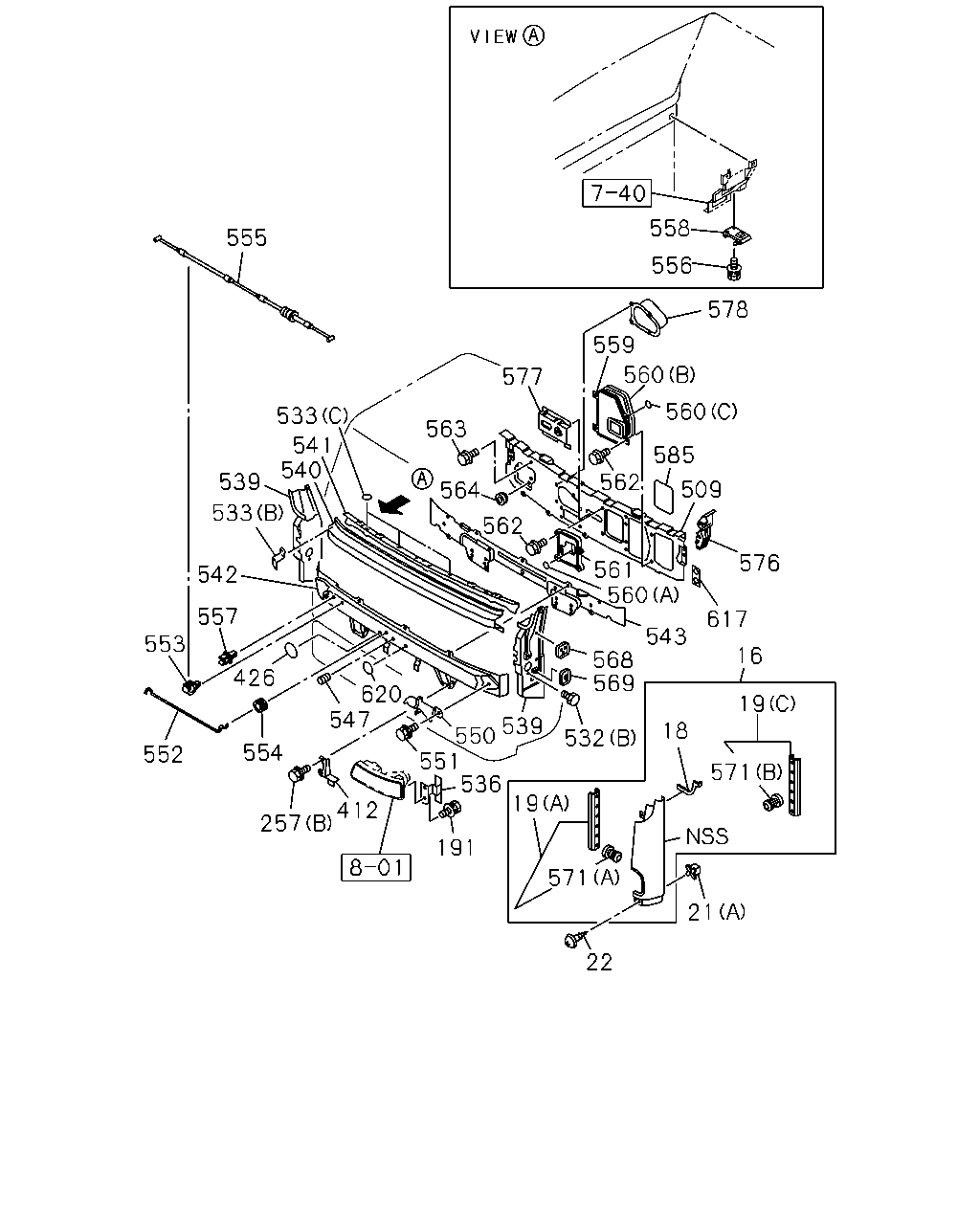

çizim 24982
558 555 556 578 559 560 577 560 533 563 541 540 585 539 562 509 564 533 562 561 560 576 542 557 617 543 553 16 568 569 426 620 547 19 539 550 551 536 18 532 554 552 571 412 257 19 191 571 21 22
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
WHITE 		1-65481-563-3 01 1 0609-
16 PANEL; FRONT,SIDE
WHITE 		1-65481-590-2 01 1 0609-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0609-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0609-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0609-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0609-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0609-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0609-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0609-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0609-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0609-
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0609-0810
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 0811-1010
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 1011-
191 BOLT; HINGE
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0609-0708
191 BOLT; HINGE
M6X16 FLANGE 		0-28650-616-0 04 1 0709-
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0609-
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0609-0904
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
412 BRACKET ASM; HD LAMP UPR 1-86830-043-3 01 1 0609-
412 BRACKET ASM; HD LAMP UPR 1-86830-044-3 01 1 0609-
426 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 0609-
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 03 1 0609-
509 PANEL; DASH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-213-2 01 1 0609-
509 PANEL; DASH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-62280-215-2 01 1 0609-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0609-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0609-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0609-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 0609-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 0609-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0609-
536 HINGE 1-86830-003-5 01 1 0609-
536 HINGE 1-86830-004-5 01 1 0609-
539 CLOSING; PILLAR 1-61480-673-6 01 1 0609-
539 CLOSING; PILLAR 1-61480-674-6 01 1 0609-
540 PANEL; FRONT,OUTER 1-61480-785-1 01 1 0609-
541 PANEL; FRONT,INNER 1-61480-679-0 01 1 0609-
542 RAIL; FRT MOUNTING 1-61480-773-9 01 1 0609-
543 CLOSING; FRT MTG RAIL 1-61480-687-4 01 1 0609-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 0609-
550 LOCK ASM; FRT LID 1-79318-009-4 01 1 0609-
550 LOCK ASM; FRT LID 1-79318-010-2 01 1 0609-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0609-
552 STAY; FRT LID 1-71996-310-0 01 1 0609-0706
552 STAY; FRT LID 1-71996-352-0 01 1 0707-
553 CLIP; STAY 8-97031-428-0 01 1 0609-
554 GROMMET; STAY
ID=8 OD=20 T=9 		9-09956-038-0 01 1 0609-
555 CABLE; FRT LID
L=2142 		1-79348-001-4 01 1 0609-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0609-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 0609-
558 LEVER; FRT LID 1-79338-007-1 01 1 0609-
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 0609-
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 0609-
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0609-
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0609-
561 COVER; HEATER CORE 1-71998-829-1 01 1 0609-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0609-
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 0609-
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0609-
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0609-
568 PATCH; INST REINF 1-61480-675-2 02 1 0609-
569 PATCH; LWR GRIP 1-61480-689-2 01 1 0609-
569 PATCH; LWR GRIP 1-61480-736-2 01 1 0609-
571 CLIP; SEAL
(A) 		1-09987-228-0 12 1 0609-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0609-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0609-
576 FRAME; INST SIDE 1-62280-176-6 01 1 0609-
576 FRAME; INST SIDE 1-62280-177-7 01 1 0609-
577 BRACKET; IDLER 1-62280-195-0 01 1 0609-
578 COVER; WIPER MOTOR 1-62280-173-4 01 1 0609-
585 PLATE; EVAPOLATOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-71996-084-1 01 1 0609-
617 SEAL; DASH 1-61281-497-1 02 1 0609-
620 SEAL; FRT MTG
OD=25 BLACK 		1-76798-019-0 02 1 0609-

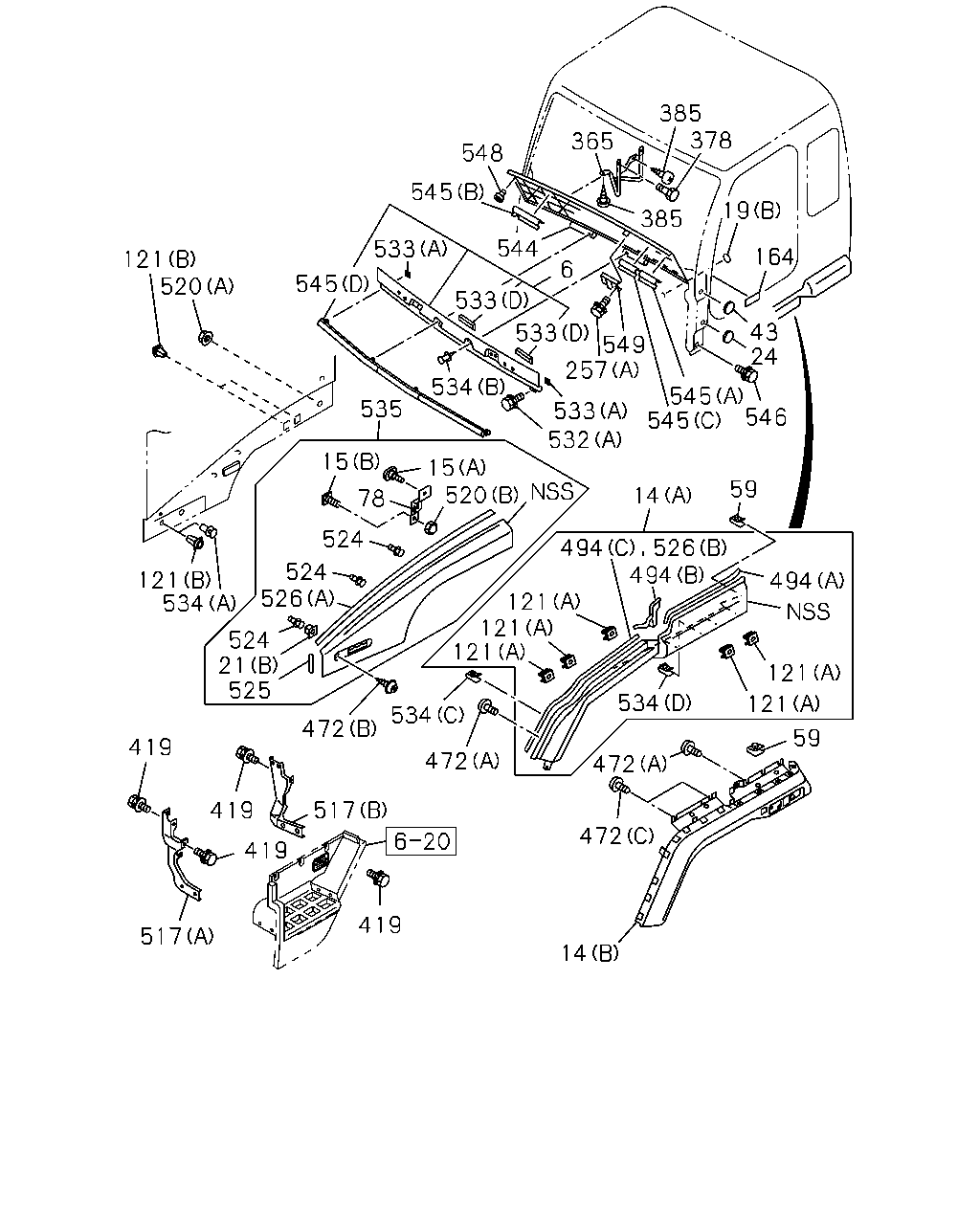

çizim 25934
385 378 365 548 545 19 385 544 533 164 121 520 6 545 533 43 24 533 549 257 534 545 545 546 535 533 532 15 15 520 59 78 14 524 494 524 526 121 534 494 121 121 121 524 21 525 121 534 121 534 472 59 419 472 472 419 517 419 472 419 517 14 494 526
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65481-744-2 01 1 0609-
14 FENDER; FRT
(B) GRAY 		1-71996-177-1 01 1 0609-
14 FENDER; FRT
(B) GRAY 		1-71996-178-1 01 1 0609-
14 FENDER; FRT
(A) WHITE 		1-65482-044-0 01 1 0609-
14 FENDER; FRT
(A) WHITE 		1-65482-045-0 01 1 0609-
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 0609-
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 0609-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0609-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0609-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0609-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0609-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0609-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0609-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0609-
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 04 1 0609-
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0609-
59 GROMMET; SCREW 8-94279-723-0 02 1 0609-
78 BRACKET; FENDER 1-71268-322-0 01 1 0609-
78 BRACKET; FENDER 1-71268-323-0 01 1 0609-
121 GROMMET; FENDER
(B) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 12 1 0609-
121 GROMMET; FENDER
(A) 		8-94279-723-0 16 1 0609-
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0609-
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0609-
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0609-0904
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
365 SUPPORT; FENDER 1-71996-147-1 01 1 0609-
378 BOLT; SUPPORT
M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0609-
385 SCREW; FENDER LWR
M6X30 		1-65481-387-0 04 1 0609-
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0609-0904
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905-
419 BOLT; STEP
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0609-
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 08 1 0609-
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 26 1 0609-
472 SCREW; FENDER TO CAB
(C) M6X25 		1-65481-736-0 04 1 0609-
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0609-
494 FINISHER; FENDER
BODY COLOR ARC WHITE(729) (C) 		1-71998-900-3 02 1 0609-0610
494 FINISHER; FENDER
BODY COLOR ARC WHITE(729) (C) 		1-71907-641-0 02 1 0611-
494 FINISHER; FENDER
BODY COLOR ARC WHITE(729) (A) 		1-71998-999-0 02 1 0609-0705
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 0706-
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 0609-
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 0609-
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-2 01 1 0609-
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-4 01 1 0609-
517 SUPPORT; STEP PANEL
(A) 		1-71998-779-5 01 1 0609-
517 SUPPORT; STEP PANEL
(A) 		1-71998-780-5 01 1 0609-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0609-
520 NUT; FENDER
(B) M6 		1-09984-189-0 02 1 0609-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0609-
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0609-
526 FINISHER; FENDER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B) 		1-71998-900-3 02 1 0609-0610
526 FINISHER; FENDER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B) 		1-71907-641-0 02 1 0611-
526 FINISHER; FENDER
(A) 		1-71268-275-1 02 1 0609-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0609-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0609-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0609-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 0609-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 0609-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0609-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0609-1302
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303-
534 FASTENER
(C) 		1-71996-035-1 06 1 0609-
534 FASTENER
(D) 		1-71996-035-1 20 1 0609-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0609-
535 FENDER; BLISTER
WHITE 		1-71268-428-1 01 1 0609-
535 FENDER; BLISTER
WHITE 		1-71268-429-1 01 1 0609-
544 LID; FRT 1-71108-235-3 01 1 0609-
545 SEAL; FRT LID
(B) 		1-71996-253-1 01 1 0609-
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 0609-
545 SEAL; FRT LID
(D) 		1-71998-814-4 01 1 0609-
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 0609-
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 0609-
548 STRIKER; FRT LID PANEL 1-79318-008-1 02 1 0609-
549 BRACKET; STOPPER,FRT LID 1-71108-358-0 01 1 0609-
