4-30 — STEERING WHEEL AND COWL (#2494) — 31 parça

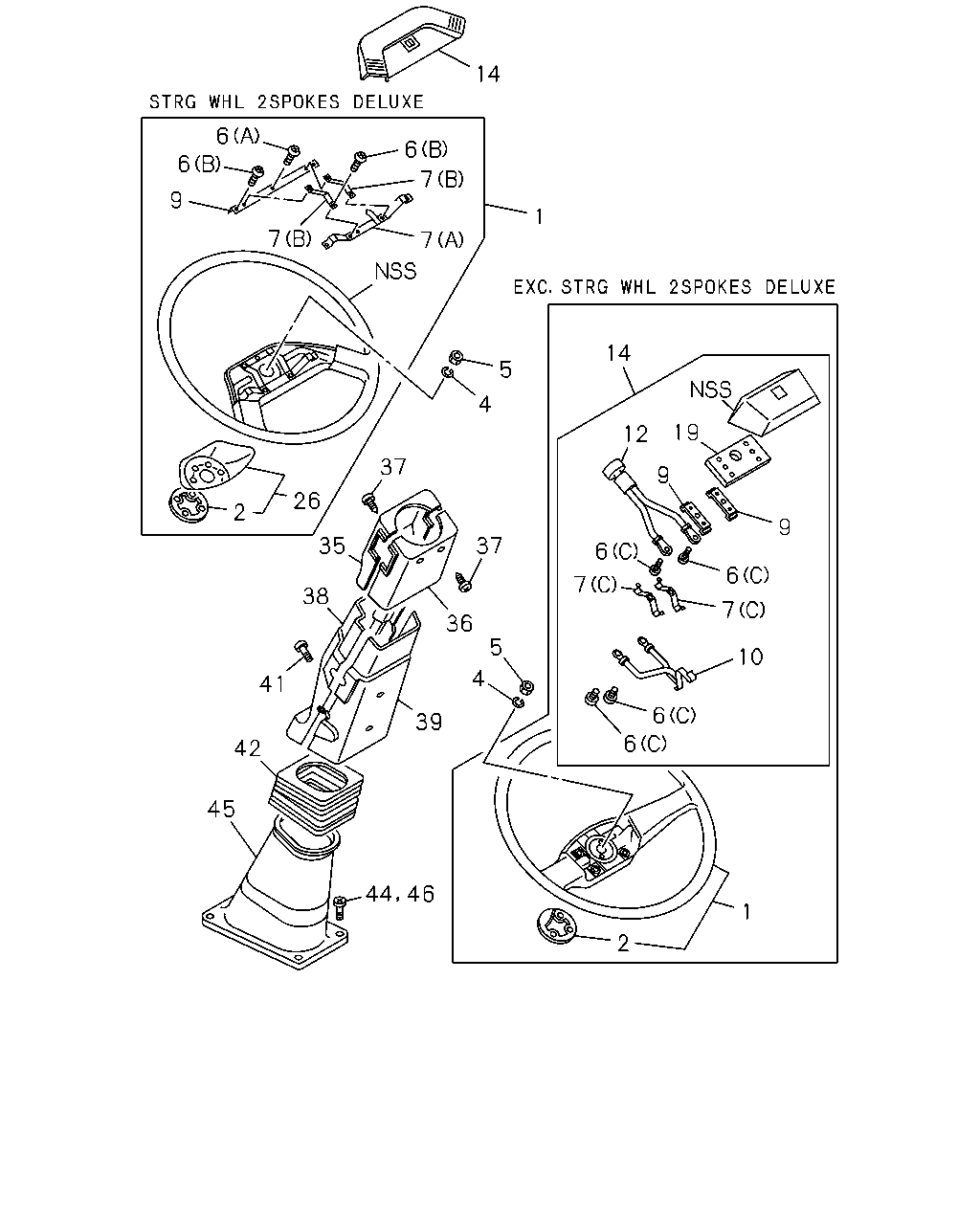

çizim 29197
14 6 6 6 7 9 1 7 7 14 5 4 19 12 37 9 26 2 9 35 37 6 6 7 38 7 36 5 10 4 41 6 39 6 42 45 2 1 44 46
BalonParca AdiParca NoAdetTipApplied Date
1 WHEEL; STRG
STEERING WHEEL 2SPOKES DELUXE<N32> 		1-44110-064-4 01 1 9002-
1 WHEEL; STRG
EXC. STEERING WHEEL 2SPOKES DELUXE<N32> 		1-44110-048-3 01 1 9002-
2 RING; HORN CONTACT 1-44129-020-2 01 1 9002-
4 WASHER; LK,STRG WHEEL
ID=20.2 		9-09150-520-0 01 1 9002-
5 NUT; STRG WHEEL TO SHAFT
M20 		9-99110-420-0 01 1 9002-
6 SCREW; HORN SPR CONTACT
STEERING WHEEL 2SPOKES DELUXE<N32> (A) M4X10 		1-44129-034-0 01 1 9002-
6 SCREW; HORN SPR CONTACT
STEERING WHEEL 2SPOKES DELUXE<N32> (B) 		1-44129-035-0 06 1 9002-
6 SCREW; HORN SPR CONTACT
EXC. STEERING WHEEL 2SPOKES DELUXE<N32> (C) M3X10 TAPPING 		9-07076-310-0 06 1 9002-
7 SPRING; HORN CONTACT
STEERING WHEEL 2SPOKES DELUXE<N32> (A) 		1-44129-032-1 01 1 9002-
7 SPRING; HORN CONTACT
STEERING WHEEL 2SPOKES DELUXE<N32> (B) 		1-44129-033-0 02 1 9002-
7 SPRING; HORN CONTACT
EXC. STEERING WHEEL 2SPOKES DELUXE<N32> (C) 		1-44129-026-0 02 1 9002-
9 PLATE; HORN CONTACT
STEERING WHEEL 2SPOKES DELUXE<N32> 		1-44129-031-0 01 1 9002-9312
9 PLATE; HORN CONTACT
STEERING WHEEL 2SPOKES DELUXE<N32> 		1-44129-038-0 01 1 9401-
9 PLATE; HORN CONTACT
EXC. STEERING WHEEL 2SPOKES DELUXE<N32> 		1-44126-002-0 02 1 9002-
10 SPRING ASM; LEAD
EXC. STEERING WHEEL 2SPOKES DELUXE<N32> 		1-44129-027-2 01 1 9002-
12 CORD; HORN
EXC. STEERING WHEEL 2SPOKES DELUXE<N32> 		1-44127-003-0 01 1 9002-
14 BUTTON; HORN,STRG WHEEL
STEERING WHEEL 2SPOKES DELUXE<N32> 		1-44120-019-1 01 1 9002-
14 BUTTON; HORN,STRG WHEEL
EXC. STEERING WHEEL 2SPOKES DELUXE<N32> 		1-44120-016-3 01 1 9002-
19 SEAT; HORN
EXC. STEERING WHEEL 2SPOKES DELUXE<N32> 		1-44129-028-3 01 1 9002-
26 COVER; STRG WHEEL,LWR
STEERING WHEEL 2SPOKES DELUXE<N32> 		1-44120-021-1 01 1 9002-
35 COWL; STRG,UPR FRT 1-79997-097-3 01 1 9002-
36 COWL; STRG,UPR RR 1-79997-099-2 01 1 9002-
37 SCREW; STRG COWL UPR
M5X12 TAPPING 		9-09829-321-1 04 1 9002-
38 COWL; STRG,LWR FRT 1-79997-102-2 01 1 9002-
39 COWL; STRG,LWR RR 1-79997-106-1 01 1 9002-
41 SCREW; STRG COWL LWR
M6X12 W/PL WASHER 		1-09981-380-0 02 1 9002-
41 SCREW; STRG COWL LWR
W0/WASHER M6X12 		9-03494-612-0 02 1 9002-
42 BOOT; STEERING COLUMN 1-44219-044-0 01 1 9002-
44 SCREW; STRG COWL
M6X16 		1-09981-425-0 04 1 9002-9207
45 BOOT; STRG SHAFT 1-79998-184-1 01 1 9002-
46 SCREW; STRG SHAFT BOOT
M6X16 W/PL WASHER 		1-09981-505-0 04 1 9208-
