◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11029 - FTR(RHD) EURO4 ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#24935) — 19 parça

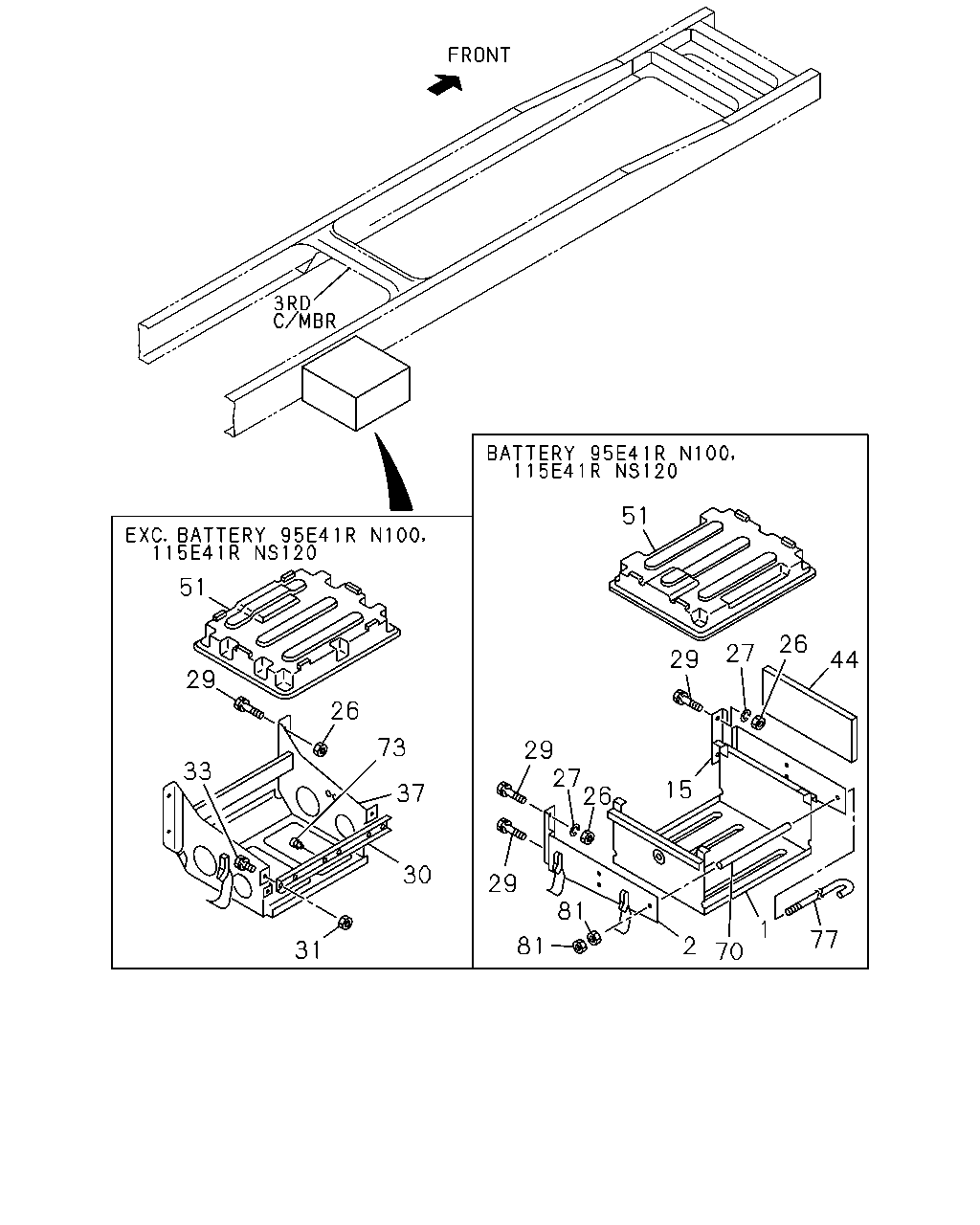

çizim 86931
51 51 26 27 29 44 29 26 73 29 27 26 33 15 37 30 29 81 1 77 81 2 31 70
BalonParca AdiParca NoAdetTipApplied Date
1 CARRIER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		9-53613-584-3 01 1 0609-
2 BRACKET; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53613-339-3 01 1 0609-
15 BRACKET; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53613-340-3 01 1 0609-
26 NUT; BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14 		0-91110-514-0 04 1 0609-
26 NUT; BRKT
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10 		0-91110-510-0 04 1 0609-
27 WASHER; LK,BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=14.2 		0-91510-514-0 04 1 0609-
29 BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14X35 		0-20851-435-0 04 1 0609-
29 BOLT; BRKT TO FRAME
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X35 FLANGE 		0-28651-035-0 04 1 0609-
30 PLATE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53616-046-3 01 1 0609-
31 NUT; PLATE
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		0-91110-508-0 02 1 0609-
33 BOLT; PLATE TO BRKT
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8X20 FLANGE 		0-28650-820-0 02 1 0609-
37 BRACKET; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53613-508-0 01 1 0609-
44 SPACER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53619-006-0 02 1 0609-
51 COVER; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53612-029-1 01 1 0609-
51 COVER; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53612-019-1 01 1 0609-
70 SPACER; BATTERY CARRIER
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53619-023-0 01 1 0609-
73 RUBBER; CUSHION,PLATE
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-09337-002-0 04 1 0609-
77 BOLT; BATTERY BRKT,FRT TO RR
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-53616-101-0 02 1 0609-
81 NUT; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8 		0-91110-508-0 04 1 0609-
