Sayfa 5-15 - Isuzu EPC

5-15 — CAB MOUNTING; CAB SIDE (#24934) — 73 parça

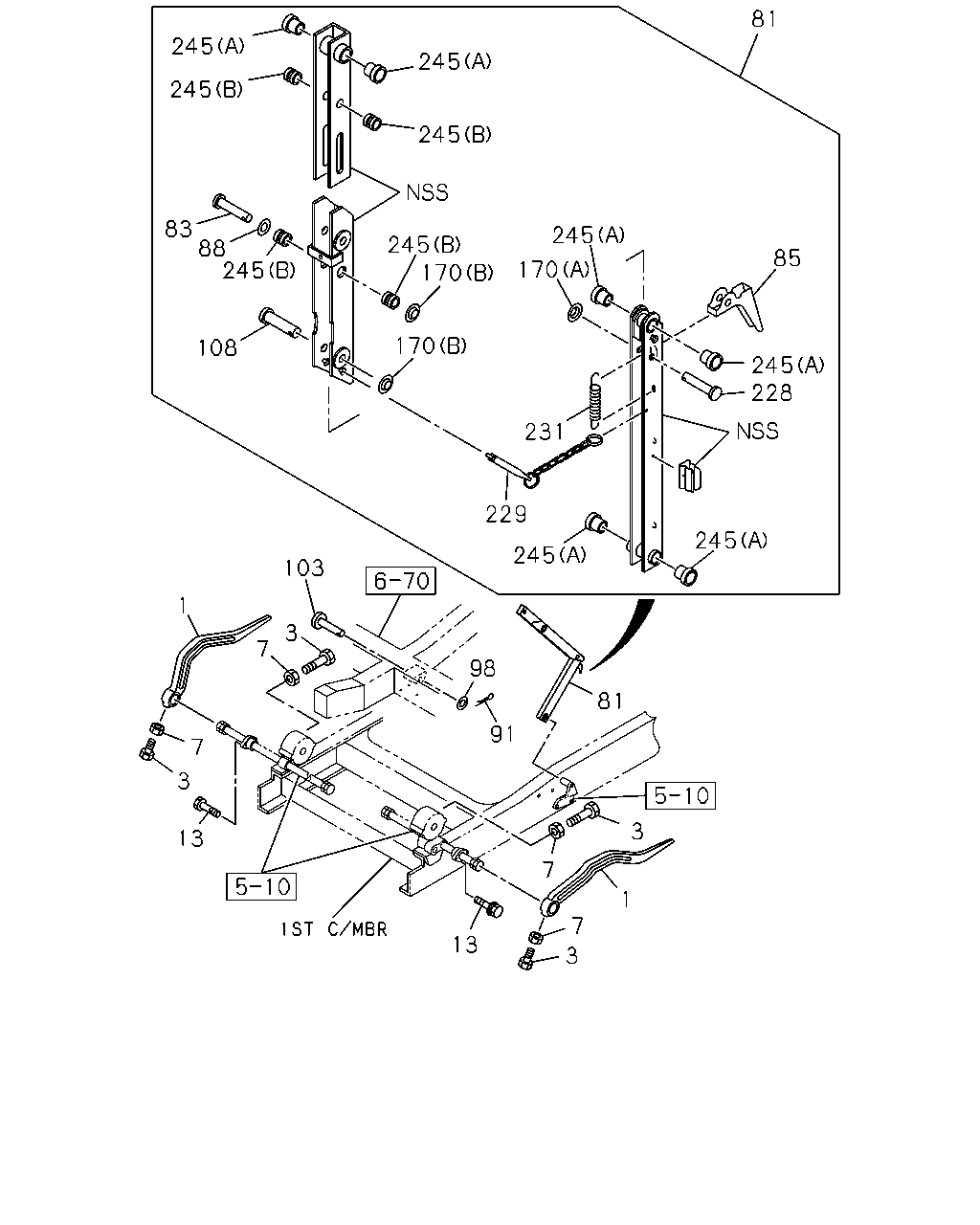

81 245 245 245 245 83 88 245 245 245 170 85 170 170 108 245 228 231 229 245 245 103 1 3 7 98 81 91 7 3 3 13 7 1 7 13 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LEVER; TORSION BAR	1-53458-283-0	01	1	0609-
1	LEVER; TORSION BAR	1-53458-284-0	01	1	0609-
3	BOLT; LEVER M10X32	1-09000-435-0	04	1	0609-
7	NUT; LK,LEVER M10	0-91110-510-0	04	1	0609-
13	BOLT; BUSHING,TORSION BAR M6X12 FLANGE	0-28050-612-0	02	1	0609-
81	STAY ASM; CAB TILT HONG KONG EQUIPMENT(PQ1)	1-62500-754-0	01	1	0609-1406
81	STAY ASM; CAB TILT HONG KONG EQUIPMENT(PQ1)	8-98278-110-0	01	1	1407-
81	STAY ASM; CAB TILT SINGAPORE EQUIPMENT(WQ3)	1-62500-761-0	01	1	0609-1406
81	STAY ASM; CAB TILT SINGAPORE EQUIPMENT(WQ3)	8-98278-116-0	01	1	1407-
83	PIN; JOINT,CAB STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) OD=10 L=42	1-09744-106-0	01	1	0609-
85	LEVER; LOCK,CAB STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-62500-503-0	01	1	0609-
88	WASHER; PL,CAB STAY PIN HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=10.5 T=2.0	1-09985-183-0	01	1	0609-
91	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	0609-
98	WASHER; CAB STAY ID=10.5 T=2.0	1-09985-183-0	01	1	0609-
103	PIN; JOINT,CAB STAY	1-09744-108-1	01	1	0609-
108	PIN; ADJ,CAB STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) OD=10 L=42	1-09744-106-0	01	1	0609-
170	NUT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=7.9 PUSH NUT	8-97022-565-0	01	1	0609-
170	NUT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=9.9 PUSH NUT	8-97022-566-0	02	1	0609-
228	PIN; SAFETY LOCK SPRING,CAB STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-09744-086-2	01	1	0609-
229	PIN ASM; SAFETY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-62500-517-1	01	1	0609-
231	SPRING; RETURN,LOCK LEVER,CAB STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-09583-244-0	01	1	0609-
245	BUSHING; CAB STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-62500-587-0	06	1	0609-
245	BUSHING; CAB STAY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-62500-588-0	04	1	0609-

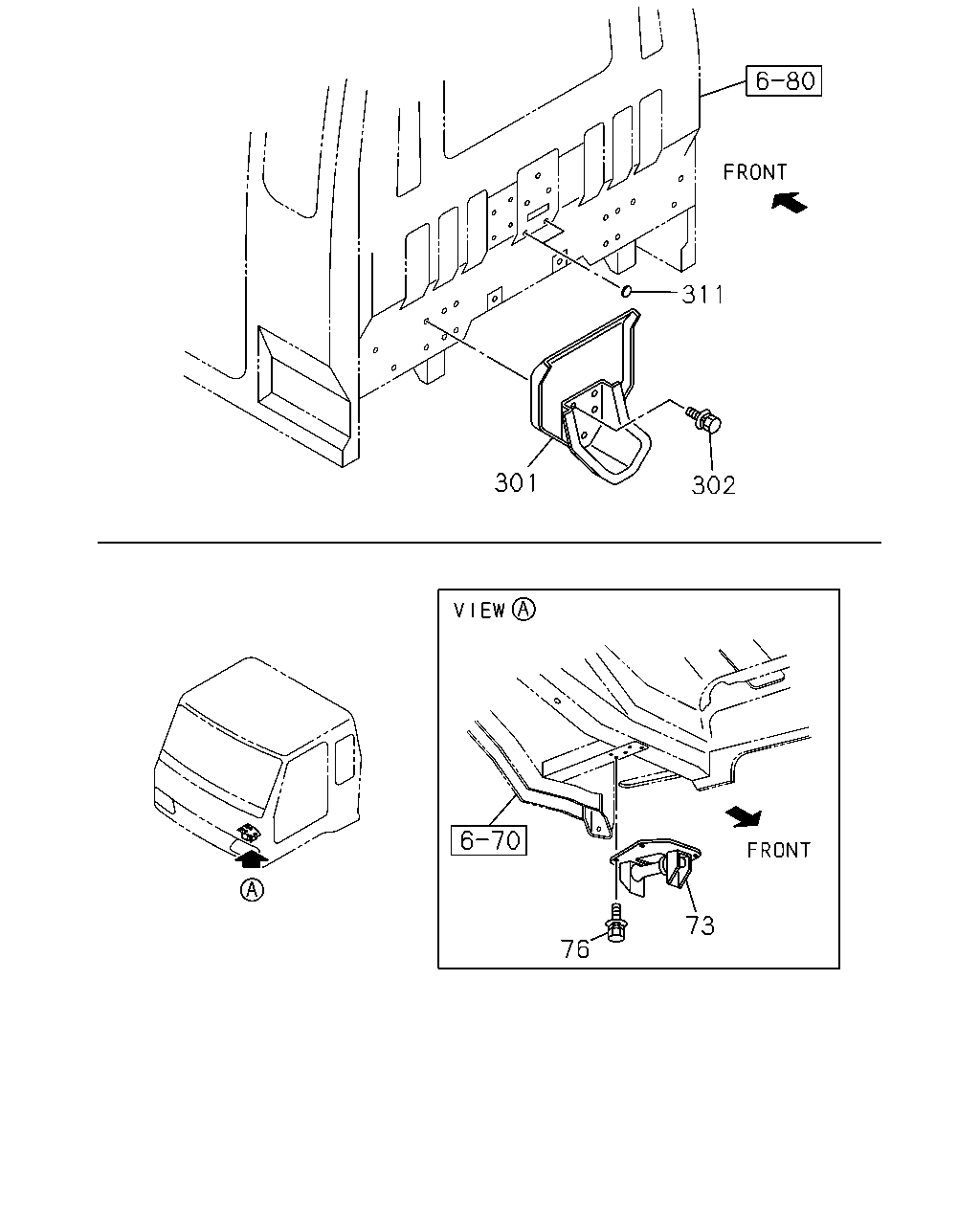

311 301 302 73 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
73	PAD; TORSION BAR	1-53459-790-1	02	1	0609-
76	BOLT; PAD M10X30 W/LK&PL WASHER	8-94279-213-0	06	1	0609-
301	BRACKET; RR MTG,CAB	1-62580-282-3	01	1	0609-
301	BRACKET; RR MTG,CAB	1-62580-283-3	01	1	0609-
302	BOLT; BRKT,CAB M10X25 W/LK&PL WASHER	1-09980-488-0	02	1	0609-
302	BOLT; BRKT,CAB M8X25 W/LK&PL WASHER	1-09980-526-0	08	1	0609-
311	SEAL; CAB LOCK OD=30 BLACK	1-76798-035-0	02	1	0609-

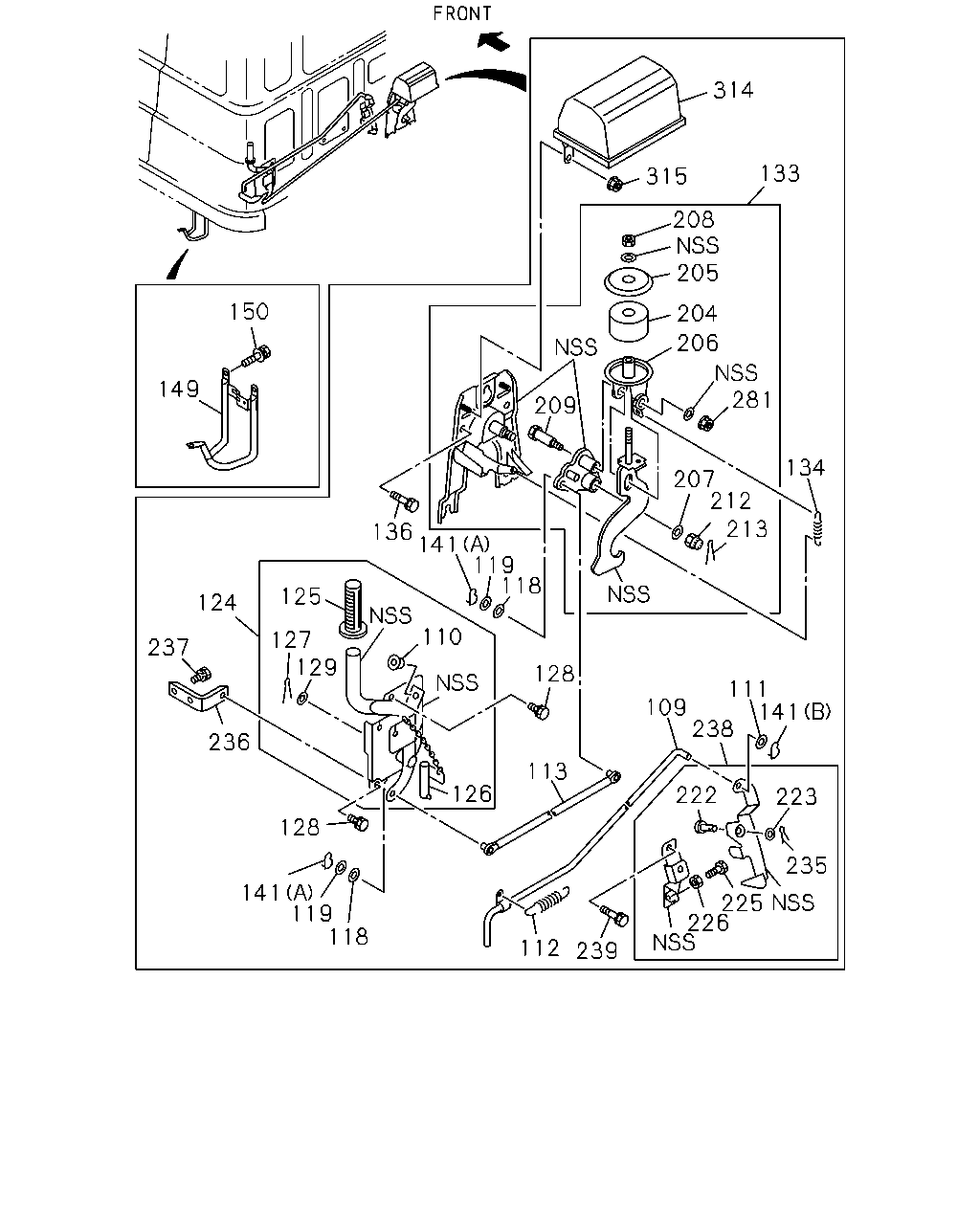

314 133 315 150 149 208 205 204 206 281 209 207 212 213 134 136 141 119 118 125 110 124 127 129 237 236 128 126 113 109 238 111 141 128 141 119 118 112 239 226 225 235 223 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
109	ROD; SAFETY,CAB LK	1-79718-642-1	01	1	0609-
110	BUSHING; SAFETY ROD,CAB LOCK	1-79718-319-1	01	1	0609-
111	WASHER; PL,SAFETY ROD	1-09985-137-0	01	1	0609-
112	SPRING; RETURN,SAFETY ROD	1-79718-655-0	01	1	0609-
113	ROD; CONN,CAB LK	1-79718-583-0	01	1	0609-
118	WASHER; PL,CONNROD ID=10.5	1-09985-107-0	02	1	0609-
119	WASHER; WAVE,CAB LOCK ROD	1-09985-045-0	02	1	0609-
124	LEVER ASM; HAND,CAB LK	1-79718-585-4	01	1	0609-1403
124	LEVER ASM; HAND,CAB LK	8-98268-403-0	01	1	1404-
125	GRIP; HAND LEVER,CAB LOCK	1-79718-303-2	01	1	0609-
126	PIN; LK,HAND LEVER	1-79718-594-1	01	1	0609-1403
126	PIN; LK,HAND LEVER	8-98268-412-0	01	1	1404-
127	PIN; SPLIT,BRKT L=30 L=30	1-09987-080-0	01	1	1404-
128	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0609-0904
128	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-
129	WASHER; PL,BRKT ID=17	1-09985-109-0	01	1	0609-
133	LOCK ASM; CAB	1-79718-656-0	01	1	0609-
134	SPRING; CAB LK LEVER	1-79718-538-1	01	1	0609-
136	BOLT; CAB LK M10X25 W/LK&PL WASHER	1-09980-488-0	05	1	0609-
141	PIN; SNAP,CAB LOCK ROD (B) L=27.7	1-09987-141-0	01	1	0609-
141	PIN; SNAP,CAB LOCK ROD (A) L=32.6	1-09987-142-0	02	1	0609-
149	HANDLE; TILT	1-71996-146-1	01	1	0609-
150	BOLT; TILT HANDLE M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	0609-
204	RUBBER; REBOUND,CAB LK	1-79718-429-1	01	1	0609-
205	PLATE; SUPPORT,REBOUND RUBBER	1-79718-129-1	01	1	0609-
206	SUPPORT; REBOUND RUBBER	1-79718-434-0	01	1	0609-
207	WASHER; PL,SUPPORT PLATE ID=19 OD=44	1-09985-113-0	01	1	0609-
208	NUT; SUPPORT PLATE M14 LOCK NUT W/FLANGE	1-79718-526-0	01	1	0609-
209	PIN; JOINT,SUPPORT	1-79718-523-0	01	1	0609-
212	NUT; BRKT,CAB LOCK M18 SLOTTED	1-09984-079-0	01	1	0609-
213	PIN; SPLIT,BRKT,CAB LK OD=3.7 L=30	9-08114-030-0	01	1	0609-
222	PIN; JOINT,SAFETY LK	1-09987-159-0	01	1	0609-
223	WASHER; PL,SAFETY LK ID=12.5 OD=22 T=1.6	1-09985-108-0	01	1	0609-
225	BOLT; SAFETY LK M8X30	1-09980-277-0	01	1	0609-
226	NUT; SAFETY LK M8	1-09984-065-0	01	1	0609-
235	PIN; SNAP	1-09987-158-1	01	1	0609-
236	SUPPORT ASM; HAND LEVER,CAB LOCK	1-79718-493-0	01	1	0609-
237	BOLT; HAND LEVER SUPPORT,CAB LOCK M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0609-
238	LOCK ASM; SAFETY,CAB TILT	1-79718-612-1	01	1	0609-
239	BOLT; SAFETY LK M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0609-
281	NUT; SUPPORT M12 LOCK NUT W/FLANGE	1-79718-524-1	01	1	0609-
314	COVER; CAB LOCK	1-79718-575-1	01	1	0609-
315	NUT; COVER M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0609-
