5-01 — FRAME AND OTHER PARTS (#24932) — 181 parça

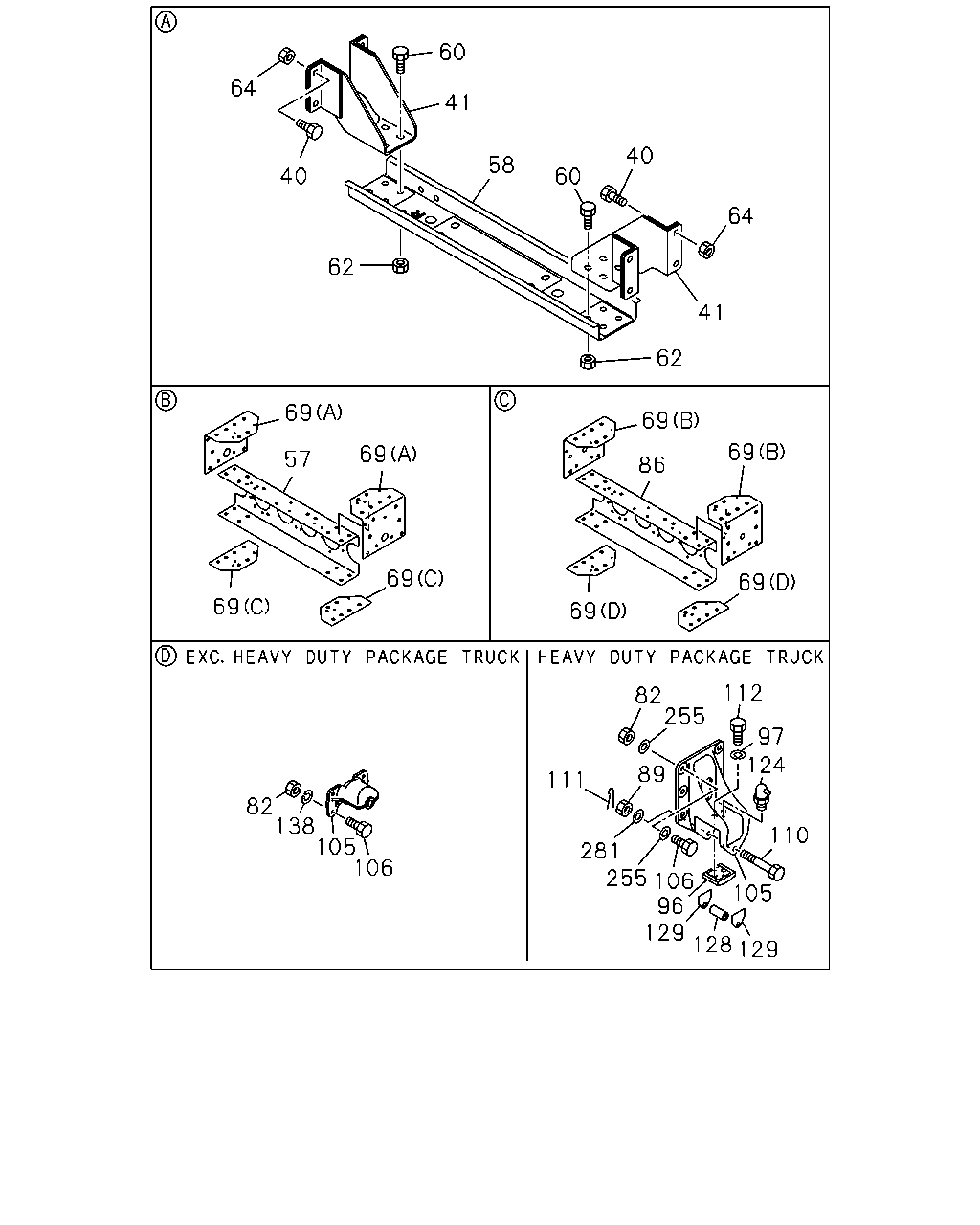

60 64 41 40 58 40 60 64 62 41 62 69 69 69 69 57 86 69 69 69 69 112 82 255 97 124 89 111 82 138 105 106 281 255 106 105 96 129 110 128 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	BOLT; BRKT TO FRAME M10X40 FLANGE	0-28651-040-0	08	1	0609-	●
41	BRACKET; CENTER BRG,FRAME SIDE	1-37515-085-0	02	1	0609-	●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-691-4	01	1	0609-	●
57	MEMBER; CROSS,RR SUSP FRT EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-691-4	01	1	0609-		●
57	MEMBER; CROSS,RR SUSP FRT HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-815-1	01	1	0609-		●
58	MEMBER; CENTER BRG	1-37529-079-1	01	1	0609-0609	●
58	MEMBER; CENTER BRG	1-37529-052-3	01	1	0610-	●
60	BOLT; MBR M10X25 FLANGE	0-28651-025-0	08	1	0609-	●
62	NUT; MBR M10 FLANGE	0-91150-210-0	08	1	0609-0609	●
62	NUT; MBR M10 FLANGE	0-91180-210-0	08	1	0610-	●
64	NUT; BRKT TO FRAME M10 FLANGE	0-91150-210-0	08	1	0609-0609	●
64	NUT; BRKT TO FRAME M10 FLANGE	0-91180-210-0	08	1	0610-	●
69	GUSSET; RR SUSP,UPR (B)	1-53167-247-1	01	1	0609-	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-53167-247-1	01	1	0609-		●
69	GUSSET; RR SUSP,UPR (B)	1-53167-248-1	01	1	0609-	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-53167-248-1	01	1	0609-		●
69	GUSSET; RR SUSP,UPR (A)	1-53167-309-0	01	1	0609-	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-53167-309-0	01	1	0609-		●
69	GUSSET; RR SUSP,UPR (A)	1-53167-310-0	01	1	0609-	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-53167-310-0	01	1	0609-		●
69	GUSSET; RR SUSP,UPR (D)	1-53167-099-4	02	1	0609-	●	●
69	GUSSET; RR SUSP,UPR (C)	1-53167-100-3	02	1	0609-	●	●
69	GUSSET; RR SUSP,UPR HEAVY DUTY PACKAGE TRUCK<RD2> (A) 21-HOLE	1-53167-095-5	01	1	0609-		●
69	GUSSET; RR SUSP,UPR HEAVY DUTY PACKAGE TRUCK<RD2> (A) 21-HOLE	1-53167-096-4	01	1	0609-		●
69	GUSSET; RR SUSP,UPR HEAVY DUTY PACKAGE TRUCK<RD2> (B) 17-HOLE	1-53167-097-5	01	1	0609-		●
69	GUSSET; RR SUSP,UPR HEAVY DUTY PACKAGE TRUCK<RD2> (B) 17-HOLE	1-53167-098-5	01	1	0609-		●
82	NUT; BRKT M14	0-91110-514-0	20	1	0609-	●
82	NUT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14	0-91110-514-0	20	1	0609-		●
82	NUT; BRKT HEAVY DUTY PACKAGE TRUCK<RD2> M14	0-91110-514-0	24	1	0609-		●
86	MEMBER; CROSS,RR SUSP RR	1-53181-691-4	01	1	0609-	●
86	MEMBER; CROSS,RR SUSP RR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-691-4	01	1	0609-		●
86	MEMBER; CROSS,RR SUSP RR HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-815-1	01	1	0609-		●
89	NUT; LEAF SPR STOPPER HEAVY DUTY PACKAGE TRUCK<RD2> M14 SLOTTED	0-91116-514-0	02	1	0609-	●	●
96	PAD; RR SPR HEAVY DUTY PACKAGE TRUCK<RD2>	1-53359-047-0	02	1	0609-	●	●
97	WASHER; LK,PAD HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2	0-91510-514-0	04	1	0609-	●	●
105	BRACKET; RR SPR,RR	1-53353-072-1	02	1	0609-	●
105	BRACKET; RR SPR,RR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53353-072-1	02	1	0609-		●
105	BRACKET; RR SPR,RR HEAVY DUTY PACKAGE TRUCK<RD2>	1-53354-064-1	02	1	0609-		●
106	BOLT; BRKT M14X45	0-20801-445-0	20	1	0609-	●
106	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45	0-20801-445-0	20	1	0609-		●
106	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK<RD2> M14X45	9-92061-445-0	24	1	0609-		●
110	BOLT; LEAF SPR STOPPER HEAVY DUTY PACKAGE TRUCK<RD2>	1-09000-007-0	02	1	0609-	●	●
111	PIN; SPLIT,LEAF SPR STOPPER HEAVY DUTY PACKAGE TRUCK<RD2> OD=2.8 L=28	0-81123-028-0	02	1	0609-	●	●
112	BOLT; PAD HEAVY DUTY PACKAGE TRUCK<RD2> M14X35	0-20851-435-0	04	1	0609-	●	●
124	NIPPLE; GREASE HEAVY DUTY PACKAGE TRUCK<RD2> PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0609-	●	●
128	COLLAR; RUBBER HEAVY DUTY PACKAGE TRUCK<RD2>	1-53359-004-0	02	1	0609-	●	●
129	SHIM; SIDE HEAVY DUTY PACKAGE TRUCK<RD2> T=4.5	1-53359-061-1	02	1	0609-	●	●
129	SHIM; SIDE HEAVY DUTY PACKAGE TRUCK<RD2> T=3.2	1-53359-062-1	02	1	0609-	●	●
138	WASHER; LK,BRKT ID=14.2	0-91510-614-0	20	1	0609-	●
138	WASHER; LK,BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2	0-91510-614-0	20	1	0609-		●
255	WASHER; PL,BRKT HEAVY DUTY PACKAGE TRUCK<RD2> ID=15	9-09651-069-0	48	1	0609-1201		●
255	WASHER; PL,BRKT HEAVY DUTY PACKAGE TRUCK<RD2> ID=15	8-98010-627-1	48	1	1202-		●
281	WASHER; LEAF SPR STOPPER HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 OD=30	9-09160-614-0	04	1	0609-	●	●

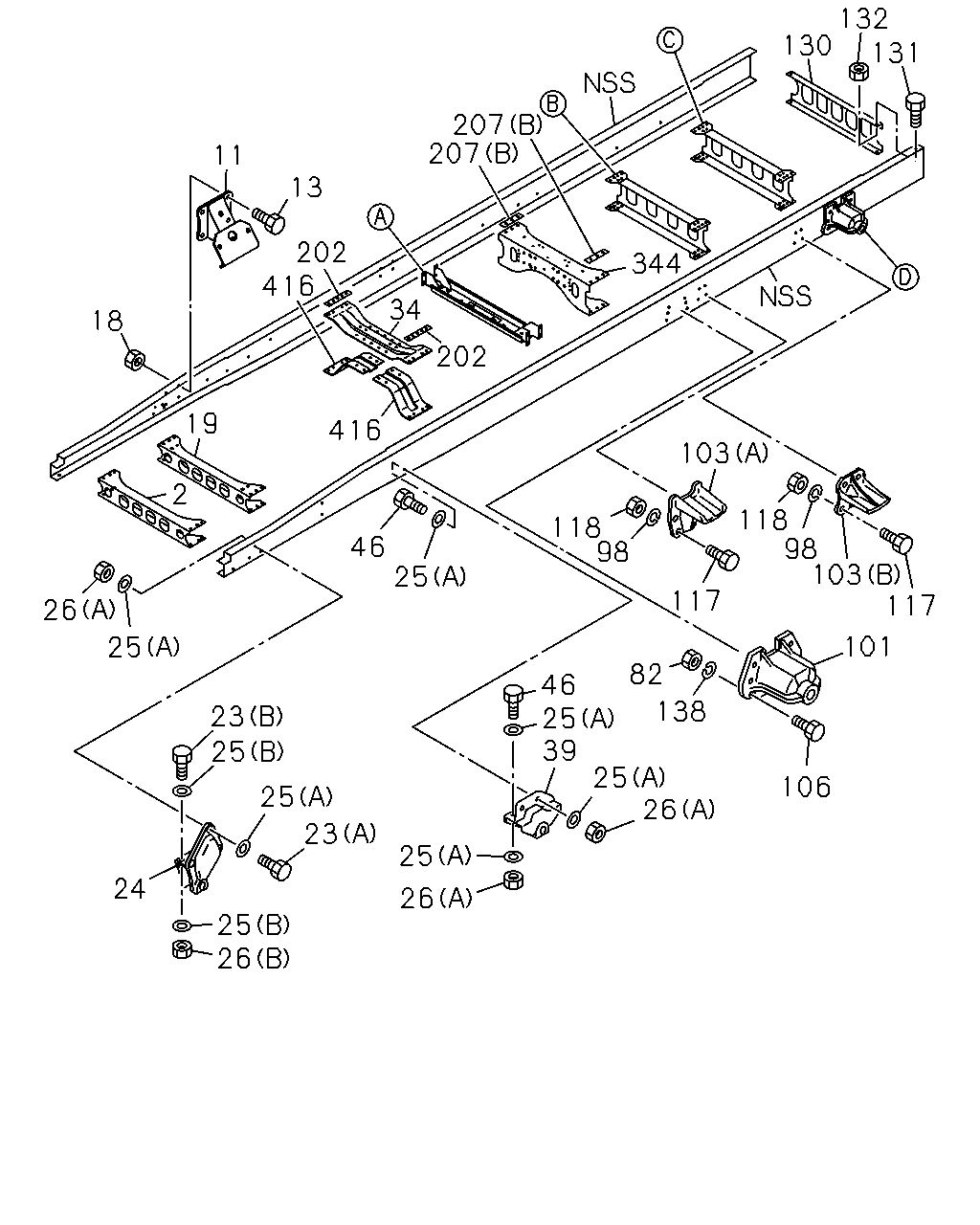

132 130 131 207 207 11 13 202 416 34 202 344 18 19 2 416 103 118 98 103 117 118 98 46 25 117 26 101 25 82 46 25 39 138 23 25 25 26 106 25 23 25 24 26 25 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST	1-53181-991-2	01	1	0609-	●
2	MEMBER; CROSS,1ST HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-991-2	01	1	0609-		●
2	MEMBER; CROSS,1ST EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-696-7	01	1	0609-		●
11	BRACKET; ENG MTG	1-53211-196-0	02	1	0609-	●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	0609-	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	0609-	●	●
19	MEMBER; CROSS,2ND	1-53181-992-3	01	1	0609-	●
19	MEMBER; CROSS,2ND HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-992-3	01	1	0609-		●
19	MEMBER; CROSS,2ND EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-714-8	01	1	0609-		●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	0609-	●	●
23	BOLT; BRKT,SPR (A) M14X45	9-92061-445-0	06	1	0609-	●	●
24	BRACKET; FRT SPR,FRT	1-53351-148-3	01	1	0609-	●	●
24	BRACKET; FRT SPR,FRT	1-53351-149-3	01	1	0609-	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	0609-	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	28	1	0609-1201	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1202-	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	0609-	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0609-	●	●
34	MEMBER; CROSS,3RD	1-53174-231-1	01	1	0609-	●	●
39	BRACKET; FRT SPR,RR	1-53352-124-2	01	1	0609-	●	●
39	BRACKET; FRT SPR,RR	1-53352-125-2	01	1	0609-	●	●
46	BOLT; BRKT FIX M14X45	9-92061-445-0	08	1	0609-	●
46	BOLT; BRKT FIX EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45	9-92061-445-0	08	1	0609-		●
46	BOLT; BRKT FIX HEAVY DUTY PACKAGE TRUCK<RD2> M14X40	0-20951-440-0	08	1	0609-		●
82	NUT; BRKT M14	0-91110-514-0	20	1	0609-	●
82	NUT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14	0-91110-514-0	20	1	0609-		●
82	NUT; BRKT HEAVY DUTY PACKAGE TRUCK<RD2> M14	0-91110-514-0	24	1	0609-		●
98	WASHER; LK,STOPPER ID=14.2	0-91510-614-0	16	1	0609-	●
98	WASHER; LK,STOPPER EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2	0-91510-614-0	16	1	0609-		●
101	BRACKET; RR SPR,FRT	1-53353-072-1	02	1	0609-	●
101	BRACKET; RR SPR,FRT EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53353-072-1	02	1	0609-		●
101	BRACKET; RR SPR,FRT HEAVY DUTY PACKAGE TRUCK<RD2>	1-53353-078-1	02	1	0609-		●
103	STOPPER; SUB SPR (A)	1-53356-038-1	02	1	0609-	●
103	STOPPER; SUB SPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-53356-038-1	02	1	0609-		●
103	STOPPER; SUB SPR (B)	1-53357-029-1	02	1	0609-	●
103	STOPPER; SUB SPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-53357-029-1	02	1	0609-		●
103	STOPPER; SUB SPR HEAVY DUTY PACKAGE TRUCK<RD2> (C)	1-53356-057-0	04	1	0609-		●
106	BOLT; BRKT M14X45	0-20801-445-0	20	1	0609-	●
106	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45	0-20801-445-0	20	1	0609-		●
106	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK<RD2> M14X45	9-92061-445-0	24	1	0609-		●
117	BOLT; STOPPER M14X45	0-20801-445-0	16	1	0609-	●
117	BOLT; STOPPER EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45	0-20801-445-0	16	1	0609-		●
117	BOLT; STOPPER HEAVY DUTY PACKAGE TRUCK<RD2> M14X45	9-92061-445-0	16	1	0609-		●
118	NUT; STOPPER M14	0-91110-514-0	16	1	0609-	●	●
130	MEMBER; CROSS,END	1-53181-151-2	01	1	0609-	●	●
131	BOLT; END C/MBR M12X30 FLANGE	0-28651-230-0	04	1	0609-	●	●
132	NUT; END C/MBR M12 FLANGE	0-91180-112-0	04	1	0609-	●	●
138	WASHER; LK,BRKT ID=14.2	0-91510-614-0	20	1	0609-	●
138	WASHER; LK,BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2	0-91510-614-0	20	1	0609-		●
202	SPACER; 3RD C/MBR	1-53168-351-1	02	1	0609-	●	●
207	SPACER; 4TH C/MBR (B)	1-53168-162-2	02	1	0609-	●
207	SPACER; 4TH C/MBR (A)	1-53168-163-1	02	1	0609-		●
344	MEMBER; CROSS,4TH	1-53171-953-2	01	1	0609-	●
344	MEMBER; CROSS,4TH EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53171-953-2	01	1	0609-		●
344	MEMBER; CROSS,4TH HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-580-2	01	1	0609-		●
416	GUSSET; 3RD C/MBR	1-53164-213-0	01	1	0609-	●	●
416	GUSSET; 3RD C/MBR	1-53164-214-0	01	1	0609-	●	●

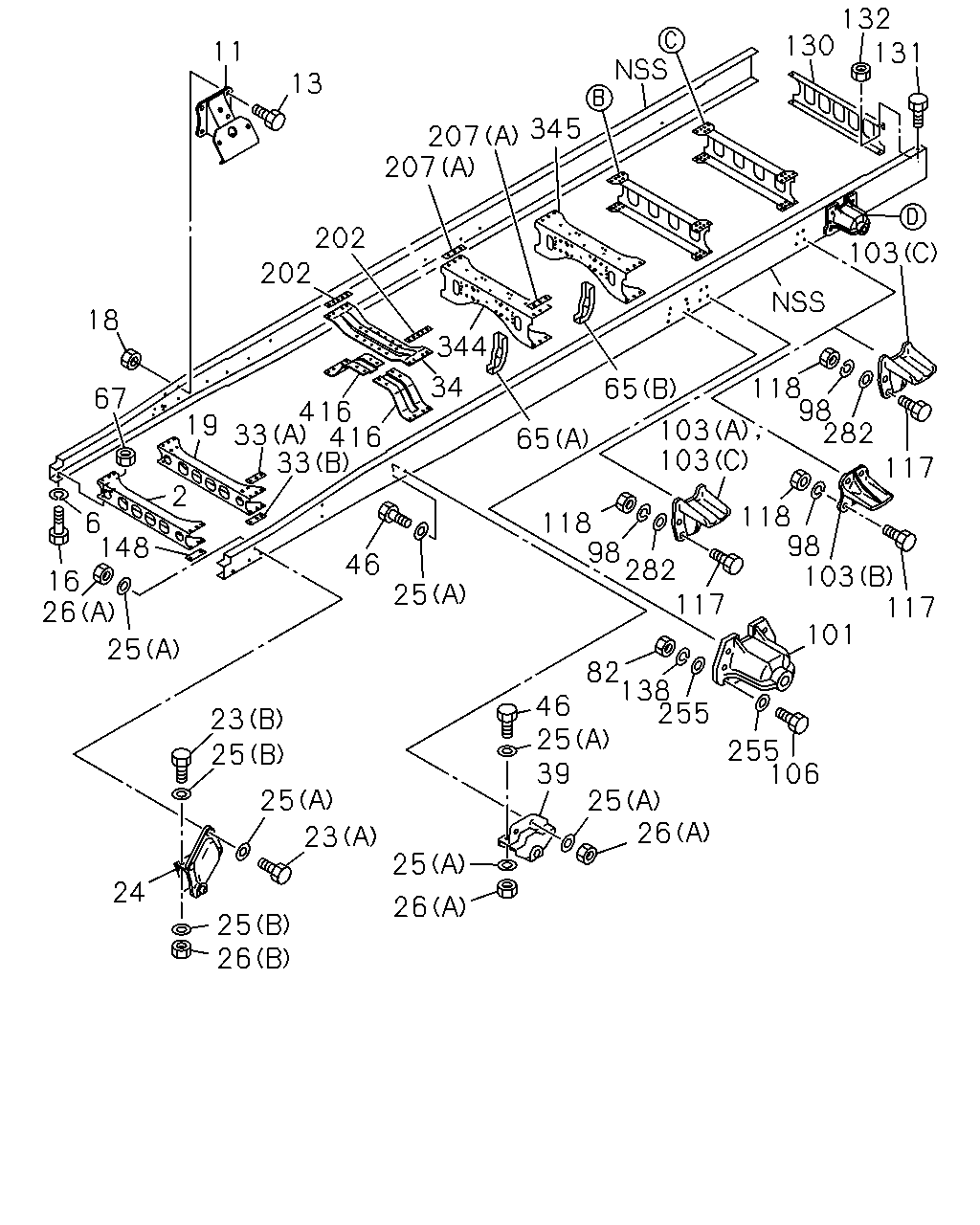

132 130 131 345 11 13 207 207 103 202 202 344 34 18 118 98 282 6 67 19 2 6 148 416 33 103 103 65 117 118 98 103 117 118 98 282 117 46 16 26 25 101 25 82 138 255 46 25 39 23 25 255 106 25 25 26 23 25 24 26 25 26 416 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST	1-53181-991-2	01	1	0609-	●
2	MEMBER; CROSS,1ST HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-991-2	01	1	0609-		●
2	MEMBER; CROSS,1ST EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-696-7	01	1	0609-		●
6	WASHER; LK,1ST C/MBR HEAVY DUTY PACKAGE TRUCK<RD2> ID=16.2	0-91510-616-0	02	1	0609-		●
11	BRACKET; ENG MTG	1-53211-196-0	02	1	0609-	●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	0609-	●	●
16	BOLT; 1ST C/MBR TO S/MBR HEAVY DUTY PACKAGE TRUCK<RD2> M16X40	0-20851-640-0	02	1	0609-		●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	0609-	●	●
19	MEMBER; CROSS,2ND	1-53181-992-3	01	1	0609-	●
19	MEMBER; CROSS,2ND HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-992-3	01	1	0609-		●
19	MEMBER; CROSS,2ND EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-714-8	01	1	0609-		●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	0609-	●	●
23	BOLT; BRKT,SPR (A) M14X45	9-92061-445-0	06	1	0609-	●	●
24	BRACKET; FRT SPR,FRT	1-53351-148-3	01	1	0609-	●	●
24	BRACKET; FRT SPR,FRT	1-53351-149-3	01	1	0609-	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	0609-	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	28	1	0609-1201	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1202-	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	0609-	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0609-	●	●
33	SPACER; 2ND C/MBR,UPR HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-53168-276-0	02	1	0609-		●
33	SPACER; 2ND C/MBR,UPR HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-53168-287-0	02	1	0609-		●
34	MEMBER; CROSS,3RD	1-53174-231-1	01	1	0609-	●	●
39	BRACKET; FRT SPR,RR	1-53352-124-2	01	1	0609-	●	●
39	BRACKET; FRT SPR,RR	1-53352-125-2	01	1	0609-	●	●
46	BOLT; BRKT FIX M14X45	9-92061-445-0	08	1	0609-	●
46	BOLT; BRKT FIX EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45	9-92061-445-0	08	1	0609-		●
46	BOLT; BRKT FIX HEAVY DUTY PACKAGE TRUCK<RD2> M14X40	0-20951-440-0	08	1	0609-		●
65	BRACKET; CENTER BRG HEAVY DUTY PACKAGE TRUCK<RD2> (A) L=300	1-53271-298-1	02	1	0609-		●
65	BRACKET; CENTER BRG HEAVY DUTY PACKAGE TRUCK<RD2> (B) L=285	1-53271-342-0	02	1	0609-		●
67	NUT; C/MBR HEAVY DUTY PACKAGE TRUCK<RD2> M16	0-91110-516-0	02	1	0609-		●
82	NUT; BRKT M14	0-91110-514-0	20	1	0609-	●
82	NUT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14	0-91110-514-0	20	1	0609-		●
82	NUT; BRKT HEAVY DUTY PACKAGE TRUCK<RD2> M14	0-91110-514-0	24	1	0609-		●
98	WASHER; LK,STOPPER ID=14.2	0-91510-614-0	16	1	0609-	●
98	WASHER; LK,STOPPER EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2	0-91510-614-0	16	1	0609-		●
101	BRACKET; RR SPR,FRT	1-53353-072-1	02	1	0609-	●
101	BRACKET; RR SPR,FRT EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53353-072-1	02	1	0609-		●
101	BRACKET; RR SPR,FRT HEAVY DUTY PACKAGE TRUCK<RD2>	1-53353-078-1	02	1	0609-		●
103	STOPPER; SUB SPR (A)	1-53356-038-1	02	1	0609-	●
103	STOPPER; SUB SPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-53356-038-1	02	1	0609-		●
103	STOPPER; SUB SPR (B)	1-53357-029-1	02	1	0609-	●
103	STOPPER; SUB SPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-53357-029-1	02	1	0609-		●
103	STOPPER; SUB SPR HEAVY DUTY PACKAGE TRUCK<RD2> (C)	1-53356-057-0	04	1	0609-		●
106	BOLT; BRKT M14X45	0-20801-445-0	20	1	0609-	●
106	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45	0-20801-445-0	20	1	0609-		●
106	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK<RD2> M14X45	9-92061-445-0	24	1	0609-		●
117	BOLT; STOPPER M14X45	0-20801-445-0	16	1	0609-	●
117	BOLT; STOPPER EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X45	0-20801-445-0	16	1	0609-		●
117	BOLT; STOPPER HEAVY DUTY PACKAGE TRUCK<RD2> M14X45	9-92061-445-0	16	1	0609-		●
118	NUT; STOPPER M14	0-91110-514-0	16	1	0609-	●	●
130	MEMBER; CROSS,END	1-53181-151-2	01	1	0609-	●	●
131	BOLT; END C/MBR M12X30 FLANGE	0-28651-230-0	04	1	0609-	●	●
132	NUT; END C/MBR M12 FLANGE	0-91180-112-0	04	1	0609-	●	●
138	WASHER; LK,BRKT ID=14.2	0-91510-614-0	20	1	0609-	●
138	WASHER; LK,BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2	0-91510-614-0	20	1	0609-		●
148	SPACER; C/MBR HEAVY DUTY PACKAGE TRUCK<RD2>	1-53168-341-0	02	1	0609-		●
202	SPACER; 3RD C/MBR	1-53168-351-1	02	1	0609-	●	●
207	SPACER; 4TH C/MBR (B)	1-53168-162-2	02	1	0609-	●
207	SPACER; 4TH C/MBR (A)	1-53168-163-1	02	1	0609-		●
255	WASHER; PL,BRKT HEAVY DUTY PACKAGE TRUCK<RD2> ID=15	9-09651-069-0	48	1	0609-1201		●
255	WASHER; PL,BRKT HEAVY DUTY PACKAGE TRUCK<RD2> ID=15	8-98010-627-1	48	1	1202-		●
282	WASHER; PL,STOPPER HEAVY DUTY PACKAGE TRUCK<RD2> ID=15	9-09651-069-0	16	1	0609-1201		●
282	WASHER; PL,STOPPER HEAVY DUTY PACKAGE TRUCK<RD2> ID=15	8-98010-627-1	16	1	1202-		●
344	MEMBER; CROSS,4TH	1-53171-953-2	01	1	0609-	●
344	MEMBER; CROSS,4TH EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53171-953-2	01	1	0609-		●
344	MEMBER; CROSS,4TH HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-580-2	01	1	0609-		●
345	MEMBER; CROSS,5TH EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53171-953-2	01	1	0609-		●
345	MEMBER; CROSS,5TH HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-580-2	01	1	0609-		●
416	GUSSET; 3RD C/MBR	1-53164-213-0	01	1	0609-	●	●
416	GUSSET; 3RD C/MBR	1-53164-214-0	01	1	0609-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
