4-80 — ROAD WHEEL (#24931) — 68 parça

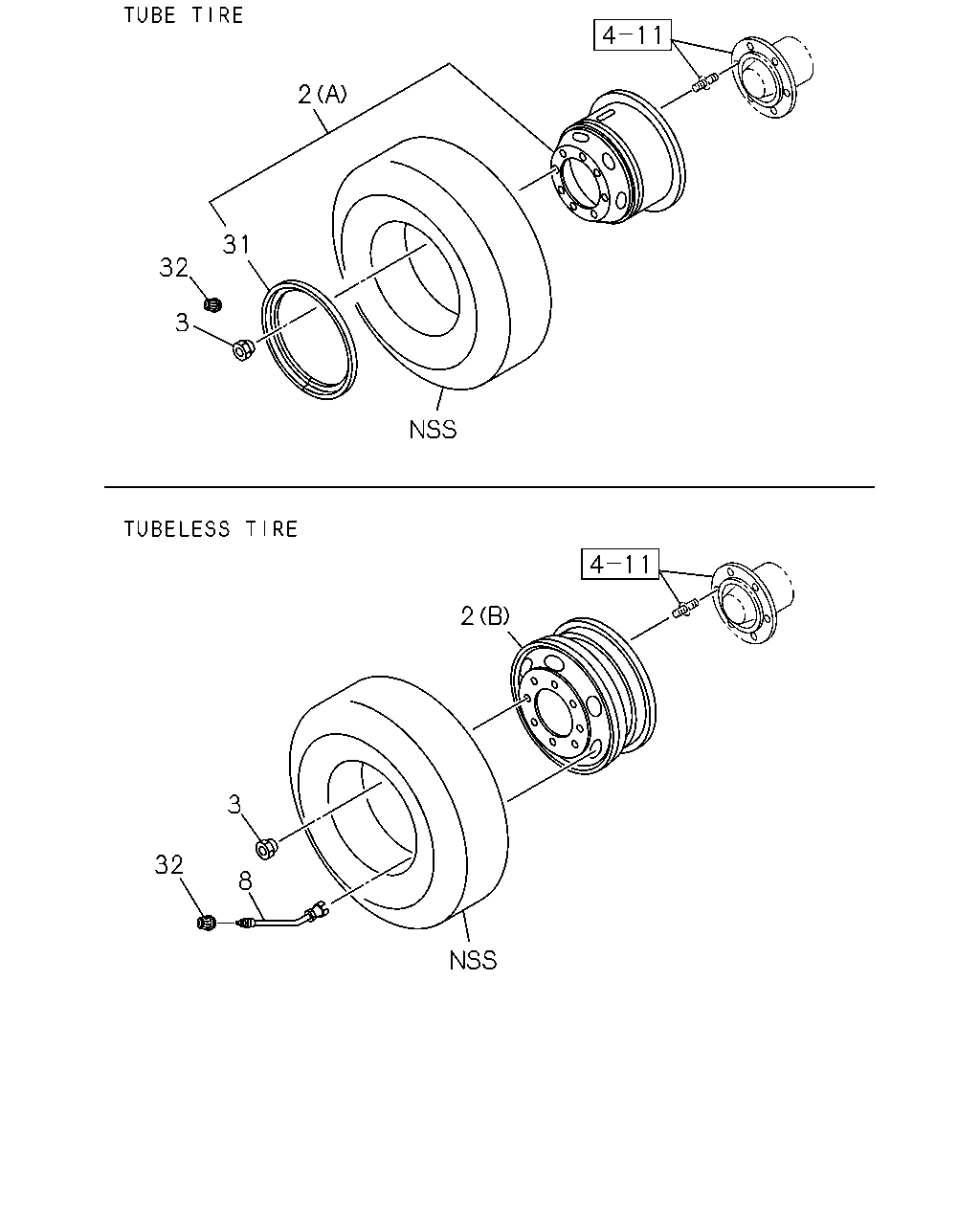

2 31 32 3 2 3 32 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) (B) SPARE	1-42350-758-0	01	1	0609-1310
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) SPARE TIRE & DISC WHEEL REAR<R46> (B) SPARE	1-42350-758-0	01	1	0609-1310
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) (B) SPARE	8-98232-031-0	01	1	1311-
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) SPARE TIRE & DISC WHEEL REAR<R46> (B) SPARE	8-98232-031-0	01	1	1311-
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (B)	1-42350-758-0	06	1	0609-1310
2	WHEEL; DISC DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL REAR<R46> (B)	1-42350-758-0	06	1	0609-1310
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (B)	8-98232-031-0	06	1	1311-
2	WHEEL; DISC DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL REAR<R46> (B)	8-98232-031-0	06	1	1311-
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (A) SPARE	1-42350-478-0	01	1	0609-
2	WHEEL; DISC DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL REAR<R46> (A) SPARE	1-42350-478-0	01	1	0609-
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (A)	1-42350-478-0	06	1	0609-
2	WHEEL; DISC DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL REAR<R46> (A)	1-42350-478-0	06	1	0609-
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	08	1	0609-
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	08	1	0609-
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) SPARE	1-42370-020-3	01	1	0609-1310
8	VALVE; TIRE DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) SPARE TIRE & DISC WHEEL REAR<R46> SPARE	1-42370-020-3	01	1	0609-1310
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) SPARE	1-42370-048-0	01	1	1311-
8	VALVE; TIRE DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) SPARE TIRE & DISC WHEEL REAR<R46> SPARE	1-42370-048-0	01	1	1311-
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) FRONT,REAR	1-42370-020-3	06	1	0609-1310
8	VALVE; TIRE DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL REAR<R46> FRONT,REAR	1-42370-020-3	06	1	0609-1310
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) FRONT,REAR	1-42370-048-0	06	1	1311-
8	VALVE; TIRE DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL REAR<R46> FRONT,REAR	1-42370-048-0	06	1	1311-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54)	1-42355-003-1	01	1	0609-
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL REAR<R46>	1-42355-003-1	01	1	0609-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54)	1-42355-003-1	06	1	0609-
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL REAR<R46>	1-42355-003-1	06	1	0609-
32	CAP; VALVE DISC WHEEL 8STUD 22.5X7.50 162-12(QM2)	1-42374-001-0	07	1	0609-
32	CAP; VALVE DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL REAR<R46>	1-42374-001-0	07	1	0609-
32	CAP; VALVE DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL REAR<R46>	1-42374-001-0	06	1	0609-
32	CAP; VALVE DISC WHEEL 8STUD 20X7.00T 162-12(Q54) EXC. SPARE TIRE & DISC WHEEL REAR<R46>	1-42374-001-0	06	1	0609-

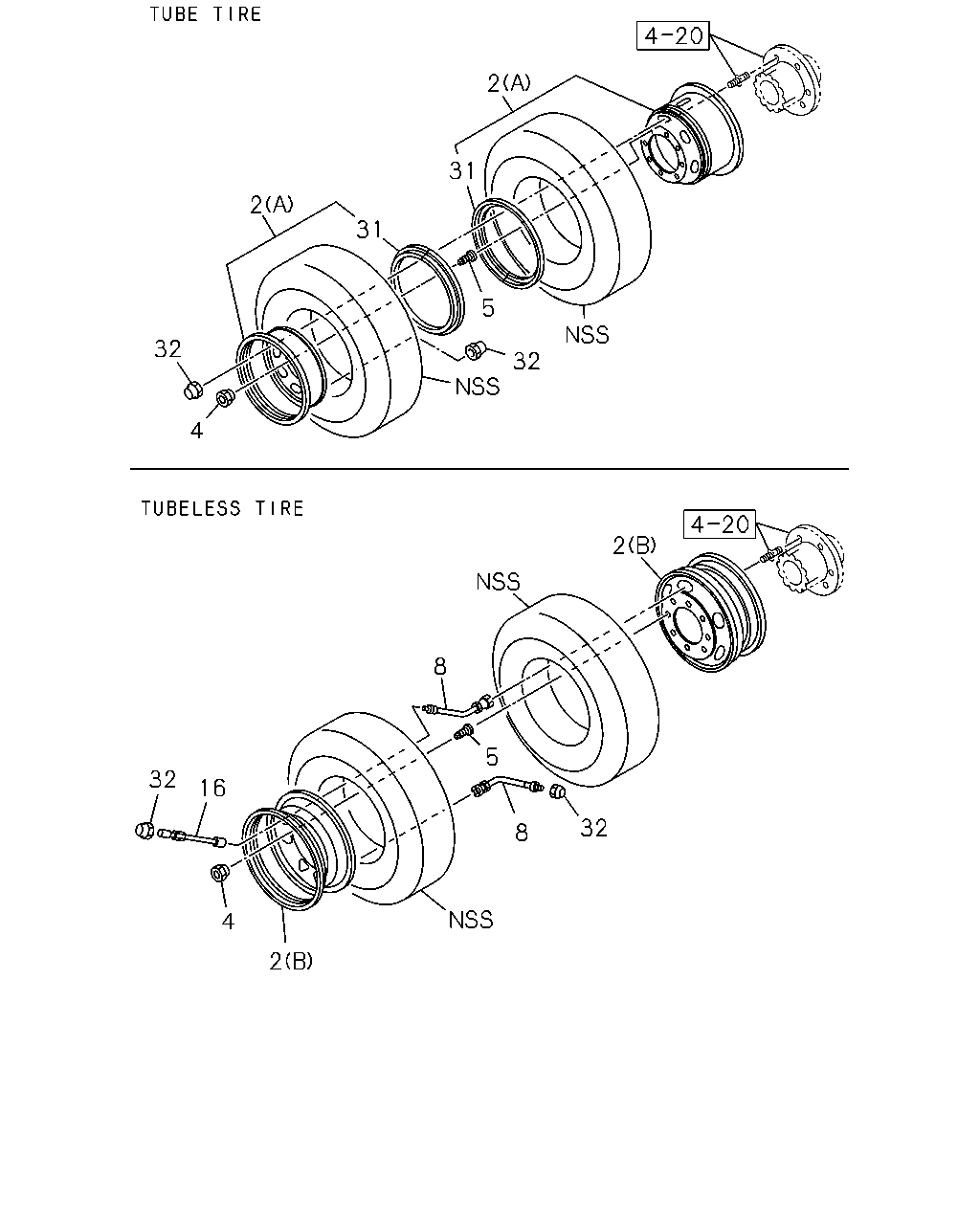

2 32 8 5 8 16 32 4 2 4 32 2 31 31 2 32 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) (B) SPARE	1-42350-758-0	01	1	0609-1310
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) SPARE TIRE & DISC WHEEL REAR<R46> (B) SPARE	1-42350-758-0	01	1	0609-1310
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) (B) SPARE	8-98232-031-0	01	1	1311-
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) SPARE TIRE & DISC WHEEL REAR<R46> (B) SPARE	8-98232-031-0	01	1	1311-
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (B)	1-42350-758-0	06	1	0609-1310
2	WHEEL; DISC DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL REAR<R46> (B)	1-42350-758-0	06	1	0609-1310
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (B)	8-98232-031-0	06	1	1311-
2	WHEEL; DISC DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL REAR<R46> (B)	8-98232-031-0	06	1	1311-
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (A) SPARE	1-42350-478-0	01	1	0609-
2	WHEEL; DISC DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL REAR<R46> (A) SPARE	1-42350-478-0	01	1	0609-
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (A)	1-42350-478-0	06	1	0609-
2	WHEEL; DISC DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL REAR<R46> (A)	1-42350-478-0	06	1	0609-
4	NUT; WHEEL,RR AXLE M30	1-42333-023-0	08	1	0609-0610
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	08	1	0611-
4	NUT; WHEEL,RR AXLE M30 LH THREAD	1-42334-023-0	08	1	0609-0610
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	08	1	0611-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	1-42335-005-1	08	1	0609-0610
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	0611-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	1-42336-005-1	08	1	0609-0610
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	0611-
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) SPARE	1-42370-020-3	01	1	0609-1310
8	VALVE; TIRE DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) SPARE TIRE & DISC WHEEL REAR<R46> SPARE	1-42370-020-3	01	1	0609-1310
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) SPARE	1-42370-048-0	01	1	1311-
8	VALVE; TIRE DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) SPARE TIRE & DISC WHEEL REAR<R46> SPARE	1-42370-048-0	01	1	1311-
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) FRONT,REAR	1-42370-020-3	06	1	0609-1310
8	VALVE; TIRE DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL REAR<R46> FRONT,REAR	1-42370-020-3	06	1	0609-1310
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) FRONT,REAR	1-42370-048-0	06	1	1311-
8	VALVE; TIRE DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL REAR<R46> FRONT,REAR	1-42370-048-0	06	1	1311-
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) L=170	8-98167-052-0	02	1	1311-
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL REAR<R46> L=170	8-98167-052-0	02	1	1311-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54)	1-42355-003-1	01	1	0609-
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL REAR<R46>	1-42355-003-1	01	1	0609-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54)	1-42355-003-1	06	1	0609-
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL REAR<R46>	1-42355-003-1	06	1	0609-
32	CAP; VALVE DISC WHEEL 8STUD 22.5X7.50 162-12(QM2)	1-42374-001-0	07	1	0609-
32	CAP; VALVE DISC WHEEL 8STUD 22.5X7.50 162-12(QM2),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL REAR<R46>	1-42374-001-0	07	1	0609-
32	CAP; VALVE DISC WHEEL 8STUD 22.5X7.50 162-12(QM2) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL REAR<R46>	1-42374-001-0	06	1	0609-
32	CAP; VALVE DISC WHEEL 8STUD 20X7.00T 162-12(Q54) EXC. SPARE TIRE & DISC WHEEL REAR<R46>	1-42374-001-0	06	1	0609-
