◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10658 - EXR RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶

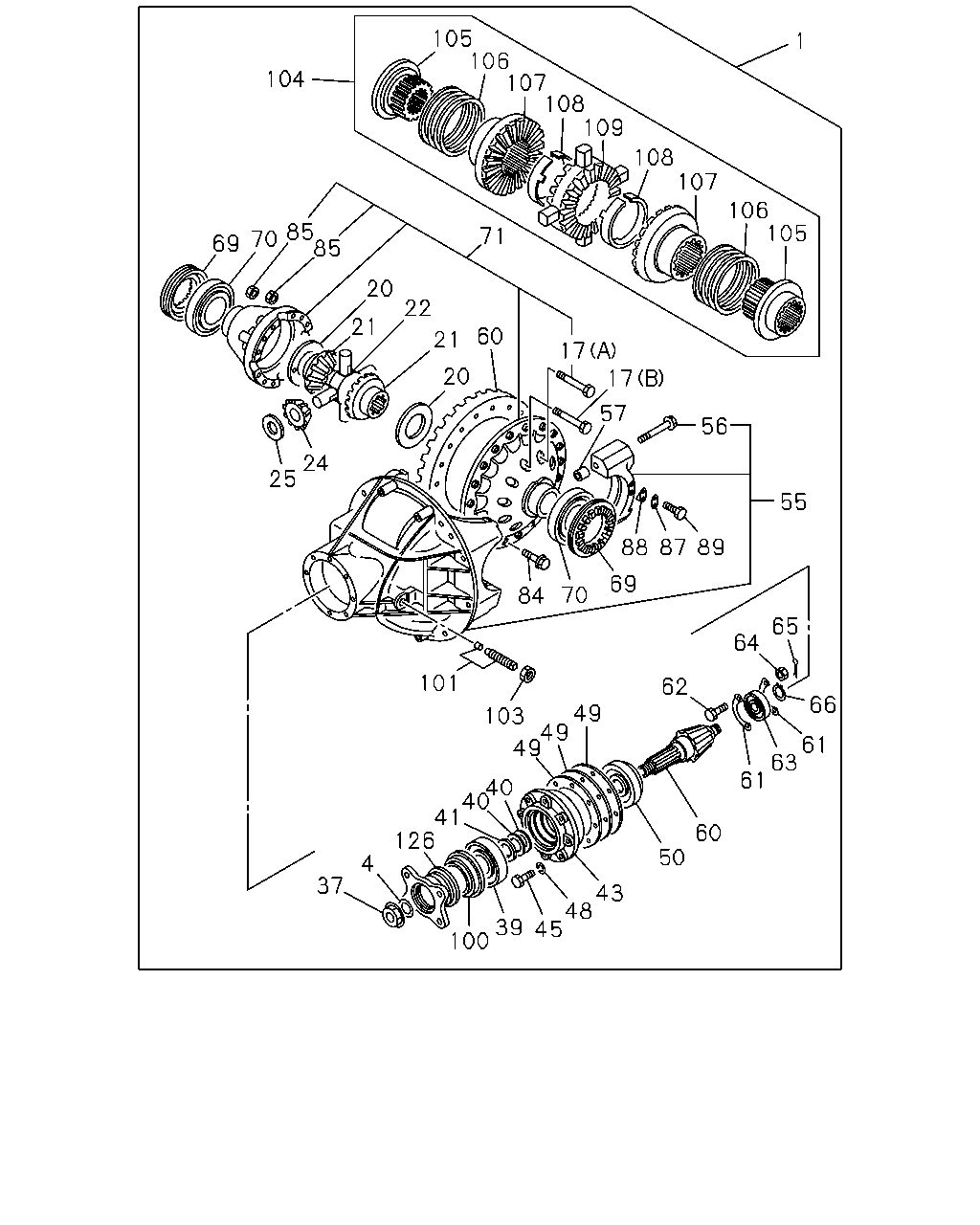

4-25 — REAR FINAL DRIVE (#2493) — 139 parça
çizim 29497
105 106 107 108 109 1 104 108 107 106 105 85 70 85 71 69 20 22 21 60 21 17 17 20 57 56 24 25 55 88 87 89 69 70 84 65 64 101 62 66 49 49 49 103 61 63 61 40 40 41 126 60 50 4 37 43 48 45 39 100
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT(C5X) 39/8 		1-41001-447-0 01 1 9002-9306 ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT(C5X) 39/8 		1-41001-447-0 01 1 9502- ●
1 DRIVE ASM; FINAL,RR
P90 PROP SHAFT(C5T) 39/8 		1-41000-852-0 01 1 9002- ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT(C5X) 38/7 		1-41001-489-0 01 1 9002- ●
1 DRIVE ASM; FINAL,RR
P90 PROP SHAFT(C5T) 38/7 		1-41000-853-0 01 1 9002- ●
1 DRIVE ASM; FINAL,RR
P90 PROP SHAFT(C5T) LIMITED SLIP DIFF VAR2<G86> 37/6 		1-41001-040-0 01 1 9109- ●
1 DRIVE ASM; FINAL,RR
P90 PROP SHAFT(C5T) EXC. LIMITED SLIP DIFF VAR2<G86> 37/6 		1-41000-854-0 01 1 9002- ●
1 DRIVE ASM; FINAL,RR
P115 PROP SHAFT(C5X) 41/8 		1-41001-474-0 01 1 9004- ●
1 DRIVE ASM; FINAL,RR
P90 PROP SHAFT(C5T) LIMITED SLIP DIFF VAR2<G86> 41/8 		1-41001-043-0 01 1 9211- ●
1 DRIVE ASM; FINAL,RR
P90 PROP SHAFT(C5T) EXC. LIMITED SLIP DIFF VAR2<G86> 41/8 		1-41000-862-0 01 1 9002- ●
1 DRIVE ASM; FINAL,RR
41/7 		1-41000-857-0 01 1 9002- ●
1 DRIVE ASM; FINAL,RR
43/11 		1-41001-370-0 01 1 9012- ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 9002- ● ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X141 FLANGE 		1-09070-013-0 08 1 9002- ● ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING
(B) M16X105 FLANGE 		1-09070-014-0 04 1 9002- ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-183-0 AR 1 9002-9009 ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-260-0 AR 1 9010-9509 ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=2.8 		1-41562-260-0 AR 1 9510- ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-184-0 AR 1 9002-9009 ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-261-0 AR 1 9010-9509 ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=2.9 		1-41562-261-0 AR 1 9510- ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-185-0 AR 1 9002-9009 ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-262-0 AR 1 9010-9509 ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.0 		1-41562-262-0 AR 1 9510- ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-186-0 AR 1 9002-9009 ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-263-0 AR 1 9010-9509 ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.1 		1-41562-263-0 AR 1 9510- ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-187-0 AR 1 9002-9009 ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-264-0 AR 1 9010-9509 ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.2 		1-41562-264-0 AR 1 9510- ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-188-0 AR 1 9002-9009 ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-265-0 AR 1 9010-9509 ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.3 		1-41562-265-0 AR 1 9510- ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-189-0 AR 1 9002-9009 ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-266-0 AR 1 9010-9509 ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR
EXC. LIMITED SLIP DIFF VAR2<G86> T=3.4 		1-41562-266-0 AR 1 9510- ● ● ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-081-0 02 1 9002-9108 ● ● ● ● ● ●
21 GEAR; SIDE,DIFF
EXC. LIMITED SLIP DIFF VAR2<G86> 		1-41561-081-0 02 1 9109-9312 ● ● ● ● ● ●
21 GEAR; SIDE,DIFF
EXC. LIMITED SLIP DIFF VAR2<G86> Z=16 		1-41561-111-0 02 1 9401-9501 ● ● ● ● ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-111-0 02 1 9502-9509 ● ● ● ● ● ●
21 GEAR; SIDE,DIFF
EXC. LIMITED SLIP DIFF VAR2<G86> Z=16 		1-41561-111-0 02 1 9510- ● ● ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-005-0 01 1 9002-9108 ● ● ● ● ● ●
22 SPIDER; DIFF PINION
EXC. LIMITED SLIP DIFF VAR2<G86> 		1-41521-005-0 01 1 9109-9312 ● ● ● ● ● ●
22 SPIDER; DIFF PINION
EXC. LIMITED SLIP DIFF VAR2<G86> OD=35 		1-41521-052-0 01 1 9401-9509 ● ● ● ● ● ●
22 SPIDER; DIFF PINION
OD=35 		1-41521-052-0 01 1 9510- ● ● ● ● ● ●
24 GEAR; PINION,DIFF 1-41551-023-0 04 1 9002-9108 ● ● ● ● ● ●
24 GEAR; PINION,DIFF
EXC. LIMITED SLIP DIFF VAR2<G86> 		1-41551-023-0 04 1 9109-9312 ● ● ● ● ● ●
24 GEAR; PINION,DIFF
EXC. LIMITED SLIP DIFF VAR2<G86> Z=10 		1-41551-034-0 04 1 9401-9509 ● ● ● ● ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-034-0 04 1 9510- ● ● ● ● ● ●
25 WASHER; THRUST,PINION
T=1.6 		1-41552-003-0 04 1 9002-9108 ● ● ● ● ● ●
25 WASHER; THRUST,PINION
EXC. LIMITED SLIP DIFF VAR2<G86> T=1.6 		1-41552-003-0 04 1 9109-9509 ● ● ● ● ● ●
25 WASHER; THRUST,PINION
T=1.6 		1-41552-003-0 04 1 9510- ● ● ● ● ● ●
37 NUT; DRIVING PINION
M46 		1-09449-062-0 01 1 9002-9110 ● ● ● ● ● ●
37 NUT; DRIVING PINION
M46 FLANGE 		1-09449-071-0 01 1 9111- ● ● ● ● ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-075-0 01 1 9002- ● ● ● ● ● ●
39 BEARING; FINAL PINION
KOYO 		1-09812-076-0 01 1 9002- ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9002- ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9002- ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9002- ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9002- ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9002- ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9002- ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9002- ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9002- ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9002- ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9002- ● ● ● ● ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9002- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 9002- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 9002- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 9002- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 9002- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 9002- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 9002- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 9002- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 9002- ● ● ● ● ● ●
43 CAGE; FINAL PINION
T=82.5 		1-41151-036-0 01 1 9002-9111 ● ● ● ● ● ●
43 CAGE; FINAL PINION
T=82.0 T=82 		1-41151-057-0 01 1 9112- ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
M16X55 		9-91656-655-0 08 1 9002-9005 ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE
M16X55 		0-16806-655-0 08 1 9006- ● ● ● ● ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 		9-09150-516-0 08 1 9002- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-007-0 AR 1 9002-9111 ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-077-0 AR 1 9112- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-008-0 AR 1 9002-9111 ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=1.000 		1-41154-078-0 AR 1 9112- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-060-0 AR 1 9002-9111 ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-079-0 AR 1 9112- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-061-0 AR 1 9002-9111 ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-080-0 AR 1 9112- ● ● ● ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-073-0 01 1 9002- ● ● ● ● ● ●
50 BEARING; FINAL PINION
KOYO 		1-09812-074-0 01 1 9002- ● ● ● ● ● ●
55 CARRIER; DIFF 1-41110-072-0 01 1 9002-9111 ● ● ● ● ● ●
55 CARRIER; DIFF 1-41110-102-0 01 1 9112- ● ● ● ● ● ●
56 BOLT; BRG CAP
M20X125 FLANGE 		1-09070-015-0 04 1 9002- ● ● ● ● ● ●
57 DOWEL; BRG CAP 9-41119-033-1 04 1 9002- ● ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
39/8 		1-41210-318-1 01 1 9002-9310 ●
60 GEAR SET; FINAL DRIVE,RR
39/8 		1-41210-487-1 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
38/7 		1-41210-319-1 01 1 9002-9310 ●
60 GEAR SET; FINAL DRIVE,RR
38/7 		1-41210-456-1 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
37/6 		1-41210-320-1 01 1 9002-9310 ●
60 GEAR SET; FINAL DRIVE,RR
37/6 		1-41210-484-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
41/8 		1-41210-324-1 01 1 9002-9310 ●
60 GEAR SET; FINAL DRIVE,RR
41/8 		1-41210-486-1 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
41/7 		1-41210-322-1 01 1 9002-9310 ●
60 GEAR SET; FINAL DRIVE,RR
41/7 		1-41210-485-0 01 1 9311- ●
60 GEAR SET; FINAL DRIVE,RR
43/11 		1-41210-350-1 01 1 9012-9310 ●
60 GEAR SET; FINAL DRIVE,RR
43/11 		1-41210-490-1 01 1 9311- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-008-0 02 1 9002- ● ● ● ● ● ●
62 BOLT; RET 9-01155-842-0 02 1 9002-9005 ● ● ● ● ● ●
62 BOLT; RET
M8X42 W/PIN HOLE 		1-09042-037-0 02 1 9006- ● ● ● ● ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-152-0 01 1 9002- ● ● ● ● ● ●
63 BEARING; PINION PILOT
KOYO 		1-09810-153-0 01 1 9002- ● ● ● ● ● ●
64 NUT; RET
M8 		9-09117-408-0 02 1 9002- ● ● ● ● ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9002- ● ● ● ● ● ●
66 RING; SNAP,PILOT BRG
OD=45.9 		1-09588-061-0 01 1 9002- ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-004-0 01 1 9002- ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-003-2 01 1 9002- ● ● ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=100 OD=157 T=36.5 		9-00093-120-0 01 1 9002- ● ● ● ● ● ●
70 BEARING; DIFF CAGE
NSK ID=101 OD=168 T=41.3 		9-00093-119-0 01 1 9002- ● ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-155-0 01 1 9002-9108 ● ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-155-0 01 1 9109- ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-157-0 01 1 9109- ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 18 1 9002- ● ● ● ● ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 12 1 9002- ● ● ● ● ● ●
87 WASHER; LK 9-41124-014-0 02 1 9002- ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT 1-41124-001-0 01 1 9002- ● ● ● ● ● ●
88 PLATE; LK,ADJ NUT 9-41124-013-0 01 1 9002- ● ● ● ● ● ●
89 BOLT; LK PLATE
M10X20 		9-02341-020-0 04 1 9002-9204 ● ● ● ● ● ●
89 BOLT; LK PLATE
M10X20 		0-23801-020-0 04 1 9205- ● ● ● ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 9002- ● ● ● ● ● ●
101 BOLT; ADJ,DRIVEN GEAR THRUST
M24X104 		9-41127-006-0 01 1 9002- ● ● ● ● ● ●
103 NUT; ADJ BOLT
M28 		9-09842-003-0 01 1 9002- ● ● ● ● ● ●
104 DIFF ASM; NO SPIN
LIMITED SLIP DIFF VAR2<G86> 		1-41530-022-0 01 1 9109- ● ●
105 GEAR; SIDE
LIMITED SLIP DIFF VAR2<G86> 		1-41539-026-0 02 1 9109- ● ●
106 SPRING; NO SPIN DIFF
LIMITED SLIP DIFF VAR2<G86> 		1-41535-004-0 02 1 9109- ● ●
107 CLUTCH; DRIVEN
LIMITED SLIP DIFF VAR2<G86> 		1-41532-006-0 02 1 9109- ● ●
108 RING; HOLD OUT
LIMITED SLIP DIFF VAR2<G86> 		1-41539-024-1 02 1 9109- ● ●
109 SPIDER; DIFF
LIMITED SLIP DIFF VAR2<G86> 		1-41539-023-0 01 1 9109- ● ●
126 COUPLING; DRIVING PINION
P90 PROP SHAFT(C5T) 		1-37245-143-2 01 1 9002- ● ● ● ● ●
126 COUPLING; DRIVING PINION
P115 PROP SHAFT(C5X) 		1-37245-211-2 01 1 9002- ● ● ● ●
