4-60 — REAR SUSPENSION (#24929) — 44 parça

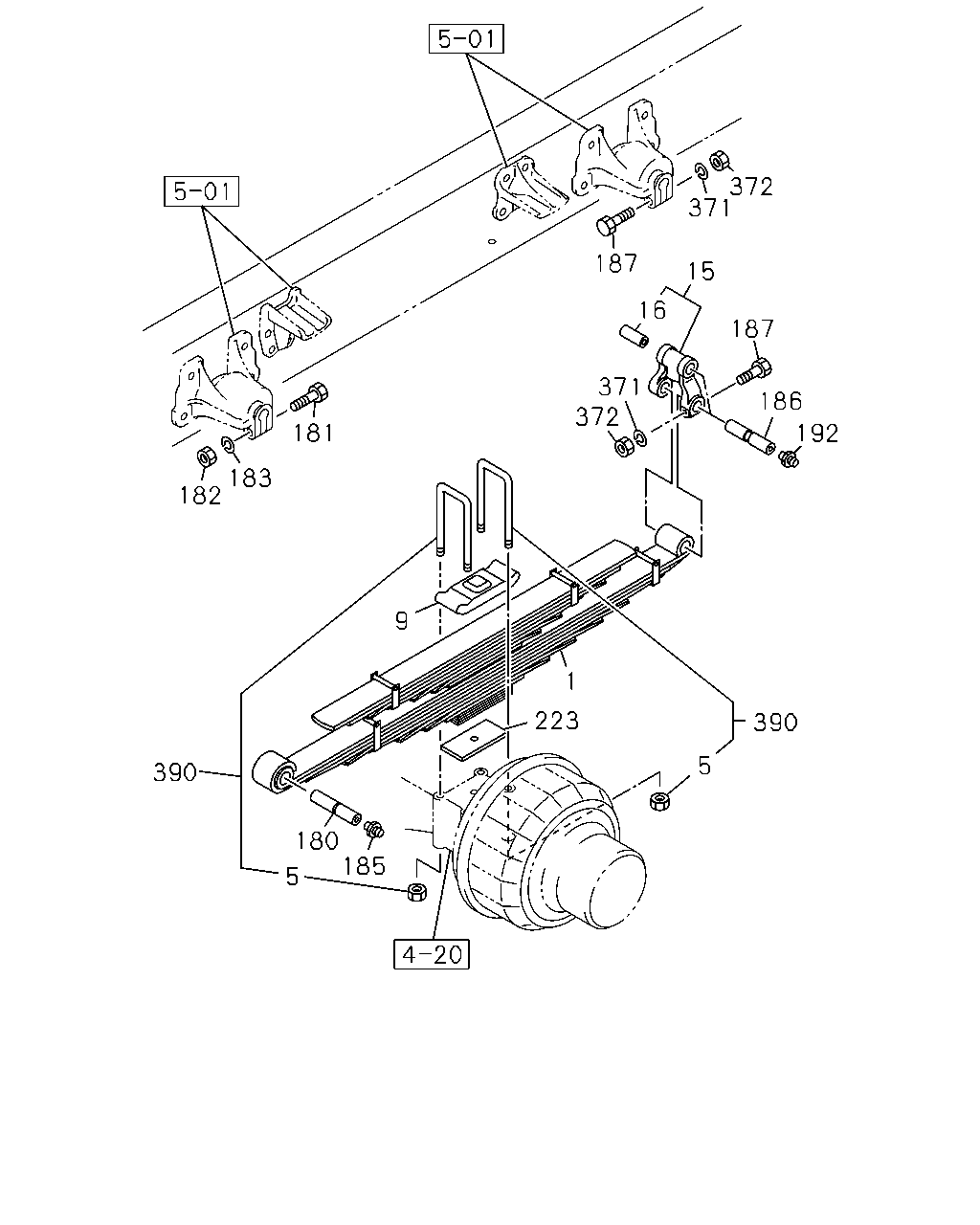

372 371 187 15 16 187 371 372 186 181 192 183 182 9 1 223 390 5 390 180 185 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. HEAVY DUTY PACKAGE TRUCK<RD2> 14-LEAF	1-51300-352-0	02	1	0609-
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 13-LEAF	1-51300-334-3	02	1	0609-
5	NUT; U-BOLT,RR SPR M24	0-91112-824-0	08	1	0609-
9	PAD; U BOLT,RR SPR HEAVY DUTY PACKAGE TRUCK<RD2>	1-51372-030-0	02	1	0609-
9	PAD; U BOLT,RR SPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-51372-048-1	02	1	0609-
15	SHACKLE; RR SPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-51362-049-2	02	1	0609-
16	BUSHING; SHACKLE,RR SPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	9-51351-019-2	02	1	0609-0902
16	BUSHING; SHACKLE,RR SPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	8-98081-830-0	02	1	0903-
180	PIN; RR SPR HEAVY DUTY PACKAGE TRUCK<RD2>	1-51361-020-0	02	1	0609-
180	PIN; RR SPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> DO=28 L=131 PT1/8	1-51361-015-0	02	1	0609-
181	BOLT; SPR & SHACKLE HEAVY DUTY PACKAGE TRUCK<RD2> M14X80	0-10856-480-0	02	1	0609-
181	BOLT; SPR & SHACKLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X65	0-10811-465-0	02	1	0609-
182	NUT; PIN,RR SPR M14	0-91110-514-0	02	1	0609-
183	WASHER; LK,PIN,RR SPR ID=14.2	0-91510-514-0	02	1	0609-
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	0-90301-410-0	02	1	0609-
186	PIN; SHACKLE,RR SPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> DO=28 L=131 PT1/8	1-51361-015-0	04	1	0609-
187	BOLT; SPR & SHACKLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X65	0-10811-465-0	04	1	0609-
192	NIPPLE; GREASE,SHACKLE PIN EXC. HEAVY DUTY PACKAGE TRUCK<RD2> PT1/8 STRAIGHT	0-90301-410-0	04	1	0609-
223	SPACER; U BOLT,RR SPR HEAVY DUTY PACKAGE TRUCK<RD2>	1-51377-371-1	02	1	0609-0702
223	SPACER; U BOLT,RR SPR HEAVY DUTY PACKAGE TRUCK<RD2>	1-51377-371-1	02	1	0703-1212
223	SPACER; U BOLT,RR SPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-51377-166-0	02	1	0609-
371	WASHER; LK,SHACKLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2	0-91510-514-0	04	1	0609-
372	NUT; SHACKLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14	0-91110-514-0	04	1	0609-
390	U-BOLT SET; RR SPRING HEAVY DUTY PACKAGE TRUCK<RD2> L=490	1-87870-036-4	04	1	0609-
390	U-BOLT SET; RR SPRING EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=455	1-87870-268-1	04	1	0609-

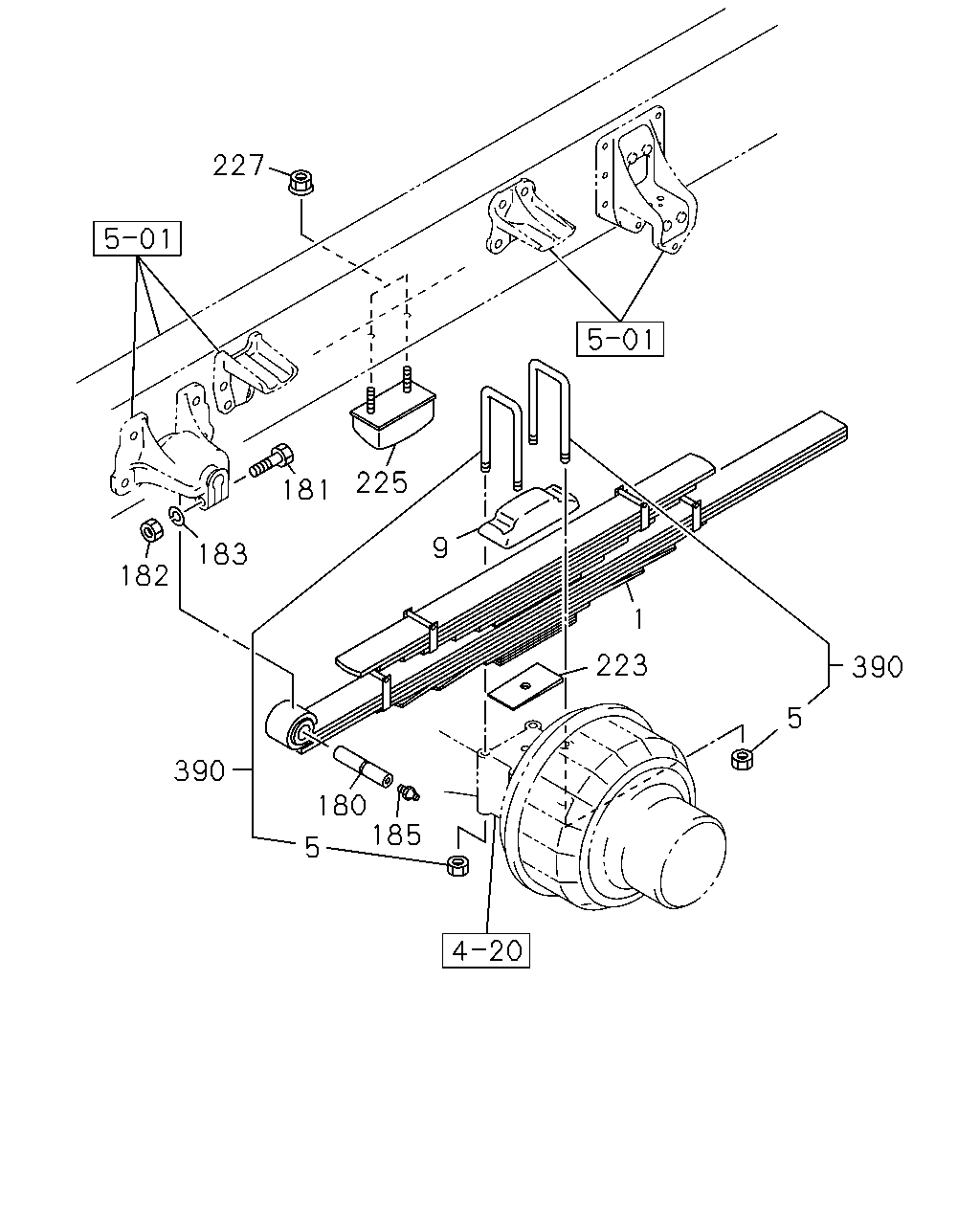

227 225 181 9 183 182 1 223 390 5 390 180 185 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. HEAVY DUTY PACKAGE TRUCK<RD2> 14-LEAF	1-51300-352-0	02	1	0609-
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 13-LEAF	1-51300-334-3	02	1	0609-
5	NUT; U-BOLT,RR SPR M24	0-91112-824-0	08	1	0609-
9	PAD; U BOLT,RR SPR HEAVY DUTY PACKAGE TRUCK<RD2>	1-51372-030-0	02	1	0609-
9	PAD; U BOLT,RR SPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-51372-048-1	02	1	0609-
180	PIN; RR SPR HEAVY DUTY PACKAGE TRUCK<RD2>	1-51361-020-0	02	1	0609-
180	PIN; RR SPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> DO=28 L=131 PT1/8	1-51361-015-0	02	1	0609-
181	BOLT; SPR & SHACKLE HEAVY DUTY PACKAGE TRUCK<RD2> M14X80	0-10856-480-0	02	1	0609-
181	BOLT; SPR & SHACKLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X65	0-10811-465-0	02	1	0609-
182	NUT; PIN,RR SPR M14	0-91110-514-0	02	1	0609-
183	WASHER; LK,PIN,RR SPR ID=14.2	0-91510-514-0	02	1	0609-
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	0-90301-410-0	02	1	0609-
223	SPACER; U BOLT,RR SPR HEAVY DUTY PACKAGE TRUCK<RD2>	1-51377-371-1	02	1	0609-0702
223	SPACER; U BOLT,RR SPR HEAVY DUTY PACKAGE TRUCK<RD2>	1-51377-371-1	02	1	0703-1212
223	SPACER; U BOLT,RR SPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-51377-166-0	02	1	0609-
225	RUBBER; CUSHION,RR SPR HEAVY DUTY PACKAGE TRUCK<RD2>	1-53366-081-1	02	1	0609-
227	NUT; CUSHION RUBBER HEAVY DUTY PACKAGE TRUCK<RD2> M12 FLANGE	0-91180-212-0	04	1	0609-
390	U-BOLT SET; RR SPRING HEAVY DUTY PACKAGE TRUCK<RD2> L=490	1-87870-036-4	04	1	0609-
390	U-BOLT SET; RR SPRING EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=455	1-87870-268-1	04	1	0609-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
