4-50 — FRONT SUSPENSION (#24927) — 101 parça

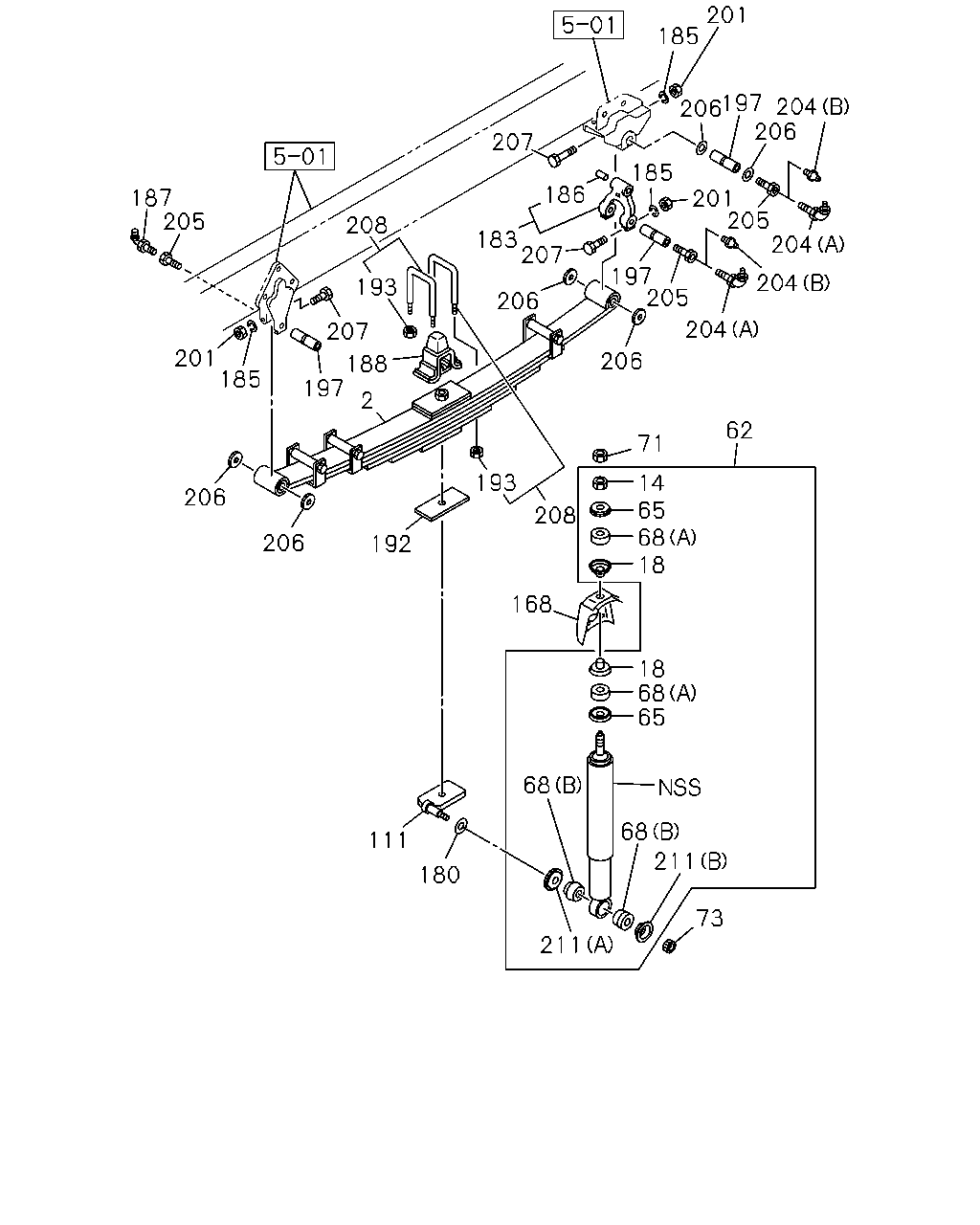

201 185 197 206 204 206 207 185 186 187 205 201 205 204 208 183 207 197 205 204 193 206 204 207 201 206 188 197 185 2 62 71 193 14 65 68 18 206 208 206 192 168 18 68 65 68 68 111 211 180 73 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF	1-51130-343-0	02	1	0609-
14	NUT; S/ABS,UPR HEAVY DUTY PACKAGE TRUCK<RD2> M14	9-99111-414-0	02	1	0609-
18	WASHER; CENTERING,S/ABS HEAVY DUTY PACKAGE TRUCK<RD2> ID=20.8	9-51631-041-0	04	1	0609-
62	ABSORBER ASM; SHOCK,FRT HEAVY DUTY PACKAGE TRUCK<RD2>	1-51630-579-0	02	1	0609-
62	ABSORBER ASM; SHOCK,FRT HEAVY DUTY PACKAGE TRUCK<RD2> BEST VALUE PARTS	1-87610-155-0	02	1	0609-
62	ABSORBER ASM; SHOCK,FRT EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-51630-180-4	02	1	0609-
62	ABSORBER ASM; SHOCK,FRT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> BEST VALUE PARTS	1-87610-153-0	02	1	0609-
65	WASHER; S/ABS HEAVY DUTY PACKAGE TRUCK<RD2> ID=16.5	9-51631-040-0	04	1	0609-
65	WASHER; S/ABS EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=23	1-51631-019-0	02	1	0609-
68	BUSHING; S/ABS HEAVY DUTY PACKAGE TRUCK<RD2> (B)	9-51631-026-0	04	1	0609-
68	BUSHING; S/ABS HEAVY DUTY PACKAGE TRUCK<RD2> (A)	9-51631-039-0	04	1	0609-
71	NUT; LK,S/ABS,UPR HEAVY DUTY PACKAGE TRUCK<RD2> M14	0-91111-514-0	02	1	0609-
71	NUT; LK,S/ABS,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M12	1-09400-006-0	02	1	0609-0910
71	NUT; LK,S/ABS,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M12	8-98010-412-0	02	1	0911-
73	NUT; BRKT,SHOCK HEAVY DUTY PACKAGE TRUCK<RD2> M20	0-91110-520-0	02	1	0609-
73	NUT; BRKT,SHOCK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M16	0-91110-516-0	02	1	0609-
111	SUPPORTER; S/ABS,FRT SUSP HEAVY DUTY PACKAGE TRUCK<RD2>	1-51681-722-1	01	1	0609-1004
111	SUPPORTER; S/ABS,FRT SUSP HEAVY DUTY PACKAGE TRUCK<RD2>	8-98153-483-0	01	1	1005-
111	SUPPORTER; S/ABS,FRT SUSP HEAVY DUTY PACKAGE TRUCK<RD2>	1-51681-723-1	01	1	0609-1004
111	SUPPORTER; S/ABS,FRT SUSP HEAVY DUTY PACKAGE TRUCK<RD2>	8-98153-484-0	01	1	1005-
111	SUPPORTER; S/ABS,FRT SUSP EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-51681-720-1	01	1	0609-1004
111	SUPPORTER; S/ABS,FRT SUSP EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	8-98153-481-0	01	1	1005-
111	SUPPORTER; S/ABS,FRT SUSP EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-51681-721-1	01	1	0609-1004
111	SUPPORTER; S/ABS,FRT SUSP EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	8-98153-482-0	01	1	1005-
168	BRACKET; S/ABS,FRT SUSP WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-51681-306-0	02	1	0609-
168	BRACKET; S/ABS,FRT SUSP WHEEL BASE 5000MM(50W)	1-51681-306-0	02	1	0609-
168	BRACKET; S/ABS,FRT SUSP WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK<RD2>	1-51681-616-0	02	1	0609-
180	WASHER; PL,PIN HEAVY DUTY PACKAGE TRUCK<RD2> ID=21	0-91610-520-0	02	1	0609-
180	WASHER; PL,PIN EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=17 OD=30	0-91610-516-0	02	1	0609-
183	SHACKLE; FRT SUSP	1-51162-029-5	02	1	0609-
185	WASHER; LK,PIN ID=12.2	0-91510-612-0	12	1	0609-
186	BUSHING; SHACKLE OD=38	1-51351-009-0	02	1	0609-0902
186	BUSHING; SHACKLE OD=38	8-98081-829-0	02	1	0903-
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	0-90301-610-0	02	1	0609-
188	RUBBER; CLAMP,U-BOLT,FRT SPR	1-51172-088-1	02	1	0609-
192	PIECE; DIST 80X144 ID=17.5	1-51177-284-1	01	1	0609-
193	NUT; U BOLT M22	0-91112-822-0	08	1	0609-1206
193	NUT; U BOLT M22	8-98179-318-0	08	1	1207-
197	PIN; FRT SPR,FRT	1-51161-031-0	06	1	0609-
201	NUT; PIN LK M12	0-91110-512-0	12	1	0609-
204	NIPPLE; GREASE,RR (A) PT1/8 ELBOW	0-90301-610-0	02	1	0609-
204	NIPPLE; GREASE,RR (B) PT1/8 STRAIGHT	0-90301-410-0	02	1	0609-
204	NIPPLE; GREASE,RR (B) PT1/8 STRAIGHT	0-90301-410-0	02	1	0609-
205	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	06	1	0609-
206	WASHER; LK,SPRING PIN ID=32.4	1-51169-018-0	12	1	0609-
207	BOLT; SPR TO SHACKLE M12X80	0-10856-280-0	12	1	0609-
208	U-BOLT SET; FRT SPRING L=210	1-87870-380-1	04	1	0609-1206
208	U-BOLT SET; FRT SPRING L=210	1-87870-498-0	04	1	1207-
211	WASHER; BRKT,SHOCK HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=27	9-51631-027-0	02	1	0609-
211	WASHER; BRKT,SHOCK HEAVY DUTY PACKAGE TRUCK<RD2> (B) ID=21	9-51631-028-0	02	1	0609-

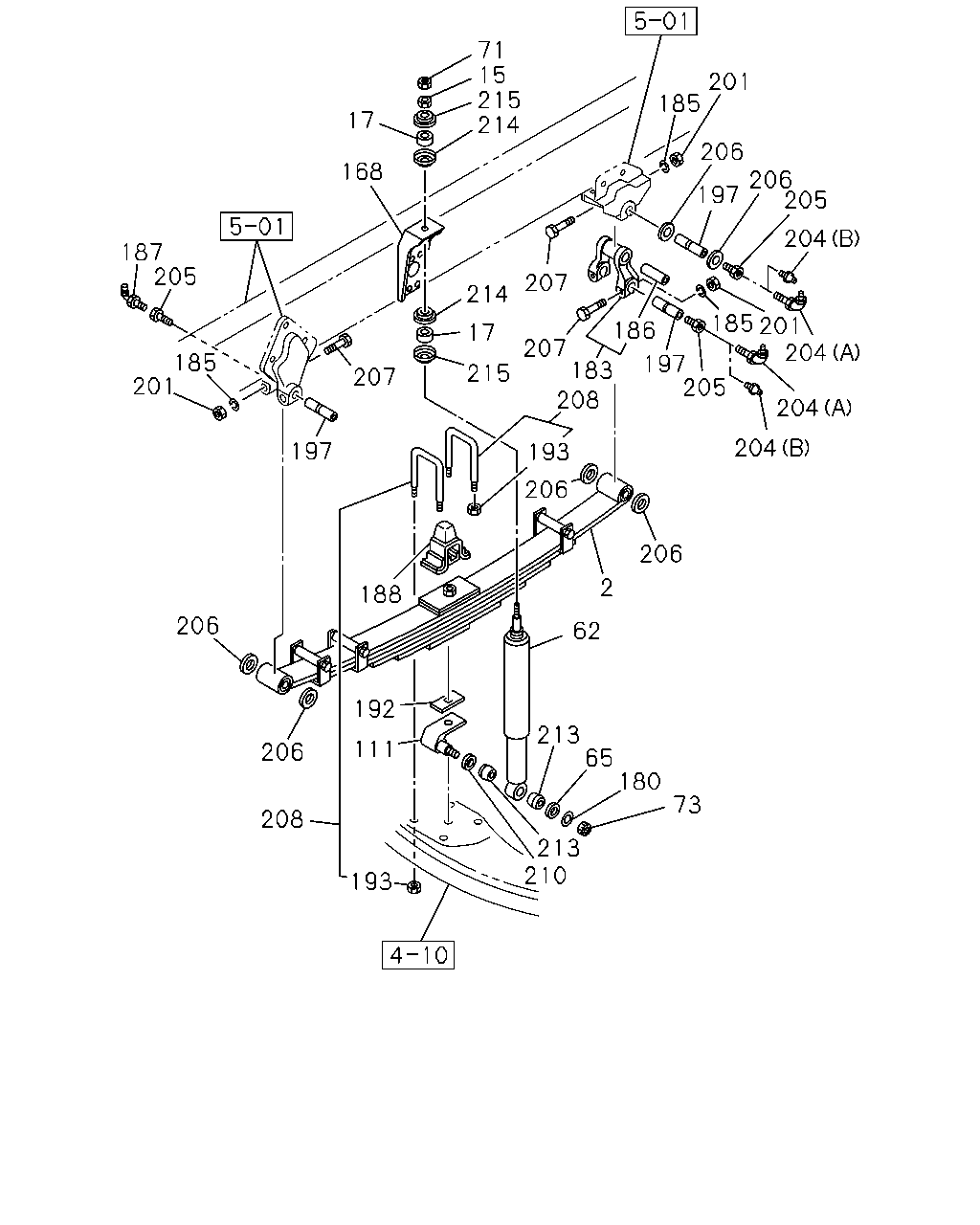

71 15 215 214 201 185 17 206 206 205 168 197 204 187 205 207 214 185 201 204 186 17 207 183 185 201 197 205 215 207 208 204 204 197 193 206 206 2 188 206 62 192 213 65 180 111 206 73 208 213 210 193

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF	1-51130-343-0	02	1	0609-
15	NUT; S/ABS,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M12	1-09400-006-0	02	1	0609-0910
15	NUT; S/ABS,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M12	8-98010-412-0	02	1	0911-
17	BUSHING; RUBBER,S/ABS EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	9-51631-050-0	04	1	0609-
62	ABSORBER ASM; SHOCK,FRT HEAVY DUTY PACKAGE TRUCK<RD2>	1-51630-579-0	02	1	0609-
62	ABSORBER ASM; SHOCK,FRT HEAVY DUTY PACKAGE TRUCK<RD2> BEST VALUE PARTS	1-87610-155-0	02	1	0609-
62	ABSORBER ASM; SHOCK,FRT EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-51630-180-4	02	1	0609-
62	ABSORBER ASM; SHOCK,FRT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> BEST VALUE PARTS	1-87610-153-0	02	1	0609-
65	WASHER; S/ABS HEAVY DUTY PACKAGE TRUCK<RD2> ID=16.5	9-51631-040-0	04	1	0609-
65	WASHER; S/ABS EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=23	1-51631-019-0	02	1	0609-
71	NUT; LK,S/ABS,UPR HEAVY DUTY PACKAGE TRUCK<RD2> M14	0-91111-514-0	02	1	0609-
71	NUT; LK,S/ABS,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M12	1-09400-006-0	02	1	0609-0910
71	NUT; LK,S/ABS,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M12	8-98010-412-0	02	1	0911-
73	NUT; BRKT,SHOCK HEAVY DUTY PACKAGE TRUCK<RD2> M20	0-91110-520-0	02	1	0609-
73	NUT; BRKT,SHOCK EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M16	0-91110-516-0	02	1	0609-
111	SUPPORTER; S/ABS,FRT SUSP HEAVY DUTY PACKAGE TRUCK<RD2>	1-51681-722-1	01	1	0609-1004
111	SUPPORTER; S/ABS,FRT SUSP HEAVY DUTY PACKAGE TRUCK<RD2>	8-98153-483-0	01	1	1005-
111	SUPPORTER; S/ABS,FRT SUSP HEAVY DUTY PACKAGE TRUCK<RD2>	1-51681-723-1	01	1	0609-1004
111	SUPPORTER; S/ABS,FRT SUSP HEAVY DUTY PACKAGE TRUCK<RD2>	8-98153-484-0	01	1	1005-
111	SUPPORTER; S/ABS,FRT SUSP EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-51681-720-1	01	1	0609-1004
111	SUPPORTER; S/ABS,FRT SUSP EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	8-98153-481-0	01	1	1005-
111	SUPPORTER; S/ABS,FRT SUSP EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-51681-721-1	01	1	0609-1004
111	SUPPORTER; S/ABS,FRT SUSP EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	8-98153-482-0	01	1	1005-
168	BRACKET; S/ABS,FRT SUSP WHEEL BASE 5500MM(55W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-51681-306-0	02	1	0609-
168	BRACKET; S/ABS,FRT SUSP WHEEL BASE 5000MM(50W)	1-51681-306-0	02	1	0609-
168	BRACKET; S/ABS,FRT SUSP WHEEL BASE 5500MM(55W) HEAVY DUTY PACKAGE TRUCK<RD2>	1-51681-616-0	02	1	0609-
180	WASHER; PL,PIN HEAVY DUTY PACKAGE TRUCK<RD2> ID=21	0-91610-520-0	02	1	0609-
180	WASHER; PL,PIN EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=17 OD=30	0-91610-516-0	02	1	0609-
183	SHACKLE; FRT SUSP	1-51162-029-5	02	1	0609-
185	WASHER; LK,PIN ID=12.2	0-91510-612-0	12	1	0609-
186	BUSHING; SHACKLE OD=38	1-51351-009-0	02	1	0609-0902
186	BUSHING; SHACKLE OD=38	8-98081-829-0	02	1	0903-
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	0-90301-610-0	02	1	0609-
188	RUBBER; CLAMP,U-BOLT,FRT SPR	1-51172-088-1	02	1	0609-
192	PIECE; DIST 80X144 ID=17.5	1-51177-284-1	01	1	0609-
193	NUT; U BOLT M22	0-91112-822-0	08	1	0609-1206
193	NUT; U BOLT M22	8-98179-318-0	08	1	1207-
197	PIN; FRT SPR,FRT	1-51161-031-0	06	1	0609-
201	NUT; PIN LK M12	0-91110-512-0	12	1	0609-
204	NIPPLE; GREASE,RR (A) PT1/8 ELBOW	0-90301-610-0	02	1	0609-
204	NIPPLE; GREASE,RR (B) PT1/8 STRAIGHT	0-90301-410-0	02	1	0609-
204	NIPPLE; GREASE,RR (B) PT1/8 STRAIGHT	0-90301-410-0	02	1	0609-
205	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	06	1	0609-
206	WASHER; LK,SPRING PIN ID=32.4	1-51169-018-0	12	1	0609-
207	BOLT; SPR TO SHACKLE M12X80	0-10856-280-0	12	1	0609-
208	U-BOLT SET; FRT SPRING L=210	1-87870-380-1	04	1	0609-1206
208	U-BOLT SET; FRT SPRING L=210	1-87870-498-0	04	1	1207-
210	WASHER; S/ABS,OUTER EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=17	1-51631-020-0	02	1	0609-
213	BUSHING; RUBBER,LWR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-51631-009-1	04	1	0609-
214	WASHER; S/ABS,UPR,INNER EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=16.8	1-51631-022-0	04	1	0609-
215	WASHER; S/ABS,UPR,OUTER EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.5	9-51631-051-0	04	1	0609-
