4-36 — POWER STEERING CONTROL; ENGINE SIDE (#24924) — 12 parça

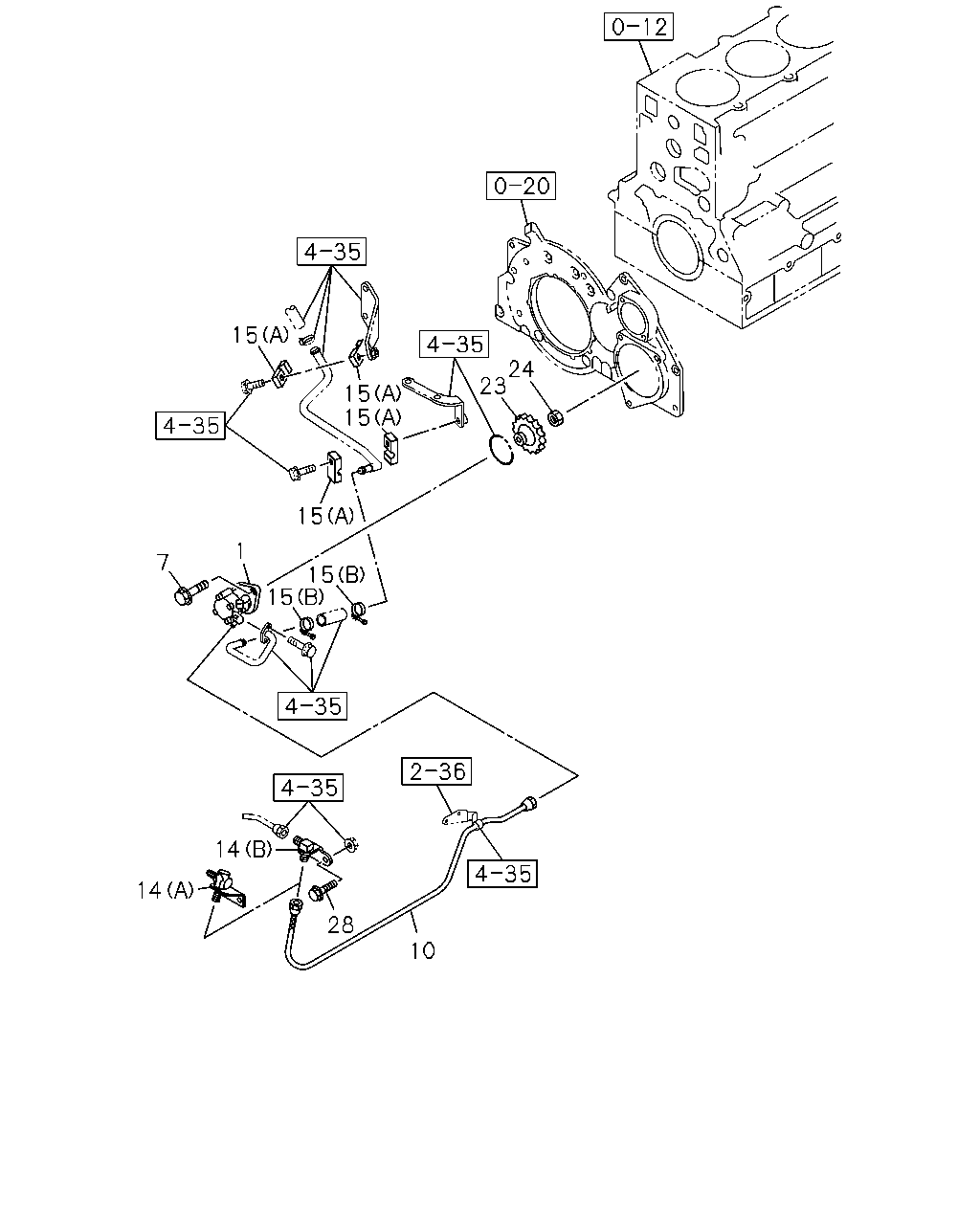

çizim 86593
15 24 23 15 15 15 1 7 15 15 14 14 28 10
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-19500-548-1 01 1 0609-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. AIR CONDITIONER MANUAL CONTROL(C60) 		1-19500-559-1 01 1 0609-
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-94399-863-1 02 1 0609-0805
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-97365-449-0 02 1 0806-
10 HOSE; FLEX,P/S OIL PUMP,INL
L=900 		1-09365-251-0 01 1 0609-
14 UNION; FLEX HOSE,P/S
HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-47470-663-0 01 1 0609-
14 UNION; FLEX HOSE,P/S
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-47470-654-0 01 1 0609-
15 CLIP; OIL PIPE SUCTION
(A) 		1-09701-284-0 04 1 0609-
15 CLIP; OIL PIPE SUCTION
(B) ID=32 		1-09704-085-0 04 1 0609-
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 0609-
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91180-114-0 01 1 0609-
28 BOLT; BRKT,FLEX HOSE,P/S
M8X20 FLANGE 		0-28650-820-0 02 1 0609-
