8-40 — HEATER SYSTEM (#24918) — 93 parça

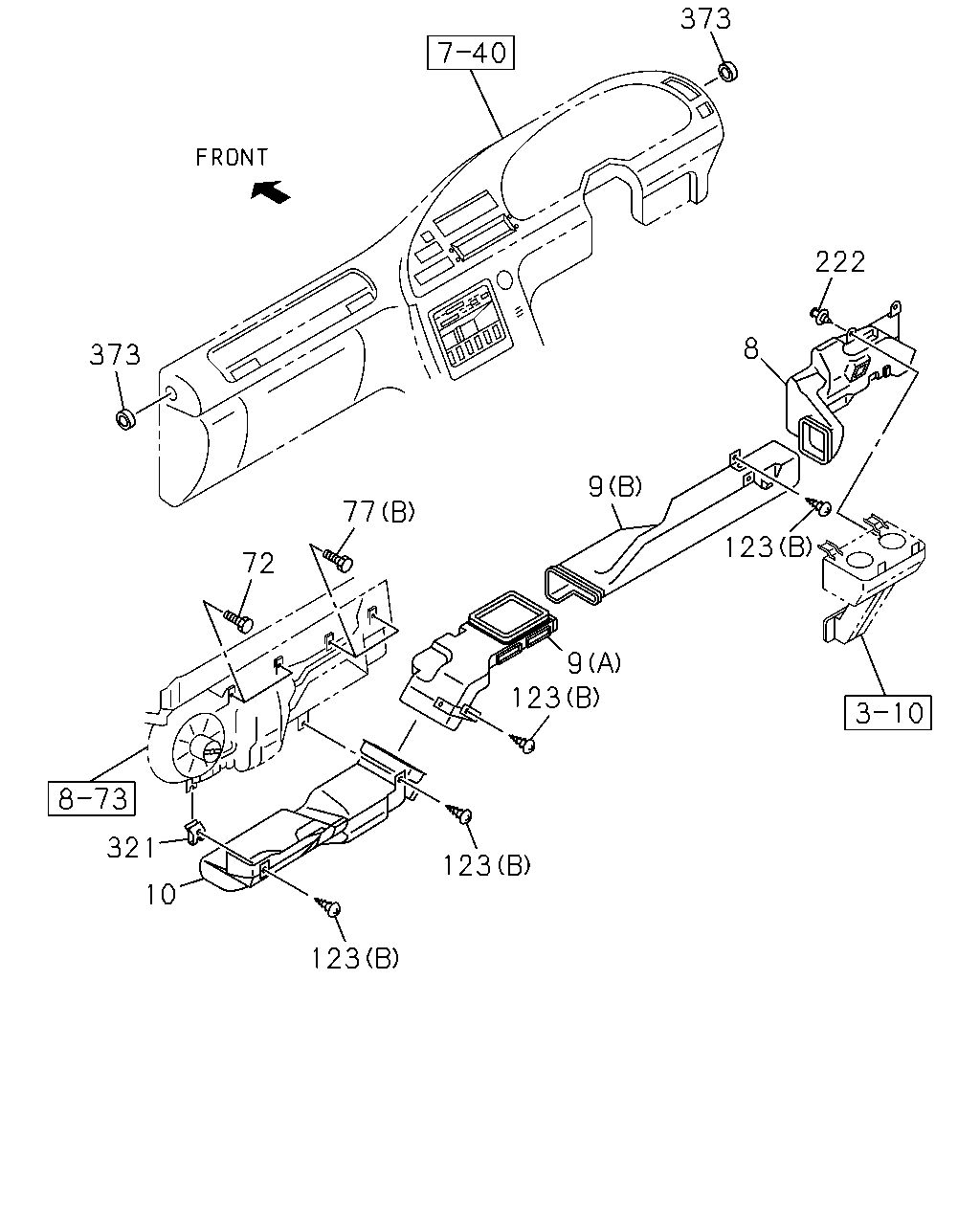

çizim 89661
373 222 8 373 9 77 123 72 9 123 321 123 10 123
BalonParca AdiParca NoAdetTipApplied Date
8 DUCT; HTR AIR,DRIVER FOOT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-76377-208-0 01 1 0603-
9 DUCT; HTR AIR,FOOT CENTER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-76377-227-2 01 1 0603-
9 DUCT; HTR AIR,FOOT CENTER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-76377-210-1 01 1 0603-
9 DUCT; HTR AIR,FOOT CENTER
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-76377-226-2 01 1 0603-
10 DUCT; HTR AIR,ASSIST FOOT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-76377-204-2 01 1 0603-
72 BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0603-
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 0603-
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0603-
123 SCREW; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X14 		8-94279-325-0 04 1 0603-
123 SCREW; DUCT
(A) M5X16 TAPPING W/PL WASHER 		0-74115-516-0 05 1 0603-0604
123 SCREW; DUCT
(A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0605-
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 08 1 0603-
222 FASTENER; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) D6X12.5 		8-94146-425-0 02 1 0603-
321 NUT; DUCT FIX
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5 		1-09984-196-0 01 1 0603-
373 RUBBER; JOINT 1-76378-291-0 02 1 0603-

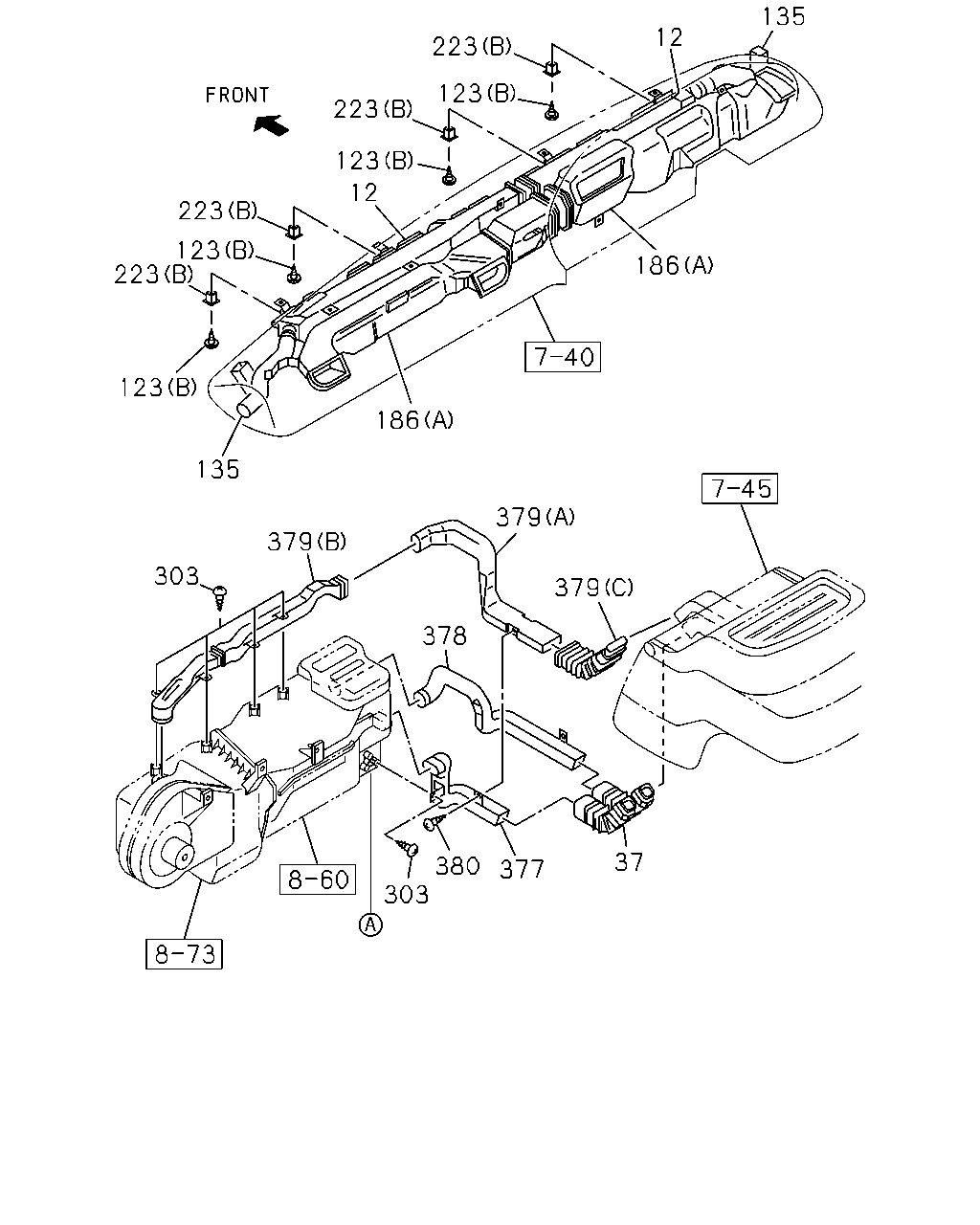

çizim 90128
135 12 223 123 223 123 12 223 123 223 186 123 186 135 379 379 303 379 378 37 380 303 377
BalonParca AdiParca NoAdetTipApplied Date
12 NOZZLE; DEFROSTER 1-76377-153-5 01 1 0603-
12 NOZZLE; DEFROSTER 1-76377-172-7 01 1 0603-
37 HOSE; AIR,HTR
COOL & HOT BOX<TMU> 		1-76377-193-3 01 1 0603-
123 SCREW; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X14 		8-94279-325-0 04 1 0603-
123 SCREW; DUCT
(A) M5X16 TAPPING W/PL WASHER 		0-74115-516-0 05 1 0603-0604
123 SCREW; DUCT
(A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0605-
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 08 1 0603-
135 HOSE; DEFROSTER 1-76378-252-7 01 1 0603-
135 HOSE; DEFROSTER 1-76378-253-4 01 1 0603-
186 DUCT; VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83542-107-3 01 1 0603-
186 DUCT; VENTILATOR
(A) 		1-76377-155-9 01 1 0603-0610
186 DUCT; VENTILATOR
(A) 		1-76377-243-1 01 1 0611-
186 DUCT; VENTILATOR
(A) 		1-76377-173-6 01 1 0603-0710
186 DUCT; VENTILATOR
(A) 		1-76377-246-0 01 1 0711-
223 GROMMET; SCREW
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 05 1 0603-
223 GROMMET; SCREW
(B) D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0603-
303 SCREW; HOSE
COOL & HOT BOX<TMU> M5X14 		8-94279-325-0 05 1 0603-
377 HOSE; BOX,INLET,COOL
COOL & HOT BOX<TMU> 		1-76377-159-5 01 1 0603-
378 HOSE; BOX,INLET,HOT
COOL & HOT BOX<TMU> 		1-76377-161-6 01 1 0603-
379 HOSE; BOX,OUTLET
COOL & HOT BOX<TMU> (A) 		1-76377-163-5 01 1 0603-
379 HOSE; BOX,OUTLET
COOL & HOT BOX<TMU> (B) 		1-76377-164-3 01 1 0603-
379 HOSE; BOX,OUTLET
COOL & HOT BOX<TMU> (C) 		1-76377-192-4 01 1 0603-
380 FASTENER; HOSE
COOL & HOT BOX<TMU> D4.6X14.7 BLACK 		1-09983-104-0 03 1 0603-

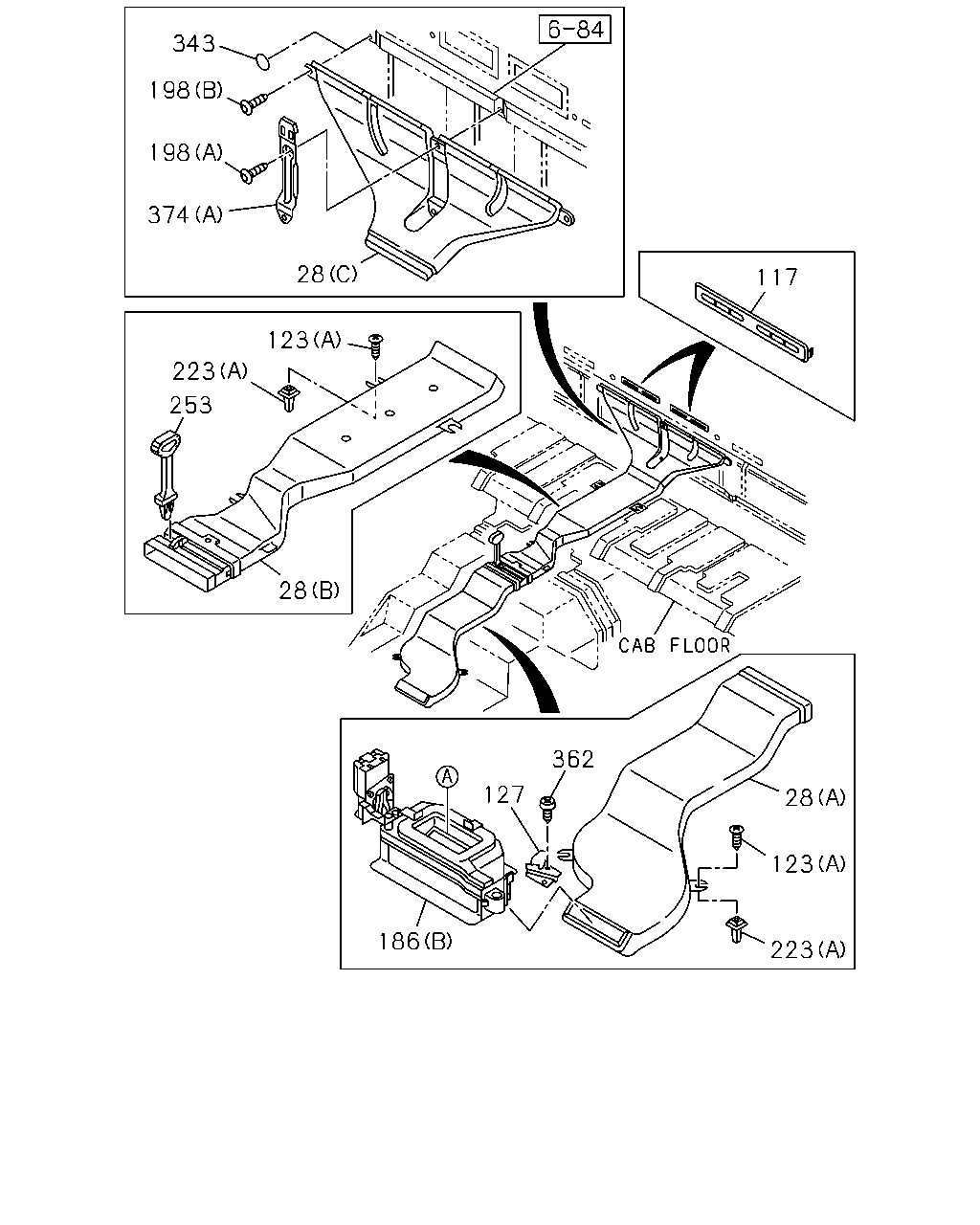

çizim 90151
343 198 198 374 8 117 123 223 253 28 362 127 28 123 186 223
BalonParca AdiParca NoAdetTipApplied Date
8 DUCT; HTR AIR,DRIVER FOOT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-76377-208-0 01 1 0603-
28 DUCT; AIR,VENTILATOR
(B) 		1-76377-180-2 01 1 0603-
28 DUCT; AIR,VENTILATOR
(C) 		1-76377-186-1 01 1 0603-
28 DUCT; AIR,VENTILATOR
(A) 		1-76377-203-0 01 1 0603-
117 GRILLE; VENTILATOR 1-76377-187-5 01 1 0603-
117 GRILLE; VENTILATOR 1-76377-188-5 01 1 0603-
123 SCREW; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X14 		8-94279-325-0 04 1 0603-
123 SCREW; DUCT
(A) M5X16 TAPPING W/PL WASHER 		0-74115-516-0 05 1 0603-0604
123 SCREW; DUCT
(A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0605-
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 08 1 0603-
127 BRACKET; VENT DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-76397-019-0 01 1 0603-
186 DUCT; VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83542-107-3 01 1 0603-
186 DUCT; VENTILATOR
(A) 		1-76377-155-9 01 1 0603-0610
186 DUCT; VENTILATOR
(A) 		1-76377-243-1 01 1 0611-
186 DUCT; VENTILATOR
(A) 		1-76377-173-6 01 1 0603-0710
186 DUCT; VENTILATOR
(A) 		1-76377-246-0 01 1 0711-
198 CLIP; DUCT
(A) D6X23 BLACK 		1-09987-114-0 02 1 0603-1204
198 CLIP; DUCT
(A) D6X23 LIGHT GRAY 		1-73318-629-0 02 1 1205-
198 CLIP; DUCT
(B) OD=6 L=17 DARK GRAY 		1-73996-128-1 02 1 0603-1204
198 CLIP; DUCT
(B) OD=6 L=17 DARK GRAY 		1-73996-364-0 02 1 1205-
223 GROMMET; SCREW
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 05 1 0603-
223 GROMMET; SCREW
(B) D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0603-
253 KNOB; CONT LEVER 1-76377-185-1 01 1 0603-
343 SEAL; AIR DUCT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) OD=25 BLACK 		1-76798-019-0 05 1 0603-0709
362 SCREW; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X14 		8-94279-325-0 02 1 0603-
374 HOLDER; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-76398-012-1 01 1 0603-
374 HOLDER; DUCT
(A) 		1-76377-189-3 01 1 0603-

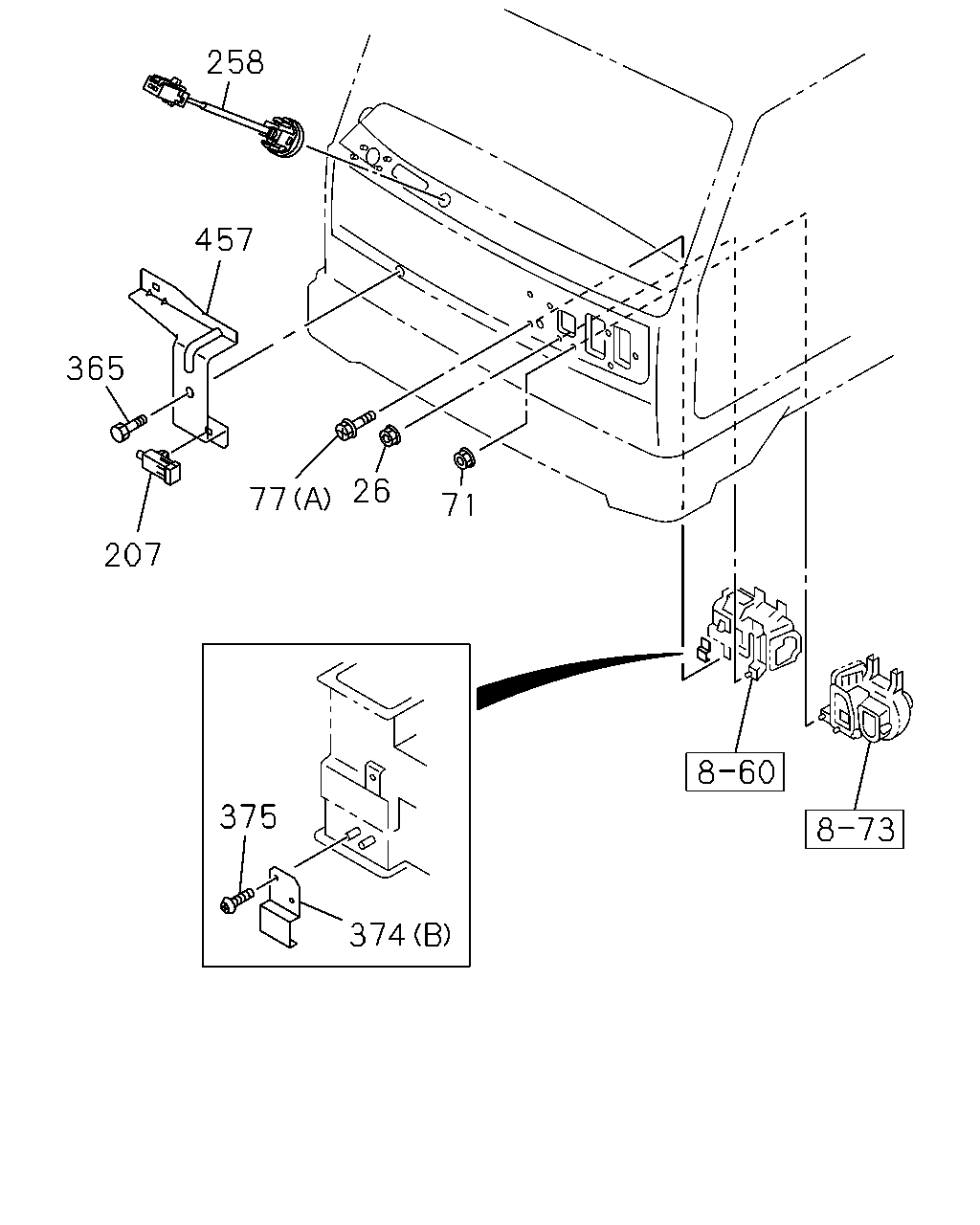

çizim 90176
258 457 365 26 77 71 207 375 374
BalonParca AdiParca NoAdetTipApplied Date
26 NUT; HTR
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0603-
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0603-
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 0603-
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0603-
207 SENSOR; AMBIENT 8-97177-549-0 01 1 0603-1204
207 SENSOR; AMBIENT 8-98214-375-0 01 1 1205-
258 SENSOR; SUN 8-94472-043-2 01 1 0603-
365 BOLT; SENSOR
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0603-
374 HOLDER; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-76398-012-1 01 1 0603-
374 HOLDER; DUCT
(A) 		1-76377-189-3 01 1 0603-
375 SCREW; HOLDER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X14 		8-94279-325-0 02 1 0603-
457 BRACKET; SENSOR 1-71907-603-1 01 1 0603-

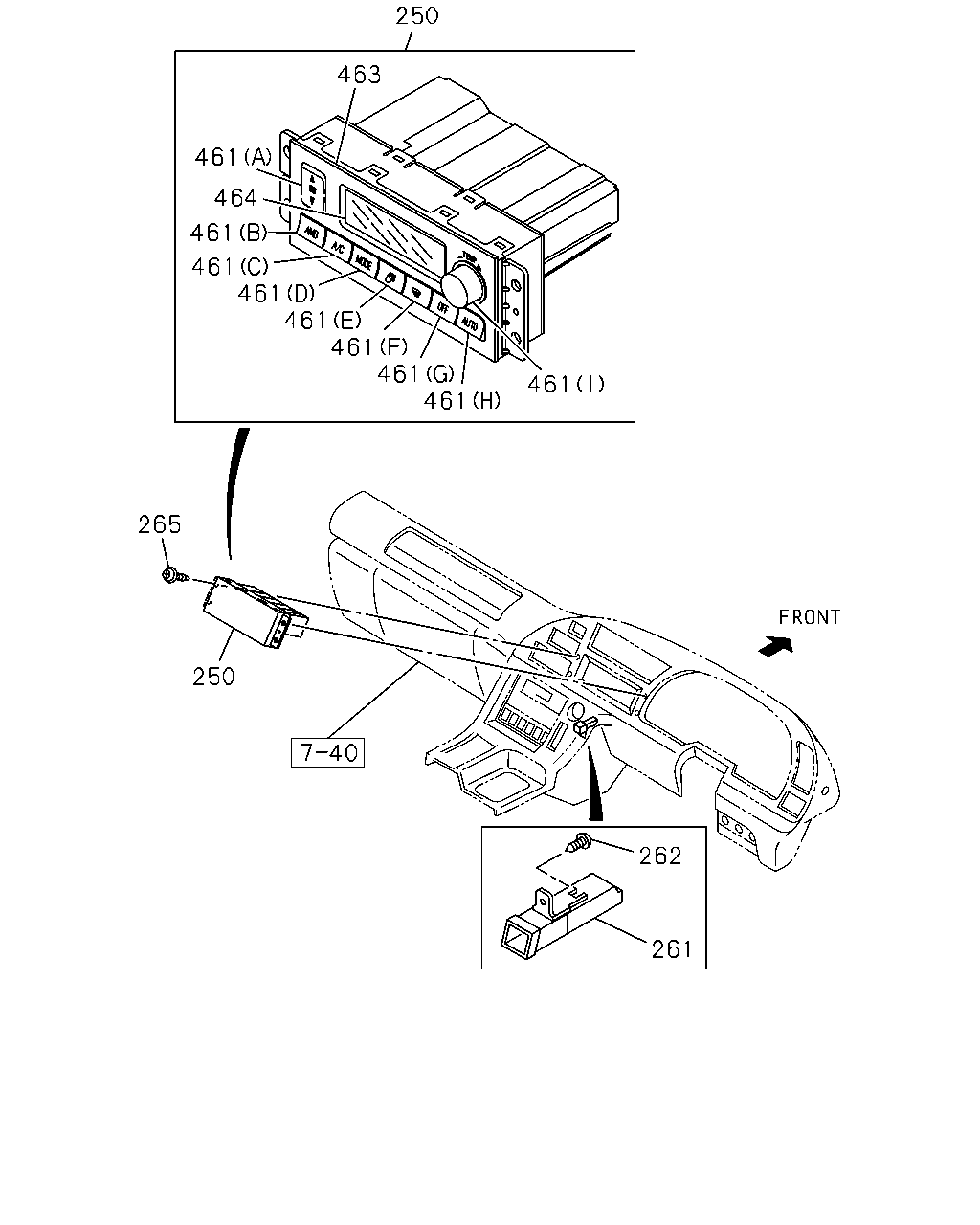

çizim 90500
250 463 461 464 461 461 461 461 461 461 461 461 265 250 262 261
BalonParca AdiParca NoAdetTipApplied Date
250 CONTROL ASM; A/C 1-83543-038-1 01 1 0603-
261 SENSOR; IN CAR 1-83544-023-1 01 1 0603-
262 SCREW; IN CAR SENSOR
M5X14 		8-94279-325-0 01 1 0603-
265 SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 01 1 0603-0604
265 SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 01 1 0605-
461 KNOB; CONTROL ASM,A/C
(A) 		1-83549-018-0 01 1 0603-
461 KNOB; CONTROL ASM,A/C
(B) 		1-83549-019-0 01 1 0603-
461 KNOB; CONTROL ASM,A/C
(C) 		1-83549-020-0 01 1 0603-
461 KNOB; CONTROL ASM,A/C
(D) 		1-83549-021-0 01 1 0603-
461 KNOB; CONTROL ASM,A/C
(E) 		1-83549-022-0 01 1 0603-
461 KNOB; CONTROL ASM,A/C
(F) 		1-83549-023-0 01 1 0603-
461 KNOB; CONTROL ASM,A/C
(G) 		1-83549-024-0 01 1 0603-
461 KNOB; CONTROL ASM,A/C
(H) 		1-83549-025-0 01 1 0603-
461 KNOB; CONTROL ASM,A/C
(I) 		1-83549-026-0 01 1 0603-
463 BEZEL; CONTROL PANEL 1-83549-027-0 01 1 0603-
464 PLATE; CONTROL PANEL 1-83549-028-0 01 1 0603-
