8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#24915) — 46 parça
◀
[825A] CAB SIDE NO.4 (3 parça)
[825A] CAB SIDE NO.1 (12 parça)
[825A] FRAME SIDE NO.2 (15 parça)
[825A] CAB SIDE NO.3 (7 parça)
[825A] CAB SIDE NO.2 (3 parça)
[825A] FRAME SIDE NO.1 (6 parça)
▶

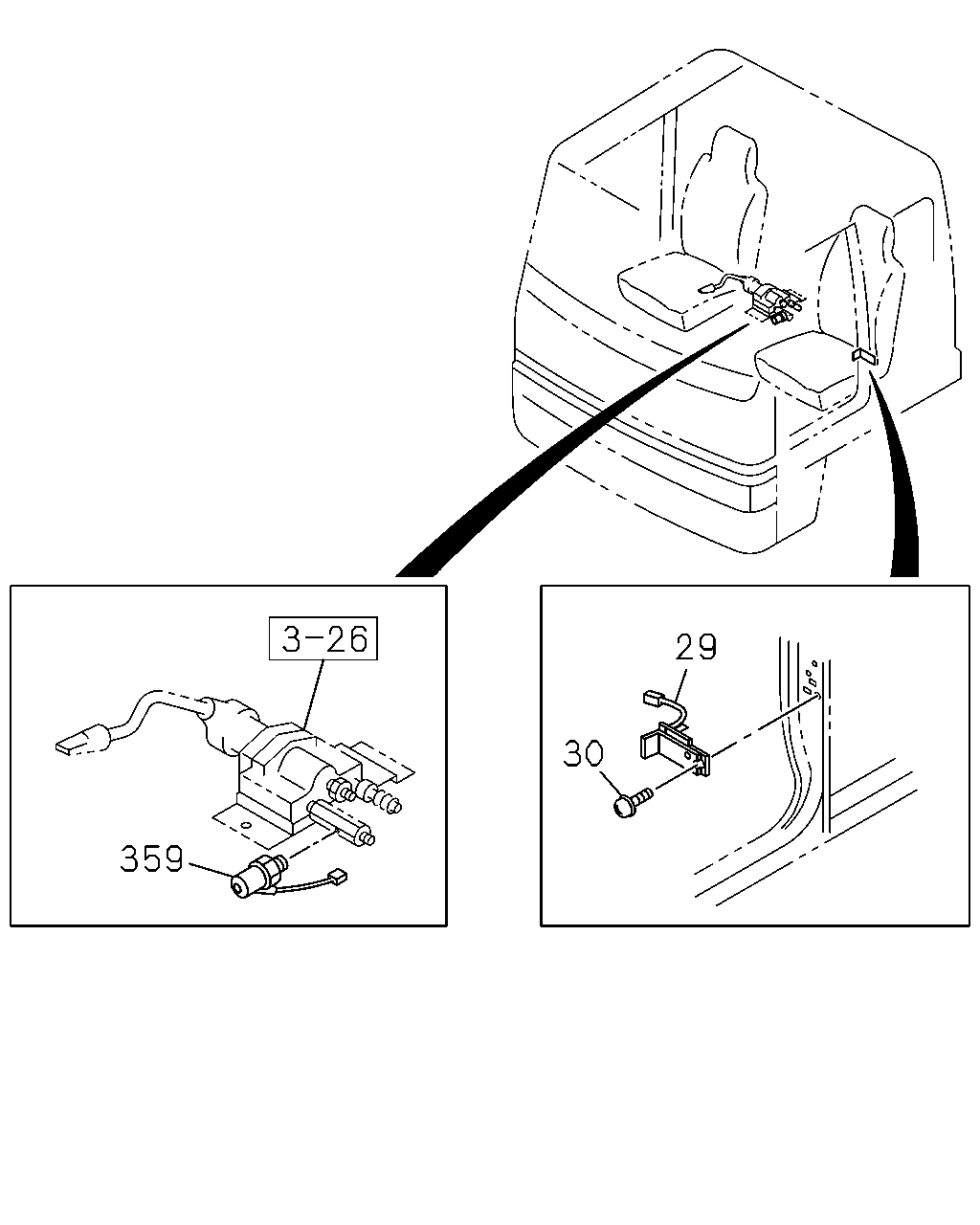

29
30
359
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
8-97855-032-3
02
1
0603-
30
SCREW; DOOR SW
M5X11
1-09981-536-1
02
1
0603-
359
SWITCH; TRAILER BRAKE
GREEN
1-82410-176-1
01
1
0603-

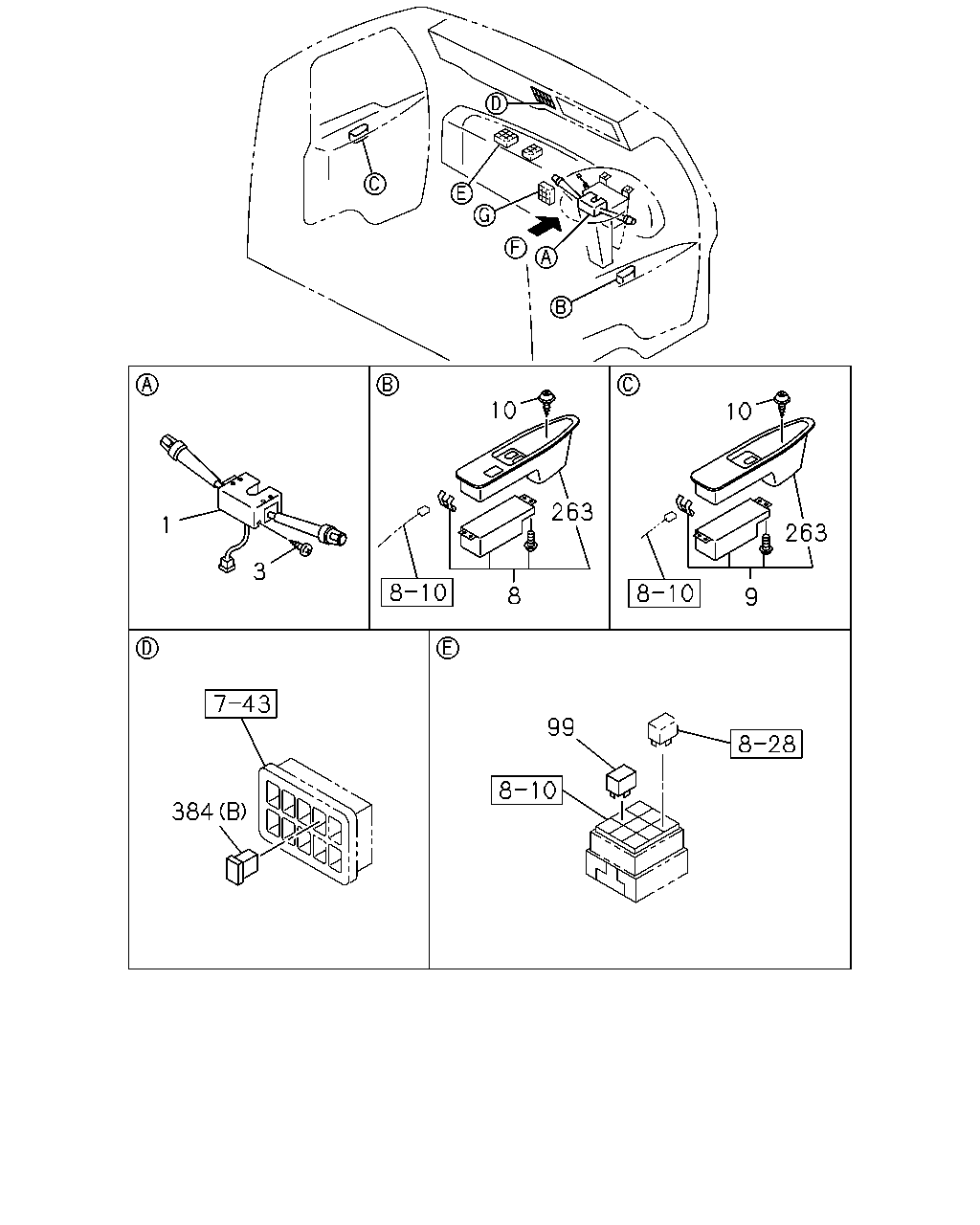

10
10
263
1
263
3
8
9
99
384
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
1-82360-724-1
01
1
0603-
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74105-512-0
04
1
0603-0604
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
0605-
8
SWITCH; POWER WINDOW
DRIVER
1-82380-166-2
01
1
0603-
9
SWITCH; POWER WINDOW
PASSENGER
1-82380-167-1
01
1
0603-
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74310-516-0
02
1
0603-0604
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74360-516-0
02
1
0605-
99
RELAY; FOG LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
0603-
263
COVER; SW
DRIVER
1-82385-005-2
01
1
0603-
263
COVER; SW
PASSENGER
1-82385-006-3
01
1
0603-
384
SWITCH; IDLING CONT,ELEC
(A)
1-82350-213-1
01
1
0603-
384
SWITCH; IDLING CONT,ELEC
(B)
1-82350-342-0
01
1
0603-

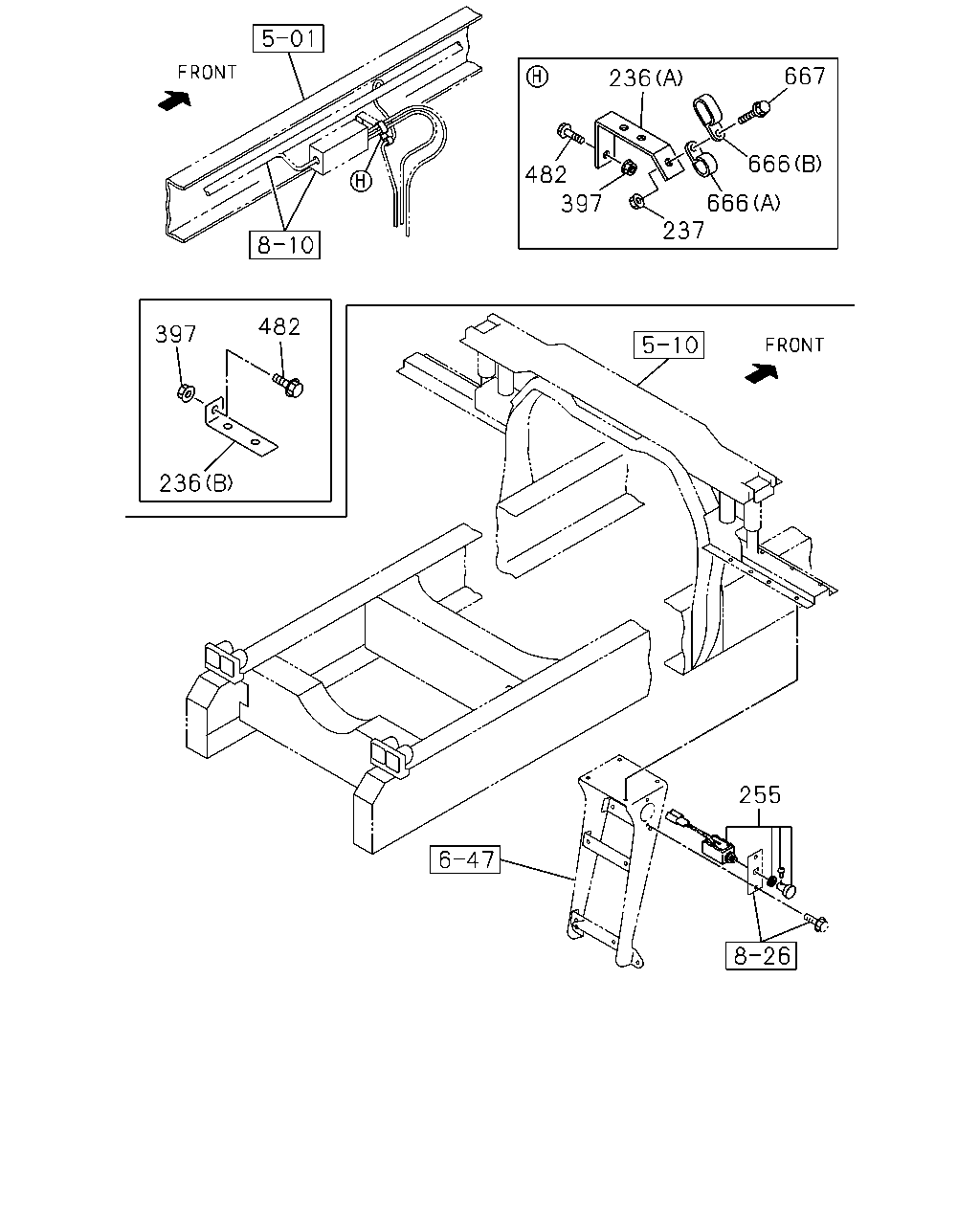

667
236
666
482
666
237
397
482
397
236
255
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
236
BRACKET; AXLE HARNESS,RR
(B) L=120 H=35
1-82698-088-0
01
1
0603-
236
BRACKET; AXLE HARNESS,RR
(A)
1-82698-258-0
01
1
0603-
237
NUT
M8 FLANGE
0-91150-108-0
01
1
0603-0603
237
NUT
M8 FLANGE
0-91180-108-0
01
1
0603-
255
SWITCH; SEARCH LIGHT
1-82340-360-1
01
1
0603-0706
255
SWITCH; SEARCH LIGHT
8-97621-403-0
01
1
0707-0711
255
SWITCH; SEARCH LIGHT
8-98106-483-0
01
1
0712-
397
NUT; BRKT FIX
M8 FLANGE
0-91150-108-0
02
1
0603-0603
397
NUT; BRKT FIX
M8 FLANGE
0-91180-108-0
02
1
0603-
482
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0603-
666
CLIP; AXLE HARNESS
(A) ID=11X2 L=16
9-09535-025-0
01
1
0603-0606
666
CLIP; AXLE HARNESS
(A) ID=11X2 L=16
0-95325-025-0
01
1
0607-
666
CLIP; AXLE HARNESS
(B) ID=11X2 L=20
9-09535-035-0
01
1
0603-0606
666
CLIP; AXLE HARNESS
(B) ID=11X2 L=20
0-95325-035-0
01
1
0607-
667
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
02
1
0603-

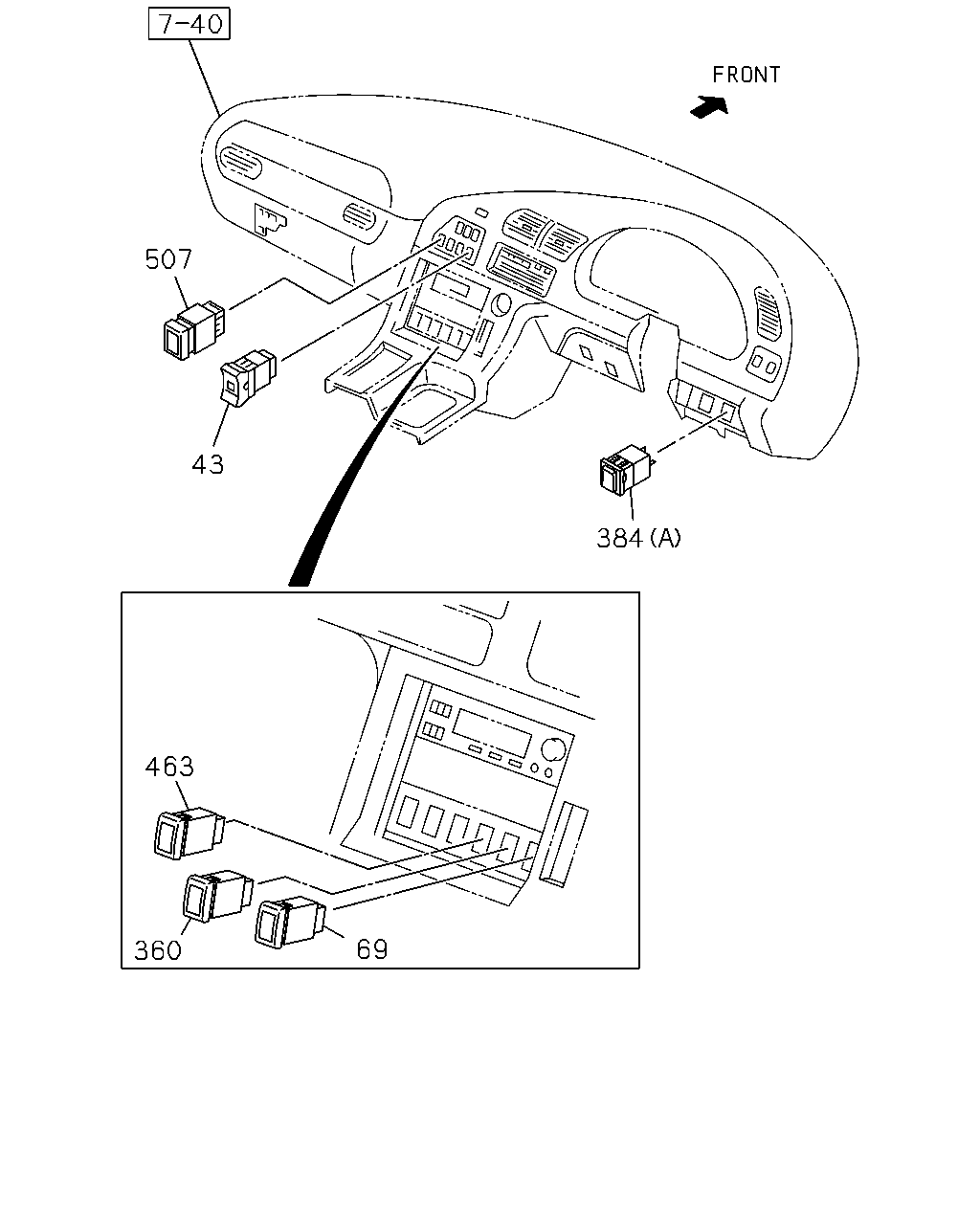

507
43
384
463
69
360
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
43
SWITCH; HORN
1-82350-332-0
01
1
0603-
69
SWITCH; AUTO CRUISE
1-82340-412-2
01
1
0603-
360
SWITCH ASM; DIFF LK
1-82340-660-1
01
1
0603-
384
SWITCH; IDLING CONT,ELEC
(A)
1-82350-213-1
01
1
0603-
384
SWITCH; IDLING CONT,ELEC
(B)
1-82350-342-0
01
1
0603-
463
SWITCH; SPOT LAMP
1-82340-411-0
01
1
0603-
507
SWITCH; MIRROR HEATER
1-82340-423-0
01
1
0603-
21
524
528
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
SWITCH; CLU
1-82380-114-3
01
1
0603-
524
RELAY; LAMP
24V 12.5A PANASONIC
8-97262-933-0
02
1
0603-
528
RELAY; BUZZER
24V 10A PANASONIC
8-97173-035-1
01
1
0603-

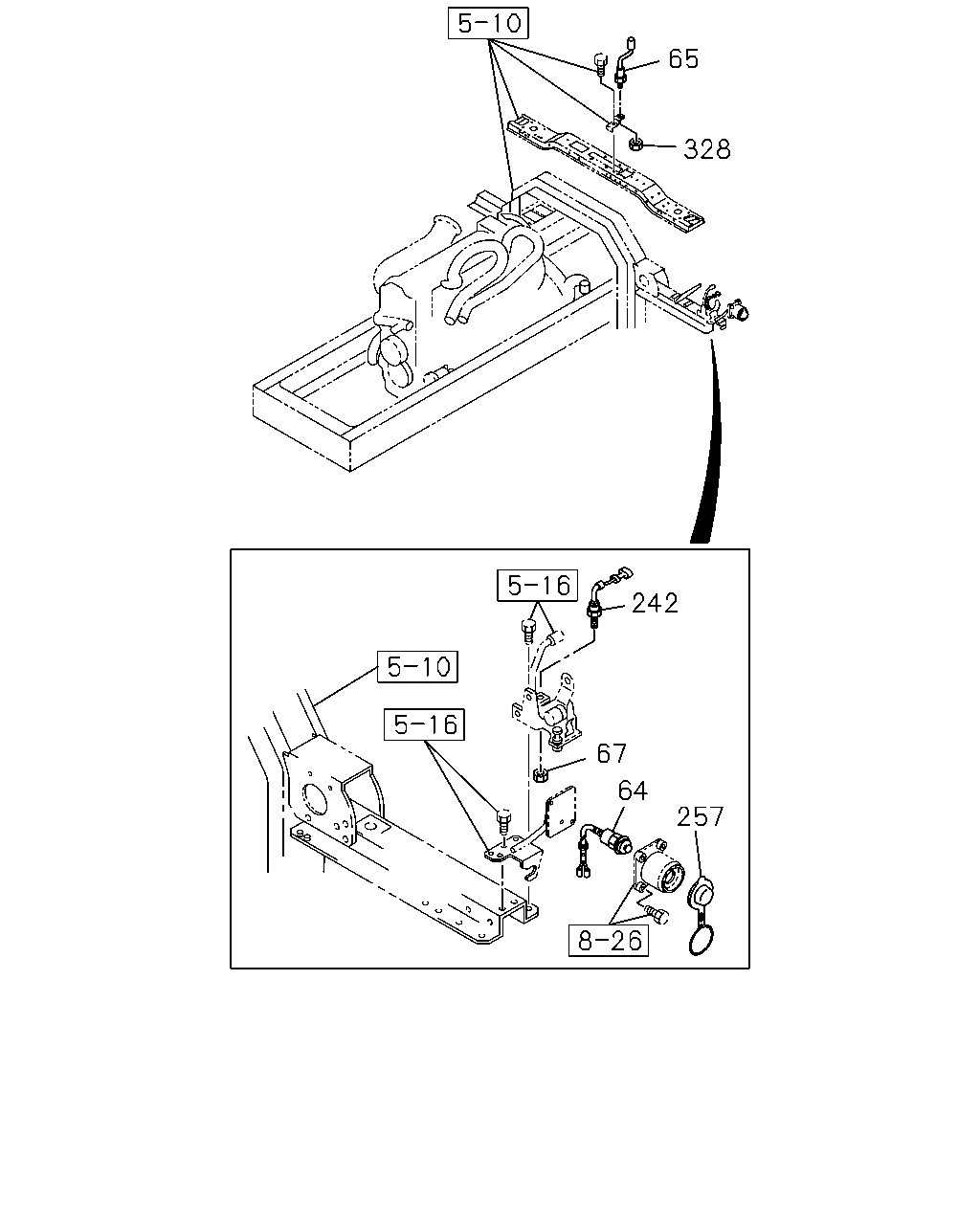

65
328
242
67
64
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
64
SWITCH; CAB TILT MAIN
1-82380-108-0
01
1
0603-
65
SWITCH; CAB TILT LK
STAMP NC
1-82380-125-1
01
1
0603-
67
NUT; SW,CAB TILT
M16 H=18.5
1-09409-013-0
01
1
0603-
242
SWITCH
STAMP NO
1-82380-126-0
01
1
0603-
257
COVER; HOLE,SW
1-82389-008-0
01
1
0603-
328
NUT; SW
M16
0-91110-516-0
01
1
0603-
