Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#24912) — 367 parça

119 255 524 219 294 340 515 127 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	0603-
127	SCREW; FACIA HARNESS CLIP M3X10	9-93490-310-0	04	1	0603-
219	NUT M8 FLANGE	0-91150-108-0	01	1	0603-0603
219	NUT M8 FLANGE	0-91150-108-0	01	1	0603-0603
219	NUT M8 FLANGE	0-91180-108-0	01	1	0603-
219	NUT M8 FLANGE	0-91180-108-0	01	1	0603-
219	NUT M8 FLANGE	0-91150-108-0	15	1	0603-0603
219	NUT M8 FLANGE	0-91180-108-0	15	1	0603-
255	SCREW; TAP CLIP M6X20 TAPPING W/PL WASHER	0-74305-620-0	02	1	0603-0604
255	SCREW; TAP CLIP M6X20 TAPPING W/PL WASHER	0-74365-620-0	02	1	0605-
294	NUT M8 FLANGE	0-91150-108-0	01	1	0603-0603
294	NUT M8 FLANGE	0-91180-108-0	01	1	0603-
294	NUT M8 FLANGE	0-91150-108-0	02	1	0603-0603
294	NUT M8 FLANGE	0-91180-108-0	02	1	0603-
294	NUT M8 FLANGE	0-91150-108-0	12	1	0603-0603
294	NUT M8 FLANGE	0-91180-108-0	12	1	0603-
340	NUT; HARNESS CAB TO FRAME M8 FLANGE	0-91150-108-0	02	1	0603-0603
340	NUT; HARNESS CAB TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	05	1	0603-
515	NUT; BRKT M8 FLANGE	0-91150-108-0	06	1	0603-0603
515	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	0603-
524	NUT; HARNESS M6 FLANGE	0-91150-106-0	01	1	0603-0603
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	0603-

128 212 16 16 16 212 16 16 223 16 212 470 16 16 223 16 16 16 16 16 16 16 128 16 16 16 16 223 16 16 16

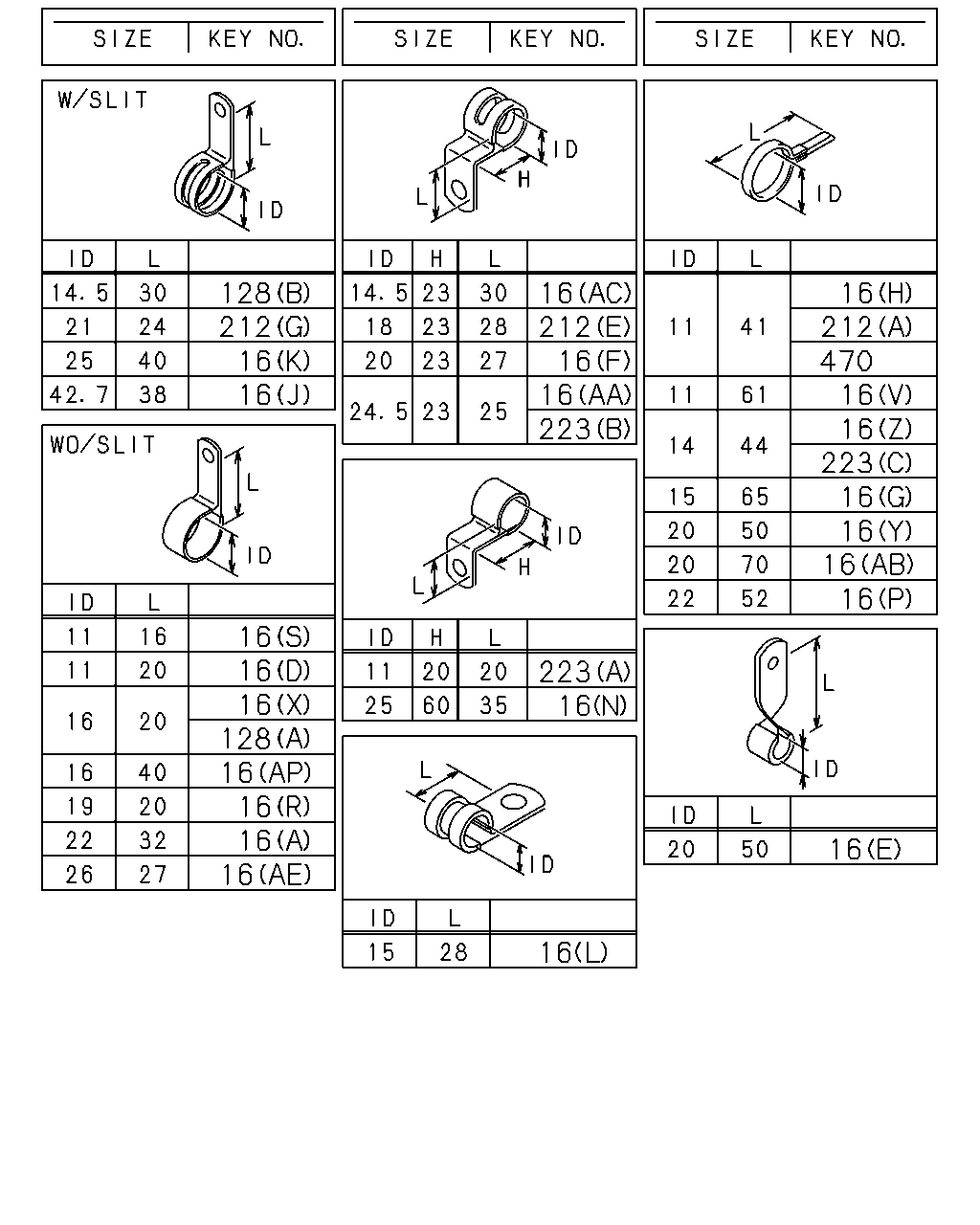

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (X) ID=16 L=20	0-95235-535-0	02	1	0609-
16	CLIP; HARNESS (AA) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0609-
16	CLIP; HARNESS (AA) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0609-
16	CLIP; HARNESS (B) ID=15 & 15	1-09709-282-1	01	1	0603-
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	02	1	0603-
16	CLIP; HARNESS (W) ID=5-12 L=26	1-09709-289-0	01	1	0603-0610
16	CLIP; HARNESS (AQ) ID=5-12 L=22	1-09709-288-0	01	1	0611-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	09	1	0603-
16	CLIP; HARNESS (C) OD=9 H=6	8-97368-793-0	01	1	0603-
16	CLIP; HARNESS (K) ID=25 L=40	1-09700-215-1	01	1	0603-
16	CLIP; HARNESS (N) ID=25 H=60 L=35	1-09701-103-0	01	1	0603-
16	CLIP; HARNESS (D) B=14 ID=11 L=20	9-09525-032-0	01	1	0603-0606
16	CLIP; HARNESS (D) B=14 ID=11 L=20	0-95235-032-0	01	1	0607-
16	CLIP; HARNESS (D) B=18 ID=11 L=20	9-09525-035-0	02	1	0603-0606
16	CLIP; HARNESS (D) B=18 ID=11 L=20	0-95235-035-0	02	1	0607-
16	CLIP; HARNESS (R) ID=19 L=20	9-09525-836-0	02	1	0603-0606
16	CLIP; HARNESS (R) ID=19 L=20	0-95235-836-0	02	1	0607-
16	CLIP; HARNESS (A) ID=22 L=32	1-09700-126-1	01	1	0603-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	01	1	0603-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	04	1	0603-
16	CLIP; HARNESS (G) ID=15 L=65	1-09700-466-0	01	1	0603-
16	CLIP; HARNESS (V) ID=11 L=61	1-09700-484-0	02	1	0603-
16	CLIP; HARNESS (AB) ID=20 L=70	1-09700-485-0	01	1	0603-
16	CLIP; HARNESS (E) ID=20 L=50	1-09700-679-1	01	1	0603-
16	CLIP; HARNESS (AC) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0603-
16	CLIP; HARNESS (AC) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0603-0608
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	02	1	0609-
16	CLIP; HARNESS (AA) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0603-0608
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	06	1	0609-
16	CLIP; HARNESS (AA) ID=24.5 H=23 L=25	1-09700-862-0	03	1	0603-0608
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	01	1	0609-
16	CLIP; HARNESS (AE) ID=26 L=27	1-09701-006-0	02	1	0603-
16	CLIP; HARNESS (L) ID=15 L=28	1-09701-216-0	01	1	0603-
16	CLIP; HARNESS (M) ID=4.8	1-09701-218-0	01	1	0603-
16	CLIP; HARNESS (AG) ID=28X2 L=28	1-09701-302-0	01	1	0603-
16	CLIP; HARNESS (J) ID=42.7 L=38	1-09701-313-0	01	1	0603-
16	CLIP; HARNESS (AH) L=300	1-09707-001-1	02	1	0603-
16	CLIP; HARNESS (O) L=180	1-09707-162-1	08	1	0603-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	0603-
16	CLIP; HARNESS (AI) WO/SPONGE RUBBER	1-09709-103-1	02	1	0603-
16	CLIP; HARNESS (AI) W/SPONGE RUBBER	1-09709-150-0	01	1	0603-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	08	1	0603-0608
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	02	1	0609-
16	CLIP; HARNESS (AJ) OD=9 H=13.5	1-09709-180-0	01	1	0603-
16	CLIP; HARNESS (AK) ID=13-18 L=22	1-09709-292-0	02	1	0603-
16	CLIP; HARNESS (AL) ID=18-24 L=22	1-09709-295-0	01	1	0603-
16	CLIP; HARNESS (AD) ID=5-12 L=14.5	1-09987-221-0	01	1	0603-
16	CLIP; HARNESS (AD) ID=5-12 L=14.5	1-09987-221-0	01	1	0603-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	01	1	0603-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	02	1	0603-
16	CLIP; HARNESS (AF) L=140	5-09707-031-1	06	1	0603-
16	CLIP; HARNESS (AM) L=55	8-94432-655-0	03	1	0603-
16	CLIP; HARNESS (AN) ID=14-20	8-97061-603-0	03	1	0603-
16	CLIP; HARNESS (AO) L=175	8-97110-167-0	04	1	0603-
16	CLIP; HARNESS (S) ID=11 L=16	9-09525-025-0	02	1	0603-0606
16	CLIP; HARNESS (S) ID=11 L=16	0-95235-025-0	02	1	0607-
16	CLIP; HARNESS (X) ID=16 L=20	9-09525-535-0	03	1	0603-0606
16	CLIP; HARNESS (X) ID=16 L=20	0-95235-535-0	03	1	0607-0608
16	CLIP; HARNESS (X) ID=16 L=20	0-95235-535-0	01	1	0609-
16	CLIP; HARNESS (AP) ID=16 L=40	9-09525-576-0	01	1	0603-0606
16	CLIP; HARNESS (AP) ID=16 L=40	0-95235-576-0	01	1	0607-
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	05	1	0603-
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	01	1	0603-
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	09	1	0603-
16	CLIP; HARNESS (P) ID=22 L=52	9-09917-431-0	03	1	0603-
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0603-
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0603-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	9-09525-535-0	01	1	0603-0606
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	0607-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	0603-
212	CLIP; HORN HARNESS (A) ID=11 L=41	1-09700-403-0	02	1	0603-
212	CLIP; HORN HARNESS (E) ID=18 H=23 L=28	1-09700-860-0	01	1	0603-
212	CLIP; HORN HARNESS (F) L=300	1-09707-001-1	01	1	0603-
212	CLIP; HORN HARNESS (B) L=350	1-09707-183-0	01	1	0603-0608
212	CLIP; HORN HARNESS (B) L=350	1-09707-183-0	02	1	0609-
212	CLIP; HORN HARNESS (D) L=250	5-09707-030-1	02	1	0603-
212	CLIP; HORN HARNESS (C) L=140	5-09707-031-1	02	1	0603-
212	CLIP; HORN HARNESS (G) ID=21 L=24	8-94176-807-1	01	1	0603-
223	CLIP; AIR TANK HARNESS (B) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0603-
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	5-09700-351-0	03	1	0603-0707
223	CLIP; AIR TANK HARNESS (A) ID=11 H=20 L=20	8-98033-780-0	03	1	0708-
223	CLIP; AIR TANK HARNESS (C) ID=14 L=44	9-09917-427-0	02	1	0603-
470	CLIP; HARNESS,LICENSE LAMP ID=11 L=41	1-09700-403-0	01	1	0603-

53 53 53 53 211 69 59 312 312 312 312 334 312 312 334 342 375 342 211 342

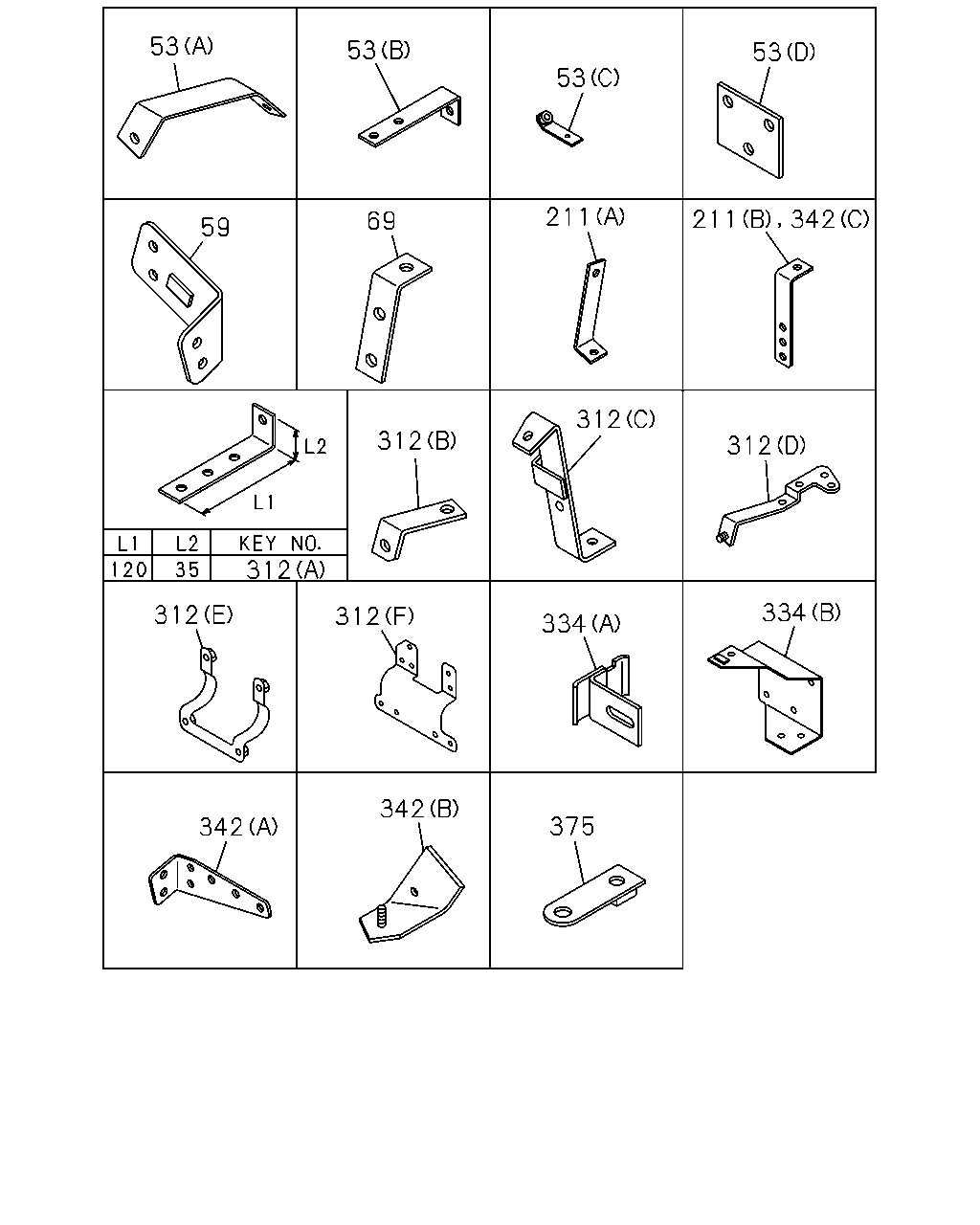

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS (B)	1-82698-382-0	01	1	0603-
53	BRACKET; HARNESS (C)	1-81582-005-1	01	1	0603-
53	BRACKET; HARNESS (A)	1-47479-537-0	11	1	0603-
53	BRACKET; HARNESS (D)	1-82698-469-0	02	1	0603-
59	BRACKET; FRAME HARNESS	1-82698-531-0	01	1	0603-
69	BRACKET; CLIP L=90 B=25	1-47476-630-0	01	1	0603-
211	BRACKET; AXLE HARNESS (A)	1-82698-514-0	02	1	0603-
211	BRACKET; AXLE HARNESS (B) L=95	1-82699-085-0	02	1	0603-
312	BRACKET; CLIP HARNESS (A) L=120 H=35	1-82698-088-0	01	1	0603-
312	BRACKET; CLIP HARNESS (B)	1-82698-440-0	01	1	0603-
312	BRACKET; CLIP HARNESS (F)	1-82698-474-1	01	1	0603-
312	BRACKET; CLIP HARNESS (E)	1-82698-476-0	01	1	0603-
312	BRACKET; CLIP HARNESS (C) L=195.5	1-82698-502-0	01	1	0603-
312	BRACKET; CLIP HARNESS EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D)	1-82698-443-0	01	1	0603-
334	BRACKET (A)	1-47479-693-0	01	1	0603-
334	BRACKET (B)	1-53458-362-0	01	1	0603-
342	BRACKET; HARNESS CAB MTG (B)	1-47479-974-0	01	1	0603-0609
342	BRACKET; HARNESS CAB MTG (C) L=95	1-82699-085-0	02	1	0603-
342	BRACKET; HARNESS CAB MTG (A)	1-82699-625-0	01	1	0603-
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	0603-

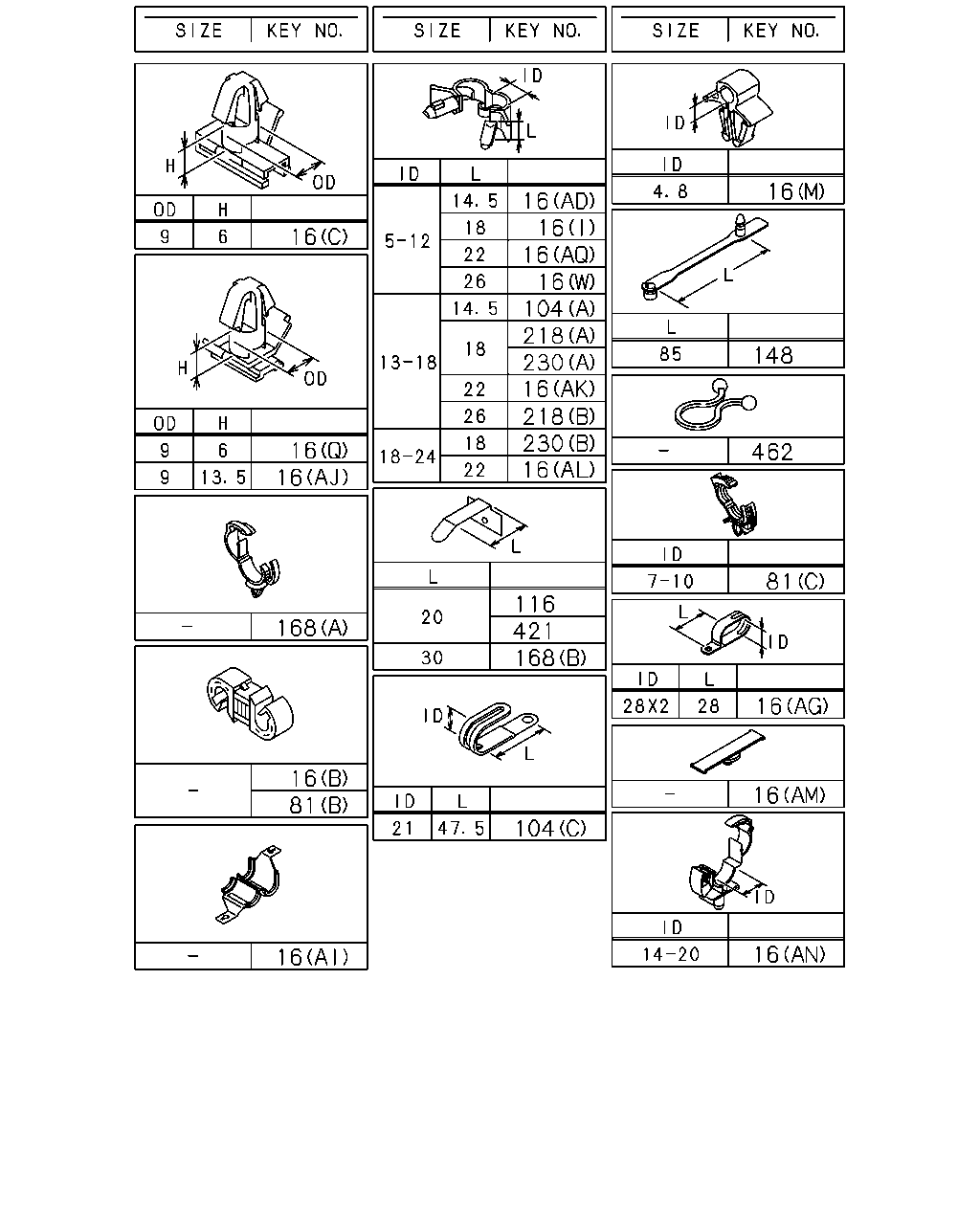

16 16 16 16 16 104 218 230 16 218 230 16 16 148 16 16 462 81 116 421 168 168 16 16 81 16 104 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (X) ID=16 L=20	0-95235-535-0	02	1	0609-
16	CLIP; HARNESS (AA) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0609-
16	CLIP; HARNESS (AA) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0609-
16	CLIP; HARNESS (B) ID=15 & 15	1-09709-282-1	01	1	0603-
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	02	1	0603-
16	CLIP; HARNESS (W) ID=5-12 L=26	1-09709-289-0	01	1	0603-0610
16	CLIP; HARNESS (AQ) ID=5-12 L=22	1-09709-288-0	01	1	0611-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	09	1	0603-
16	CLIP; HARNESS (C) OD=9 H=6	8-97368-793-0	01	1	0603-
16	CLIP; HARNESS (K) ID=25 L=40	1-09700-215-1	01	1	0603-
16	CLIP; HARNESS (N) ID=25 H=60 L=35	1-09701-103-0	01	1	0603-
16	CLIP; HARNESS (D) B=14 ID=11 L=20	9-09525-032-0	01	1	0603-0606
16	CLIP; HARNESS (D) B=14 ID=11 L=20	0-95235-032-0	01	1	0607-
16	CLIP; HARNESS (D) B=18 ID=11 L=20	9-09525-035-0	02	1	0603-0606
16	CLIP; HARNESS (D) B=18 ID=11 L=20	0-95235-035-0	02	1	0607-
16	CLIP; HARNESS (R) ID=19 L=20	9-09525-836-0	02	1	0603-0606
16	CLIP; HARNESS (R) ID=19 L=20	0-95235-836-0	02	1	0607-
16	CLIP; HARNESS (A) ID=22 L=32	1-09700-126-1	01	1	0603-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	01	1	0603-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	04	1	0603-
16	CLIP; HARNESS (G) ID=15 L=65	1-09700-466-0	01	1	0603-
16	CLIP; HARNESS (V) ID=11 L=61	1-09700-484-0	02	1	0603-
16	CLIP; HARNESS (AB) ID=20 L=70	1-09700-485-0	01	1	0603-
16	CLIP; HARNESS (E) ID=20 L=50	1-09700-679-1	01	1	0603-
16	CLIP; HARNESS (AC) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0603-
16	CLIP; HARNESS (AC) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0603-0608
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	02	1	0609-
16	CLIP; HARNESS (AA) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0603-0608
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	06	1	0609-
16	CLIP; HARNESS (AA) ID=24.5 H=23 L=25	1-09700-862-0	03	1	0603-0608
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	01	1	0609-
16	CLIP; HARNESS (AE) ID=26 L=27	1-09701-006-0	02	1	0603-
16	CLIP; HARNESS (L) ID=15 L=28	1-09701-216-0	01	1	0603-
16	CLIP; HARNESS (M) ID=4.8	1-09701-218-0	01	1	0603-
16	CLIP; HARNESS (AG) ID=28X2 L=28	1-09701-302-0	01	1	0603-
16	CLIP; HARNESS (J) ID=42.7 L=38	1-09701-313-0	01	1	0603-
16	CLIP; HARNESS (AH) L=300	1-09707-001-1	02	1	0603-
16	CLIP; HARNESS (O) L=180	1-09707-162-1	08	1	0603-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	0603-
16	CLIP; HARNESS (AI) WO/SPONGE RUBBER	1-09709-103-1	02	1	0603-
16	CLIP; HARNESS (AI) W/SPONGE RUBBER	1-09709-150-0	01	1	0603-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	08	1	0603-0608
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	02	1	0609-
16	CLIP; HARNESS (AJ) OD=9 H=13.5	1-09709-180-0	01	1	0603-
16	CLIP; HARNESS (AK) ID=13-18 L=22	1-09709-292-0	02	1	0603-
16	CLIP; HARNESS (AL) ID=18-24 L=22	1-09709-295-0	01	1	0603-
16	CLIP; HARNESS (AD) ID=5-12 L=14.5	1-09987-221-0	01	1	0603-
16	CLIP; HARNESS (AD) ID=5-12 L=14.5	1-09987-221-0	01	1	0603-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	01	1	0603-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	02	1	0603-
16	CLIP; HARNESS (AF) L=140	5-09707-031-1	06	1	0603-
16	CLIP; HARNESS (AM) L=55	8-94432-655-0	03	1	0603-
16	CLIP; HARNESS (AN) ID=14-20	8-97061-603-0	03	1	0603-
16	CLIP; HARNESS (AO) L=175	8-97110-167-0	04	1	0603-
16	CLIP; HARNESS (S) ID=11 L=16	9-09525-025-0	02	1	0603-0606
16	CLIP; HARNESS (S) ID=11 L=16	0-95235-025-0	02	1	0607-
16	CLIP; HARNESS (X) ID=16 L=20	9-09525-535-0	03	1	0603-0606
16	CLIP; HARNESS (X) ID=16 L=20	0-95235-535-0	03	1	0607-0608
16	CLIP; HARNESS (X) ID=16 L=20	0-95235-535-0	01	1	0609-
16	CLIP; HARNESS (AP) ID=16 L=40	9-09525-576-0	01	1	0603-0606
16	CLIP; HARNESS (AP) ID=16 L=40	0-95235-576-0	01	1	0607-
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	05	1	0603-
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	01	1	0603-
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	09	1	0603-
16	CLIP; HARNESS (P) ID=22 L=52	9-09917-431-0	03	1	0603-
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0603-
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0603-
81	CLIP; HARNESS (B) ID=6.35 & 12	1-09709-275-1	02	1	0603-
81	CLIP; HARNESS (A) L=140	5-09707-031-1	02	1	0603-
81	CLIP; HARNESS (C) ID=7-10	8-94472-578-0	02	1	0603-
104	CLIP; HEADLAMP HARNESS (A) ID=13-18 L=14.5	1-09709-290-0	08	1	0603-
104	CLIP; HEADLAMP HARNESS (B) L=140	5-09707-031-1	02	1	0603-
104	CLIP; HEADLAMP HARNESS (C) ID=21 L=47.5	8-94178-108-0	02	1	0603-0710
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	06	1	0603-1409
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	07	1	1410-
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	02	1	0603-
168	CLIP; DASH HARNESS (A) ID=6 & 10-13	8-97069-515-0	05	1	0603-
168	CLIP; DASH HARNESS EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) L=30 SET=10 PIECE	1-09987-265-0	01	1	0603-
218	CLIP; BAND,RR COMB (A) ID=13-18 L=18	1-09709-291-0	02	1	0603-0608
218	CLIP; BAND,RR COMB (B) ID=13-18 L=26	1-09709-293-0	02	1	0609-
230	CLIP; C/MBR HARNESS (A) ID=13-18 L=18	1-09709-291-0	02	1	0603-
230	CLIP; C/MBR HARNESS (B) ID=18-24 L=18	1-09709-294-0	03	1	0603-
421	CLIP; FLOOR HARNESS L=20 SET=10 PIECE	1-09987-246-2	05	1	0603-
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) ID=20	1-09709-068-0	02	1	0603-

516 139 38 150 242 150 38 313 38 38 242 480 38 139 242 313 38 86 139 242 313 38 133 239 88 358 239 38 358 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

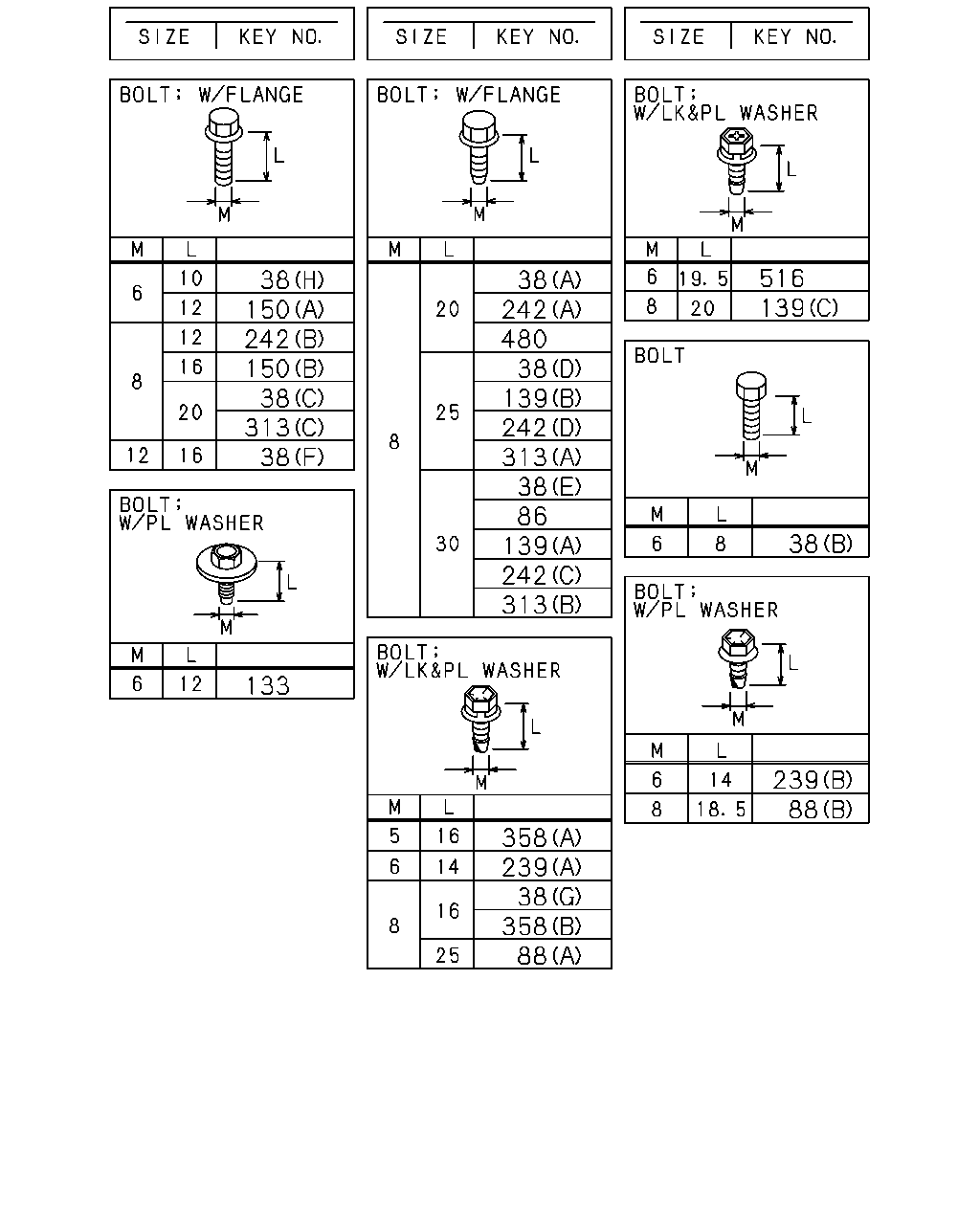

38	BOLT; CLIP,HARNESS (B) M6X8	0-20800-608-0	01	1	0603-0701
38	BOLT; CLIP,HARNESS (H) M6X10 FLANGE	0-28050-610-0	01	1	0702-
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28050-820-0	01	1	0603-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	13	1	0603-0609
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	14	1	0610-
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28650-825-0	02	1	0603-
38	BOLT; CLIP,HARNESS (E) M8X30 FLANGE	0-28650-830-0	01	1	0603-
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	1-09044-079-0	01	1	0603-1105
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	0-28051-216-0	01	1	1106-
38	BOLT; CLIP,HARNESS (G) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0603-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0603-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0603-
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0603-
88	BOLT; DOOR HARNESS EARTH (A) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0603-1007
88	BOLT; DOOR HARNESS EARTH (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1008-
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	0603-
139	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	05	1	0603-
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	05	1	0603-
139	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0603-0904
139	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
150	BOLT; CLIP (A) M6X12 FLANGE	0-28050-612-0	02	1	0603-
150	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	07	1	0603-
239	BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0603-1007
239	BOLT; GRAND (B) M6X14 W/PL WASHER	8-98164-836-0	02	1	1008-
242	BOLT; BRKT,HARNESS (B) M8X12 FLANGE	0-28050-812-0	01	1	0603-
242	BOLT; BRKT,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0603-
242	BOLT; BRKT,HARNESS (A) M8X20 FLANGE	0-28650-820-0	06	1	0603-
242	BOLT; BRKT,HARNESS (D) M8X25 FLANGE	0-28650-825-0	01	1	0603-
242	BOLT; BRKT,HARNESS (C) M8X30 FLANGE	0-28650-830-0	01	1	0603-0609
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0603-
313	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	01	1	0603-
313	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	0603-
358	BOLT; EARTH (A) M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	0603-
358	BOLT; EARTH (B) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0603-
480	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0603-
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0603-

5 224 1 1 1 530 178 178 178 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) ID=38.1 L=50	5-09360-835-0	01	1	0603-0704
1	SLEEVE; RUBBER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) ID=38.1 L=25	1-09337-052-0	01	1	0705-
1	SLEEVE; RUBBER (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	0603-
5	GUIDE; HARNESS L=360	1-82699-476-1	01	1	0603-
178	GROMMET; HARNESS (D) ID=32 OD=40 T=23	1-09332-112-0	01	1	0603-
178	GROMMET; HARNESS (B) W/SLIT ID=24 OD=30 T=22	1-09332-104-0	01	1	0603-
178	GROMMET; HARNESS (D) ID=32 OD=40 T=23	1-09332-112-0	02	1	0603-
178	GROMMET; HARNESS (B) WO/SLIT ID=24 OD=30 T=22	1-09332-126-0	02	1	0603-
178	GROMMET; HARNESS (A) ID=19 OD=23 T=18	9-09956-130-1	01	1	0603-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	02	1	0603-
224	SLEEVE; RUBBER,HARNESS ID=6 L=30	5-09360-352-0	01	1	0603-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	0603-
530	SEAL; HARNESS 100X40	1-72498-022-1	01	1	0603-
530	SEAL; HARNESS 100X40	1-72498-022-1	02	1	0603-

14 16 81 104 111 142 171 194 212 305 14 16 142 171 212 16 142 142 14 48 16 194 212 14 16 48 194 208 212 426 448 16 51 142 162 194 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	0603-
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	02	1	0603-
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	01	1	0603-
14	CLIP; BAND,HARNESS (D) L=140	5-09707-031-1	03	1	0603-
16	CLIP; HARNESS (X) ID=16 L=20	0-95235-535-0	02	1	0609-
16	CLIP; HARNESS (AA) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0609-
16	CLIP; HARNESS (AA) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0609-
16	CLIP; HARNESS (B) ID=15 & 15	1-09709-282-1	01	1	0603-
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	02	1	0603-
16	CLIP; HARNESS (W) ID=5-12 L=26	1-09709-289-0	01	1	0603-0610
16	CLIP; HARNESS (AQ) ID=5-12 L=22	1-09709-288-0	01	1	0611-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	09	1	0603-
16	CLIP; HARNESS (C) OD=9 H=6	8-97368-793-0	01	1	0603-
16	CLIP; HARNESS (K) ID=25 L=40	1-09700-215-1	01	1	0603-
16	CLIP; HARNESS (N) ID=25 H=60 L=35	1-09701-103-0	01	1	0603-
16	CLIP; HARNESS (D) B=14 ID=11 L=20	9-09525-032-0	01	1	0603-0606
16	CLIP; HARNESS (D) B=14 ID=11 L=20	0-95235-032-0	01	1	0607-
16	CLIP; HARNESS (D) B=18 ID=11 L=20	9-09525-035-0	02	1	0603-0606
16	CLIP; HARNESS (D) B=18 ID=11 L=20	0-95235-035-0	02	1	0607-
16	CLIP; HARNESS (R) ID=19 L=20	9-09525-836-0	02	1	0603-0606
16	CLIP; HARNESS (R) ID=19 L=20	0-95235-836-0	02	1	0607-
16	CLIP; HARNESS (A) ID=22 L=32	1-09700-126-1	01	1	0603-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	01	1	0603-
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	04	1	0603-
16	CLIP; HARNESS (G) ID=15 L=65	1-09700-466-0	01	1	0603-
16	CLIP; HARNESS (V) ID=11 L=61	1-09700-484-0	02	1	0603-
16	CLIP; HARNESS (AB) ID=20 L=70	1-09700-485-0	01	1	0603-
16	CLIP; HARNESS (E) ID=20 L=50	1-09700-679-1	01	1	0603-
16	CLIP; HARNESS (AC) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0603-
16	CLIP; HARNESS (AC) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0603-0608
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	02	1	0609-
16	CLIP; HARNESS (AA) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0603-0608
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	06	1	0609-
16	CLIP; HARNESS (AA) ID=24.5 H=23 L=25	1-09700-862-0	03	1	0603-0608
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	01	1	0609-
16	CLIP; HARNESS (AE) ID=26 L=27	1-09701-006-0	02	1	0603-
16	CLIP; HARNESS (L) ID=15 L=28	1-09701-216-0	01	1	0603-
16	CLIP; HARNESS (M) ID=4.8	1-09701-218-0	01	1	0603-
16	CLIP; HARNESS (AG) ID=28X2 L=28	1-09701-302-0	01	1	0603-
16	CLIP; HARNESS (J) ID=42.7 L=38	1-09701-313-0	01	1	0603-
16	CLIP; HARNESS (AH) L=300	1-09707-001-1	02	1	0603-
16	CLIP; HARNESS (O) L=180	1-09707-162-1	08	1	0603-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	0603-
16	CLIP; HARNESS (AI) WO/SPONGE RUBBER	1-09709-103-1	02	1	0603-
16	CLIP; HARNESS (AI) W/SPONGE RUBBER	1-09709-150-0	01	1	0603-
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	08	1	0603-0608
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	02	1	0609-
16	CLIP; HARNESS (AJ) OD=9 H=13.5	1-09709-180-0	01	1	0603-
16	CLIP; HARNESS (AK) ID=13-18 L=22	1-09709-292-0	02	1	0603-
16	CLIP; HARNESS (AL) ID=18-24 L=22	1-09709-295-0	01	1	0603-
16	CLIP; HARNESS (AD) ID=5-12 L=14.5	1-09987-221-0	01	1	0603-
16	CLIP; HARNESS (AD) ID=5-12 L=14.5	1-09987-221-0	01	1	0603-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	01	1	0603-
16	CLIP; HARNESS (U) L=250	5-09707-030-1	02	1	0603-
16	CLIP; HARNESS (AF) L=140	5-09707-031-1	06	1	0603-
16	CLIP; HARNESS (AM) L=55	8-94432-655-0	03	1	0603-
16	CLIP; HARNESS (AN) ID=14-20	8-97061-603-0	03	1	0603-
16	CLIP; HARNESS (AO) L=175	8-97110-167-0	04	1	0603-
16	CLIP; HARNESS (S) ID=11 L=16	9-09525-025-0	02	1	0603-0606
16	CLIP; HARNESS (S) ID=11 L=16	0-95235-025-0	02	1	0607-
16	CLIP; HARNESS (X) ID=16 L=20	9-09525-535-0	03	1	0603-0606
16	CLIP; HARNESS (X) ID=16 L=20	0-95235-535-0	03	1	0607-0608
16	CLIP; HARNESS (X) ID=16 L=20	0-95235-535-0	01	1	0609-
16	CLIP; HARNESS (AP) ID=16 L=40	9-09525-576-0	01	1	0603-0606
16	CLIP; HARNESS (AP) ID=16 L=40	0-95235-576-0	01	1	0607-
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	05	1	0603-
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	01	1	0603-
16	CLIP; HARNESS (Y) ID=20 L=50	9-09917-430-0	09	1	0603-
16	CLIP; HARNESS (P) ID=22 L=52	9-09917-431-0	03	1	0603-
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0603-
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0603-
48	CLIP; FRAME HARNESS (A) L=250	1-09707-126-0	01	1	0603-
48	CLIP; FRAME HARNESS (B) L=350	1-09707-183-0	12	1	0603-
51	CLIP; COOLER CMPR L=180	1-09707-162-1	01	1	0603-
81	CLIP; HARNESS (B) ID=6.35 & 12	1-09709-275-1	02	1	0603-
81	CLIP; HARNESS (A) L=140	5-09707-031-1	02	1	0603-
81	CLIP; HARNESS (C) ID=7-10	8-94472-578-0	02	1	0603-
104	CLIP; HEADLAMP HARNESS (A) ID=13-18 L=14.5	1-09709-290-0	08	1	0603-
104	CLIP; HEADLAMP HARNESS (B) L=140	5-09707-031-1	02	1	0603-
104	CLIP; HEADLAMP HARNESS (C) ID=21 L=47.5	8-94178-108-0	02	1	0603-0710
111	CLIP; STOP LAMP SW HARNESS L=140	5-09707-031-1	01	1	0603-
142	CLIP; HARNESS,ENG (A) L=180	1-09707-162-1	01	1	0603-1207
142	CLIP; HARNESS,ENG (A) L=180	8-98216-427-0	01	1	1208-
142	CLIP; HARNESS,ENG (B) L=250	5-09707-030-1	01	1	0603-1205
142	CLIP; HARNESS,ENG (D) L=250	8-98216-430-0	01	1	1206-
142	CLIP; HARNESS,ENG (C) L=140	5-09707-031-1	03	1	0603-1205
142	CLIP; HARNESS,ENG (E) L=140	8-98216-431-0	03	1	1206-
162	CLIP; SW HARNESS L=180	1-09707-162-1	01	1	0603-
171	CLIP; STARTER HARNESS (A) L=250	5-09707-030-1	03	1	0603-
171	CLIP; STARTER HARNESS (B) L=140	5-09707-031-1	08	1	0603-
194	CLIP; BAND (A) L=300	1-09707-001-1	01	1	0603-
194	CLIP; BAND (C) L=180	1-09707-162-1	04	1	0603-
194	CLIP; BAND (B) L=350	1-09707-183-0	03	1	0603-
194	CLIP; BAND (D) L=140	5-09707-031-1	01	1	0603-
205	CLIP; BACK LAMP HARNESS L=180	1-09707-162-1	01	1	0603-
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	0603-
212	CLIP; HORN HARNESS (A) ID=11 L=41	1-09700-403-0	02	1	0603-
212	CLIP; HORN HARNESS (E) ID=18 H=23 L=28	1-09700-860-0	01	1	0603-
212	CLIP; HORN HARNESS (F) L=300	1-09707-001-1	01	1	0603-
212	CLIP; HORN HARNESS (B) L=350	1-09707-183-0	01	1	0603-0608
212	CLIP; HORN HARNESS (B) L=350	1-09707-183-0	02	1	0609-
212	CLIP; HORN HARNESS (D) L=250	5-09707-030-1	02	1	0603-
212	CLIP; HORN HARNESS (C) L=140	5-09707-031-1	02	1	0603-
212	CLIP; HORN HARNESS (G) ID=21 L=24	8-94176-807-1	01	1	0603-
305	CLIP; ENG HARNESS L=140	5-09707-031-1	01	1	0603-
426	CLIP; HARNESS,PARKING SW L=350	1-09707-183-0	01	1	0603-
448	CLIP; AIR SUSP HARNESS L=350	1-09707-183-0	01	1	0603-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
