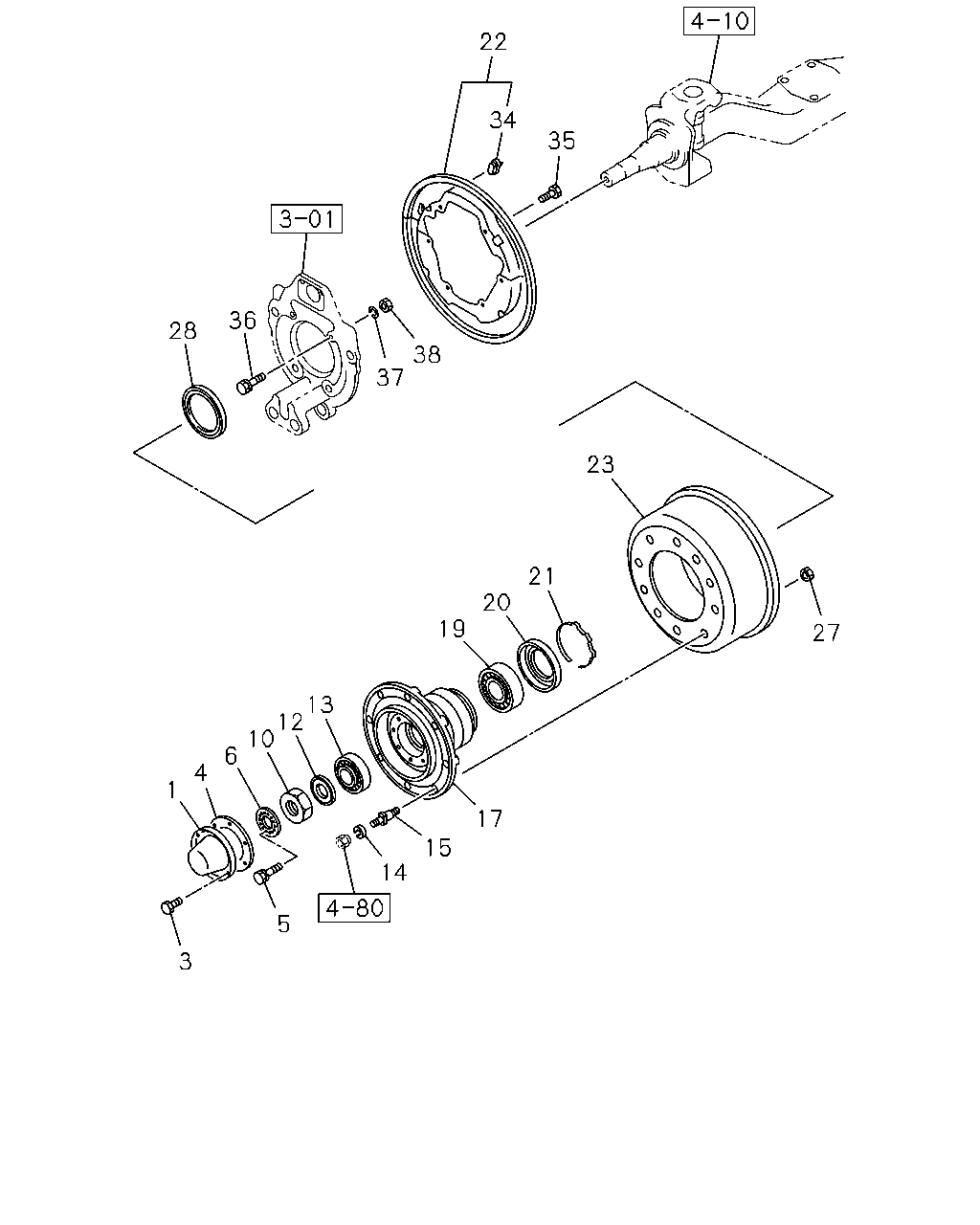

1 |
CAP; HUB,FRT AXLE
OD=156
|
9-42313-123-2 |
02 |
1 |
9002- |
| |
3 |
BOLT; HUB CAP,FRT WHEEL
M8X14 W/LK WASHER
|
9-01900-814-0 |
12 |
1 |
9002-9204 |
| |
3 |
BOLT; HUB CAP,FRT WHEEL
M8X14 W/LK WASHER
|
0-50040-814-0 |
12 |
1 |
9205-9509 |
| |
3 |
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE
|
0-28080-812-0 |
12 |
1 |
9510- |
| |
4 |
GASKET; HUB CAP,FRT WHEEL
|
1-42319-029-0 |
02 |
1 |
9002- |
| |
5 |
BOLT; LK WASHER
M6X16 W/LK WASHER
|
9-01910-616-0 |
04 |
1 |
9002-9005 |
| |
5 |
BOLT; LK WASHER
M6X16 W/LK WASHER
|
0-50040-616-0 |
04 |
1 |
9006- |
| |
6 |
WASHER; LK,FRT HUB
ID=48
|
1-09533-012-1 |
02 |
1 |
9002- |
| |
10 |
NUT; FRT HUB BRG
M48
|
1-09840-012-5 |
02 |
1 |
9002- |
| |
12 |
WASHER; LK,FRT HUB BRG
ID=48
|
1-09533-016-0 |
02 |
1 |
9002- |
| |
13 |
BEARING; HUB OUTER,FRT AXLE
NSK
|
1-09812-084-0 |
02 |
1 |
9002- |
| |
13 |
BEARING; HUB OUTER,FRT AXLE
KOYO
|
1-09812-085-0 |
02 |
1 |
9002- |
| |
14 |
RING; SPR,FRT WHEEL
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
|
1-42339-025-1 |
20 |
1 |
9002- |
| |
15 |
PIN; WHEEL,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
M22X48.8,M22X55.5 RH THREAD
|
1-42337-011-1 |
20 |
1 |
9002- |
| |
15 |
PIN; WHEEL,FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
|
1-42331-042-0 |
20 |
1 |
9002-9111 |
| |
15 |
PIN; WHEEL,FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
M22X42.8,M22X55.5 RH THREAD
|
1-42337-044-0 |
20 |
1 |
9112- |
| |
17 |
HUB; FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
|
1-42312-055-0 |
02 |
1 |
9002-9111 |
| |
17 |
HUB; FRT AXLE
|
1-42312-055-0 |
02 |
1 |
9112-9404 |
| |
17 |
HUB; FRT AXLE
|
1-42312-100-0 |
02 |
1 |
9405- |
| |
17 |
HUB; FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
|
1-42312-043-0 |
02 |
1 |
9002-9111 |
| |
19 |
BEARING; HUB INNER,FRT AXLE
NSK
|
1-09812-142-0 |
02 |
1 |
9002- |
| |
19 |
BEARING; HUB INNER,FRT AXLE
KOYO
|
1-09812-143-0 |
02 |
1 |
9002- |
| |
20 |
COVER; HUB BRG INNER
|
1-42319-039-0 |
02 |
1 |
9002- |
| |
21 |
RING; SNAP,HUB
|
1-09587-017-0 |
02 |
1 |
9002- |
| |
22 |
COVER SET; FRT BRK DRUM
|
1-47151-459-0 |
02 |
1 |
9002-9312 |
| |
22 |
COVER SET; FRT BRK DRUM
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
|
1-47151-459-1 |
02 |
1 |
9401- |
| |
22 |
COVER SET; FRT BRK DRUM
INTERNATIONAL STANDARD ISO 10STUD<B3V>
|
1-47151-604-1 |
02 |
1 |
9401- |
| |
23 |
DRUM; BRK,FRT
|
1-42315-218-4 |
02 |
1 |
9002-9306 |
| |
23 |
DRUM; BRK,FRT
INTERNATIONAL STANDARD ISO 10STUD<B3V>
|
1-42315-218-4 |
02 |
1 |
9307-9312 |
| |
23 |
DRUM; BRK,FRT
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
|
1-42315-333-1 |
02 |
1 |
9307-9307 |
| |
23 |
DRUM; BRK,FRT
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
|
1-42315-337-0 |
02 |
1 |
9308-9312 |
| |
23 |
DRUM; BRK,FRT
|
1-42315-337-0 |
02 |
1 |
9401- |
| |
27 |
NUT; WHEEL PIN,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
M22
|
1-09400-071-0 |
20 |
1 |
9002-9111 |
| |
27 |
NUT; WHEEL PIN,FRT AXLE
M22
|
1-09400-071-0 |
20 |
1 |
9112- |
| |
27 |
NUT; WHEEL PIN,FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
M22
|
1-09400-037-0 |
20 |
1 |
9002-9111 |
| |
28 |
SEAL; OIL,FRT HUB
OD=140
|
1-09625-041-0 |
02 |
1 |
9002- |
| |
34 |
COVER; CHECK HOLE,DRUM COVER
|
1-09333-095-0 |
04 |
1 |
9002-9501 |
| |
34 |
COVER; CHECK HOLE,DRUM COVER
|
1-09333-151-0 |
04 |
1 |
9502- |
| |
35 |
BOLT; DRUM COVER
M10X16 W/LK WASHER
|
9-01901-016-0 |
12 |
1 |
9002-9204 |
| |
35 |
BOLT; DRUM COVER
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
9205- |
| |
36 |
BOLT; BACK PLATE
M16X59 FLANGE
|
1-09044-002-2 |
04 |
1 |
9002- |
| |
37 |
WASHER; LK,BACK PLATE
ID=16.2
|
9-09150-516-0 |
04 |
1 |
9002-9401 |
| |
37 |
WASHER; LK,BACK PLATE
ID=16.2
|
9-09150-816-0 |
04 |
1 |
9402- |
| |
38 |
NUT; BACK PLATE
M16
|
9-99110-416-0 |
04 |
1 |
9002- |
