Isuzu WW
▶
TRUCKS
▶
EXD
▶
11024 - EXD AUSTRALIA
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-50 - FRONT SEAT
▶
7-50 — FRONT SEAT
(#24905) — 42 parça
◀

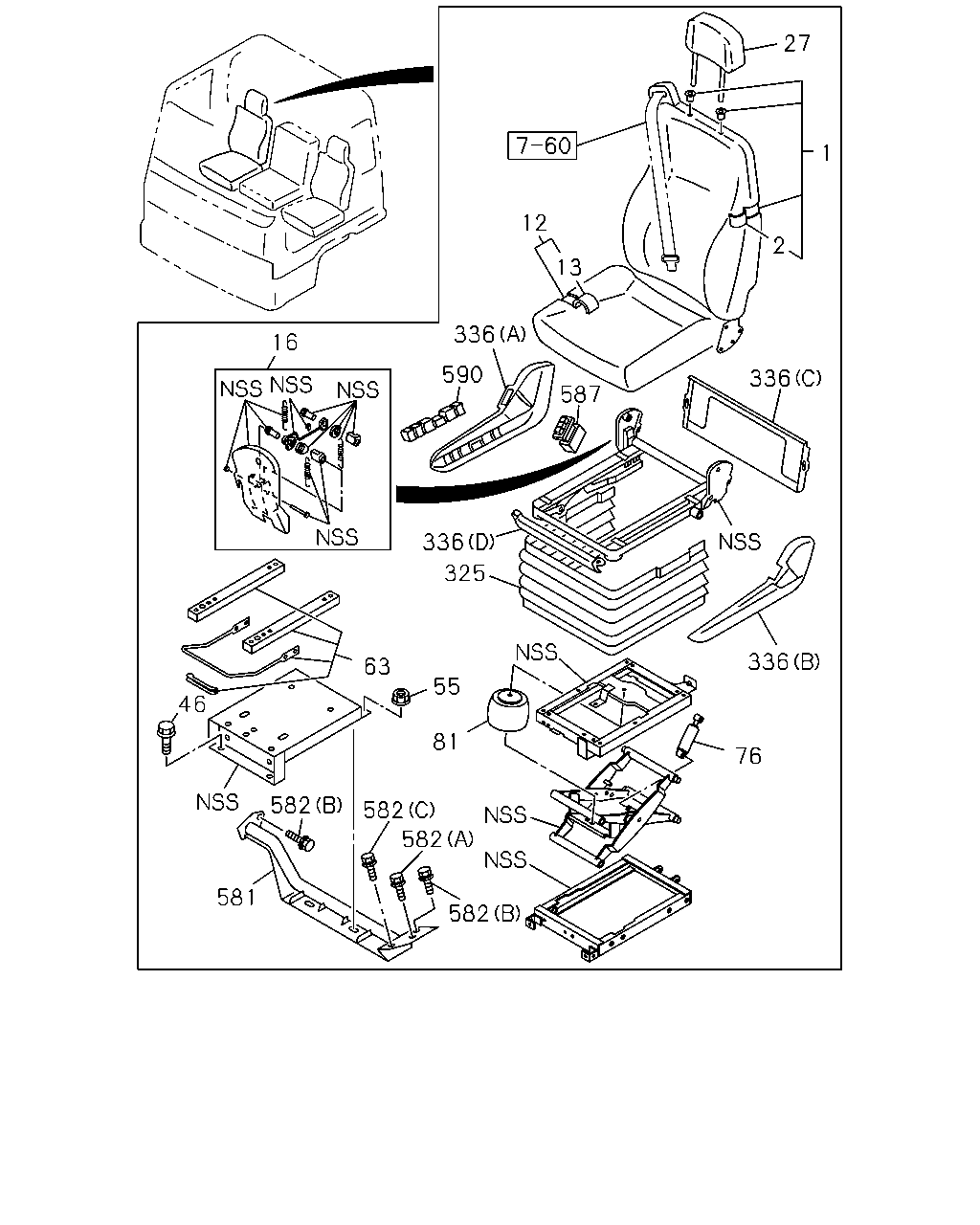

[750A] DRIVER (25 parça)

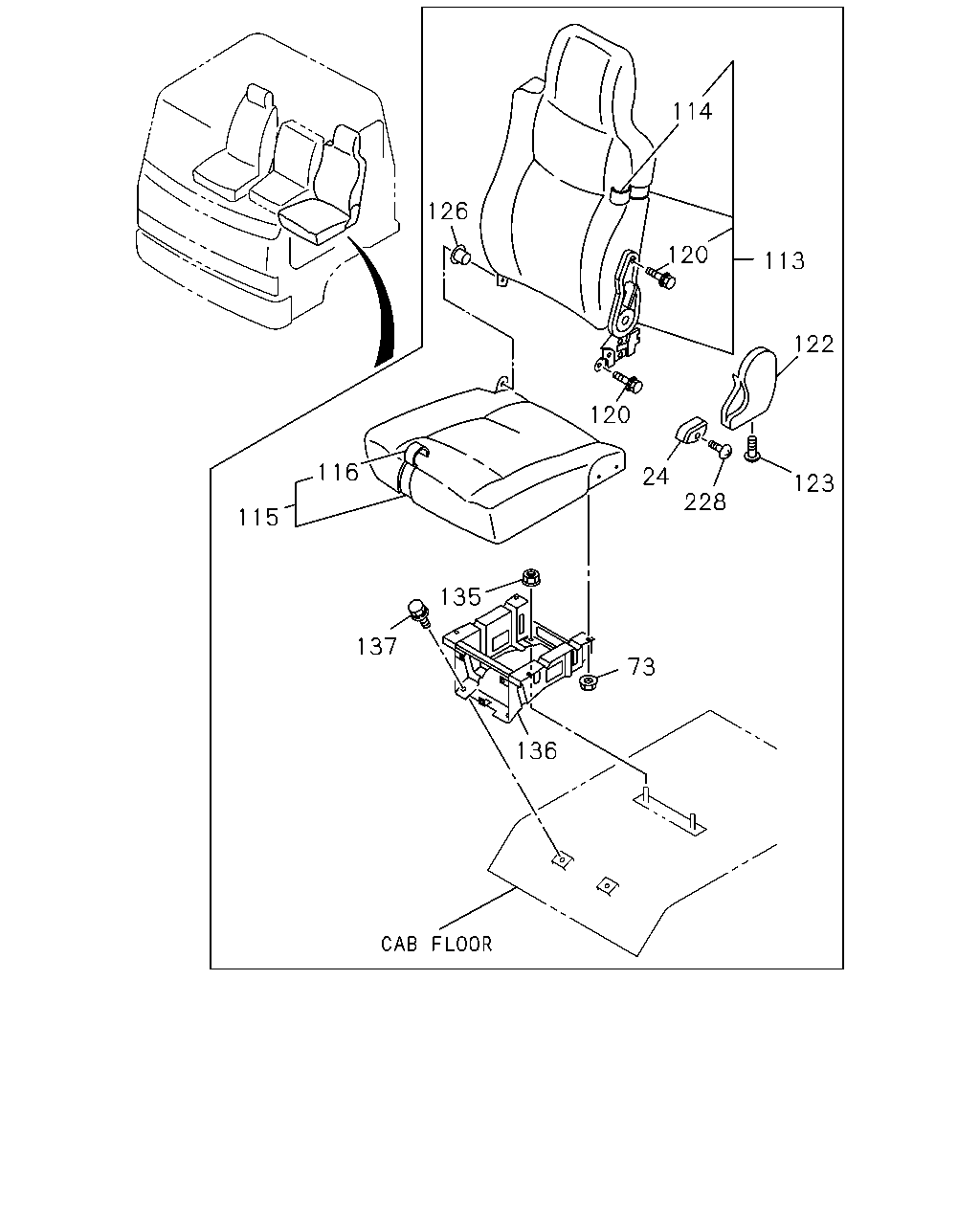

[750A] PASSENGER (17 parça)
▶
27
1
12
13
2
336
16
590
336
587
336
325
336
63
55
46
81
76
582
582
582
581
582
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BACK ASM; SEAT
1-75027-941-0
01
1
0603-
2
COVER; TRIM,FRT SEAT,BACK
1-75117-965-0
01
1
0603-
12
CUSHION; SEAT,FRT
1-75027-939-0
01
1
0603-
13
COVER; TRIM,FRT SEAT,CUSHION
1-75117-964-0
01
1
0603-
16
ADJUSTER ASM; RECLINING
1-75417-602-0
01
1
0603-
27
REST; HD,FRT SEAT
1-75657-029-0
01
1
0603-
46
BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER
8-94279-211-0
02
1
0603-0703
46
BOLT; STAND TO FLOOR
M10X20 FLANGE
0-28451-020-0
02
1
0704-
55
NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE
1-09984-153-0
02
1
0603-0703
55
NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE
0-91180-110-0
02
1
0704-
63
ADJUSTER; SEAT SLIDE
1-75517-953-0
01
1
0603-
76
DAMPER; AIR SUSP
1-75537-276-0
01
1
0603-
81
SPRING; AIR
1-75537-275-0
01
1
0603-
325
COVER; SUSPENSION DEVICE
1-75537-274-0
01
1
0603-
336
COVER; DRIVER SEAT
(A)
1-72537-208-0
01
1
0603-
336
COVER; DRIVER SEAT
(B)
1-72537-210-0
01
1
0603-
336
COVER; DRIVER SEAT
(C)
1-72537-212-0
01
1
0603-
336
COVER; DRIVER SEAT
(D)
1-72537-213-0
01
1
0603-
581
PIPE; SEAT
1-73907-605-2
01
1
0603-
582
BOLT; PIPE,SEAT
(B)
1-09980-619-1
02
1
0603-
582
BOLT; PIPE,SEAT
(A) M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0603-0904
582
BOLT; PIPE,SEAT
(A) M8X24.5 W/LK&PL WASHER
8-98059-720-0
01
1
0905-
582
BOLT; PIPE,SEAT
(C) M8X30 W/LK&PL WASHER
8-94279-210-0
01
1
0603-
587
VALVE; LUMBAR SUPPORT
1-75197-007-0
01
1
0603-
590
KNOB KIT; DRIVER SEAT
1-75417-600-0
01
1
0603-
114
126
120
113
122
120
116
24
123
228
115
135
137
73
136
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
KNOB; RECLINING,FRT,SEAT
DARK GRAY
8-97859-019-0
01
1
0603-
73
NUT; ADJ,HEIGHT CONT
M8 FLANGE
1-75538-207-0
04
1
0603-
113
BACK ASM; SEAT
1-75208-191-4
01
1
0603-
114
COVER; TRIM,PASSENGER SEAT,BACK
1-75116-709-2
01
1
0603-
115
CUSHION ASM; PASSENGER SEAT
1-75026-782-2
01
1
0603-
116
COVER; TRIM,PASSENGER SEAT,CUSHION
1-75116-589-2
01
1
0603-
120
BOLT; RECLINING ADJ
M8X20
8-97255-906-0
02
1
0603-
122
COVER; ADJ,RECLINING
DARK GRAY
8-97859-018-0
01
1
0603-
123
SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER
0-74310-516-0
01
1
0603-
126
BUSHING; HINGE,RECLINING
8-97854-087-0
01
1
0603-
135
NUT; SEAT STAND
M10 FLANGE
1-09984-153-0
02
1
0603-0703
135
NUT; SEAT STAND
M10 FLANGE
0-91180-110-0
02
1
0704-
136
STAND; PASSENGER SEAT
1-75558-601-3
01
1
0603-1305
136
STAND; PASSENGER SEAT
8-98242-298-0
01
1
1306-
137
BOLT; STAND
M10X20 W/LK&PL WASHER
8-94279-211-0
02
1
0603-0703
137
BOLT; STAND
M10X20 FLANGE
0-28451-020-0
02
1
0704-
228
SCREW; KNOB
M4X6
8-97042-273-0
01
1
0603-
