◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 11024 - EXD AUSTRALIA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#24904) — 64 parça

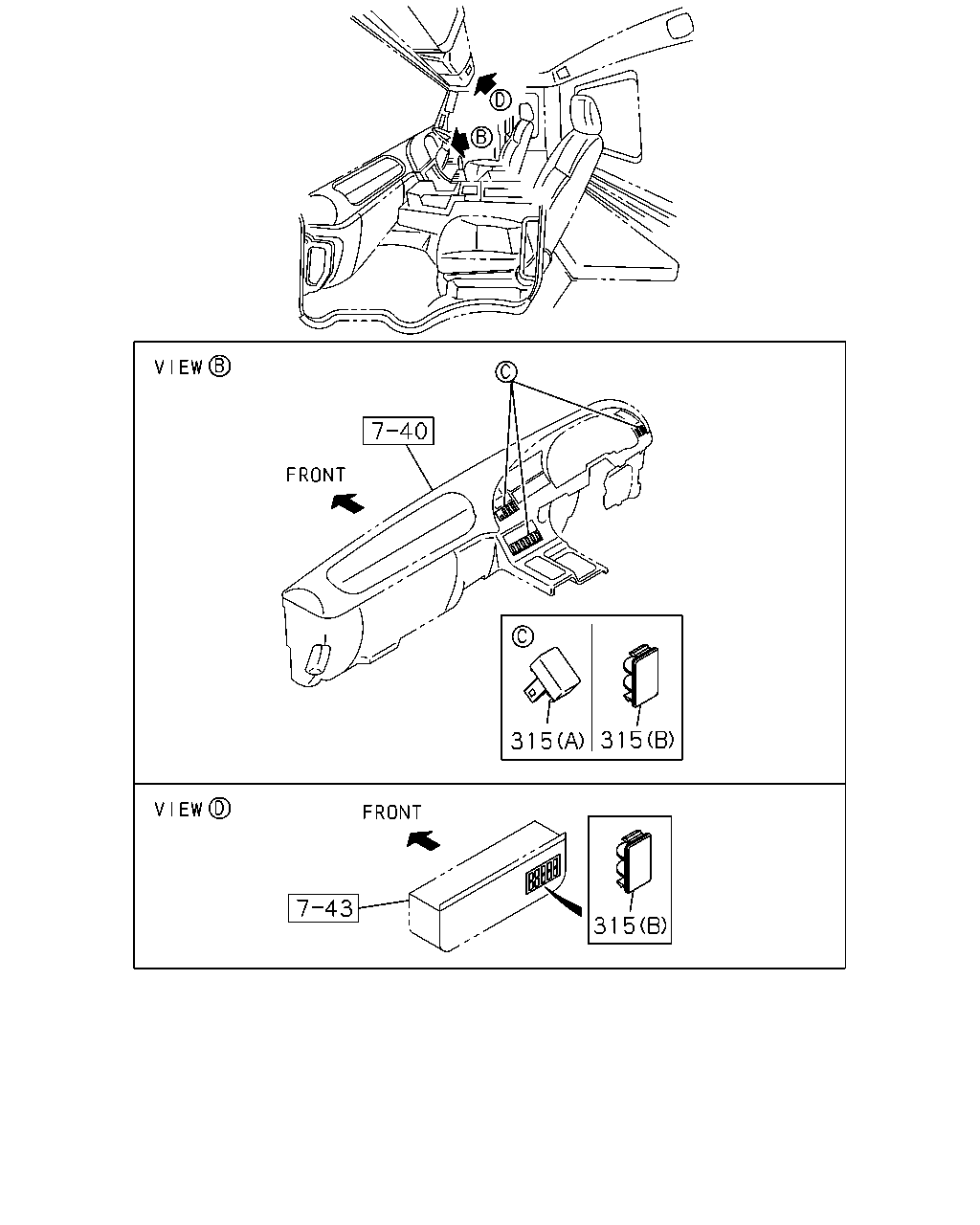

çizim 90096
315 315 315
BalonParca AdiParca NoAdetTipApplied Date
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 0603-
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 0603-

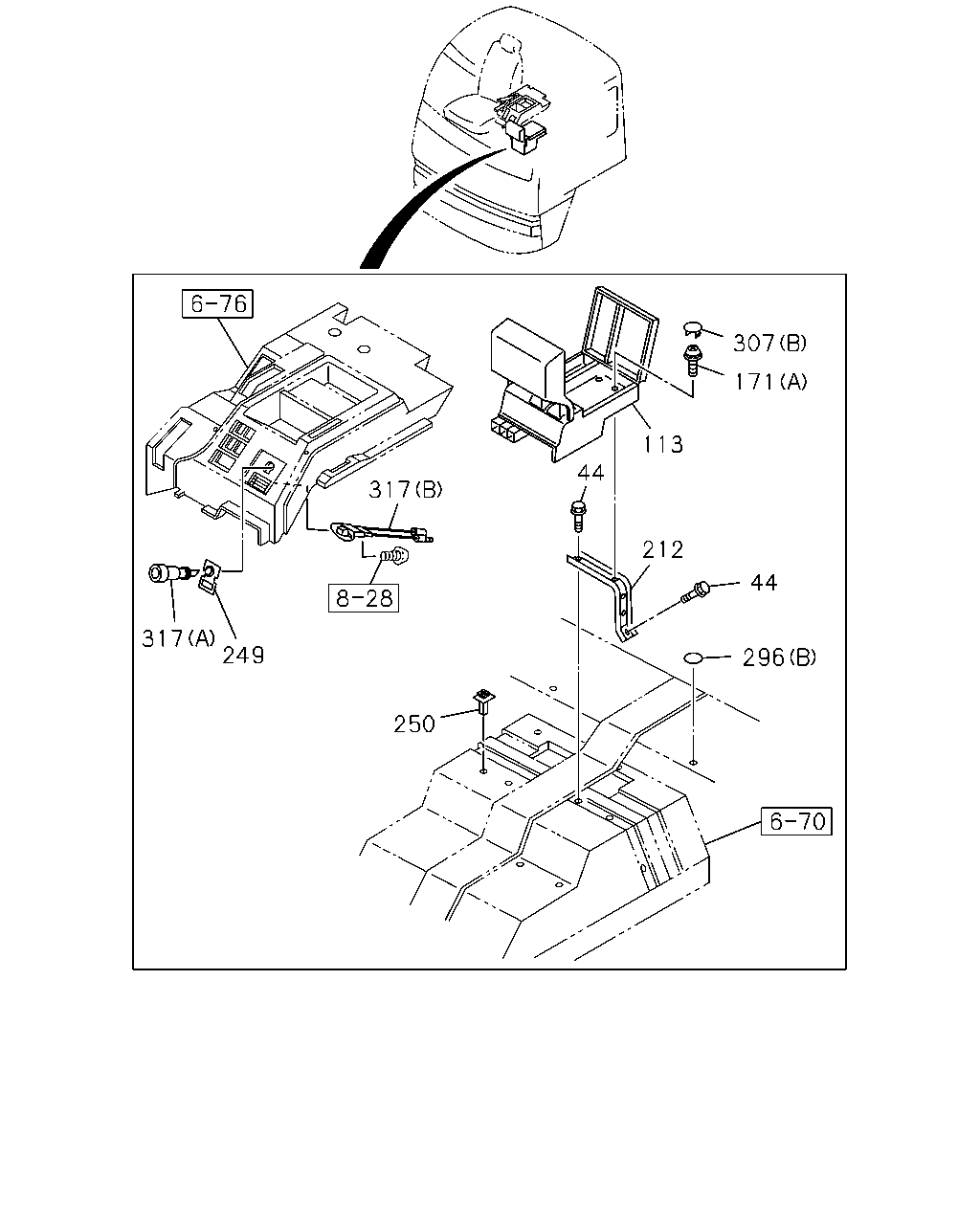

çizim 90524
307 171 113 44 317 212 44 317 249 296 250
BalonParca AdiParca NoAdetTipApplied Date
44 BOLT; SUPPORT,CTR CONSOLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0603-0904
44 BOLT; SUPPORT,CTR CONSOLE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-285-3 01 1 0603-0609
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-323-1 01 1 0610-
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-291-3 01 1 0603-0609
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-321-1 01 1 0610-
113 BOX; CONSOLE
EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-294-2 01 1 0603-0609
113 BOX; CONSOLE
EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-330-1 01 1 0610-
171 SCREW; CONSOLE BOX
TABLE CONSOLE BOX<TDL> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0603-
171 SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0603-
212 SUPPORT; CONSOLE TO COMPT 1-72537-095-1 01 1 0603-
249 COVER 1-82529-001-0 01 1 0603-
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0603-
296 SEAL
TABLE CONSOLE BOX<TDL> (A) 		1-72537-094-1 01 1 0603-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0603-
307 COVER; HOLE,CTR CONSOLE
TABLE CONSOLE BOX<TDL> (A) 		1-72537-188-0 02 1 0603-
307 COVER; HOLE,CTR CONSOLE
(B) 		1-76337-461-0 04 1 0603-
317 CONSENT
(B) 		1-82523-020-2 01 1 0603-
317 CONSENT
(A) 		8-94382-451-1 01 1 0603-

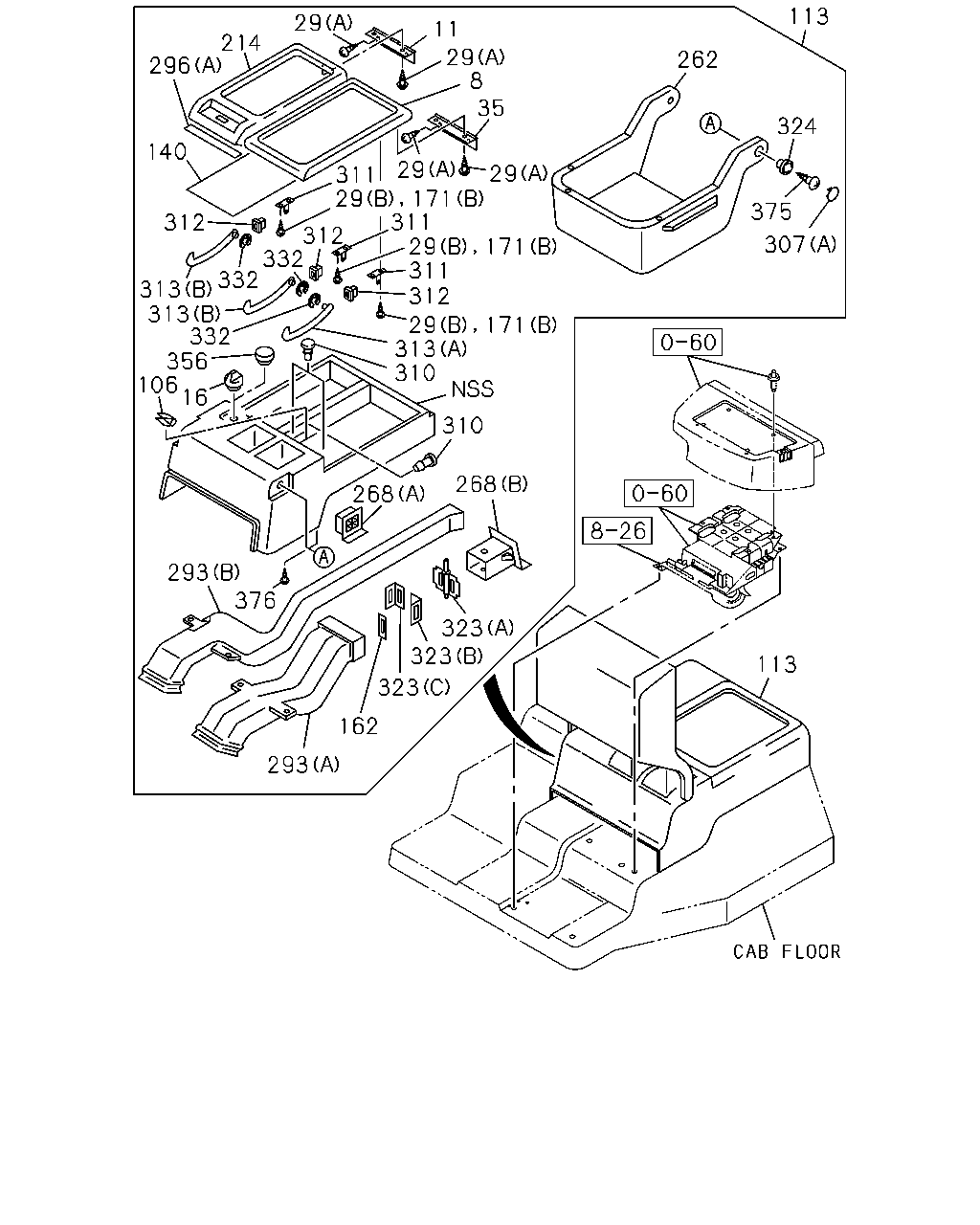

çizim 105418
113 29 11 214 29 8 35 262 296 324 140 29 311 29 29 171 311 29 311 312 375 312 312 332 332 313 313 332 356 106 16 307 171 29 313 310 171 310 268 268 293 376 323 323 113 323 162 293
BalonParca AdiParca NoAdetTipApplied Date
8 LID; CENTER CONSOLE 1-72537-185-0 01 1 0603-0705
8 LID; CENTER CONSOLE 1-72537-332-0 01 1 0706-
11 HINGE; CONSOLE LID 1-72537-070-2 01 1 0603-
16 KNOB ASM
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-189-0 01 1 0603-
29 SCREW; HINGE
(A) M5X14 BINDING HEAD 		1-72537-168-0 08 1 0603-
29 SCREW; HINGE
EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0603-
35 HINGE; CENTER CONSOLE 1-72538-182-1 01 1 0603-
106 LOCK; CONSOLE LID 1-72537-079-0 02 1 0603-
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-285-3 01 1 0603-0609
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-323-1 01 1 0610-
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-291-3 01 1 0603-0609
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-321-1 01 1 0610-
113 BOX; CONSOLE
EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-294-2 01 1 0603-0609
113 BOX; CONSOLE
EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-330-1 01 1 0610-
140 SHEET
TABLE CONSOLE BOX<TDL> 		1-72537-093-1 01 1 0603-
162 CUSHION; PARCEL BOX
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-128-0 03 1 0603-
171 SCREW; CONSOLE BOX
TABLE CONSOLE BOX<TDL> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0603-
171 SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0603-
214 LID; CONSOLE 1-72537-186-0 01 1 0603-0705
214 LID; CONSOLE 1-72537-339-0 01 1 0706-
262 TABLE ASM
TABLE CONSOLE BOX<TDL> 		1-72537-187-1 01 1 0603-
268 COVER; DUCT
(B) 		1-72537-183-0 01 1 0603-
268 COVER; DUCT
(A) 		1-72537-184-0 01 1 0603-
293 DUCT
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-081-3 01 1 0603-
293 DUCT
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-083-2 01 1 0603-
296 SEAL
TABLE CONSOLE BOX<TDL> (A) 		1-72537-094-1 01 1 0603-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0603-
307 COVER; HOLE,CTR CONSOLE
TABLE CONSOLE BOX<TDL> (A) 		1-72537-188-0 02 1 0603-
307 COVER; HOLE,CTR CONSOLE
(B) 		1-76337-461-0 04 1 0603-
310 CUSHION; CTR CONSOLE 1-72538-187-0 02 1 0603-
311 HOLDER; CONSOLE 1-72538-188-2 03 1 0603-
312 STOPPER; CONSOLE 1-72538-186-1 03 1 0603-
313 ARM; CTR CONSOLE
(A) 		1-72538-184-3 01 1 0603-
313 ARM; CTR CONSOLE
(B) 		1-72538-185-3 02 1 0603-
323 SHUTTER
TABLE CONSOLE BOX<TDL> (B) 		1-72537-126-0 01 1 0603-0705
323 SHUTTER
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-126-0 01 1 0706-
323 SHUTTER
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-084-1 01 1 0603-
323 SHUTTER
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (C) 		1-72537-127-0 01 1 0603-
324 BUSHING
TABLE CONSOLE BOX<TDL> 		1-72537-116-0 02 1 0603-
332 RING; SNAP,CONSOLE BOX 1-72537-170-0 03 1 0603-
356 COVER; KNOB
EXC. COOL & HOT BOX<TMU> 		1-72537-155-0 01 1 0603-
375 SCREW; TAP BUSHING
TABLE CONSOLE BOX<TDL> M6X20 		1-72537-319-0 02 1 0610-
376 SCREW; TAP DUCT
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> M4X14 		1-72537-320-0 03 1 0610-
