7-43 — SUN VISOR AND ASSIST GRIP (#24903) — 84 parça

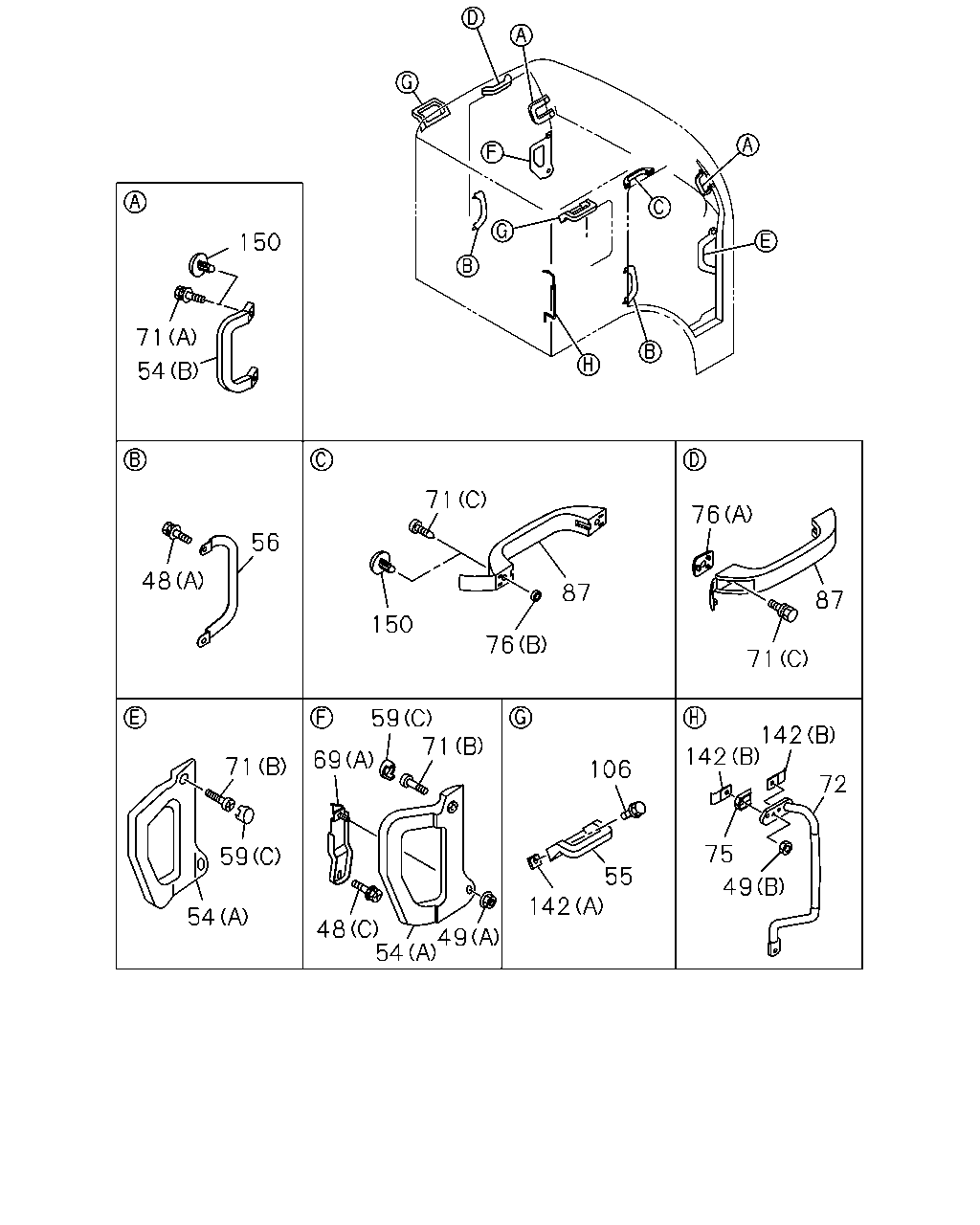

150 71 54 71 76 56 48 87 87 150 76 71 59 71 142 142 69 71 106 72 75 59 55 49 142 54 48 54 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0603-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0603-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0603-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0603-0904
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0603-
49	NUT; ASSIST GRIP PRE CLEANER<W17> GRIP OUT SIDE<W52> (B) M8 FLANGE	1-09984-126-0	01	1	0603-0808
49	NUT; ASSIST GRIP (A) M6 FLANGE	0-91150-106-0	01	1	0603-0603
49	NUT; ASSIST GRIP (A) M6 FLANGE	0-91180-106-0	01	1	0603-
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	02	1	0603-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-1	01	1	0603-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0603-
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	01	1	0603-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	0603-
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0603-0804
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0805-
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	0603-
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	0603-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0603-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0603-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0603-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0603-
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	0603-
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0603-
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0603-
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	02	1	0603-
71	SCREW EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0603-
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-544-0	01	1	0603-1006
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-540-0	01	1	0603-1006
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-540-0	01	1	1007-
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	01	1	0603-
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> (B) OD=13 T=4.5	8-94230-464-1	02	1	0603-
76	SPACER; ASSIST GRIP (A)	1-73618-180-0	02	1	0603-
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	02	1	0603-
87	GRIP; ASSIST,CANT RAIL SIDE EXC. ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	01	1	0603-
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0603-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-1	02	1	0603-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0603-
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0603-
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0603-

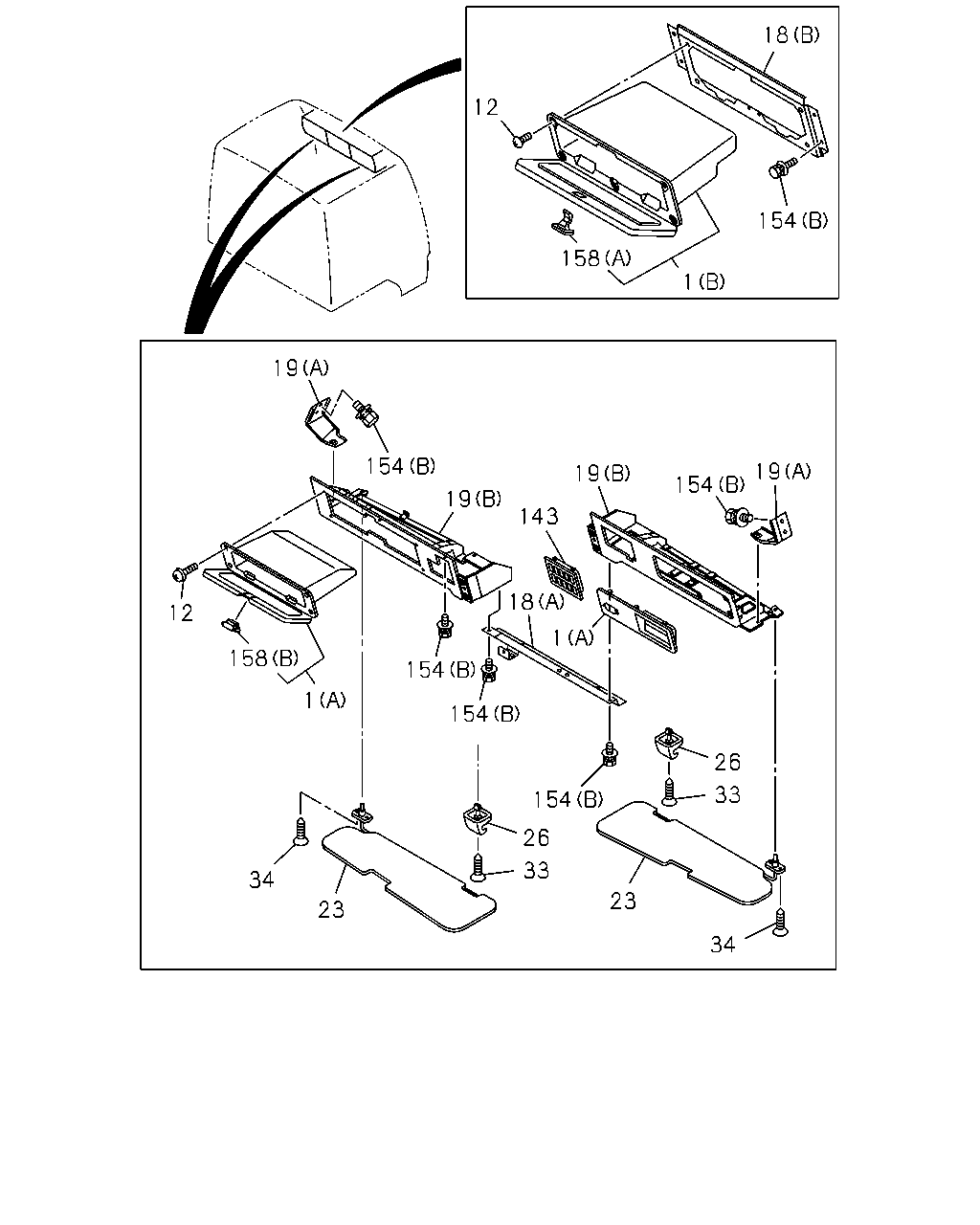

18 12 154 158 1 19 154 19 19 154 19 143 18 12 1 158 154 1 154 26 33 154 26 33 34 23 23 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0603-
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	0603-
1	BOARD; HEADER SHELF (B)	1-72447-968-0	01	1	0603-
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	0603-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0603-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-877-2	01	1	0603-0909
18	SUPPORT; HEADER SHELF CENTER (A)	8-98118-217-1	01	1	0910-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	0603-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-879-7	01	1	0603-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	0603-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	0603-
23	SUN VISOR	1-73138-156-1	01	1	0603-
23	SUN VISOR	1-73138-157-1	01	1	0603-
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0603-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0603-0603
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	02	1	0604-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0603-0702
143	BEZEL	1-72447-768-2	01	1	0603-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0603-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0603-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0603-
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	0603-
158	LOCK; HEADER SHELF (A)	1-72538-312-0	01	1	0603-

64 64 154 64 62 64 154 48 48 48 48 62 154 69 66 103 48 59 69 66 48 48 59 103 48 59 48 48 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0603-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0603-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0603-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0603-0904
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0603-
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	0603-
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	0603-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0603-
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	0603-0907
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	0908-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	0603-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0603-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0603-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0603-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0603-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	0603-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	0603-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0603-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0603-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0603-
