7-40 — INSTRUMENT PANEL AND BOX (#24902) — 110 parça

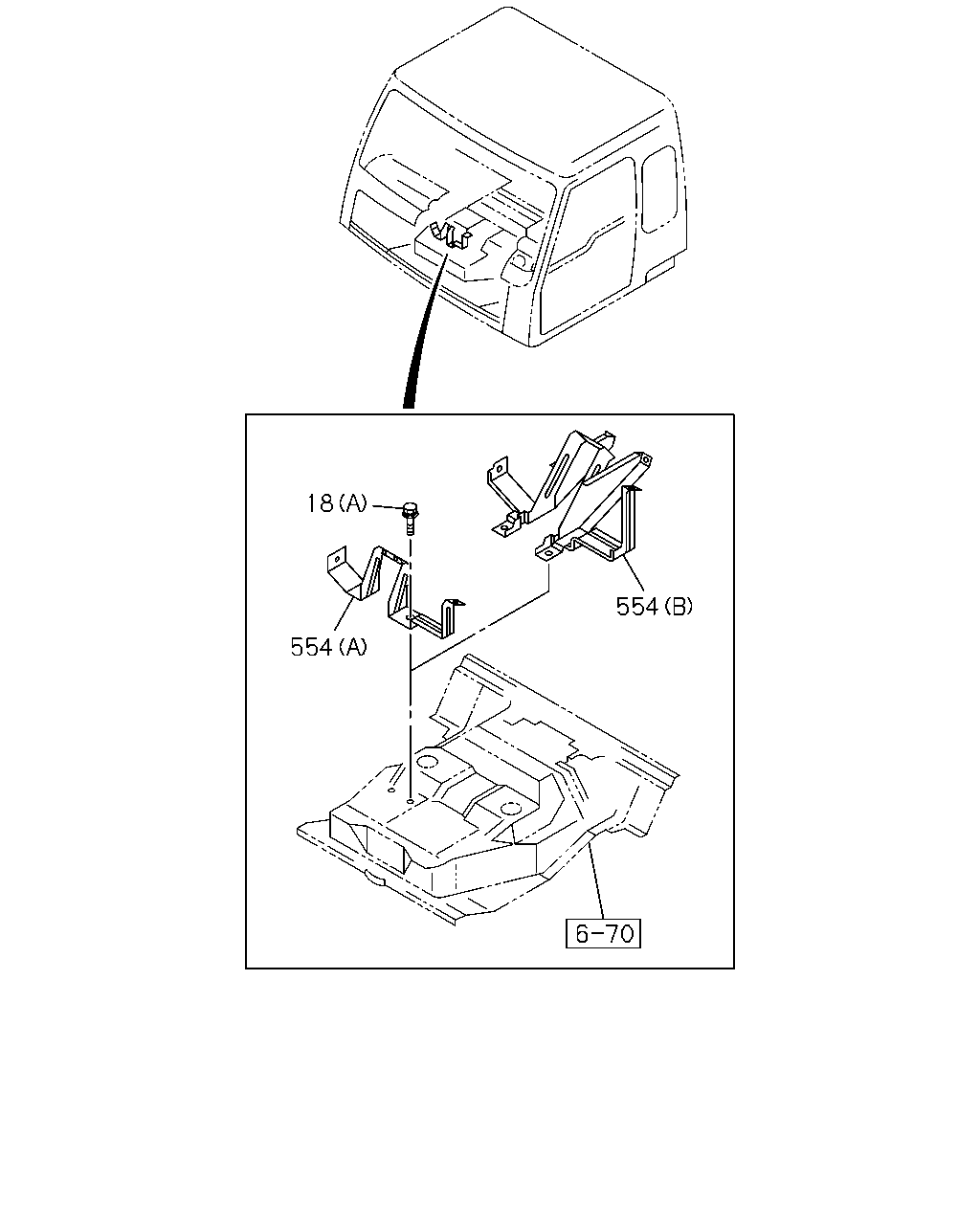

çizim 105344
18 554 554
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0608-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 0603-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0603-
554 BRACKET; CENTER BEZEL
(A) 		1-65671-535-2 01 1 0603-0607
554 BRACKET; CENTER BEZEL
(B) 		1-65671-758-1 01 1 0608-

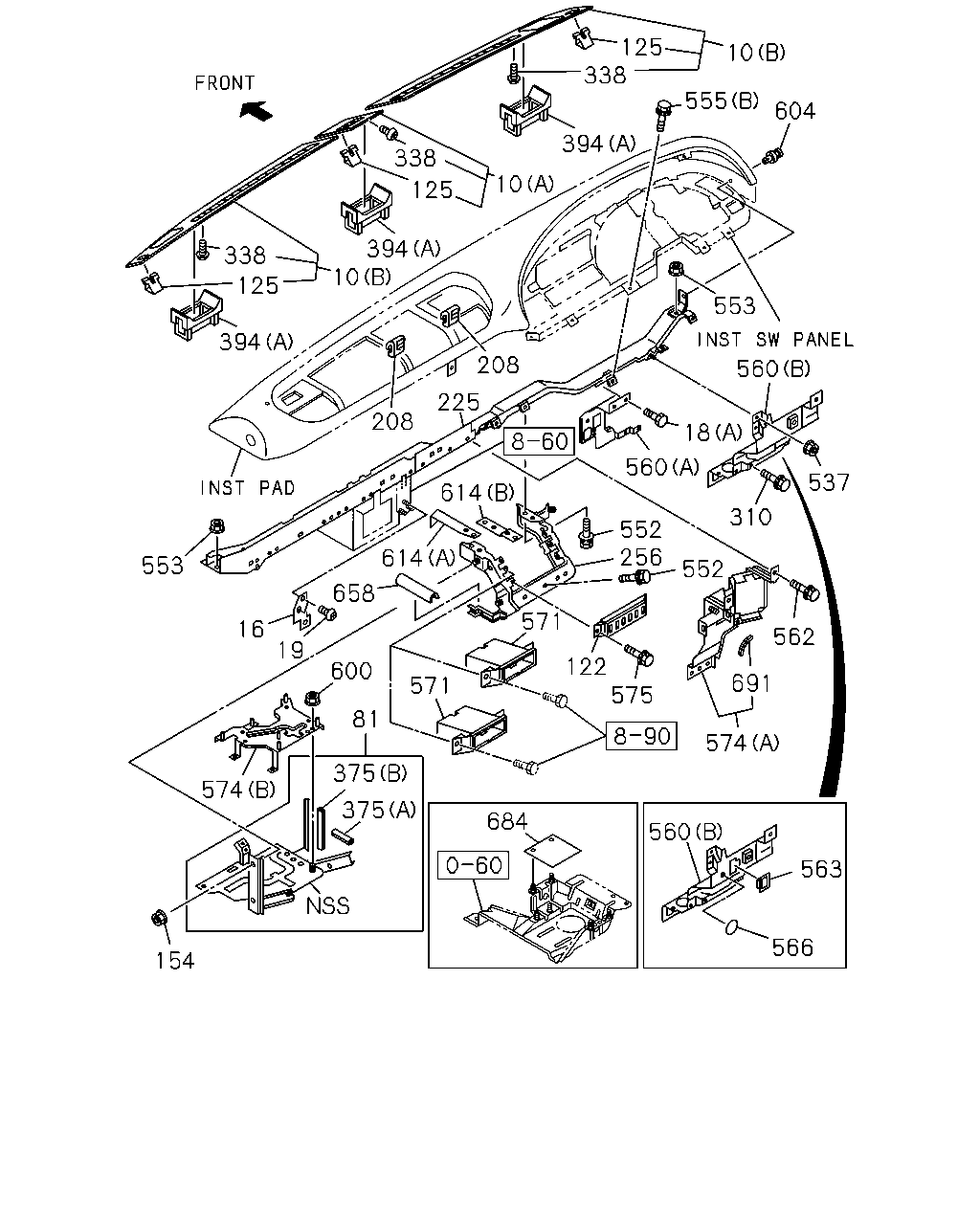

çizim 105416
125 338 10 555 604 394 338 10 125 338 394 10 125 553 394 208 560 225 208 18 560 537 614 310 552 256 614 553 552 658 571 16 562 19 122 575 600 691 571 81 574 375 574 375 684 560 563 566 154
BalonParca AdiParca NoAdetTipApplied Date
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-602-7 01 1 0603-
10 PANEL ASM; GARNISH
(A) 		1-72437-540-6 01 1 0603-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 0603-
16 BRACKET; INST PNL 1-73908-023-2 01 1 0603-
18 BOLT; BRKT
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0608-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 0603-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0603-
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0603-0705
19 SCREW; BRKT
M5X14 		8-94279-325-0 03 1 0706-
81 BRACKET; ELEC CONT UNIT 1-73907-689-4 01 1 0603-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 0603-
125 CLIP; INST PANEL 8-97217-066-0 11 1 0603-
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 0603-0603
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 0603-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0603-
225 FRAME; FACIA 1-65671-725-8 01 1 0603-
256 BEZEL ASM; CENTER 1-65671-523-9 01 1 0603-0710
256 BEZEL ASM; CENTER 1-65671-832-0 01 1 0711-0812
256 BEZEL ASM; CENTER 1-65671-828-2 01 1 0901-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0603-
338 SCREW; COVER
M5X14 		8-94279-325-0 12 1 0603-
375 FINISHER; BRKT,CONT UNIT
(A) L=80 SERVICED BY L=90 		1-71997-795-0 01 1 0603-
375 FINISHER; BRKT,CONT UNIT
(B) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 0603-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0603-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0603-
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0603-0603
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0603-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0603-0603
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0603-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0603-
560 BRACKET
(B) 		1-65671-760-4 01 1 0603-
560 BRACKET
(A) 		1-65680-976-3 01 1 0603-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0603-
563 BEZEL; BRKT 1-72448-410-3 01 1 0603-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0603-
571 BEZEL; POCKET 1-72438-151-3 01 1 0603-0606
571 BEZEL; POCKET 1-72438-151-3 02 1 0607-
574 PANEL; RELAY BOX
(B) 		1-73907-690-2 01 1 0603-
574 PANEL; RELAY BOX
(A) 		1-73907-705-4 01 1 0603-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0603-
600 NUT; PANEL
M6 FLANGE 		0-91150-106-0 03 1 0603-0603
600 NUT; PANEL
M6 FLANGE 		0-91180-106-0 03 1 0603-
604 CLIP; INST PAD 1-09983-123-0 01 1 0603-
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 0603-
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 0603-
658 FINISHER; BEZEL
L=80 SERVICED BY L=90 		1-71997-795-0 01 1 0807-
684 RUBBER; HARNESS 1-82698-417-1 01 1 0603-
691 FINISHER; HARNESS PROTECTOR
L=50 		8-94270-377-1 01 1 1006-

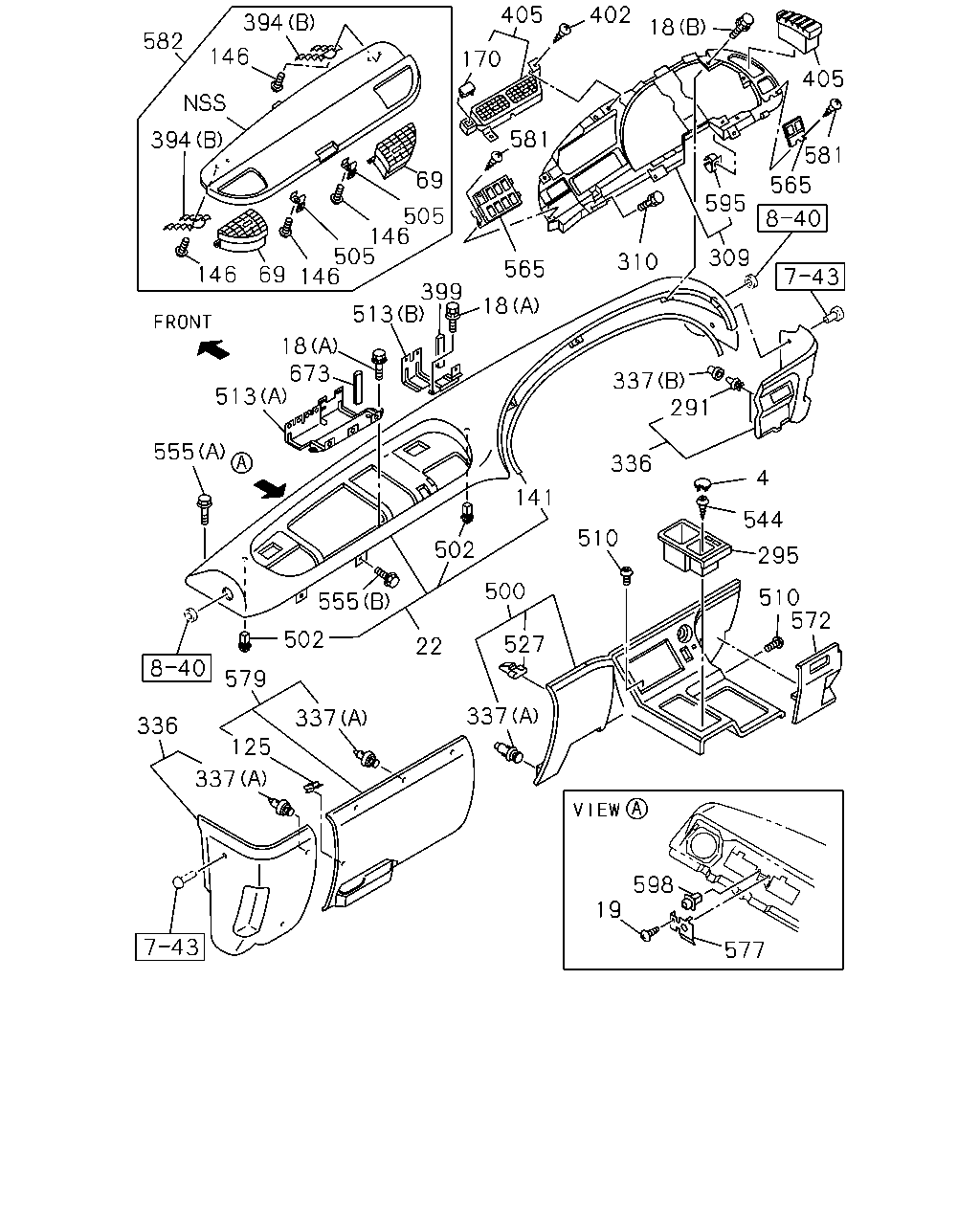

çizim 105417
405 402 394 18 582 146 170 405 581 581 394 69 565 595 505 146 505 146 309 10 565 69 146 399 513 18 18 673 337 291 513 555 336 4 141 544 510 502 295 500 510 572 555 502 527 22 579 337 337 336 125 337 598 19 577
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 0603-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-602-7 01 1 0603-
10 PANEL ASM; GARNISH
(A) 		1-72437-540-6 01 1 0603-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 0603-
18 BOLT; BRKT
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0608-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 0603-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0603-
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0603-0705
19 SCREW; BRKT
M5X14 		8-94279-325-0 03 1 0706-
22 PAD; INST 1-72317-347-2 01 1 0603-0710
22 PAD; INST 1-72317-372-1 01 1 0711-
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0603-
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0603-
125 CLIP; INST PANEL 8-97217-066-0 11 1 0603-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0603-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0603-
170 COVER; HOLE 1-76367-068-0 01 1 0603-
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 0603-
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 0603-
309 PANEL; SW,INST 1-72418-009-6 01 1 0603-
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0603-
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0603-
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 0603-
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 0603-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0603-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0603-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0603-
399 FINISHER; HARNESS
L=50 		8-94270-377-1 01 1 0603-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0603-0604
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
405 GRILLE ASM; METER VENT 1-76367-059-3 01 1 0603-
405 GRILLE ASM; METER VENT 1-76367-062-2 01 1 0603-
500 CLUSTER; INST CENTER 1-72437-619-0 01 1 0603-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0603-
505 LOCK; LID 1-72558-024-2 02 1 0603-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 0603-
513 BRACKET; RELAY
(B) 		1-73907-327-3 01 1 0603-
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 0603-
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0603-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 0603-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0603-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0603-
565 BEZEL; SW PANEL 1-72418-010-2 01 1 0603-
565 BEZEL; SW PANEL 1-72418-011-3 01 1 0603-
572 COVER; INSPECTION 1-72437-634-0 01 1 0603-
577 BRACKET; SENSOR 1-72318-413-0 01 1 0706-
579 COVER; INST PNL 1-72437-626-0 01 1 0603-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0603-0604
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
582 LID; FUSE & RELAY 1-72547-124-0 01 1 0603-
595 NUT; HOOK 1-72418-013-0 11 1 0603-
598 GROMMET; SCREW
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 01 1 0706-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0603-
