Isuzu WW
▶
TRUCKS
▶
EXD
▶
11024 - EXD AUSTRALIA
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶
7-20 — MIRROR AND MIRROR STAY
(#24900) — 36 parça
◀

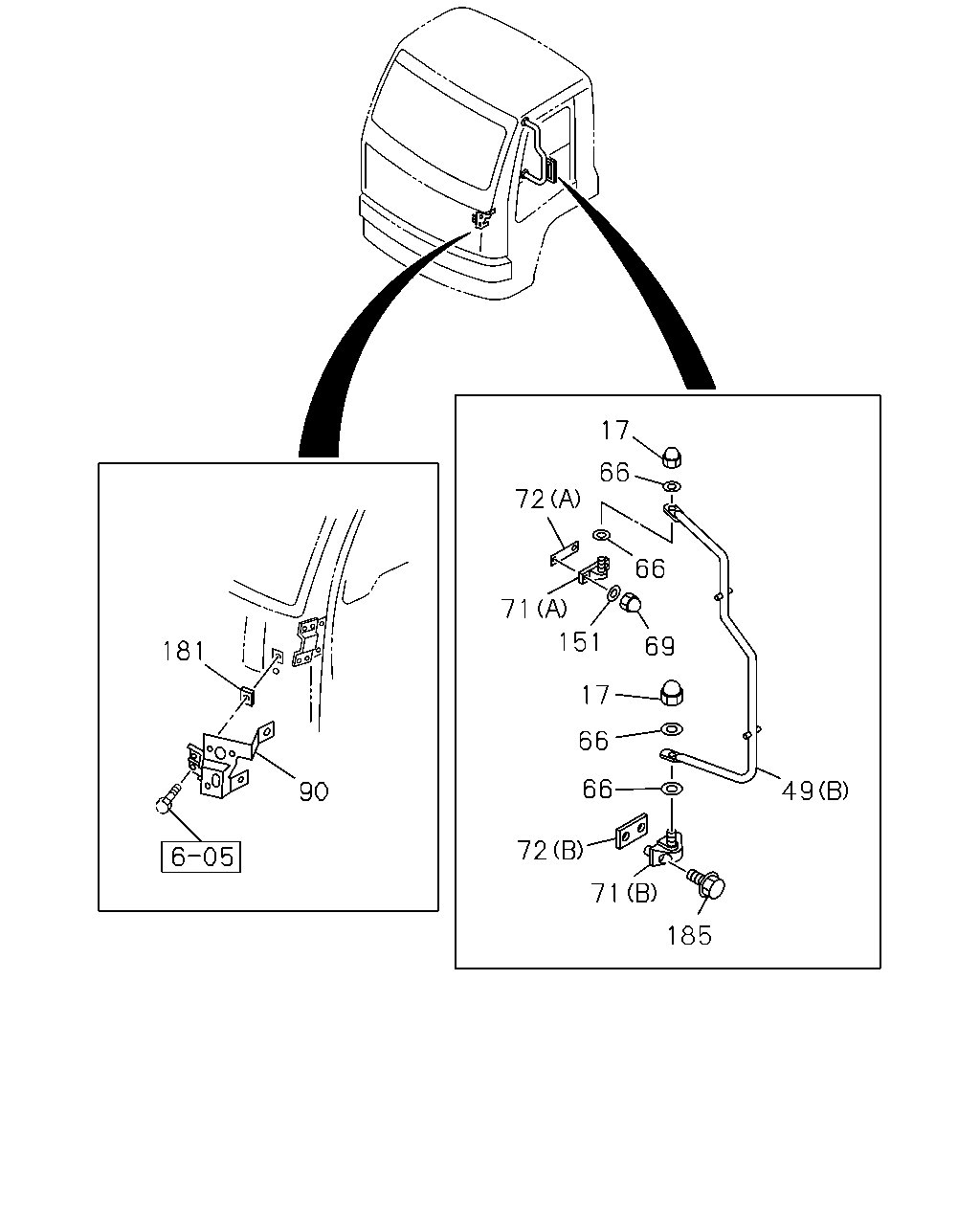

[720A] RH (17 parça)
[720A] LH (17 parça)
[720A] ROOM MIRROR (2 parça)
▶
17
66
72
66
71
151
69
49
17
66
181
90
66
72
71
185
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
NUT; CAP,MIRROR STAY
M10 CAP NUT
1-09984-134-0
04
1
0603-
49
STAY; MIRROR SIDE
(A)
1-71798-490-3
01
1
0603-
49
STAY; MIRROR SIDE
(B)
1-71798-491-3
01
1
0603-
66
WASHER; PL
ID=10.5 OD=26 T=2.6
1-09985-184-0
08
1
0603-
69
NUT; CAP
M8
1-09984-187-0
04
1
0603-0809
69
NUT; CAP
M8 CAP NUT
8-98059-914-0
04
1
0810-
71
BRACKET; OUTSIDE MIRROR
(A)
1-71798-484-1
02
1
0603-
71
BRACKET; OUTSIDE MIRROR
(B)
1-71798-486-2
02
1
0603-
72
SHEET
(A)
1-71798-487-3
02
1
0603-
72
SHEET
(B)
1-71798-488-1
02
1
0603-
90
BRACKET; MIRROR STAY
1-71798-828-1
01
1
0603-0809
90
BRACKET; MIRROR STAY
1-71707-237-0
01
1
0810-
90
BRACKET; MIRROR STAY
1-71798-829-1
01
1
0603-
151
WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6
1-09985-191-0
04
1
0603-
181
SEAL; BRKT
25X25
8-94272-533-0
02
1
0603-
185
BOLT; BRKT
M8X35 FLANGE
0-28660-835-0
04
1
0603-0605
185
BOLT; BRKT
M8X35 FLANGE
8-98046-876-0
04
1
0606-
17
66
72
66
71
151
69
181
17
66
66
49
90
72
71
185
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
NUT; CAP,MIRROR STAY
M10 CAP NUT
1-09984-134-0
04
1
0603-
49
STAY; MIRROR SIDE
(A)
1-71798-490-3
01
1
0603-
49
STAY; MIRROR SIDE
(B)
1-71798-491-3
01
1
0603-
66
WASHER; PL
ID=10.5 OD=26 T=2.6
1-09985-184-0
08
1
0603-
69
NUT; CAP
M8
1-09984-187-0
04
1
0603-0809
69
NUT; CAP
M8 CAP NUT
8-98059-914-0
04
1
0810-
71
BRACKET; OUTSIDE MIRROR
(A)
1-71798-484-1
02
1
0603-
71
BRACKET; OUTSIDE MIRROR
(B)
1-71798-486-2
02
1
0603-
72
SHEET
(A)
1-71798-487-3
02
1
0603-
72
SHEET
(B)
1-71798-488-1
02
1
0603-
90
BRACKET; MIRROR STAY
1-71798-828-1
01
1
0603-0809
90
BRACKET; MIRROR STAY
1-71707-237-0
01
1
0810-
90
BRACKET; MIRROR STAY
1-71798-829-1
01
1
0603-
151
WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6
1-09985-191-0
04
1
0603-
181
SEAL; BRKT
25X25
8-94272-533-0
02
1
0603-
185
BOLT; BRKT
M8X35 FLANGE
0-28660-835-0
04
1
0603-0605
185
BOLT; BRKT
M8X35 FLANGE
8-98046-876-0
04
1
0606-
1
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MIRROR; ROOM
1-73117-033-1
01
1
0603-
2
SCREW; MIRROR TO BODY
M6X20
1-09981-310-0
02
1
0603-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
