4-10 — FRONT AXLE (#2490) — 167 parça

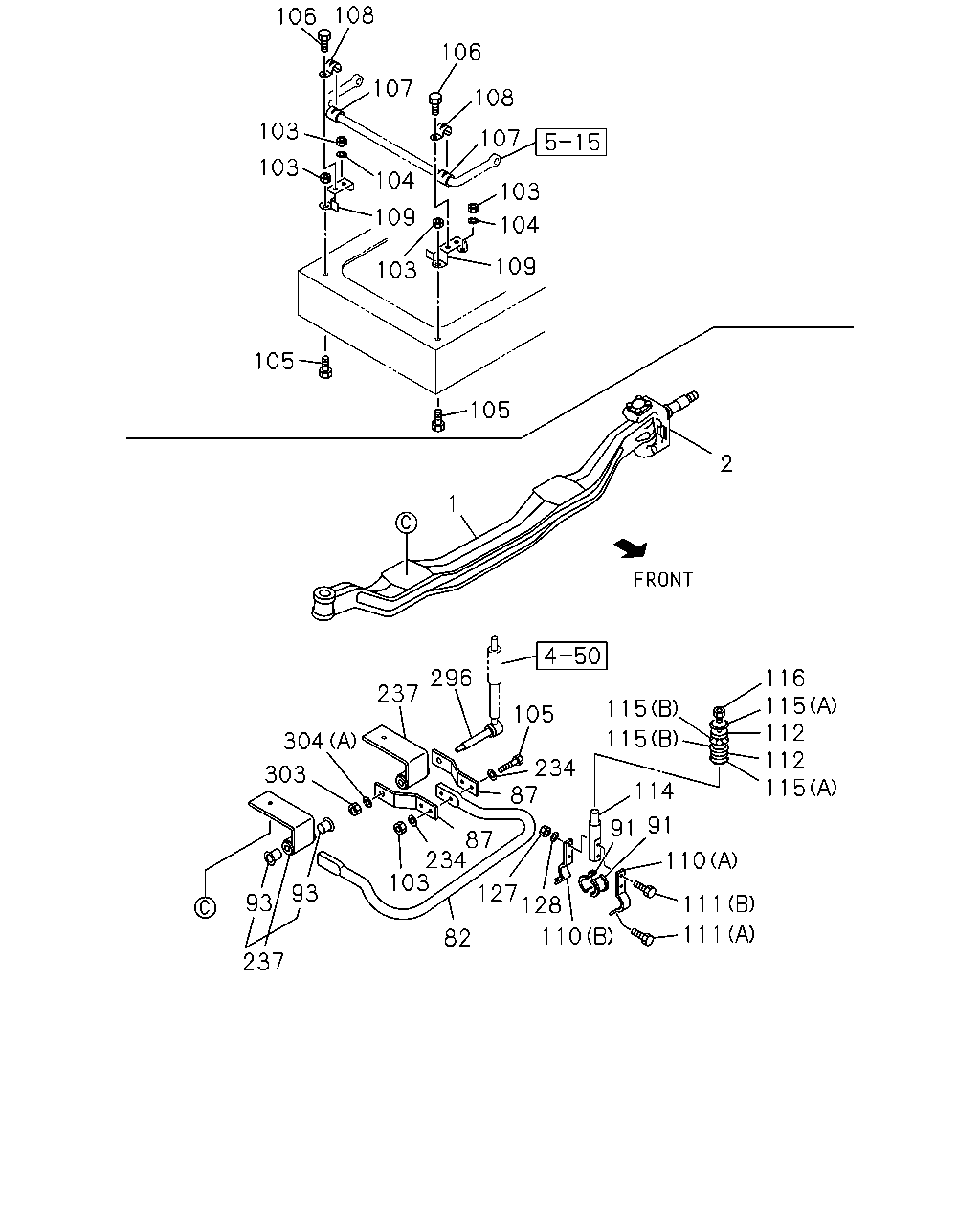

108 106 106 107 108 103 107 104 103 103 109 104 103 109 105 105 2 1 296 116 115 112 112 115 237 115 105 115 304 234 87 303 114 91 91 87 234 103 110 93 127 128 93 111 111 110 82 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-051-4	01	1	9002-9306
1	AXLE; FRT INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-43111-051-5	01	1	9307-9312
1	AXLE; FRT EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-43111-107-2	01	1	9307-9312
1	AXLE; FRT	1-43111-107-4	01	1	9401-
2	KNUCKLE; FRT AXLE	1-43132-046-3	01	1	9002-9404
2	KNUCKLE; FRT AXLE	1-43132-079-0	01	1	9405-
2	KNUCKLE; FRT AXLE	1-43131-046-4	01	1	9002-9404
2	KNUCKLE; FRT AXLE	1-43131-079-0	01	1	9405-
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-104-0	01	1	9307-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> OUTER	1-51781-083-1	02	1	9307-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> INNER	1-51781-084-1	02	1	9307-
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-0	04	1	9307-
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-1	04	1	9307-
103	NUT; BRKT FIX M14	9-99110-514-0	02	1	9002-
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	9-99110-514-0	04	1	9307-
103	NUT; BRKT FIX M10	9-09110-510-0	02	1	9002-
104	WASHER; LK,BRKT ID=14.2	9-09150-614-0	02	1	9002-
105	BOLT; BRKT FIX M10X25	9-01911-025-0	02	1	9002-9002
105	BOLT; BRKT FIX M10X25 W/LK WASHER	0-50041-025-0	02	1	9003-
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	9-91061-470-0	04	1	9307-
106	BOLT; CAP FIX M8X25 W/LK WASHER	9-01910-825-0	02	1	9002-9005
106	BOLT; CAP FIX M8X25 W/LK WASHER	0-50040-825-0	02	1	9006-9302
106	BOLT; CAP FIX M8X25 FLANGE	0-28080-825-0	02	1	9303-
107	BUSHING; STABILIZER BAR	1-53459-860-0	02	1	9002-
108	CAP	1-53459-392-1	02	1	9002-
109	BUFFER; STAB BAR	1-53459-532-0	01	1	9002-
109	BUFFER; STAB BAR	1-53459-533-0	01	1	9002-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	9307-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	9307-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20801-230-0	02	1	9307-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20801-250-0	04	1	9307-
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-039-0	04	1	9307-
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-071-2	02	1	9307-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.5	9-51631-040-0	04	1	9307-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=20.8	9-51631-041-0	04	1	9307-
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	9-99111-414-0	04	1	9307-
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	9-99110-412-0	06	1	9307-
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	9-09150-512-0	06	1	9307-
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	08	1	9307-
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	9307-
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	1-51682-145-2	02	1	9307-
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	9-99110-520-0	02	1	9307-
304	WASHER; PL (B) ID=12.5	9-09164-512-0	04	1	9411-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (A) ID=21	9-09164-520-0	02	1	9307-

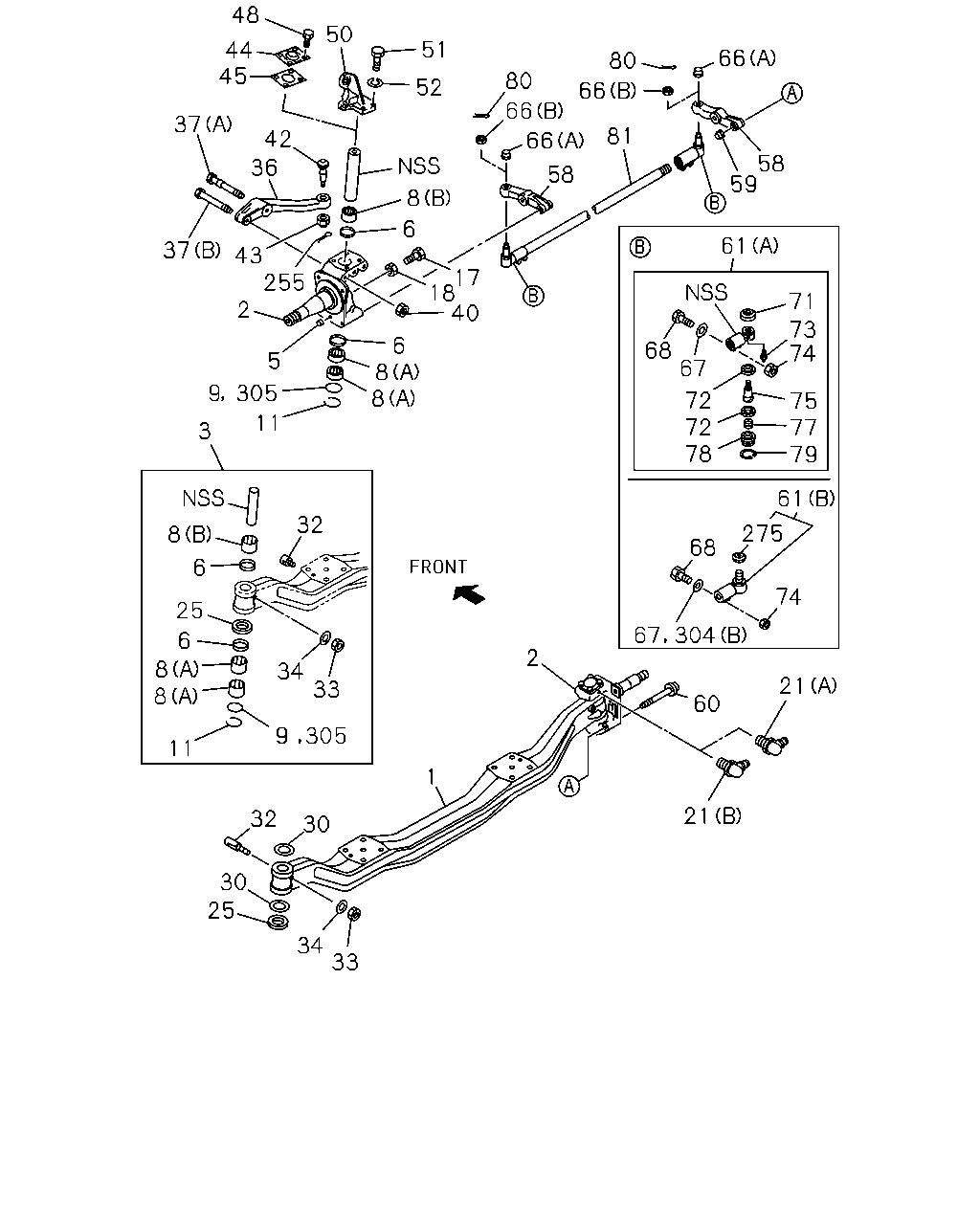

48 50 51 44 45 66 80 80 52 66 66 37 81 42 66 58 59 36 58 8 6 61 37 43 255 17 18 40 71 73 74 2 6 8 8 68 67 5 305 9 72 72 78 75 77 79 11 3 61 32 275 8 68 6 74 25 6 2 8 8 34 33 21 60 9 305 11 1 21 32 30 30 25 34 33 67 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-051-4	01	1	9002-9306
1	AXLE; FRT INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-43111-051-5	01	1	9307-9312
1	AXLE; FRT EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-43111-107-2	01	1	9307-9312
1	AXLE; FRT	1-43111-107-4	01	1	9401-
2	KNUCKLE; FRT AXLE	1-43132-046-3	01	1	9002-9404
2	KNUCKLE; FRT AXLE	1-43132-079-0	01	1	9405-
2	KNUCKLE; FRT AXLE	1-43131-046-4	01	1	9002-9404
2	KNUCKLE; FRT AXLE	1-43131-079-0	01	1	9405-
3	KING PIN SET	1-87830-039-5	02	1	9002-9306
3	KING PIN SET	1-87830-640-0	02	1	9307-9404
3	KING PIN SET	1-87830-738-0	02	1	9405-
5	PIN; KNUCKLE TO DRUM COVER	9-09878-625-0	02	1	9002-9404
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	9405-
6	SEAL; KING PIN	9-09926-024-0	04	1	9002-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	9002-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	9002-
9	PLUG; KNUCKLE	9-09201-363-0	02	1	9002-9404
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9002-
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	9002-
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	9002-
21	NIPPLE; GREASE,KING PIN (A) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9002-
21	NIPPLE; GREASE,KING PIN (B) PT1/8 ELBOW	9-09031-210-0	02	1	9002-
25	BEARING; THRUST,KING PIN	1-09829-027-1	02	1	9002-9203
25	BEARING; THRUST,KING PIN	1-09829-043-2	02	1	9204-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	9002-
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	9002-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9002-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9002-
36	ARM; KNUCKLE	1-43133-050-1	01	1	9002-9306
36	ARM; KNUCKLE INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-43133-050-1	01	1	9307-9312
36	ARM; KNUCKLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-43133-057-1	01	1	9307-9312
36	ARM; KNUCKLE	1-43133-057-1	01	1	9401-9404
36	ARM; KNUCKLE	1-43133-063-1	01	1	9405-
37	BOLT; KNUCKLE ARM (B) M22X167	1-09000-153-0	01	1	9002-9111
37	BOLT; KNUCKLE ARM (A) M22X179	1-09000-578-1	01	1	9112-
37	BOLT; KNUCKLE ARM (A) M22X179	9-09806-848-1	01	1	9002-9111
37	BOLT; KNUCKLE ARM (B) M22X167	9-09806-847-3	01	1	9112-
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	9002-
42	JOINT; BALL,KNUCKLE ARM	1-44361-100-0	01	1	9002-9306
42	JOINT; BALL,KNUCKLE ARM INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-44361-100-0	01	1	9307-9312
43	NUT; JOINT BALL,KNUCKLE ARM M24 SLOTTED	1-09442-020-0	01	1	9002-9306
43	NUT; JOINT BALL,KNUCKLE ARM INTERNATIONAL STANDARD ISO 10STUD<B3V> M24 SLOTTED	1-09442-020-0	01	1	9307-9312
44	COVER; KING PIN INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-43175-014-1	02	1	9401-
45	GASKET; KING PIN COVER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42319-044-0	02	1	9401-
48	BOLT; COVER INTERNATIONAL STANDARD ISO 10STUD<B3V> M12X20 W/LK WASHER	0-50041-220-0	08	1	9401-9501
48	BOLT; COVER INTERNATIONAL STANDARD ISO 10STUD<B3V> M12X16 FLANGE	0-28081-216-0	08	1	9502-
50	BRACKET; POWER CHAMBER	1-43145-010-1	01	1	9002-9312
50	BRACKET; POWER CHAMBER EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-43145-010-3	01	1	9401-
50	BRACKET; POWER CHAMBER	1-43145-009-1	01	1	9002-9312
50	BRACKET; POWER CHAMBER EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-43145-009-3	01	1	9401-
51	BOLT; POWER CHAMBER BRKT M12X60	9-91056-260-0	02	1	9002-9005
51	BOLT; POWER CHAMBER BRKT M12X60	0-10806-260-0	02	1	9006-
51	BOLT; POWER CHAMBER BRKT M12X28	9-92051-228-0	06	1	9002-9005
51	BOLT; POWER CHAMBER BRKT M12X28	0-20801-228-0	06	1	9006-
52	WASHER; LK,POWER CHAMBER BRKT ID=12.2	9-09150-512-0	08	1	9002-
58	ARM; TIE ROD	1-43135-021-1	01	1	9002-9404
58	ARM; TIE ROD	1-43135-044-1	01	1	9405-
58	ARM; TIE ROD	1-43134-021-1	01	1	9002-9404
58	ARM; TIE ROD	1-43134-044-1	01	1	9405-
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	9002-
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	9002-
61	ROD END; TIE ROD INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-43150-436-1	01	1	9307-9312
61	ROD END; TIE ROD INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-43150-435-1	01	1	9307-9312
61	ROD END; TIE ROD EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-43150-631-1	01	1	9307-9312
61	ROD END; TIE ROD (B)	1-43150-631-2	01	1	9401-
61	ROD END; TIE ROD EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-43150-630-1	01	1	9307-9312
61	ROD END; TIE ROD (B)	1-43150-630-2	01	1	9401-
61	ROD END; TIE ROD L TYPE ENG<90L> (A)	1-43150-436-1	01	1	9002-9306
61	ROD END; TIE ROD L TYPE ENG<90L> (A)	1-43150-435-1	01	1	9002-9306
61	ROD END; TIE ROD 10PD1 STD ENG(40L) (A)	1-43150-440-1	01	1	9002-9306
61	ROD END; TIE ROD 10PD1 STD ENG(40L) (A)	1-43150-439-1	01	1	9002-9306
66	NUT; TIE ROD END (A) M24	9-09844-669-2	02	1	9002-9306
66	NUT; TIE ROD END INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M24	9-09844-669-2	02	1	9307-9312
66	NUT; TIE ROD END EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M24 SLOTTED	1-09442-020-0	02	1	9307-9312
66	NUT; TIE ROD END (B) M24 SLOTTED	1-09442-020-0	02	1	9401-
67	WASHER; LK,TIE ROD END ID=12.2	9-09150-512-0	04	1	9002-9207
67	WASHER; LK,TIE ROD END ID=12.2	9-09150-812-0	04	1	9208-9410
68	BOLT; TIE ROD END M12X55	9-91061-255-0	04	1	9002-
71	BOOT; TIE ROD END ID=31 & 49	1-43159-038-0	02	1	9002-9306
71	BOOT; TIE ROD END INTERNATIONAL STANDARD ISO 10STUD<B3V> ID=31 & 49	1-43159-038-0	02	1	9307-9312
72	SEAT; BALL,TIE ROD JOINT	1-44371-012-1	04	1	9002-9306
72	SEAT; BALL,TIE ROD JOINT INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-44371-012-1	04	1	9307-9312
73	NIPPLE; GREASE,TIE ROD END PT1/8 STRAIGHT	9-09031-010-0	02	1	9002-9306
73	NIPPLE; GREASE,TIE ROD END INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 STRAIGHT	9-09031-010-0	02	1	9307-9312
74	NUT; TIE ROD END M12	9-99110-412-0	04	1	9002-9207
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9208-
75	JOINT; BALL,DRAG LINK	9-44361-169-3	02	1	9002-9306
75	JOINT; BALL,DRAG LINK INTERNATIONAL STANDARD ISO 10STUD<B3V>	9-44361-169-3	02	1	9307-9312
77	SPRING; TIE ROD END	9-09941-272-0	02	1	9002-9306
77	SPRING; TIE ROD END INTERNATIONAL STANDARD ISO 10STUD<B3V>	9-09941-272-0	02	1	9307-9312
78	PLUG; ADJ,ROD END	1-44375-014-0	02	1	9002-9306
78	PLUG; ADJ,ROD END INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-44375-014-0	02	1	9307-9312
79	RING; SNAP,ADJ PLUG	1-09589-006-0	02	1	9002-9306
79	RING; SNAP,ADJ PLUG INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-09589-006-0	02	1	9307-9312
80	PIN; SPLIT,ROD END EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OD=4.6 L=35	9-08115-035-0	02	1	9307-9312
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9401-
81	ROD; TIE INTERNATIONAL STANDARD ISO 10STUD<B3V> L=1600	9-43151-118-1	01	1	9307-9312
81	ROD; TIE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> L=1605	1-43151-027-0	01	1	9307-9312
81	ROD; TIE L=1605	1-43151-027-0	01	1	9401-9407
81	ROD; TIE L=1600	1-43151-012-0	01	1	9408-
81	ROD; TIE L TYPE ENG<90L> L=1600	9-43151-118-1	01	1	9002-9306
81	ROD; TIE 10PD1 STD ENG(40L) L=1605	1-43151-027-0	01	1	9002-9306
255	PIN; SPLIT,JOINT BALL OD=4.6 L=35	9-08115-035-0	01	1	9002-9306
255	PIN; SPLIT,JOINT BALL INTERNATIONAL STANDARD ISO 10STUD<B3V> OD=4.6 L=35	9-08115-035-0	01	1	9307-9312
275	BOOT; ROD END,TIE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-43159-078-0	02	1	9307-9312
275	BOOT; ROD END,TIE	1-43159-078-0	02	1	9401-
304	WASHER; PL (B) ID=12.5	9-09164-512-0	04	1	9411-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (A) ID=21	9-09164-520-0	02	1	9307-
305	COVER; KNUCKLE	1-43175-021-0	02	1	9405-
