◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 11024 - EXD AUSTRALIA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#24899) — 15 parça

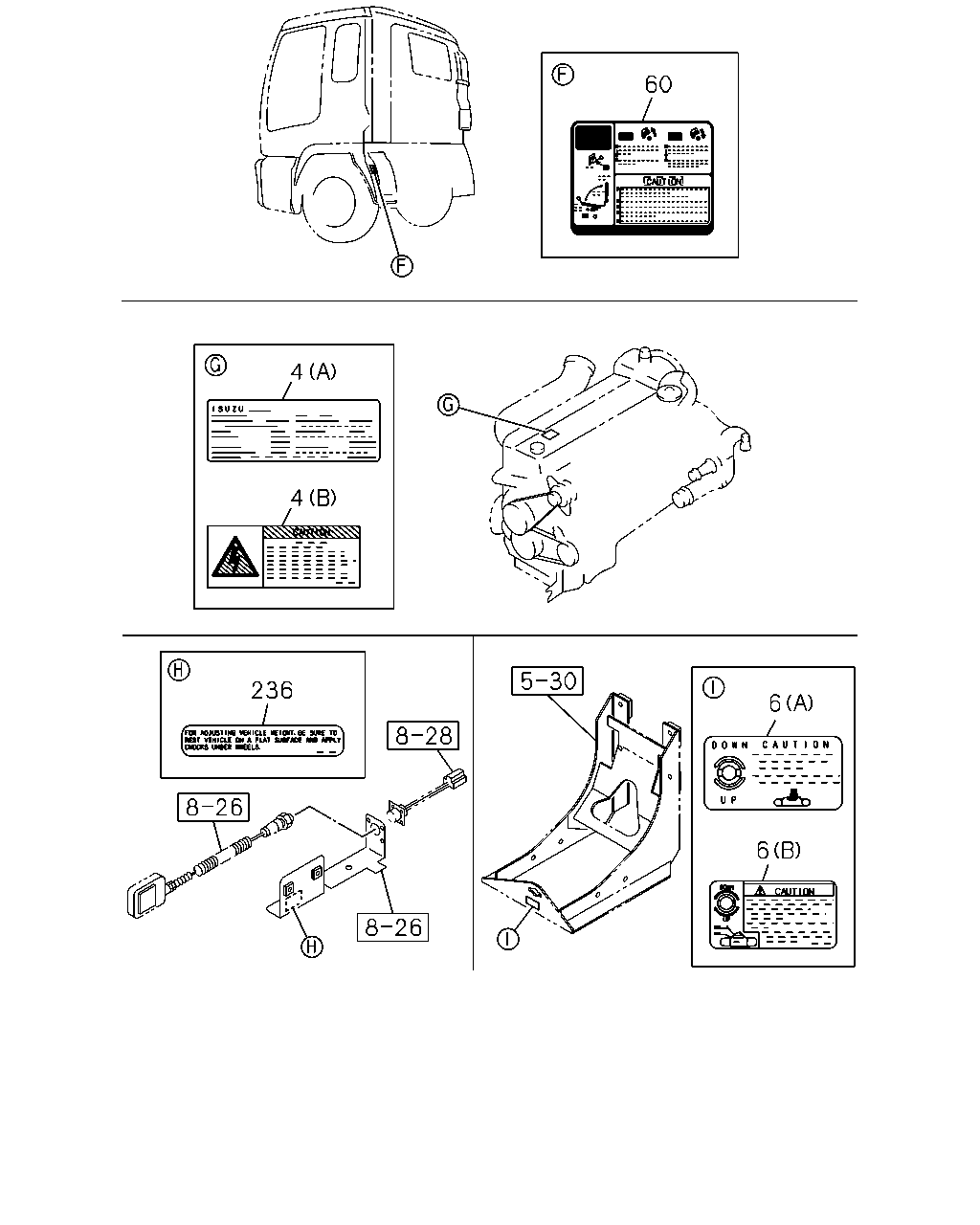

çizim 90094
60 4 4 236 6 6
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
(A) 		1-85875-350-2 01 1 0603-
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 0603-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53639-004-0 01 1 0603-0708
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		8-98082-437-0 01 1 0709-
60 PLATE; CAUTION,CAB TILT 1-85883-174-0 01 1 0603-
236 PLATE; CAUTION,AIR SUS 1-85881-823-0 01 1 0603-

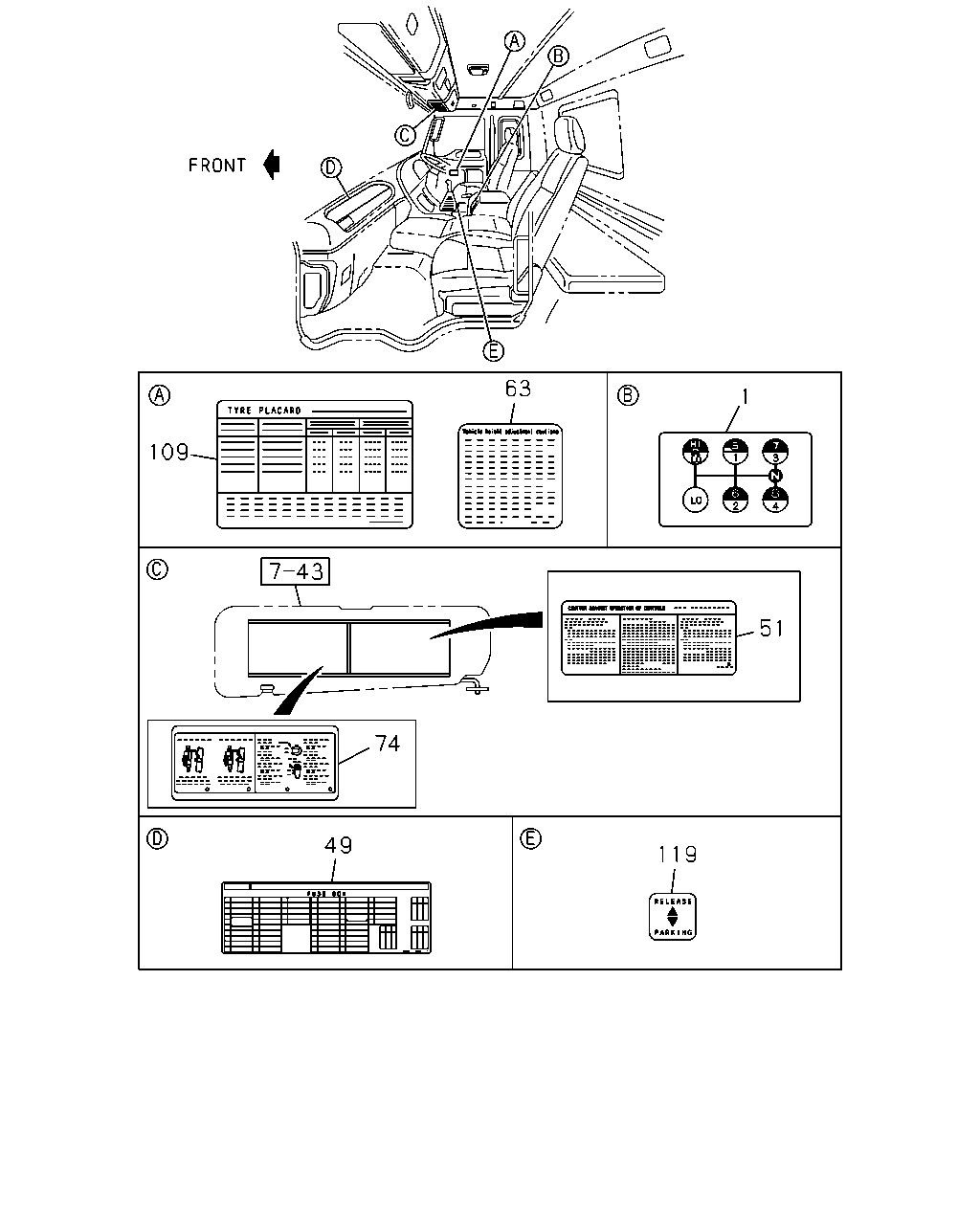

çizim 105346
63 1 109 51 74 49 119
BalonParca AdiParca NoAdetTipApplied Date
1 PLATE; CAUTION,SHIFT PATTERN 1-85881-519-0 01 1 0603-
49 PLATE; CAUTION,FUSE BOX 1-85878-550-0 01 1 0603-
51 PLATE; CAUTION,WARNING 1-85880-725-0 01 1 0603-
63 PLATE; CAUTION,SEAT AIR 1-85881-861-0 01 1 0603-
74 PLATE; CAUTION,CHANGE LEV 1-85881-846-0 01 1 0603-
109 PLATE; CAUTION,TIRE PLACARD 1-85881-933-0 01 1 0603-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0603-
çizim 106219
181 181
BalonParca AdiParca NoAdetTipApplied Date
181 PLATE; CAUTION,AIR CLEANER
(A) 		1-85886-796-1 01 1 0603-
181 PLATE; CAUTION,AIR CLEANER
(B) 		1-85886-813-1 01 1 0603-
