Isuzu WW
▶
TRUCKS
▶
EXD
▶
11024 - EXD AUSTRALIA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-70 - FLOOR PANEL
▶

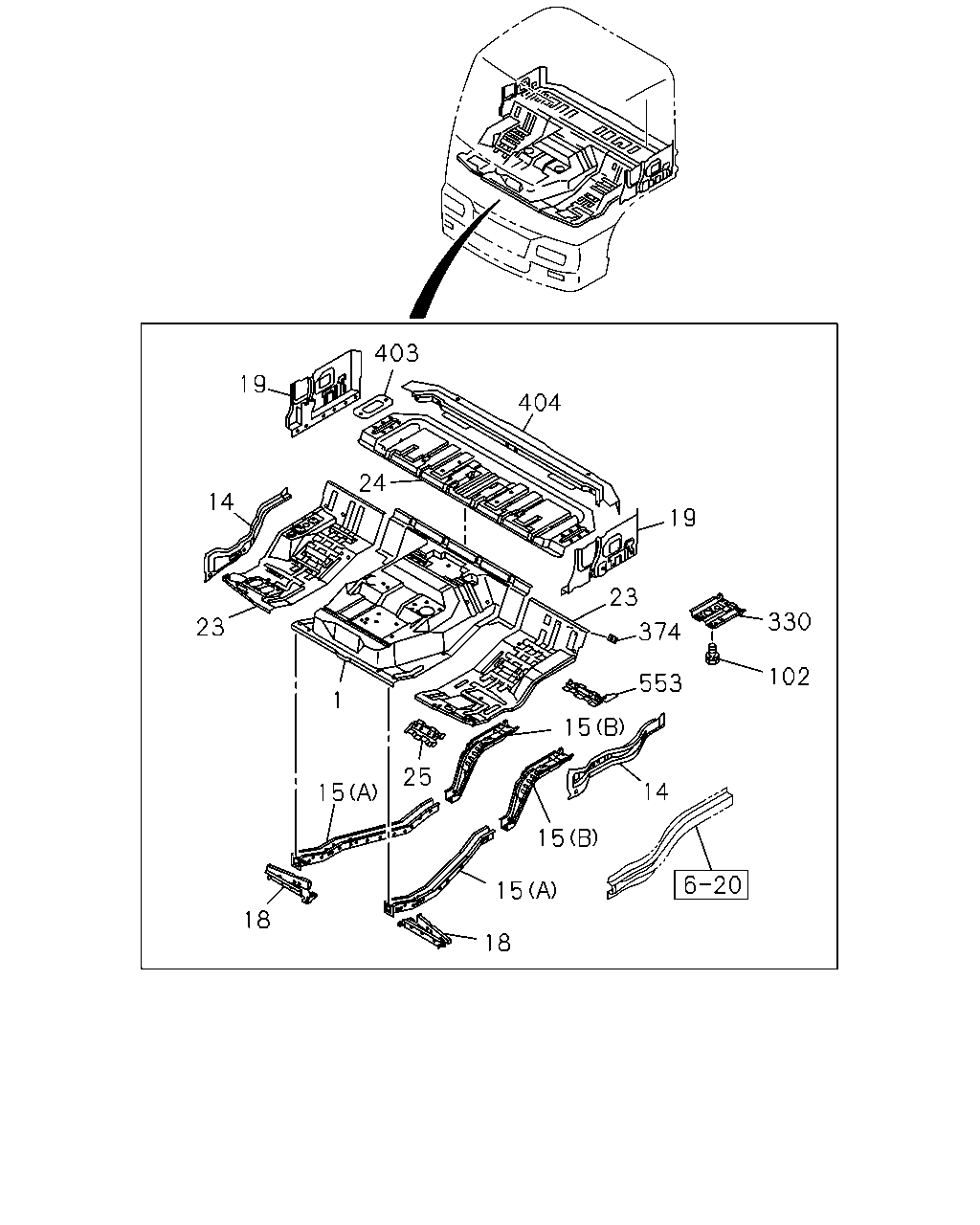

6-70 — FLOOR PANEL
(#24889) — 22 parça
19
403
404
24
14
23
1
15
25
18
18
15
15
14
15
553
102
330
374
23
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; FLOOR
1-62172-965-0
01
1
0603-
14
PANEL; FLOOR SIDE,FRT
1-62482-917-6
01
1
0603-
14
PANEL; FLOOR SIDE,FRT
1-62482-918-6
01
1
0603-
15
FRAME; UNDER
(B)
1-62472-598-6
01
1
0603-
15
FRAME; UNDER
(A)
1-62472-603-9
01
1
0603-
15
FRAME; UNDER
(B)
1-62472-680-1
01
1
0603-
15
FRAME; UNDER
(A)
1-62472-766-1
01
1
0603-
18
FRAME; FLOOR,CENTER SIDE
1-62482-997-6
01
1
0603-
18
FRAME; FLOOR,CENTER SIDE
1-62483-168-3
01
1
0603-
19
PANEL; FLOOR SIDE,REAR
1-62472-659-2
01
1
0603-
19
PANEL; FLOOR SIDE,REAR
1-62472-660-2
01
1
0603-
23
PANEL; FLOOR,SIDE
1-62172-866-0
01
1
0603-
23
PANEL; FLOOR,SIDE
1-62172-798-0
01
1
0603-
24
PANEL; BED PAN
1-62172-540-9
01
1
0603-
25
REINFORCEMENT; FRAME FLOOR,FRT
1-62182-926-4
01
1
0603-
102
BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER
8-94279-208-0
06
1
0603-0904
102
BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER
8-98059-720-0
06
1
0905-
330
REINFORCEMENT; FLOOR
1-62172-585-5
01
1
0603-
374
NUT; FLOOR
M6
1-09984-110-0
01
1
0603-
403
PATCH; FIRE EXTINGUSHER
1-62172-569-0
01
1
0603-
404
RAIL ASM; MTG,RR
1-62472-596-8
01
1
0603-
553
REINFORCEMENT; SEAT STAND RR
1-62172-795-0
01
1
0603-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
