◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 11024 - EXD AUSTRALIA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#24879) — 123 parça

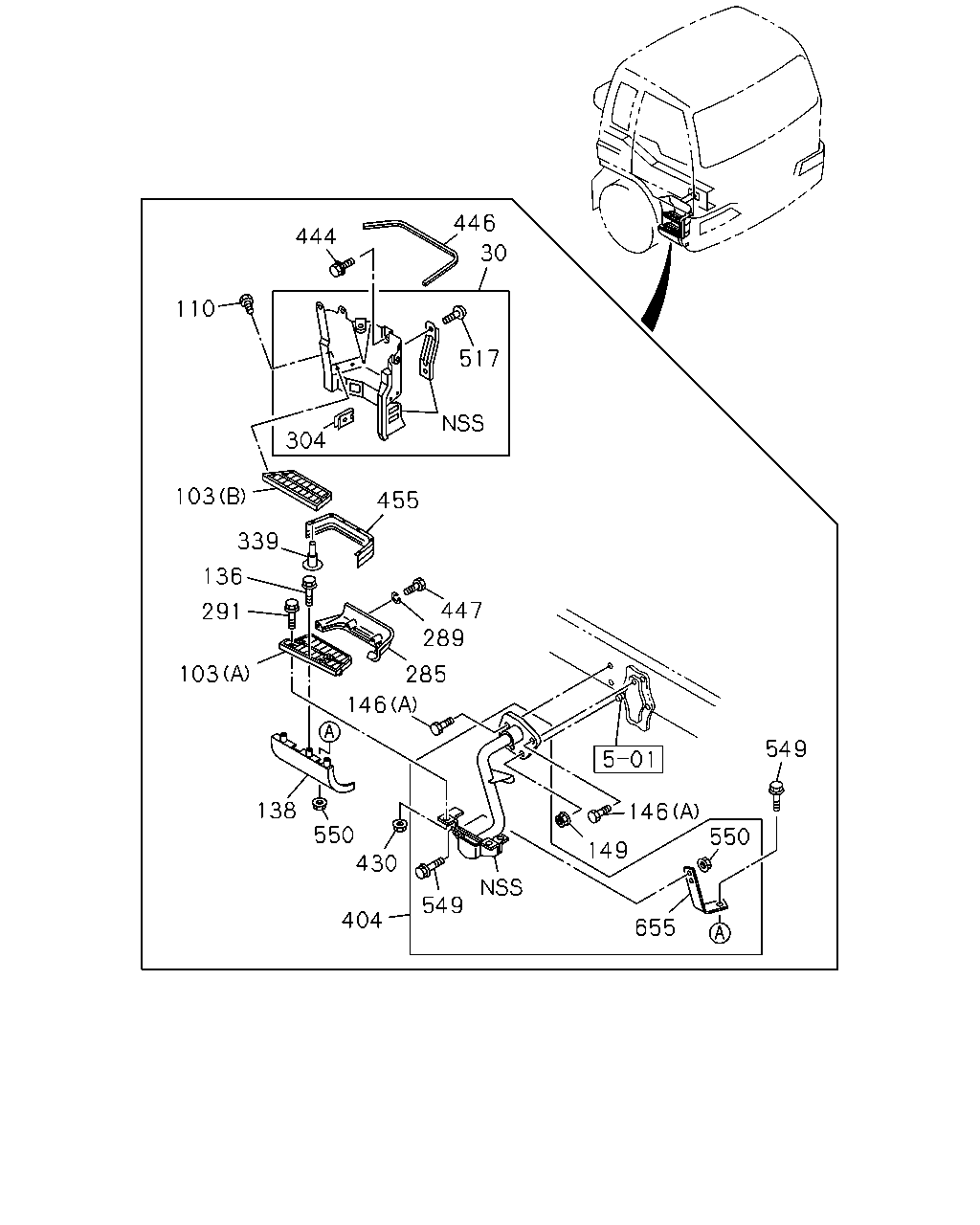

çizim 90414
446 444 30 110 517 304 103 455 339 136 447 289 291 103 285 146 549 138 146 550 550 149 430 549 404 655
BalonParca AdiParca NoAdetTipApplied Date
30 CLOSING; SIDE STEP 1-71907-464-0 01 1 0603-0910
30 CLOSING; SIDE STEP 8-98156-823-0 01 1 0911-
30 CLOSING; SIDE STEP 1-71907-465-0 01 1 0603-0910
30 CLOSING; SIDE STEP 8-98156-824-0 01 1 0911-
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 0603-
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 0603-
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 0603-
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 0603-
110 BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0603-
136 BOLT; OVER FENDER
M5X22 		8-97029-303-1 06 1 0603-
138 FENDER; OVER
WHITE 		1-79931-447-1 01 1 0603-
138 FENDER; OVER
WHITE 		1-79931-448-1 01 1 0603-
146 BOLT; STEP BRKT
(B) M12X30 FLANGE 		0-28051-230-0 03 1 0603-
146 BOLT; STEP BRKT
(A) M12X70 FLANGE 		0-28051-270-0 02 1 0603-
146 BOLT; STEP BRKT
(A) M12X80 FLANGE 		0-28051-280-0 02 1 0603-
149 NUT; STEP BRKT
M12 FLANGE 		0-91150-212-0 01 1 0603-0603
149 NUT; STEP BRKT
M12 FLANGE 		0-91180-212-0 01 1 0603-
285 PLATE; STEP,1ST STEP 1-53414-047-2 01 1 0603-
285 PLATE; STEP,1ST STEP 1-53414-182-0 01 1 0603-
289 WASHER; PL,STEP
ID=6.4 OD=18 		9-09160-706-0 08 1 0603-0605
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 0606-
291 BOLT; STEP PLATE
M8X40 FLANGE 		0-28050-840-0 08 1 0603-
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 0603-
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 0603-
404 BRACKET 1-53414-287-2 01 1 0603-
404 BRACKET 1-53414-288-2 01 1 0603-
430 NUT; PANEL
M8 FLANGE 		0-91150-108-0 08 1 0603-0603
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 0603-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0603-0904
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0603-
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 0603-
455 PROTECTOR; STEP 1-71907-186-2 01 1 0603-
455 PROTECTOR; STEP 1-71907-187-2 01 1 0603-
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74100-510-0 04 1 0603-0604
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 0605-
549 BOLT; STAY
M6X20 FLANGE 		0-28650-620-0 04 1 0603-
549 BOLT; STAY
M5X16 W/LK&PL WASHER 		8-94198-538-0 02 1 0603-
550 NUT; STAY
M6 FLANGE 		0-91150-206-0 04 1 0603-0603
550 NUT; STAY
M6 FLANGE 		0-91180-206-0 04 1 0603-
550 NUT; STAY
M5 FLANGE 		1-09984-170-0 02 1 0603-
655 STAY; MUD GUARD 8-97608-965-1 01 1 0603-
655 STAY; MUD GUARD 8-97608-966-1 01 1 0603-

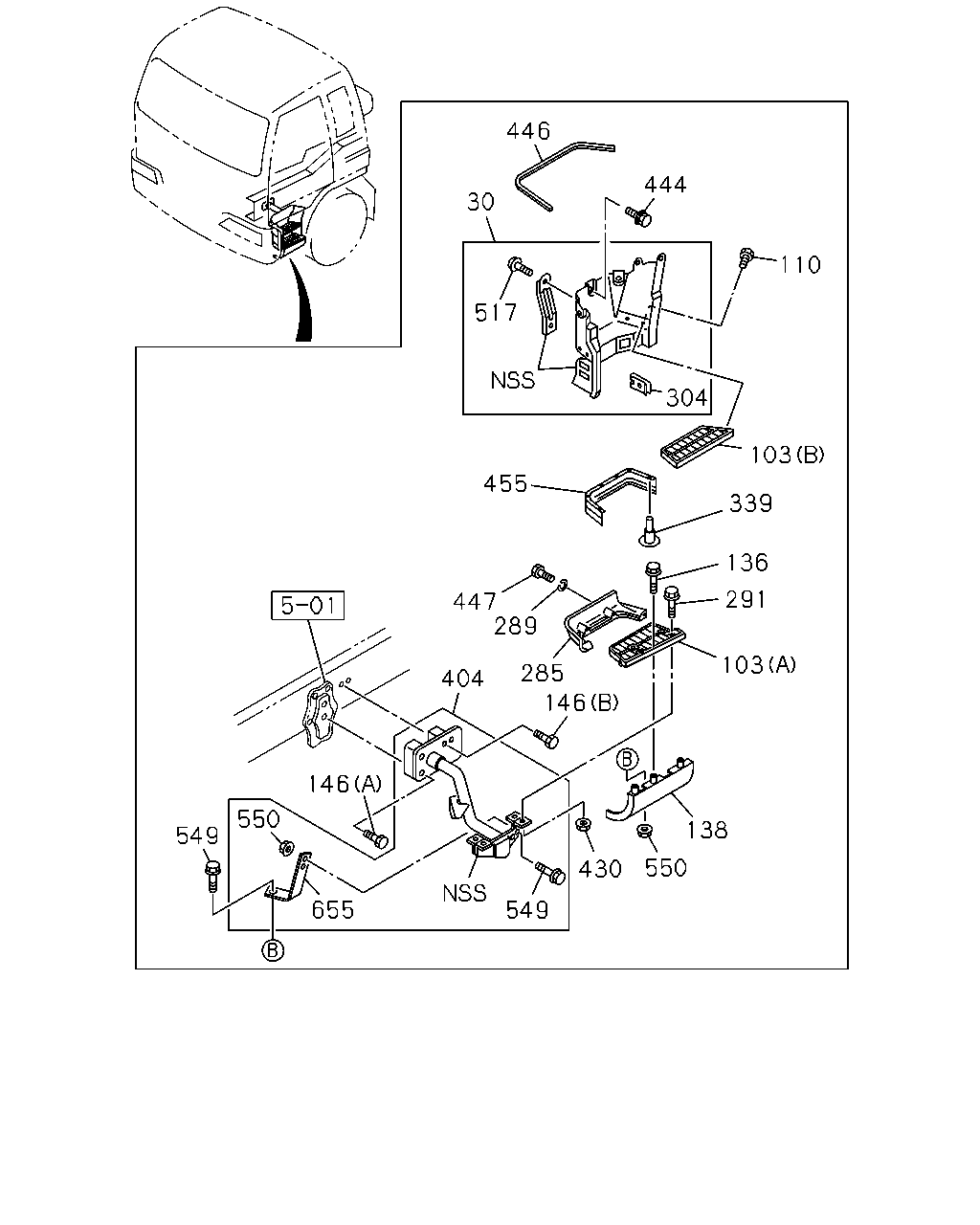

çizim 90416
446 444 30 110 517 304 103 455 339 136 291 447 289 103 285 146 404 146 550 138 549 550 430 655 549
BalonParca AdiParca NoAdetTipApplied Date
30 CLOSING; SIDE STEP 1-71907-464-0 01 1 0603-0910
30 CLOSING; SIDE STEP 8-98156-823-0 01 1 0911-
30 CLOSING; SIDE STEP 1-71907-465-0 01 1 0603-0910
30 CLOSING; SIDE STEP 8-98156-824-0 01 1 0911-
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 0603-
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 0603-
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 0603-
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 0603-
110 BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0603-
136 BOLT; OVER FENDER
M5X22 		8-97029-303-1 06 1 0603-
138 FENDER; OVER
WHITE 		1-79931-447-1 01 1 0603-
138 FENDER; OVER
WHITE 		1-79931-448-1 01 1 0603-
146 BOLT; STEP BRKT
(B) M12X30 FLANGE 		0-28051-230-0 03 1 0603-
146 BOLT; STEP BRKT
(A) M12X70 FLANGE 		0-28051-270-0 02 1 0603-
146 BOLT; STEP BRKT
(A) M12X80 FLANGE 		0-28051-280-0 02 1 0603-
285 PLATE; STEP,1ST STEP 1-53414-047-2 01 1 0603-
285 PLATE; STEP,1ST STEP 1-53414-182-0 01 1 0603-
289 WASHER; PL,STEP
ID=6.4 OD=18 		9-09160-706-0 08 1 0603-0605
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 0606-
291 BOLT; STEP PLATE
M8X40 FLANGE 		0-28050-840-0 08 1 0603-
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 0603-
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 0603-
404 BRACKET 1-53414-287-2 01 1 0603-
404 BRACKET 1-53414-288-2 01 1 0603-
430 NUT; PANEL
M8 FLANGE 		0-91150-108-0 08 1 0603-0603
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 0603-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0603-0904
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0603-
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 0603-
455 PROTECTOR; STEP 1-71907-186-2 01 1 0603-
455 PROTECTOR; STEP 1-71907-187-2 01 1 0603-
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74100-510-0 04 1 0603-0604
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 0605-
549 BOLT; STAY
M6X20 FLANGE 		0-28650-620-0 04 1 0603-
549 BOLT; STAY
M5X16 W/LK&PL WASHER 		8-94198-538-0 02 1 0603-
550 NUT; STAY
M6 FLANGE 		0-91150-206-0 04 1 0603-0603
550 NUT; STAY
M6 FLANGE 		0-91180-206-0 04 1 0603-
550 NUT; STAY
M5 FLANGE 		1-09984-170-0 02 1 0603-
655 STAY; MUD GUARD 8-97608-965-1 01 1 0603-
655 STAY; MUD GUARD 8-97608-966-1 01 1 0603-

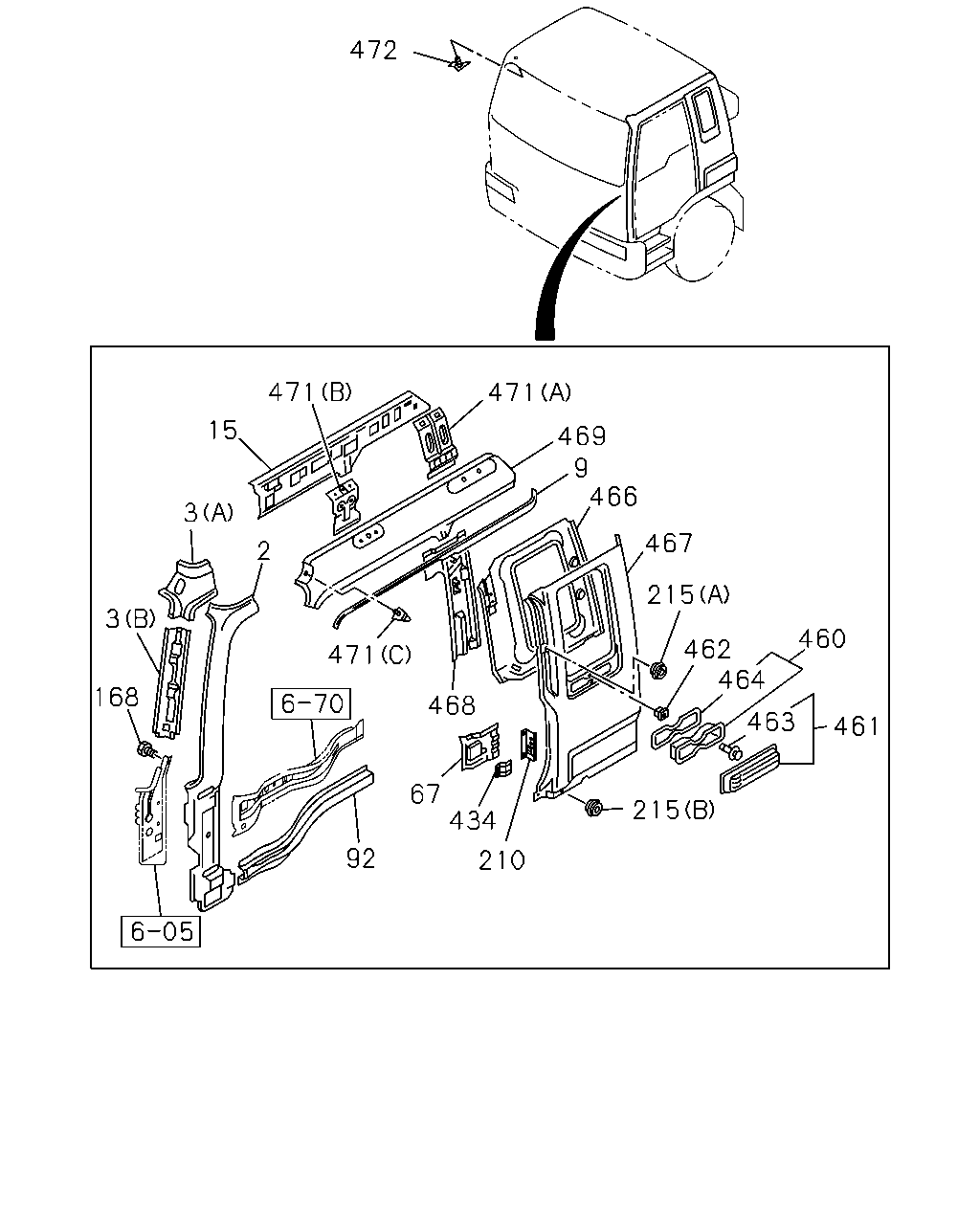

çizim 90417
472 471 471 15 3 2 3 168 471 468 67 434 210 92 215 461 463 464 460 462 215 467 466 9 469
BalonParca AdiParca NoAdetTipApplied Date
2 PILLAR; FRT 1-61281-155-4 01 1 0603-
2 PILLAR; FRT 1-61281-156-4 01 1 0603-
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-169-5 01 1 0603-
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-170-5 01 1 0603-
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-343-5 01 1 0603-
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-344-5 01 1 0603-
9 MOLDING; DRIP,CAB SIDE 1-61281-280-5 01 1 0603-
9 MOLDING; DRIP,CAB SIDE 1-61281-281-5 01 1 0603-
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 0603-
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 0603-
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 0603-
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 0603-
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 0603-
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 0603-
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 0603-
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 0603-
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 0603-
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 0603-
434 PATCH; ASSIST GRIP 1-61270-763-1 02 1 0603-
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 0603-
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 0603-
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 0603-
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 0603-
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0603-
464 SEAL; VENTILATOR 1-76378-299-0 02 1 0603-
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 0603-
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 0603-
467 PANEL; OUTER,BACK CORNER 1-61281-478-5 01 1 0603-
467 PANEL; OUTER,BACK CORNER 1-61281-477-3 01 1 0603-
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 0603-
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 0603-
469 ROOF; SIDE 1-61281-198-8 01 1 0603-
469 ROOF; SIDE 1-61281-199-8 01 1 0603-
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-200-3 01 1 0603-
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-201-3 01 1 0603-
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 02 1 0603-
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-233-4 01 1 0603-0812
471 PATCH; AIR DEFLECTOR
(C) 		8-98132-463-0 01 1 0901-
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 0603-
