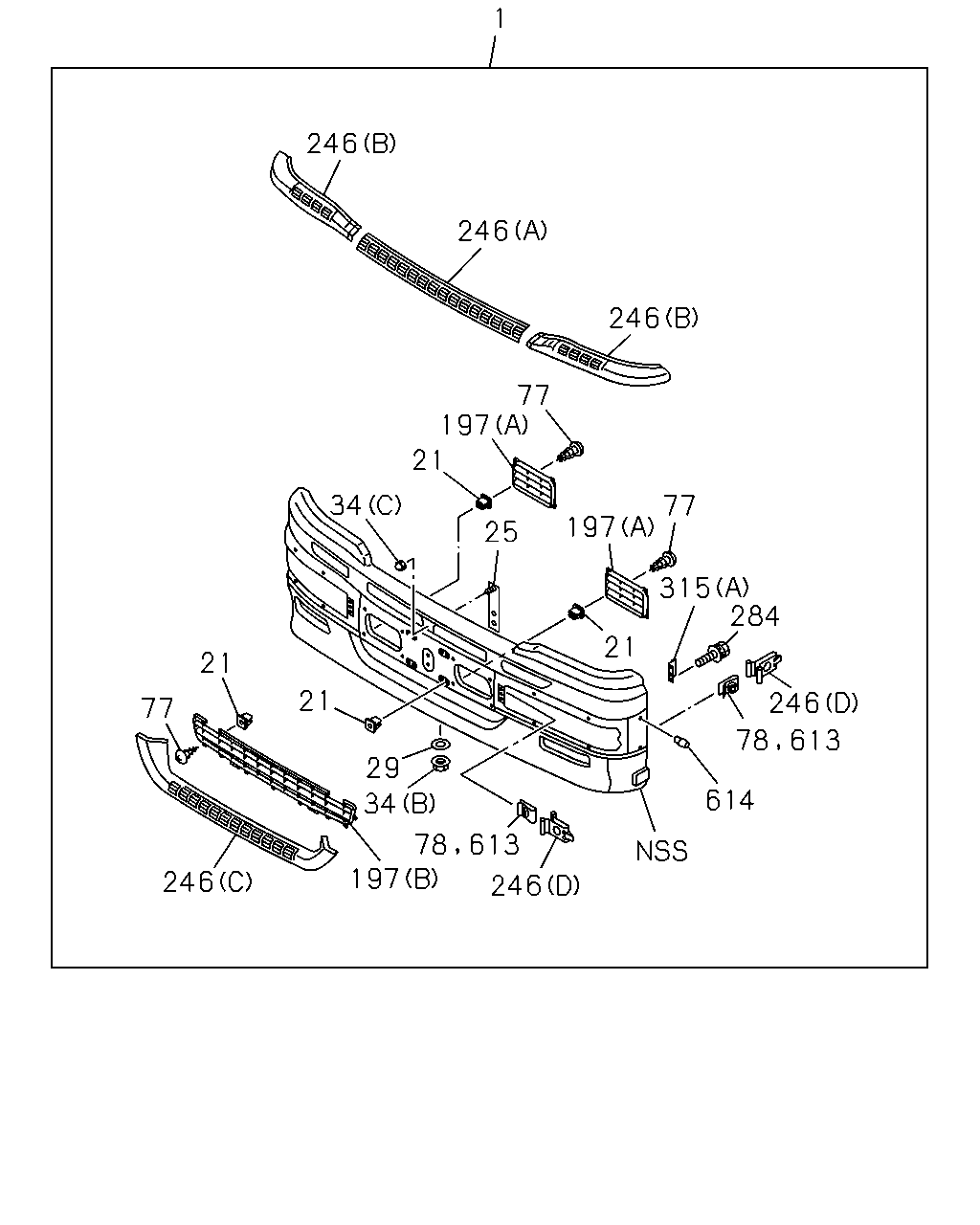

6-01 — FRONT BUMPER (#24875) — 61 parça
çizim 90489
1 246 246 246 77 197 21 34 77 197 25 315 284 21 21 21 246 77 29 614 34 197 246 246 78 613 78 613
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
WHITE 		1-71211-419-2 01 1 0603-
21 GROMMET; SCREW,BUMPER PROTECTOR
D=9X9 L=7 M5 		8-94163-979-0 22 1 0603-
21 GROMMET; SCREW,BUMPER PROTECTOR
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0603-
25 SPACER; PLATFORM 1-71230-640-0 01 1 0603-
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		9-09160-708-0 17 1 0603-0605
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		0-91610-708-0 17 1 0606-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 04 1 0603-0603
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 04 1 0603-
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91150-108-0 17 1 0603-0603
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91180-108-0 17 1 0603-
34 NUT; BRKT,BUMPER
(C) M10 CAP NUT 		1-09650-480-0 01 1 0603-
77 SCREW; BRKT
M5X16 TAPPING 		9-07076-516-0 22 1 0603-0603
77 SCREW; BRKT
M5X16 TAPPING 		0-71240-516-0 22 1 0604-
78 NUT; SPIRE 1-71260-174-0 06 1 0603-0610
197 GRILLE; BUMPER
(A) 		1-71260-115-1 01 1 0603-
197 GRILLE; BUMPER
(A) 		1-71260-116-1 01 1 0603-
197 GRILLE; BUMPER
(B) 		1-71260-210-1 01 1 0603-0610
197 GRILLE; BUMPER
(B) 		8-97617-998-0 01 1 0611-
246 PROTECTOR; BUMPER
(B) 		1-71260-094-2 01 1 0603-
246 PROTECTOR; BUMPER
(B) 		1-71260-095-2 01 1 0603-
246 PROTECTOR; BUMPER
(A) 		1-71260-155-1 01 1 0603-
246 PROTECTOR; BUMPER
(C) 		1-71260-156-1 01 1 0603-
246 PROTECTOR; BUMPER
(D) 		1-71260-162-0 06 1 0603-
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0603-
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 0603-
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 0603-
315 STAY; BUMPER
(B) 		1-71230-435-0 02 1 0603-
315 STAY; BUMPER
(C) 		8-97608-941-0 02 1 0603-
613 CLIP 1-71260-174-0 06 1 0611-
614 STOPPER; LID 1-71260-163-0 12 1 0603-

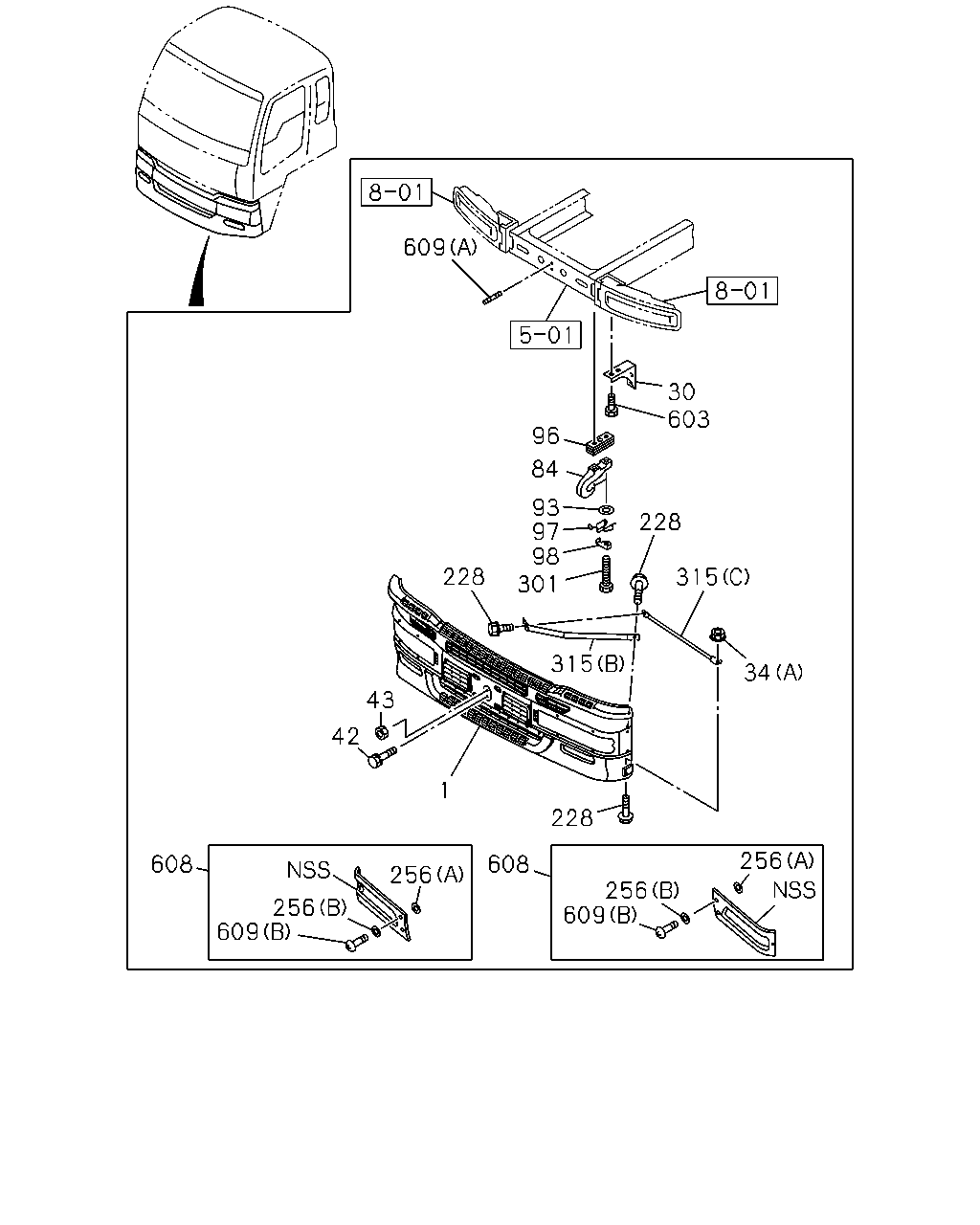

çizim 90520
609 30 603 96 84 93 97 98 301 228 228 315 315 34 43 42 1 228 256 608 608 256 256 609 256 609
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
WHITE 		1-71211-419-2 01 1 0603-
30 BRACKET; FRT BUMPER 1-71230-428-0 01 1 0603-
30 BRACKET; FRT BUMPER 1-71230-429-0 01 1 0603-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 04 1 0603-0603
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 04 1 0603-
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91150-108-0 17 1 0603-0603
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91180-108-0 17 1 0603-
34 NUT; BRKT,BUMPER
(C) M10 CAP NUT 		1-09650-480-0 01 1 0603-
42 BOLT; BUMPER
M10X30 W/LK&PL WASHER 		8-94279-213-0 09 1 0603-
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 01 1 0603-0603
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 01 1 0603-
84 HOOK 1-57181-027-1 01 1 0603-
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 0603-0603
93 WASHER; LK,HOOK
ID=16.2 		0-91510-516-0 02 1 0604-
96 PLATE; DIST,HOOK 1-53497-473-0 01 1 0603-
97 SPRING; FRT HOOK 9-53519-003-0 01 1 0603-
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 0603-
228 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0603-
256 WASHER; PL
(A) 		1-71260-173-0 06 1 0603-
256 WASHER; PL
(B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 0603-
301 BOLT; HOOK TO FRAME
M16X95 		0-10811-695-0 01 1 0603-
301 BOLT; HOOK TO FRAME
M16X90 		0-10861-690-0 01 1 0603-
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 0603-
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 0603-
315 STAY; BUMPER
(B) 		1-71230-435-0 02 1 0603-
315 STAY; BUMPER
(C) 		8-97608-941-0 02 1 0603-
603 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0603-
608 LID; BUMPER 1-71210-752-6 01 1 0603-
608 LID; BUMPER 1-71210-753-6 01 1 0603-
609 STUD; BUMPER
(B) 		1-71260-175-0 06 1 0603-
609 STUD; BUMPER
(A) M10X28,M10X15 L=50 		5-09300-050-0 01 1 0603-
