◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 11024 - EXD AUSTRALIA ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#24874) — 8 parça

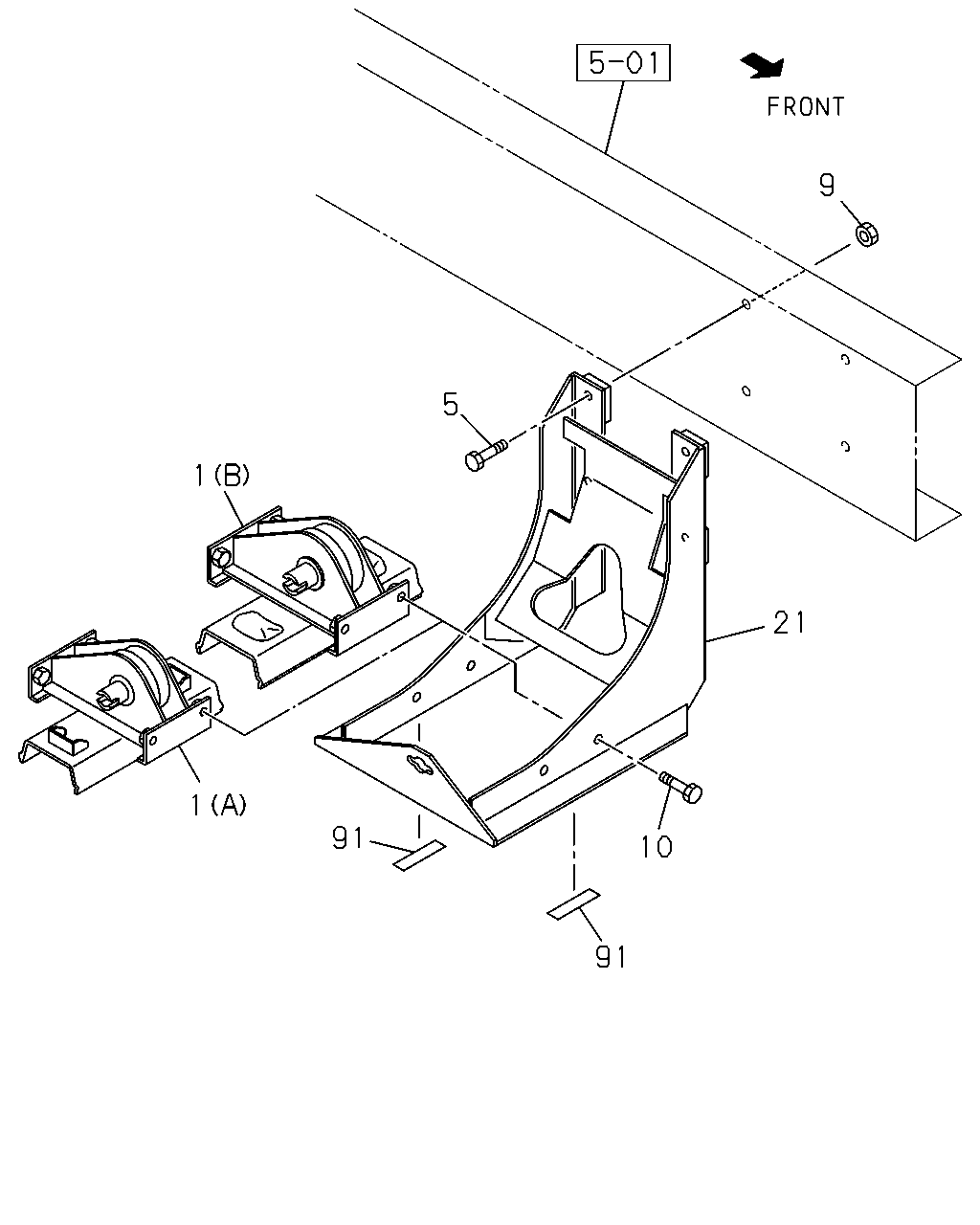

çizim 106474
9 5 1 21 91 10 91 1
BalonParca AdiParca NoAdetTipApplied Date
1 HANGER ASM; TIRE FT
INTERNATIONAL STANDARD ISO 10STUD<B3V> SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53630-210-4 01 1 0603-
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) 		1-53630-208-3 01 1 0603-
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28651-235-0 04 1 0603-
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 02 1 0603-
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28651-230-0 04 1 0603-
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> 		1-53631-397-1 01 1 0603-
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> 		1-53631-396-1 01 1 0603-
91 PAD; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> 		1-53639-042-0 02 1 0603-
