Isuzu WW
▶
TRUCKS
▶
EXD
▶
11024 - EXD AUSTRALIA
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

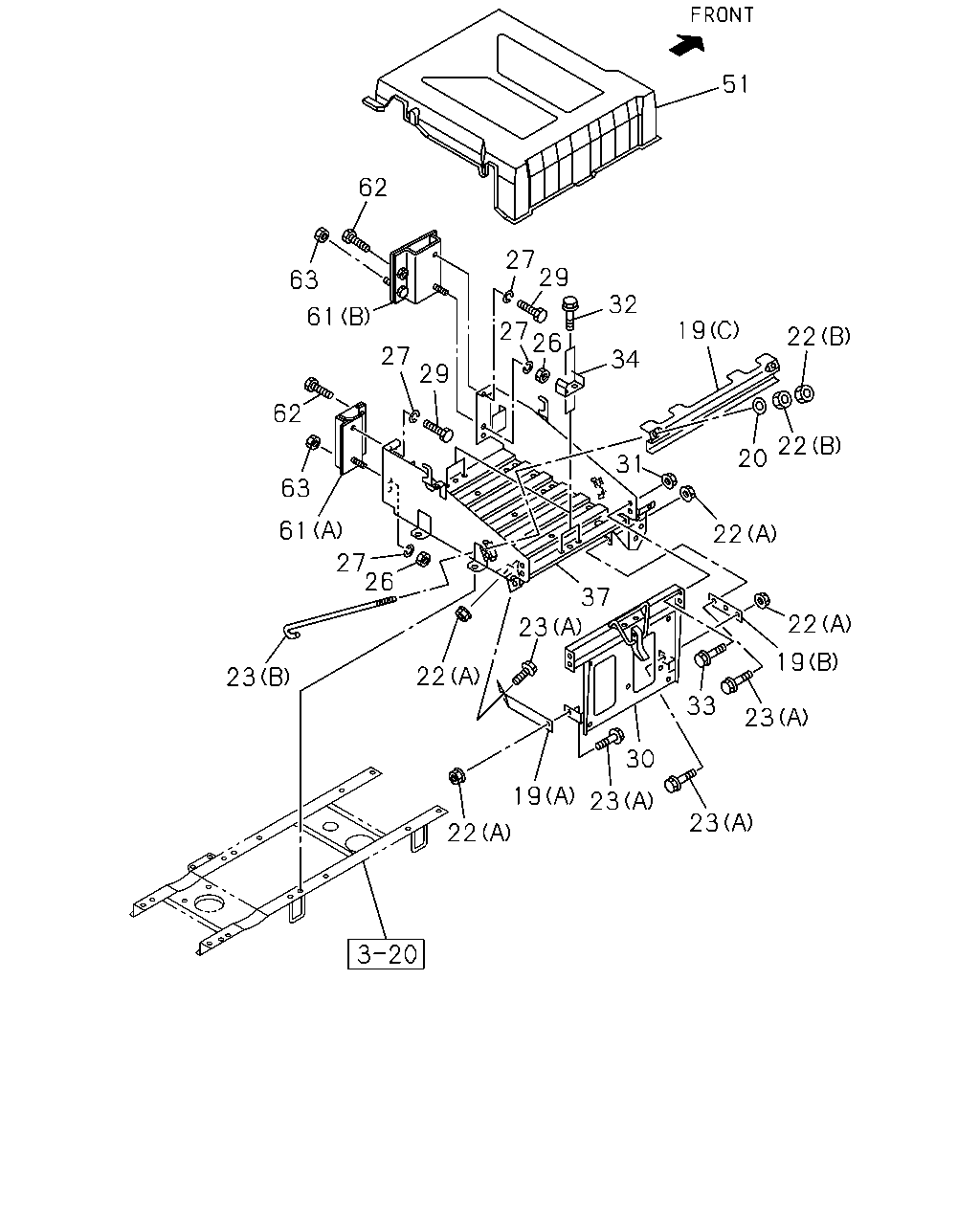

5-20 — BATTERY CARRIER
(#24873) — 29 parça
51
62
27
29
63
32
61
19
27
26
22
27
29
34
62
22
20
31
63
61
22
27
26
37
22
23
33
19
22
23
23
30
19
23
22
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
(B)
1-47479-118-0
01
1
0603-
19
STAY; BATTERY
(A)
1-47479-874-0
01
1
0603-
19
STAY; BATTERY
(C)
1-53618-039-2
01
1
0603-
20
WASHER; PL,STAY
ID=8.4 OD=22
9-09164-708-0
02
1
0603-0605
20
WASHER; PL,STAY
ID=8.4 OD=22
0-91614-708-0
02
1
0606-
22
NUT; STAY
(B) M8
0-91110-508-0
04
1
0603-
22
NUT; STAY
(A) M8 FLANGE
0-91150-108-0
04
1
0603-0603
22
NUT; STAY
(A) M8 FLANGE
0-91180-108-0
04
1
0603-0702
22
NUT; STAY
(A) M8 FLANGE
0-91180-108-0
02
1
0703-
23
BOLT; STAY
(A) M8X20 FLANGE
0-28650-820-0
04
1
0603-
23
BOLT; STAY
(B) L=250
1-53616-108-0
02
1
0603-
26
NUT; BRKT
M14
0-91110-514-0
02
1
0603-
27
WASHER; LK,BRKT
ID=14.2
9-09150-514-0
12
1
0603-0603
27
WASHER; LK,BRKT
ID=14.2
0-91510-514-0
12
1
0604-
29
BOLT; BRKT TO FRAME
M14X30
0-20851-430-0
02
1
0603-
30
PLATE; BATTERY
1-53619-148-1
01
1
0603-
31
NUT; PLATE
M8 FLANGE
0-91150-108-0
04
1
0603-0603
31
NUT; PLATE
M8 FLANGE
0-91180-108-0
04
1
0603-
32
BOLT; PLATE TO SPACER
BATTERY 170F51 NX250-12<PN2>,BATTERY 115F51 N120<SJ3> M8X16 FLANGE
0-28050-816-0
04
1
0603-
33
BOLT; PLATE TO BRKT
M8X25 FLANGE
0-28650-825-0
04
1
0603-1007
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28650-820-0
04
1
1008-
34
SPACER; BATTERY BRKT
BATTERY 170F51 NX250-12<PN2>,BATTERY 115F51 N120<SJ3>
1-53619-084-0
02
1
0603-
37
BRACKET; BATTERY
1-53610-159-2
01
1
0603-
51
COVER; BATTERY
1-53612-068-0
01
1
0603-
61
DISTANCE; BRKT,BATTERY
(B)
8-97623-013-0
01
1
0707-
61
DISTANCE; BRKT,BATTERY
(A)
1-53613-505-0
01
1
0603-
62
BOLT; DIST TO FRAME,BATTERY
M14X45
1-09000-764-0
02
1
0603-
62
BOLT; DIST TO FRAME,BATTERY
M14X60
1-09000-778-0
02
1
0603-
63
NUT; DIST TO FRAME
M14
1-09440-072-0
04
1
0603-
