5-16 — OIL PUMP; CAB TILT (#24871) — 157 parça

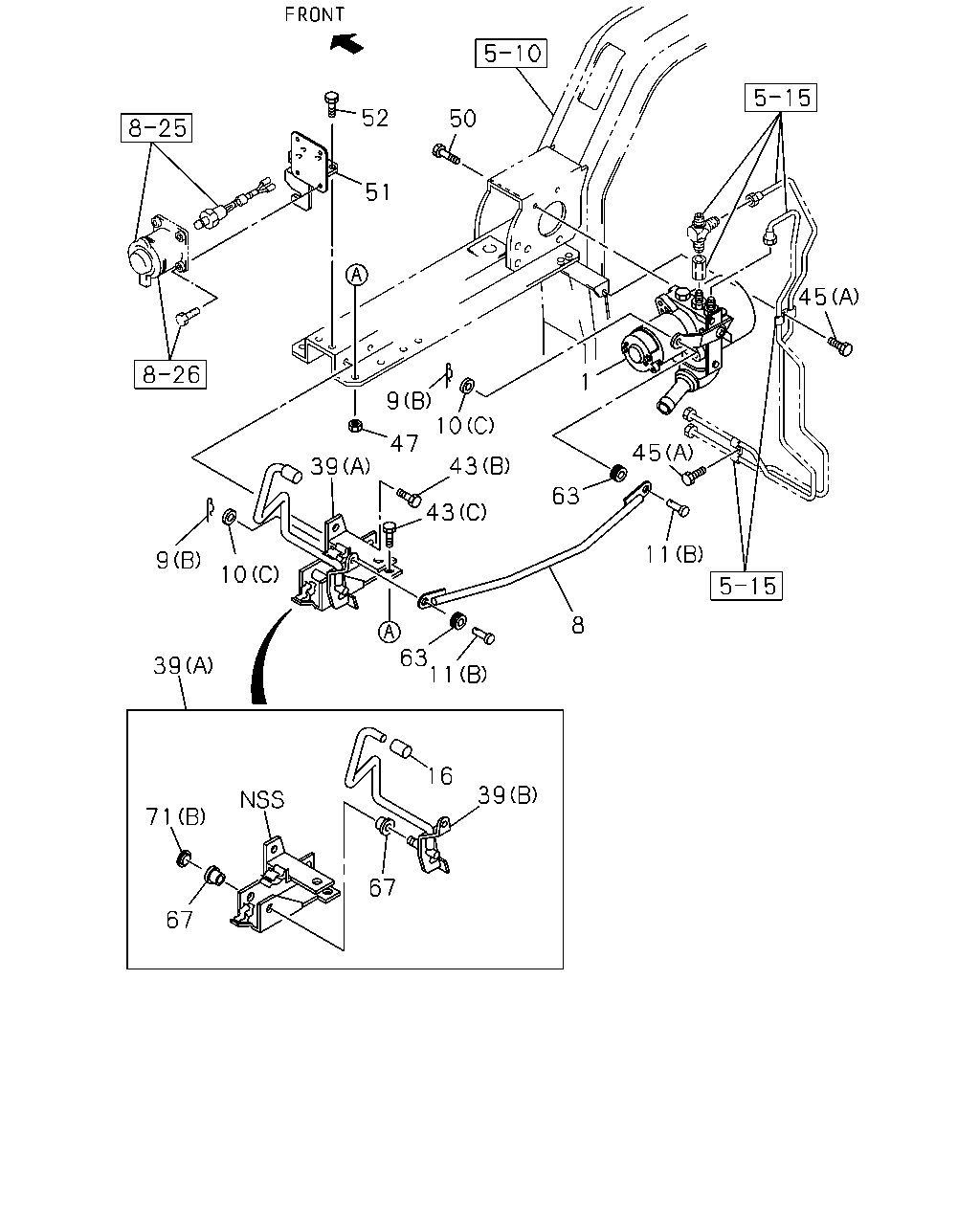

çizim 90517
52 50 51 45 1 9 10 47 45 43 39 63 43 11 9 10 8 63 11 39 16 39 71 67 67
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT 1-53457-064-1 01 1 0603-1408
1 PUMP; OIL,CAB TILT 8-98279-120-0 01 1 1409-
8 LINK; OIL PUMP 1-53458-726-0 01 1 0603-
9 PIN; OIL PUMP
(B) L=27.7 		1-09987-141-0 02 1 0603-
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 0603-
9 PIN; OIL PUMP
(C) 		1-53458-844-0 01 1 0603-0911
9 PIN; OIL PUMP
(C) 		1-53458-057-0 01 1 0912-
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 0603-
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 0603-
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 		9-09160-708-0 02 1 0603-0605
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 		0-91610-708-0 02 1 0606-
11 PIN; SPLIT,OIL PUMP
(A) 		1-53458-058-0 01 1 0603-0911
11 PIN; SPLIT,OIL PUMP
(C) 		1-53457-209-0 02 1 0912-
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		9-08223-817-0 02 1 0603-0606
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		0-82253-817-0 02 1 0607-
16 CAP
ID=9.0 		8-94207-303-0 01 1 0603-
39 LEVER; OIL PUMP
(C) 		1-53458-567-0 01 1 0603-
39 LEVER; OIL PUMP
(A) 		1-53458-775-1 01 1 0603-
39 LEVER; OIL PUMP
(B) 		1-53458-870-0 01 1 0603-
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0603-0804
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0805-
43 BOLT; LEVER
(C) M10X20 FLANGE 		0-28651-020-0 01 1 0603-
43 BOLT; LEVER
(A) M5X12 		1-53458-420-0 02 1 0603-0911
43 BOLT; LEVER
(D) M5X16 		1-53457-206-0 03 1 0912-
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0603-
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 0603-
47 NUT; LEVER
M10 FLANGE 		0-91150-210-0 01 1 0603-0603
47 NUT; LEVER
M10 FLANGE 		0-91180-210-0 01 1 0603-
50 BOLT; OIL PUMP
M10X16 FLANGE 		0-28051-016-0 02 1 0603-
51 BRACKET; OIL PUMP 1-53458-690-0 01 1 0603-
52 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0603-0804
52 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 02 1 0805-
63 GROMMET
ID=10 OD=23 T=8 		1-09983-010-0 02 1 0603-
67 BUSHING
T=6 OD=17.5 		9-33659-249-0 02 1 0603-
71 NUT; PUSH
(A) 		1-53458-845-0 01 1 0603-0911
71 NUT; PUSH
(C) 		1-53457-208-0 01 1 0912-
71 NUT; PUSH
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 0603-

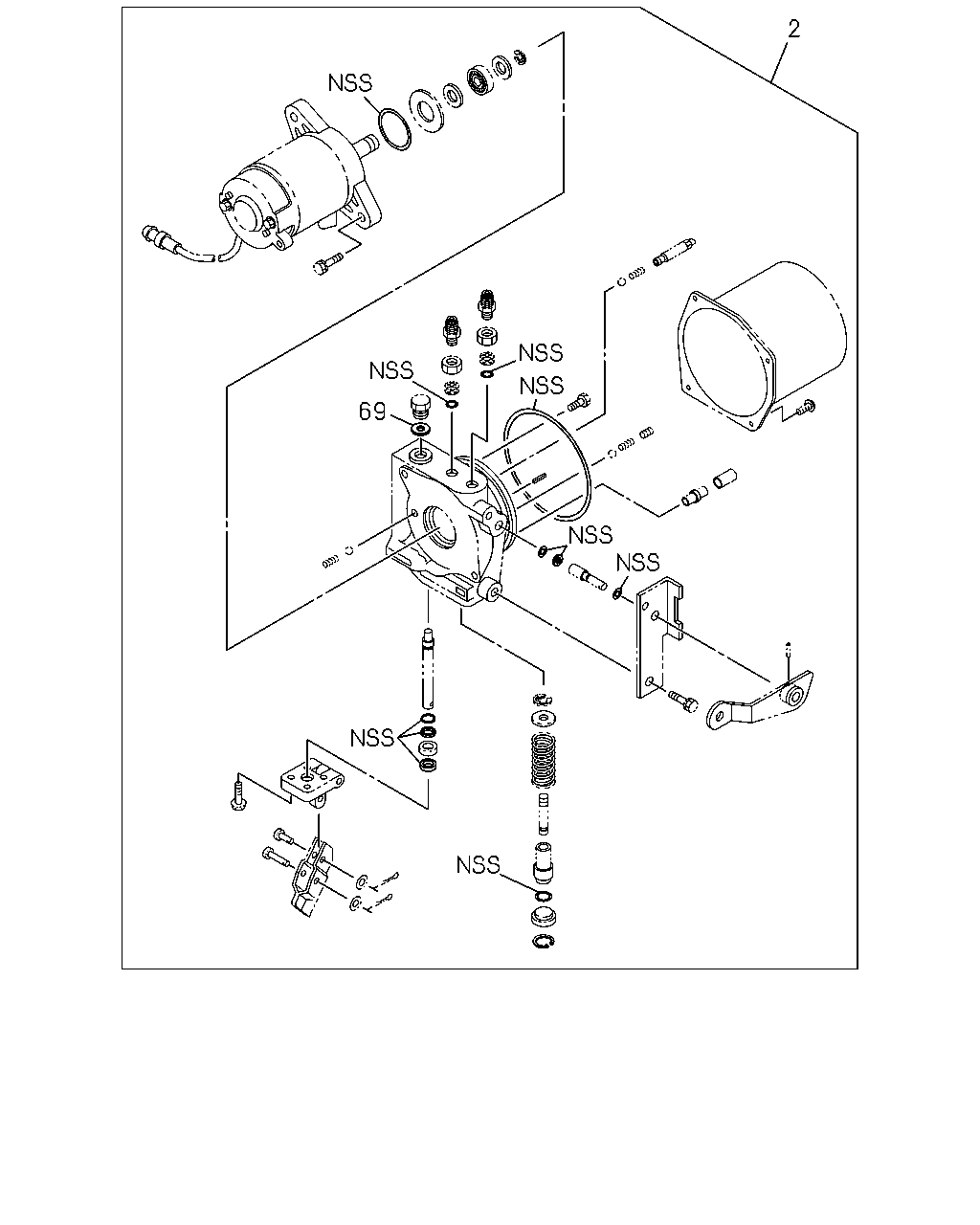

çizim 106148
2 69
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; OIL PUMP 1-85579-058-0 01 1 0603-0911
2 REPAIR KIT; OIL PUMP 1-85579-069-0 01 1 0912-
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 0603-

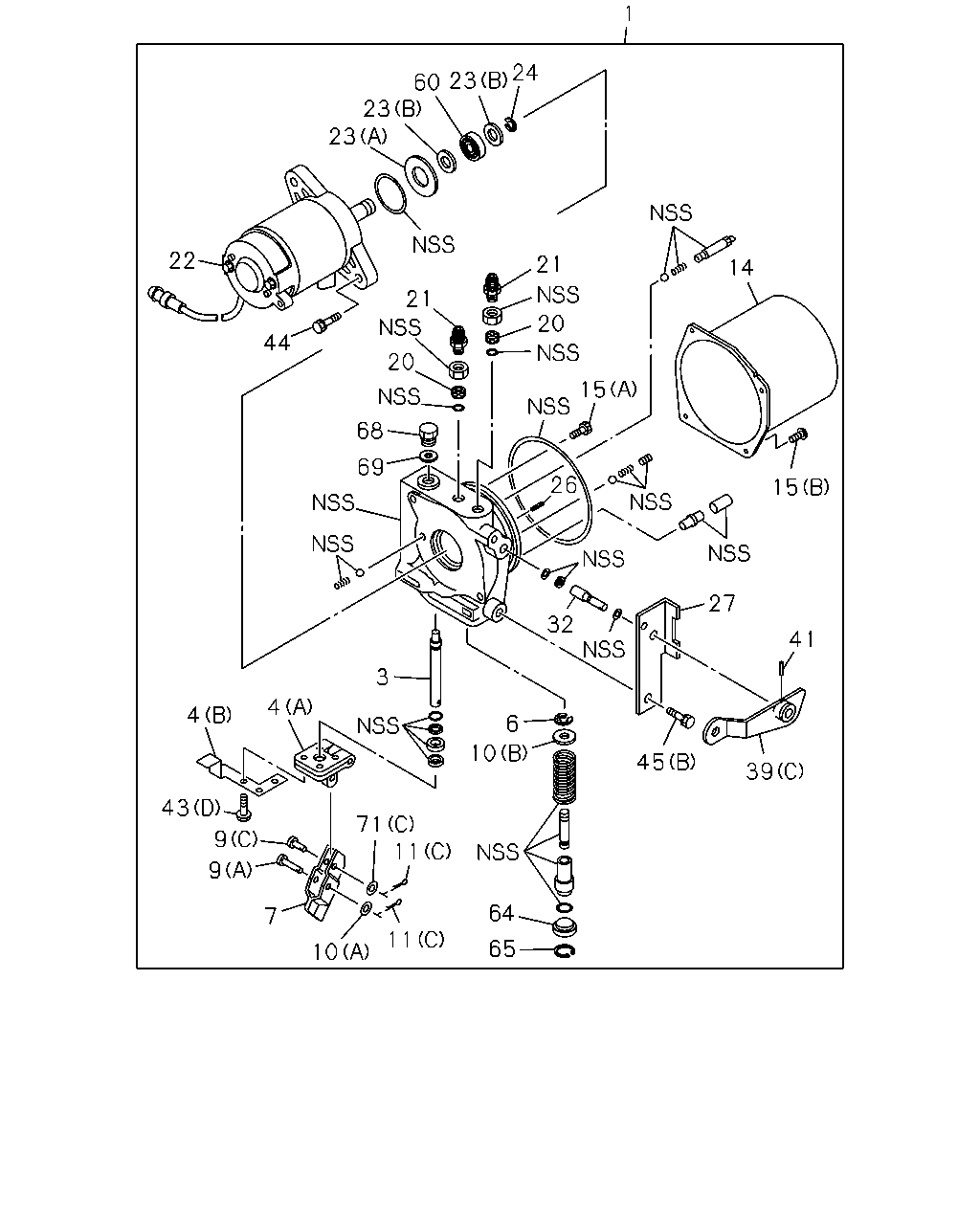

çizim 106149
1 24 23 60 23 23 22 44 21 21 20 20 68 69 15 26 15 14 27 41 32 39 45 6 10 64 65 11 11 71 3 4 4 43 9 9 10 7
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT 1-53457-064-1 01 1 0603-1408
1 PUMP; OIL,CAB TILT 8-98279-120-0 01 1 1409-
3 PISTON; MANUAL 1-53458-842-0 01 1 0603-0911
3 PISTON; MANUAL 1-53457-204-0 01 1 0912-
4 BRACKET; OIL PUMP
(B) 		8-98281-606-0 01 1 1409-
4 BRACKET; OIL PUMP
(A) 		1-53458-566-0 01 1 0603-0911
4 BRACKET; OIL PUMP
(A) 		1-53457-205-0 01 1 0912-
6 RING; SNAP 1-53458-411-0 01 1 0603-
7 SOCKET; OIL PUMP 1-53458-565-1 01 1 0603-0911
7 SOCKET; OIL PUMP 1-53457-207-0 01 1 0912-
9 PIN; OIL PUMP
(B) L=27.7 		1-09987-141-0 02 1 0603-
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 0603-
9 PIN; OIL PUMP
(C) 		1-53458-844-0 01 1 0603-0911
9 PIN; OIL PUMP
(C) 		1-53458-057-0 01 1 0912-
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 0603-
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 0603-
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 		9-09160-708-0 02 1 0603-0605
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 		0-91610-708-0 02 1 0606-
11 PIN; SPLIT,OIL PUMP
(A) 		1-53458-058-0 01 1 0603-0911
11 PIN; SPLIT,OIL PUMP
(C) 		1-53457-209-0 02 1 0912-
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		9-08223-817-0 02 1 0603-0606
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		0-82253-817-0 02 1 0607-
14 RESERVOIR; OIL PUMP 1-53458-432-0 01 1 0603-
15 BOLT; RESERVOIR
(B) M5X8 		1-53458-005-0 04 1 0603-
15 BOLT; RESERVOIR
(A) M5X8 		1-53458-433-0 02 1 0603-
20 FILTER; OIL PUMP 1-53457-081-0 02 1 0603-
21 CONNECTOR; OIL PUMP
M12 		1-53458-941-0 02 1 0603-
22 MOTOR; OIL PUMP 1-53457-080-0 01 1 0603-
23 WASHER; MOTOR
(A) 		1-53458-018-0 01 1 0603-
23 WASHER; MOTOR
(B) 		1-53458-045-0 02 1 0603-1408
23 WASHER; MOTOR
(B) 		8-97613-686-0 02 1 1409-
24 RING; SNAP,MOTOR 1-53458-044-0 01 1 0603-
26 PIN; SPR,OIL PUMP 1-53458-038-0 01 1 0603-
27 COVER; OIL PUMP 1-53458-568-0 01 1 0603-
32 VALVE; OIL PUMP 1-53458-569-0 01 1 0603-
39 LEVER; OIL PUMP
(C) 		1-53458-567-0 01 1 0603-
39 LEVER; OIL PUMP
(A) 		1-53458-775-1 01 1 0603-
39 LEVER; OIL PUMP
(B) 		1-53458-870-0 01 1 0603-
41 PIN; SPR,LEVER 1-53458-019-0 01 1 0603-
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0603-0804
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0805-
43 BOLT; LEVER
(C) M10X20 FLANGE 		0-28651-020-0 01 1 0603-
43 BOLT; LEVER
(A) M5X12 		1-53458-420-0 02 1 0603-0911
43 BOLT; LEVER
(D) M5X16 		1-53457-206-0 03 1 0912-
44 BOLT; MOTOR
M6X20 		1-53458-007-0 02 1 0603-
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0603-
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 0603-
60 BEARING; OIL PUMP 1-53458-423-0 01 1 0603-
64 SLEEVE; OIL PUMP 1-53458-572-0 01 1 0603-1408
64 SLEEVE; OIL PUMP 8-98249-572-0 01 1 1409-
65 RING; SNAP,SLEEVE 1-53458-570-0 01 1 0603-
68 PLUG; FILLER 1-53458-428-0 01 1 0603-
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 0603-
71 NUT; PUSH
(A) 		1-53458-845-0 01 1 0603-0911
71 NUT; PUSH
(C) 		1-53457-208-0 01 1 0912-
71 NUT; PUSH
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 0603-

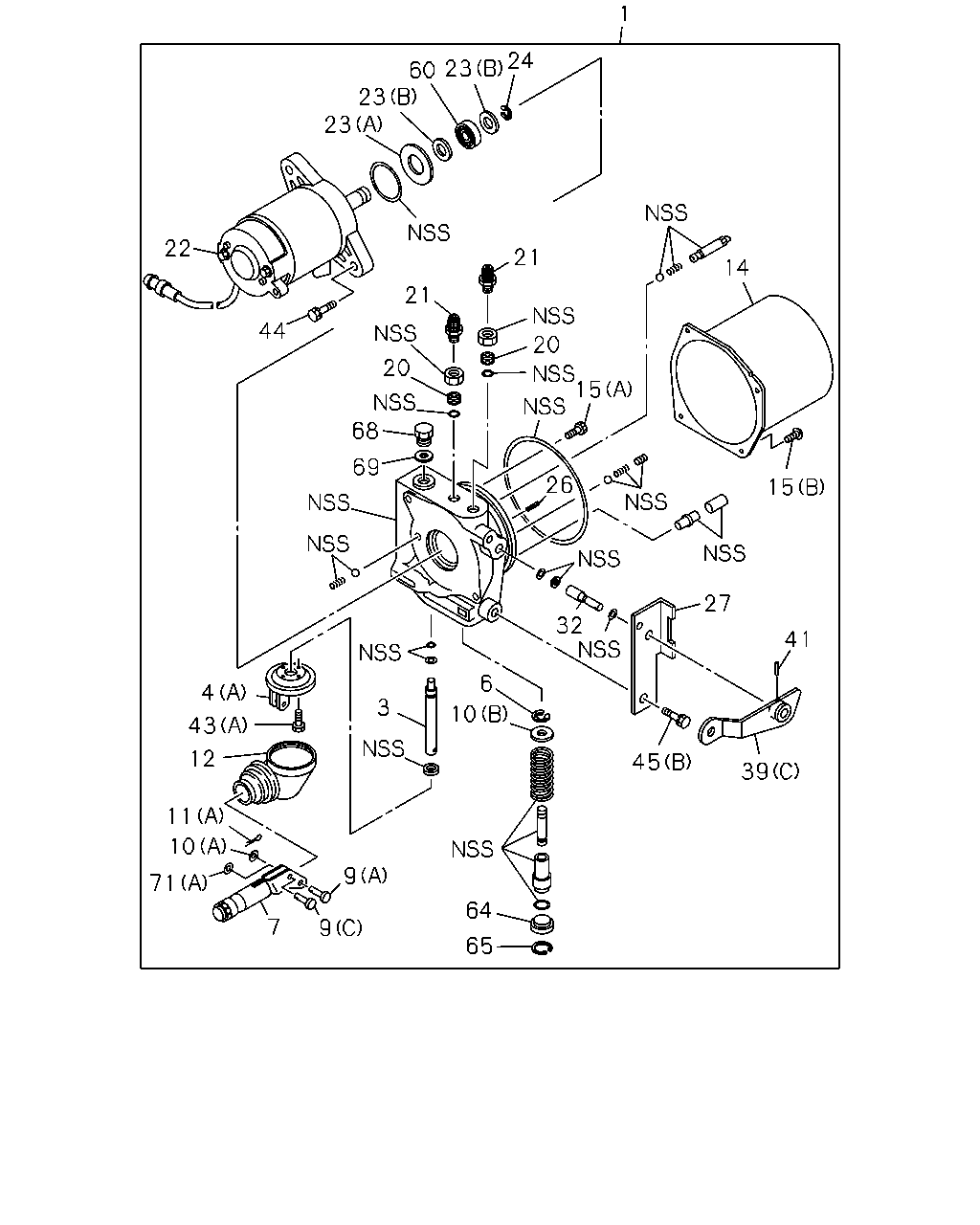

çizim 106475
1 24 23 60 23 23 22 44 21 21 20 68 69 20 15 26 14 15 27 41 39 45 32 3 6 4 43 12 11 10 71 7 9 9 10 64 65
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT 1-53457-064-1 01 1 0603-1408
1 PUMP; OIL,CAB TILT 8-98279-120-0 01 1 1409-
3 PISTON; MANUAL 1-53458-842-0 01 1 0603-0911
3 PISTON; MANUAL 1-53457-204-0 01 1 0912-
4 BRACKET; OIL PUMP
(B) 		8-98281-606-0 01 1 1409-
4 BRACKET; OIL PUMP
(A) 		1-53458-566-0 01 1 0603-0911
4 BRACKET; OIL PUMP
(A) 		1-53457-205-0 01 1 0912-
6 RING; SNAP 1-53458-411-0 01 1 0603-
7 SOCKET; OIL PUMP 1-53458-565-1 01 1 0603-0911
7 SOCKET; OIL PUMP 1-53457-207-0 01 1 0912-
9 PIN; OIL PUMP
(B) L=27.7 		1-09987-141-0 02 1 0603-
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 0603-
9 PIN; OIL PUMP
(C) 		1-53458-844-0 01 1 0603-0911
9 PIN; OIL PUMP
(C) 		1-53458-057-0 01 1 0912-
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 0603-
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 0603-
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 		9-09160-708-0 02 1 0603-0605
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 		0-91610-708-0 02 1 0606-
11 PIN; SPLIT,OIL PUMP
(A) 		1-53458-058-0 01 1 0603-0911
11 PIN; SPLIT,OIL PUMP
(C) 		1-53457-209-0 02 1 0912-
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		9-08223-817-0 02 1 0603-0606
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		0-82253-817-0 02 1 0607-
12 BOOT; OIL PUMP 1-53458-560-0 01 1 0603-0911
14 RESERVOIR; OIL PUMP 1-53458-432-0 01 1 0603-
15 BOLT; RESERVOIR
(B) M5X8 		1-53458-005-0 04 1 0603-
15 BOLT; RESERVOIR
(A) M5X8 		1-53458-433-0 02 1 0603-
20 FILTER; OIL PUMP 1-53457-081-0 02 1 0603-
21 CONNECTOR; OIL PUMP
M12 		1-53458-941-0 02 1 0603-
22 MOTOR; OIL PUMP 1-53457-080-0 01 1 0603-
23 WASHER; MOTOR
(A) 		1-53458-018-0 01 1 0603-
23 WASHER; MOTOR
(B) 		1-53458-045-0 02 1 0603-1408
23 WASHER; MOTOR
(B) 		8-97613-686-0 02 1 1409-
24 RING; SNAP,MOTOR 1-53458-044-0 01 1 0603-
26 PIN; SPR,OIL PUMP 1-53458-038-0 01 1 0603-
27 COVER; OIL PUMP 1-53458-568-0 01 1 0603-
32 VALVE; OIL PUMP 1-53458-569-0 01 1 0603-
39 LEVER; OIL PUMP
(C) 		1-53458-567-0 01 1 0603-
39 LEVER; OIL PUMP
(A) 		1-53458-775-1 01 1 0603-
39 LEVER; OIL PUMP
(B) 		1-53458-870-0 01 1 0603-
41 PIN; SPR,LEVER 1-53458-019-0 01 1 0603-
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0603-0804
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0805-
43 BOLT; LEVER
(C) M10X20 FLANGE 		0-28651-020-0 01 1 0603-
43 BOLT; LEVER
(A) M5X12 		1-53458-420-0 02 1 0603-0911
43 BOLT; LEVER
(D) M5X16 		1-53457-206-0 03 1 0912-
44 BOLT; MOTOR
M6X20 		1-53458-007-0 02 1 0603-
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0603-
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 0603-
60 BEARING; OIL PUMP 1-53458-423-0 01 1 0603-
64 SLEEVE; OIL PUMP 1-53458-572-0 01 1 0603-1408
64 SLEEVE; OIL PUMP 8-98249-572-0 01 1 1409-
65 RING; SNAP,SLEEVE 1-53458-570-0 01 1 0603-
68 PLUG; FILLER 1-53458-428-0 01 1 0603-
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 0603-
71 NUT; PUSH
(A) 		1-53458-845-0 01 1 0603-0911
71 NUT; PUSH
(C) 		1-53457-208-0 01 1 0912-
71 NUT; PUSH
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 0603-

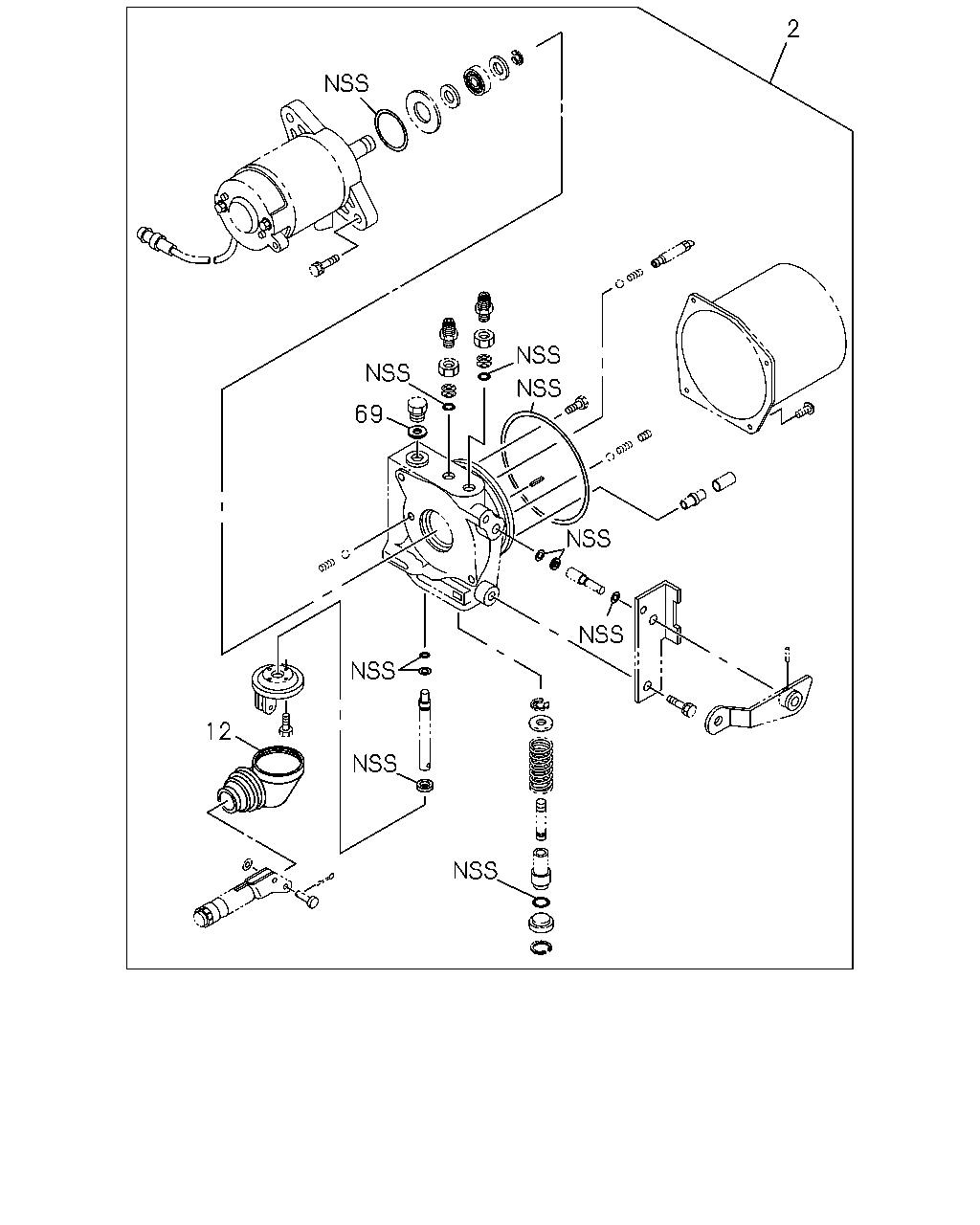

çizim 106476
2 69 12
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; OIL PUMP 1-85579-058-0 01 1 0603-0911
2 REPAIR KIT; OIL PUMP 1-85579-069-0 01 1 0912-
12 BOOT; OIL PUMP 1-53458-560-0 01 1 0603-0911
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 0603-
