Sayfa 3-80 - Isuzu EPC

3-80 — BRAKE PIPING; TRAILER (#2487) — 363 parça

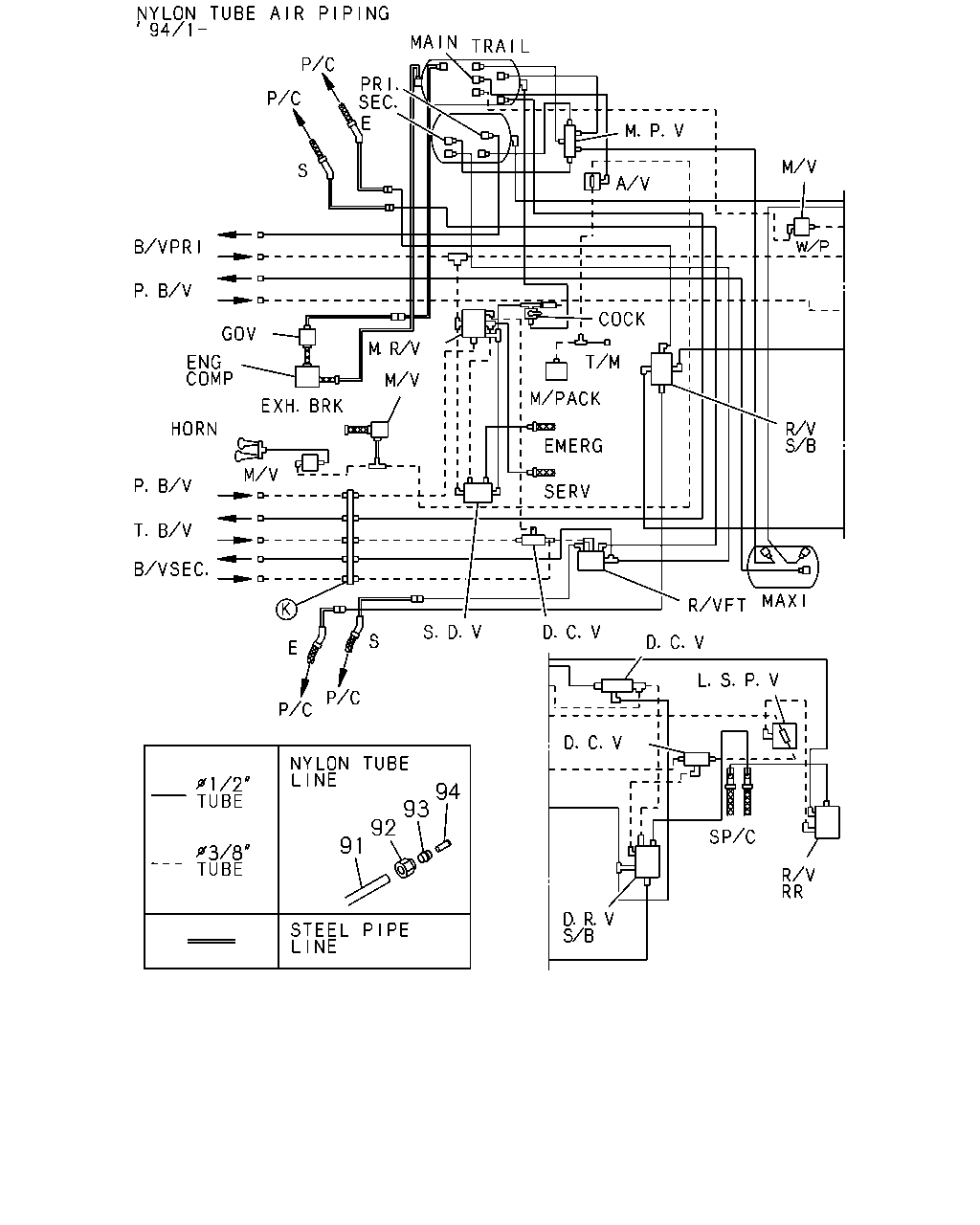

94 93 92 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
91	TUBE; NYLON HONG KONG EQUIPMENT(PQ1) L=822 SERVICED BY L=900	1-47426-384-0	01	1	9307-
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=1/2" SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=8 SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE OD=3/8" SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9307-9404
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-254-0	02	1	9307-9404
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-254-0	03	1	9405-
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-323-0	03	1	9307-9312
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-323-0	04	1	9401-
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	9002-9306
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M18	1-09660-213-0	AR	1	9002-9306
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	08	1	9307-9312
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	10	1	9401-9404
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	08	1	9405-
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09660-558-0	04	1	9307-9404
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09660-558-0	06	1	9405-
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09666-042-0	AR	1	9002-9306
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09666-043-0	AR	1	9002-9306
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	08	1	9307-9312
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	10	1	9401-9404
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	08	1	9405-
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	04	1	9307-9404
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	06	1	9405-
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	9002-9306
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09669-055-0	AR	1	9002-9306
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09669-107-0	04	1	9307-9404
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09669-107-0	06	1	9405-
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09669-108-0	08	1	9307-9312
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09669-108-0	10	1	9401-9404
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09669-108-0	08	1	9405-

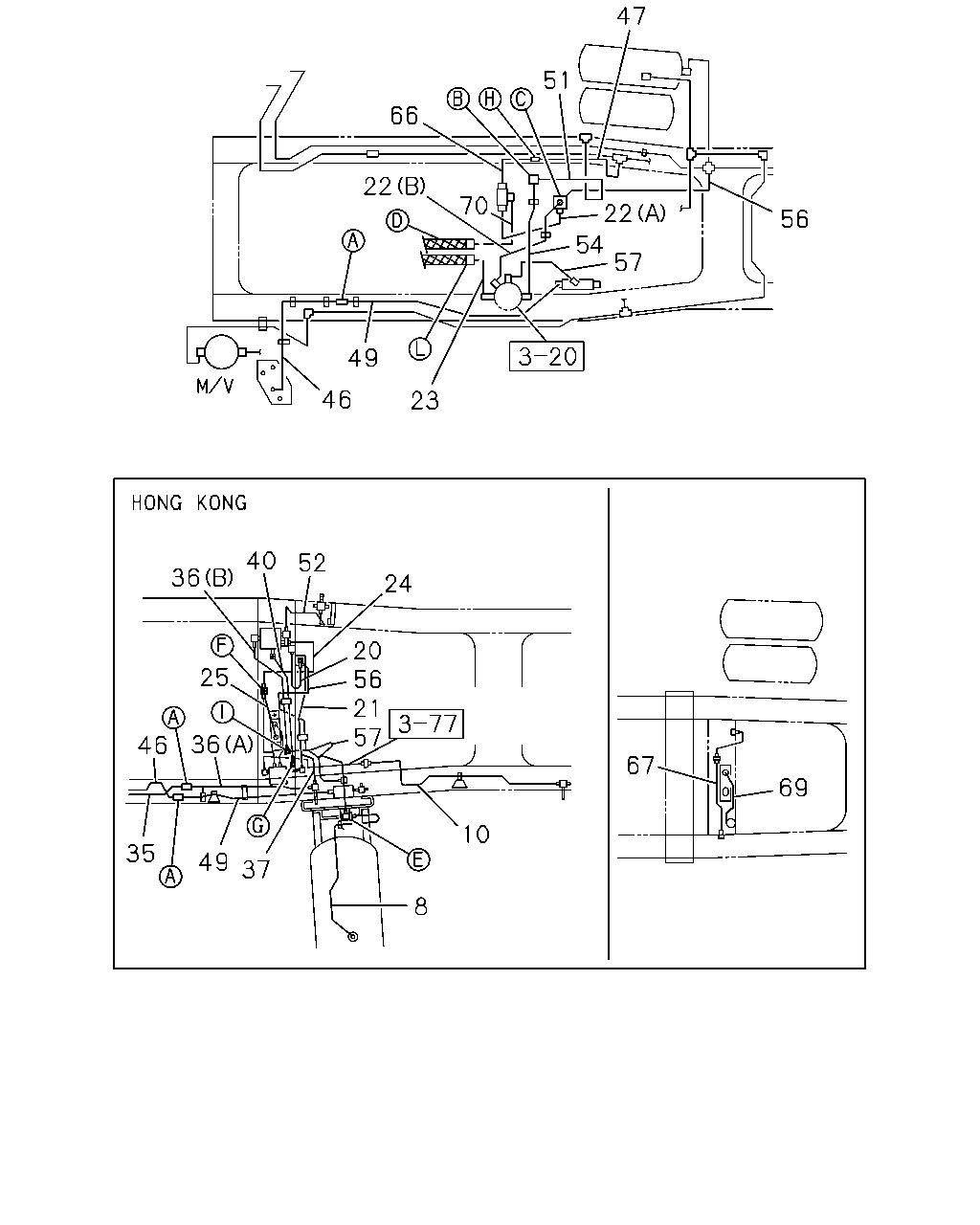

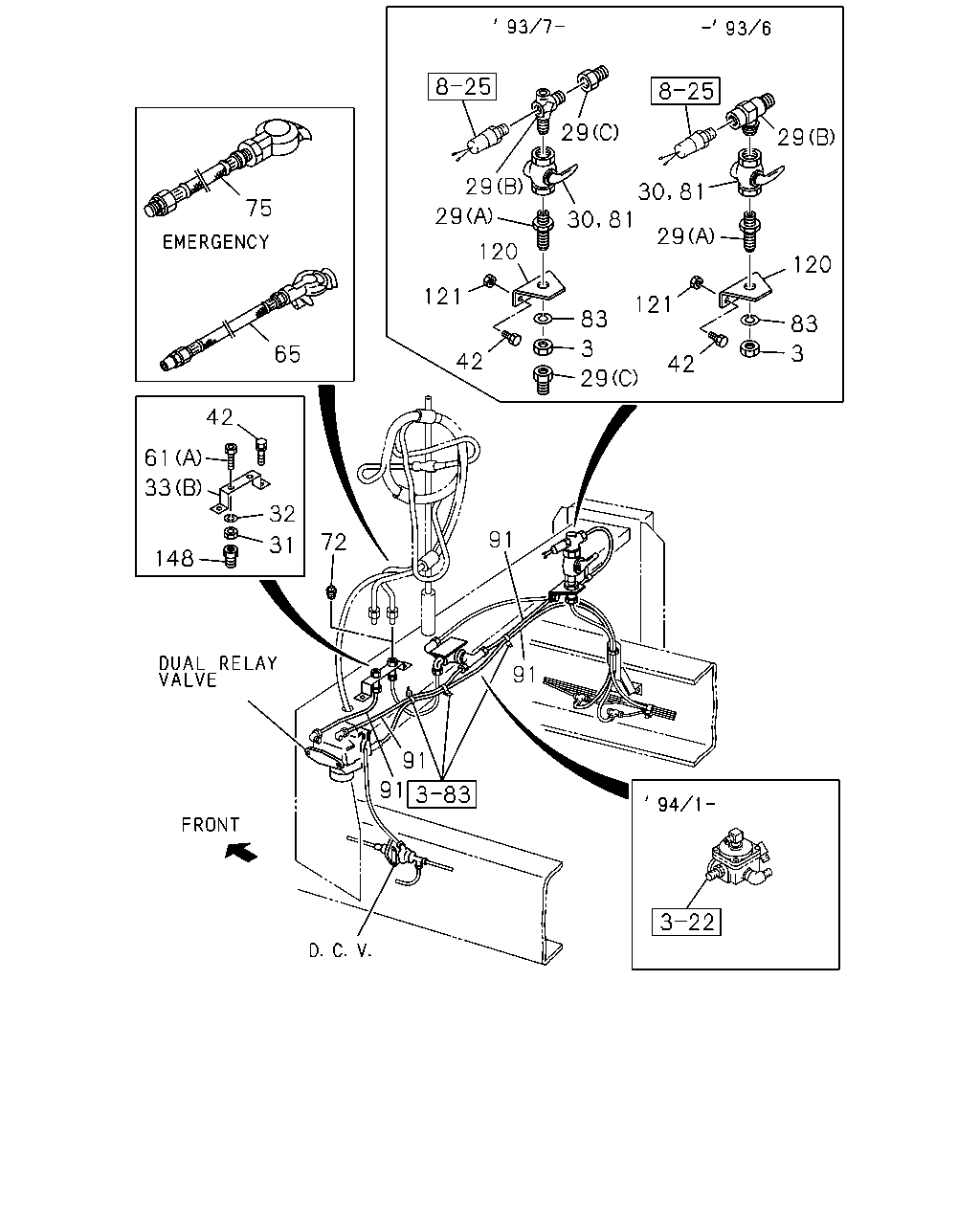

30 14 14 19 11 19 120 42 17 121 18 72 18 17 65 18 11 17 11 42 33 18 78 16 11 78 18 11 17 18 121 42 76 152 77 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (D) M16 2WAY	1-09650-182-1	01	1	9002-
11	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B) M14 2WAY	1-09654-034-2	02	1	9002-
11	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A) M14 STRAIGHT	9-09223-008-1	01	1	9002-
11	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (C) M22	9-09235-215-1	01	1	9002-
11	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (E) M16	9-09238-310-1	01	1	9002-
14	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (A) M14 & M14 STRAIGHT	1-09660-219-0	01	1	9002-9306
14	CONNECTOR; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B) M22 & PT1/2 STRAIGHT	1-09650-220-1	01	1	9002-
14	CONNECTOR; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-09656-498-1	01	1	9002-
16	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M14 2WAY	1-09654-034-2	01	1	9002-
17	WASHER; LK,UNION HONG KONG EQUIPMENT(PQ1) ID=12.2	9-09150-512-0	03	1	9002-9312
17	WASHER; LK,UNION HONG KONG EQUIPMENT(PQ1) ID=22.5	9-09150-522-0	01	1	9002-9312
17	WASHER; LK,UNION HONG KONG EQUIPMENT(PQ1) ID=12.2	9-09150-512-0	01	1	9401-
17	WASHER; LK,UNION HONG KONG EQUIPMENT(PQ1) ID=22.5	9-09150-522-0	01	1	9401-
17	WASHER; LK,UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	02	1	9002-9312
17	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	01	1	9002-9306
18	NUT; UNION HONG KONG EQUIPMENT(PQ1) M22	9-09111-422-0	01	1	9002-
18	NUT; UNION HONG KONG EQUIPMENT(PQ1) M12	9-99110-512-0	03	1	9002-
18	NUT; UNION HONG KONG EQUIPMENT(PQ1) M12	9-99111-412-0	01	1	9002-
18	NUT; UNION NYLON TUBE AIR PIPING<Z29> M14	9-99110-414-0	01	1	9002-9306
18	NUT; UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	02	1	9002-
19	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M16 2WAY	1-09650-182-1	01	1	9002-
19	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (C) M14	9-09223-208-1	01	1	9002-9306
19	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) M14 STRAIGHT	9-09223-008-1	01	1	9002-
30	COCK; AIR HOSE NYLON TUBE AIR PIPING<Z29> BLUE	9-09904-195-0	01	1	9002-9409
30	COCK; AIR HOSE NYLON TUBE AIR PIPING<Z29> BLUE	1-09680-068-0	01	1	9410-9512
30	COCK; AIR HOSE NYLON TUBE AIR PIPING<Z29> BLUE	1-09680-078-0	01	1	9601-
33	BRACKET HONG KONG EQUIPMENT(PQ1) (A)	1-47475-773-1	01	1	9002-9005
33	BRACKET HONG KONG EQUIPMENT(PQ1) (A)	1-47476-631-0	01	1	9006-
33	BRACKET NYLON TUBE AIR PIPING<Z29> (B)	1-47475-853-0	01	1	9002-9306
33	BRACKET NYLON TUBE AIR PIPING<Z29> (B)	1-47475-388-0	01	1	9307-
42	BOLT; BRKT M10X25	9-01911-025-0	02	1	9002-9002
42	BOLT; BRKT M10X25 W/LK WASHER	0-50041-025-0	02	1	9003-
42	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204
42	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9306
42	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28080-820-0	02	1	9307-
42	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
42	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306
42	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9307-
65	HOSE; AIR EXC. JUMPER HOSE & CABLE DELETE<SJK> L=4136	1-09363-148-0	01	1	9002-
72	PLUG JUMPER HOSE & CABLE DELETE<SJK> PT1/2	9-09204-521-0	01	1	9002-
76	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29>	1-09650-222-1	01	1	9002-
77	NUT; NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	01	1	9002-
78	WASHER; LK HONG KONG EQUIPMENT(PQ1) ID=12.2	9-09150-512-0	01	1	9002-9312
78	WASHER; LK EXC. NYLON TUBE AIR PIPING<Z29> ID=22.5	9-09150-522-0	01	1	9002-9312
78	WASHER; LK EXC. NYLON TUBE AIR PIPING<Z29> ID=22.5	9-09150-522-0	01	1	9405-
120	BRACKET; COCK	1-48499-001-1	01	1	9307-
120	BRACKET; COCK NYLON TUBE AIR PIPING<Z29>	1-48499-003-0	01	1	9002-9306
120	BRACKET; COCK EXC. NYLON TUBE AIR PIPING<Z29>	1-48499-001-1	01	1	9002-9306
121	NUT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-
121	NUT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	02	1	9002-
152	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	01	1	9002-
152	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	01	1	9307-9312
153	BRACKET; NIPPLE EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-388-0	01	1	9002-

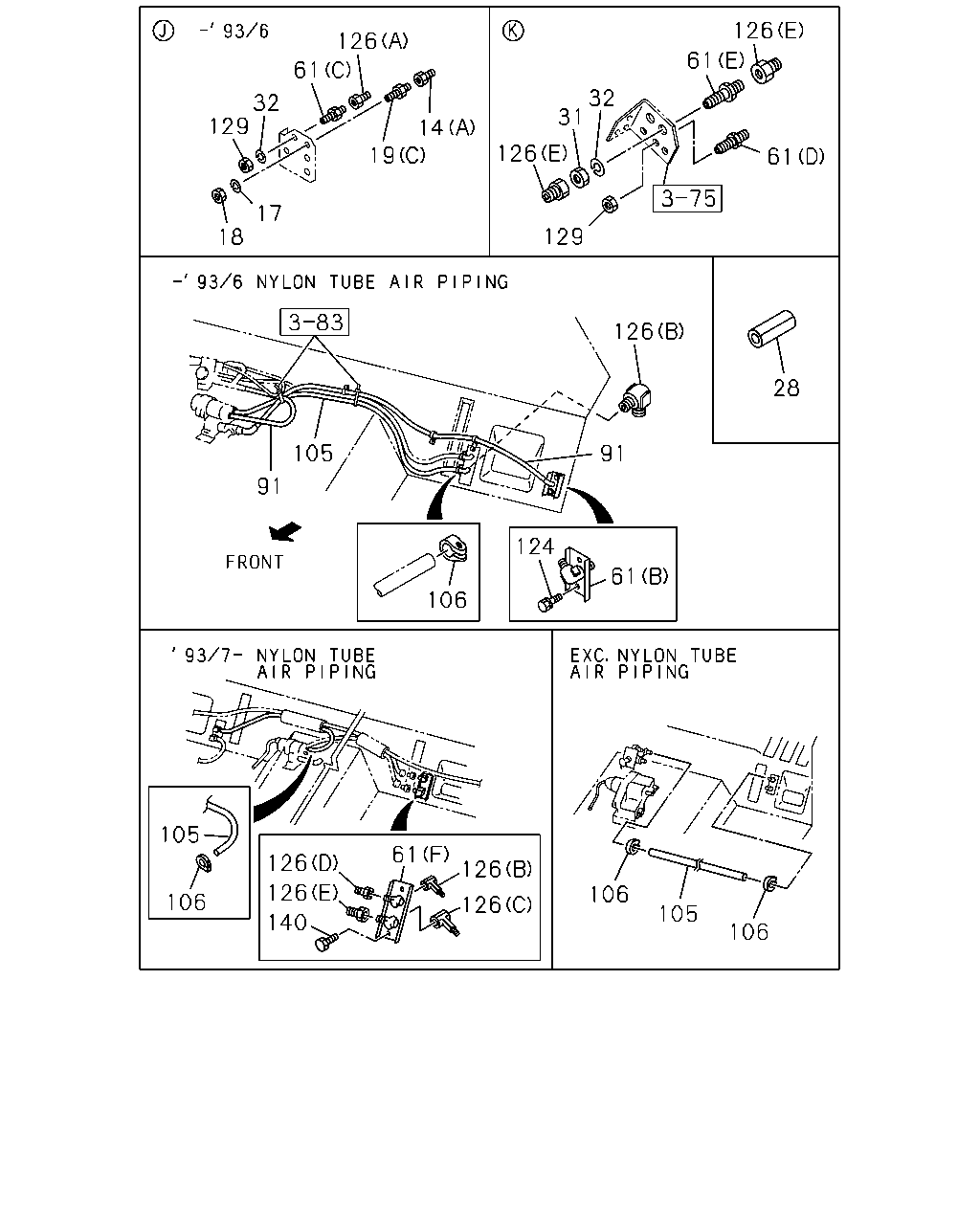

126 126 61 61 32 31 32 129 14 19 126 61 17 129 18 126 28 105 91 91 124 61 106 105 61 126 126 126 106 106 126 105 140 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (A) M14 & M14 STRAIGHT	1-09660-219-0	01	1	9002-9306
14	CONNECTOR; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (B) M22 & PT1/2 STRAIGHT	1-09650-220-1	01	1	9002-
14	CONNECTOR; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-09656-498-1	01	1	9002-
17	WASHER; LK,UNION HONG KONG EQUIPMENT(PQ1) ID=12.2	9-09150-512-0	03	1	9002-9312
17	WASHER; LK,UNION HONG KONG EQUIPMENT(PQ1) ID=22.5	9-09150-522-0	01	1	9002-9312
17	WASHER; LK,UNION HONG KONG EQUIPMENT(PQ1) ID=12.2	9-09150-512-0	01	1	9401-
17	WASHER; LK,UNION HONG KONG EQUIPMENT(PQ1) ID=22.5	9-09150-522-0	01	1	9401-
17	WASHER; LK,UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	02	1	9002-9312
17	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	01	1	9002-9306
18	NUT; UNION HONG KONG EQUIPMENT(PQ1) M22	9-09111-422-0	01	1	9002-
18	NUT; UNION HONG KONG EQUIPMENT(PQ1) M12	9-99110-512-0	03	1	9002-
18	NUT; UNION HONG KONG EQUIPMENT(PQ1) M12	9-99111-412-0	01	1	9002-
18	NUT; UNION NYLON TUBE AIR PIPING<Z29> M14	9-99110-414-0	01	1	9002-9306
18	NUT; UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	02	1	9002-
19	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M16 2WAY	1-09650-182-1	01	1	9002-
19	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (C) M14	9-09223-208-1	01	1	9002-9306
19	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) M14 STRAIGHT	9-09223-008-1	01	1	9002-
28	SLEEVE; RUBBER,NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=29 OD=39 L=40	1-09337-013-0	01	1	9307-
28	SLEEVE; RUBBER,NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=27 OD=31 L=150	1-09360-677-1	01	1	9401-
31	NUT; UNION NYLON TUBE AIR PIPING<Z29> M18	9-99111-418-0	02	1	9002-9306
31	NUT; UNION NYLON TUBE AIR PIPING<Z29> M20	9-99110-420-0	01	1	9307-
31	NUT; UNION NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	02	1	9307-
32	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	01	1	9002-9306
32	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=18	9-09150-518-0	02	1	9002-9306
32	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9307-
32	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	02	1	9307-9312
32	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	02	1	9405-
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A)	1-09660-214-0	02	1	9002-9306
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-47470-232-0	01	1	9002-9008
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-47470-301-0	01	1	9009-9306
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M14	9-09223-208-1	01	1	9002-9306
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A)	1-09650-222-1	02	1	9307-
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) UNS 17/32-24 L=57	1-09664-083-0	01	1	9307-
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (F)	1-47470-312-0	01	1	9307-
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (E) M20 L=77.5	9-09233-212-1	01	1	9307-
91	TUBE; NYLON HONG KONG EQUIPMENT(PQ1) L=822 SERVICED BY L=900	1-47426-384-0	01	1	9307-
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=1/2" SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=8 SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE OD=3/8" SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9307-9404
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-254-0	02	1	9307-9404
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-254-0	03	1	9405-
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-323-0	03	1	9307-9312
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-323-0	04	1	9401-
105	PIPE; VINYL,EXH,PARKING BRK VLV L=1150 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9303
105	PIPE; VINYL,EXH,PARKING BRK VLV L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9304-9306
105	PIPE; VINYL,EXH,PARKING BRK VLV EXC. NYLON TUBE AIR PIPING<Z29> L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9307-
105	PIPE; VINYL,EXH,PARKING BRK VLV NYLON TUBE AIR PIPING<Z29> L=800 SERVICED BY L=10000	9-09914-701-0	01	1	9307-
106	CLIP; PIPE ID=15	9-09715-098-0	02	1	9002-
124	BOLT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50000-616-0	02	1	9002-9204
124	BOLT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50080-616-0	02	1	9205-9301
124	BOLT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	02	1	9302-9302
124	BOLT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9303-9306
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M14 & M14 STRAIGHT	1-09660-219-0	01	1	9002-9008
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M14 & M14 STRAIGHT	1-09660-219-0	02	1	9009-9306
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-584-1	01	1	9009-9302
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-699-0	01	1	9303-9306
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D)	1-09650-373-0	01	1	9307-
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (E) M20X36	1-09660-576-0	03	1	9307-
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-606-0	01	1	9307-
126	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C)	1-09660-607-0	01	1	9307-
129	NUT; UNION,NYLON TUBE NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	01	1	9002-9306
129	NUT; UNION,NYLON TUBE NYLON TUBE AIR PIPING<Z29> UNS 17/32-24 B=17	1-09487-023-0	01	1	9307-
140	BOLT; UNION NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	02	1	9307-9312
140	BOLT; UNION NYLON TUBE AIR PIPING<Z29> M6X20 FLANGE	0-28080-620-0	02	1	9401-

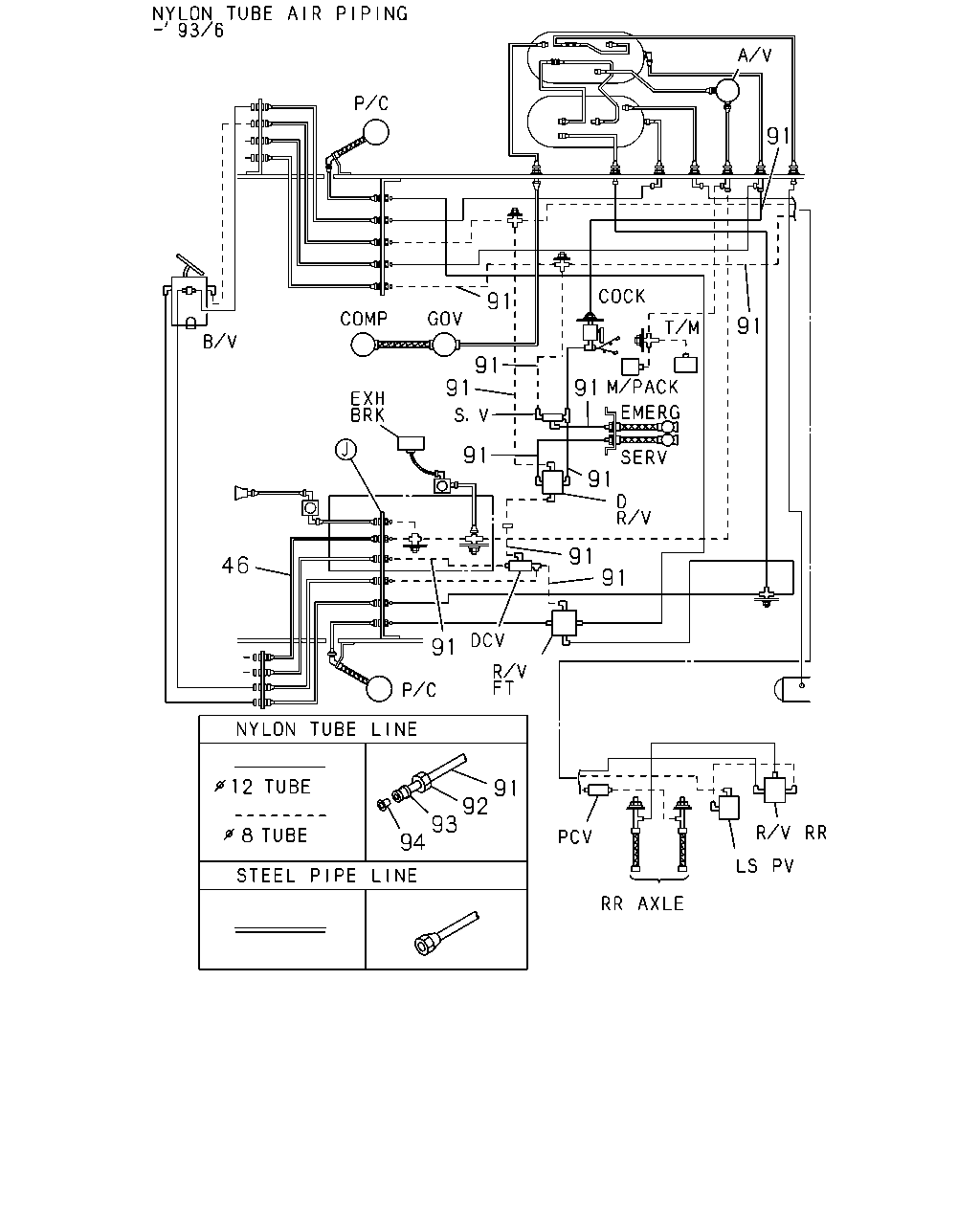

91 91 91 91 91 91 91 91 91 46 91 91 91 92 93 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
46	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=1401 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306
46	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=1401 SERVICED BY L=1550	1-47426-390-0	01	1	9307-9410
46	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1)	1-49115-002-0	01	1	9411-
46	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1593	1-47485-705-0	01	1	9002-9306
46	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1608	1-47496-169-0	01	1	9307-9308
46	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1593	1-49111-219-0	01	1	9309-
46	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> L=1310	1-47487-293-0	01	1	9002-9306
91	TUBE; NYLON HONG KONG EQUIPMENT(PQ1) L=822 SERVICED BY L=900	1-47426-384-0	01	1	9307-
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=1/2" SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=8 SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE OD=3/8" SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9307-9404
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-254-0	02	1	9307-9404
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-254-0	03	1	9405-
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-323-0	03	1	9307-9312
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-323-0	04	1	9401-
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	9002-9306
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M18	1-09660-213-0	AR	1	9002-9306
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	08	1	9307-9312
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	10	1	9401-9404
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	08	1	9405-
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09660-558-0	04	1	9307-9404
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09660-558-0	06	1	9405-
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09666-042-0	AR	1	9002-9306
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09666-043-0	AR	1	9002-9306
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	08	1	9307-9312
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	10	1	9401-9404
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	08	1	9405-
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	04	1	9307-9404
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	06	1	9405-
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	9002-9306
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09669-055-0	AR	1	9002-9306
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09669-107-0	04	1	9307-9404
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09669-107-0	06	1	9405-
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09669-108-0	08	1	9307-9312
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09669-108-0	10	1	9401-9404
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09669-108-0	08	1	9405-

94 93 92 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
91	TUBE; NYLON HONG KONG EQUIPMENT(PQ1) L=822 SERVICED BY L=900	1-47426-384-0	01	1	9307-
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=1/2" SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=8 SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE OD=3/8" SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9307-9404
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-254-0	02	1	9307-9404
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-254-0	03	1	9405-
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-323-0	03	1	9307-9312
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-323-0	04	1	9401-
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	9002-9306
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M18	1-09660-213-0	AR	1	9002-9306
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	08	1	9307-9312
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	10	1	9401-9404
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	08	1	9405-
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09660-558-0	04	1	9307-9404
92	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09660-558-0	06	1	9405-
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09666-042-0	AR	1	9002-9306
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09666-043-0	AR	1	9002-9306
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	08	1	9307-9312
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	10	1	9401-9404
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	08	1	9405-
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	04	1	9307-9404
93	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	06	1	9405-
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	9002-9306
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09669-055-0	AR	1	9002-9306
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09669-107-0	04	1	9307-9404
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09669-107-0	06	1	9405-
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09669-108-0	08	1	9307-9312
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09669-108-0	10	1	9401-9404
94	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09669-108-0	08	1	9405-

47 51 66 22 70 22 56 54 57 49 46 23 40 52 36 24 20 56 21 57 25 46 36 67 69 10 35 49 37 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1)	1-47489-513-0	01	1	9002-9204
8	PIPE; AIR,AIR TANK TO UNION HONG KONG EQUIPMENT(PQ1)	1-47494-959-0	01	1	9205-
10	PIPE; AIR,UNION TO DBL CHECK VLV L TYPE ENG<90L> HONG KONG EQUIPMENT(PQ1) L=1011 SERVICED BY L=1100	1-47437-967-0	01	1	9002-9306
10	PIPE; AIR,UNION TO DBL CHECK VLV L TYPE ENG<90L> HONG KONG EQUIPMENT(PQ1) L=1011 SERVICED BY L=1100	1-47426-415-0	01	1	9307-9501
10	PIPE; AIR,UNION TO DBL CHECK VLV L TYPE ENG<90L> HONG KONG EQUIPMENT(PQ1) L=1016 SERVICED BY L=1100	1-47426-415-0	01	1	9502-
10	PIPE; AIR,UNION TO DBL CHECK VLV 10PD1 STD ENG(40L) HONG KONG EQUIPMENT(PQ1) L=1015 SERVICED BY L=1100	1-47437-967-0	01	1	9002-9306
10	PIPE; AIR,UNION TO DBL CHECK VLV 10PD1 STD ENG(40L) HONG KONG EQUIPMENT(PQ1) L=1016 SERVICED BY L=1100	1-47426-415-0	01	1	9307-
20	PIPE ASM; AIR,COCK TO MULTI RELAY VLV HONG KONG EQUIPMENT(PQ1) L=558 SERVICED BY L=1000	1-47434-491-0	01	1	9002-
21	PIPE ASM; AIR,COCK TO SUPPLY DUMP VLV HONG KONG EQUIPMENT(PQ1) L=1148 SERVICED BY L=1150	1-47437-992-0	01	1	9002-
22	PIPE; AIR,COCK TO SYN VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=694 SERVICED BY L=1000	1-47434-491-0	01	1	9002-
22	PIPE; AIR,COCK TO SYN VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1127 SERVICED BY L=1150	1-47437-992-0	01	1	9002-
23	PIPE; AIR,RELAY VLV TO JUMPER HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=630 SERVICED BY L=660	1-47437-964-0	01	1	9002-9306
23	PIPE; AIR,RELAY VLV TO JUMPER HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=618 SERVICED BY L=660	1-47426-409-0	01	1	9307-9309
23	PIPE; AIR,RELAY VLV TO JUMPER HOSE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=615 SERVICED BY L=660	1-47426-409-0	01	1	9310-
24	PIPE ASM; AIR,MULTI RELAY VLV TO UNION HONG KONG EQUIPMENT(PQ1) L=480 SERVICED BY L=500	1-47434-472-0	01	1	9002-9306
24	PIPE ASM; AIR,MULTI RELAY VLV TO UNION HONG KONG EQUIPMENT(PQ1) L=480 SERVICED BY L=500	1-47426-406-0	01	1	9307-
25	PIPE ASM; AIR,UNION TO JOINT HOSE HONG KONG EQUIPMENT(PQ1) L=501 SERVICED BY L=550	1-47437-963-0	01	1	9002-9306
25	PIPE ASM; AIR,UNION TO JOINT HOSE HONG KONG EQUIPMENT(PQ1) L=501 SERVICED BY L=550	1-47426-407-0	01	1	9307-
35	PIPE ASM; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=1759 SERVICED BY L=1950	1-47434-414-0	01	1	9002-9306
35	PIPE ASM; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=1759 SERVICED BY L=1800	1-47426-392-0	01	1	9307-9410
35	PIPE ASM; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=1758 SERVICED BY L=1800	1-47426-392-0	01	1	9411-9501
35	PIPE ASM; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=1758 SERVICED BY L=1800	1-47426-392-0	01	1	9502-
35	PIPE ASM; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=1758 SERVICED BY L=1800	1-47426-392-0	01	1	9504-
36	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=822 SERVICED BY L=900	1-47434-407-0	01	1	9002-9306
36	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=665 SERVICED BY L=730	1-47437-965-0	01	1	9002-9306
36	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=665 SERVICED BY L=700	1-47426-410-0	01	1	9307-
37	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=527 SERVICED BY L=550	1-47437-953-0	01	1	9002-9306
37	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=527 SERVICED BY L=550	1-47426-377-0	01	1	9307-
40	PIPE ASM; AIR,2 WAY TO MULTI RELAY VLV HONG KONG EQUIPMENT(PQ1) L=717 SERVICED BY L=730	1-47437-955-0	01	1	9002-9306
40	PIPE ASM; AIR,2 WAY TO MULTI RELAY VLV HONG KONG EQUIPMENT(PQ1) L=718 SERVICED BY L=730	1-47426-382-0	01	1	9307-
46	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=1401 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306
46	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) L=1401 SERVICED BY L=1550	1-47426-390-0	01	1	9307-9410
46	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1)	1-49115-002-0	01	1	9411-
46	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1593	1-47485-705-0	01	1	9002-9306
46	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1608	1-47496-169-0	01	1	9307-9308
46	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1593	1-49111-219-0	01	1	9309-
46	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> L=1310	1-47487-293-0	01	1	9002-9306
47	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=815 SERVICED BY L=900	1-47434-407-0	01	1	9002-9306
47	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=813 SERVICED BY L=900	1-47426-384-0	01	1	9307-9405
47	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=791 SERVICED BY L=900	1-47426-384-0	01	1	9406-
49	PIPE; AIR,UNION TO CHECK VLV EXC. NYLON TUBE AIR PIPING<Z29> L=964 SERVICED BY L=1000	1-47437-956-0	01	1	9002-9306
49	PIPE; AIR,UNION TO CHECK VLV EXC. NYLON TUBE AIR PIPING<Z29> L=964 SERVICED BY L=970	1-47426-385-0	01	1	9307-
51	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=675 SERVICED BY L=730	1-47437-965-0	01	1	9002-9306
51	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=675 SERVICED BY L=700	1-47426-410-0	01	1	9307-
52	PIPE ASM; AIR,3 WAY TO MULTI RELAY VLV HONG KONG EQUIPMENT(PQ1) L=713 SERVICED BY L=800	1-47434-475-0	01	1	9002-9306
52	PIPE ASM; AIR,3 WAY TO MULTI RELAY VLV HONG KONG EQUIPMENT(PQ1) L=713 SERVICED BY L=730	1-47426-411-0	01	1	9307-
54	PIPE; AIR,UNION TO DUAL RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=729 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306
54	PIPE; AIR,UNION TO DUAL RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=729 SERVICED BY L=730	1-47426-411-0	01	1	9307-
56	PIPE; AIR,UNION TO COCK HONG KONG EQUIPMENT(PQ1)	1-47489-514-0	01	1	9002-9204
56	PIPE; AIR,UNION TO COCK HONG KONG EQUIPMENT(PQ1) L=1085	1-47495-155-0	01	1	9205-
56	PIPE; AIR,UNION TO COCK EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1296 SERVICED BY L=1350	1-47437-995-0	01	1	9002-
57	PIPE; AIR,CHECK VLV TO UNION FULLER M/T<X9B> HONG KONG EQUIPMENT(PQ1) L=903 SERVICED BY L=1000	1-47434-476-0	01	1	9005-9306
57	PIPE; AIR,CHECK VLV TO UNION FULLER M/T<X9B> HONG KONG EQUIPMENT(PQ1) L=903 SERVICED BY L=1000	1-47426-414-0	01	1	9307-
57	PIPE; AIR,CHECK VLV TO UNION FULLER M/T<X9B> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=795	1-47449-598-1	01	1	9005-9306
57	PIPE; AIR,CHECK VLV TO UNION FULLER M/T<X9B> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=795 SERVICED BY L=800	1-47426-412-0	01	1	9307-
57	PIPE; AIR,CHECK VLV TO UNION HONG KONG EQUIPMENT(PQ1) L=843 SERVICED BY L=900	1-47437-966-0	01	1	9002-9004
57	PIPE; AIR,CHECK VLV TO UNION ISUZU M/T<X9A> HONG KONG EQUIPMENT(PQ1) L=843 SERVICED BY L=900	1-47437-966-0	01	1	9005-9306
57	PIPE; AIR,CHECK VLV TO UNION ISUZU M/T<X9A> HONG KONG EQUIPMENT(PQ1) L=843 SERVICED BY L=900	1-47426-413-0	01	1	9307-
57	PIPE; AIR,CHECK VLV TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=723	1-47488-497-0	01	1	9002-9004
57	PIPE; AIR,CHECK VLV TO UNION ISUZU M/T<X9A> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=723	1-47488-497-0	01	1	9005-9306
57	PIPE; AIR,CHECK VLV TO UNION ISUZU M/T<X9A> EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=724 SERVICED BY L=730	1-47426-411-0	01	1	9307-
66	PIPE; AIR,UNION TO SYN VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=221	1-47447-782-0	01	1	9002-9306
66	PIPE; AIR,UNION TO SYN VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=221	1-47496-184-0	01	1	9307-
67	PIPE ASM; AIR,3 WAY TO SUPPLY DUMP VLV HONG KONG EQUIPMENT(PQ1) L=397 SERVICED BY L=400	1-47434-471-0	01	1	9002-9306
67	PIPE ASM; AIR,3 WAY TO SUPPLY DUMP VLV HONG KONG EQUIPMENT(PQ1) L=398 SERVICED BY L=400	1-47426-404-0	01	1	9307-
69	PIPE ASM; AIR,SUPPLY VLV TO AIR HOSE HONG KONG EQUIPMENT(PQ1) L=406 SERVICED BY L=450	1-47437-962-0	01	1	9002-9306
69	PIPE ASM; AIR,SUPPLY VLV TO AIR HOSE HONG KONG EQUIPMENT(PQ1) L=407 SERVICED BY L=450	1-47426-405-0	01	1	9307-
70	PIPE; AIR,SYN VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=330	1-47447-776-0	01	1	9002-9306
70	PIPE; AIR,SYN VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=330	1-47496-187-0	01	1	9307-

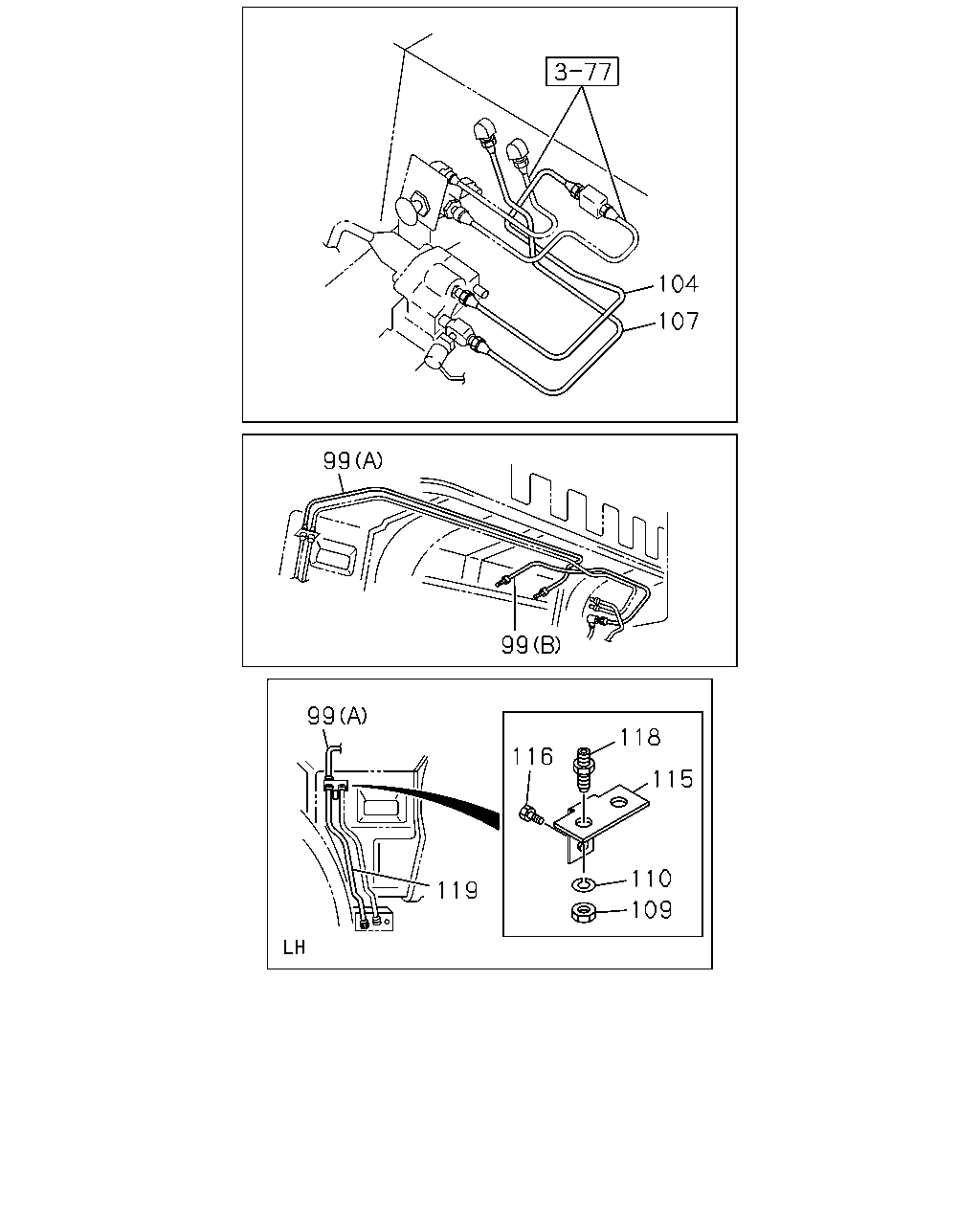

104 107 99 99 99 118 116 115 110 119 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
99	PIPE; AIR,JOINT TO JOINT HONG KONG EQUIPMENT(PQ1) (A) L=1928 SERVICED BY L=2150	1-47437-958-0	01	1	9002-9306
99	PIPE; AIR,JOINT TO JOINT HONG KONG EQUIPMENT(PQ1) (A) L=1928	1-47495-957-0	01	1	9307-
99	PIPE; AIR,JOINT TO JOINT HONG KONG EQUIPMENT(PQ1) (B) L=1542 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306
99	PIPE; AIR,JOINT TO JOINT HONG KONG EQUIPMENT(PQ1) (B) L=1542 SERVICED BY L=1550	1-47426-419-0	01	1	9307-
99	PIPE; AIR,JOINT TO JOINT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) L=1975 SERVICED BY L=2150	1-47437-958-0	01	1	9002-9212
99	PIPE; AIR,JOINT TO JOINT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) L=1975 SERVICED BY L=2150	1-47426-394-0	01	1	9301-
104	PIPE; AIR,JOINT TO PARKING BRK VLV EXC. NYLON TUBE AIR PIPING<Z29> L=561	1-47445-965-0	01	1	9002-9212
104	PIPE; AIR,JOINT TO PARKING BRK VLV EXC. NYLON TUBE AIR PIPING<Z29> L=561	1-47495-953-0	01	1	9301-
107	PIPE; AIR,JOINT TO PARKING BRK VLV EXC. NYLON TUBE AIR PIPING<Z29>	1-47445-966-1	01	1	9002-9212
107	PIPE; AIR,JOINT TO PARKING BRK VLV EXC. NYLON TUBE AIR PIPING<Z29> L=621	1-47495-955-0	01	1	9301-
109	NUT; JOINT EXC. NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	01	1	9002-
110	WASHER; LK,JOINT EXC. NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	01	1	9002-
115	BRACKET; PIPE JOINT HONG KONG EQUIPMENT(PQ1)	1-47476-296-0	01	1	9002-
115	BRACKET; PIPE JOINT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-47475-259-0	01	1	9002-
116	BOLT; JOINT BRKT EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204
116	BOLT; JOINT BRKT EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302
116	BOLT; JOINT BRKT EXC. NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9303-
118	JOINT; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M14	9-09223-208-1	01	1	9002-
119	PIPE; AIR,JOINT TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=1430 SERVICED BY L=1550	1-47437-957-0	01	1	9002-9212
119	PIPE; AIR,JOINT TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=1430 SERVICED BY L=1550	1-47426-390-0	01	1	9301-9306
119	PIPE; AIR,JOINT TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=1430	1-47495-958-0	01	1	9307-

29 29 29 75 29 29 120 120 121 121 83 83 3 3 65 42 42 29 42 61 33 32 91 72 31 148 91 91 91 30 81 30 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	NUT; COCK NYLON TUBE AIR PIPING<Z29> M18	9-99111-418-0	01	1	9002-9306
3	NUT; COCK EXC. NYLON TUBE AIR PIPING<Z29> M22	9-09111-422-0	01	1	9002-9306
3	NUT; COCK M22	9-09111-422-0	01	1	9307-
29	CONNECTOR; COCK NYLON TUBE AIR PIPING<Z29> (A)	1-09660-215-0	01	1	9002-9306
29	CONNECTOR; COCK NYLON TUBE AIR PIPING<Z29> (A) M22 & PT1/2 STRAIGHT	1-09650-220-1	01	1	9307-
29	CONNECTOR; COCK NYLON TUBE AIR PIPING<Z29> (B)	1-09660-303-0	01	1	9002-9306
29	CONNECTOR; COCK NYLON TUBE AIR PIPING<Z29> (B)	1-09656-332-1	01	1	9307-
29	CONNECTOR; COCK NYLON TUBE AIR PIPING<Z29> (C)	1-09660-638-0	02	1	9307-
30	COCK; AIR HOSE NYLON TUBE AIR PIPING<Z29> BLUE	9-09904-195-0	01	1	9002-9409
30	COCK; AIR HOSE NYLON TUBE AIR PIPING<Z29> BLUE	1-09680-068-0	01	1	9410-9512
30	COCK; AIR HOSE NYLON TUBE AIR PIPING<Z29> BLUE	1-09680-078-0	01	1	9601-
31	NUT; UNION NYLON TUBE AIR PIPING<Z29> M18	9-99111-418-0	02	1	9002-9306
31	NUT; UNION NYLON TUBE AIR PIPING<Z29> M20	9-99110-420-0	01	1	9307-
31	NUT; UNION NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	02	1	9307-
32	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	01	1	9002-9306
32	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=18	9-09150-518-0	02	1	9002-9306
32	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9307-
32	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	02	1	9307-9312
32	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	02	1	9405-
33	BRACKET HONG KONG EQUIPMENT(PQ1) (A)	1-47475-773-1	01	1	9002-9005
33	BRACKET HONG KONG EQUIPMENT(PQ1) (A)	1-47476-631-0	01	1	9006-
33	BRACKET NYLON TUBE AIR PIPING<Z29> (B)	1-47475-853-0	01	1	9002-9306
33	BRACKET NYLON TUBE AIR PIPING<Z29> (B)	1-47475-388-0	01	1	9307-
42	BOLT; BRKT M10X25	9-01911-025-0	02	1	9002-9002
42	BOLT; BRKT M10X25 W/LK WASHER	0-50041-025-0	02	1	9003-
42	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204
42	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9306
42	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28080-820-0	02	1	9307-
42	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
42	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306
42	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9307-
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A)	1-09660-214-0	02	1	9002-9306
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-47470-232-0	01	1	9002-9008
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-47470-301-0	01	1	9009-9306
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M14	9-09223-208-1	01	1	9002-9306
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A)	1-09650-222-1	02	1	9307-
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) UNS 17/32-24 L=57	1-09664-083-0	01	1	9307-
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (F)	1-47470-312-0	01	1	9307-
61	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (E) M20 L=77.5	9-09233-212-1	01	1	9307-
65	HOSE; AIR EXC. JUMPER HOSE & CABLE DELETE<SJK> L=4136	1-09363-148-0	01	1	9002-
72	PLUG JUMPER HOSE & CABLE DELETE<SJK> PT1/2	9-09204-521-0	01	1	9002-
75	HOSE; FLEX,TRAILER EMERGENCY NYLON TUBE AIR PIPING<Z29> L=4140	1-09363-149-0	01	1	9002-
81	COCK; AIR COUPLING EXC. NYLON TUBE AIR PIPING<Z29> BLUE	9-09904-195-0	01	1	9307-9409
81	COCK; AIR COUPLING EXC. NYLON TUBE AIR PIPING<Z29> BLUE	1-09680-068-0	01	1	9410-9512
81	COCK; AIR COUPLING EXC. NYLON TUBE AIR PIPING<Z29> BLUE	1-09680-078-0	01	1	9601-
83	WASHER; LK,CONNECTOR NYLON TUBE AIR PIPING<Z29> ID=18.2	9-09150-518-0	01	1	9002-9306
83	WASHER; LK,CONNECTOR NYLON TUBE AIR PIPING<Z29> ID=22.5	9-09150-522-0	01	1	9307-9312
83	WASHER; LK,CONNECTOR NYLON TUBE AIR PIPING<Z29> ID=22.5	9-09150-522-0	01	1	9307-
91	TUBE; NYLON HONG KONG EQUIPMENT(PQ1) L=822 SERVICED BY L=900	1-47426-384-0	01	1	9307-
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=1/2" SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=8 SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE OD=3/8" SERVICED BY L=30000 OD=3/8"	1-09368-247-0	AR	1	9307-9404
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-254-0	02	1	9307-9404
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-254-0	03	1	9405-
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-323-0	03	1	9307-9312
91	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-323-0	04	1	9401-
120	BRACKET; COCK	1-48499-001-1	01	1	9307-
120	BRACKET; COCK NYLON TUBE AIR PIPING<Z29>	1-48499-003-0	01	1	9002-9306
120	BRACKET; COCK EXC. NYLON TUBE AIR PIPING<Z29>	1-48499-001-1	01	1	9002-9306
121	NUT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-
121	NUT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	02	1	9002-
148	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29>	1-09660-637-0	02	1	9307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
