5-01 — FRAME AND OTHER PARTS
(#24868) — 51 parça
◀

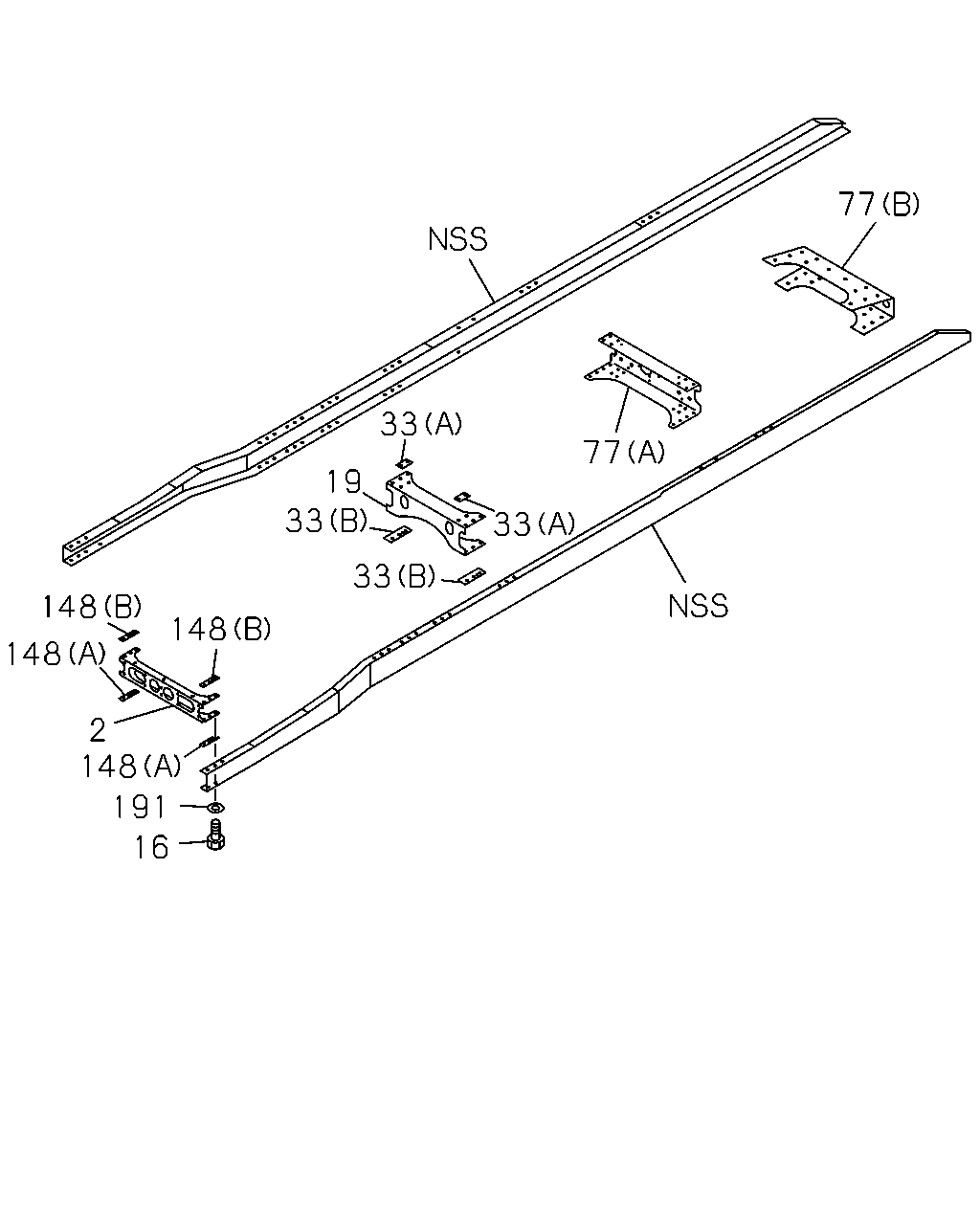

[501A] CROSS MEMBER (10 parça)

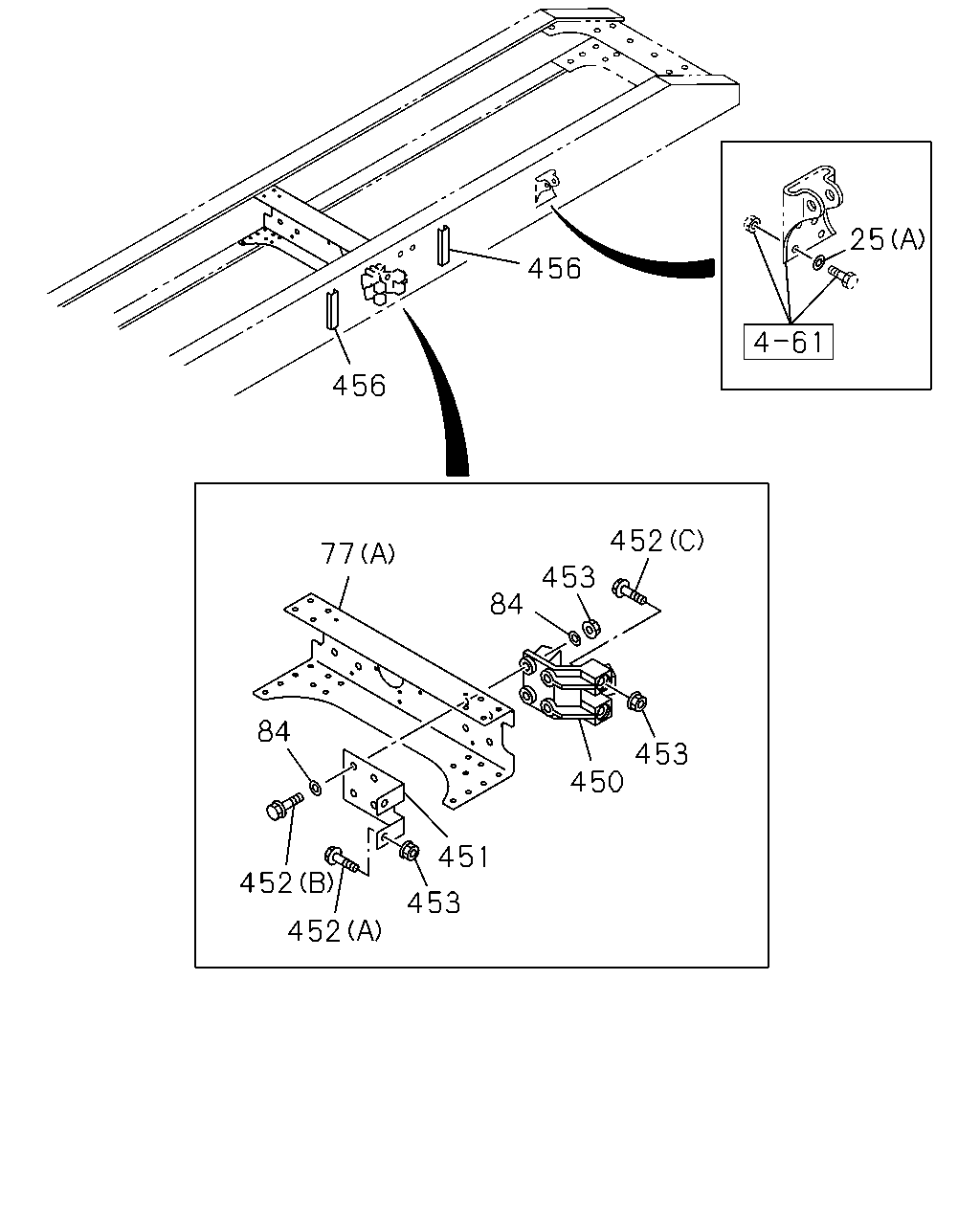

[501A] BRACKET;REAR (14 parça)

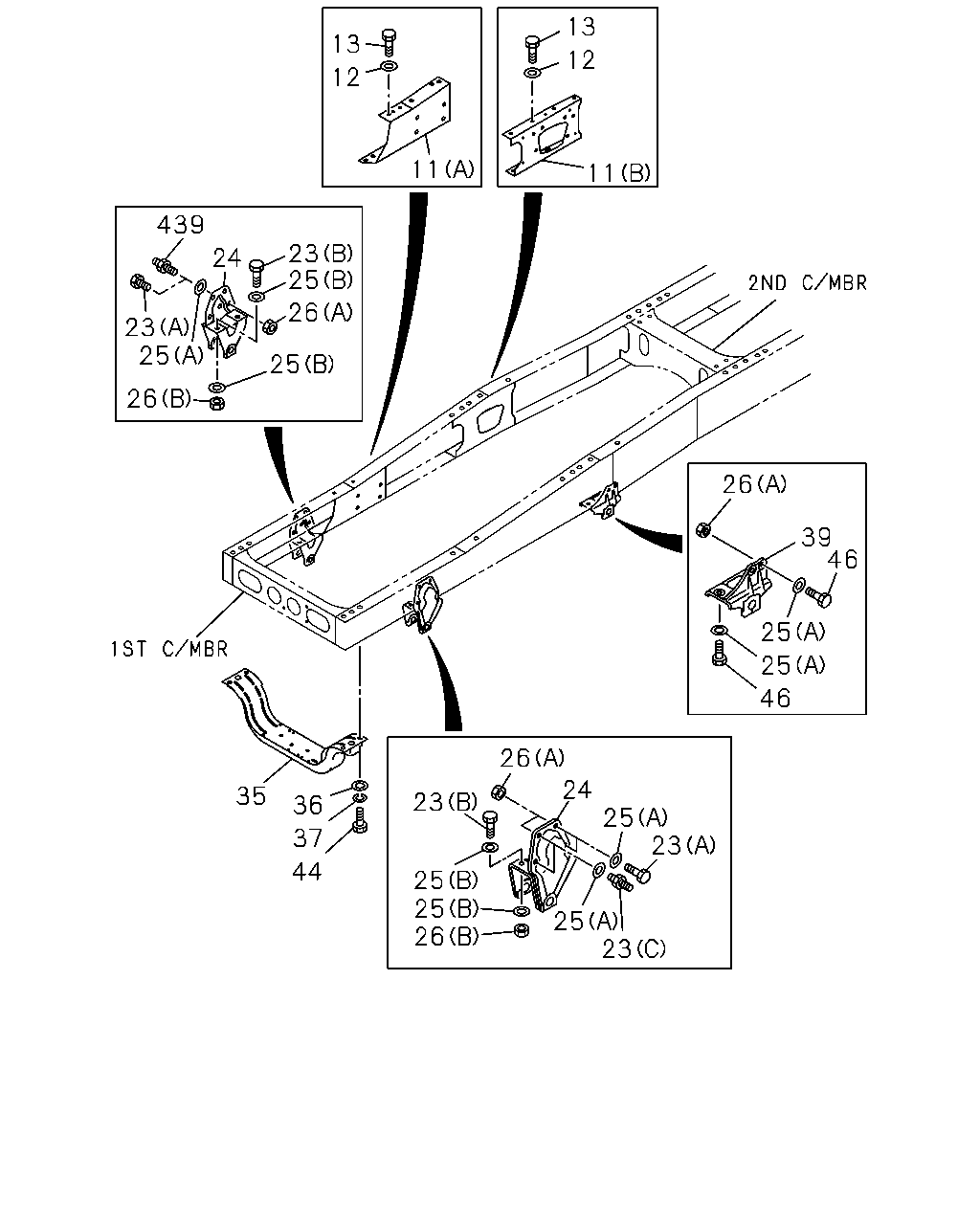

[501A] BRACKET;FRONT AND UNDER MEMBER (27 parça)
▶
77
33
77
19
33
33
33
148
148
148
2
148
191
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97604-959-3
01
1
0603-
16
BOLT; 1ST C/MBR TO S/MBR
M16X40
0-20951-640-0
02
1
0603-
19
MEMBER; CROSS,2ND
1-53181-863-7
01
1
0603-
33
SPACER; 2ND C/MBR,UPR
(B)
1-53168-264-0
02
1
0603-
33
SPACER; 2ND C/MBR,UPR
(A)
1-53168-379-0
02
1
0603-
77
MEMBER; CROSS,TRUNNION RR
(B)
1-53181-965-0
01
1
0603-
77
MEMBER; CROSS,TRUNNION RR
(A)
1-53182-061-0
01
1
0603-
148
SPACER; C/MBR
(B)
1-53168-400-1
02
1
0603-
148
SPACER; C/MBR
(A)
1-53168-403-1
02
1
0603-
191
WASHER; PL,1ST C/MBR TO S/MBR
ID=16.2
1-09503-223-0
02
1
0603-
25
456
456
452
77
453
84
84
453
450
451
452
453
452
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
08
1
0603-
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
24
1
0603-1201
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
24
1
1202-
77
MEMBER; CROSS,TRUNNION RR
(B)
1-53181-965-0
01
1
0603-
77
MEMBER; CROSS,TRUNNION RR
(A)
1-53182-061-0
01
1
0603-
84
WASHER; PL,BRKT
ID=16.2
1-09503-223-0
16
1
0603-
450
BRACKET; V ROD
1-53353-122-1
02
1
0603-
451
GUSSET; V ROD
1-53167-641-0
01
1
0603-
451
GUSSET; V ROD
1-53167-642-0
01
1
0603-
452
BOLT; V ROD
(B) M16X70
1-09000-673-0
08
1
0603-
452
BOLT; V ROD
(C) M16X90
1-09000-675-0
04
1
0603-
452
BOLT; V ROD
(A) M16X50
1-09000-679-0
04
1
0603-
453
NUT; V ROD
M16 FLANGE
1-09440-066-0
16
1
0603-
456
PATCH; STOPPER
1-53119-203-0
04
1
0603-
13
13
12
12
11
11
439
23
25
24
26
23
25
25
26
26
39
46
25
25
46
26
24
25
23
35
23
36
37
25
25
26
44
25
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
(A)
1-53211-367-1
01
1
0603-
11
BRACKET; ENG MTG
(A)
1-53211-368-1
01
1
0603-
11
BRACKET; ENG MTG
(B)
1-53239-114-4
01
1
0603-
11
BRACKET; ENG MTG
(B)
1-53239-115-4
01
1
0603-
12
WASHER; PL,BRKT,ENG MTG
ID=15
9-09651-069-0
10
1
0603-1201
12
WASHER; PL,BRKT,ENG MTG
ID=15
8-98010-627-1
10
1
1202-
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
10
1
0603-
23
BOLT; BRKT,SPR
(A) M14X40
0-20951-440-0
05
1
0603-
23
BOLT; BRKT,SPR
(B) M16X50
0-20951-650-0
04
1
0603-
23
BOLT; BRKT,SPR
(C) M12X25,M14X45 L=81
1-09029-103-0
02
1
0603-
24
BRACKET; FRT SPR,FRT
1-53351-237-1
01
1
0603-
24
BRACKET; FRT SPR,FRT
1-53351-238-1
01
1
0603-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
08
1
0603-
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
24
1
0603-1201
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
24
1
1202-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
12
1
0603-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
0603-
35
MEMBER; UNDER
1-53174-263-2
01
1
0603-
36
WASHER; PL,UNDER MBR
ID=17
9-09164-516-0
04
1
0603-
37
WASHER; LK,UNDER MBR
ID=16.2
9-09150-816-0
04
1
0603-0603
37
WASHER; LK,UNDER MBR
ID=16.2
0-91510-816-0
04
1
0604-
39
BRACKET; FRT SPR,RR
1-53352-179-0
01
1
0603-
39
BRACKET; FRT SPR,RR
1-53352-180-0
01
1
0603-
44
BOLT; UNDER MBR
M16X60
0-20951-660-0
04
1
0603-
46
BOLT; BRKT FIX
M14X40
0-20951-440-0
04
1
0603-
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
04
1
0603-
439
STUD; BRKT,SPR
M12X35,M14X45 L=100
1-09029-075-0
01
1
0603-
