◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 11024 - EXD AUSTRALIA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#24867) — 23 parça

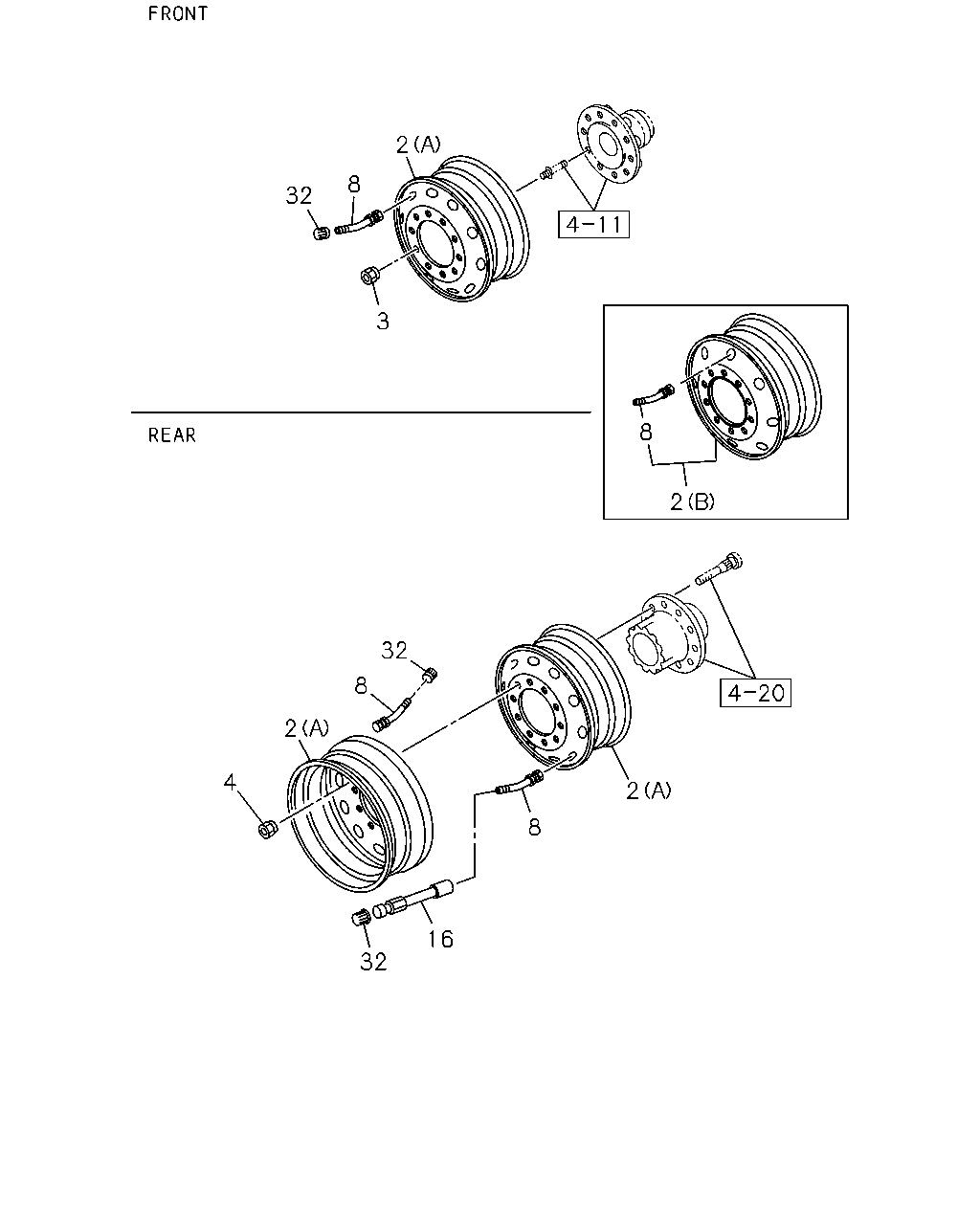

çizim 90329
2 8 32 3 8 2 32 8 2 4 2 8 16 32
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (A) SPARE 		1-42350-729-0 01 1 0603-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (A) SPARE 		1-42350-729-0 01 1 0603-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (A) FRONT,REAR 		1-42350-729-0 06 1 0603-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) SPARE 		1-42350-694-0 01 1 0603-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) SPARE 		1-42350-694-0 01 1 0603-
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) FRONT,REAR 		1-42350-694-0 06 1 0603-
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-050-1 20 1 0603-0907
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-055-0 20 1 0908-
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-050-1 20 1 0603-0907
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 20 1 0908-
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> SPARE 		1-42370-020-3 01 1 0603-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> SPARE 		1-42370-020-3 01 1 0603-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> FRONT,REAR 		1-42370-020-3 06 1 0603-
8 VALVE; TIRE
DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) SPARE 		1-42370-044-0 01 1 0603-
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) SPARE 		1-42370-044-0 01 1 0603-
8 VALVE; TIRE
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) FRONT,REAR 		1-42370-044-0 06 1 0603-
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL AL<SDM> L=115 		1-42370-015-2 02 1 0603-1003
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL AL<SDM> L=115 		8-98167-051-0 02 1 1004-
16 HOLDER; TIRE VALVE,DISC WHEEL
EXC. DISC WHEEL AL<SDM> L=170 		1-42370-024-0 02 1 0603-1003
16 HOLDER; TIRE VALVE,DISC WHEEL
EXC. DISC WHEEL AL<SDM> L=170 		8-98167-052-0 02 1 1004-
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> SPARE 		1-42374-001-0 01 1 0603-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> SPARE 		1-42374-001-0 01 1 0603-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> FRONT,REAR 		1-42374-001-0 06 1 0603-
