4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#24856) — 92 parça

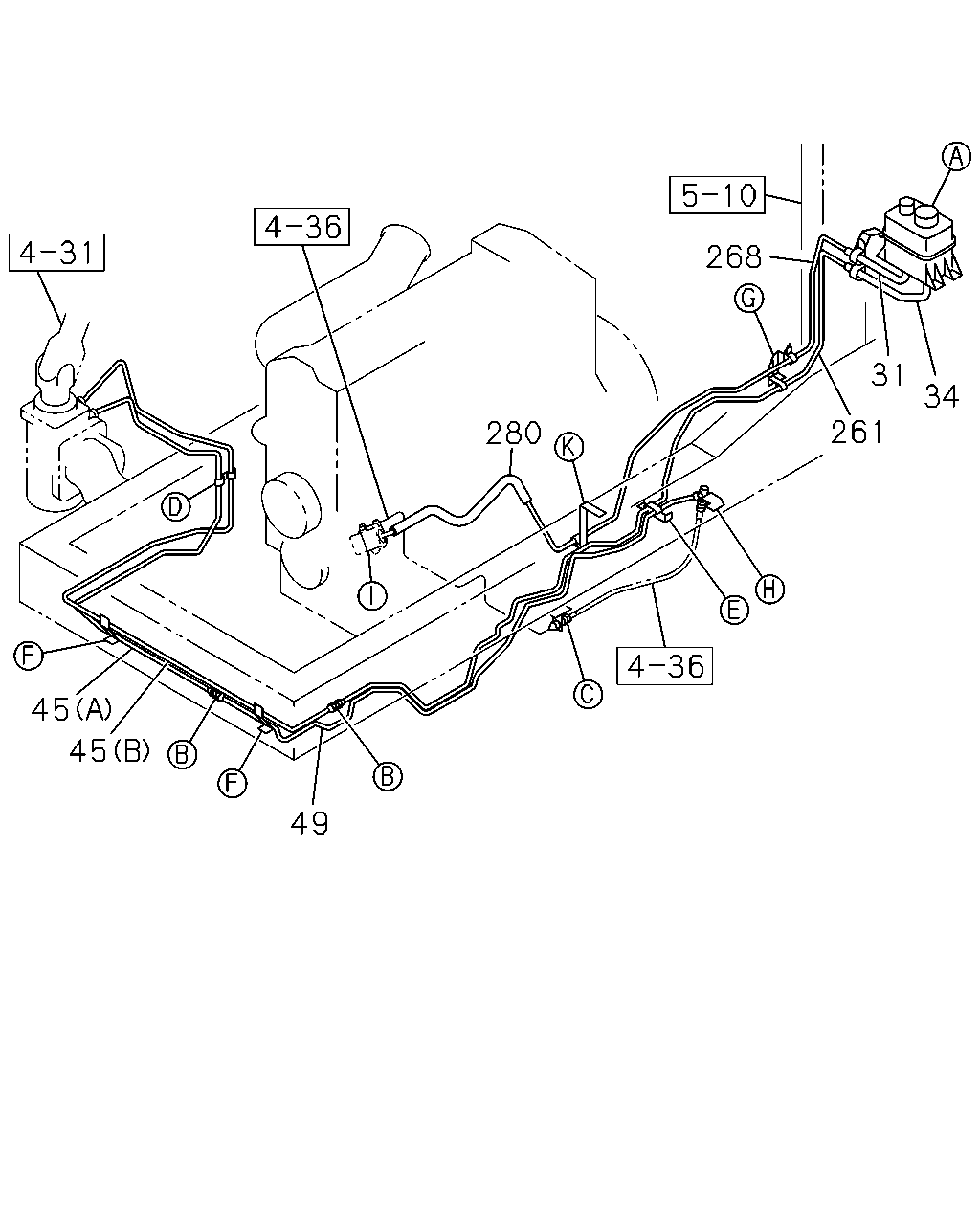

268 31 34 261 280 45 45 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	1-21117-887-0	01	1	0603-
34	HOSE; P/S OIL TANK,OUTLET	1-21117-886-0	01	1	0603-
45	PIPE; OIL,P/S UNIT TO UNION (B) L=2203	1-21117-883-0	01	1	0603-0703
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1506	1-21117-927-0	01	1	0704-
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1510	1-21117-884-0	01	1	0603-0703
45	PIPE; OIL,P/S UNIT TO UNION (B) L=2199	1-21117-928-0	01	1	0704-
49	PIPE; OIL,FLEX HOSE TO UNION L=2050	1-21117-367-0	01	1	0603-0703
49	PIPE; OIL,FLEX HOSE TO UNION L=2063	1-21117-926-0	01	1	0704-
261	PIPE; OIL,UNION TO HOSE	1-21117-885-0	01	1	0603-0703
261	PIPE; OIL,UNION TO HOSE L=2570	1-21117-929-0	01	1	0704-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	1-21117-888-0	01	1	0603-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0603-

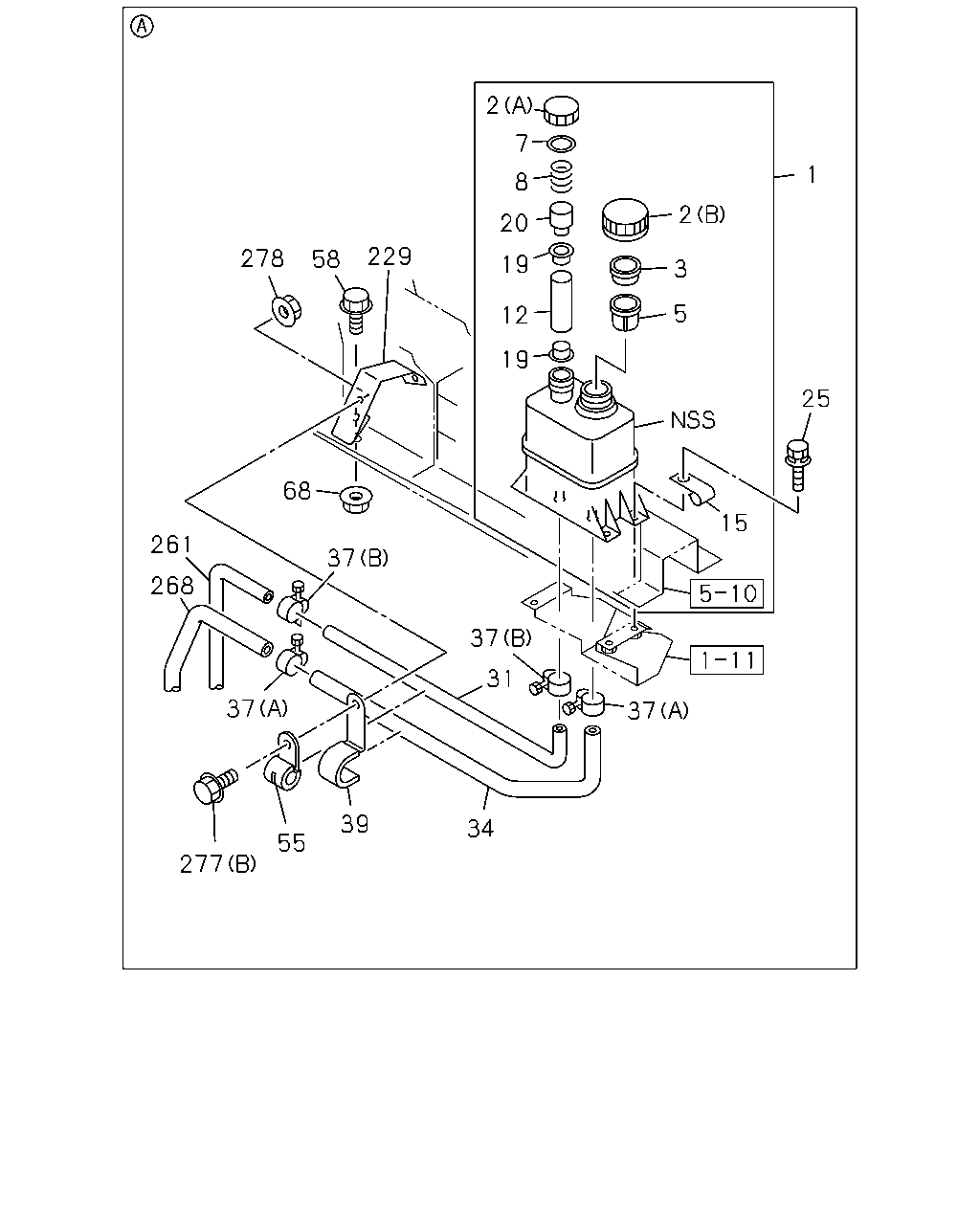

2 7 1 8 2 20 229 278 58 19 3 5 12 19 25 68 15 261 37 268 37 31 37 37 39 34 55 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0603-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0603-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0603-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0603-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0603-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0603-
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0603-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0603-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0603-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0603-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0603-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0603-
31	HOSE; P/S OIL TANK,INL	1-21117-887-0	01	1	0603-
34	HOSE; P/S OIL TANK,OUTLET	1-21117-886-0	01	1	0603-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	0603-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	0603-
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	0603-
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	0603-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	05	1	0603-
58	BOLT; CLIP M10X20 FLANGE	0-28651-020-0	02	1	0603-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0603-0603
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
229	BRACKET; HOSE,POWER STRG	1-21464-407-1	01	1	0603-
261	PIPE; OIL,UNION TO HOSE	1-21117-885-0	01	1	0603-0703
261	PIPE; OIL,UNION TO HOSE L=2570	1-21117-929-0	01	1	0704-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	1-21117-888-0	01	1	0603-
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	03	1	0603-
277	BOLT; HOSE CLIP (B) M10X20 FLANGE	0-28651-020-0	01	1	0603-
278	NUT; HOSE CLIP M10 FLANGE	0-91150-210-0	01	1	0603-0603
278	NUT; HOSE CLIP M10 FLANGE	0-91180-210-0	01	1	0603-

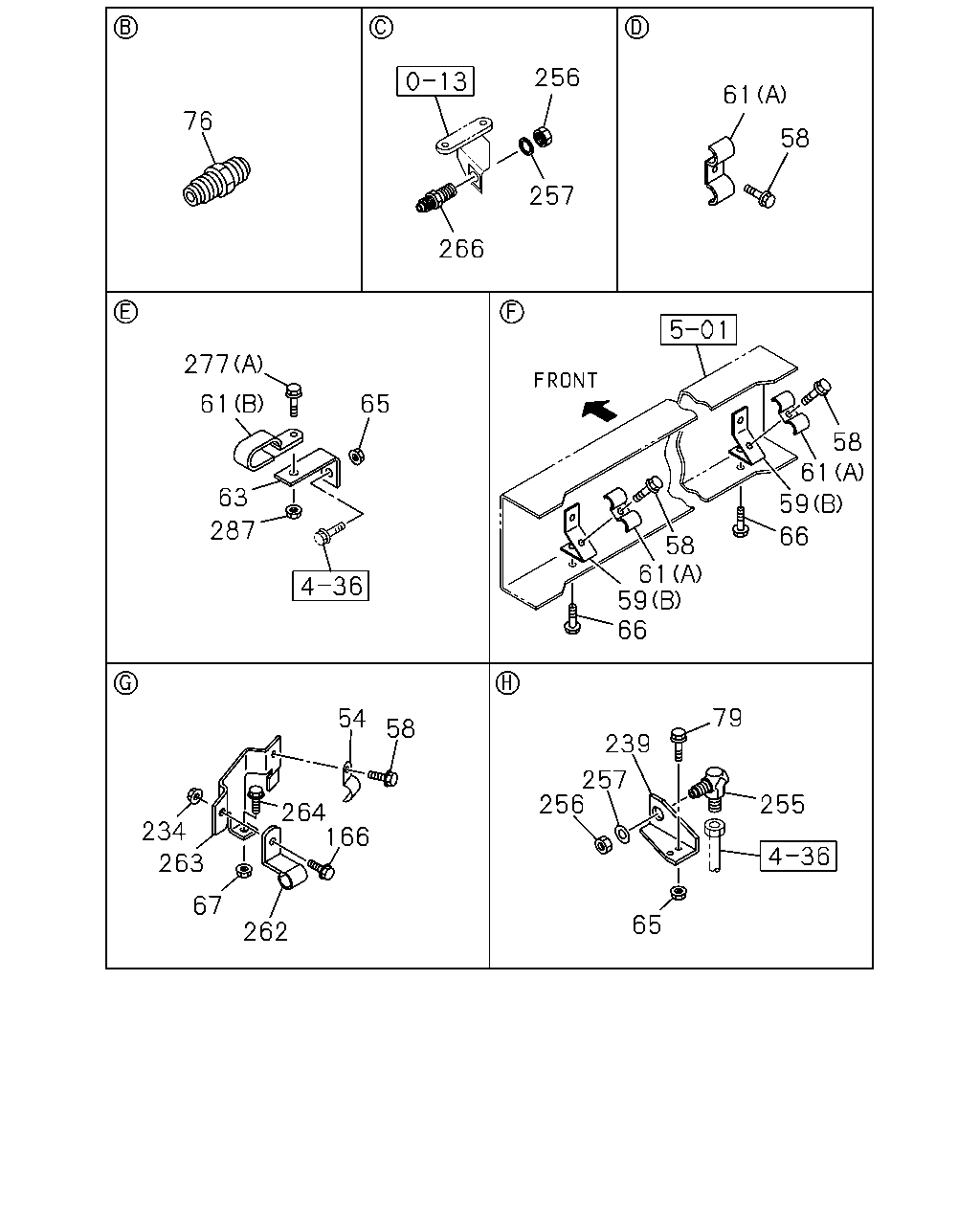

256 61 76 58 257 266 277 61 65 58 61 63 59 287 66 58 61 59 66 79 54 58 239 257 256 255 264 166 234 263 67 65 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE ID=23.6 L=35	1-09700-634-0	02	1	0603-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	05	1	0603-
58	BOLT; CLIP M10X20 FLANGE	0-28651-020-0	02	1	0603-
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-145-0	01	1	0603-
59	BRACKET; CLIP,OIL PIPE (B)	1-47479-521-0	02	1	0603-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0603-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	9-09535-535-0	01	1	0603-0606
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	0607-
63	BRACKET; CLIP,P/S L=115 B=25	1-47476-758-0	01	1	0603-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0603-0603
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0603-
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0603-
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0603-0603
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
76	UNION; OIL PIPE M22	9-09233-015-1	02	1	0603-0607
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	0608-
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0603-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0603-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	01	1	0603-0603
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	0603-
239	BRACKET; FLEX HOSE	1-47479-664-0	01	1	0603-
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09650-375-1	01	1	0603-
256	NUT; UNION M22	0-91111-522-0	01	1	0603-
256	NUT; UNION M22	0-91111-522-0	01	1	0603-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0603-0603
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0603-0603
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	0603-
263	BRACKET; P/S PIPE	1-47476-483-2	01	1	0603-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0603-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0603-
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	03	1	0603-
277	BOLT; HOSE CLIP (B) M10X20 FLANGE	0-28651-020-0	01	1	0603-
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0603-0603
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-

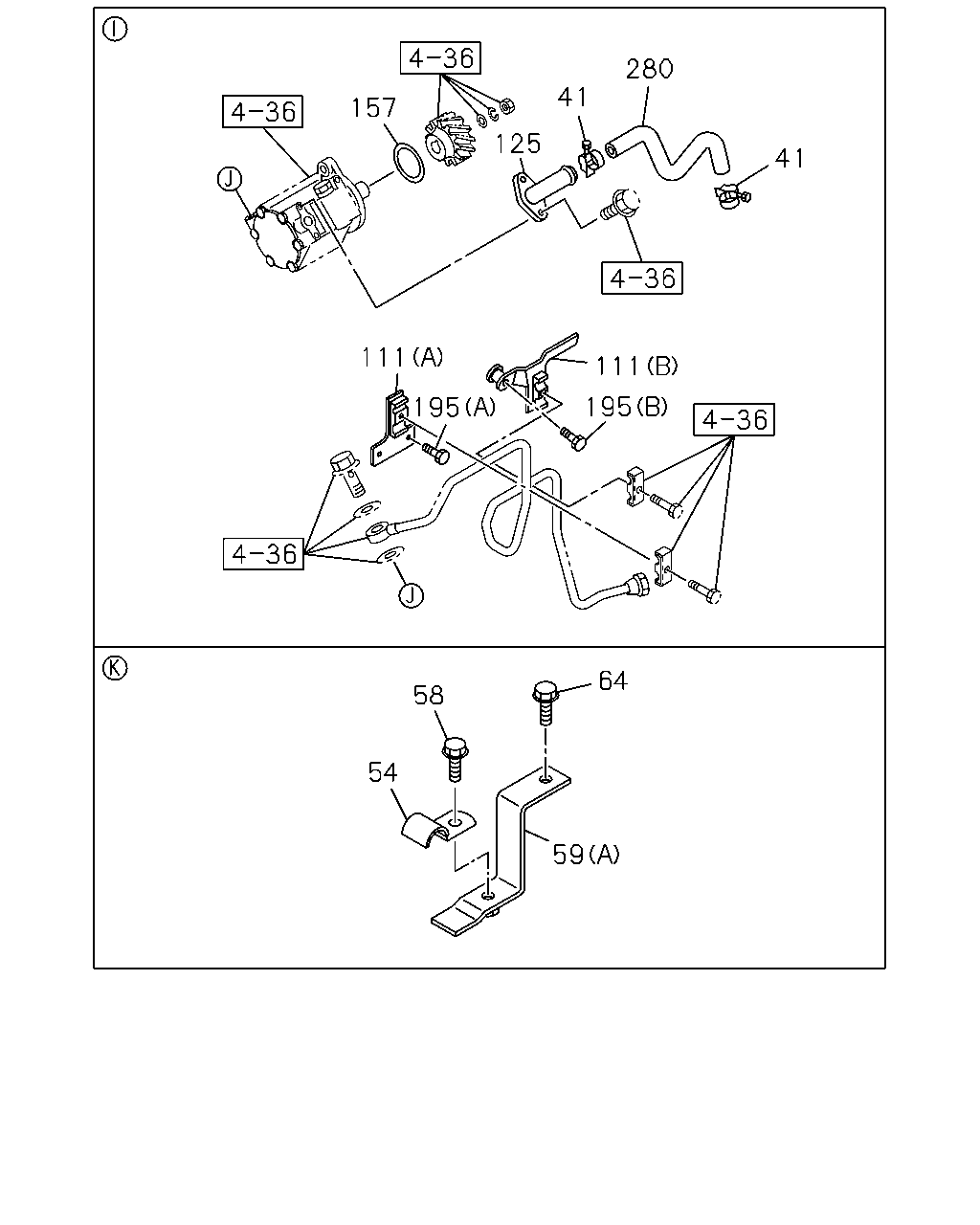

280 41 157 125 41 111 111 195 195 64 58 54 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0603-
54	CLIP; OIL PIPE ID=23.6 L=35	1-09700-634-0	02	1	0603-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	05	1	0603-
58	BOLT; CLIP M10X20 FLANGE	0-28651-020-0	02	1	0603-
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-145-0	01	1	0603-
59	BRACKET; CLIP,OIL PIPE (B)	1-47479-521-0	02	1	0603-
64	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	01	1	0603-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0603-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0603-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0603-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0603-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0603-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0603-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0603-
