Sayfa 3-77 - Isuzu EPC

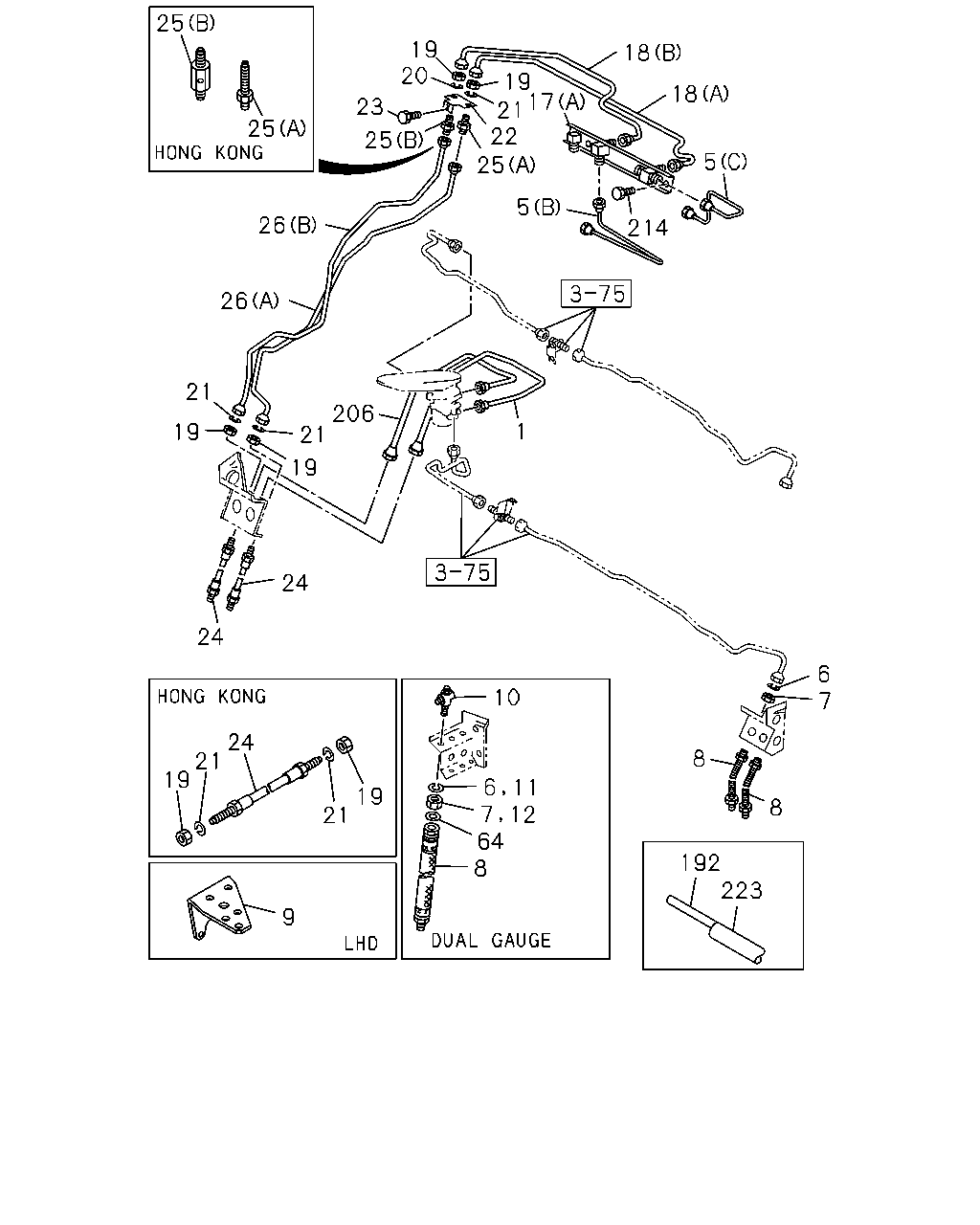

3-77 — BRAKE PIPING; AIR,REAR (#2485) — 840 parça

25 19 20 18 19 17 18 23 21 22 25 25 5 25 5 26 214 26 21 206 21 1 19 19 24 24 6 7 10 24 21 19 8 64 8 19 8 21 192 223 9 6 11 7 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,FLEX HOSE TO BRK VLV DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> L=502	1-47448-021-0	01	1	9002-9306
1	PIPE; AIR,FLEX HOSE TO BRK VLV DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> L=502	1-47495-933-0	01	1	9307-
1	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=521	1-47446-018-1	01	1	9002-9306
1	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=522	1-47495-932-0	01	1	9307-
5	PIPE; AIR,UNION TO PARKING VLV HONG KONG EQUIPMENT(PQ1) (A) L=368 SERVICED BY L=400	1-47434-471-0	01	1	9002-9306
5	PIPE; AIR,UNION TO PARKING VLV HONG KONG EQUIPMENT(PQ1) (A) L=369 SERVICED BY L=400	1-47426-404-0	01	1	9307-
5	PIPE; AIR,UNION TO PARKING VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=430	1-47445-967-2	01	1	9002-9212
5	PIPE; AIR,UNION TO PARKING VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=430	1-47495-965-0	01	1	9301-
5	PIPE; AIR,UNION TO PARKING VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=283	1-47446-021-0	01	1	9002-9306
5	PIPE; AIR,UNION TO PARKING VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=284	1-47495-968-0	01	1	9307-
6	WASHER; LK,FLEX HOSE DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9002-
6	WASHER; LK,FLEX HOSE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	02	1	9002-
6	WASHER; LK,FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	02	1	9002-
7	NUT; FLEX HOSE DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9002-
7	NUT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	02	1	9002-
7	NUT; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	02	1	9002-
8	HOSE; FLEX,AIR,CAB SIDE DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> L=770	1-09363-329-4	01	1	9002-
8	HOSE; FLEX,AIR,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=850	0-07706-850-0	01	1	9002-9409
8	HOSE; FLEX,AIR,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=830	0-07706-830-0	01	1	9410-
8	HOSE; FLEX,AIR,CAB SIDE EXC. NYLON TUBE AIR PIPING<Z29> L=850	0-07424-850-0	01	1	9002-9408
8	HOSE; FLEX,AIR,CAB SIDE EXC. NYLON TUBE AIR PIPING<Z29> L=830	0-07424-830-0	01	1	9409-
9	BRACKET; FLEX HOSE,CAB SIDE EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-473-2	01	1	9002-
10	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29>	1-09656-359-1	01	1	9002-
11	WASHER; LK,CONNECTOR DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9002-
12	NUT; CONNECTOR DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9002-
17	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B)	1-47470-205-1	01	1	9002-
17	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (C)	1-47470-278-1	01	1	9002-
17	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (D) M14	9-09223-208-1	01	1	9002-
17	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-47470-183-3	01	1	9002-
18	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=2692 SERVICED BY L=2700	1-47434-415-0	01	1	9002-9306
18	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=2692 SERVICED BY L=3000	1-47426-397-0	01	1	9307-
18	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=994 SERVICED BY L=1000	1-47437-956-0	01	1	9002-9306
18	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1240 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306
18	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=994 SERVICED BY L=1100	1-47426-387-0	01	1	9307-
18	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1240 SERVICED BY L=1300	1-47426-417-0	01	1	9307-
19	NUT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M14	9-99111-414-0	02	1	9002-9501
19	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	02	1	9002-9501
19	NUT; PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	01	1	9502-
19	NUT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M14	9-99111-414-0	01	1	9502-
19	NUT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M14	9-99111-414-0	01	1	9502-
19	NUT; PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	01	1	9002-9501
19	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	02	1	9502-
19	NUT; PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	01	1	9002-
19	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	02	1	9002-
20	WASHER; LK,PIPE UNION HONG KONG EQUIPMENT(PQ1) ID=14.2	9-09150-514-0	01	1	9002-
20	WASHER; LK,PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	01	1	9002-
21	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	02	1	9002-9306
21	WASHER; LK,UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	03	1	9002-
21	WASHER; LK,UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	02	1	9002-
21	WASHER; LK,UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	01	1	9307-
22	BRACKET; PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-47475-259-0	01	1	9002-
23	BOLT; UNION BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204
23	BOLT; UNION BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302
23	BOLT; UNION BRKT EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9303-
23	BOLT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M12X35 W/LK WASHER	9-01901-235-0	02	1	9002-9204
23	BOLT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M12X35 W/LK WASHER	0-50041-235-0	02	1	9205-9306
24	HOSE; FLEX,PARKING BRK HONG KONG EQUIPMENT(PQ1) L=580	0-07404-580-0	01	1	9002-
24	HOSE; FLEX,PARKING BRK EXC. NYLON TUBE AIR PIPING<Z29> L=580	0-07404-580-0	01	1	9002-
24	HOSE; FLEX,PARKING BRK EXC. NYLON TUBE AIR PIPING<Z29> L=590	0-07424-590-0	01	1	9002-
25	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B) M14	1-09656-391-2	01	1	9002-
25	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (C) M16	1-09656-579-1	01	1	9002-
25	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A) M14	9-09225-008-1	01	1	9002-
25	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) M14	9-09223-308-1	01	1	9002-
25	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M16 L=70 STRAIGHT	9-09233-210-1	01	1	9002-
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=1447 SERVICED BY L=1550	1-47437-957-0	01	1	9002-9306
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=1447 SERVICED BY L=1550	1-47426-390-0	01	1	9307-
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1311 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1308 SERVICED BY L=1400	1-47426-418-0	01	1	9307-
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=1677	1-47481-086-0	01	1	9002-9306
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=1677	1-47495-973-0	01	1	9307-
26	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1521 SERVICED BY L=1550	1-47437-957-0	01	1	9002-9306
26	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1522	1-47495-972-0	01	1	9307-
26	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1488	1-47447-663-2	01	1	9002-9306
26	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1489	1-47495-961-0	01	1	9307-
64	GASKET; FLEX HOSE DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> ID=11 OD=18	9-09572-510-0	01	1	9002-
64	GASKET; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> ID=17.5	9-09572-515-0	02	1	9002-
64	GASKET; FLEX HOSE 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> ID=11 OD=18	9-09572-510-0	02	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=12" SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=8" SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=1/2" SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	06	1	9307-9312
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	05	1	9401-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-253-0	AR	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9401-
206	PIPE; AIR,BRK VLV TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=446	1-47445-575-1	01	1	9002-9306
206	PIPE; AIR,BRK VLV TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29>	1-47495-944-0	01	1	9307-
214	BOLT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204
214	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204
214	BOLT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302
214	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302
214	BOLT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M6X16 FLANGE	0-28080-616-0	02	1	9303-
214	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9303-
223	TUBE; CORRUGATE NYLON TUBE AIR PIPING<Z29> L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	02	1	9307-
223	TUBE; CORRUGATE NYLON TUBE AIR PIPING<Z29> L=660 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	9307-
223	TUBE; CORRUGATE NYLON TUBE AIR PIPING<Z29> ID=19 L=450 SERVICED BY L=2000 ID=19	1-87411-027-0	02	1	9307-

61 60 46 46 46 91 129 88 88 91 129 37 90 129 61 60 129 98 49 37 60 61 97 37 80 180 89 185 141 46 133 134 149 61 126 204 61 60 46 21 127 129 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	02	1	9002-9306
21	WASHER; LK,UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	03	1	9002-
21	WASHER; LK,UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	02	1	9002-
21	WASHER; LK,UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	01	1	9307-
37	UNION; AIR PIPE (A) M22	9-09235-215-1	01	1	9002-9306
37	UNION; AIR PIPE (K) M20	9-09235-212-1	01	1	9002-9306
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (I) M16	1-09654-148-1	01	1	9002-
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (H) M16	9-09238-310-1	01	1	9002-
37	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (H) M16	9-09238-310-1	01	1	9002-
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (G) M16 L=42	9-09233-010-1	01	1	9002-
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (G) M16 L=42	9-09233-010-1	01	1	9002-
37	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (J) M18XM22	1-09660-222-0	01	1	9002-9306
37	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (F) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9307-
37	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (E)	1-09650-251-1	01	1	9307-
37	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) M22	9-09235-215-1	01	1	9307-
37	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (K) M20	9-09235-212-1	01	1	9307-
37	UNION; AIR PIPE 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-09650-003-1	02	1	9307-
37	UNION; AIR PIPE 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-09656-088-0	02	1	9307-
37	UNION; AIR PIPE 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	9-09903-782-1	02	1	9307-
46	NIPPLE; AIR PIPE (C) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9002-9305
46	NIPPLE; AIR PIPE (J) M20	1-09650-251-1	01	1	9307-
46	NIPPLE; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A) M14 2WAY	1-09654-176-2	01	1	9002-
46	NIPPLE; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (K)	9-09228-308-0	01	1	9002-9003
46	NIPPLE; AIR PIPE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> (K)	9-09228-308-0	01	1	9002-9003
46	NIPPLE; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (K)	9-09228-308-1	01	1	9004-
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-301-0	01	1	9002-9306
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (E) M14	9-09223-208-1	02	1	9002-9306
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (F) M16 L=70 STRAIGHT	9-09233-210-1	03	1	9002-9306
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (G) M20 L=77.5	9-09233-212-1	01	1	9002-9306
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (D) M20 ELBOW	9-09235-112-1	01	1	9002-9306
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (C) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9307-
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (M)	1-09654-119-1	01	1	9401-
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-09650-100-1	01	1	9002-9305
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9306-9306
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (J) M20	1-09650-251-1	01	1	9002-9306
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (J) M14X35	1-09650-272-2	01	1	9002-9306
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (L) M20 STRAIGHT	9-09233-012-1	01	1	9002-
46	NIPPLE; AIR PIPE 10PD1 STD ENG(40L) (H) M14 STRAIGHT	9-09223-008-1	01	1	9002-
46	NIPPLE; AIR PIPE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (C) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9307-
46	NIPPLE; AIR PIPE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (J) M14X35	1-09650-272-2	01	1	9307-
49	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	9002-9306
49	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9002-9306
49	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=22.5	9-09150-522-0	01	1	9307-9312
49	WASHER; LK,PIPE UNION 6RB1 STD ENG(07L),10PD1 STD ENG(40L) ID=20.2	9-09150-520-0	01	1	9307-
60	NUT; NIPPLE,AIR PIPE M22	9-09111-422-0	01	1	9002-9306
60	NUT; NIPPLE,AIR PIPE M20	9-99111-420-0	01	1	9307-9312
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	02	1	9401-
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M14	9-99110-414-0	01	1	9002-9306
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M16	9-99110-416-0	01	1	9002-9306
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M20	9-99110-420-0	01	1	9002-
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	01	1	9002-9306
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	01	1	9002-9306
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	02	1	9002-9306
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9002-9003
60	NUT; NIPPLE,AIR PIPE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9002-9003
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9004-9304
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9305-9306
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9002-9306
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M22	9-09111-422-0	01	1	9307-
60	NUT; NIPPLE,AIR PIPE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) M20	9-99111-420-0	01	1	9401-
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9307-
61	WASHER; LK,NIPPLE ID=22.5	9-09150-522-0	01	1	9002-9306
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	02	1	9002-9306
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	03	1	9002-9306
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	04	1	9002-9306
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	03	1	9307-9312
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	05	1	9401-
61	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9003
61	WASHER; LK,NIPPLE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9003
61	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9004-9312
61	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9002-9306
61	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=22.5	9-09150-522-0	01	1	9307-9312
61	WASHER; LK,NIPPLE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) ID=20.2	9-09150-520-0	01	1	9307-
80	HOSE; FLEX,POWER CHAMBER NYLON TUBE AIR PIPING<Z29> L=550	0-07909-550-0	02	1	9002-9306
80	HOSE; FLEX,POWER CHAMBER NYLON TUBE AIR PIPING<Z29> L=550	0-07909-550-0	01	1	9307-
80	HOSE; FLEX,POWER CHAMBER 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> L=480	0-07909-480-0	02	1	9307-
88	WASHER; LK,PIPE UNION ID=20.2	9-09150-520-0	01	1	9002-9306
88	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9307-
88	WASHER; LK,PIPE UNION HONG KONG EQUIPMENT(PQ1) ID=12.2	9-09150-512-0	01	1	9002-9312
88	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9312
88	WASHER; LK,PIPE UNION NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	01	1	9002-9306
89	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M18XM20	1-09660-221-0	01	1	9002-9306
89	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29>	1-47459-002-0	02	1	9307-
90	BRACKET; PIPE UNION NYLON TUBE AIR PIPING<Z29>	1-47476-073-0	01	1	9002-9306
91	NUT; PIPE UNION M20	9-99111-420-0	01	1	9002-9306
91	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9307-
91	NUT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M12	9-99110-412-0	01	1	9002-9304
91	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9002-9304
91	NUT; PIPE UNION NYLON TUBE AIR PIPING<Z29> M16	9-99110-416-0	01	1	9002-9306
91	NUT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M12	9-99110-512-0	01	1	9305-
91	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9305-
97	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A) M22	1-09656-099-1	01	1	9002-
97	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-09656-495-1	01	1	9002-9306
97	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B)	1-09656-495-1	01	1	9307-
97	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (C) M16 L=42	9-09233-010-1	02	1	9401-
98	NUT; PIPE UNION M22	9-09111-422-0	01	1	9002-9306
98	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9002-9306
98	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M22	9-09111-422-0	01	1	9307-
98	NUT; PIPE UNION 6RB1 STD ENG(07L),10PD1 STD ENG(40L) M20	9-99111-420-0	01	1	9307-
98	NUT; PIPE UNION 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> M16	9-99111-416-0	02	1	9307-
98	NUT; PIPE UNION 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> M20	9-99111-420-0	02	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (H) M14 3WAY	1-09664-066-0	02	1	9002-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (F)	1-47470-231-0	01	1	9002-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (G) M16 ELBOW	9-09235-110-1	01	1	9002-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (I)	1-09660-545-0	01	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) UNS 17/32-24 L=57	1-09664-083-0	03	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (E)	1-47470-312-0	01	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A)	1-47470-313-0	01	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M20 L=77.5	9-09233-212-1	01	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M20 ELBOW	9-09235-112-1	01	1	9307-
127	NUT; UNION NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	02	1	9002-9304
127	NUT; UNION NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	02	1	9305-9306
127	NUT; UNION NYLON TUBE AIR PIPING<Z29> UNS 17/32-24 B=17	1-09487-023-0	02	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (G) M14-M14	1-09660-219-0	02	1	9002-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (J) M16-M14	1-09660-220-0	02	1	9002-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (K) M20-M18	1-09660-221-0	02	1	9002-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (H) M22-M18	1-09660-222-0	01	1	9002-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (I) M16-M18	1-09660-223-0	01	1	9002-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (I) M16-M18	1-09660-223-0	02	1	9002-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M12-UNS 17/32-24	1-09650-373-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D)	1-09660-335-1	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (F) PT1/4-UNS 17/32-24 17/32" PT1/4	1-09660-573-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (E) M20-UNS 11/16-20	1-09660-576-0	05	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) PT1/4-UNS 17/32-24	1-09660-606-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) PT1/4-UNS17/32-24	1-09660-608-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (L)	1-09660-609-0	01	1	9410-
133	UNION; NIPPLE NYLON TUBE AIR PIPING<Z29>	1-09660-302-0	01	1	9002-9306
134	CONNECTOR NYLON TUBE AIR PIPING<Z29> M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9002-9306
141	NUT; PIPE BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-9306
149	BOLT; PIPE BRKT NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204
149	BOLT; PIPE BRKT NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302
149	BOLT; PIPE BRKT NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	02	1	9303-9306
180	GASKET; FLEX HOSE NYLON TUBE AIR PIPING<Z29> ID=17.5	9-09572-515-0	02	1	9002-9306
180	GASKET; FLEX HOSE NYLON TUBE AIR PIPING<Z29> ID=17.5	9-09572-515-0	01	1	9307-9312
180	GASKET; FLEX HOSE NYLON TUBE AIR PIPING<Z29> ID=17.5	9-09572-515-0	02	1	9401-
180	GASKET; FLEX HOSE 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> ID=11 OD=18	9-09572-510-0	02	1	9307-
185	NUT; NIPPLE NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9002-9312
185	NUT; NIPPLE NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	02	1	9401-
204	BRACKET; TUBE UNION NYLON TUBE AIR PIPING<Z29>	1-47476-345-0	01	1	9002-9306
204	BRACKET; TUBE UNION NYLON TUBE AIR PIPING<Z29>	1-47476-893-0	01	1	9307-

146 146 195 193 194 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
146	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> L=1290 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306
146	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> L=337 SERVICED BY L=350	1-47426-403-0	01	1	9401-
146	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> L=439 SERVICED BY L=450	1-47426-405-0	01	1	9401-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=12" SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=8" SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=1/2" SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	06	1	9307-9312
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	05	1	9401-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-253-0	AR	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9401-
193	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	9002-9306
193	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M18	1-09660-213-0	AR	1	9002-9306
193	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> UNS 11/16-20	1-09660-558-0	AR	1	9307-
193	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	20	1	9307-9312
193	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	18	1	9401-
194	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=8.15 OD=11 L=9.5	1-09666-042-0	AR	1	9002-9306
194	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=12.15 OD=15 L=10	1-09666-043-0	AR	1	9002-9306
194	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 1/2" TUBE ID=12.93 OD=15.85 L=10.92	1-09666-061-0	AR	1	9307-
194	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	20	1	9307-9312
194	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	18	1	9401-
195	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	9002-9306
195	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09669-055-0	AR	1	9002-9306
195	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 1/2" TUBE	1-09669-107-0	AR	1	9307-
195	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09669-108-0	20	1	9307-9312
195	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09669-108-0	18	1	9401-

126 61 126 82 181 181 180 76 89 185 61 127 143 181 129 126 126 126 204 126 127 129 60 61 181 126 180 83 61 146 97 262 46 174 146 37 46 46 37 80 105 80 105 60 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE (A) M22	9-09235-215-1	01	1	9002-9306
37	UNION; AIR PIPE (K) M20	9-09235-212-1	01	1	9002-9306
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (I) M16	1-09654-148-1	01	1	9002-
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (H) M16	9-09238-310-1	01	1	9002-
37	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (H) M16	9-09238-310-1	01	1	9002-
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (G) M16 L=42	9-09233-010-1	01	1	9002-
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (G) M16 L=42	9-09233-010-1	01	1	9002-
37	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (J) M18XM22	1-09660-222-0	01	1	9002-9306
37	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (F) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9307-
37	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (E)	1-09650-251-1	01	1	9307-
37	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) M22	9-09235-215-1	01	1	9307-
37	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (K) M20	9-09235-212-1	01	1	9307-
37	UNION; AIR PIPE 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-09650-003-1	02	1	9307-
37	UNION; AIR PIPE 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-09656-088-0	02	1	9307-
37	UNION; AIR PIPE 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	9-09903-782-1	02	1	9307-
46	NIPPLE; AIR PIPE (C) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9002-9305
46	NIPPLE; AIR PIPE (J) M20	1-09650-251-1	01	1	9307-
46	NIPPLE; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A) M14 2WAY	1-09654-176-2	01	1	9002-
46	NIPPLE; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (K)	9-09228-308-0	01	1	9002-9003
46	NIPPLE; AIR PIPE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> (K)	9-09228-308-0	01	1	9002-9003
46	NIPPLE; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (K)	9-09228-308-1	01	1	9004-
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-301-0	01	1	9002-9306
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (E) M14	9-09223-208-1	02	1	9002-9306
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (F) M16 L=70 STRAIGHT	9-09233-210-1	03	1	9002-9306
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (G) M20 L=77.5	9-09233-212-1	01	1	9002-9306
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (D) M20 ELBOW	9-09235-112-1	01	1	9002-9306
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (C) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9307-
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (M)	1-09654-119-1	01	1	9401-
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-09650-100-1	01	1	9002-9305
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9306-9306
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (J) M20	1-09650-251-1	01	1	9002-9306
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (J) M14X35	1-09650-272-2	01	1	9002-9306
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (L) M20 STRAIGHT	9-09233-012-1	01	1	9002-
46	NIPPLE; AIR PIPE 10PD1 STD ENG(40L) (H) M14 STRAIGHT	9-09223-008-1	01	1	9002-
46	NIPPLE; AIR PIPE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (C) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9307-
46	NIPPLE; AIR PIPE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (J) M14X35	1-09650-272-2	01	1	9307-
60	NUT; NIPPLE,AIR PIPE M22	9-09111-422-0	01	1	9002-9306
60	NUT; NIPPLE,AIR PIPE M20	9-99111-420-0	01	1	9307-9312
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	02	1	9401-
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M14	9-99110-414-0	01	1	9002-9306
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M16	9-99110-416-0	01	1	9002-9306
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M20	9-99110-420-0	01	1	9002-
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	01	1	9002-9306
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	01	1	9002-9306
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	02	1	9002-9306
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9002-9003
60	NUT; NIPPLE,AIR PIPE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9002-9003
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9004-9304
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9305-9306
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9002-9306
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M22	9-09111-422-0	01	1	9307-
60	NUT; NIPPLE,AIR PIPE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) M20	9-99111-420-0	01	1	9401-
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9307-
61	WASHER; LK,NIPPLE ID=22.5	9-09150-522-0	01	1	9002-9306
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	02	1	9002-9306
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	03	1	9002-9306
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	04	1	9002-9306
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	03	1	9307-9312
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	05	1	9401-
61	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9003
61	WASHER; LK,NIPPLE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9003
61	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9004-9312
61	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9002-9306
61	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=22.5	9-09150-522-0	01	1	9307-9312
61	WASHER; LK,NIPPLE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) ID=20.2	9-09150-520-0	01	1	9307-
76	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M20X36	1-09660-576-0	02	1	9307-
80	HOSE; FLEX,POWER CHAMBER NYLON TUBE AIR PIPING<Z29> L=550	0-07909-550-0	02	1	9002-9306
80	HOSE; FLEX,POWER CHAMBER NYLON TUBE AIR PIPING<Z29> L=550	0-07909-550-0	01	1	9307-
80	HOSE; FLEX,POWER CHAMBER 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> L=480	0-07909-480-0	02	1	9307-
82	SLEEVE; RUBBER,NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=17 OD=21 L=40	1-09337-012-0	01	1	9002-9306
82	SLEEVE; RUBBER,NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=17 OD=21 L=40	1-09337-012-0	02	1	9307-
82	SLEEVE; RUBBER,NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=29 OD=39 L=40	1-09337-013-0	02	1	9401-
82	SLEEVE; RUBBER,NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=27 OD=31 L=150	1-09360-677-1	01	1	9401-
83	GROMMET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=28 OD=35 T=25	1-09332-011-1	01	1	9307-
83	GROMMET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=28 OD=35 T=17	9-09956-256-1	04	1	9307-
89	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M18XM20	1-09660-221-0	01	1	9002-9306
89	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29>	1-47459-002-0	02	1	9307-
97	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A) M22	1-09656-099-1	01	1	9002-
97	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-09656-495-1	01	1	9002-9306
97	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B)	1-09656-495-1	01	1	9307-
97	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (C) M16 L=42	9-09233-010-1	02	1	9401-
105	HOSE; FLEX NYLON TUBE AIR PIPING<Z29> L=550	0-07909-550-0	01	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (H) M14 3WAY	1-09664-066-0	02	1	9002-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (F)	1-47470-231-0	01	1	9002-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (G) M16 ELBOW	9-09235-110-1	01	1	9002-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (I)	1-09660-545-0	01	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) UNS 17/32-24 L=57	1-09664-083-0	03	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (E)	1-47470-312-0	01	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A)	1-47470-313-0	01	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M20 L=77.5	9-09233-212-1	01	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M20 ELBOW	9-09235-112-1	01	1	9307-
127	NUT; UNION NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	02	1	9002-9304
127	NUT; UNION NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	02	1	9305-9306
127	NUT; UNION NYLON TUBE AIR PIPING<Z29> UNS 17/32-24 B=17	1-09487-023-0	02	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (G) M14-M14	1-09660-219-0	02	1	9002-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (J) M16-M14	1-09660-220-0	02	1	9002-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (K) M20-M18	1-09660-221-0	02	1	9002-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (H) M22-M18	1-09660-222-0	01	1	9002-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (I) M16-M18	1-09660-223-0	01	1	9002-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (I) M16-M18	1-09660-223-0	02	1	9002-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M12-UNS 17/32-24	1-09650-373-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D)	1-09660-335-1	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (F) PT1/4-UNS 17/32-24 17/32" PT1/4	1-09660-573-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (E) M20-UNS 11/16-20	1-09660-576-0	05	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) PT1/4-UNS 17/32-24	1-09660-606-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) PT1/4-UNS17/32-24	1-09660-608-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (L)	1-09660-609-0	01	1	9410-
143	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9307-
146	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> L=1290 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306
146	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> L=337 SERVICED BY L=350	1-47426-403-0	01	1	9401-
146	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> L=439 SERVICED BY L=450	1-47426-405-0	01	1	9401-
174	NIPPLE; FLEX HOSE NYLON TUBE AIR PIPING<Z29>	1-09654-119-1	01	1	9401-
180	GASKET; FLEX HOSE NYLON TUBE AIR PIPING<Z29> ID=17.5	9-09572-515-0	02	1	9002-9306
180	GASKET; FLEX HOSE NYLON TUBE AIR PIPING<Z29> ID=17.5	9-09572-515-0	01	1	9307-9312
180	GASKET; FLEX HOSE NYLON TUBE AIR PIPING<Z29> ID=17.5	9-09572-515-0	02	1	9401-
180	GASKET; FLEX HOSE 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> ID=11 OD=18	9-09572-510-0	02	1	9307-
181	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> (C) M16	9-99111-416-0	01	1	9002-9306
181	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> (D) UNS 17/32-24 B=17	1-09487-023-0	01	1	9307-
181	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> (A) M12	9-99110-312-0	01	1	9307-
181	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> (B) M20	9-99110-420-0	01	1	9307-
185	NUT; NIPPLE NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9002-9312
185	NUT; NIPPLE NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	02	1	9401-
204	BRACKET; TUBE UNION NYLON TUBE AIR PIPING<Z29>	1-47476-345-0	01	1	9002-9306
204	BRACKET; TUBE UNION NYLON TUBE AIR PIPING<Z29>	1-47476-893-0	01	1	9307-
262	BRACKET NYLON TUBE AIR PIPING<Z29>	1-47477-231-0	02	1	9401-

195 193 194 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=12" SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=8" SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=1/2" SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	06	1	9307-9312
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	05	1	9401-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-253-0	AR	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9401-
193	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	9002-9306
193	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M18	1-09660-213-0	AR	1	9002-9306
193	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> UNS 11/16-20	1-09660-558-0	AR	1	9307-
193	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	20	1	9307-9312
193	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	18	1	9401-
194	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=8.15 OD=11 L=9.5	1-09666-042-0	AR	1	9002-9306
194	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=12.15 OD=15 L=10	1-09666-043-0	AR	1	9002-9306
194	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 1/2" TUBE ID=12.93 OD=15.85 L=10.92	1-09666-061-0	AR	1	9307-
194	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	20	1	9307-9312
194	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	18	1	9401-
195	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	9002-9306
195	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09669-055-0	AR	1	9002-9306
195	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 1/2" TUBE	1-09669-107-0	AR	1	9307-
195	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09669-108-0	20	1	9307-9312
195	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09669-108-0	18	1	9401-

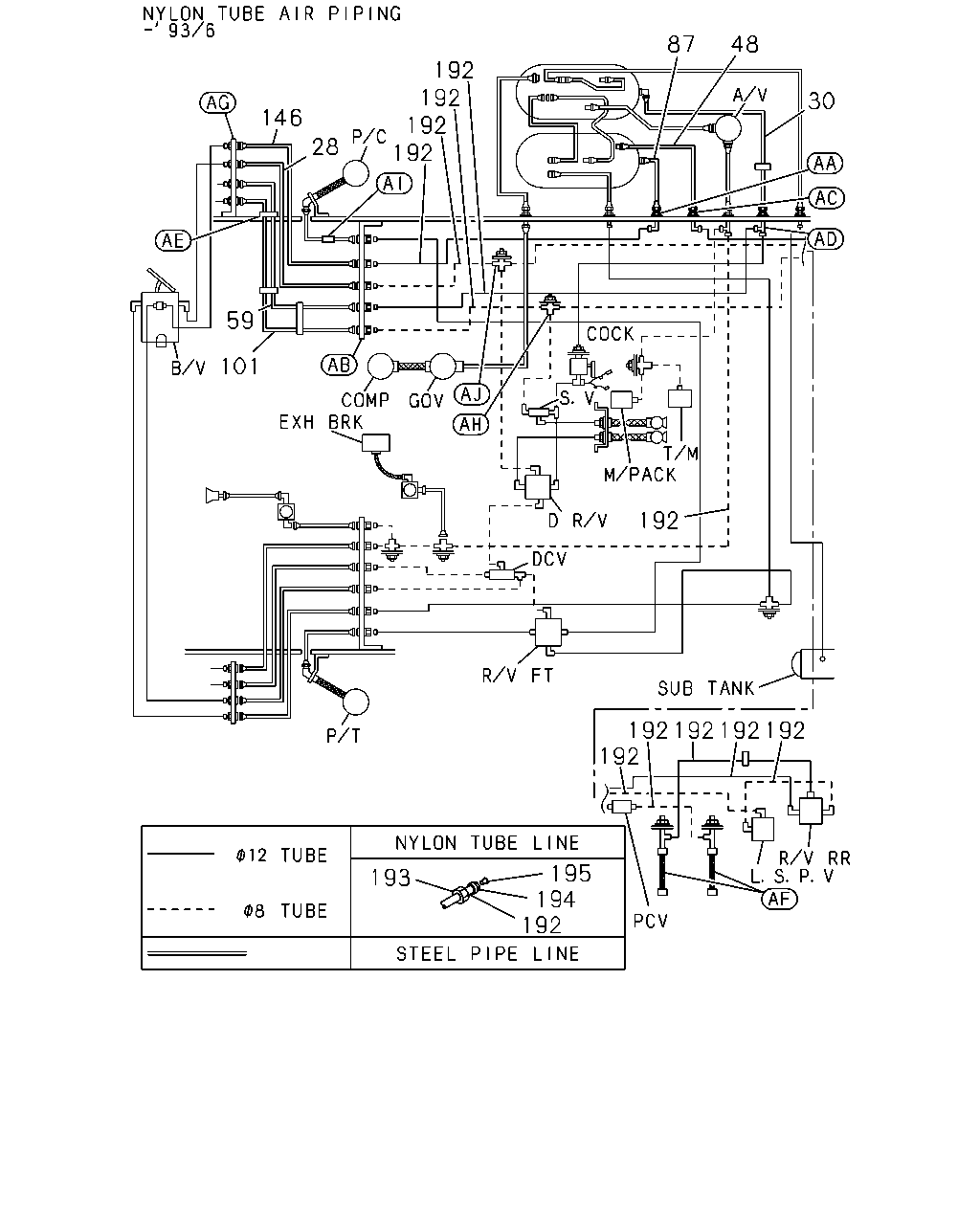

87 48 192 192 192 192 30 146 28 59 101 192 192 195 194 192 193 192 192 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=2953 SERVICED BY L=3300	1-47434-416-0	01	1	9002-9002
28	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=2971 SERVICED BY L=3300	1-47434-416-0	01	1	9003-9009
28	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=2978 SERVICED BY L=3300	1-47434-416-0	01	1	9010-9306
28	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=3074 SERVICED BY L=3300	1-47426-398-0	01	1	9307-
28	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> L=1291 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1697 SERVICED BY L=1700	1-47434-412-0	01	1	9002-9009
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1704 SERVICED BY L=1800	1-47434-413-0	01	1	9010-9306
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1758 SERVICED BY L=1800	1-47426-392-0	01	1	9307-
30	PIPE; AIR,AIR TANK TO JOINT L=868 SERVICED BY L=1000	1-47434-491-0	01	1	9002-9306
30	PIPE; AIR,AIR TANK TO JOINT EXC. NYLON TUBE AIR PIPING<Z29> L=868 SERVICED BY L=1000	1-47434-491-0	01	1	9307-
48	PIPE; AIR,AIR TANK TO UNION L=708 SERVICED BY L=1000	1-47434-491-0	01	1	9002-9306
48	PIPE; AIR,AIR TANK TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=708 SERVICED BY L=1000	1-47434-491-0	01	1	9307-
59	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1139 SERVICED BY L=1200	1-47437-983-0	01	1	9002-9306
59	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1121 SERVICED BY L=1200	1-49111-445-0	01	1	9307-
59	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> L=1361 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306
59	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1435 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306
59	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1418 SERVICED BY L=1450	1-49111-447-0	01	1	9307-
87	PIPE; AIR,AIR TANK TO UNION L=668 SERVICED BY L=730	1-47437-979-0	01	1	9002-9306
87	PIPE; AIR,AIR TANK TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=668 SERVICED BY L=700	1-49111-439-0	01	1	9307-
101	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1205 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306
101	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1180 SERVICED BY L=1250	1-47426-416-0	01	1	9307-
101	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> L=1410 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306
101	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1519 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306
101	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1466 SERVICED BY L=1550	1-47426-419-0	01	1	9307-
146	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> L=1290 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306
146	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> L=337 SERVICED BY L=350	1-47426-403-0	01	1	9401-
146	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> L=439 SERVICED BY L=450	1-47426-405-0	01	1	9401-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=12" SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=8" SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=1/2" SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	06	1	9307-9312
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	05	1	9401-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-253-0	AR	1	9307-
192	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9401-
193	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	9002-9306
193	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M18	1-09660-213-0	AR	1	9002-9306
193	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> UNS 11/16-20	1-09660-558-0	AR	1	9307-
193	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	20	1	9307-9312
193	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	18	1	9401-
194	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=8.15 OD=11 L=9.5	1-09666-042-0	AR	1	9002-9306
194	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=12.15 OD=15 L=10	1-09666-043-0	AR	1	9002-9306
194	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 1/2" TUBE ID=12.93 OD=15.85 L=10.92	1-09666-061-0	AR	1	9307-
194	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	20	1	9307-9312
194	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	18	1	9401-
195	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	9002-9306
195	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09669-055-0	AR	1	9002-9306
195	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 1/2" TUBE	1-09669-107-0	AR	1	9307-
195	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09669-108-0	20	1	9307-9312
195	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09669-108-0	18	1	9401-

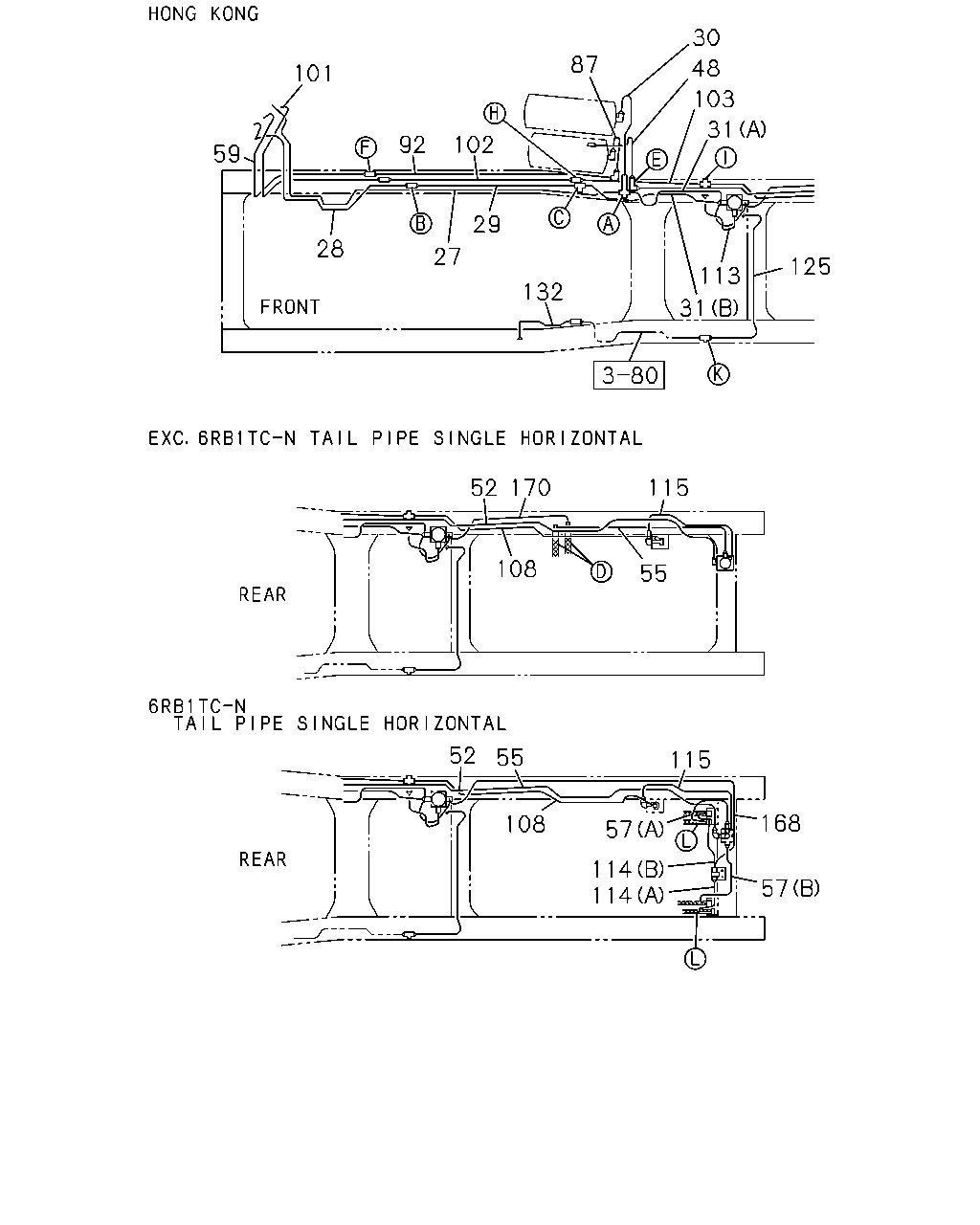

30 87 48 101 103 31 92 102 59 29 28 27 125 113 132 31 52 170 115 108 55 52 55 115 57 168 108 114 114 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=3188 SERVICED BY L=3300	1-47437-975-0	01	1	9002-9306
27	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=3188 SERVICED BY L=3300	1-47426-426-0	01	1	9307-
27	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=3181 SERVICED BY L=3300	1-47437-975-0	01	1	9002-9306
27	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=3181 SERVICED BY L=3300	1-47426-426-0	01	1	9307-
28	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=2953 SERVICED BY L=3300	1-47434-416-0	01	1	9002-9002
28	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=2971 SERVICED BY L=3300	1-47434-416-0	01	1	9003-9009
28	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=2978 SERVICED BY L=3300	1-47434-416-0	01	1	9010-9306
28	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=3074 SERVICED BY L=3300	1-47426-398-0	01	1	9307-
28	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> L=1291 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1697 SERVICED BY L=1700	1-47434-412-0	01	1	9002-9009
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1704 SERVICED BY L=1800	1-47434-413-0	01	1	9010-9306
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1758 SERVICED BY L=1800	1-47426-392-0	01	1	9307-
29	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) L=1257 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306
29	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) L=1257 SERVICED BY L=1400	1-47426-389-0	01	1	9307-
30	PIPE; AIR,AIR TANK TO JOINT L=868 SERVICED BY L=1000	1-47434-491-0	01	1	9002-9306
30	PIPE; AIR,AIR TANK TO JOINT EXC. NYLON TUBE AIR PIPING<Z29> L=868 SERVICED BY L=1000	1-47434-491-0	01	1	9307-
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=1076 SERVICED BY L=1100	1-47426-387-0	01	1	9002-
31	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1098	1-47487-498-0	01	1	9002-
48	PIPE; AIR,AIR TANK TO UNION L=708 SERVICED BY L=1000	1-47434-491-0	01	1	9002-9306
48	PIPE; AIR,AIR TANK TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=708 SERVICED BY L=1000	1-47434-491-0	01	1	9307-
52	PIPE; AIR,UNION TO RELAY VLV HONG KONG EQUIPMENT(PQ1) L=2522	1-47486-763-0	01	1	9002-9306
52	PIPE; AIR,UNION TO RELAY VLV HONG KONG EQUIPMENT(PQ1) L=2534 SERVICED BY L=2750	1-49111-469-0	01	1	9307-
52	PIPE; AIR,UNION TO RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=2494 SERVISCED BY L=2500	1-47434-494-0	01	1	9002-9306
52	PIPE; AIR,UNION TO RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=2507 SERVICED BY L=2750	1-49111-469-0	01	1	9307-
55	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=1260 SERVICED BY L=1300	1-47434-486-0	01	1	9002-9306
55	PIPE; AIR,RELAY VLV TO FLEX HOSE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) L=1260 SERVICED BY L=1450	1-49111-447-0	01	1	9307-
57	PIPE; AIR,RELAY VLV TO FLEX HOSE 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> (A) L=536 SERVICED BY L=550	1-49111-436-0	01	1	9307-
57	PIPE; AIR,RELAY VLV TO FLEX HOSE 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=748 SERVICED BY L=800	1-49111-441-0	01	1	9307-9501
57	PIPE; AIR,RELAY VLV TO FLEX HOSE 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-49115-731-0	01	1	9502-
59	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1139 SERVICED BY L=1200	1-47437-983-0	01	1	9002-9306
59	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1121 SERVICED BY L=1200	1-49111-445-0	01	1	9307-
59	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> L=1361 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306
59	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1435 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306
59	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1418 SERVICED BY L=1450	1-49111-447-0	01	1	9307-
87	PIPE; AIR,AIR TANK TO UNION L=668 SERVICED BY L=730	1-47437-979-0	01	1	9002-9306
87	PIPE; AIR,AIR TANK TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=668 SERVICED BY L=700	1-49111-439-0	01	1	9307-
92	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=2157 SERVICED BY L=2250	1-47437-987-0	01	1	9002-9306
92	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=2160 SERVICED BY L=2250	1-49111-451-0	01	1	9307-
92	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) L=1860 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306
92	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) L=1861 SERVICED BY L=2000	1-49111-450-0	01	1	9307-
101	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1205 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306
101	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1180 SERVICED BY L=1250	1-47426-416-0	01	1	9307-
101	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> L=1410 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306
101	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1519 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306
101	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1466 SERVICED BY L=1550	1-47426-419-0	01	1	9307-
102	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1510 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306
102	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1514 SERVICED BY L=1550	1-47426-419-0	01	1	9307-
102	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) L=1205 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306
102	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) L=1240 SERVICED BY L=1250	1-47426-416-0	01	1	9307-
103	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1229 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306
103	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1229 SERVICED BY L=1250	1-47426-416-0	01	1	9307-
103	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1284 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306
103	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1284 SERVICED BY L=1300	1-47426-417-0	01	1	9307-
108	PIPE; AIR,UNION TO LSPV HONG KONG EQUIPMENT(PQ1) L=1451 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306
108	PIPE; AIR,UNION TO LSPV HONG KONG EQUIPMENT(PQ1) L=1451 SERVICED BY L=1550	1-47426-419-0	01	1	9307-
108	PIPE; AIR,UNION TO LSPV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1366 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306
108	PIPE; AIR,UNION TO LSPV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1366 SERVICED BY L=1400	1-47426-418-0	01	1	9307-
113	PIPE; AIR,UNION TO RELAY VLV HONG KONG EQUIPMENT(PQ1) L=340 SERVICED BY L=400	1-47434-471-1	01	1	9002-9306
113	PIPE; AIR,UNION TO RELAY VLV HONG KONG EQUIPMENT(PQ1) L=400 SERVICED BY L=400	1-47426-404-0	01	1	9307-
114	PIPE; AIR,QUICK RELEASE VLV 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> HONG KONG EQUIPMENT(PQ1) (A) L=460 SERVICED BY L=500	1-47426-406-0	01	1	9307-
114	PIPE; AIR,QUICK RELEASE VLV 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> HONG KONG EQUIPMENT(PQ1) (B) L=568 SERVICED BY L=600	1-47426-408-0	01	1	9307-
115	PIPE; AIR,LSPV TO RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> L=701 SERVICED BY L=730	1-47437-965-0	01	1	9002-9306
115	PIPE; AIR,LSPV TO RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> L=702 SERVICED BY L=730	1-47426-411-0	01	1	9307-
125	PIPE ASM; AIR,RELAY VLV TO UNION HONG KONG EQUIPMENT(PQ1) L=1201 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9206
125	PIPE ASM; AIR,RELAY VLV TO UNION HONG KONG EQUIPMENT(PQ1) L=1188 SERVICED BY L=1400	1-47437-969-0	01	1	9207-9306
125	PIPE ASM; AIR,RELAY VLV TO UNION HONG KONG EQUIPMENT(PQ1) L=1188 SERVICED BY L=1250	1-47426-416-0	01	1	9307-
132	PIPE ASM; AIR,2 WAY TO SUPPLY DUMP VLV HONG KONG EQUIPMENT(PQ1) L=719 SERVICED BY L=730	1-47426-411-0	01	1	9002-
168	PIPE; AIR,RELAY VALVE TO QUICK RELEASE 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> HONG KONG EQUIPMENT(PQ1) L=2382 SERVICED BY L=2400	1-47426-395-0	01	1	9307-
170	PIPE; AIR,RELAY VLV TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) L=1088 SERVICED BY L=1100	1-47434-409-0	01	1	9002-9306
170	PIPE; AIR,RELAY VLV TO FLEX HOSE 10PD1 STD ENG(40L) HONG KONG EQUIPMENT(PQ1) L=1088 SERVICED BY L=1100	1-47426-387-0	01	1	9307-

37 37 79 37 163 91 180 37 180 160 80 47 88 98 54 67 100 47 98 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE (A) M22	9-09235-215-1	01	1	9002-9306
37	UNION; AIR PIPE (K) M20	9-09235-212-1	01	1	9002-9306
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (I) M16	1-09654-148-1	01	1	9002-
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (H) M16	9-09238-310-1	01	1	9002-
37	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (H) M16	9-09238-310-1	01	1	9002-
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (G) M16 L=42	9-09233-010-1	01	1	9002-
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (G) M16 L=42	9-09233-010-1	01	1	9002-
37	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (J) M18XM22	1-09660-222-0	01	1	9002-9306
37	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (F) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9307-
37	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (E)	1-09650-251-1	01	1	9307-
37	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) M22	9-09235-215-1	01	1	9307-
37	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (K) M20	9-09235-212-1	01	1	9307-
37	UNION; AIR PIPE 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-09650-003-1	02	1	9307-
37	UNION; AIR PIPE 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-09656-088-0	02	1	9307-
37	UNION; AIR PIPE 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	9-09903-782-1	02	1	9307-
47	WASHER; LK,HOSE BRKT 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=16.2	9-09150-516-0	02	1	9307-
47	WASHER; LK,HOSE BRKT 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> (B) ID=20.2	9-09150-520-0	02	1	9307-
54	WASHER; LK,UNION HONG KONG EQUIPMENT(PQ1) ID=12.2	9-09150-512-0	01	1	9002-9312
67	NUT; HOSE BRKT 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	04	1	9307-
79	BOLT; HOSE BRKT 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 FLANGE	0-28080-830-0	04	1	9307-
80	HOSE; FLEX,POWER CHAMBER NYLON TUBE AIR PIPING<Z29> L=550	0-07909-550-0	02	1	9002-9306
80	HOSE; FLEX,POWER CHAMBER NYLON TUBE AIR PIPING<Z29> L=550	0-07909-550-0	01	1	9307-
80	HOSE; FLEX,POWER CHAMBER 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> L=480	0-07909-480-0	02	1	9307-
88	WASHER; LK,PIPE UNION ID=20.2	9-09150-520-0	01	1	9002-9306
88	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9307-
88	WASHER; LK,PIPE UNION HONG KONG EQUIPMENT(PQ1) ID=12.2	9-09150-512-0	01	1	9002-9312
88	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9312
88	WASHER; LK,PIPE UNION NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	01	1	9002-9306
91	NUT; PIPE UNION M20	9-99111-420-0	01	1	9002-9306
91	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9307-
91	NUT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M12	9-99110-412-0	01	1	9002-9304
91	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9002-9304
91	NUT; PIPE UNION NYLON TUBE AIR PIPING<Z29> M16	9-99110-416-0	01	1	9002-9306
91	NUT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M12	9-99110-512-0	01	1	9305-
91	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9305-
98	NUT; PIPE UNION M22	9-09111-422-0	01	1	9002-9306
98	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9002-9306
98	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M22	9-09111-422-0	01	1	9307-
98	NUT; PIPE UNION 6RB1 STD ENG(07L),10PD1 STD ENG(40L) M20	9-99111-420-0	01	1	9307-
98	NUT; PIPE UNION 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> M16	9-99111-416-0	02	1	9307-
98	NUT; PIPE UNION 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> M20	9-99111-420-0	02	1	9307-
100	NUT; UNION HONG KONG EQUIPMENT(PQ1) M12	9-99110-512-0	01	1	9002-
160	HOSE; FLEX,SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> L=550	0-07909-550-0	01	1	9002-9306
160	HOSE; FLEX,SPR CHAMBER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) L=550	0-07909-550-0	01	1	9307-
160	HOSE; FLEX,SPR CHAMBER 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> L=470	0-07847-470-1	02	1	9307-
163	BRACKET; FLEX HOSE 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2>	1-47477-060-0	01	1	9307-
163	BRACKET; FLEX HOSE 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2>	1-47477-059-0	01	1	9307-
180	GASKET; FLEX HOSE NYLON TUBE AIR PIPING<Z29> ID=17.5	9-09572-515-0	02	1	9002-9306
180	GASKET; FLEX HOSE NYLON TUBE AIR PIPING<Z29> ID=17.5	9-09572-515-0	01	1	9307-9312
180	GASKET; FLEX HOSE NYLON TUBE AIR PIPING<Z29> ID=17.5	9-09572-515-0	02	1	9401-
180	GASKET; FLEX HOSE 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> ID=11 OD=18	9-09572-510-0	02	1	9307-

18 19 27 214 222 221 17 17 5 217 20 17 25 26 220 220 222 126 221 129 129 221 129 129 126 129 126 129 205 224 129 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	PIPE; AIR,UNION TO PARKING VLV HONG KONG EQUIPMENT(PQ1) (A) L=368 SERVICED BY L=400	1-47434-471-0	01	1	9002-9306
5	PIPE; AIR,UNION TO PARKING VLV HONG KONG EQUIPMENT(PQ1) (A) L=369 SERVICED BY L=400	1-47426-404-0	01	1	9307-
5	PIPE; AIR,UNION TO PARKING VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=430	1-47445-967-2	01	1	9002-9212
5	PIPE; AIR,UNION TO PARKING VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (C) L=430	1-47495-965-0	01	1	9301-
5	PIPE; AIR,UNION TO PARKING VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=283	1-47446-021-0	01	1	9002-9306
5	PIPE; AIR,UNION TO PARKING VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=284	1-47495-968-0	01	1	9307-
17	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B)	1-47470-205-1	01	1	9002-
17	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (C)	1-47470-278-1	01	1	9002-
17	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (D) M14	9-09223-208-1	01	1	9002-
17	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A)	1-47470-183-3	01	1	9002-
18	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=2692 SERVICED BY L=2700	1-47434-415-0	01	1	9002-9306
18	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=2692 SERVICED BY L=3000	1-47426-397-0	01	1	9307-
18	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=994 SERVICED BY L=1000	1-47437-956-0	01	1	9002-9306
18	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1240 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306
18	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=994 SERVICED BY L=1100	1-47426-387-0	01	1	9307-
18	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1240 SERVICED BY L=1300	1-47426-417-0	01	1	9307-
19	NUT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M14	9-99111-414-0	02	1	9002-9501
19	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	02	1	9002-9501
19	NUT; PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	01	1	9502-
19	NUT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M14	9-99111-414-0	01	1	9502-
19	NUT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M14	9-99111-414-0	01	1	9502-
19	NUT; PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	01	1	9002-9501
19	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	02	1	9502-
19	NUT; PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	01	1	9002-
19	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	02	1	9002-
20	WASHER; LK,PIPE UNION HONG KONG EQUIPMENT(PQ1) ID=14.2	9-09150-514-0	01	1	9002-
20	WASHER; LK,PIPE UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	01	1	9002-
25	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B) M14	1-09656-391-2	01	1	9002-
25	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (C) M16	1-09656-579-1	01	1	9002-
25	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A) M14	9-09225-008-1	01	1	9002-
25	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) M14	9-09223-308-1	01	1	9002-
25	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) M16 L=70 STRAIGHT	9-09233-210-1	01	1	9002-
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=1447 SERVICED BY L=1550	1-47437-957-0	01	1	9002-9306
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (C) L=1447 SERVICED BY L=1550	1-47426-390-0	01	1	9307-
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1311 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=1308 SERVICED BY L=1400	1-47426-418-0	01	1	9307-
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=1677	1-47481-086-0	01	1	9002-9306
26	PIPE; AIR,FLEX HOSE TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=1677	1-47495-973-0	01	1	9307-
26	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1521 SERVICED BY L=1550	1-47437-957-0	01	1	9002-9306
26	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (A) L=1522	1-47495-972-0	01	1	9307-
26	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1488	1-47447-663-2	01	1	9002-9306
26	PIPE; AIR,FLEX HOSE TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1489	1-47495-961-0	01	1	9307-
27	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=3188 SERVICED BY L=3300	1-47437-975-0	01	1	9002-9306
27	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=3188 SERVICED BY L=3300	1-47426-426-0	01	1	9307-
27	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=3181 SERVICED BY L=3300	1-47437-975-0	01	1	9002-9306
27	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=3181 SERVICED BY L=3300	1-47426-426-0	01	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (H) M14 3WAY	1-09664-066-0	02	1	9002-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (F)	1-47470-231-0	01	1	9002-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (G) M16 ELBOW	9-09235-110-1	01	1	9002-9306
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (I)	1-09660-545-0	01	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D) UNS 17/32-24 L=57	1-09664-083-0	03	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (E)	1-47470-312-0	01	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A)	1-47470-313-0	01	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M20 L=77.5	9-09233-212-1	01	1	9307-
126	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M20 ELBOW	9-09235-112-1	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (G) M14-M14	1-09660-219-0	02	1	9002-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (J) M16-M14	1-09660-220-0	02	1	9002-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (K) M20-M18	1-09660-221-0	02	1	9002-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (H) M22-M18	1-09660-222-0	01	1	9002-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (I) M16-M18	1-09660-223-0	01	1	9002-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (I) M16-M18	1-09660-223-0	02	1	9002-9306
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M12-UNS 17/32-24	1-09650-373-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (D)	1-09660-335-1	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (F) PT1/4-UNS 17/32-24 17/32" PT1/4	1-09660-573-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (E) M20-UNS 11/16-20	1-09660-576-0	05	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) PT1/4-UNS 17/32-24	1-09660-606-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) PT1/4-UNS17/32-24	1-09660-608-0	01	1	9307-
129	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (L)	1-09660-609-0	01	1	9410-
205	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9307-9312
205	BOLT; TUBE CLIP NYLON TUBE AIR PIPING<Z29> M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9401-9409
214	BOLT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204
214	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204
214	BOLT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302
214	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302
214	BOLT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M6X16 FLANGE	0-28080-616-0	02	1	9303-
214	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9303-
217	PIPE; AIR,PARKING BRK VLV TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=709 SERVICED BY L=660	1-47437-954-0	01	1	9002-9306
217	PIPE; AIR,PARKING BRK VLV TO UNION HONG KONG EQUIPMENT(PQ1) (A) L=709 SERVICED BY L=730	1-47426-382-0	01	1	9307-
217	PIPE; AIR,PARKING BRK VLV TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=361 SERVICED BY L=400	9-47415-378-0	01	1	9002-9306
217	PIPE; AIR,PARKING BRK VLV TO UNION HONG KONG EQUIPMENT(PQ1) (B) L=362 SERVICED BY L=400	1-47426-374-0	01	1	9307-
220	HOSE; VINYL,EXH,PARKING BRK VLV EXC. HONG KONG EQUIPMENT(PQ1) (B) L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306
220	HOSE; VINYL,EXH,PARKING BRK VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B) L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9307-
220	HOSE; VINYL,EXH,PARKING BRK VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9002-
221	CONNECTOR; EXH HONG KONG EQUIPMENT(PQ1)	1-47470-262-0	01	1	9002-
221	CONNECTOR; EXH EXC. HONG KONG EQUIPMENT(PQ1)	1-47470-166-0	01	1	9002-9306
221	CONNECTOR; EXH EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29>	1-47470-166-0	01	1	9307-
221	CONNECTOR; EXH NYLON TUBE AIR PIPING<Z29>	1-47470-336-0	01	1	9307-
222	BOLT; CONNECTOR HONG KONG EQUIPMENT(PQ1) M6X20	9-01910-620-0	01	1	9002-9005
222	BOLT; CONNECTOR HONG KONG EQUIPMENT(PQ1) M6X20 W/LK WASHER	0-50040-620-0	01	1	9006-9302
222	BOLT; CONNECTOR HONG KONG EQUIPMENT(PQ1) M6X20 FLANGE	0-28080-620-0	01	1	9303-
222	BOLT; CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204
222	BOLT; CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302
222	BOLT; CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1) M6X16 FLANGE	0-28080-616-0	02	1	9303-9312
222	BOLT; CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1) M6X20 FLANGE	0-28080-620-0	02	1	9401-
224	BOLT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50000-616-0	02	1	9002-9204
224	BOLT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50080-616-0	02	1	9205-9301
224	BOLT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	02	1	9302-9302
224	BOLT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9303-9306
224	BOLT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	04	1	9307-9312
224	BOLT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M6X20 FLANGE	0-28080-620-0	04	1	9401-

60 60 61 61 97 97 46 64 46 46 49 98 60 46 46 61 98 49 46 37 37 60 91 61 88 37 37 37 71 80 160

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE (A) M22	9-09235-215-1	01	1	9002-9306
37	UNION; AIR PIPE (K) M20	9-09235-212-1	01	1	9002-9306
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (I) M16	1-09654-148-1	01	1	9002-
37	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (H) M16	9-09238-310-1	01	1	9002-
37	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (H) M16	9-09238-310-1	01	1	9002-
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (G) M16 L=42	9-09233-010-1	01	1	9002-
37	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (G) M16 L=42	9-09233-010-1	01	1	9002-
37	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (J) M18XM22	1-09660-222-0	01	1	9002-9306
37	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (F) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9307-
37	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (E)	1-09650-251-1	01	1	9307-
37	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) M22	9-09235-215-1	01	1	9307-
37	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (K) M20	9-09235-212-1	01	1	9307-
37	UNION; AIR PIPE 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-09650-003-1	02	1	9307-
37	UNION; AIR PIPE 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-09656-088-0	02	1	9307-
37	UNION; AIR PIPE 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> (D)	9-09903-782-1	02	1	9307-
46	NIPPLE; AIR PIPE (C) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9002-9305
46	NIPPLE; AIR PIPE (J) M20	1-09650-251-1	01	1	9307-
46	NIPPLE; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A) M14 2WAY	1-09654-176-2	01	1	9002-
46	NIPPLE; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (K)	9-09228-308-0	01	1	9002-9003
46	NIPPLE; AIR PIPE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> (K)	9-09228-308-0	01	1	9002-9003
46	NIPPLE; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (K)	9-09228-308-1	01	1	9004-
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-301-0	01	1	9002-9306
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (E) M14	9-09223-208-1	02	1	9002-9306
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (F) M16 L=70 STRAIGHT	9-09233-210-1	03	1	9002-9306
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (G) M20 L=77.5	9-09233-212-1	01	1	9002-9306
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (D) M20 ELBOW	9-09235-112-1	01	1	9002-9306
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (C) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9307-
46	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> (M)	1-09654-119-1	01	1	9401-
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-09650-100-1	01	1	9002-9305
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9306-9306
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (J) M20	1-09650-251-1	01	1	9002-9306
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (J) M14X35	1-09650-272-2	01	1	9002-9306
46	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (L) M20 STRAIGHT	9-09233-012-1	01	1	9002-
46	NIPPLE; AIR PIPE 10PD1 STD ENG(40L) (H) M14 STRAIGHT	9-09223-008-1	01	1	9002-
46	NIPPLE; AIR PIPE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (C) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9307-
46	NIPPLE; AIR PIPE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (J) M14X35	1-09650-272-2	01	1	9307-
49	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	9002-9306
49	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9002-9306
49	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=22.5	9-09150-522-0	01	1	9307-9312
49	WASHER; LK,PIPE UNION 6RB1 STD ENG(07L),10PD1 STD ENG(40L) ID=20.2	9-09150-520-0	01	1	9307-
60	NUT; NIPPLE,AIR PIPE M22	9-09111-422-0	01	1	9002-9306
60	NUT; NIPPLE,AIR PIPE M20	9-99111-420-0	01	1	9307-9312
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	02	1	9401-
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M14	9-99110-414-0	01	1	9002-9306
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M16	9-99110-416-0	01	1	9002-9306
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M20	9-99110-420-0	01	1	9002-
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	01	1	9002-9306
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	01	1	9002-9306
60	NUT; NIPPLE,AIR PIPE NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	02	1	9002-9306
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9002-9003
60	NUT; NIPPLE,AIR PIPE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9002-9003
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9004-9304
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9305-9306
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9002-9306
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M22	9-09111-422-0	01	1	9307-
60	NUT; NIPPLE,AIR PIPE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) M20	9-99111-420-0	01	1	9401-
60	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9307-
61	WASHER; LK,NIPPLE ID=22.5	9-09150-522-0	01	1	9002-9306
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	02	1	9002-9306
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	03	1	9002-9306
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	04	1	9002-9306
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	03	1	9307-9312
61	WASHER; LK,NIPPLE NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	05	1	9401-
61	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9003
61	WASHER; LK,NIPPLE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9003
61	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9004-9312
61	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9002-9306
61	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=22.5	9-09150-522-0	01	1	9307-9312
61	WASHER; LK,NIPPLE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) ID=20.2	9-09150-520-0	01	1	9307-
64	GASKET; FLEX HOSE DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> ID=11 OD=18	9-09572-510-0	01	1	9002-
64	GASKET; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> ID=17.5	9-09572-515-0	02	1	9002-
64	GASKET; FLEX HOSE 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> ID=11 OD=18	9-09572-510-0	02	1	9307-
71	HOSE; FLEX,RWD RR EXC. NYLON TUBE AIR PIPING<Z29> L=550	0-07909-550-0	01	1	9002-9306
71	HOSE; FLEX,RWD RR 6RB1 STD ENG(07L),10PD1 STD ENG(40L) L=550	0-07909-550-0	01	1	9307-
80	HOSE; FLEX,POWER CHAMBER NYLON TUBE AIR PIPING<Z29> L=550	0-07909-550-0	02	1	9002-9306
80	HOSE; FLEX,POWER CHAMBER NYLON TUBE AIR PIPING<Z29> L=550	0-07909-550-0	01	1	9307-
80	HOSE; FLEX,POWER CHAMBER 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> L=480	0-07909-480-0	02	1	9307-
88	WASHER; LK,PIPE UNION ID=20.2	9-09150-520-0	01	1	9002-9306
88	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9307-
88	WASHER; LK,PIPE UNION HONG KONG EQUIPMENT(PQ1) ID=12.2	9-09150-512-0	01	1	9002-9312
88	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9312
88	WASHER; LK,PIPE UNION NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	01	1	9002-9306
91	NUT; PIPE UNION M20	9-99111-420-0	01	1	9002-9306
91	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9307-
91	NUT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M12	9-99110-412-0	01	1	9002-9304
91	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9002-9304
91	NUT; PIPE UNION NYLON TUBE AIR PIPING<Z29> M16	9-99110-416-0	01	1	9002-9306
91	NUT; PIPE UNION HONG KONG EQUIPMENT(PQ1) M12	9-99110-512-0	01	1	9305-
91	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9305-
97	UNION; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A) M22	1-09656-099-1	01	1	9002-
97	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-09656-495-1	01	1	9002-9306
97	UNION; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> (B)	1-09656-495-1	01	1	9307-
97	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (C) M16 L=42	9-09233-010-1	02	1	9401-
98	NUT; PIPE UNION M22	9-09111-422-0	01	1	9002-9306
98	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9002-9306
98	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M22	9-09111-422-0	01	1	9307-
98	NUT; PIPE UNION 6RB1 STD ENG(07L),10PD1 STD ENG(40L) M20	9-99111-420-0	01	1	9307-
98	NUT; PIPE UNION 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> M16	9-99111-416-0	02	1	9307-
98	NUT; PIPE UNION 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> M20	9-99111-420-0	02	1	9307-
160	HOSE; FLEX,SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> L=550	0-07909-550-0	01	1	9002-9306
160	HOSE; FLEX,SPR CHAMBER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) L=550	0-07909-550-0	01	1	9307-
160	HOSE; FLEX,SPR CHAMBER 6RB1TC-N ENG(29L) TAIL PIPE SINGLE HORIZONTAL<NC2> L=470	0-07847-470-1	02	1	9307-

30 155 27 33 28 9 48 87 59 102 108 101 92 103 52 108 52 115 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	BRACKET; FLEX HOSE,CAB SIDE EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-473-2	01	1	9002-
27	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=3188 SERVICED BY L=3300	1-47437-975-0	01	1	9002-9306
27	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=3188 SERVICED BY L=3300	1-47426-426-0	01	1	9307-
27	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=3181 SERVICED BY L=3300	1-47437-975-0	01	1	9002-9306
27	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=3181 SERVICED BY L=3300	1-47426-426-0	01	1	9307-
28	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=2953 SERVICED BY L=3300	1-47434-416-0	01	1	9002-9002
28	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=2971 SERVICED BY L=3300	1-47434-416-0	01	1	9003-9009
28	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=2978 SERVICED BY L=3300	1-47434-416-0	01	1	9010-9306
28	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=3074 SERVICED BY L=3300	1-47426-398-0	01	1	9307-
28	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> L=1291 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1697 SERVICED BY L=1700	1-47434-412-0	01	1	9002-9009
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1704 SERVICED BY L=1800	1-47434-413-0	01	1	9010-9306
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1758 SERVICED BY L=1800	1-47426-392-0	01	1	9307-
30	PIPE; AIR,AIR TANK TO JOINT L=868 SERVICED BY L=1000	1-47434-491-0	01	1	9002-9306
30	PIPE; AIR,AIR TANK TO JOINT EXC. NYLON TUBE AIR PIPING<Z29> L=868 SERVICED BY L=1000	1-47434-491-0	01	1	9307-
33	PIPE; AIR,UNION TO CONT VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1647 SERVICED BY L=1700	1-47434-412-0	01	1	9002-9306
33	PIPE; AIR,UNION TO CONT VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1641 SERVICED BY L=1800	1-47426-392-0	01	1	9307-
48	PIPE; AIR,AIR TANK TO UNION L=708 SERVICED BY L=1000	1-47434-491-0	01	1	9002-9306
48	PIPE; AIR,AIR TANK TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=708 SERVICED BY L=1000	1-47434-491-0	01	1	9307-
52	PIPE; AIR,UNION TO RELAY VLV HONG KONG EQUIPMENT(PQ1) L=2522	1-47486-763-0	01	1	9002-9306
52	PIPE; AIR,UNION TO RELAY VLV HONG KONG EQUIPMENT(PQ1) L=2534 SERVICED BY L=2750	1-49111-469-0	01	1	9307-
52	PIPE; AIR,UNION TO RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=2494 SERVISCED BY L=2500	1-47434-494-0	01	1	9002-9306
52	PIPE; AIR,UNION TO RELAY VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=2507 SERVICED BY L=2750	1-49111-469-0	01	1	9307-
55	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=1260 SERVICED BY L=1300	1-47434-486-0	01	1	9002-9306
55	PIPE; AIR,RELAY VLV TO FLEX HOSE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) L=1260 SERVICED BY L=1450	1-49111-447-0	01	1	9307-
59	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1139 SERVICED BY L=1200	1-47437-983-0	01	1	9002-9306
59	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1121 SERVICED BY L=1200	1-49111-445-0	01	1	9307-
59	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> L=1361 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306
59	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1435 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306
59	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1418 SERVICED BY L=1450	1-49111-447-0	01	1	9307-
87	PIPE; AIR,AIR TANK TO UNION L=668 SERVICED BY L=730	1-47437-979-0	01	1	9002-9306
87	PIPE; AIR,AIR TANK TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=668 SERVICED BY L=700	1-49111-439-0	01	1	9307-
92	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=2157 SERVICED BY L=2250	1-47437-987-0	01	1	9002-9306
92	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=2160 SERVICED BY L=2250	1-49111-451-0	01	1	9307-
92	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) L=1860 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306
92	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) L=1861 SERVICED BY L=2000	1-49111-450-0	01	1	9307-
101	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1205 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306
101	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1180 SERVICED BY L=1250	1-47426-416-0	01	1	9307-
101	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> L=1410 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306
101	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1519 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306
101	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1466 SERVICED BY L=1550	1-47426-419-0	01	1	9307-
102	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1510 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306
102	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1514 SERVICED BY L=1550	1-47426-419-0	01	1	9307-
102	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) L=1205 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306
102	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) L=1240 SERVICED BY L=1250	1-47426-416-0	01	1	9307-
103	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1229 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306
103	PIPE; AIR,UNION TO UNION HONG KONG EQUIPMENT(PQ1) L=1229 SERVICED BY L=1250	1-47426-416-0	01	1	9307-
103	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1284 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306
103	PIPE; AIR,UNION TO UNION EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1284 SERVICED BY L=1300	1-47426-417-0	01	1	9307-
108	PIPE; AIR,UNION TO LSPV HONG KONG EQUIPMENT(PQ1) L=1451 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306
108	PIPE; AIR,UNION TO LSPV HONG KONG EQUIPMENT(PQ1) L=1451 SERVICED BY L=1550	1-47426-419-0	01	1	9307-
108	PIPE; AIR,UNION TO LSPV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1366 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306
108	PIPE; AIR,UNION TO LSPV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=1366 SERVICED BY L=1400	1-47426-418-0	01	1	9307-
115	PIPE; AIR,LSPV TO RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> L=701 SERVICED BY L=730	1-47437-965-0	01	1	9002-9306
115	PIPE; AIR,LSPV TO RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> L=702 SERVICED BY L=730	1-47426-411-0	01	1	9307-
155	PIPE; AIR,UNION TO CONT VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=264 SERVICED BY L=350	9-47415-377-0	01	1	9002-9306
155	PIPE; AIR,UNION TO CONT VLV EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> L=264 SERVICED BY L=300	1-47426-372-0	01	1	9307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
