Sayfa 3-75 - Isuzu EPC

3-75 — BRAKE PIPING; AIR,FRONT (#2484) — 303 parça

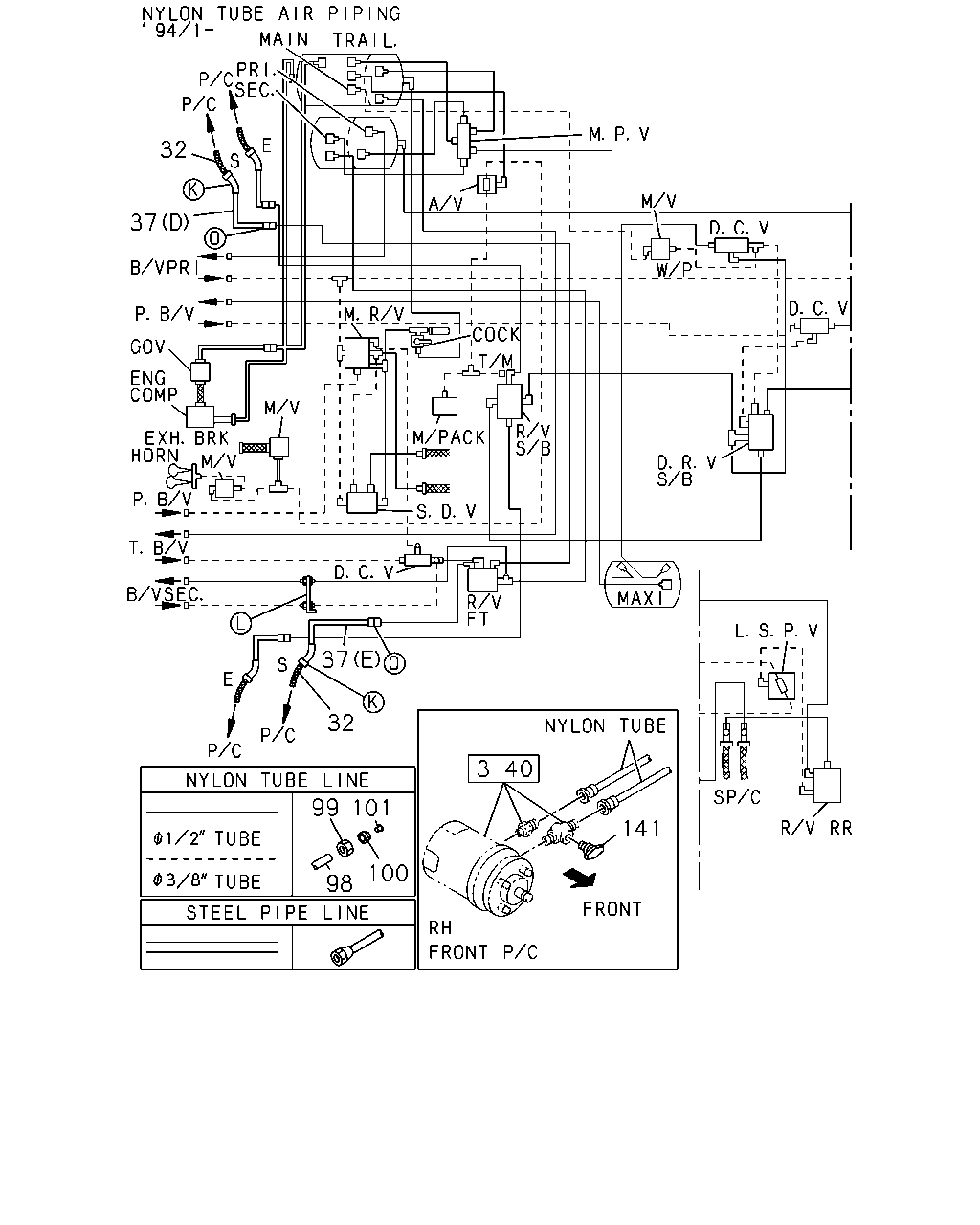

32 37 37 32 99 101 141 100 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	HOSE; FLEX,FRT L=530	0-07847-530-1	02	1	9002-9312
32	HOSE; FLEX,FRT EXC. NYLON TUBE AIR PIPING<Z29> L=530	0-07847-530-1	02	1	9401-
32	HOSE; FLEX,FRT NYLON TUBE AIR PIPING<Z29> L=470	0-07847-470-1	04	1	9401-
37	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (A) L=497 SERVICED BY L=500	1-47434-472-0	01	1	9002-9306
37	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (B) L=510 SERVICED BY L=550	1-47437-963-0	01	1	9002-9306
37	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (C) L=487 SERVICED BY L=550	1-47426-407-0	02	1	9307-9312
37	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (D) L=341 SERVICED BY L=350	1-47426-403-0	01	1	9401-
37	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (E) L=412 SERVICED BY L=450	1-47426-405-0	01	1	9401-
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=12 L=30000	1-09369-544-0	AR	1	9002-9306
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=8 L=30000	1-09369-578-0	AR	1	9002-9306
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=3/8" SERVICED BY L=30000 OD=3/8"	1-09368-249-0	AR	1	9307-
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-252-0	03	1	9307-9404
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-252-0	04	1	9405-
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	9002-9306
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M18	1-09660-213-0	AR	1	9002-9306
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> UNS 17/32-24	1-09660-557-0	AR	1	9307-
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09660-558-0	06	1	9307-9404
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09660-558-0	08	1	9405-
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09666-042-0	AR	1	9002-9306
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09666-043-0	AR	1	9002-9306
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9307-
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	06	1	9307-9404
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	08	1	9405-
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	9002-9306
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09669-055-0	AR	1	9002-9306
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09669-107-0	06	1	9307-9404
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09669-107-0	08	1	9405-
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE	1-09669-108-0	AR	1	9307-
141	CONNECTOR; TEST INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47459-002-0	01	1	9401-

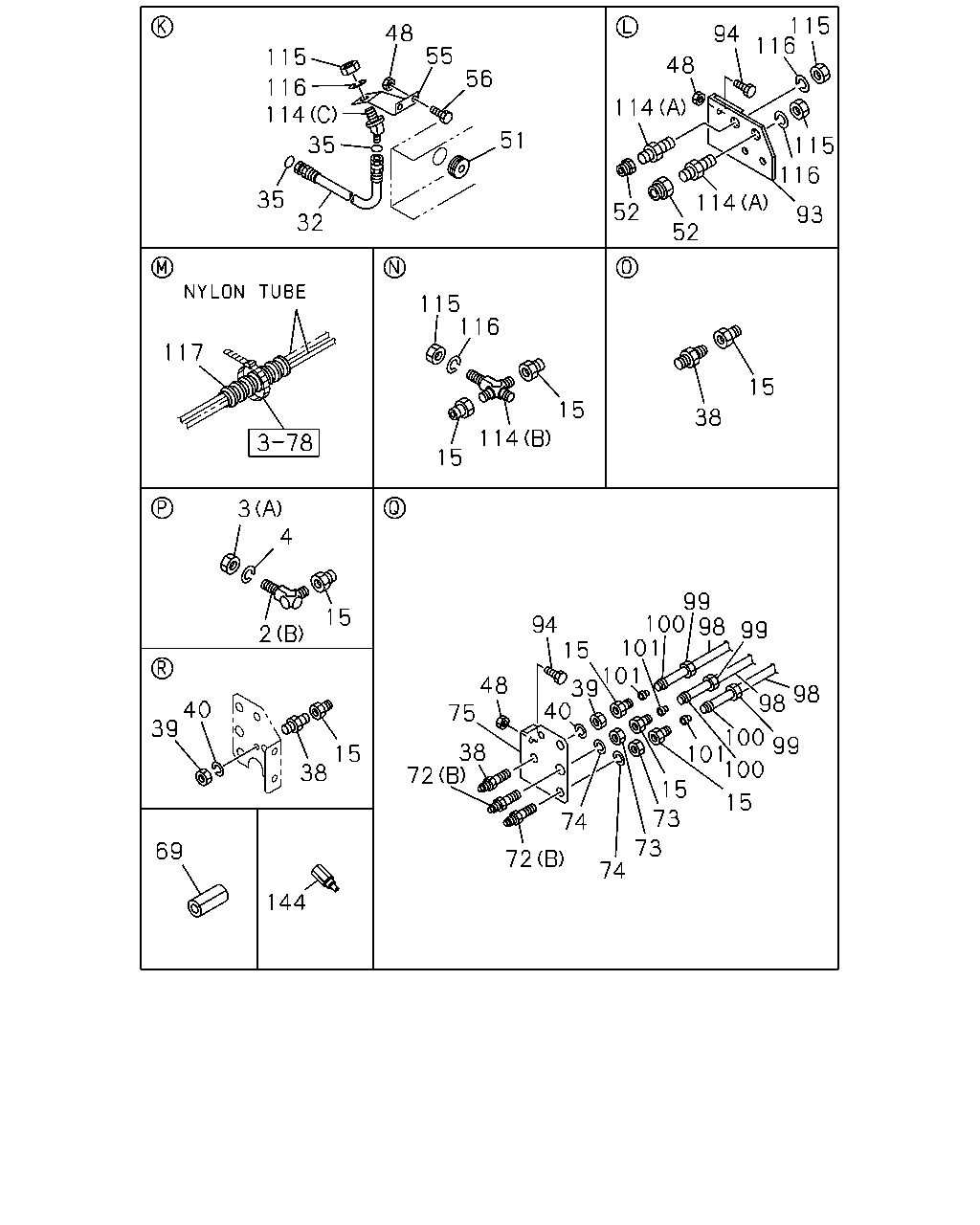

115 116 48 94 55 115 48 56 116 114 114 51 35 115 116 52 35 114 93 32 52 115 116 117 15 15 38 114 15 3 4 99 100 98 101 101 39 40 15 94 15 99 2 48 75 98 98 40 39 100 99 101 100 38 72 15 38 15 15 73 74 73 74 69 72 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B) M22	9-09235-215-1	01	1	9002-9306
2	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C) M20 STRAIGHT	9-09233-012-1	01	1	9002-
2	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) M22	9-09233-315-1	01	1	9002-
3	NUT; PIPE UNION (A) M22	9-09111-422-0	01	1	9002-9306
3	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> (A) M22	9-09111-422-0	01	1	9307-
3	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> (B) M14	9-99110-414-0	01	1	9002-
4	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	9002-9306
4	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=22.5	9-09150-522-0	01	1	9307-9312
15	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> M18XM20	1-09660-221-0	01	1	9002-9306
15	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> M18XM22	1-09660-222-0	01	1	9002-9306
15	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> M18XM16	1-09660-223-0	02	1	9002-9306
15	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> M14 & M20 STRAIGHT	1-09660-255-0	01	1	9002-9306
15	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> M16XUNS 11/16-20	1-09660-637-0	02	1	9307-
32	HOSE; FLEX,FRT L=530	0-07847-530-1	02	1	9002-9312
32	HOSE; FLEX,FRT EXC. NYLON TUBE AIR PIPING<Z29> L=530	0-07847-530-1	02	1	9401-
32	HOSE; FLEX,FRT NYLON TUBE AIR PIPING<Z29> L=470	0-07847-470-1	04	1	9401-
35	GASKET; FLEX HOSE NYLON TUBE AIR PIPING<Z29> ID=11 OD=18	9-09572-510-0	04	1	9002-
38	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> M16 L=70 STRAIGHT	9-09233-210-1	02	1	9002-9306
38	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> M16 L=42	9-09233-010-1	02	1	9307-
39	NUT; PIPE UNION NYLON TUBE AIR PIPING<Z29> M16	9-99110-416-0	02	1	9002-9306
40	WASHER; LK,PIPE UNION NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	02	1	9002-9306
48	NUT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M10	9-09110-410-0	02	1	9002-9110
48	NUT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	04	1	9002-9304
48	NUT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	04	1	9305-9306
48	NUT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9002-
51	GROMMET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=28 OD=35 T=17	9-09956-256-1	02	1	9002-9306
51	GROMMET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=28 OD=35 T=17	9-09956-256-1	03	1	9307-9312
51	GROMMET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=28 OD=35 T=17	9-09956-256-1	04	1	9401-
51	GROMMET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=28 OD=35 T=25	1-09332-011-1	01	1	9307-
52	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M18XM20	1-09660-221-0	01	1	9002-9306
52	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M14XM20	1-09660-255-0	01	1	9002-9306
52	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M20X36	1-09660-576-0	02	1	9307-
55	BRACKET; TUBE UNION NYLON TUBE AIR PIPING<Z29>	1-47475-106-0	02	1	9002-9312
55	BRACKET; TUBE UNION NYLON TUBE AIR PIPING<Z29>	1-47477-231-0	02	1	9401-
56	BOLT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	04	1	9002-9204
56	BOLT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-9312
56	BOLT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	04	1	9401-
56	BOLT; UNION BRKT NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	9-01900-830-0	01	1	9002-9009
69	SLEEVE; RUBBER,FLEX HOSE NYLON TUBE AIR PIPING<Z29> ID=17 OD=21 L=40	1-09337-012-0	01	1	9307-
72	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B) M20 L=77.5	9-09233-212-1	02	1	9002-9306
72	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) M20 & M16 2 WAY	1-09654-177-1	01	1	9002-
73	NUT; PIPE UNION NYLON TUBE AIR PIPING<Z29> M20	9-99110-420-0	02	1	9002-9306
74	WASHER; LK,PIPE UNION NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	02	1	9002-9306
75	BRACKET; UNION NYLON TUBE AIR PIPING<Z29>	1-47476-071-0	01	1	9002-9306
93	BRACKET; UNION,TUBE NYLON TUBE AIR PIPING<Z29>	1-47476-344-0	01	1	9002-9306
93	BRACKET; UNION,TUBE NYLON TUBE AIR PIPING<Z29>	1-47476-894-0	01	1	9307-
94	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	9-01900-830-0	03	1	9002-9204
94	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X30 W/LK WASHER	0-50040-830-0	03	1	9205-9302
94	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	03	1	9303-9306
94	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M12X35 W/LK WASHER	9-01901-235-0	02	1	9002-9204
94	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M12X35 W/LK WASHER	0-50041-235-0	02	1	9205-9306
94	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M12X40	9-01901-240-0	02	1	9002-9204
94	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M12X40 W/LK WASHER	0-50041-240-0	02	1	9205-9306
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=12 L=30000	1-09369-544-0	AR	1	9002-9306
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=8 L=30000	1-09369-578-0	AR	1	9002-9306
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=3/8" SERVICED BY L=30000 OD=3/8"	1-09368-249-0	AR	1	9307-
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-252-0	03	1	9307-9404
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-252-0	04	1	9405-
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	9002-9306
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M18	1-09660-213-0	AR	1	9002-9306
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> UNS 17/32-24	1-09660-557-0	AR	1	9307-
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09660-558-0	06	1	9307-9404
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09660-558-0	08	1	9405-
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09666-042-0	AR	1	9002-9306
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09666-043-0	AR	1	9002-9306
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9307-
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	06	1	9307-9404
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	08	1	9405-
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	9002-9306
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09669-055-0	AR	1	9002-9306
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09669-107-0	06	1	9307-9404
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09669-107-0	08	1	9405-
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE	1-09669-108-0	AR	1	9307-
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) M16	1-09654-174-1	02	1	9002-9312
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C)	1-09654-119-1	02	1	9401-
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M18 3WAY	1-09664-067-0	01	1	9002-9306
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M20 L=77.5	9-09233-212-1	02	1	9002-9306
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) UNS 17/32-24 L=57	1-09664-083-0	01	1	9307-
114	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) M20 L=77.5	9-09233-212-1	01	1	9307-
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9002-9304
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9305-9306
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	04	1	9002-9306
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> UNS 17/32-24	1-09487-023-0	01	1	9307-
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M20	9-99110-420-0	01	1	9307-
115	NUT; TUBE UNION NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	02	1	9307-
116	WASHER; LK,TUBE UNION NYLON TUBE AIR PIPING<Z29> ID=10.2	9-09150-510-0	02	1	9002-9110
116	WASHER; LK,TUBE UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9312
116	WASHER; LK,TUBE UNION NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	04	1	9002-9306
116	WASHER; LK,TUBE UNION NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	03	1	9307-
117	TUBE; CORRUGATE NYLON TUBE AIR PIPING<Z29>	1-71997-792-0	02	1	9002-
144	ADAPTER NYLON TUBE AIR PIPING<Z29>	1-09660-637-0	02	1	9401-

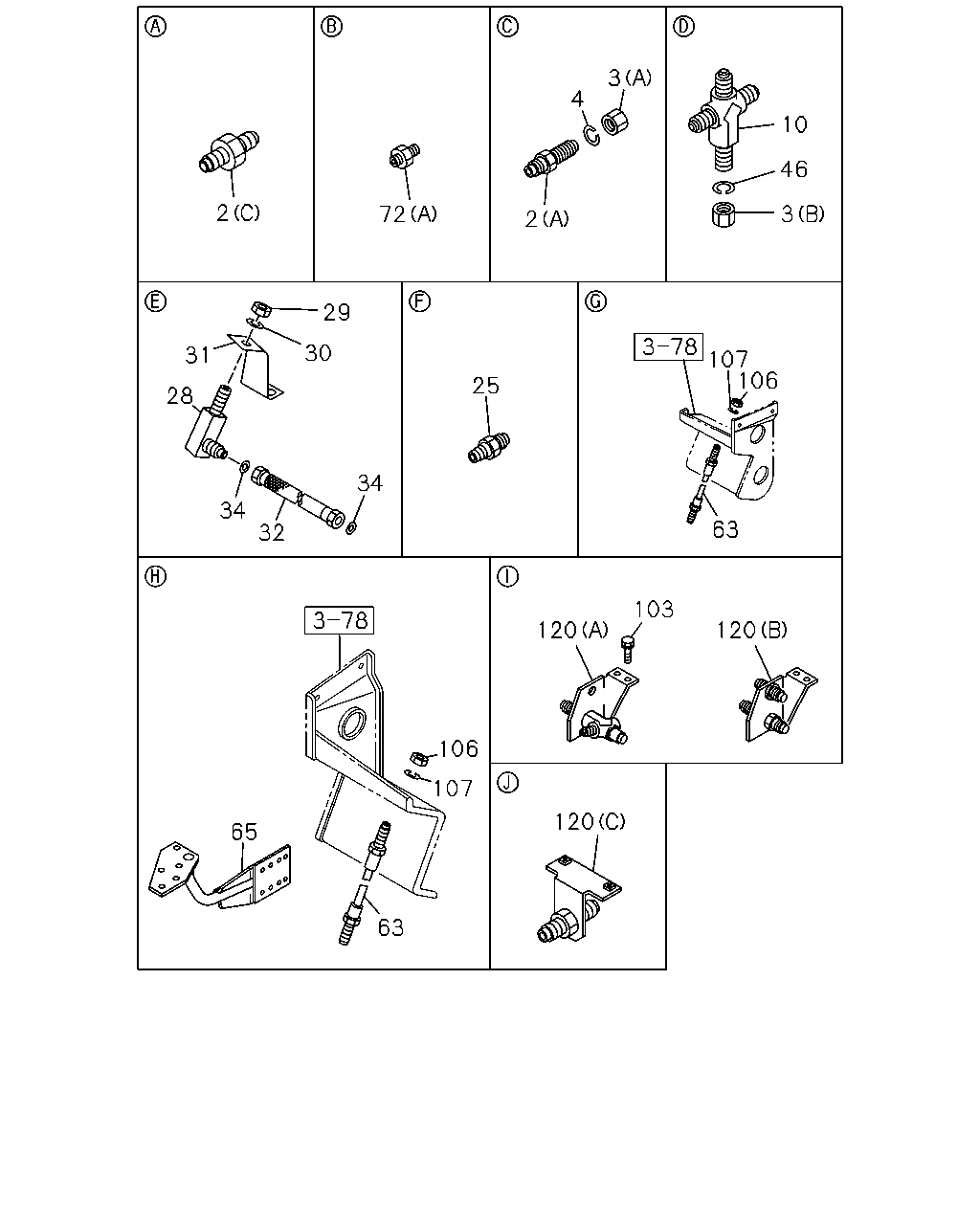

3 4 10 46 2 3 72 2 29 30 31 107 106 25 28 34 34 63 32 103 120 120 106 107 120 65 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B) M22	9-09235-215-1	01	1	9002-9306
2	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C) M20 STRAIGHT	9-09233-012-1	01	1	9002-
2	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) M22	9-09233-315-1	01	1	9002-
3	NUT; PIPE UNION (A) M22	9-09111-422-0	01	1	9002-9306
3	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> (A) M22	9-09111-422-0	01	1	9307-
3	NUT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> (B) M14	9-99110-414-0	01	1	9002-
4	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	9002-9306
4	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=22.5	9-09150-522-0	01	1	9307-9312
10	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29>	1-09656-390-1	01	1	9002-
25	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M16 L=42	9-09233-010-1	01	1	9002-
28	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M16	1-09654-174-1	02	1	9002-
29	NUT; NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	02	1	9002-
30	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	02	1	9002-
31	BRACKET; NIPPLE EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-106-0	02	1	9002-
32	HOSE; FLEX,FRT L=530	0-07847-530-1	02	1	9002-9312
32	HOSE; FLEX,FRT EXC. NYLON TUBE AIR PIPING<Z29> L=530	0-07847-530-1	02	1	9401-
32	HOSE; FLEX,FRT NYLON TUBE AIR PIPING<Z29> L=470	0-07847-470-1	04	1	9401-
34	GASKET; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> ID=11 OD=18	9-09572-510-0	04	1	9002-9312
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	9401-
46	WASHER; LK,PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	01	1	9002-9312
63	HOSE; FLEX,BRK LINE,CAB SIDE EXC. NYLON TUBE AIR PIPING<Z29> L=850	0-07706-850-0	02	1	9002-9408
63	HOSE; FLEX,BRK LINE,CAB SIDE EXC. NYLON TUBE AIR PIPING<Z29> L=830	0-07706-830-0	01	1	9409-
65	BRACKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1)	1-47476-274-0	01	1	9002-
65	BRACKET; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-47475-583-1	01	1	9002-
72	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B) M20 L=77.5	9-09233-212-1	02	1	9002-9306
72	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A) M20 & M16 2 WAY	1-09654-177-1	01	1	9002-
103	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50000-616-0	02	1	9002-9204
103	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50080-616-0	02	1	9205-9301
103	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	02	1	9302-9302
103	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	02	1	9303-9306
103	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	02	1	9307-
103	BOLT; PIPE UNION EXC. NYLON TUBE AIR PIPING<Z29> M6X16	1-09980-296-0	02	1	9002-
106	NUT; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	04	1	9002-
107	WASHER; LK,FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	04	1	9002-
120	UNION; AIR PIPE DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47470-175-2	01	1	9002-
120	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> (B)	1-47470-181-2	01	1	9002-
120	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-47470-184-2	01	1	9002-

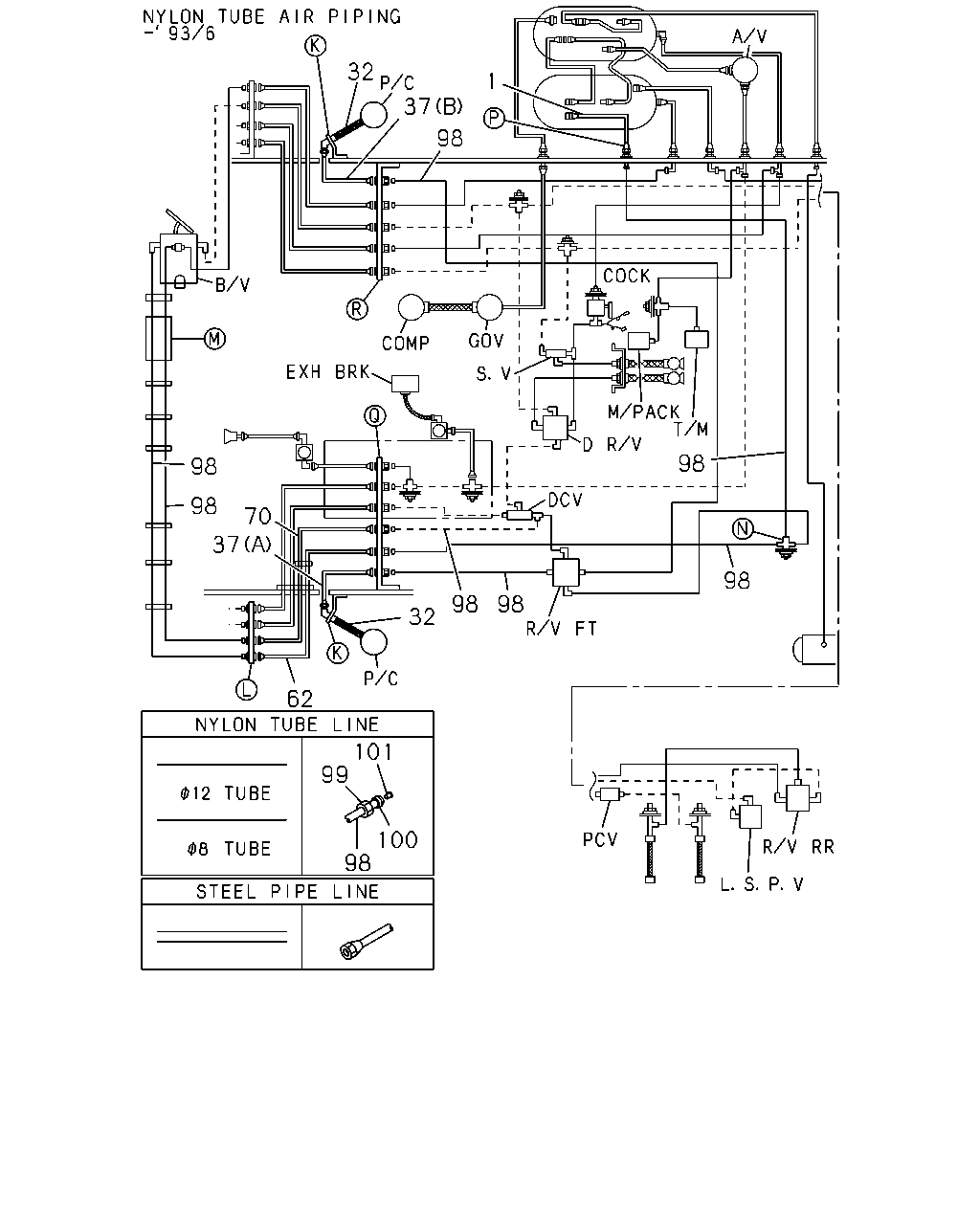

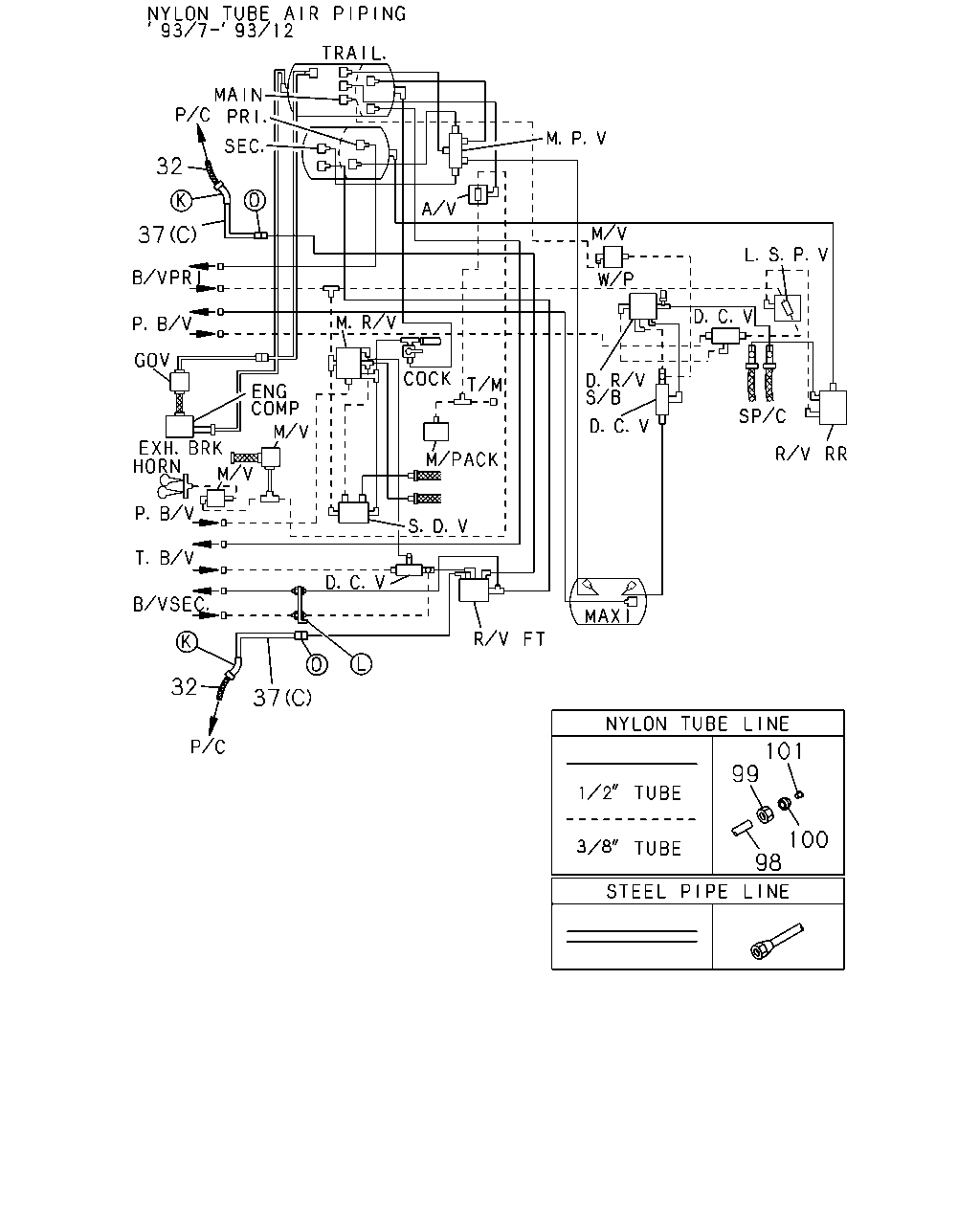

32 37 32 37 101 99 100 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	HOSE; FLEX,FRT L=530	0-07847-530-1	02	1	9002-9312
32	HOSE; FLEX,FRT EXC. NYLON TUBE AIR PIPING<Z29> L=530	0-07847-530-1	02	1	9401-
32	HOSE; FLEX,FRT NYLON TUBE AIR PIPING<Z29> L=470	0-07847-470-1	04	1	9401-
37	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (A) L=497 SERVICED BY L=500	1-47434-472-0	01	1	9002-9306
37	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (B) L=510 SERVICED BY L=550	1-47437-963-0	01	1	9002-9306
37	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (C) L=487 SERVICED BY L=550	1-47426-407-0	02	1	9307-9312
37	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (D) L=341 SERVICED BY L=350	1-47426-403-0	01	1	9401-
37	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (E) L=412 SERVICED BY L=450	1-47426-405-0	01	1	9401-
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=12 L=30000	1-09369-544-0	AR	1	9002-9306
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=8 L=30000	1-09369-578-0	AR	1	9002-9306
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=3/8" SERVICED BY L=30000 OD=3/8"	1-09368-249-0	AR	1	9307-
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-252-0	03	1	9307-9404
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-252-0	04	1	9405-
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	9002-9306
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M18	1-09660-213-0	AR	1	9002-9306
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> UNS 17/32-24	1-09660-557-0	AR	1	9307-
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09660-558-0	06	1	9307-9404
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09660-558-0	08	1	9405-
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09666-042-0	AR	1	9002-9306
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09666-043-0	AR	1	9002-9306
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9307-
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	06	1	9307-9404
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	08	1	9405-
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	9002-9306
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09669-055-0	AR	1	9002-9306
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09669-107-0	06	1	9307-9404
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09669-107-0	08	1	9405-
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE	1-09669-108-0	AR	1	9307-

32 37 1 98 98 98 98 70 37 98 98 98 32 62 101 99 100 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION L=671 SERVICED BY L=1000	1-47434-491-0	01	1	9002-9306
1	PIPE; AIR,AIR TANK TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=671 SERVICED BY L=1000	1-47434-491-0	01	1	9307-
32	HOSE; FLEX,FRT L=530	0-07847-530-1	02	1	9002-9312
32	HOSE; FLEX,FRT EXC. NYLON TUBE AIR PIPING<Z29> L=530	0-07847-530-1	02	1	9401-
32	HOSE; FLEX,FRT NYLON TUBE AIR PIPING<Z29> L=470	0-07847-470-1	04	1	9401-
37	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (A) L=497 SERVICED BY L=500	1-47434-472-0	01	1	9002-9306
37	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (B) L=510 SERVICED BY L=550	1-47437-963-0	01	1	9002-9306
37	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (C) L=487 SERVICED BY L=550	1-47426-407-0	02	1	9307-9312
37	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (D) L=341 SERVICED BY L=350	1-47426-403-0	01	1	9401-
37	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> (E) L=412 SERVICED BY L=450	1-47426-405-0	01	1	9401-
62	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=2259 SERVICED BY L=2500	1-47434-488-0	01	1	9002-9011
62	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L) EXC. NYLON TUBE AIR PIPING<Z29> L=2259 SERVICED BY L=2500	1-47434-488-0	01	1	9012-9306
62	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L) EXC. NYLON TUBE AIR PIPING<Z29> L=2259 SERVICED BY L=2500	1-49111-452-0	01	1	9307-
62	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> L=1316 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306
62	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1934 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306
62	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1943 SERVICED BY L=2250	1-49111-451-0	01	1	9307-
62	PIPE; AIR,UNION TO FLEX HOSE 6RA1TC ENG(19L),6RB1TC-N ENG(29L) EXC. NYLON TUBE AIR PIPING<Z29> L=2008 SERVICED BY L=2250	1-47437-987-0	01	1	9012-9306
62	PIPE; AIR,UNION TO FLEX HOSE 6RB1TC-N ENG(29L) EXC. NYLON TUBE AIR PIPING<Z29> L=2017 SERVICED BY L=2250	1-49111-451-0	01	1	9307-
70	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1999 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9011
70	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) EXC. NYLON TUBE AIR PIPING<Z29> L=1999 SERVICED BY L=2000	1-47437-986-0	01	1	9012-9306
70	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> L=1325 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306
70	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1787 SERVICED BY L=1800	1-47434-487-0	01	1	9002-9306
70	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1792 SERVICED BY L=1800	1-49111-449-0	01	1	9307-
70	PIPE; AIR,FLEX HOSE TO UNION 6RA1TC ENG(19L),6RB1TC-N ENG(29L) EXC. NYLON TUBE AIR PIPING<Z29> L=1912 SERVICED BY L=2000	1-47437-986-0	01	1	9012-9306
70	PIPE; AIR,FLEX HOSE TO UNION 6RB1TC-N ENG(29L) EXC. NYLON TUBE AIR PIPING<Z29> L=1920 SERVICED BY L=2000	1-49111-450-0	01	1	9307-
70	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) EXC. NYLON TUBE AIR PIPING<Z29> L=1999 SERVICED BY L=2250	1-49111-451-0	01	1	9307-
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=12 L=30000	1-09369-544-0	AR	1	9002-9306
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=8 L=30000	1-09369-578-0	AR	1	9002-9306
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=3/8" SERVICED BY L=30000 OD=3/8"	1-09368-249-0	AR	1	9307-
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-252-0	03	1	9307-9404
98	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=1/2"	1-09368-252-0	04	1	9405-
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	9002-9306
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M18	1-09660-213-0	AR	1	9002-9306
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> UNS 17/32-24	1-09660-557-0	AR	1	9307-
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09660-558-0	06	1	9307-9404
99	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09660-558-0	08	1	9405-
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09666-042-0	AR	1	9002-9306
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09666-043-0	AR	1	9002-9306
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9307-
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	06	1	9307-9404
100	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	08	1	9405-
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	9002-9306
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09669-055-0	AR	1	9002-9306
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09669-107-0	06	1	9307-9404
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=1/2"	1-09669-107-0	08	1	9405-
101	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE	1-09669-108-0	AR	1	9307-

32 1 26 24 5 21 21 84 43 5 62 32 70 113 97 121 102 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION L=671 SERVICED BY L=1000	1-47434-491-0	01	1	9002-9306
1	PIPE; AIR,AIR TANK TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=671 SERVICED BY L=1000	1-47434-491-0	01	1	9307-
5	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) L=2044 SERVICED BY L=2250	1-47437-987-0	01	1	9002-9306
5	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> (A) L=1987 SERVICED BY L=2250	1-49111-451-0	01	1	9307-9404
5	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> (A) L=1984 SERVICED BY L=2000	1-49111-450-0	01	1	9405-
5	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>,NYLON TUBE AIR PIPING<Z29> (A) L=2018 SERVICED BY L=2250	1-47437-987-0	01	1	9002-9008
5	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>,NYLON TUBE AIR PIPING<Z29> (A) L=1987 SERVICED BY L=2250	1-47437-987-0	01	1	9009-9306
5	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> (B) L=1824 SERVICED BY L=2000	1-47434-493-0	01	1	9002-
5	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) (A) L=2417 SERVICED BY L=2800	1-49111-453-0	01	1	9307-9404
5	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) (A) L=2410 SERVICED BY L=2500	1-49111-452-0	01	1	9405-
5	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) L=2417 SERVICED BY L=2500	1-47434-488-0	01	1	9002-9306
5	PIPE; AIR,UNION TO UNION 10PD1 STD ENG(40L) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (A) L=2312 SERVICED BY L=2500	1-47434-488-0	01	1	9002-9306
21	PIPE; AIR,UNION TO RELAY VLV L TYPE ENG<90L> TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. NYLON TUBE AIR PIPING<Z29> (B) L=1204 SERVICED BY L=1250	1-47437-994-0	01	1	9002-9306
21	PIPE; AIR,UNION TO RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (A) L=556 SERVICED BY L=600	1-47434-473-0	01	1	9002-9306
21	PIPE; AIR,UNION TO RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (A) L=557 SERVICED BY L=600	1-47426-408-0	01	1	9307-
21	PIPE; AIR,UNION TO RELAY VLV EXC. NYLON TUBE AIR PIPING<Z29> (B) L=1161 SERVICED BY L=1200	1-49111-460-0	01	1	9307-
21	PIPE; AIR,UNION TO RELAY VLV EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>,NYLON TUBE AIR PIPING<Z29> (B) L=1293 SERVICED BY L=1350	1-47437-995-0	01	1	9002-9306
21	PIPE; AIR,UNION TO RELAY VLV 10PD1 STD ENG(40L) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> (B) L=1161 SERVICED BY L=1200	1-49111-460-0	01	1	9002-9306
24	PIPE; AIR,RELAY VLV TO UNION L TYPE ENG<90L> TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> EXC. NYLON TUBE AIR PIPING<Z29> L=1622 SERVICED BY L=1700	1-47434-478-0	01	1	9002-9306
24	PIPE; AIR,RELAY VLV TO UNION 10PD1 STD ENG(40L) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> L=1708 SERVICED BY L=1900	1-47437-971-0	01	1	9002-9306
24	PIPE; AIR,RELAY VLV TO UNION EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8>,NYLON TUBE AIR PIPING<Z29> L=1708 SERVICED BY L=1900	1-47437-971-0	01	1	9002-9306
24	PIPE; AIR,RELAY VLV TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1717 SERVICED BY L=1900	1-47426-421-0	01	1	9307-9404
24	PIPE; AIR,RELAY VLV TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1715 SERVICED BY L=1900	1-47426-421-0	01	1	9405-
26	PIPE; AIR,UNION TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=1294 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306
26	PIPE; AIR,UNION TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=1295 SERVICED BY L=1300	1-47426-417-0	01	1	9307-
32	HOSE; FLEX,FRT L=530	0-07847-530-1	02	1	9002-9312
32	HOSE; FLEX,FRT EXC. NYLON TUBE AIR PIPING<Z29> L=530	0-07847-530-1	02	1	9401-
32	HOSE; FLEX,FRT NYLON TUBE AIR PIPING<Z29> L=470	0-07847-470-1	04	1	9401-
43	PIPE; AIR,RELAY VLV TO FLEX HOSE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1397 SERVICED BY L=1550	1-47426-419-0	01	1	9309-
43	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=1394 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9008
43	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=1397 SERVICED BY L=1400	1-47437-969-0	01	1	9009-9306
43	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=1406 SERVICED BY L=1550	1-47426-419-0	01	1	9307-9308
43	PIPE; AIR,RELAY VLV TO FLEX HOSE V TYPE ENG<91L> EXC. NYLON TUBE AIR PIPING<Z29> L=1406 SERVICED BY L=1550	1-47426-419-0	01	1	9309-
62	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=2259 SERVICED BY L=2500	1-47434-488-0	01	1	9002-9011
62	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L) EXC. NYLON TUBE AIR PIPING<Z29> L=2259 SERVICED BY L=2500	1-47434-488-0	01	1	9012-9306
62	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L) EXC. NYLON TUBE AIR PIPING<Z29> L=2259 SERVICED BY L=2500	1-49111-452-0	01	1	9307-
62	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> L=1316 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306
62	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1934 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306
62	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1943 SERVICED BY L=2250	1-49111-451-0	01	1	9307-
62	PIPE; AIR,UNION TO FLEX HOSE 6RA1TC ENG(19L),6RB1TC-N ENG(29L) EXC. NYLON TUBE AIR PIPING<Z29> L=2008 SERVICED BY L=2250	1-47437-987-0	01	1	9012-9306
62	PIPE; AIR,UNION TO FLEX HOSE 6RB1TC-N ENG(29L) EXC. NYLON TUBE AIR PIPING<Z29> L=2017 SERVICED BY L=2250	1-49111-451-0	01	1	9307-
70	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1999 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9011
70	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) EXC. NYLON TUBE AIR PIPING<Z29> L=1999 SERVICED BY L=2000	1-47437-986-0	01	1	9012-9306
70	PIPE; AIR,FLEX HOSE TO UNION NYLON TUBE AIR PIPING<Z29> L=1325 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306
70	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1787 SERVICED BY L=1800	1-47434-487-0	01	1	9002-9306
70	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1792 SERVICED BY L=1800	1-49111-449-0	01	1	9307-
70	PIPE; AIR,FLEX HOSE TO UNION 6RA1TC ENG(19L),6RB1TC-N ENG(29L) EXC. NYLON TUBE AIR PIPING<Z29> L=1912 SERVICED BY L=2000	1-47437-986-0	01	1	9012-9306
70	PIPE; AIR,FLEX HOSE TO UNION 6RB1TC-N ENG(29L) EXC. NYLON TUBE AIR PIPING<Z29> L=1920 SERVICED BY L=2000	1-49111-450-0	01	1	9307-
70	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) EXC. NYLON TUBE AIR PIPING<Z29> L=1999 SERVICED BY L=2250	1-49111-451-0	01	1	9307-
84	PIPE; AIR,UNION TO DBL CHECK VLV L TYPE ENG<90L> FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> L=1515 SERVICED BY L=1700	1-47434-478-0	01	1	9005-9204
84	PIPE; AIR,UNION TO DBL CHECK VLV L TYPE ENG<90L> FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> L=1527 SERVICED BY L=1700	1-47434-478-0	01	1	9205-9306
84	PIPE; AIR,UNION TO DBL CHECK VLV L TYPE ENG<90L> FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> L=1527 SERVICED BY L=1700	1-47426-420-0	01	1	9307-
84	PIPE; AIR,UNION TO DBL CHECK VLV L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1248 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9004
84	PIPE; AIR,UNION TO DBL CHECK VLV L TYPE ENG<90L> ISUZU M/T<X9A> EXC. NYLON TUBE AIR PIPING<Z29> L=1248 SERVICED BY L=1400	1-47437-969-0	01	1	9005-9204
84	PIPE; AIR,UNION TO DBL CHECK VLV L TYPE ENG<90L> ISUZU M/T<X9A> EXC. NYLON TUBE AIR PIPING<Z29> L=1251 SERVICED BY L=1400	1-47437-969-0	01	1	9205-9306
84	PIPE; AIR,UNION TO DBL CHECK VLV L TYPE ENG<90L> ISUZU M/T<X9A> EXC. NYLON TUBE AIR PIPING<Z29> L=1251 SERVICED BY L=1400	1-47426-418-0	01	1	9307-
84	PIPE; AIR,UNION TO DBL CHECK VLV 10PD1 STD ENG(40L) FULLER M/T<X9B> L=1728 SERVICED BY L=1900	1-47437-971-0	01	1	9002-9204
84	PIPE; AIR,UNION TO DBL CHECK VLV 10PD1 STD ENG(40L) FULLER M/T<X9B> L=1734 SERVICED BY L=1900	1-47437-971-0	01	1	9205-9306
84	PIPE; AIR,UNION TO DBL CHECK VLV 10PD1 STD ENG(40L) FULLER M/T<X9B> L=1741 SERVICED BY L=1900	1-47426-421-0	01	1	9307-
84	PIPE; AIR,UNION TO DBL CHECK VLV 10PD1 STD ENG(40L) ISUZU M/T<X9A> L=1455 SERVICED BY L=1700	1-47434-478-0	01	1	9002-9204
84	PIPE; AIR,UNION TO DBL CHECK VLV 10PD1 STD ENG(40L) ISUZU M/T<X9A> L=1458 SERVICED BY L=1700	1-47434-478-0	01	1	9205-9306
84	PIPE; AIR,UNION TO DBL CHECK VLV 10PD1 STD ENG(40L) ISUZU M/T<X9A> L=1465 SERVICED BY L=1550	1-47426-419-0	01	1	9307-
97	PIPE; AIR,BRK VLV TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1083 SERVICED BY L=1100	1-47437-982-0	01	1	9002-9306
97	PIPE; AIR,BRK VLV TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1083 SERVICED BY L=1100	1-49111-444-0	01	1	9307-
102	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=1511 SERVICED BY L=1600	1-47437-985-0	01	1	9002-9306
102	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=1512 SERVICED BY L=1600	1-49111-448-0	01	1	9307-
111	PIPE; AIR,CONN TO UNION DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> L=1481 SERVICED BY L=1600	1-47437-985-0	01	1	9002-9306
111	PIPE; AIR,CONN TO UNION DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> L=1481 SERVICED BY L=1600	1-49111-448-0	01	1	9307-
113	PIPE; AIR,UNION TO BRK VLV EXC. NYLON TUBE AIR PIPING<Z29> L=925 SERVICED BY L=1000	1-47434-485-0	01	1	9002-9306
113	PIPE; AIR,UNION TO BRK VLV EXC. NYLON TUBE AIR PIPING<Z29> L=925 SERVICED BY L=1000	1-49111-443-0	01	1	9307-
121	PIPE; AIR,UNION TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=1386 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306
121	PIPE; AIR,UNION TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=1387 SERVICED BY L=1450	1-49111-447-0	01	1	9307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
