Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#24839) — 283 parça

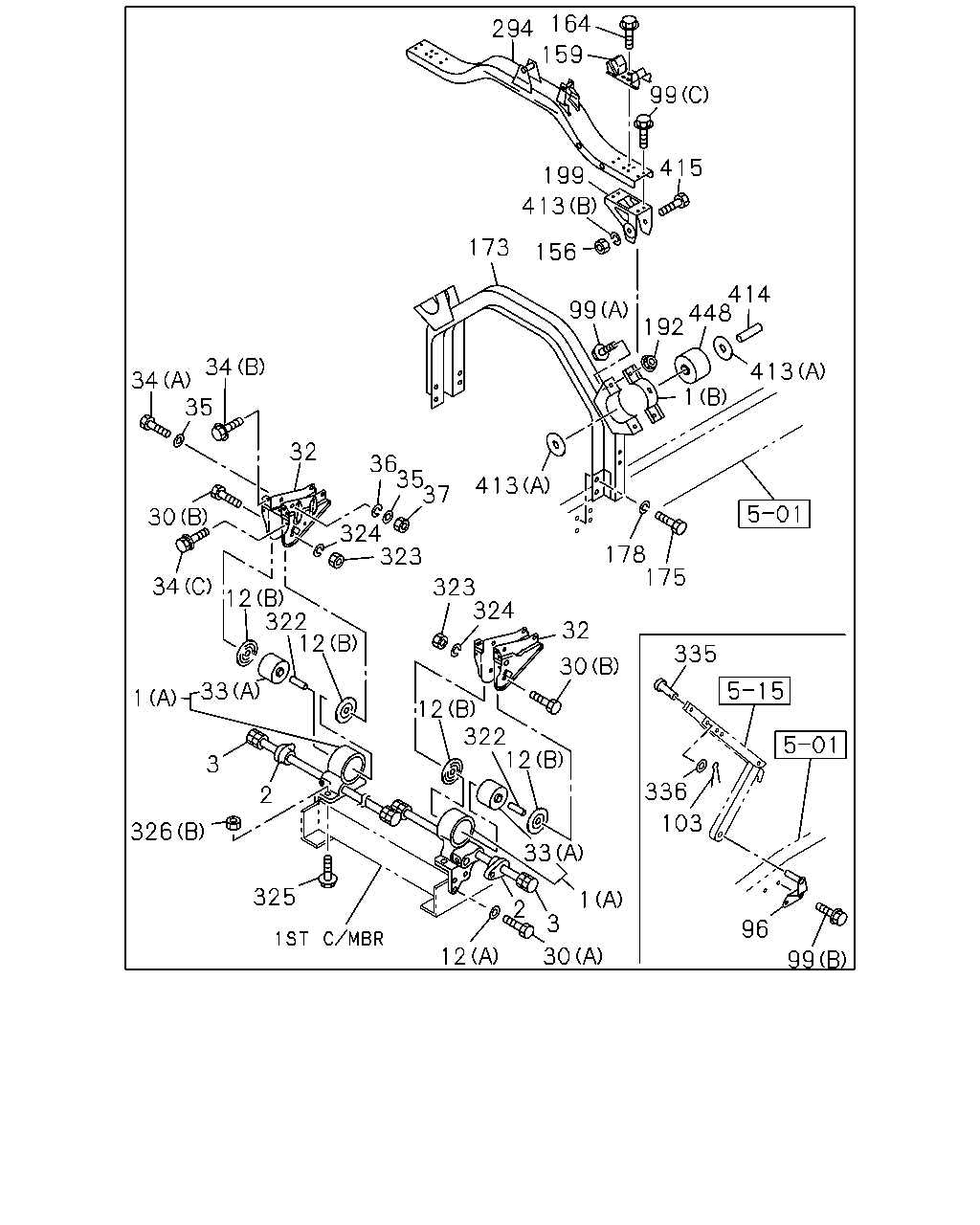

164 294 159 99 415 199 413 173 156 414 448 192 99 34 413 34 35 1 32 36 35 37 413 30 324 323 178 175 34 323 324 12 322 2 32 335 30 33 1 12 322 12 3 336 2 103 326 33 325 1 2 3 96 12 30 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG (B)	1-53454-648-1	02	1	9804-	●
1	BRACKET; CAB MTG 6SD1 TCN ENG(31L) (A)	1-53453-268-0	01	1	0107-	●
1	BRACKET; CAB MTG 6SD1 TCN ENG(31L) (A)	1-53453-267-0	01	1	0107-	●
1	BRACKET; CAB MTG (A)	1-53453-268-0	01	1	9601-9803	●	●
1	BRACKET; CAB MTG (A)	1-53453-268-0	01	1	9804-0106	●
1	BRACKET; CAB MTG 6HK1 TCS ENG(80L) (A)	1-53453-227-0	01	1	0107-	●
1	BRACKET; CAB MTG (A)	1-53453-267-0	01	1	9601-9803	●	●
1	BRACKET; CAB MTG (A)	1-53453-267-0	01	1	9804-0106	●
1	BRACKET; CAB MTG 6HK1 TCS ENG(80L) (A)	1-53453-226-0	01	1	0107-	●
2	BUSHING; TORSION BAR	1-53458-282-0	02	1	9601-9803	●	●
2	BUSHING; TORSION BAR	1-53458-282-0	02	1	9804-	●
3	TORSION BAR	1-09585-130-0	01	1	9601-9803	●	●
3	TORSION BAR	1-09585-130-0	01	1	9804-	●
3	TORSION BAR	1-09585-129-0	01	1	9601-9803	●	●
3	TORSION BAR	1-09585-129-0	01	1	9804-	●
12	WASHER; LK,BRKT (B) ID=23	1-53458-693-1	04	1	9601-9803	●	●
12	WASHER; LK,BRKT (B) ID=23	1-53458-693-1	04	1	9804-0306	●
12	WASHER; LK,BRKT (B) ID=23	1-53457-076-1	04	1	0307-	●
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	9601-9803	●	●
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	9804-1201	●
12	WASHER; LK,BRKT (A) ID=15	8-98010-627-1	10	1	1202-	●
30	BOLT; CAB FRT FOOT (B) M16X115	5-51361-002-1	02	1	9601-9803	●	●
30	BOLT; CAB FRT FOOT (B) M16X115	5-51361-002-1	02	1	9804-	●
30	BOLT; CAB FRT FOOT (A) M14X50	9-92061-450-0	10	1	9601-9803	●	●
30	BOLT; CAB FRT FOOT (A) M14X50	9-92061-450-0	10	1	9804-0201	●
30	BOLT; CAB FRT FOOT (A) M14X45	9-92061-445-0	10	1	0202-	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-231-4	01	1	9601-9803	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-231-4	01	1	9804-	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-290-1	01	1	9601-9803	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-290-1	01	1	9804-0004	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-290-1	01	1	0005-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT 6SD1 TCN ENG(31L) (A)	1-53458-634-0	02	1	0107-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	1-53458-634-0	02	1	9601-9803	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	1-53458-634-0	02	1	9804-0106	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT 6HK1 TCS ENG(80L) (A)	1-53459-836-3	02	1	0107-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	1-53458-635-0	02	1	9601-9803	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9804-0106	●
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X105	1-79198-008-0	04	1	9601-9803	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X105	1-79198-008-1	04	1	9804-	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9601-9803	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9804-0106	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0107-0904	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X20 W/LK&PL WASHER	8-94279-219-0	08	1	9601-9803	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X20 W/LK&PL WASHER	8-94279-219-0	08	1	9804-	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	9601-9803	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	9804-	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9601-9803	●	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9804-	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9601-9803	●	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9804-	●
96	BRACKET; CAB STAY	1-62500-628-0	01	1	9601-9803	●	●
96	BRACKET; CAB STAY	1-62500-628-0	01	1	9804-	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28080-820-0	08	1	9601-9606	●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	08	1	9607-9803	●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	08	1	9804-0512	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	08	1	0601-	●
99	BOLT; BRKT (A) M12X25 FLANGE	0-28081-225-0	04	1	9601-9606	●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	04	1	9607-9803	●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	04	1	9804-0512	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28651-230-0	04	1	0601-0612	●
99	BOLT; BRKT (A) M12X25 FLANGE	0-28651-225-0	04	1	0701-	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28091-030-0	02	1	9601-9606	●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28691-030-0	02	1	9607-9803	●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28691-030-0	02	1	9804-0512	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28661-030-0	02	1	0601-	●
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9601-9803	●	●
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9804-	●
156	NUT; CAB MTG RR M16	9-99110-516-0	02	1	9601-9803	●	●
156	NUT; CAB MTG RR M16	9-99110-516-0	02	1	9804-0512	●
156	NUT; CAB MTG RR M16	0-91110-516-0	02	1	0601-	●
159	RUBBER; CUSHION,CAB MTG	1-53458-285-0	02	1	9601-9803	●	●
159	RUBBER; CUSHION,CAB MTG	1-53458-285-0	02	1	9804-	●
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28080-820-0	04	1	9601-9606	●	●
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28680-820-0	04	1	9607-9803	●	●
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28680-820-0	04	1	9804-0512	●
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28650-820-0	04	1	0601-	●
173	MEMBER; CAB MTG RR	1-53454-599-3	01	1	9601-9803	●	●
173	MEMBER; CAB MTG RR	1-53454-705-1	01	1	9804-0106	●
173	MEMBER; CAB MTG RR	1-53454-861-2	01	1	0107-	●
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	9601-9803	●	●
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	9804-0512	●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0601-	●
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	9601-9803	●	●
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	9804-0603	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0604-	●
192	NUT; BRKT FIX M12 FLANGE	0-91150-212-0	04	1	9804-0602	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	04	1	0603-	●
199	BRACKET; CAB RR MTG	1-53454-627-1	02	1	9601-9803	●	●
199	BRACKET; CAB RR MTG	1-53454-644-2	02	1	9804-0207	●
199	BRACKET; CAB RR MTG	1-53454-911-0	02	1	0208-1403	●
199	BRACKET; CAB RR MTG	8-98269-637-0	02	1	1404-	●
294	MEMBER; FLOATING	1-53454-602-0	01	1	9601-9803	●	●
294	MEMBER; FLOATING	1-53454-602-0	01	1	9804-	●
322	COLLAR; CAB FRT FOOT	1-53459-941-1	02	1	9601-9803	●	●
322	COLLAR; CAB FRT FOOT	1-53459-941-1	02	1	9804-	●
323	NUT; CAB FRT FOOT M16	9-99110-516-0	02	1	9601-9803	●	●
323	NUT; CAB FRT FOOT M16	9-99110-516-0	02	1	9804-0512	●
323	NUT; CAB FRT FOOT M16	0-91110-516-0	02	1	0601-	●
324	WASHER; LK ID=16.2	9-09150-816-0	02	1	9601-9803	●	●
324	WASHER; LK ID=16.2	9-09150-816-0	02	1	9804-0603	●
324	WASHER; LK ID=16.2	0-91510-816-0	02	1	0604-	●
325	BOLT; GUIDE NUT M12X35 FLANGE	0-28081-235-0	02	1	9601-9606	●	●
325	BOLT; GUIDE NUT M12X35 FLANGE	0-28681-235-0	02	1	9607-9612	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28681-240-0	02	1	9701-9803	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28681-240-0	02	1	9804-0512	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28651-240-0	02	1	0601-	●
326	NUT; GUIDE NUT (A) M12	1-53459-803-0	02	1	9601-9612	●	●
326	NUT; GUIDE NUT (B) M12	9-99110-512-0	02	1	9601-9803	●	●
326	NUT; GUIDE NUT (B) M12	9-99110-512-0	02	1	9804-0109	●
326	NUT; GUIDE NUT (B) M12 SELF LOCK	8-97028-390-1	02	1	0110-	●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9601-9803	●	●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9804-	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	9601-9803	●	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	9804-	●
413	WASHER; LK,CAB MTG RR (A) ID=23	1-53458-693-1	04	1	9601-9803	●	●
413	WASHER; LK,CAB MTG RR (A) ID=23	1-53458-693-1	04	1	9804-0306	●
413	WASHER; LK,CAB MTG RR (A) ID=23	1-53457-076-1	04	1	0307-	●
413	WASHER; LK,CAB MTG RR (B) ID=16.2	9-09150-816-0	02	1	9601-9803	●	●
413	WASHER; LK,CAB MTG RR (B) ID=16.2	9-09150-816-0	02	1	9804-0603	●
413	WASHER; LK,CAB MTG RR (B) ID=16.2	0-91510-816-0	02	1	0604-	●
414	COLLAR; CAB MTG RR	1-53459-941-1	02	1	9601-9803	●	●
414	COLLAR; CAB MTG RR	1-53459-941-1	02	1	9804-	●
415	PIN; CAB MTG RR M16X115	5-51361-002-1	02	1	9601-9803	●	●
415	PIN; CAB MTG RR M16X115	5-51361-002-1	02	1	9804-	●
448	BUSHING; CAB MTG	1-53458-635-0	02	1	9804-0106	●
448	BUSHING; CAB MTG 6HK1 TCS ENG(80L)	1-53459-836-3	02	1	0107-	●
448	BUSHING; CAB MTG 6SD1 TCN ENG(31L)	1-53458-635-0	02	1	0107-	●

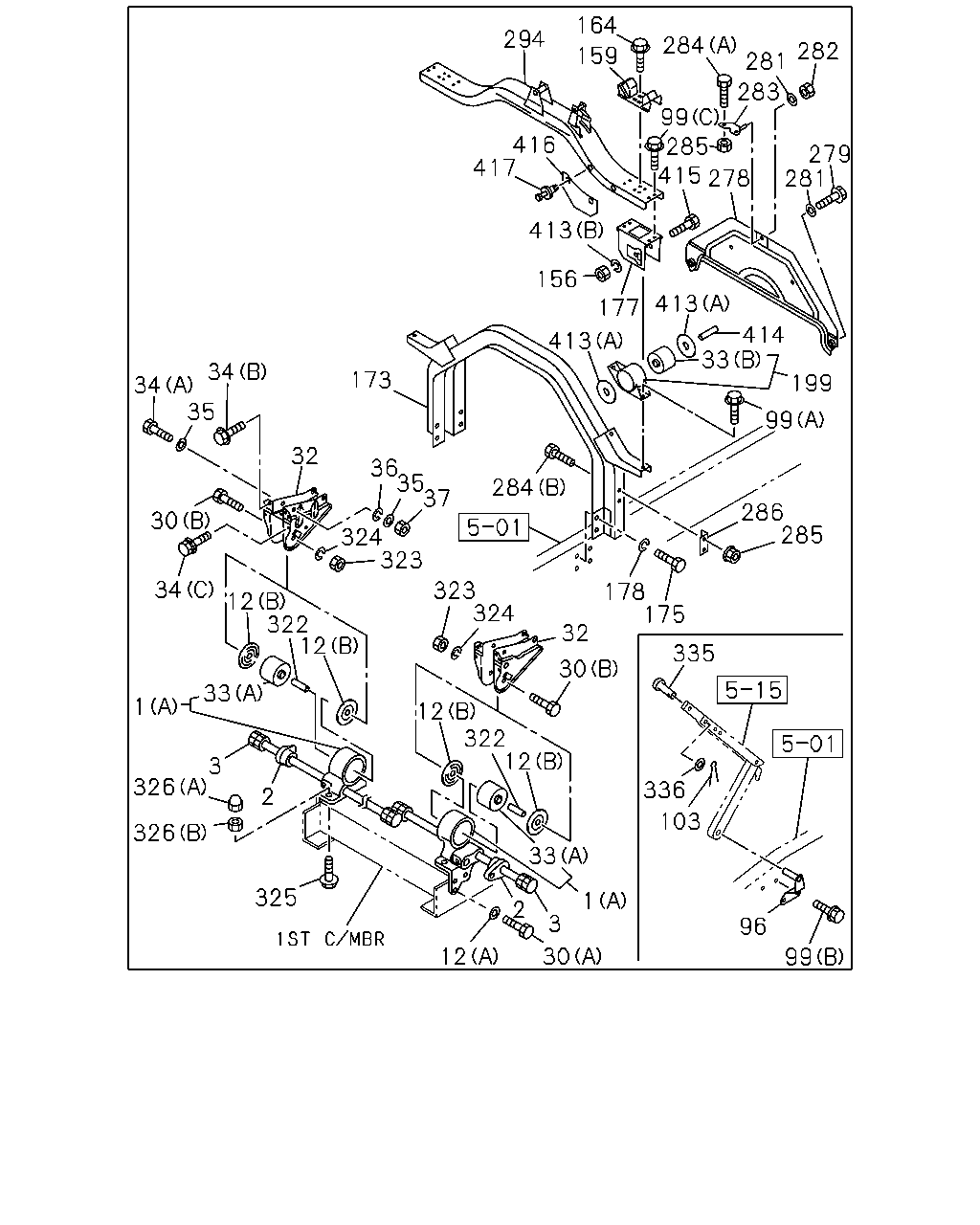

164 294 284 281 282 159 283 99 416 417 285 415 278 279 281 413 156 413 177 414 33 413 34 173 199 34 35 99 32 36 35 37 284 286 285 30 324 323 34 323 324 178 175 12 322 2 32 335 30 33 1 12 322 12 3 326 336 2 103 326 33 325 1 2 3 96 12 30 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG (B)	1-53454-648-1	02	1	9804-	●
1	BRACKET; CAB MTG 6SD1 TCN ENG(31L) (A)	1-53453-268-0	01	1	0107-	●
1	BRACKET; CAB MTG 6SD1 TCN ENG(31L) (A)	1-53453-267-0	01	1	0107-	●
1	BRACKET; CAB MTG (A)	1-53453-268-0	01	1	9601-9803	●	●
1	BRACKET; CAB MTG (A)	1-53453-268-0	01	1	9804-0106	●
1	BRACKET; CAB MTG 6HK1 TCS ENG(80L) (A)	1-53453-227-0	01	1	0107-	●
1	BRACKET; CAB MTG (A)	1-53453-267-0	01	1	9601-9803	●	●
1	BRACKET; CAB MTG (A)	1-53453-267-0	01	1	9804-0106	●
1	BRACKET; CAB MTG 6HK1 TCS ENG(80L) (A)	1-53453-226-0	01	1	0107-	●
2	BUSHING; TORSION BAR	1-53458-282-0	02	1	9601-9803	●	●
2	BUSHING; TORSION BAR	1-53458-282-0	02	1	9804-	●
3	TORSION BAR	1-09585-130-0	01	1	9601-9803	●	●
3	TORSION BAR	1-09585-130-0	01	1	9804-	●
3	TORSION BAR	1-09585-129-0	01	1	9601-9803	●	●
3	TORSION BAR	1-09585-129-0	01	1	9804-	●
12	WASHER; LK,BRKT (B) ID=23	1-53458-693-1	04	1	9601-9803	●	●
12	WASHER; LK,BRKT (B) ID=23	1-53458-693-1	04	1	9804-0306	●
12	WASHER; LK,BRKT (B) ID=23	1-53457-076-1	04	1	0307-	●
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	9601-9803	●	●
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	9804-1201	●
12	WASHER; LK,BRKT (A) ID=15	8-98010-627-1	10	1	1202-	●
30	BOLT; CAB FRT FOOT (B) M16X115	5-51361-002-1	02	1	9601-9803	●	●
30	BOLT; CAB FRT FOOT (B) M16X115	5-51361-002-1	02	1	9804-	●
30	BOLT; CAB FRT FOOT (A) M14X50	9-92061-450-0	10	1	9601-9803	●	●
30	BOLT; CAB FRT FOOT (A) M14X50	9-92061-450-0	10	1	9804-0201	●
30	BOLT; CAB FRT FOOT (A) M14X45	9-92061-445-0	10	1	0202-	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-231-4	01	1	9601-9803	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-231-4	01	1	9804-	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-290-1	01	1	9601-9803	●	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-290-1	01	1	9804-0004	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-290-1	01	1	0005-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT 6SD1 TCN ENG(31L) (A)	1-53458-634-0	02	1	0107-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	1-53458-634-0	02	1	9601-9803	●	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	1-53458-634-0	02	1	9804-0106	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT 6HK1 TCS ENG(80L) (A)	1-53459-836-3	02	1	0107-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	1-53458-635-0	02	1	9601-9803	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9804-0106	●
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X105	1-79198-008-0	04	1	9601-9803	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X105	1-79198-008-1	04	1	9804-	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9601-9803	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9804-0106	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0107-0904	●
34	BOLT; CAB MTG BRKT,CAB SIDE (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X20 W/LK&PL WASHER	8-94279-219-0	08	1	9601-9803	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X20 W/LK&PL WASHER	8-94279-219-0	08	1	9804-	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	9601-9803	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	9804-	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9601-9803	●	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9804-	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9601-9803	●	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9804-	●
96	BRACKET; CAB STAY	1-62500-628-0	01	1	9601-9803	●	●
96	BRACKET; CAB STAY	1-62500-628-0	01	1	9804-	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28080-820-0	08	1	9601-9606	●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	08	1	9607-9803	●	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	08	1	9804-0512	●
99	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	08	1	0601-	●
99	BOLT; BRKT (A) M12X25 FLANGE	0-28081-225-0	04	1	9601-9606	●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	04	1	9607-9803	●	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28681-230-0	04	1	9804-0512	●
99	BOLT; BRKT (A) M12X30 FLANGE	0-28651-230-0	04	1	0601-0612	●
99	BOLT; BRKT (A) M12X25 FLANGE	0-28651-225-0	04	1	0701-	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28091-030-0	02	1	9601-9606	●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28691-030-0	02	1	9607-9803	●	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28691-030-0	02	1	9804-0512	●
99	BOLT; BRKT (B) M10X30 FLANGE	0-28661-030-0	02	1	0601-	●
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9601-9803	●	●
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9804-	●
156	NUT; CAB MTG RR M16	9-99110-516-0	02	1	9601-9803	●	●
156	NUT; CAB MTG RR M16	9-99110-516-0	02	1	9804-0512	●
156	NUT; CAB MTG RR M16	0-91110-516-0	02	1	0601-	●
159	RUBBER; CUSHION,CAB MTG	1-53458-285-0	02	1	9601-9803	●	●
159	RUBBER; CUSHION,CAB MTG	1-53458-285-0	02	1	9804-	●
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28080-820-0	04	1	9601-9606	●	●
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28680-820-0	04	1	9607-9803	●	●
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28680-820-0	04	1	9804-0512	●
164	BOLT; CUSHION RUBBER,CAB MTG M8X20 FLANGE	0-28650-820-0	04	1	0601-	●
173	MEMBER; CAB MTG RR	1-53454-599-3	01	1	9601-9803	●	●
173	MEMBER; CAB MTG RR	1-53454-705-1	01	1	9804-0106	●
173	MEMBER; CAB MTG RR	1-53454-861-2	01	1	0107-	●
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	9601-9803	●	●
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	9804-0512	●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0601-	●
177	BRACKET; MEMBER	1-53454-529-1	01	1	9601-9803	●	●
177	BRACKET; MEMBER	1-53454-528-1	01	1	9601-9803	●	●
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	9601-9803	●	●
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	9804-0603	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0604-	●
199	BRACKET; CAB RR MTG	1-53454-627-1	02	1	9601-9803	●	●
199	BRACKET; CAB RR MTG	1-53454-644-2	02	1	9804-0207	●
199	BRACKET; CAB RR MTG	1-53454-911-0	02	1	0208-1403	●
199	BRACKET; CAB RR MTG	8-98269-637-0	02	1	1404-	●
278	COVER	1-53192-204-0	01	1	9601-9705		●
278	COVER 6HH1 STD ENG(65L)	1-53192-204-0	01	1	9706-9803		●
279	BOLT M8X25 FLANGE	0-28280-825-0	02	1	9601-9606		●
279	BOLT M8X25 FLANGE	0-28680-825-0	02	1	9607-9705		●
279	BOLT 6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	02	1	9706-9803		●
281	WASHER; PL,BACK COVER ID=8.4 OD=26	9-09164-808-0	03	1	9601-9705		●
281	WASHER; PL,BACK COVER 6HH1 STD ENG(65L) ID=8.4 OD=26	9-09164-808-0	03	1	9706-9803		●
282	NUT; BACK COVER M8 FLANGE	0-91150-108-0	01	1	9601-9705		●
282	NUT; BACK COVER 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	9706-9803		●
283	BRACKET; UPR	1-53459-630-2	01	1	9601-9705		●
283	BRACKET; UPR 6HH1 STD ENG(65L)	1-53459-630-2	01	1	9706-9803		●
284	BOLT; BRKT UPR (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606		●
284	BOLT; BRKT UPR (A) M8X20 FLANGE	0-28680-820-0	02	1	9607-9705		●
284	BOLT; BRKT UPR 6HH1 STD ENG(65L) (A) M8X20 FLANGE	0-28680-820-0	02	1	9706-9803		●
284	BOLT; BRKT UPR (B) M8X20 FLANGE	0-28080-820-0	04	1	9601-9606		●
284	BOLT; BRKT UPR (B) M8X20 FLANGE	0-28680-820-0	04	1	9607-9705		●
284	BOLT; BRKT UPR 6HH1 STD ENG(65L) (B) M8X20 FLANGE	0-28680-820-0	04	1	9706-9803		●
285	NUT; BRKT UPR M8	9-09110-408-0	06	1	9601-9606		●
285	NUT; BRKT UPR M8 FLANGE	0-91150-108-0	06	1	9607-9705		●
285	NUT; BRKT UPR 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	06	1	9706-9803		●
286	BRACKET; LOW	1-53459-631-3	01	1	9601-9705		●
286	BRACKET; LOW 6HH1 STD ENG(65L)	1-53459-631-3	01	1	9706-9803		●
286	BRACKET; LOW	1-53459-632-3	01	1	9601-9705		●
286	BRACKET; LOW 6HH1 STD ENG(65L)	1-53459-632-3	01	1	9706-9803		●
294	MEMBER; FLOATING	1-53454-602-0	01	1	9601-9803	●	●
294	MEMBER; FLOATING	1-53454-602-0	01	1	9804-	●
322	COLLAR; CAB FRT FOOT	1-53459-941-1	02	1	9601-9803	●	●
322	COLLAR; CAB FRT FOOT	1-53459-941-1	02	1	9804-	●
323	NUT; CAB FRT FOOT M16	9-99110-516-0	02	1	9601-9803	●	●
323	NUT; CAB FRT FOOT M16	9-99110-516-0	02	1	9804-0512	●
323	NUT; CAB FRT FOOT M16	0-91110-516-0	02	1	0601-	●
324	WASHER; LK ID=16.2	9-09150-816-0	02	1	9601-9803	●	●
324	WASHER; LK ID=16.2	9-09150-816-0	02	1	9804-0603	●
324	WASHER; LK ID=16.2	0-91510-816-0	02	1	0604-	●
325	BOLT; GUIDE NUT M12X35 FLANGE	0-28081-235-0	02	1	9601-9606	●	●
325	BOLT; GUIDE NUT M12X35 FLANGE	0-28681-235-0	02	1	9607-9612	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28681-240-0	02	1	9701-9803	●	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28681-240-0	02	1	9804-0512	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28651-240-0	02	1	0601-	●
326	NUT; GUIDE NUT (A) M12	1-53459-803-0	02	1	9601-9612	●	●
326	NUT; GUIDE NUT (B) M12	9-99110-512-0	02	1	9601-9803	●	●
326	NUT; GUIDE NUT (B) M12	9-99110-512-0	02	1	9804-0109	●
326	NUT; GUIDE NUT (B) M12 SELF LOCK	8-97028-390-1	02	1	0110-	●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9601-9803	●	●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9804-	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	9601-9803	●	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	9804-	●
413	WASHER; LK,CAB MTG RR (A) ID=23	1-53458-693-1	04	1	9601-9803	●	●
413	WASHER; LK,CAB MTG RR (A) ID=23	1-53458-693-1	04	1	9804-0306	●
413	WASHER; LK,CAB MTG RR (A) ID=23	1-53457-076-1	04	1	0307-	●
413	WASHER; LK,CAB MTG RR (B) ID=16.2	9-09150-816-0	02	1	9601-9803	●	●
413	WASHER; LK,CAB MTG RR (B) ID=16.2	9-09150-816-0	02	1	9804-0603	●
413	WASHER; LK,CAB MTG RR (B) ID=16.2	0-91510-816-0	02	1	0604-	●
414	COLLAR; CAB MTG RR	1-53459-941-1	02	1	9601-9803	●	●
414	COLLAR; CAB MTG RR	1-53459-941-1	02	1	9804-	●
415	PIN; CAB MTG RR M16X115	5-51361-002-1	02	1	9601-9803	●	●
415	PIN; CAB MTG RR M16X115	5-51361-002-1	02	1	9804-	●
416	RUBBER; SHUTTER	1-53446-730-0	02	1	9601-9705		●
416	RUBBER; SHUTTER 6HH1 STD ENG(65L)	1-53446-730-0	02	1	9706-9803		●
417	RIVET	1-09470-001-0	04	1	9601-9603		●
417	RIVET	1-09470-001-0	04	1	9601-9603		●
417	RIVET	1-09470-001-0	04	1	9604-9705		●
417	RIVET 6HH1 STD ENG(65L)	1-09470-001-0	04	1	9706-9803		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
