Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#24838) — 689 parça

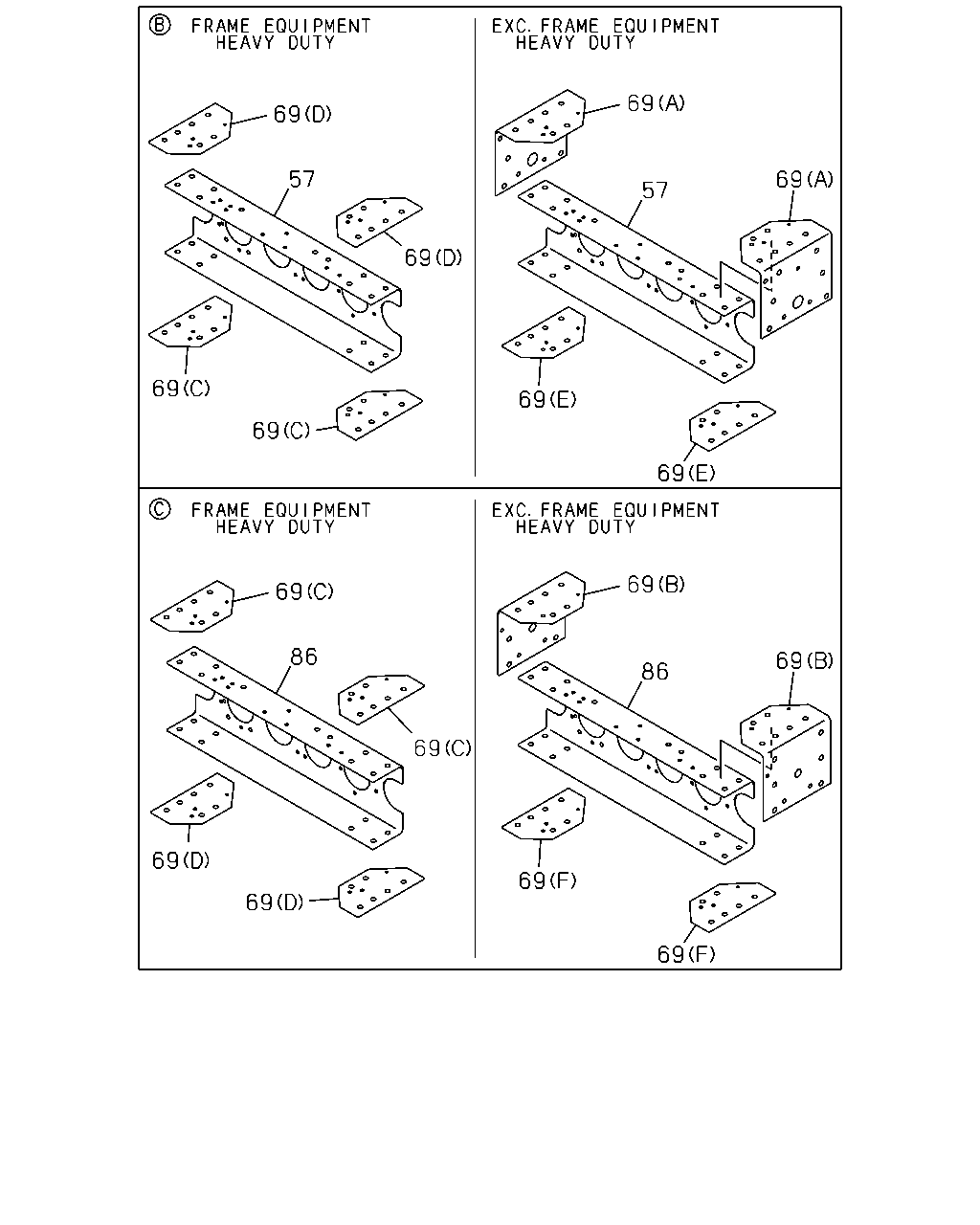

69 69 57 69 57 69 69 69 69 69 69 69 86 69 86 69 69 69 69 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
57	MEMBER; CROSS,RR SUSP FRT FRAME EQUIPMENT HEAVY DUTY(F03)	1-53181-380-5	01	1	9601-9705	●	●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-380-5	01	1	9601-9705			●
57	MEMBER; CROSS,RR SUSP FRT FRAME EQUIPMENT HEAVY DUTY(F03)	1-53181-380-5	01	1	9706-9803	●	●		●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-380-5	01	1	9706-9803			●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-380-6	01	1	9804-0106			●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-380-6	01	1	0107-					●
57	MEMBER; CROSS,RR SUSP FRT EXC. FRAME EQUIPMENT HEAVY DUTY(F03)	1-53181-382-8	01	1	9601-9705	●	●
57	MEMBER; CROSS,RR SUSP FRT EXC. FRAME EQUIPMENT HEAVY DUTY(F03)	1-53181-382-8	01	1	9706-9803	●	●		●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-815-1	01	1	9804-0106	●	●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-815-1	01	1	0107-						●	●
69	GUSSET; RR SUSP,UPR FRAME EQUIPMENT HEAVY DUTY(F03) (D)	1-53167-462-0	04	1	9601-9705	●	●
69	GUSSET; RR SUSP,UPR (D)	1-53167-462-0	04	1	9601-9705			●
69	GUSSET; RR SUSP,UPR FRAME EQUIPMENT HEAVY DUTY(F03) (D)	1-53167-462-0	04	1	9706-9803	●	●		●
69	GUSSET; RR SUSP,UPR (D)	1-53167-462-0	04	1	9706-9803			●
69	GUSSET; RR SUSP,UPR (D)	1-53167-462-0	04	1	9804-0106			●
69	GUSSET; RR SUSP,UPR (D)	1-53167-462-0	04	1	0107-					●
69	GUSSET; RR SUSP,UPR FRAME EQUIPMENT HEAVY DUTY(F03) (C)	1-53167-463-0	04	1	9601-9705	●	●
69	GUSSET; RR SUSP,UPR (C)	1-53167-463-0	04	1	9601-9705			●
69	GUSSET; RR SUSP,UPR FRAME EQUIPMENT HEAVY DUTY(F03) (C)	1-53167-463-0	04	1	9706-9803	●	●		●
69	GUSSET; RR SUSP,UPR (C)	1-53167-463-0	04	1	9706-9803			●
69	GUSSET; RR SUSP,UPR (C)	1-53167-463-0	04	1	9804-0106			●
69	GUSSET; RR SUSP,UPR (C)	1-53167-463-0	04	1	0107-					●
69	GUSSET; RR SUSP,UPR EXC. FRAME EQUIPMENT HEAVY DUTY(F03) (F)	1-53167-099-4	02	1	9601-9705	●	●
69	GUSSET; RR SUSP,UPR EXC. FRAME EQUIPMENT HEAVY DUTY(F03) (F)	1-53167-099-4	02	1	9706-9803	●	●		●
69	GUSSET; RR SUSP,UPR (F)	1-53167-099-4	02	1	9804-0106	●	●
69	GUSSET; RR SUSP,UPR (F)	1-53167-099-4	02	1	0107-						●	●
69	GUSSET; RR SUSP,UPR EXC. FRAME EQUIPMENT HEAVY DUTY(F03) (E)	1-53167-100-3	02	1	9601-9705	●	●
69	GUSSET; RR SUSP,UPR EXC. FRAME EQUIPMENT HEAVY DUTY(F03) (E)	1-53167-100-3	02	1	9706-9803	●	●		●
69	GUSSET; RR SUSP,UPR (E)	1-53167-100-3	02	1	9804-0106	●	●
69	GUSSET; RR SUSP,UPR (E)	1-53167-100-3	02	1	0107-						●	●
69	GUSSET; RR SUSP,UPR EXC. FRAME EQUIPMENT HEAVY DUTY(F03) (A) 21-HOLE	1-53167-096-4	01	1	9601-9705	●	●
69	GUSSET; RR SUSP,UPR EXC. FRAME EQUIPMENT HEAVY DUTY(F03) (A) 21-HOLE	1-53167-096-4	01	1	9706-9803	●	●		●
69	GUSSET; RR SUSP,UPR (A) 21-HOLE	1-53167-096-4	01	1	9804-0106	●	●
69	GUSSET; RR SUSP,UPR (A) 21-HOLE	1-53167-096-4	01	1	0107-						●	●
69	GUSSET; RR SUSP,UPR EXC. FRAME EQUIPMENT HEAVY DUTY(F03) (B) 17-HOLE	1-53167-098-5	01	1	9601-9705	●	●
69	GUSSET; RR SUSP,UPR EXC. FRAME EQUIPMENT HEAVY DUTY(F03) (B) 17-HOLE	1-53167-098-5	01	1	9706-9803	●	●		●
69	GUSSET; RR SUSP,UPR (B) 17-HOLE	1-53167-098-5	01	1	9804-0106	●	●
69	GUSSET; RR SUSP,UPR (B) 17-HOLE	1-53167-098-5	01	1	0107-						●	●
69	GUSSET; RR SUSP,UPR EXC. FRAME EQUIPMENT HEAVY DUTY(F03) (A) 21-HOLE	1-53167-095-4	01	1	9601-9705	●	●
69	GUSSET; RR SUSP,UPR EXC. FRAME EQUIPMENT HEAVY DUTY(F03) (A) 21-HOLE	1-53167-095-4	01	1	9706-9803	●	●		●
69	GUSSET; RR SUSP,UPR (A) 21-HOLE	1-53167-095-4	01	1	9804-0106	●	●
69	GUSSET; RR SUSP,UPR (A) 21-HOLE	1-53167-095-5	01	1	0107-						●	●
69	GUSSET; RR SUSP,UPR EXC. FRAME EQUIPMENT HEAVY DUTY(F03) (B) 17-HOLE	1-53167-097-5	01	1	9601-9705	●	●
69	GUSSET; RR SUSP,UPR EXC. FRAME EQUIPMENT HEAVY DUTY(F03) (B) 17-HOLE	1-53167-097-5	01	1	9706-9803	●	●		●
69	GUSSET; RR SUSP,UPR (B) 17-HOLE	1-53167-097-5	01	1	9804-0106	●	●
69	GUSSET; RR SUSP,UPR (B) 17-HOLE	1-53167-097-5	01	1	0107-						●	●
86	MEMBER; CROSS,RR SUSP RR FRAME EQUIPMENT HEAVY DUTY(F03)	1-53181-380-5	01	1	9601-9705	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-380-5	01	1	9601-9705			●
86	MEMBER; CROSS,RR SUSP RR FRAME EQUIPMENT HEAVY DUTY(F03)	1-53181-380-5	01	1	9706-9803	●	●		●
86	MEMBER; CROSS,RR SUSP RR	1-53181-380-5	01	1	9706-9803			●
86	MEMBER; CROSS,RR SUSP RR	1-53181-380-6	01	1	9804-0106			●
86	MEMBER; CROSS,RR SUSP RR	1-53181-380-6	01	1	0107-					●
86	MEMBER; CROSS,RR SUSP RR EXC. FRAME EQUIPMENT HEAVY DUTY(F03)	1-53181-382-8	01	1	9601-9705	●	●
86	MEMBER; CROSS,RR SUSP RR EXC. FRAME EQUIPMENT HEAVY DUTY(F03)	1-53181-382-8	01	1	9706-9803	●	●		●
86	MEMBER; CROSS,RR SUSP RR	1-53181-815-1	01	1	9804-0106	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-815-1	01	1	0107-						●	●

64 60 41 40 40 58 64 61 62 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D
40	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03) M10X40 W/LK WASHER	0-50041-040-0	08	1	9706-9803	●
40	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M10X35 W/LK WASHER	0-50041-035-0	08	1	9706-9803	●
40	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) M10X35 W/LK WASHER	0-50041-035-0	08	1	9706-9803	●
41	BRACKET; CENTER BRG,FRAME SIDE	1-37515-085-0	02	1	9706-9803	●
58	MEMBER; CENTER BRG 6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03)	1-37529-094-0	01	1	9706-9803	●
58	MEMBER; CENTER BRG 6HH1 STD ENG(65L) EXC. FRAME EQUIPMENT HEAVY DUTY(F03)	1-37529-052-2	01	1	9706-9803	●
58	MEMBER; CENTER BRG 6HE1 TC ENG(57L)	1-37529-052-2	01	1	9706-9803	●
60	BOLT; MBR M10X25 W/LK WASHER	0-50041-025-0	08	1	9706-9803	●
61	WASHER; PL,MBR ID=10.5 OD=22	9-09164-610-0	08	1	9706-9803	●
62	NUT; MBR M10	9-09110-510-0	08	1	9706-9803	●
64	NUT; BRKT TO FRAME M10	9-09110-510-0	08	1	9706-9803	●

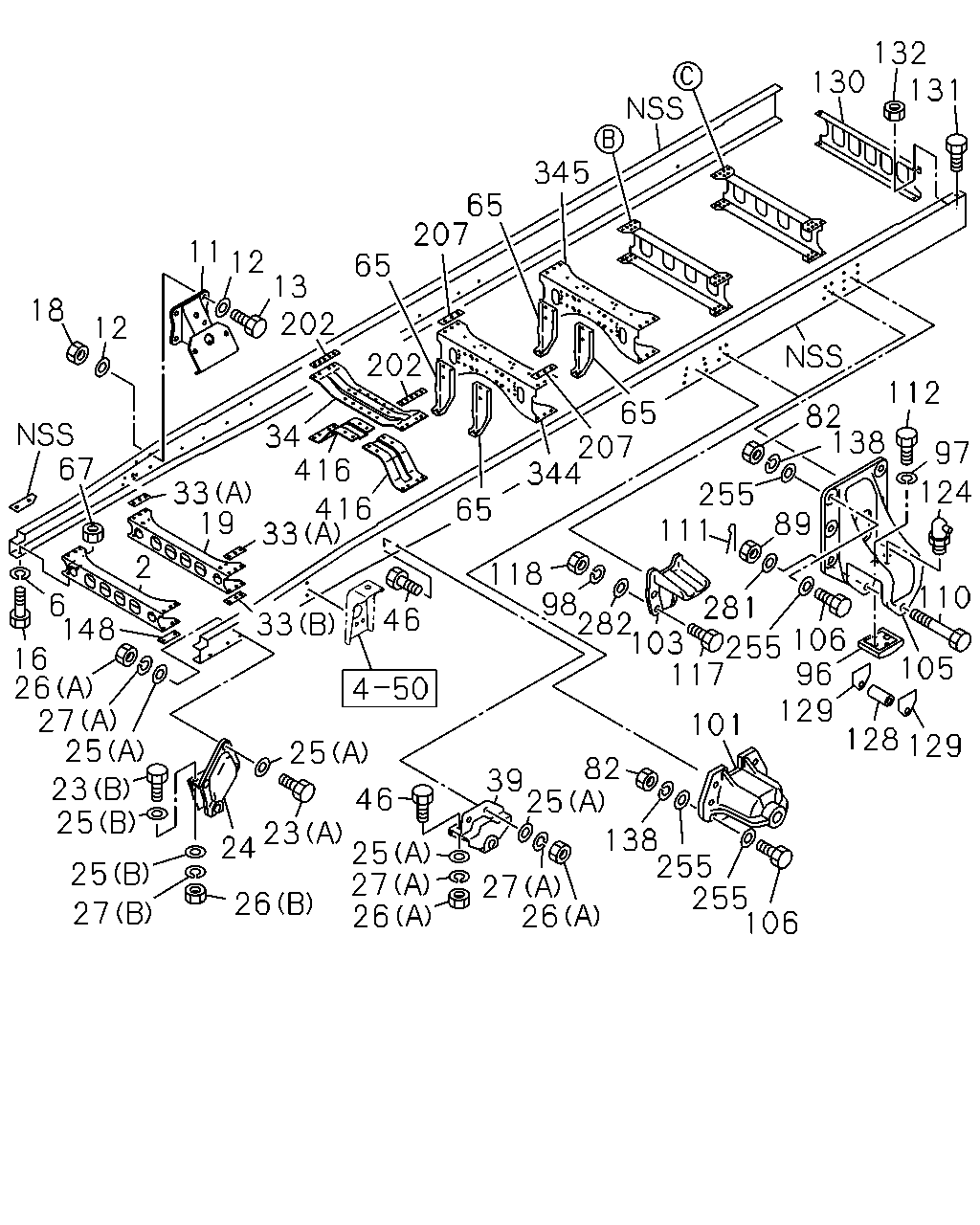

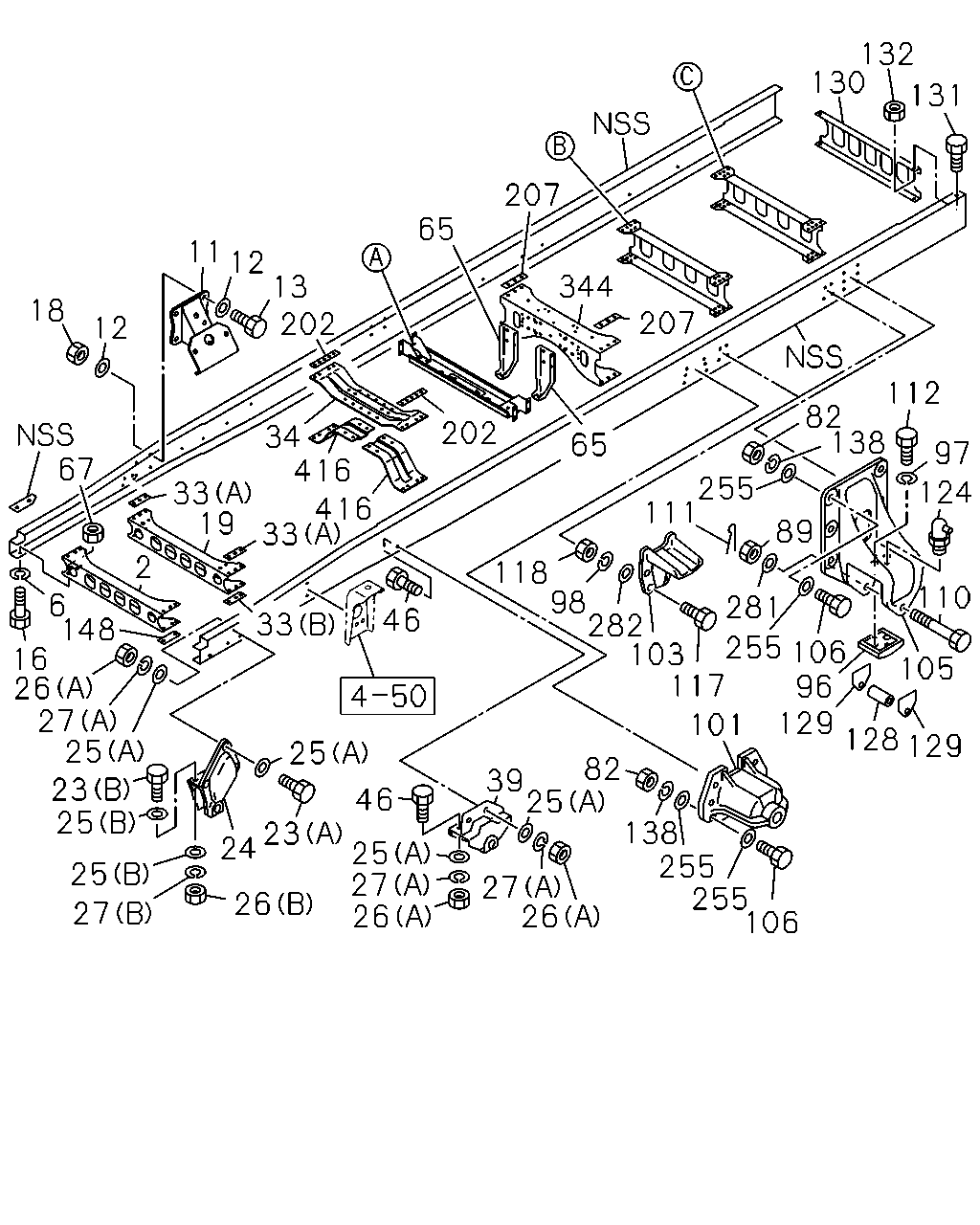

132 130 131 345 65 207 11 12 13 202 65 18 202 34 416 416 33 12 112 82 138 65 207 344 67 97 2 6 148 124 33 19 255 111 65 89 118 110 98 282 103 106 255 105 117 96 129 33 281 46 16 26 27 25 23 25 128 129 101 25 82 39 25 46 25 27 26 23 24 138 255 255 106 27 26 25 26 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	MEMBER; CROSS,1ST	1-53181-670-7	01	1	9601-9705	●	●	●
2	MEMBER; CROSS,1ST	1-53181-670-8	01	1	9706-9803	●	●	●	●
2	MEMBER; CROSS,1ST	1-53181-670-9	01	1	9804-0009	●	●	●
2	MEMBER; CROSS,1ST	1-53181-939-1	01	1	0010-0106	●	●	●
2	MEMBER; CROSS,1ST	1-53181-939-2	01	1	0107-					●	●	●
6	WASHER; LK,1ST C/MBR ID=16.2	9-09150-616-0	01	1	9601-9705	●	●	●
6	WASHER; LK,1ST C/MBR ID=16.2	9-09150-616-0	01	1	9706-9803	●	●	●	●
6	WASHER; LK,1ST C/MBR ID=16.2	9-09150-616-0	02	1	9804-0106	●	●	●
6	WASHER; LK,1ST C/MBR ID=16.2	9-09150-616-0	02	1	0107-0603					●	●	●
6	WASHER; LK,1ST C/MBR ID=16.2	0-91510-616-0	02	1	0604-					●	●	●
11	BRACKET; ENG MTG FRAME EQUIPMENT HEAVY DUTY(F03)	1-53211-195-0	02	1	9601-9609	●	●
11	BRACKET; ENG MTG	1-53211-195-0	02	1	9601-9609			●
11	BRACKET; ENG MTG FRAME EQUIPMENT HEAVY DUTY(F03)	1-53211-195-0	02	1	9610-9705	●
11	BRACKET; ENG MTG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03)	1-53211-195-0	02	1	9610-9705		●
11	BRACKET; ENG MTG	1-53211-195-0	02	1	9610-9705			●
11	BRACKET; ENG MTG FRAME EQUIPMENT HEAVY DUTY(F03)	1-53211-195-0	02	1	9706-9803	●
11	BRACKET; ENG MTG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03)	1-53211-195-0	02	1	9706-9803		●		●
11	BRACKET; ENG MTG	1-53211-195-0	02	1	9706-9803			●
11	BRACKET; ENG MTG EXC. FRAME EQUIPMENT HEAVY DUTY(F03)	1-53211-196-0	02	1	9601-9609	●	●
11	BRACKET; ENG MTG EXC. FRAME EQUIPMENT HEAVY DUTY(F03)	1-53211-196-0	02	1	9610-9705	●
11	BRACKET; ENG MTG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. FRAME EQUIPMENT HEAVY DUTY(F03)	1-53211-196-0	02	1	9610-9705		●
11	BRACKET; ENG MTG EXC. FRAME EQUIPMENT HEAVY DUTY(F03)	1-53211-196-0	02	1	9706-9803	●
11	BRACKET; ENG MTG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. FRAME EQUIPMENT HEAVY DUTY(F03)	1-53211-196-0	02	1	9706-9803		●		●
11	BRACKET; ENG MTG	1-53211-196-0	02	1	9804-0106	●
11	BRACKET; ENG MTG 6HE1 TC ENG(57L)	1-53211-196-0	02	1	9804-0106		●
11	BRACKET; ENG MTG	1-53211-196-0	02	1	0107-						●
11	BRACKET; ENG MTG 6HK1 TCS ENG(80L)	1-53211-196-0	02	1	0107-							●
12	WASHER; PL,BRKT,ENG MTG ID=12.5	1-09503-171-0	16	1	9601-9609	●	●	●
12	WASHER; PL,BRKT,ENG MTG ID=12.5	1-09503-171-0	16	1	9610-9705	●
12	WASHER; PL,BRKT,ENG MTG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=12.5	1-09503-171-0	16	1	9610-9705		●	●
12	WASHER; PL,BRKT,ENG MTG ID=12.5	1-09503-171-0	16	1	9706-9803	●
12	WASHER; PL,BRKT,ENG MTG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=12.5	1-09503-171-0	16	1	9706-9803		●	●	●
13	BOLT; BRKT,ENG MTG FRAME EQUIPMENT HEAVY DUTY(F03) M12X40	9-92061-240-0	08	1	9601-9609	●	●
13	BOLT; BRKT,ENG MTG M12X40	9-92061-240-0	08	1	9601-9609			●
13	BOLT; BRKT,ENG MTG FRAME EQUIPMENT HEAVY DUTY(F03) M12X40	9-92061-240-0	08	1	9610-9705	●
13	BOLT; BRKT,ENG MTG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03) M12X40	9-92061-240-0	08	1	9610-9705		●
13	BOLT; BRKT,ENG MTG M12X40	9-92061-240-0	08	1	9610-9705			●
13	BOLT; BRKT,ENG MTG FRAME EQUIPMENT HEAVY DUTY(F03) M12X40	9-92061-240-0	08	1	9706-9803	●
13	BOLT; BRKT,ENG MTG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03) M12X40	9-92061-240-0	08	1	9706-9803		●		●
13	BOLT; BRKT,ENG MTG M12X40	9-92061-240-0	08	1	9706-9803			●
13	BOLT; BRKT,ENG MTG EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M12X35	9-92061-235-0	08	1	9601-9609	●	●
13	BOLT; BRKT,ENG MTG EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M12X35	9-92061-235-0	08	1	9610-9705	●
13	BOLT; BRKT,ENG MTG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M12X35	9-92061-235-0	08	1	9610-9705		●
13	BOLT; BRKT,ENG MTG EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M12X35	9-92061-235-0	08	1	9706-9803	●
13	BOLT; BRKT,ENG MTG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M12X35	9-92061-235-0	08	1	9706-9803		●		●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28691-235-0	08	1	9804-0106	●
13	BOLT; BRKT,ENG MTG 6HE1 TC ENG(57L) M12X35 FLANGE	0-28691-235-0	08	1	9804-0106		●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28691-235-0	08	1	0107-0512						●
13	BOLT; BRKT,ENG MTG 6HK1 TCS ENG(80L) M12X35 FLANGE	0-28691-235-0	08	1	0107-0512							●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	0601-						●
13	BOLT; BRKT,ENG MTG 6HK1 TCS ENG(80L) M12X35 FLANGE	0-28661-235-0	08	1	0601-							●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20801-640-0	01	1	9601-9705	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20801-640-0	01	1	9706-9803	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20801-640-0	02	1	9804-0106	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20801-640-0	02	1	0107-0512					●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20851-640-0	02	1	0601-					●	●	●
18	NUT; BRKT,ENG MTG M12	9-99110-512-0	08	1	9601-9609	●	●	●
18	NUT; BRKT,ENG MTG M12	9-99110-512-0	08	1	9610-9705	●
18	NUT; BRKT,ENG MTG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12	9-99110-512-0	08	1	9610-9705		●	●
18	NUT; BRKT,ENG MTG M12	9-99110-512-0	08	1	9706-9803	●
18	NUT; BRKT,ENG MTG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12	9-99110-512-0	08	1	9706-9803		●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91150-212-0	08	1	9804-0106	●
18	NUT; BRKT,ENG MTG 6HE1 TC ENG(57L) M12 FLANGE	0-91150-212-0	08	1	9804-0106		●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91150-212-0	08	1	0107-0602						●
18	NUT; BRKT,ENG MTG 6HK1 TCS ENG(80L) M12 FLANGE	0-91150-212-0	08	1	0107-0602							●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	0603-						●
18	NUT; BRKT,ENG MTG 6HK1 TCS ENG(80L) M12 FLANGE	0-91180-212-0	08	1	0603-							●
19	MEMBER; CROSS,2ND	1-53181-671-6	01	1	9601-9705	●	●	●
19	MEMBER; CROSS,2ND	1-53181-671-7	01	1	9706-9803	●	●	●	●
19	MEMBER; CROSS,2ND	1-53181-671-9	01	1	9804-0106	●	●	●
19	MEMBER; CROSS,2ND	1-53181-671-9	01	1	0107-0410					●	●	●
19	MEMBER; CROSS,2ND	8-97606-306-0	01	1	0411-					●	●	●
23	BOLT; BRKT,SPR (A) M14X50	9-92061-450-0	06	1	9601-9705	●	●	●
23	BOLT; BRKT,SPR (A) M14X50	9-92061-450-0	06	1	9706-9803	●	●	●	●
23	BOLT; BRKT,SPR (A) M14X45	9-92061-445-0	06	1	9804-0106	●	●	●
23	BOLT; BRKT,SPR (A) M14X45	9-92061-445-0	06	1	0107-					●	●	●
23	BOLT; BRKT,SPR (B) M16X60	9-92061-660-0	04	1	9601-9705	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	9-92061-660-0	04	1	9706-9803	●	●	●	●
23	BOLT; BRKT,SPR (B) M16X50	9-92061-650-0	04	1	9804-0106	●	●	●
23	BOLT; BRKT,SPR (B) M16X50	9-92061-650-0	04	1	0107-0512					●	●	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	0601-					●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-149-3	01	1	9601-9705	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-149-3	01	1	9706-9803	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-149-3	01	1	9804-0106	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-149-3	01	1	0107-					●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-148-3	01	1	9601-9705	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-148-3	01	1	9706-9803	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-148-3	01	1	9804-0106	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-148-3	01	1	0107-					●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	9601-9705	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	9706-9803	●	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	9804-0106	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	0107-					●	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	28	1	9601-9705	●	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	28	1	9706-9803	●	●	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	28	1	9804-0106	●	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	28	1	0107-1201					●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1202-					●	●	●
26	NUT; BRKT,SPR (A) M14	9-99110-514-0	14	1	9601-9705	●	●	●
26	NUT; BRKT,SPR (A) M14	9-99110-514-0	14	1	9706-9803	●	●	●	●
26	NUT; BRKT,SPR (A) M14	9-99110-514-0	14	1	9804-0106	●	●	●
26	NUT; BRKT,SPR (A) M14	9-99110-514-0	14	1	0107-0512					●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	0601-					●	●	●
26	NUT; BRKT,SPR (B) M16	9-99110-516-0	04	1	9601-9705	●	●	●
26	NUT; BRKT,SPR (B) M16	9-99110-516-0	04	1	9706-9803	●	●	●	●
26	NUT; BRKT,SPR (B) M16	9-99110-516-0	04	1	9804-0106	●	●	●
26	NUT; BRKT,SPR (B) M16	9-99110-516-0	04	1	0107-0512					●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0601-					●	●	●
27	WASHER; LK,BRKT,FRT SPR (A) ID=14.2	9-09150-614-0	14	1	9601-9705	●	●	●
27	WASHER; LK,BRKT,FRT SPR (A) ID=14.2	9-09150-614-0	14	1	9706-9803	●	●	●	●
27	WASHER; LK,BRKT,FRT SPR (B) ID=16.2	9-09150-616-0	04	1	9601-9705	●	●	●
27	WASHER; LK,BRKT,FRT SPR (B) ID=16.2	9-09150-616-0	04	1	9706-9803	●	●	●	●
33	SPACER; 2ND C/MBR,UPR (A)	1-53168-276-0	02	1	9601-9705	●	●	●
33	SPACER; 2ND C/MBR,UPR (A)	1-53168-276-0	02	1	9706-9803	●	●	●	●
33	SPACER; 2ND C/MBR,UPR (A)	1-53168-276-0	02	1	9804-0106	●	●	●
33	SPACER; 2ND C/MBR,UPR (A)	1-53168-276-0	02	1	0107-					●	●	●
33	SPACER; 2ND C/MBR,UPR (B)	1-53168-287-0	02	1	9601-9705	●	●	●
33	SPACER; 2ND C/MBR,UPR (B)	1-53168-287-0	02	1	9706-9803	●	●	●	●
33	SPACER; 2ND C/MBR,UPR (B)	1-53168-287-0	02	1	9804-0106	●	●	●
33	SPACER; 2ND C/MBR,UPR (B)	1-53168-287-0	02	1	0107-					●	●	●
34	MEMBER; CROSS,3RD	1-53174-231-1	01	1	9601-9705	●	●	●
34	MEMBER; CROSS,3RD	1-53174-231-1	01	1	9706-9803	●	●	●	●
34	MEMBER; CROSS,3RD	1-53174-231-1	01	1	9804-0106	●	●	●
34	MEMBER; CROSS,3RD	1-53174-231-1	01	1	0107-					●	●	●
39	BRACKET; FRT SPR,RR	1-53352-125-2	01	1	9601-9705	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-125-2	01	1	9706-9803	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-125-2	01	1	9804-0106	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-125-2	01	1	0107-					●	●	●
39	BRACKET; FRT SPR,RR	1-53352-124-2	01	1	9601-9705	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-124-2	01	1	9706-9803	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-124-2	01	1	9804-0106	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-124-2	01	1	0107-					●	●	●
46	BOLT; BRKT FIX M14X50	9-92061-450-0	08	1	9601-9705	●	●	●
46	BOLT; BRKT FIX M14X50	9-92061-450-0	08	1	9706-9803	●	●	●	●
46	BOLT; BRKT FIX 6SD1 TCN ENG(31L) M14X45	9-92061-445-0	08	1	9804-0106		●
46	BOLT; BRKT FIX 6SD1 TCN ENG(31L) M14X45	9-92061-445-0	08	1	0107-0304							●
46	BOLT; BRKT FIX 6SD1 TCN ENG(31L) M14X45	9-92061-445-0	08	1	0305-							●
46	BOLT; BRKT FIX M14X45	9-92061-445-0	08	1	0305-					●
46	BOLT; BRKT FIX M14X40	9-92061-440-0	08	1	9804-0106	●		●
46	BOLT; BRKT FIX 6HE1 TC ENG(57L) M14X40	9-92061-440-0	08	1	9804-0106		●
46	BOLT; BRKT FIX M14X40	9-92061-440-0	08	1	0107-0304					●	●
46	BOLT; BRKT FIX 6HK1 TCS ENG(80L) M14X40	9-92061-440-0	08	1	0107-0304							●
46	BOLT; BRKT FIX M14X40	9-92061-440-0	08	1	0305-0512						●
46	BOLT; BRKT FIX 6HK1 TCS ENG(80L) M14X40	9-92061-440-0	08	1	0305-0512							●
46	BOLT; BRKT FIX M14X40	0-20951-440-0	08	1	0601-						●
46	BOLT; BRKT FIX 6HK1 TCS ENG(80L) M14X40	0-20951-440-0	08	1	0601-							●
65	BRACKET; CENTER BRG 6SD1 TCN ENG(31L) L=300	1-53271-298-1	02	1	9601-0106		●
65	BRACKET; CENTER BRG 6SD1 TCN ENG(31L) L=320	1-53271-336-0	02	1	0107-							●
65	BRACKET; CENTER BRG L=320	1-53271-336-0	02	1	0107-					●
65	BRACKET; CENTER BRG 6SD1 TCN ENG(31L) L=320	1-53271-336-0	02	1	9601-9803		●	●
65	BRACKET; CENTER BRG 6SD1 TCN ENG(31L) L=320	1-53271-336-0	02	1	9804-0106		●
65	BRACKET; CENTER BRG L=320	1-53271-336-0	02	1	9804-0106			●
65	BRACKET; CENTER BRG 6SD1 TCN ENG(31L) L=300	1-53271-298-1	02	1	0107-							●
65	BRACKET; CENTER BRG 6SD1 TCN ENG(31L) L=330	1-53271-263-2	02	1	9601-9803			●
65	BRACKET; CENTER BRG L=330	1-53271-263-2	02	1	9804-0106			●
65	BRACKET; CENTER BRG L=330	1-53271-263-2	02	1	0107-					●
67	NUT; C/MBR M16	9-99110-516-0	01	1	9601-9705	●	●	●
67	NUT; C/MBR M16	9-99110-516-0	01	1	9706-9803	●	●	●	●
67	NUT; C/MBR M16	9-99110-516-0	02	1	9804-0106	●	●	●
67	NUT; C/MBR M16	9-99110-516-0	02	1	0107-0512					●	●	●
67	NUT; C/MBR M16	0-91110-516-0	02	1	0601-					●	●	●
82	NUT; BRKT M14	9-99110-514-0	24	1	9601-9705	●	●	●
82	NUT; BRKT M14	9-99110-514-0	24	1	9706-9803	●	●	●	●
82	NUT; BRKT M14	9-99110-514-0	24	1	9804-0106	●	●	●
82	NUT; BRKT M14	9-99110-514-0	24	1	0107-0512					●	●	●
82	NUT; BRKT M14	0-91110-514-0	24	1	0601-					●	●	●
89	NUT; LEAF SPR STOPPER M14	9-99116-414-0	02	1	9601-9803	●	●	●	●
89	NUT; LEAF SPR STOPPER M14	9-99116-414-0	02	1	9804-0106	●	●	●
89	NUT; LEAF SPR STOPPER M14	9-99116-414-0	02	1	0107-0604					●	●	●
89	NUT; LEAF SPR STOPPER M14 SLOTTED	0-91116-514-0	02	1	0605-					●	●	●
96	PAD; RR SPR	1-53359-047-0	02	1	9601-9803	●	●	●	●
96	PAD; RR SPR	1-53359-047-0	02	1	9804-0106	●	●	●
96	PAD; RR SPR	1-53359-047-0	02	1	0107-					●	●	●
97	WASHER; LK,PAD ID=14.2	9-09150-514-0	04	1	9601-9803	●	●	●	●
97	WASHER; LK,PAD ID=14.2	9-09150-514-0	04	1	9804-0106	●	●	●
97	WASHER; LK,PAD ID=14.2	9-09150-514-0	04	1	0107-0603					●	●	●
97	WASHER; LK,PAD ID=14.2	0-91510-514-0	04	1	0604-					●	●	●
98	WASHER; LK,STOPPER ID=14.2	9-09150-614-0	16	1	9601-9705	●	●	●
98	WASHER; LK,STOPPER ID=14.2	9-09150-614-0	16	1	9706-9803	●	●	●	●
101	BRACKET; RR SPR,FRT	1-53353-078-1	02	1	9601-9705	●	●	●
101	BRACKET; RR SPR,FRT	1-53353-078-1	02	1	9706-9803	●	●	●	●
101	BRACKET; RR SPR,FRT	1-53353-078-1	02	1	9804-0106	●	●	●
101	BRACKET; RR SPR,FRT	1-53353-078-1	02	1	0107-					●	●	●
103	STOPPER; SUB SPR	1-53356-057-0	04	1	9601-9705	●	●	●
103	STOPPER; SUB SPR	1-53356-057-0	04	1	9706-9803	●	●	●	●
103	STOPPER; SUB SPR	1-53356-057-0	04	1	9804-0106	●	●	●
103	STOPPER; SUB SPR	1-53356-057-0	04	1	0107-					●	●	●
105	BRACKET; RR SPR,RR	1-53354-064-1	02	1	9601-9705	●	●	●
105	BRACKET; RR SPR,RR	1-53354-064-1	02	1	9706-9803	●	●	●	●
105	BRACKET; RR SPR,RR	1-53354-064-1	02	1	9804-0106	●	●	●
105	BRACKET; RR SPR,RR	1-53354-064-1	02	1	0107-					●	●	●
106	BOLT; BRKT FRAME EQUIPMENT HEAVY DUTY(F03) M14X60	9-92061-460-0	24	1	9601-9705	●	●
106	BOLT; BRKT M14X60	9-92061-460-0	24	1	9601-9705			●
106	BOLT; BRKT FRAME EQUIPMENT HEAVY DUTY(F03) M14X60	9-92061-460-0	24	1	9706-9803	●	●		●
106	BOLT; BRKT M14X60	9-92061-460-0	24	1	9706-9803			●
106	BOLT; BRKT M14X45	9-92061-445-0	24	1	9804-0106	●	●
106	BOLT; BRKT M14X45	9-92061-445-0	24	1	0107-						●	●
106	BOLT; BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M14X50	9-92061-450-0	24	1	9601-9705	●	●
106	BOLT; BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M14X50	9-92061-450-0	24	1	9706-9803	●	●		●
106	BOLT; BRKT M14X50	9-92061-450-0	24	1	9804-0106			●
106	BOLT; BRKT M14X50	9-92061-450-0	24	1	0107-0512					●
106	BOLT; BRKT M14X50	0-20951-450-0	24	1	0601-					●
110	BOLT; LEAF SPR STOPPER	1-09000-007-0	02	1	9601-9803	●	●	●	●
110	BOLT; LEAF SPR STOPPER	1-09000-007-0	02	1	9804-0106	●	●	●
110	BOLT; LEAF SPR STOPPER	1-09000-007-0	02	1	0107-					●	●	●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	9-08113-028-0	02	1	9601-9803	●	●	●	●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	9-08113-028-0	02	1	9804-0106	●	●	●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	9-08113-028-0	02	1	0107-0606					●	●	●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	0-81123-028-0	02	1	0607-					●	●	●
112	BOLT; PAD M14X35	0-20801-435-0	04	1	9601-9803	●	●	●	●
112	BOLT; PAD M14X35	0-20801-435-0	04	1	9804-0106	●	●	●
112	BOLT; PAD M14X35	0-20801-435-0	04	1	0107-0512					●	●	●
112	BOLT; PAD M14X35	0-20851-435-0	04	1	0601-					●	●	●
117	BOLT; STOPPER FRAME EQUIPMENT HEAVY DUTY(F03) M14X60	9-91066-460-0	16	1	9601-9705	●	●
117	BOLT; STOPPER M14X60	9-91066-460-0	16	1	9601-9705			●
117	BOLT; STOPPER FRAME EQUIPMENT HEAVY DUTY(F03) M14X60	9-91066-460-0	16	1	9706-9803	●	●		●
117	BOLT; STOPPER M14X60	9-91066-460-0	16	1	9706-9803			●
117	BOLT; STOPPER M14X45	9-92061-445-0	16	1	9804-0106	●	●
117	BOLT; STOPPER M14X45	9-92061-445-0	16	1	0107-						●	●
117	BOLT; STOPPER EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M14X50	9-91066-450-0	16	1	9601-9705	●	●
117	BOLT; STOPPER EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M14X50	9-91066-450-0	16	1	9706-9803	●	●		●
117	BOLT; STOPPER M14X50	9-91066-450-0	16	1	9804-0106			●
117	BOLT; STOPPER M14X50	9-91066-450-0	16	1	0107-0512					●
117	BOLT; STOPPER M14X50	0-10956-450-0	16	1	0601-					●
118	NUT; STOPPER M14	9-99110-514-0	16	1	9601-9705	●	●	●
118	NUT; STOPPER M14	9-99110-514-0	16	1	9706-9803	●	●	●	●
118	NUT; STOPPER M14	9-99110-514-0	16	1	9804-0106	●	●	●
118	NUT; STOPPER M14	9-99110-514-0	16	1	0107-0512					●	●	●
118	NUT; STOPPER M14	0-91110-514-0	16	1	0601-					●	●	●
124	NIPPLE; GREASE PT1/8 ELBOW	9-09031-210-0	02	1	9601-9803	●	●	●	●
124	NIPPLE; GREASE PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9804-0106	●	●	●
124	NIPPLE; GREASE PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0107-0512					●	●	●
124	NIPPLE; GREASE PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-					●	●	●
128	COLLAR; RUBBER EXC. SUSPENSION HEAVY DUTY VAR2(F41)	1-53359-004-0	02	1	9601-9803	●	●	●	●
128	COLLAR; RUBBER	1-53359-004-0	02	1	9804-0106	●	●	●
128	COLLAR; RUBBER	1-53359-004-0	02	1	0107-					●	●	●
129	SHIM; SIDE T=4.5	1-53359-061-1	02	1	9601-9803	●	●	●	●
129	SHIM; SIDE T=4.5	1-53359-061-1	02	1	9804-0106	●	●	●
129	SHIM; SIDE T=4.5	1-53359-061-1	02	1	0107-					●	●	●
129	SHIM; SIDE T=3.2	1-53359-062-1	02	1	9601-9803	●	●	●	●
129	SHIM; SIDE T=3.2	1-53359-062-1	02	1	9804-0106	●	●	●
129	SHIM; SIDE T=3.2	1-53359-062-1	02	1	0107-					●	●	●
130	MEMBER; CROSS,END	1-53181-151-1	01	1	9601-9705	●	●	●
130	MEMBER; CROSS,END	1-53181-151-1	01	1	9706-9803	●	●	●	●
130	MEMBER; CROSS,END	1-53181-151-2	01	1	9804-0106	●	●	●
130	MEMBER; CROSS,END	1-53181-151-2	01	1	0107-					●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50041-230-0	04	1	9601-9705	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50041-230-0	04	1	9706-9803	●	●	●	●
131	BOLT; END C/MBR M12X30 FLANGE	0-28681-230-0	04	1	9804-0106	●	●	●
131	BOLT; END C/MBR M12X30 FLANGE	0-28681-230-0	04	1	0107-0512					●	●	●
131	BOLT; END C/MBR M12X30 FLANGE	0-28651-230-0	04	1	0601-					●	●	●
132	NUT; END C/MBR M12	9-99110-412-0	04	1	9601-9705	●	●	●
132	NUT; END C/MBR M12	9-99110-412-0	04	1	9706-9803	●	●	●	●
132	NUT; END C/MBR M12 FLANGE	0-91150-112-0	04	1	9804-0106	●	●	●
132	NUT; END C/MBR M12 FLANGE	0-91150-112-0	04	1	0107-0602					●	●	●
132	NUT; END C/MBR M12 FLANGE	0-91180-112-0	04	1	0603-					●	●	●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	24	1	9601-9705	●	●	●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	24	1	9706-9803	●	●	●	●
148	SPACER; C/MBR	1-53168-341-0	02	1	9601-9705	●	●	●
148	SPACER; C/MBR	1-53168-341-0	02	1	9706-9803	●	●	●	●
148	SPACER; C/MBR	1-53168-341-0	02	1	9804-0106	●	●	●
148	SPACER; C/MBR	1-53168-341-0	02	1	0107-					●	●	●
202	SPACER; 3RD C/MBR	1-53168-351-1	02	1	9601-9705	●	●	●
202	SPACER; 3RD C/MBR	1-53168-351-1	02	1	9706-9803	●	●	●	●
202	SPACER; 3RD C/MBR	1-53168-351-1	02	1	9804-0106	●	●	●
202	SPACER; 3RD C/MBR	1-53168-351-1	02	1	0107-					●	●	●
207	SPACER; 4TH C/MBR	1-53168-162-2	02	1	9601-9705	●
207	SPACER; 4TH C/MBR	1-53168-162-2	02	1	9706-9803	●			●
207	SPACER; 4TH C/MBR	1-53168-162-2	02	1	9804-0106	●
207	SPACER; 4TH C/MBR	1-53168-162-2	02	1	0107-						●
207	SPACER; 4TH C/MBR	1-53168-163-1	02	1	9601-0106		●	●
207	SPACER; 4TH C/MBR	1-53168-163-1	02	1	0107-					●		●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	48	1	9601-9705	●	●	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	48	1	9706-9803	●	●	●	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	48	1	9804-0106	●	●	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	48	1	0107-1201					●	●	●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	48	1	1202-					●	●	●
281	WASHER; LEAF SPR STOPPER ID=15 OD=30	9-09160-614-0	04	1	9601-9803	●	●	●	●
281	WASHER; LEAF SPR STOPPER ID=15 OD=30	9-09160-614-0	04	1	9804-0106	●	●	●
281	WASHER; LEAF SPR STOPPER ID=15 OD=30	9-09160-614-0	04	1	0107-					●	●	●
282	WASHER; PL,STOPPER ID=15	9-09651-069-0	16	1	9601-9705	●	●	●
282	WASHER; PL,STOPPER ID=15	9-09651-069-0	16	1	9706-9803	●	●	●	●
282	WASHER; PL,STOPPER ID=15	9-09651-069-0	16	1	9804-0106	●	●	●
282	WASHER; PL,STOPPER ID=15	9-09651-069-0	16	1	0107-1201					●	●	●
282	WASHER; PL,STOPPER ID=15	8-98010-627-1	16	1	1202-					●	●	●
344	MEMBER; CROSS,4TH	1-53171-738-7	01	1	9601-9609	●	●	●
344	MEMBER; CROSS,4TH	1-53171-738-7	01	1	9610-9705	●
344	MEMBER; CROSS,4TH 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-53171-738-7	01	1	9610-9705		●	●
344	MEMBER; CROSS,4TH	1-53171-738-7	01	1	9706-9803	●
344	MEMBER; CROSS,4TH 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-53171-738-7	01	1	9706-9803		●	●	●
344	MEMBER; CROSS,4TH	1-53171-953-2	01	1	9804-0106	●
344	MEMBER; CROSS,4TH 6HE1 TC ENG(57L)	1-53171-953-2	01	1	9804-0106		●
344	MEMBER; CROSS,4TH	1-53171-953-2	01	1	0107-						●
344	MEMBER; CROSS,4TH 6HK1 TCS ENG(80L)	1-53171-953-2	01	1	0107-							●
344	MEMBER; CROSS,4TH 6SD1 TCN ENG(31L)	1-53171-972-3	01	1	9601-9803		●	●
344	MEMBER; CROSS,4TH 6SD1 TCN ENG(31L)	1-53181-580-2	01	1	9804-0106		●
344	MEMBER; CROSS,4TH	1-53181-580-2	01	1	9804-0106			●
344	MEMBER; CROSS,4TH 6SD1 TCN ENG(31L)	1-53181-580-2	01	1	0107-							●
344	MEMBER; CROSS,4TH	1-53181-580-2	01	1	0107-					●
345	MEMBER; CROSS,5TH 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-53171-738-7	01	1	9601-9803		●	●
345	MEMBER; CROSS,5TH 6HE1 TC ENG(57L)	1-53171-953-2	01	1	9804-0106		●
345	MEMBER; CROSS,5TH 6HK1 TCS ENG(80L)	1-53171-953-2	01	1	0107-							●
345	MEMBER; CROSS,5TH 6SD1 TCN ENG(31L)	1-53171-972-3	01	1	9601-9803		●	●
345	MEMBER; CROSS,5TH 6SD1 TCN ENG(31L)	1-53181-580-2	01	1	9804-0106		●
345	MEMBER; CROSS,5TH	1-53181-580-2	01	1	9804-0106			●
345	MEMBER; CROSS,5TH 6SD1 TCN ENG(31L)	1-53181-580-2	01	1	0107-							●
345	MEMBER; CROSS,5TH	1-53181-580-2	01	1	0107-					●
416	GUSSET; 3RD C/MBR	1-53164-214-0	01	1	9601-9705	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-214-0	01	1	9706-9803	●	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-214-0	01	1	9804-0106	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-214-0	01	1	0107-					●	●	●
416	GUSSET; 3RD C/MBR	1-53164-213-0	01	1	9601-9705	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-213-0	01	1	9706-9803	●	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-213-0	01	1	9804-0106	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-213-0	01	1	0107-					●	●	●

132 130 131 207 65 11 12 13 202 344 18 207 12 34 416 416 33 112 82 138 202 67 65 97 255 111 2 6 148 124 33 19 89 281 118 98 110 282 255 103 106 105 117 96 129 33 46 16 26 27 25 23 25 128 129 101 25 82 39 25 138 255 255 106 46 25 27 26 23 24 27 26 25 26 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	MEMBER; CROSS,1ST	1-53181-670-7	01	1	9601-9705	●	●	●
2	MEMBER; CROSS,1ST	1-53181-670-8	01	1	9706-9803	●	●	●	●
2	MEMBER; CROSS,1ST	1-53181-670-9	01	1	9804-0009	●	●	●
2	MEMBER; CROSS,1ST	1-53181-939-1	01	1	0010-0106	●	●	●
2	MEMBER; CROSS,1ST	1-53181-939-2	01	1	0107-					●	●	●
6	WASHER; LK,1ST C/MBR ID=16.2	9-09150-616-0	01	1	9601-9705	●	●	●
6	WASHER; LK,1ST C/MBR ID=16.2	9-09150-616-0	01	1	9706-9803	●	●	●	●
6	WASHER; LK,1ST C/MBR ID=16.2	9-09150-616-0	02	1	9804-0106	●	●	●
6	WASHER; LK,1ST C/MBR ID=16.2	9-09150-616-0	02	1	0107-0603					●	●	●
6	WASHER; LK,1ST C/MBR ID=16.2	0-91510-616-0	02	1	0604-					●	●	●
11	BRACKET; ENG MTG FRAME EQUIPMENT HEAVY DUTY(F03)	1-53211-195-0	02	1	9601-9609	●	●
11	BRACKET; ENG MTG	1-53211-195-0	02	1	9601-9609			●
11	BRACKET; ENG MTG FRAME EQUIPMENT HEAVY DUTY(F03)	1-53211-195-0	02	1	9610-9705	●
11	BRACKET; ENG MTG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03)	1-53211-195-0	02	1	9610-9705		●
11	BRACKET; ENG MTG	1-53211-195-0	02	1	9610-9705			●
11	BRACKET; ENG MTG FRAME EQUIPMENT HEAVY DUTY(F03)	1-53211-195-0	02	1	9706-9803	●
11	BRACKET; ENG MTG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03)	1-53211-195-0	02	1	9706-9803		●		●
11	BRACKET; ENG MTG	1-53211-195-0	02	1	9706-9803			●
11	BRACKET; ENG MTG EXC. FRAME EQUIPMENT HEAVY DUTY(F03)	1-53211-196-0	02	1	9601-9609	●	●
11	BRACKET; ENG MTG EXC. FRAME EQUIPMENT HEAVY DUTY(F03)	1-53211-196-0	02	1	9610-9705	●
11	BRACKET; ENG MTG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. FRAME EQUIPMENT HEAVY DUTY(F03)	1-53211-196-0	02	1	9610-9705		●
11	BRACKET; ENG MTG EXC. FRAME EQUIPMENT HEAVY DUTY(F03)	1-53211-196-0	02	1	9706-9803	●
11	BRACKET; ENG MTG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. FRAME EQUIPMENT HEAVY DUTY(F03)	1-53211-196-0	02	1	9706-9803		●		●
11	BRACKET; ENG MTG	1-53211-196-0	02	1	9804-0106	●
11	BRACKET; ENG MTG 6HE1 TC ENG(57L)	1-53211-196-0	02	1	9804-0106		●
11	BRACKET; ENG MTG	1-53211-196-0	02	1	0107-						●
11	BRACKET; ENG MTG 6HK1 TCS ENG(80L)	1-53211-196-0	02	1	0107-							●
12	WASHER; PL,BRKT,ENG MTG ID=12.5	1-09503-171-0	16	1	9601-9609	●	●	●
12	WASHER; PL,BRKT,ENG MTG ID=12.5	1-09503-171-0	16	1	9610-9705	●
12	WASHER; PL,BRKT,ENG MTG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=12.5	1-09503-171-0	16	1	9610-9705		●	●
12	WASHER; PL,BRKT,ENG MTG ID=12.5	1-09503-171-0	16	1	9706-9803	●
12	WASHER; PL,BRKT,ENG MTG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=12.5	1-09503-171-0	16	1	9706-9803		●	●	●
13	BOLT; BRKT,ENG MTG FRAME EQUIPMENT HEAVY DUTY(F03) M12X40	9-92061-240-0	08	1	9601-9609	●	●
13	BOLT; BRKT,ENG MTG M12X40	9-92061-240-0	08	1	9601-9609			●
13	BOLT; BRKT,ENG MTG FRAME EQUIPMENT HEAVY DUTY(F03) M12X40	9-92061-240-0	08	1	9610-9705	●
13	BOLT; BRKT,ENG MTG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03) M12X40	9-92061-240-0	08	1	9610-9705		●
13	BOLT; BRKT,ENG MTG M12X40	9-92061-240-0	08	1	9610-9705			●
13	BOLT; BRKT,ENG MTG FRAME EQUIPMENT HEAVY DUTY(F03) M12X40	9-92061-240-0	08	1	9706-9803	●
13	BOLT; BRKT,ENG MTG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) FRAME EQUIPMENT HEAVY DUTY(F03) M12X40	9-92061-240-0	08	1	9706-9803		●		●
13	BOLT; BRKT,ENG MTG M12X40	9-92061-240-0	08	1	9706-9803			●
13	BOLT; BRKT,ENG MTG EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M12X35	9-92061-235-0	08	1	9601-9609	●	●
13	BOLT; BRKT,ENG MTG EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M12X35	9-92061-235-0	08	1	9610-9705	●
13	BOLT; BRKT,ENG MTG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M12X35	9-92061-235-0	08	1	9610-9705		●
13	BOLT; BRKT,ENG MTG EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M12X35	9-92061-235-0	08	1	9706-9803	●
13	BOLT; BRKT,ENG MTG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M12X35	9-92061-235-0	08	1	9706-9803		●		●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28691-235-0	08	1	9804-0106	●
13	BOLT; BRKT,ENG MTG 6HE1 TC ENG(57L) M12X35 FLANGE	0-28691-235-0	08	1	9804-0106		●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28691-235-0	08	1	0107-0512						●
13	BOLT; BRKT,ENG MTG 6HK1 TCS ENG(80L) M12X35 FLANGE	0-28691-235-0	08	1	0107-0512							●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	0601-						●
13	BOLT; BRKT,ENG MTG 6HK1 TCS ENG(80L) M12X35 FLANGE	0-28661-235-0	08	1	0601-							●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20801-640-0	01	1	9601-9705	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20801-640-0	01	1	9706-9803	●	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20801-640-0	02	1	9804-0106	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20801-640-0	02	1	0107-0512					●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20851-640-0	02	1	0601-					●	●	●
18	NUT; BRKT,ENG MTG M12	9-99110-512-0	08	1	9601-9609	●	●	●
18	NUT; BRKT,ENG MTG M12	9-99110-512-0	08	1	9610-9705	●
18	NUT; BRKT,ENG MTG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12	9-99110-512-0	08	1	9610-9705		●	●
18	NUT; BRKT,ENG MTG M12	9-99110-512-0	08	1	9706-9803	●
18	NUT; BRKT,ENG MTG 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12	9-99110-512-0	08	1	9706-9803		●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91150-212-0	08	1	9804-0106	●
18	NUT; BRKT,ENG MTG 6HE1 TC ENG(57L) M12 FLANGE	0-91150-212-0	08	1	9804-0106		●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91150-212-0	08	1	0107-0602						●
18	NUT; BRKT,ENG MTG 6HK1 TCS ENG(80L) M12 FLANGE	0-91150-212-0	08	1	0107-0602							●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	0603-						●
18	NUT; BRKT,ENG MTG 6HK1 TCS ENG(80L) M12 FLANGE	0-91180-212-0	08	1	0603-							●
19	MEMBER; CROSS,2ND	1-53181-671-6	01	1	9601-9705	●	●	●
19	MEMBER; CROSS,2ND	1-53181-671-7	01	1	9706-9803	●	●	●	●
19	MEMBER; CROSS,2ND	1-53181-671-9	01	1	9804-0106	●	●	●
19	MEMBER; CROSS,2ND	1-53181-671-9	01	1	0107-0410					●	●	●
19	MEMBER; CROSS,2ND	8-97606-306-0	01	1	0411-					●	●	●
23	BOLT; BRKT,SPR (A) M14X50	9-92061-450-0	06	1	9601-9705	●	●	●
23	BOLT; BRKT,SPR (A) M14X50	9-92061-450-0	06	1	9706-9803	●	●	●	●
23	BOLT; BRKT,SPR (A) M14X45	9-92061-445-0	06	1	9804-0106	●	●	●
23	BOLT; BRKT,SPR (A) M14X45	9-92061-445-0	06	1	0107-					●	●	●
23	BOLT; BRKT,SPR (B) M16X60	9-92061-660-0	04	1	9601-9705	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	9-92061-660-0	04	1	9706-9803	●	●	●	●
23	BOLT; BRKT,SPR (B) M16X50	9-92061-650-0	04	1	9804-0106	●	●	●
23	BOLT; BRKT,SPR (B) M16X50	9-92061-650-0	04	1	0107-0512					●	●	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	0601-					●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-149-3	01	1	9601-9705	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-149-3	01	1	9706-9803	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-149-3	01	1	9804-0106	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-149-3	01	1	0107-					●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-148-3	01	1	9601-9705	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-148-3	01	1	9706-9803	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-148-3	01	1	9804-0106	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-148-3	01	1	0107-					●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	9601-9705	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	9706-9803	●	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	9804-0106	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	0107-					●	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	28	1	9601-9705	●	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	28	1	9706-9803	●	●	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	28	1	9804-0106	●	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	28	1	0107-1201					●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1202-					●	●	●
26	NUT; BRKT,SPR (A) M14	9-99110-514-0	14	1	9601-9705	●	●	●
26	NUT; BRKT,SPR (A) M14	9-99110-514-0	14	1	9706-9803	●	●	●	●
26	NUT; BRKT,SPR (A) M14	9-99110-514-0	14	1	9804-0106	●	●	●
26	NUT; BRKT,SPR (A) M14	9-99110-514-0	14	1	0107-0512					●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	0601-					●	●	●
26	NUT; BRKT,SPR (B) M16	9-99110-516-0	04	1	9601-9705	●	●	●
26	NUT; BRKT,SPR (B) M16	9-99110-516-0	04	1	9706-9803	●	●	●	●
26	NUT; BRKT,SPR (B) M16	9-99110-516-0	04	1	9804-0106	●	●	●
26	NUT; BRKT,SPR (B) M16	9-99110-516-0	04	1	0107-0512					●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0601-					●	●	●
27	WASHER; LK,BRKT,FRT SPR (A) ID=14.2	9-09150-614-0	14	1	9601-9705	●	●	●
27	WASHER; LK,BRKT,FRT SPR (A) ID=14.2	9-09150-614-0	14	1	9706-9803	●	●	●	●
27	WASHER; LK,BRKT,FRT SPR (B) ID=16.2	9-09150-616-0	04	1	9601-9705	●	●	●
27	WASHER; LK,BRKT,FRT SPR (B) ID=16.2	9-09150-616-0	04	1	9706-9803	●	●	●	●
33	SPACER; 2ND C/MBR,UPR (A)	1-53168-276-0	02	1	9601-9705	●	●	●
33	SPACER; 2ND C/MBR,UPR (A)	1-53168-276-0	02	1	9706-9803	●	●	●	●
33	SPACER; 2ND C/MBR,UPR (A)	1-53168-276-0	02	1	9804-0106	●	●	●
33	SPACER; 2ND C/MBR,UPR (A)	1-53168-276-0	02	1	0107-					●	●	●
33	SPACER; 2ND C/MBR,UPR (B)	1-53168-287-0	02	1	9601-9705	●	●	●
33	SPACER; 2ND C/MBR,UPR (B)	1-53168-287-0	02	1	9706-9803	●	●	●	●
33	SPACER; 2ND C/MBR,UPR (B)	1-53168-287-0	02	1	9804-0106	●	●	●
33	SPACER; 2ND C/MBR,UPR (B)	1-53168-287-0	02	1	0107-					●	●	●
34	MEMBER; CROSS,3RD	1-53174-231-1	01	1	9601-9705	●	●	●
34	MEMBER; CROSS,3RD	1-53174-231-1	01	1	9706-9803	●	●	●	●
34	MEMBER; CROSS,3RD	1-53174-231-1	01	1	9804-0106	●	●	●
34	MEMBER; CROSS,3RD	1-53174-231-1	01	1	0107-					●	●	●
39	BRACKET; FRT SPR,RR	1-53352-125-2	01	1	9601-9705	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-125-2	01	1	9706-9803	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-125-2	01	1	9804-0106	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-125-2	01	1	0107-					●	●	●
39	BRACKET; FRT SPR,RR	1-53352-124-2	01	1	9601-9705	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-124-2	01	1	9706-9803	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-124-2	01	1	9804-0106	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-124-2	01	1	0107-					●	●	●
46	BOLT; BRKT FIX M14X50	9-92061-450-0	08	1	9601-9705	●	●	●
46	BOLT; BRKT FIX M14X50	9-92061-450-0	08	1	9706-9803	●	●	●	●
46	BOLT; BRKT FIX 6SD1 TCN ENG(31L) M14X45	9-92061-445-0	08	1	9804-0106		●
46	BOLT; BRKT FIX 6SD1 TCN ENG(31L) M14X45	9-92061-445-0	08	1	0107-0304							●
46	BOLT; BRKT FIX 6SD1 TCN ENG(31L) M14X45	9-92061-445-0	08	1	0305-							●
46	BOLT; BRKT FIX M14X45	9-92061-445-0	08	1	0305-					●
46	BOLT; BRKT FIX M14X40	9-92061-440-0	08	1	9804-0106	●		●
46	BOLT; BRKT FIX 6HE1 TC ENG(57L) M14X40	9-92061-440-0	08	1	9804-0106		●
46	BOLT; BRKT FIX M14X40	9-92061-440-0	08	1	0107-0304					●	●
46	BOLT; BRKT FIX 6HK1 TCS ENG(80L) M14X40	9-92061-440-0	08	1	0107-0304							●
46	BOLT; BRKT FIX M14X40	9-92061-440-0	08	1	0305-0512						●
46	BOLT; BRKT FIX 6HK1 TCS ENG(80L) M14X40	9-92061-440-0	08	1	0305-0512							●
46	BOLT; BRKT FIX M14X40	0-20951-440-0	08	1	0601-						●
46	BOLT; BRKT FIX 6HK1 TCS ENG(80L) M14X40	0-20951-440-0	08	1	0601-							●
65	BRACKET; CENTER BRG 6SD1 TCN ENG(31L) L=300	1-53271-298-1	02	1	9601-0106		●
65	BRACKET; CENTER BRG 6SD1 TCN ENG(31L) L=320	1-53271-336-0	02	1	0107-							●
65	BRACKET; CENTER BRG L=320	1-53271-336-0	02	1	0107-					●
65	BRACKET; CENTER BRG 6SD1 TCN ENG(31L) L=320	1-53271-336-0	02	1	9601-9803		●	●
65	BRACKET; CENTER BRG 6SD1 TCN ENG(31L) L=320	1-53271-336-0	02	1	9804-0106		●
65	BRACKET; CENTER BRG L=320	1-53271-336-0	02	1	9804-0106			●
65	BRACKET; CENTER BRG 6SD1 TCN ENG(31L) L=300	1-53271-298-1	02	1	0107-							●
65	BRACKET; CENTER BRG 6SD1 TCN ENG(31L) L=330	1-53271-263-2	02	1	9601-9803			●
65	BRACKET; CENTER BRG L=330	1-53271-263-2	02	1	9804-0106			●
65	BRACKET; CENTER BRG L=330	1-53271-263-2	02	1	0107-					●
67	NUT; C/MBR M16	9-99110-516-0	01	1	9601-9705	●	●	●
67	NUT; C/MBR M16	9-99110-516-0	01	1	9706-9803	●	●	●	●
67	NUT; C/MBR M16	9-99110-516-0	02	1	9804-0106	●	●	●
67	NUT; C/MBR M16	9-99110-516-0	02	1	0107-0512					●	●	●
67	NUT; C/MBR M16	0-91110-516-0	02	1	0601-					●	●	●
82	NUT; BRKT M14	9-99110-514-0	24	1	9601-9705	●	●	●
82	NUT; BRKT M14	9-99110-514-0	24	1	9706-9803	●	●	●	●
82	NUT; BRKT M14	9-99110-514-0	24	1	9804-0106	●	●	●
82	NUT; BRKT M14	9-99110-514-0	24	1	0107-0512					●	●	●
82	NUT; BRKT M14	0-91110-514-0	24	1	0601-					●	●	●
89	NUT; LEAF SPR STOPPER M14	9-99116-414-0	02	1	9601-9803	●	●	●	●
89	NUT; LEAF SPR STOPPER M14	9-99116-414-0	02	1	9804-0106	●	●	●
89	NUT; LEAF SPR STOPPER M14	9-99116-414-0	02	1	0107-0604					●	●	●
89	NUT; LEAF SPR STOPPER M14 SLOTTED	0-91116-514-0	02	1	0605-					●	●	●
96	PAD; RR SPR	1-53359-047-0	02	1	9601-9803	●	●	●	●
96	PAD; RR SPR	1-53359-047-0	02	1	9804-0106	●	●	●
96	PAD; RR SPR	1-53359-047-0	02	1	0107-					●	●	●
97	WASHER; LK,PAD ID=14.2	9-09150-514-0	04	1	9601-9803	●	●	●	●
97	WASHER; LK,PAD ID=14.2	9-09150-514-0	04	1	9804-0106	●	●	●
97	WASHER; LK,PAD ID=14.2	9-09150-514-0	04	1	0107-0603					●	●	●
97	WASHER; LK,PAD ID=14.2	0-91510-514-0	04	1	0604-					●	●	●
98	WASHER; LK,STOPPER ID=14.2	9-09150-614-0	16	1	9601-9705	●	●	●
98	WASHER; LK,STOPPER ID=14.2	9-09150-614-0	16	1	9706-9803	●	●	●	●
101	BRACKET; RR SPR,FRT	1-53353-078-1	02	1	9601-9705	●	●	●
101	BRACKET; RR SPR,FRT	1-53353-078-1	02	1	9706-9803	●	●	●	●
101	BRACKET; RR SPR,FRT	1-53353-078-1	02	1	9804-0106	●	●	●
101	BRACKET; RR SPR,FRT	1-53353-078-1	02	1	0107-					●	●	●
103	STOPPER; SUB SPR	1-53356-057-0	04	1	9601-9705	●	●	●
103	STOPPER; SUB SPR	1-53356-057-0	04	1	9706-9803	●	●	●	●
103	STOPPER; SUB SPR	1-53356-057-0	04	1	9804-0106	●	●	●
103	STOPPER; SUB SPR	1-53356-057-0	04	1	0107-					●	●	●
105	BRACKET; RR SPR,RR	1-53354-064-1	02	1	9601-9705	●	●	●
105	BRACKET; RR SPR,RR	1-53354-064-1	02	1	9706-9803	●	●	●	●
105	BRACKET; RR SPR,RR	1-53354-064-1	02	1	9804-0106	●	●	●
105	BRACKET; RR SPR,RR	1-53354-064-1	02	1	0107-					●	●	●
106	BOLT; BRKT FRAME EQUIPMENT HEAVY DUTY(F03) M14X60	9-92061-460-0	24	1	9601-9705	●	●
106	BOLT; BRKT M14X60	9-92061-460-0	24	1	9601-9705			●
106	BOLT; BRKT FRAME EQUIPMENT HEAVY DUTY(F03) M14X60	9-92061-460-0	24	1	9706-9803	●	●		●
106	BOLT; BRKT M14X60	9-92061-460-0	24	1	9706-9803			●
106	BOLT; BRKT M14X45	9-92061-445-0	24	1	9804-0106	●	●
106	BOLT; BRKT M14X45	9-92061-445-0	24	1	0107-						●	●
106	BOLT; BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M14X50	9-92061-450-0	24	1	9601-9705	●	●
106	BOLT; BRKT EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M14X50	9-92061-450-0	24	1	9706-9803	●	●		●
106	BOLT; BRKT M14X50	9-92061-450-0	24	1	9804-0106			●
106	BOLT; BRKT M14X50	9-92061-450-0	24	1	0107-0512					●
106	BOLT; BRKT M14X50	0-20951-450-0	24	1	0601-					●
110	BOLT; LEAF SPR STOPPER	1-09000-007-0	02	1	9601-9803	●	●	●	●
110	BOLT; LEAF SPR STOPPER	1-09000-007-0	02	1	9804-0106	●	●	●
110	BOLT; LEAF SPR STOPPER	1-09000-007-0	02	1	0107-					●	●	●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	9-08113-028-0	02	1	9601-9803	●	●	●	●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	9-08113-028-0	02	1	9804-0106	●	●	●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	9-08113-028-0	02	1	0107-0606					●	●	●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	0-81123-028-0	02	1	0607-					●	●	●
112	BOLT; PAD M14X35	0-20801-435-0	04	1	9601-9803	●	●	●	●
112	BOLT; PAD M14X35	0-20801-435-0	04	1	9804-0106	●	●	●
112	BOLT; PAD M14X35	0-20801-435-0	04	1	0107-0512					●	●	●
112	BOLT; PAD M14X35	0-20851-435-0	04	1	0601-					●	●	●
117	BOLT; STOPPER FRAME EQUIPMENT HEAVY DUTY(F03) M14X60	9-91066-460-0	16	1	9601-9705	●	●
117	BOLT; STOPPER M14X60	9-91066-460-0	16	1	9601-9705			●
117	BOLT; STOPPER FRAME EQUIPMENT HEAVY DUTY(F03) M14X60	9-91066-460-0	16	1	9706-9803	●	●		●
117	BOLT; STOPPER M14X60	9-91066-460-0	16	1	9706-9803			●
117	BOLT; STOPPER M14X45	9-92061-445-0	16	1	9804-0106	●	●
117	BOLT; STOPPER M14X45	9-92061-445-0	16	1	0107-						●	●
117	BOLT; STOPPER EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M14X50	9-91066-450-0	16	1	9601-9705	●	●
117	BOLT; STOPPER EXC. FRAME EQUIPMENT HEAVY DUTY(F03) M14X50	9-91066-450-0	16	1	9706-9803	●	●		●
117	BOLT; STOPPER M14X50	9-91066-450-0	16	1	9804-0106			●
117	BOLT; STOPPER M14X50	9-91066-450-0	16	1	0107-0512					●
117	BOLT; STOPPER M14X50	0-10956-450-0	16	1	0601-					●
118	NUT; STOPPER M14	9-99110-514-0	16	1	9601-9705	●	●	●
118	NUT; STOPPER M14	9-99110-514-0	16	1	9706-9803	●	●	●	●
118	NUT; STOPPER M14	9-99110-514-0	16	1	9804-0106	●	●	●
118	NUT; STOPPER M14	9-99110-514-0	16	1	0107-0512					●	●	●
118	NUT; STOPPER M14	0-91110-514-0	16	1	0601-					●	●	●
124	NIPPLE; GREASE PT1/8 ELBOW	9-09031-210-0	02	1	9601-9803	●	●	●	●
124	NIPPLE; GREASE PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9804-0106	●	●	●
124	NIPPLE; GREASE PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0107-0512					●	●	●
124	NIPPLE; GREASE PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-					●	●	●
128	COLLAR; RUBBER EXC. SUSPENSION HEAVY DUTY VAR2(F41)	1-53359-004-0	02	1	9601-9803	●	●	●	●
128	COLLAR; RUBBER	1-53359-004-0	02	1	9804-0106	●	●	●
128	COLLAR; RUBBER	1-53359-004-0	02	1	0107-					●	●	●
129	SHIM; SIDE T=4.5	1-53359-061-1	02	1	9601-9803	●	●	●	●
129	SHIM; SIDE T=4.5	1-53359-061-1	02	1	9804-0106	●	●	●
129	SHIM; SIDE T=4.5	1-53359-061-1	02	1	0107-					●	●	●
129	SHIM; SIDE T=3.2	1-53359-062-1	02	1	9601-9803	●	●	●	●
129	SHIM; SIDE T=3.2	1-53359-062-1	02	1	9804-0106	●	●	●
129	SHIM; SIDE T=3.2	1-53359-062-1	02	1	0107-					●	●	●
130	MEMBER; CROSS,END	1-53181-151-1	01	1	9601-9705	●	●	●
130	MEMBER; CROSS,END	1-53181-151-1	01	1	9706-9803	●	●	●	●
130	MEMBER; CROSS,END	1-53181-151-2	01	1	9804-0106	●	●	●
130	MEMBER; CROSS,END	1-53181-151-2	01	1	0107-					●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50041-230-0	04	1	9601-9705	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50041-230-0	04	1	9706-9803	●	●	●	●
131	BOLT; END C/MBR M12X30 FLANGE	0-28681-230-0	04	1	9804-0106	●	●	●
131	BOLT; END C/MBR M12X30 FLANGE	0-28681-230-0	04	1	0107-0512					●	●	●
131	BOLT; END C/MBR M12X30 FLANGE	0-28651-230-0	04	1	0601-					●	●	●
132	NUT; END C/MBR M12	9-99110-412-0	04	1	9601-9705	●	●	●
132	NUT; END C/MBR M12	9-99110-412-0	04	1	9706-9803	●	●	●	●
132	NUT; END C/MBR M12 FLANGE	0-91150-112-0	04	1	9804-0106	●	●	●
132	NUT; END C/MBR M12 FLANGE	0-91150-112-0	04	1	0107-0602					●	●	●
132	NUT; END C/MBR M12 FLANGE	0-91180-112-0	04	1	0603-					●	●	●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	24	1	9601-9705	●	●	●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	24	1	9706-9803	●	●	●	●
148	SPACER; C/MBR	1-53168-341-0	02	1	9601-9705	●	●	●
148	SPACER; C/MBR	1-53168-341-0	02	1	9706-9803	●	●	●	●
148	SPACER; C/MBR	1-53168-341-0	02	1	9804-0106	●	●	●
148	SPACER; C/MBR	1-53168-341-0	02	1	0107-					●	●	●
202	SPACER; 3RD C/MBR	1-53168-351-1	02	1	9601-9705	●	●	●
202	SPACER; 3RD C/MBR	1-53168-351-1	02	1	9706-9803	●	●	●	●
202	SPACER; 3RD C/MBR	1-53168-351-1	02	1	9804-0106	●	●	●
202	SPACER; 3RD C/MBR	1-53168-351-1	02	1	0107-					●	●	●
207	SPACER; 4TH C/MBR	1-53168-162-2	02	1	9601-9705	●
207	SPACER; 4TH C/MBR	1-53168-162-2	02	1	9706-9803	●			●
207	SPACER; 4TH C/MBR	1-53168-162-2	02	1	9804-0106	●
207	SPACER; 4TH C/MBR	1-53168-162-2	02	1	0107-						●
207	SPACER; 4TH C/MBR	1-53168-163-1	02	1	9601-0106		●	●
207	SPACER; 4TH C/MBR	1-53168-163-1	02	1	0107-					●		●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	48	1	9601-9705	●	●	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	48	1	9706-9803	●	●	●	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	48	1	9804-0106	●	●	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	48	1	0107-1201					●	●	●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	48	1	1202-					●	●	●
281	WASHER; LEAF SPR STOPPER ID=15 OD=30	9-09160-614-0	04	1	9601-9803	●	●	●	●
281	WASHER; LEAF SPR STOPPER ID=15 OD=30	9-09160-614-0	04	1	9804-0106	●	●	●
281	WASHER; LEAF SPR STOPPER ID=15 OD=30	9-09160-614-0	04	1	0107-					●	●	●
282	WASHER; PL,STOPPER ID=15	9-09651-069-0	16	1	9601-9705	●	●	●
282	WASHER; PL,STOPPER ID=15	9-09651-069-0	16	1	9706-9803	●	●	●	●
282	WASHER; PL,STOPPER ID=15	9-09651-069-0	16	1	9804-0106	●	●	●
282	WASHER; PL,STOPPER ID=15	9-09651-069-0	16	1	0107-1201					●	●	●
282	WASHER; PL,STOPPER ID=15	8-98010-627-1	16	1	1202-					●	●	●
344	MEMBER; CROSS,4TH	1-53171-738-7	01	1	9601-9609	●	●	●
344	MEMBER; CROSS,4TH	1-53171-738-7	01	1	9610-9705	●
344	MEMBER; CROSS,4TH 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-53171-738-7	01	1	9610-9705		●	●
344	MEMBER; CROSS,4TH	1-53171-738-7	01	1	9706-9803	●
344	MEMBER; CROSS,4TH 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-53171-738-7	01	1	9706-9803		●	●	●
344	MEMBER; CROSS,4TH	1-53171-953-2	01	1	9804-0106	●
344	MEMBER; CROSS,4TH 6HE1 TC ENG(57L)	1-53171-953-2	01	1	9804-0106		●
344	MEMBER; CROSS,4TH	1-53171-953-2	01	1	0107-						●
344	MEMBER; CROSS,4TH 6HK1 TCS ENG(80L)	1-53171-953-2	01	1	0107-							●
344	MEMBER; CROSS,4TH 6SD1 TCN ENG(31L)	1-53171-972-3	01	1	9601-9803		●	●
344	MEMBER; CROSS,4TH 6SD1 TCN ENG(31L)	1-53181-580-2	01	1	9804-0106		●
344	MEMBER; CROSS,4TH	1-53181-580-2	01	1	9804-0106			●
344	MEMBER; CROSS,4TH 6SD1 TCN ENG(31L)	1-53181-580-2	01	1	0107-							●
344	MEMBER; CROSS,4TH	1-53181-580-2	01	1	0107-					●
416	GUSSET; 3RD C/MBR	1-53164-214-0	01	1	9601-9705	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-214-0	01	1	9706-9803	●	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-214-0	01	1	9804-0106	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-214-0	01	1	0107-					●	●	●
416	GUSSET; 3RD C/MBR	1-53164-213-0	01	1	9601-9705	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-213-0	01	1	9706-9803	●	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-213-0	01	1	9804-0106	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-213-0	01	1	0107-					●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
