◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#24837) — 263 parça

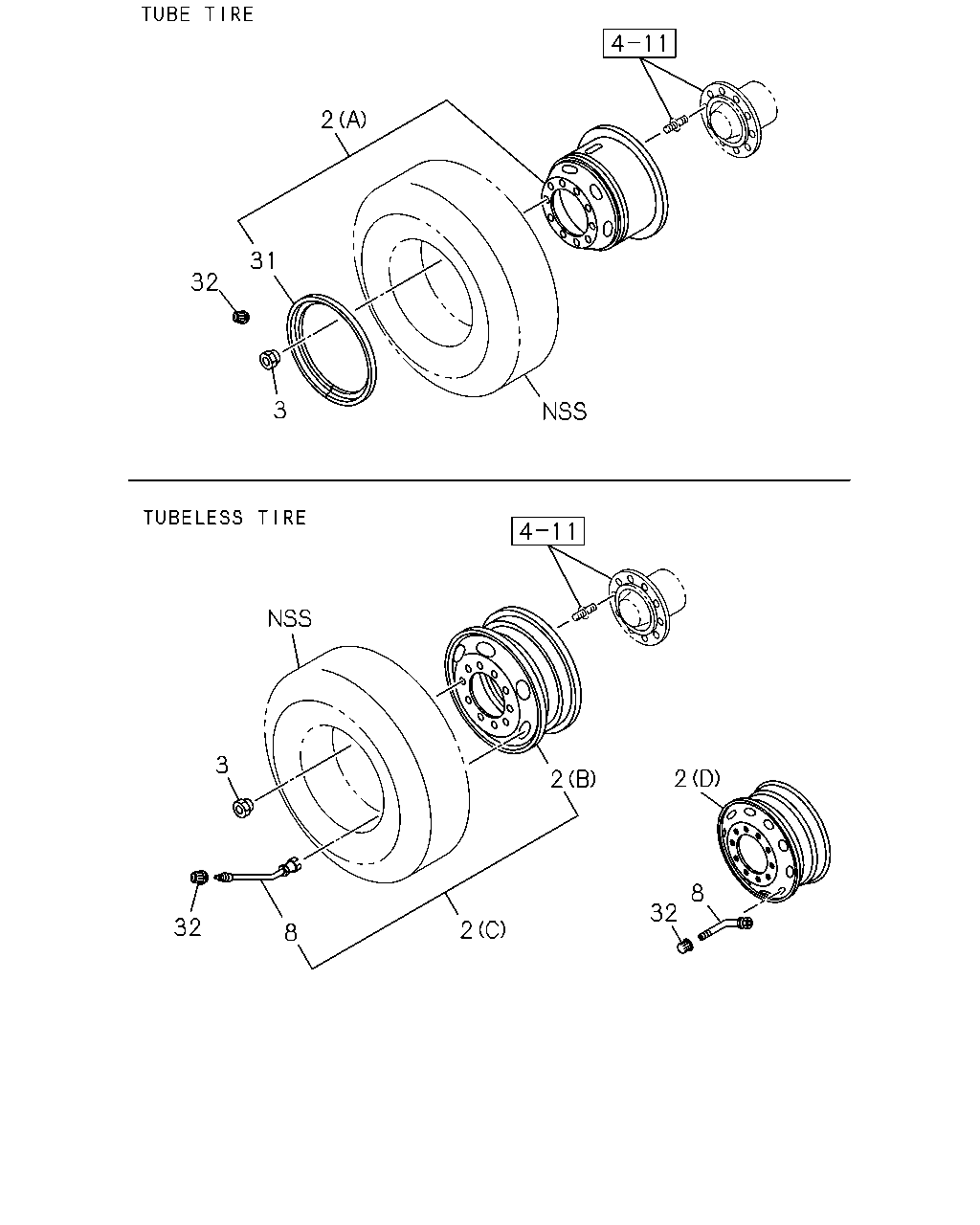

çizim 85685
2 31 32 3 3 2 2 8 32 32 2 8
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A) SPARE 		1-42350-448-0 01 1 9601-9803 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-448-0 01 1 9601-9803 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A) SPARE 		1-42350-448-0 01 1 9804-0106 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-448-0 01 1 9804-0106 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) SPARE 		1-42350-278-2 01 1 9601-9606 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-278-2 01 1 9601-9606 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) SPARE 		1-42350-278-2 01 1 9607-9609 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-278-2 01 1 9607-9609 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (C) SPARE 		1-42350-539-0 01 1 9610-9803 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> EXC. DISC WHEEL SPARE<N79> (C) SPARE 		1-42350-539-0 01 1 9610-9803 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (C) SPARE 		1-42350-539-0 01 1 9804-0106 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> EXC. DISC WHEEL SPARE<N79> (C) SPARE 		1-42350-539-0 01 1 9804-0106 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) SPARE 		1-42350-544-0 01 1 9607-9609 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) SPARE 		1-42350-544-0 01 1 9607-9609 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) SPARE 		1-42350-544-0 01 1 9610-9803 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) SPARE 		1-42350-544-0 01 1 9610-9803 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) SPARE 		1-42350-544-0 01 1 9804-0004 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) SPARE 		1-42350-544-0 01 1 9804-0004 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) DISC WHEEL NOT PAINTED LEMMERZ BLACK<TGU> (B) SPARE 		1-42350-544-0 01 1 0005-0106 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL NOT PAINTED LEMMERZ BLACK<TGU> EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-544-0 01 1 0005-0106 ●
2 WHEEL; DISC
(B) 		1-42350-544-0 07 1 0107-0302 ●
2 WHEEL; DISC
(C) 		1-42350-636-0 07 1 0303-0304 ●
2 WHEEL; DISC
(B) 		1-42350-544-0 07 1 0305-0311 ●
2 WHEEL; DISC
(C) 		1-42350-636-0 07 1 0312-0604 ●
2 WHEEL; DISC
(D) 		1-42350-745-0 07 1 0605- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) SPARE 		1-42350-254-2 01 1 9601-9607 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-254-2 01 1 9601-9607 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (C) SPARE 		1-42350-538-0 01 1 9608-9609 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. DISC WHEEL SPARE<N79> (C) SPARE 		1-42350-538-0 01 1 9608-9609 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (C) SPARE 		1-42350-538-0 01 1 9610-9803 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> EXC. DISC WHEEL SPARE<N79> (C) SPARE 		1-42350-538-0 01 1 9610-9803 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (C) SPARE 		1-42350-538-0 01 1 9804-0106 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> EXC. DISC WHEEL SPARE<N79> (C) SPARE 		1-42350-538-0 01 1 9804-0106 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) SPARE 		1-42350-543-0 01 1 9607-9609 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) SPARE 		1-42350-543-0 01 1 9607-9609 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) SPARE 		1-42350-543-0 01 1 9610-9803 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) SPARE 		1-42350-543-0 01 1 9610-9803 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) SPARE 		1-42350-543-0 01 1 9804-0004 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) SPARE 		1-42350-543-0 01 1 9804-0004 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL NOT PAINTED LEMMERZ BLACK<TGU> (B) SPARE 		1-42350-543-0 01 1 0005-0106 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL NOT PAINTED LEMMERZ BLACK<TGU> EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-543-0 01 1 0005-0106 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-527-0 01 1 9601-9803 ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-527-0 01 1 9601-9803 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-527-0 01 1 9804-0004 ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-527-0 01 1 9804-0004 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-447-0 01 1 9601-9803 ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-447-0 01 1 9601-9803 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-447-0 01 1 9804-0004 ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-447-0 01 1 9804-0004 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) (A) SPARE 		1-42350-447-0 01 1 0005-0106 ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-447-0 01 1 0005-0106 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A) 		1-42350-448-0 06 1 9601-9803 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A) 		1-42350-448-0 06 1 9804-0106 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) 		1-42350-278-2 06 1 9601-9606 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) 		1-42350-278-2 06 1 9607-9609 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (C) 		1-42350-539-0 06 1 9610-9803 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (C) 		1-42350-539-0 06 1 9804-0106 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) 		1-42350-544-0 06 1 9607-9609 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) 		1-42350-544-0 06 1 9610-9803 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) 		1-42350-544-0 06 1 9804-0004 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) DISC WHEEL NOT PAINTED LEMMERZ BLACK<TGU> (B) 		1-42350-544-0 06 1 0005-0106 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) 		1-42350-254-2 06 1 9601-9607 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (C) 		1-42350-538-0 06 1 9608-9609 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (C) 		1-42350-538-0 06 1 9610-9803 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (C) 		1-42350-538-0 06 1 9804-0106 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) 		1-42350-543-0 06 1 9607-9609 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) 		1-42350-543-0 06 1 9610-9803 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) 		1-42350-543-0 06 1 9804-0004 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL NOT PAINTED LEMMERZ BLACK<TGU> (B) 		1-42350-543-0 06 1 0005-0106 ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) 		1-42350-527-0 06 1 9601-9803 ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) 		1-42350-527-0 06 1 9804-0004 ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) 		1-42350-447-0 06 1 9601-9803 ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) 		1-42350-447-0 06 1 9804-0004 ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) (A) 		1-42350-447-0 06 1 0005-0106 ●
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22 		1-42333-043-0 20 1 9601-9803 ● ●
3 NUT; WHEEL,FRT AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22 		1-42333-043-0 20 1 9804-0004 ●
3 NUT; WHEEL,FRT AXLE
M22 		1-42333-043-0 20 1 0005-0609 ●
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-050-1 20 1 0610-0907 ●
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-055-0 20 1 0908- ●
3 NUT; WHEEL,FRT AXLE
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M24 LH THREAD 		1-42334-022-0 08 1 9601-9803 ● ●
3 NUT; WHEEL,FRT AXLE
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M24 LH THREAD 		1-42334-022-0 08 1 9804-0004 ●
3 NUT; WHEEL,FRT AXLE
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M24 		1-42333-022-0 08 1 9601-9803 ● ●
3 NUT; WHEEL,FRT AXLE
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M24 		1-42333-022-0 08 1 9804-0004 ●
8 VALVE; TIRE 1-42370-041-0 07 1 0312-0604 ●
8 VALVE; TIRE 1-42370-020-3 07 1 0605- ●
8 VALVE; TIRE 1-42370-041-0 07 1 0304-0304 ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 		1-42370-020-3 01 1 9608-9609 ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. DISC WHEEL SPARE<N79> 		1-42370-020-3 01 1 9608-9609 ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> 		1-42370-020-3 01 1 9610-9803 ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> EXC. DISC WHEEL SPARE<N79> 		1-42370-020-3 01 1 9610-9803 ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> 		1-42370-020-3 01 1 9804-0106 ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> EXC. DISC WHEEL SPARE<N79> 		1-42370-020-3 01 1 9804-0106 ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) 		1-42370-020-3 01 1 9601-9605 ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> 		1-42370-020-3 01 1 9601-9605 ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 		1-42370-020-3 06 1 9608-9609 ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> 		1-42370-020-3 06 1 9610-9803 ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> 		1-42370-020-3 06 1 9804-0106 ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) 		1-42370-020-3 06 1 9601-9605 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE 		1-42355-014-0 01 1 9601-9803 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42355-014-0 01 1 9601-9803 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE 		1-42355-014-0 01 1 9804-0106 ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42355-014-0 01 1 9804-0106 ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42355-040-0 01 1 9601-9803 ● ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42355-040-0 01 1 9601-9803 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42355-040-0 01 1 9804-0004 ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42355-040-0 01 1 9804-0004 ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42355-012-1 01 1 9601-9803 ● ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42355-012-1 01 1 9601-9803 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42355-012-1 01 1 9804-0004 ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42355-012-1 01 1 9804-0004 ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) SPARE 		1-42355-012-1 01 1 0005-0106 ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42355-012-1 01 1 0005-0106 ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) 		1-42355-014-0 06 1 9601-9803 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) 		1-42355-014-0 06 1 9804-0106 ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 		1-42355-040-0 06 1 9601-9803 ● ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 		1-42355-040-0 06 1 9804-0004 ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 		1-42355-012-1 06 1 9601-9803 ● ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 		1-42355-012-1 06 1 9804-0004 ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) 		1-42355-012-1 06 1 0005-0106 ●
32 CAP; VALVE
DISC WHEEL SPARE<N79> 		1-42374-001-0 05 1 9601-9803 ● ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 05 1 9601-9803 ● ●
32 CAP; VALVE
DISC WHEEL SPARE<N79> 		1-42374-001-0 05 1 9804-0106 ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 05 1 9804-0106 ●
32 CAP; VALVE 1-42374-001-0 05 1 0107-0604 ●
32 CAP; VALVE 1-42374-001-0 12 1 0605-0612 ●
32 CAP; VALVE 1-42374-001-0 07 1 0701- ●
32 CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEELRR<R46> 		1-42374-001-0 04 1 9601-9803 ● ●
32 CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEELRR<R46> 		1-42374-001-0 04 1 9804-0106 ●

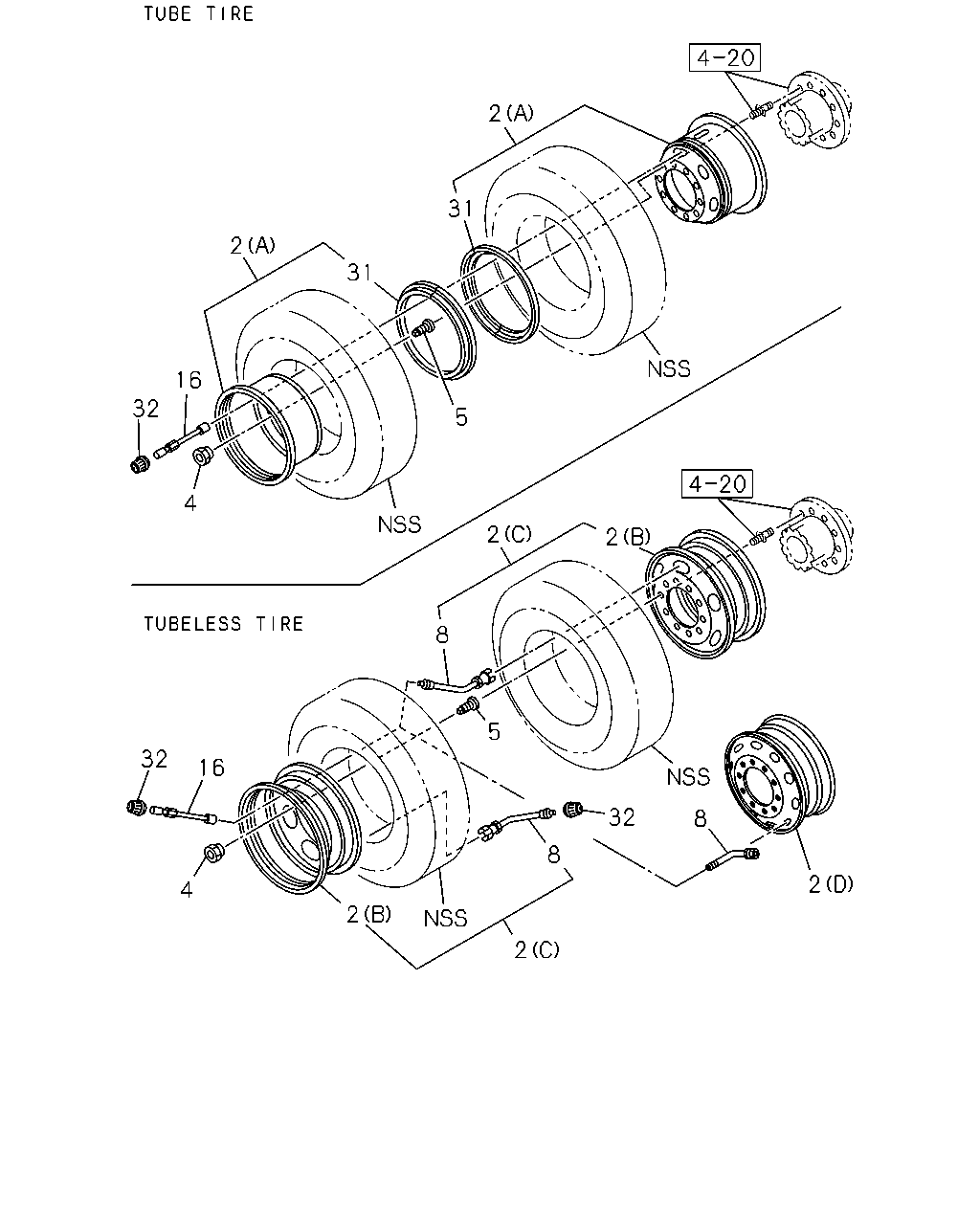

çizim 86386
2 31 2 31 16 32 5 4 2 2 8 5 32 16 32 8 8 2 4 2 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A) SPARE 		1-42350-448-0 01 1 9601-9803 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-448-0 01 1 9601-9803 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A) SPARE 		1-42350-448-0 01 1 9804-0106 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-448-0 01 1 9804-0106 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) SPARE 		1-42350-278-2 01 1 9601-9606 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-278-2 01 1 9601-9606 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) SPARE 		1-42350-278-2 01 1 9607-9609 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-278-2 01 1 9607-9609 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (C) SPARE 		1-42350-539-0 01 1 9610-9803 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> EXC. DISC WHEEL SPARE<N79> (C) SPARE 		1-42350-539-0 01 1 9610-9803 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (C) SPARE 		1-42350-539-0 01 1 9804-0106 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> EXC. DISC WHEEL SPARE<N79> (C) SPARE 		1-42350-539-0 01 1 9804-0106 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) SPARE 		1-42350-544-0 01 1 9607-9609 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) SPARE 		1-42350-544-0 01 1 9607-9609 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) SPARE 		1-42350-544-0 01 1 9610-9803 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) SPARE 		1-42350-544-0 01 1 9610-9803 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) SPARE 		1-42350-544-0 01 1 9804-0004 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) SPARE 		1-42350-544-0 01 1 9804-0004 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) DISC WHEEL NOT PAINTED LEMMERZ BLACK<TGU> (B) SPARE 		1-42350-544-0 01 1 0005-0106 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL NOT PAINTED LEMMERZ BLACK<TGU> EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-544-0 01 1 0005-0106 ●
2 WHEEL; DISC
(B) 		1-42350-544-0 07 1 0107-0302 ●
2 WHEEL; DISC
(C) 		1-42350-636-0 07 1 0303-0304 ●
2 WHEEL; DISC
(B) 		1-42350-544-0 07 1 0305-0311 ●
2 WHEEL; DISC
(C) 		1-42350-636-0 07 1 0312-0604 ●
2 WHEEL; DISC
(D) 		1-42350-745-0 07 1 0605- ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) SPARE 		1-42350-254-2 01 1 9601-9607 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-254-2 01 1 9601-9607 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (C) SPARE 		1-42350-538-0 01 1 9608-9609 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. DISC WHEEL SPARE<N79> (C) SPARE 		1-42350-538-0 01 1 9608-9609 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (C) SPARE 		1-42350-538-0 01 1 9610-9803 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> EXC. DISC WHEEL SPARE<N79> (C) SPARE 		1-42350-538-0 01 1 9610-9803 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (C) SPARE 		1-42350-538-0 01 1 9804-0106 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> EXC. DISC WHEEL SPARE<N79> (C) SPARE 		1-42350-538-0 01 1 9804-0106 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) SPARE 		1-42350-543-0 01 1 9607-9609 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) SPARE 		1-42350-543-0 01 1 9607-9609 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) SPARE 		1-42350-543-0 01 1 9610-9803 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) SPARE 		1-42350-543-0 01 1 9610-9803 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) SPARE 		1-42350-543-0 01 1 9804-0004 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) SPARE 		1-42350-543-0 01 1 9804-0004 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL NOT PAINTED LEMMERZ BLACK<TGU> (B) SPARE 		1-42350-543-0 01 1 0005-0106 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL NOT PAINTED LEMMERZ BLACK<TGU> EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-543-0 01 1 0005-0106 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-527-0 01 1 9601-9803 ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-527-0 01 1 9601-9803 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-527-0 01 1 9804-0004 ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-527-0 01 1 9804-0004 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-447-0 01 1 9601-9803 ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-447-0 01 1 9601-9803 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-447-0 01 1 9804-0004 ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE 		1-42350-447-0 01 1 9804-0004 ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) (A) SPARE 		1-42350-447-0 01 1 0005-0106 ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-447-0 01 1 0005-0106 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A) 		1-42350-448-0 06 1 9601-9803 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A) 		1-42350-448-0 06 1 9804-0106 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) 		1-42350-278-2 06 1 9601-9606 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) 		1-42350-278-2 06 1 9607-9609 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (C) 		1-42350-539-0 06 1 9610-9803 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (C) 		1-42350-539-0 06 1 9804-0106 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) 		1-42350-544-0 06 1 9607-9609 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) 		1-42350-544-0 06 1 9610-9803 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) EXC. DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) 		1-42350-544-0 06 1 9804-0004 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) DISC WHEEL NOT PAINTED LEMMERZ BLACK<TGU> (B) 		1-42350-544-0 06 1 0005-0106 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) 		1-42350-254-2 06 1 9601-9607 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (C) 		1-42350-538-0 06 1 9608-9609 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (C) 		1-42350-538-0 06 1 9610-9803 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (C) 		1-42350-538-0 06 1 9804-0106 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) 		1-42350-543-0 06 1 9607-9609 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) 		1-42350-543-0 06 1 9610-9803 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) 		1-42350-543-0 06 1 9804-0004 ●
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL NOT PAINTED LEMMERZ BLACK<TGU> (B) 		1-42350-543-0 06 1 0005-0106 ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) 		1-42350-527-0 06 1 9601-9803 ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) 		1-42350-527-0 06 1 9804-0004 ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) 		1-42350-447-0 06 1 9601-9803 ● ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) 		1-42350-447-0 06 1 9804-0004 ●
2 WHEEL; DISC
WHEEL 10STUD 7.00TX20(Q58) (A) 		1-42350-447-0 06 1 0005-0106 ●
4 NUT; WHEEL,RR AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22 		1-42333-043-0 20 1 9601-9803 ● ●
4 NUT; WHEEL,RR AXLE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 165-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22 		1-42333-043-0 20 1 9804-0004 ●
4 NUT; WHEEL,RR AXLE
M22 		1-42333-043-0 20 1 0005-0609 ●
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-050-1 20 1 0610-0907 ●
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 20 1 0908- ●
4 NUT; WHEEL,RR AXLE
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M30 LH THREAD 		1-42334-023-0 08 1 9601-9803 ● ●
4 NUT; WHEEL,RR AXLE
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M30 LH THREAD 		1-42334-023-0 08 1 9804-0004 ●
4 NUT; WHEEL,RR AXLE
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M30 		1-42333-023-0 08 1 9601-9803 ● ●
4 NUT; WHEEL,RR AXLE
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M30 		1-42333-023-0 08 1 9804-0004 ●
5 NUT; WHEEL,INNER,RR AXLE
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) OUTER M30,INNER M20 LH THREAD 		1-42336-005-0 08 1 9601-9803 ● ●
5 NUT; WHEEL,INNER,RR AXLE
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) OUTER M30,INNER M20 LH THREAD 		1-42336-005-0 08 1 9804-0004 ●
5 NUT; WHEEL,INNER,RR AXLE
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 08 1 9601-9803 ● ●
5 NUT; WHEEL,INNER,RR AXLE
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8), WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20 1 65-12(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 08 1 9804-0004 ●
8 VALVE; TIRE 1-42370-041-0 07 1 0312-0604 ●
8 VALVE; TIRE 1-42370-020-3 07 1 0605- ●
8 VALVE; TIRE 1-42370-041-0 07 1 0304-0304 ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 		1-42370-020-3 01 1 9608-9609 ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. DISC WHEEL SPARE<N79> 		1-42370-020-3 01 1 9608-9609 ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> 		1-42370-020-3 01 1 9610-9803 ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> EXC. DISC WHEEL SPARE<N79> 		1-42370-020-3 01 1 9610-9803 ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> 		1-42370-020-3 01 1 9804-0106 ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> EXC. DISC WHEEL SPARE<N79> 		1-42370-020-3 01 1 9804-0106 ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) 		1-42370-020-3 01 1 9601-9605 ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> 		1-42370-020-3 01 1 9601-9605 ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 		1-42370-020-3 06 1 9608-9609 ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> 		1-42370-020-3 06 1 9610-9803 ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> 		1-42370-020-3 06 1 9804-0106 ●
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.50X22.5 162-13(Q87) 		1-42370-020-3 06 1 9601-9605 ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		1-42370-024-0 02 1 9601-9803 ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		1-42370-024-0 02 1 9804-1003 ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		8-98167-052-0 02 1 1004- ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE 		1-42355-014-0 01 1 9601-9803 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42355-014-0 01 1 9601-9803 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE 		1-42355-014-0 01 1 9804-0106 ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42355-014-0 01 1 9804-0106 ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42355-040-0 01 1 9601-9803 ● ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42355-040-0 01 1 9601-9803 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42355-040-0 01 1 9804-0004 ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42355-040-0 01 1 9804-0004 ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42355-012-1 01 1 9601-9803 ● ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42355-012-1 01 1 9601-9803 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42355-012-1 01 1 9804-0004 ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		1-42355-012-1 01 1 9804-0004 ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) SPARE 		1-42355-012-1 01 1 0005-0106 ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42355-012-1 01 1 0005-0106 ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) 		1-42355-014-0 06 1 9601-9803 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 10STUD 7.50VX20 165-12(Q64) 		1-42355-014-0 06 1 9804-0106 ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 		1-42355-040-0 06 1 9601-9803 ● ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 		1-42355-040-0 06 1 9804-0004 ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 		1-42355-012-1 06 1 9601-9803 ● ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) EXC. DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 		1-42355-012-1 06 1 9804-0004 ●
31 RING; SIDE,DISC WHEEL
WHEEL 10STUD 7.00TX20(Q58) 		1-42355-012-1 06 1 0005-0106 ●
32 CAP; VALVE
DISC WHEEL SPARE<N79> 		1-42374-001-0 05 1 9601-9803 ● ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 05 1 9601-9803 ● ●
32 CAP; VALVE
DISC WHEEL SPARE<N79> 		1-42374-001-0 05 1 9804-0106 ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 05 1 9804-0106 ●
32 CAP; VALVE 1-42374-001-0 05 1 0107-0604 ●
32 CAP; VALVE 1-42374-001-0 12 1 0605-0612 ●
32 CAP; VALVE 1-42374-001-0 07 1 0701- ●
32 CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEELRR<R46> 		1-42374-001-0 04 1 9601-9803 ● ●
32 CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEELRR<R46> 		1-42374-001-0 04 1 9804-0106 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
