◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#24835) — 58 parça

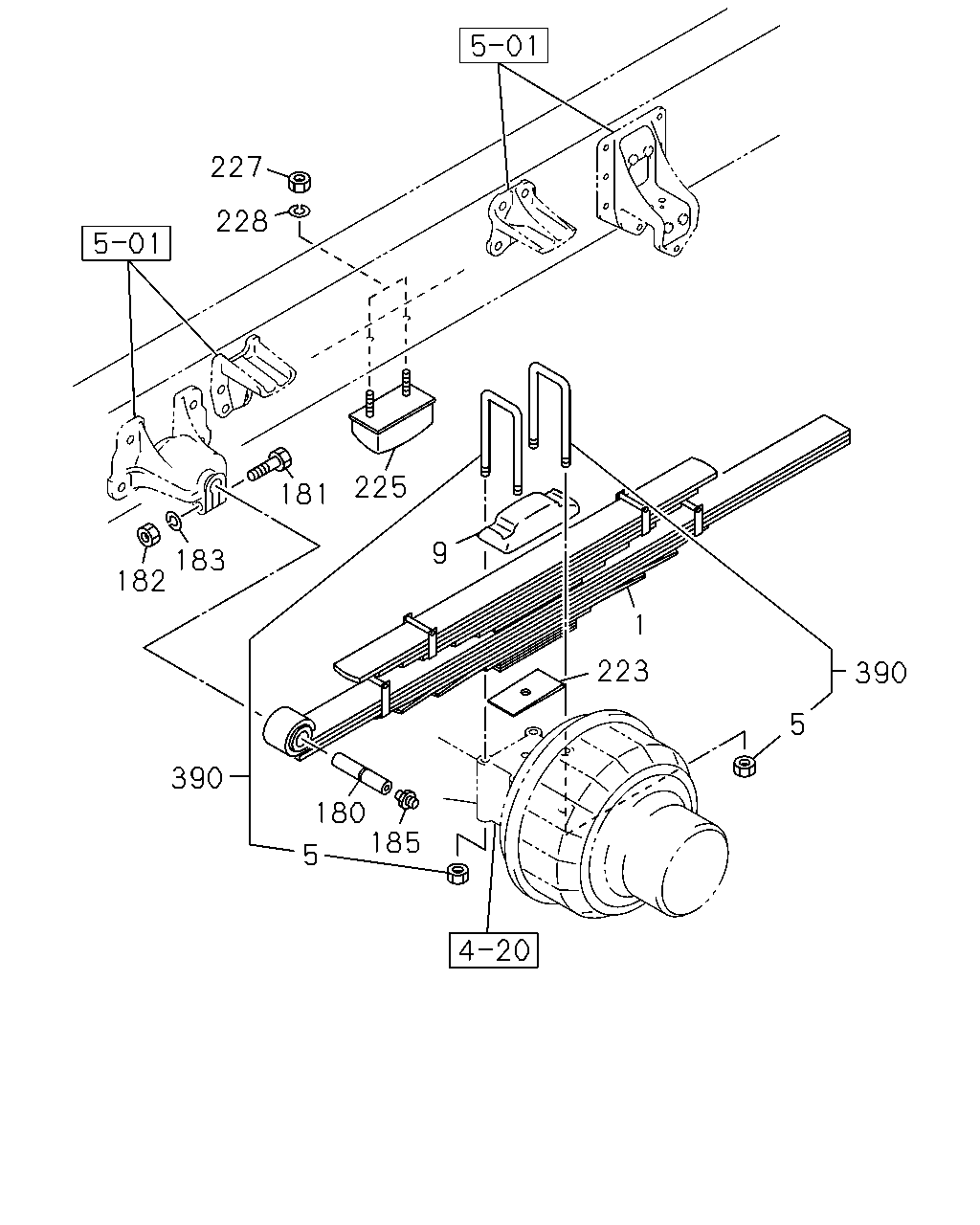

çizim 86440
227 228 225 181 9 183 182 1 223 390 5 390 180 185 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		1-51300-352-0 02 1 9601-9803 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SUSPENSION HEAVY DUTY VAR2(F41) 14-LEAF 		1-51300-352-0 02 1 9601-9803 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION HEAVY DUTY VAR2(F41) 14-LEAF 		1-51300-522-0 02 1 9601-9803 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 14-LEAF 		1-51300-352-0 02 1 9804- ●
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 9601-9803 ● ●
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 9804-0512 ●
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 0601- ●
9 PAD; U BOLT,RR SPR 1-51372-030-0 02 1 9601-9803 ● ●
9 PAD; U BOLT,RR SPR 1-51372-030-0 02 1 9804- ●
180 PIN; RR SPR 1-51361-020-0 02 1 9601-9803 ● ●
180 PIN; RR SPR 1-51361-020-0 02 1 9804- ●
181 BOLT; SPR & SHACKLE
M14X80 		0-10806-480-0 02 1 9601-9803 ● ●
181 BOLT; SPR & SHACKLE
M14X80 		0-10806-480-0 02 1 9804-0512 ●
181 BOLT; SPR & SHACKLE
M14X80 		0-10856-480-0 02 1 0601- ●
182 NUT; PIN,RR SPR
M14 		9-99110-414-0 02 1 9601-9803 ● ●
182 NUT; PIN,RR SPR
M14 		9-99110-414-0 02 1 9804-0512 ●
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 02 1 0601- ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		9-09150-514-0 02 1 9601-9803 ● ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		9-09150-514-0 02 1 9804-0603 ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		0-91510-514-0 02 1 0604- ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9601-9803 ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		9-09031-010-0 02 1 9804-0512 ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W) 		1-51377-344-0 02 1 9601-9609 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W) 		1-51377-344-0 02 1 9601-9609 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W) 		1-51377-344-0 02 1 9610-9705 ● ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W) EXC. P46 PROP SHAFT(C4Z) 		1-51377-344-0 02 1 9610-9705 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W) 		1-51377-344-0 02 1 9706-9803 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W) EXC. P46 PROP SHAFT(C4Z) 		1-51377-344-0 02 1 9706-9803 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) 		1-51377-344-0 02 1 9706-9803 ●
223 SPACER; U BOLT,RR SPR
6HE1 TC ENG(57L) WHEEL BASE 4600MM(46W) P46 PROP SHAFT(C4Z) 		1-51377-371-0 02 1 9804-0106 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W) EXC. P46 PROP SHAFT(C4Z) 		1-51377-371-0 02 1 9804-0106 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5600MM(56W) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 		1-51377-371-1 02 1 0107-1212 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 6000MM(60W) 		1-51377-327-0 02 1 9601-9609 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-51377-327-0 02 1 9601-9609 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W) P46 PROP SHAFT(C4Z) 		1-51377-327-0 02 1 9610-9803 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 6000MM(60W) 		1-51377-327-0 02 1 9610-9803 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-51377-327-0 02 1 9610-9803 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W) P46 PROP SHAFT(C4Z) 		1-51377-370-0 02 1 9804-0106 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 6000MM(60W) 		1-51377-370-0 02 1 9804-0106 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 6100MM(61W) P90 PROP SHAFT(C5T) 		1-51377-370-0 02 1 0107-1306 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 6100MM(61W) P90 PROP SHAFT(C5T) 		8-98220-147-0 02 1 1307- ●
223 SPACER; U BOLT,RR SPR
6SD1 TCN ENG(31L) WHEEL BASE 4600MM(46W) 		1-51377-368-0 02 1 9804-0106 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4700MM(47W) P60 PROP SHAFT(C2M) 		1-51377-369-1 02 1 0107-1312 ●
223 SPACER; U BOLT,RR SPR
WHEEL BASE 4700MM(47W) P60 PROP SHAFT(C2M) 		8-98220-149-0 02 1 1401- ●
225 RUBBER; CUSHION,RR SPR 1-53366-081-0 02 1 9601-9803 ●
225 RUBBER; CUSHION,RR SPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53366-081-0 02 1 9601-9803 ●
225 RUBBER; CUSHION,RR SPR 1-53366-081-1 02 1 9804- ●
225 RUBBER; CUSHION,RR SPR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53366-142-0 02 1 9601-9701 ●
225 RUBBER; CUSHION,RR SPR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53366-142-0 01 1 9702-9803 ●
225 RUBBER; CUSHION,RR SPR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53366-142-0 01 1 9702-9803 ●
227 NUT; CUSHION RUBBER
M12 		9-99110-512-0 04 1 9601-9611 ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 9612-9803 ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 9804-0602 ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 0603- ●
228 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 04 1 9601-9611 ● ●
390 U-BOLT SET; RR SPRING
L=490 		1-87870-036-2 04 1 9601-9803 ● ●
390 U-BOLT SET; RR SPRING
L=490 		1-87870-036-4 04 1 9804- ●
