4-55 — FRONT LEAF SPRING (#24834) — 68 parça

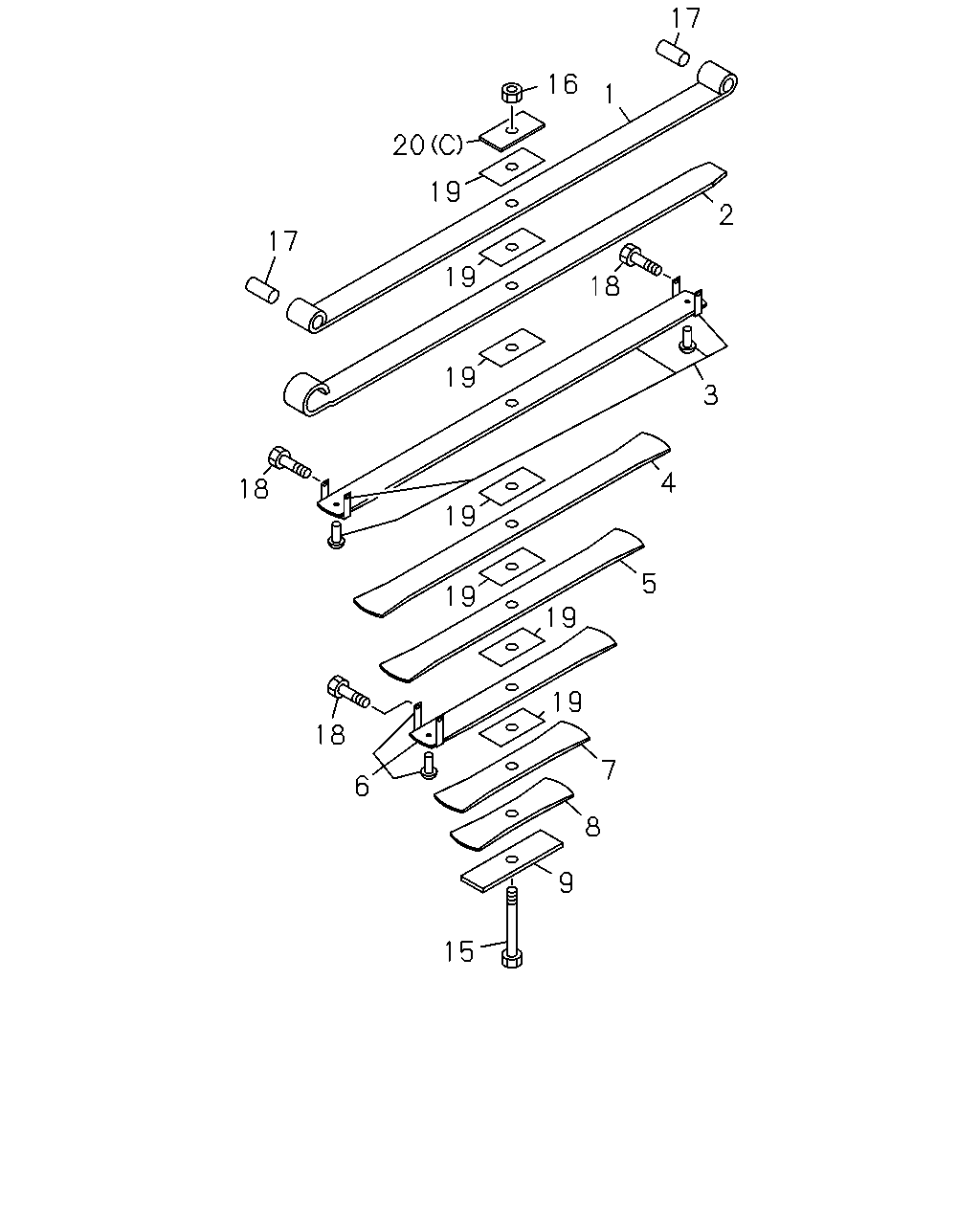

17 16 1 20 19 2 17 19 18 19 3 4 8 19 5 19 19 19 18 7 6 8 9 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-343-0	1-51131-343-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-349-0	1-51131-349-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51130-474-0	1-51131-474-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-343-0	1-51132-343-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-349-0	1-51132-349-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51130-474-0	1-51132-474-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: A = 1-51130-343-0	1-51133-343-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: B = 1-51130-349-0	1-51133-349-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: C = 1-51130-474-0	1-51133-474-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 1-51130-343-0	1-51134-343-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 1-51130-349-0	1-51134-349-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 1-51130-474-0	1-51134-474-0	01	1	-
5	SPRING; LEAF,NO 5,FRT W/CLIP ASM PART: A = 1-51130-343-0	1-51135-343-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: B = 1-51130-349-0	1-51135-349-0	01	1	-
5	SPRING; LEAF,NO 5,FRT W/CLIP ASM PART: C = 1-51130-474-0	1-51135-474-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 1-51130-343-0	1-51136-343-0	01	1	-
6	SPRING; LEAF,NO 6,FRT W/CLIP ASM PART: B = 1-51130-349-0	1-51136-349-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 1-51130-474-0	1-51136-474-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: A = 1-51130-343-0	1-51137-343-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: B = 1-51130-349-0	1-51137-349-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: C = 1-51130-474-0	1-51137-474-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: A = 1-51130-343-0	1-51138-343-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: B = 1-51130-349-0	1-51138-349-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: C = 1-51130-474-0	1-51138-474-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: B = 1-51130-349-0	1-51139-349-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=140 ASM PART: C = 1-51130-474-0	1-51156-304-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=150 ASM PART: B = 1-51130-349-0	1-51156-328-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=135 ASM PART: A = 1-51130-343-0	1-51156-333-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-343-0, B = 1-51130-349-0, C = 1-51130-474-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: A = 1-51130-343-0, B = 1-51130-349-0, C = 1-51130-474-0	1-51351-009-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: A = 1-51130-343-0, B = 1-51130-349-0, C = 1-51130-474-0	1-09000-328-0	03	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: B = 1-51130-349-0	1-51177-071-0	07	1	-
20	SEAT; LEAF SPR,FRT (C), T=12 ASM PART: B = 1-51130-349-0	1-51177-107-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=6 ASM PART: C = 1-51130-474-0	1-51177-115-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=13 ASM PART: A = 1-51130-343-0, C = 1-51130-474-0	1-51177-181-0	01	1	-

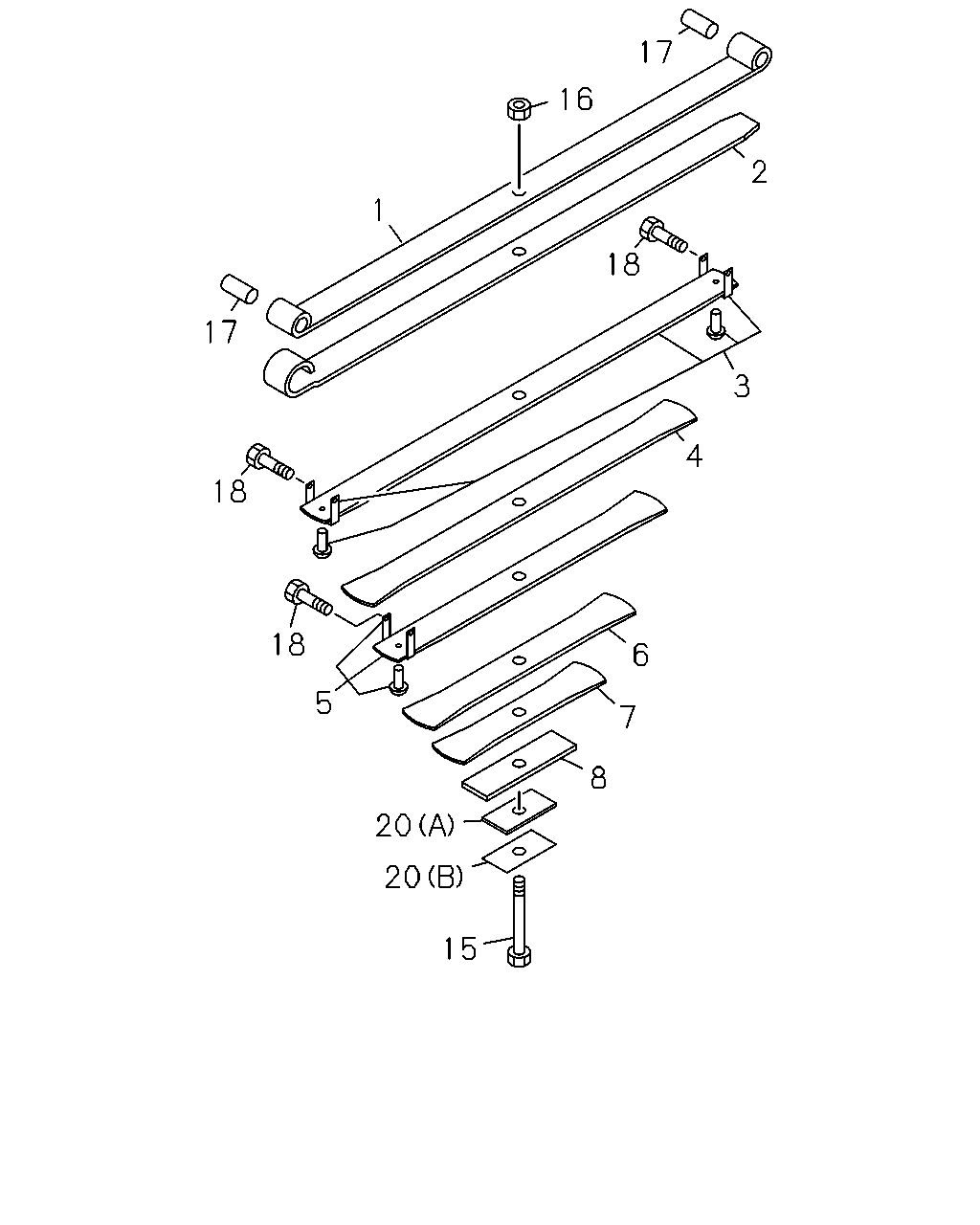

17 16 2 1 18 17 3 4 18 18 6 5 7 8 20 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-343-0	1-51131-343-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-349-0	1-51131-349-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51130-474-0	1-51131-474-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-343-0	1-51132-343-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-349-0	1-51132-349-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51130-474-0	1-51132-474-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: A = 1-51130-343-0	1-51133-343-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: B = 1-51130-349-0	1-51133-349-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: C = 1-51130-474-0	1-51133-474-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 1-51130-343-0	1-51134-343-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 1-51130-349-0	1-51134-349-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 1-51130-474-0	1-51134-474-0	01	1	-
5	SPRING; LEAF,NO 5,FRT W/CLIP ASM PART: A = 1-51130-343-0	1-51135-343-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: B = 1-51130-349-0	1-51135-349-0	01	1	-
5	SPRING; LEAF,NO 5,FRT W/CLIP ASM PART: C = 1-51130-474-0	1-51135-474-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 1-51130-343-0	1-51136-343-0	01	1	-
6	SPRING; LEAF,NO 6,FRT W/CLIP ASM PART: B = 1-51130-349-0	1-51136-349-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 1-51130-474-0	1-51136-474-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: A = 1-51130-343-0	1-51137-343-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: B = 1-51130-349-0	1-51137-349-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: C = 1-51130-474-0	1-51137-474-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: A = 1-51130-343-0	1-51138-343-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: B = 1-51130-349-0	1-51138-349-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: C = 1-51130-474-0	1-51138-474-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=140 ASM PART: C = 1-51130-474-0	1-51156-304-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=150 ASM PART: B = 1-51130-349-0	1-51156-328-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=135 ASM PART: A = 1-51130-343-0	1-51156-333-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-343-0, B = 1-51130-349-0, C = 1-51130-474-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: A = 1-51130-343-0, B = 1-51130-349-0, C = 1-51130-474-0	1-51351-009-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: A = 1-51130-343-0, B = 1-51130-349-0, C = 1-51130-474-0	1-09000-328-0	03	1	-
20	SEAT; LEAF SPR,FRT (C), T=12 ASM PART: B = 1-51130-349-0	1-51177-107-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=6 ASM PART: C = 1-51130-474-0	1-51177-115-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=13 ASM PART: A = 1-51130-343-0, C = 1-51130-474-0	1-51177-181-0	01	1	-
