◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#24831) — 186 parça

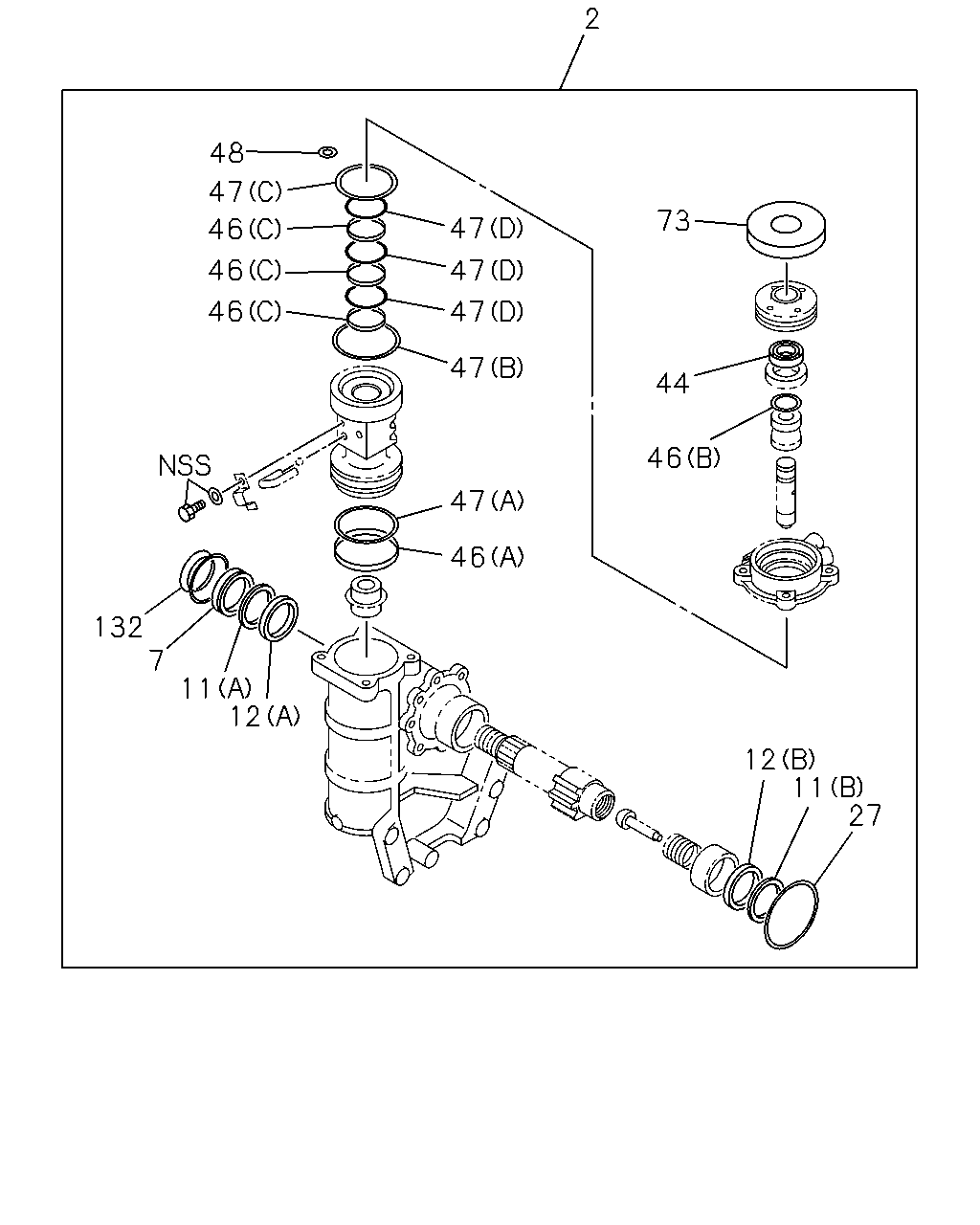

çizim 85949
2 48 47 73 47 46 46 47 46 47 47 44 46 47 46 132 7 11 12 12 11 27
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-814-0, B = 1-44000-834-0 		1-85574-030-0 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: C = 1-44000-840-4 		1-85574-030-0 01 1 -1003
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: C = 1-44000-840-4 		8-98176-079-0 01 1 1004-
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 1-44000-840-4 		1-44249-041-0 01 1 -1001
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0 		1-44249-041-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 1-44000-840-4 		8-98159-116-0 01 1 1002-
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-814-0 		1-44249-040-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-834-0, C = 1-44000-840-4 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-814-0 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-834-0, C = 1-44000-840-4 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-226-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-814-0 		1-44269-016-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-834-0, C = 1-44000-840-4 		1-44269-035-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: C = 1-44000-840-4 		1-44519-096-0 01 1 0402-
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-814-0, B = 1-44000-834-0 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-814-0 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-814-0 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-260-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-814-0 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: C = 1-44000-840-4 		1-44519-097-0 01 1 -0212
48 GASKET; HSG,STRG UNIT
ASM PART: C = 1-44000-840-4 		1-44519-262-0 01 1 0301-
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-834-0 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: C = 1-44000-840-4 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0 		1-44519-114-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: C = 1-44000-840-4 		8-98166-307-0 01 1 1004-
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-227-0 01 1 -

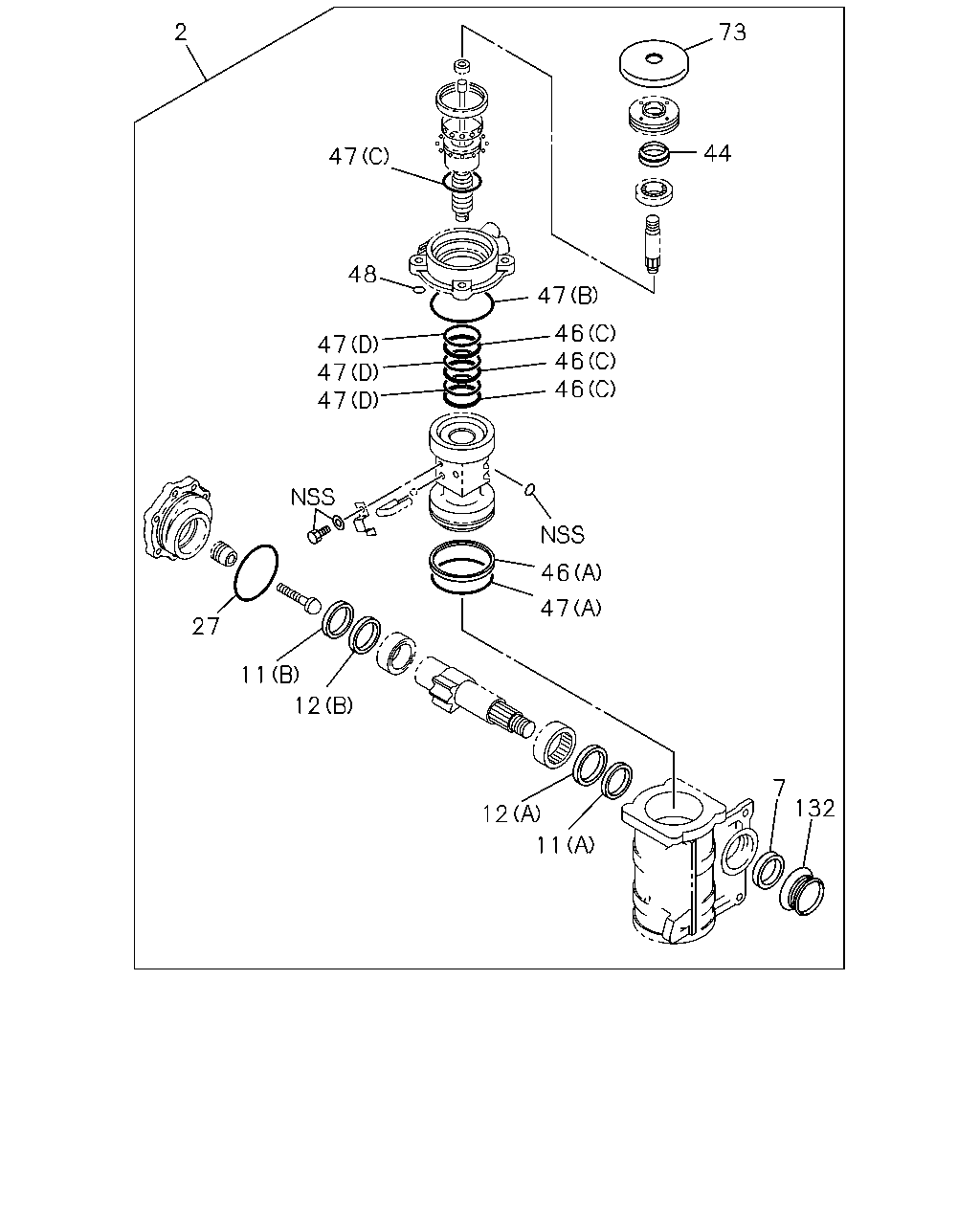

çizim 85951
2 73 44 47 48 47 46 46 46 47 47 47 46 47 27 11 12 7 132 12 11
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-814-0, B = 1-44000-834-0 		1-85574-030-0 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: C = 1-44000-840-4 		1-85574-030-0 01 1 -1003
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: C = 1-44000-840-4 		8-98176-079-0 01 1 1004-
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 1-44000-840-4 		1-44249-041-0 01 1 -1001
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0 		1-44249-041-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 1-44000-840-4 		8-98159-116-0 01 1 1002-
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-814-0 		1-44249-040-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-834-0, C = 1-44000-840-4 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-814-0 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-834-0, C = 1-44000-840-4 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-226-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-814-0 		1-44269-016-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-834-0, C = 1-44000-840-4 		1-44269-035-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: C = 1-44000-840-4 		1-44519-096-0 01 1 0402-
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-814-0, B = 1-44000-834-0 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-814-0 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-814-0 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-260-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-814-0 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: C = 1-44000-840-4 		1-44519-097-0 01 1 -0212
48 GASKET; HSG,STRG UNIT
ASM PART: C = 1-44000-840-4 		1-44519-262-0 01 1 0301-
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-834-0 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: C = 1-44000-840-4 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0 		1-44519-114-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: C = 1-44000-840-4 		8-98166-307-0 01 1 1004-
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-227-0 01 1 -

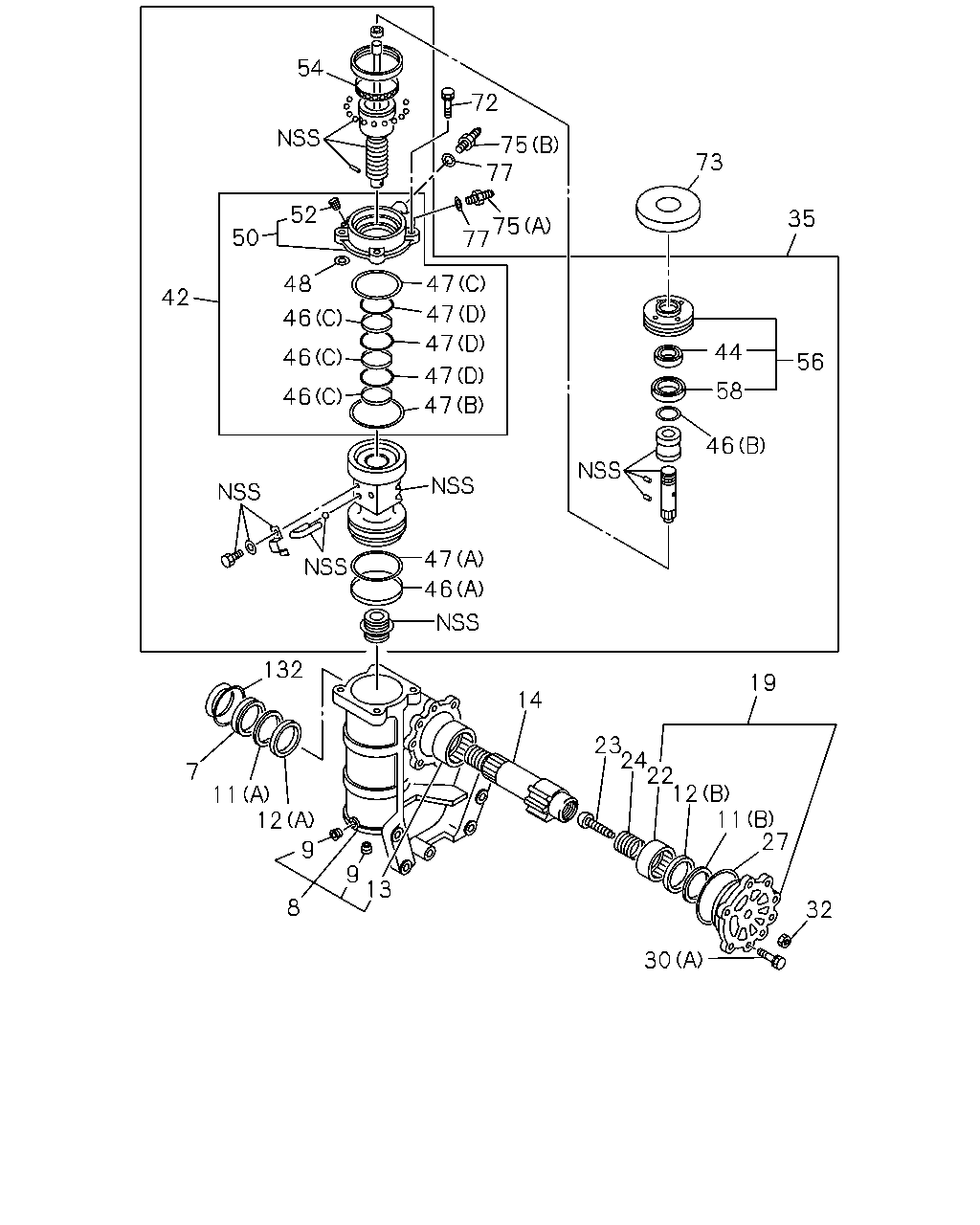

çizim 104432
54 72 75 77 73 52 35 75 77 50 47 48 42 47 46 47 44 46 56 47 58 46 47 46 47 46 132 19 14 23 24 22 12 11 27 7 11 12 9 9 13 8 32 30
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 1-44000-840-4 		1-44249-041-0 01 1 -1001
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0 		1-44249-041-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 1-44000-840-4 		8-98159-116-0 01 1 1002-
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-834-0 		1-44240-110-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-814-0, C = 1-44000-840-4 		8-98159-752-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-814-0 		1-44249-040-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-834-0, C = 1-44000-840-4 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-814-0 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-834-0, C = 1-44000-840-4 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-226-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0 		1-44249-038-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: C = 1-44000-840-4 		1-44249-038-0 01 1 -1001
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44321-022-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 1-44000-840-4 		1-44260-019-0 01 1 -1001
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0 		1-44260-019-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 1-44000-840-4 		8-98159-763-0 01 1 1002-
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0 		1-44519-105-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: C = 1-44000-840-4 		1-44519-105-0 01 1 -1001
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-814-0 		1-44269-016-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-834-0, C = 1-44000-840-4 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-814-0, C = 1-44000-840-4 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: A = 1-44000-814-0, C = 1-44000-840-4 		1-44279-012-0 05 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: B = 1-44000-834-0 		1-44279-012-0 08 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44269-007-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-814-0 		1-44150-054-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-834-0 		1-44150-065-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 1-44000-840-4 		1-44150-076-1 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44560-073-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: C = 1-44000-840-4 		1-44519-096-0 01 1 0402-
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-814-0, B = 1-44000-834-0 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-814-0 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-814-0 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-260-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-814-0 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: C = 1-44000-840-4 		1-44519-097-0 01 1 -0212
48 GASKET; HSG,STRG UNIT
ASM PART: C = 1-44000-840-4 		1-44519-262-0 01 1 0301-
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-834-0 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44560-072-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: C = 1-44000-840-4 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0 		1-44519-114-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: C = 1-44000-840-4 		8-98166-307-0 01 1 1004-
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-227-0 01 1 -

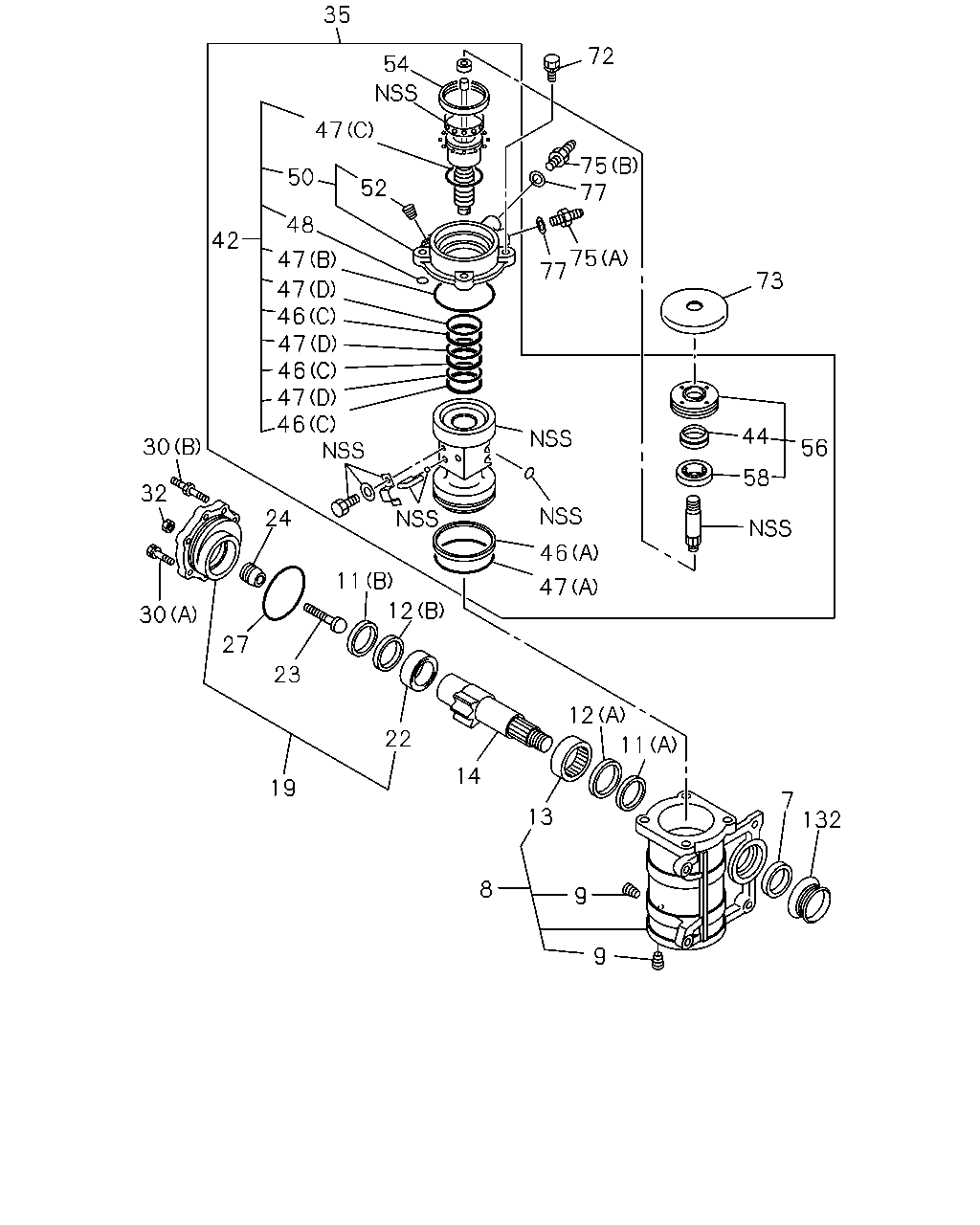

çizim 104439
35 72 54 47 75 77 50 52 48 42 75 77 47 73 47 46 47 46 47 46 44 30 56 58 32 24 46 11 47 12 30 27 23 12 22 11 14 19 7 13 132 8 9 9
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 1-44000-840-4 		1-44249-041-0 01 1 -1001
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0 		1-44249-041-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 1-44000-840-4 		8-98159-116-0 01 1 1002-
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-834-0 		1-44240-110-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-814-0, C = 1-44000-840-4 		8-98159-752-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-814-0 		1-44249-040-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-834-0, C = 1-44000-840-4 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-814-0 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-834-0, C = 1-44000-840-4 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-226-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0 		1-44249-038-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: C = 1-44000-840-4 		1-44249-038-0 01 1 -1001
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44321-022-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 1-44000-840-4 		1-44260-019-0 01 1 -1001
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0 		1-44260-019-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 1-44000-840-4 		8-98159-763-0 01 1 1002-
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0 		1-44519-105-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: C = 1-44000-840-4 		1-44519-105-0 01 1 -1001
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-814-0 		1-44269-016-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-834-0, C = 1-44000-840-4 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-814-0, C = 1-44000-840-4 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: A = 1-44000-814-0, C = 1-44000-840-4 		1-44279-012-0 05 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: B = 1-44000-834-0 		1-44279-012-0 08 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44269-007-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-814-0 		1-44150-054-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-834-0 		1-44150-065-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 1-44000-840-4 		1-44150-076-1 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44560-073-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: C = 1-44000-840-4 		1-44519-096-0 01 1 0402-
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-814-0, B = 1-44000-834-0 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-814-0 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-814-0 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-260-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-814-0 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: C = 1-44000-840-4 		1-44519-097-0 01 1 -0212
48 GASKET; HSG,STRG UNIT
ASM PART: C = 1-44000-840-4 		1-44519-262-0 01 1 0301-
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-834-0 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44560-072-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: C = 1-44000-840-4 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0 		1-44519-114-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: C = 1-44000-840-4 		8-98166-307-0 01 1 1004-
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-814-0, B = 1-44000-834-0, C = 1-44000-840-4 		1-44519-227-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
