Sayfa 3-70 - Isuzu EPC

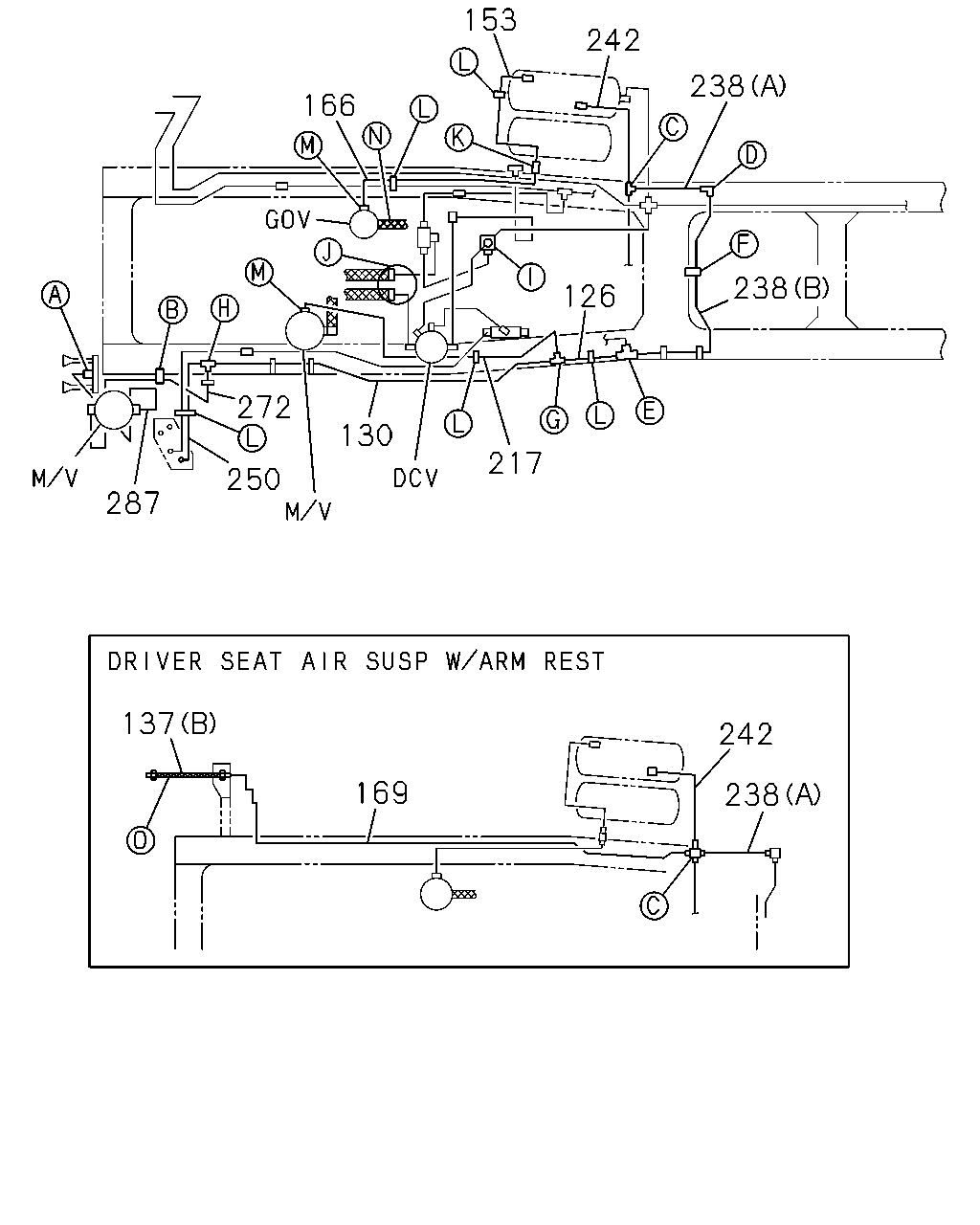

3-70 — BRAKE PIPING; AIR,AIR MASTER (#2483) — 455 parça

231 231 337 120 233 233 232 343 232 343 112 221 337 231 231 120 233 315 233 232 232 325 319 320 364 230 137 434 120 434 320 319 300 298 302 296 273 296 342

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

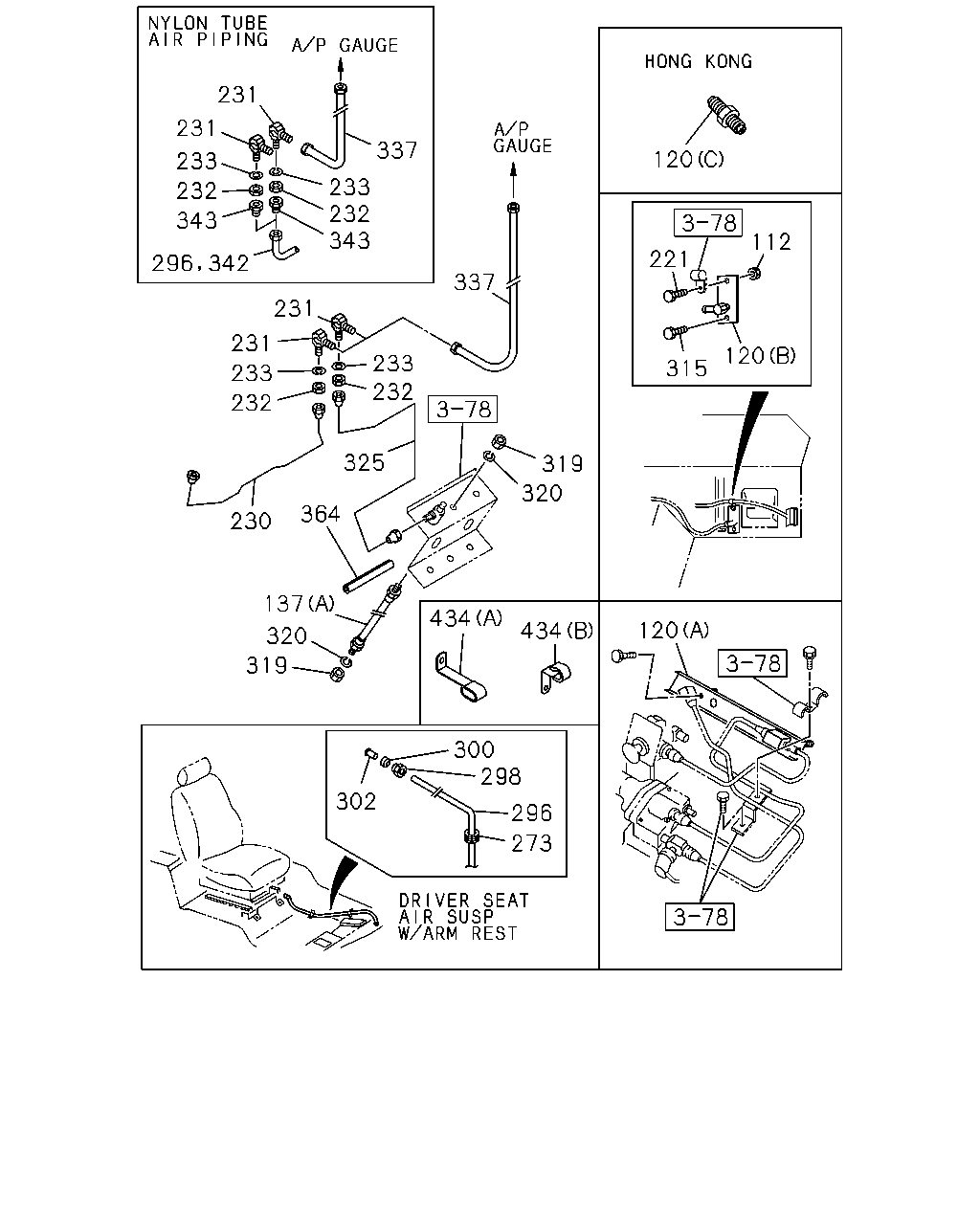

112	NUT EXC. NEW ZEALAND EQUIPMENT(PK5) M6	9-09110-406-0	01	1	9002-9307
112	NUT EXC. NEW ZEALAND EQUIPMENT(PK5) M6 FLANGE	0-91150-106-0	01	1	9308-
120	CONNECTOR; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A)	1-47470-165-1	01	1	9002-
120	CONNECTOR; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B)	1-47470-167-3	01	1	9002-
120	CONNECTOR; AIR PIPE HONG KONG EQUIPMENT(PQ1) (C) M16 L=42	9-09233-010-1	01	1	9002-

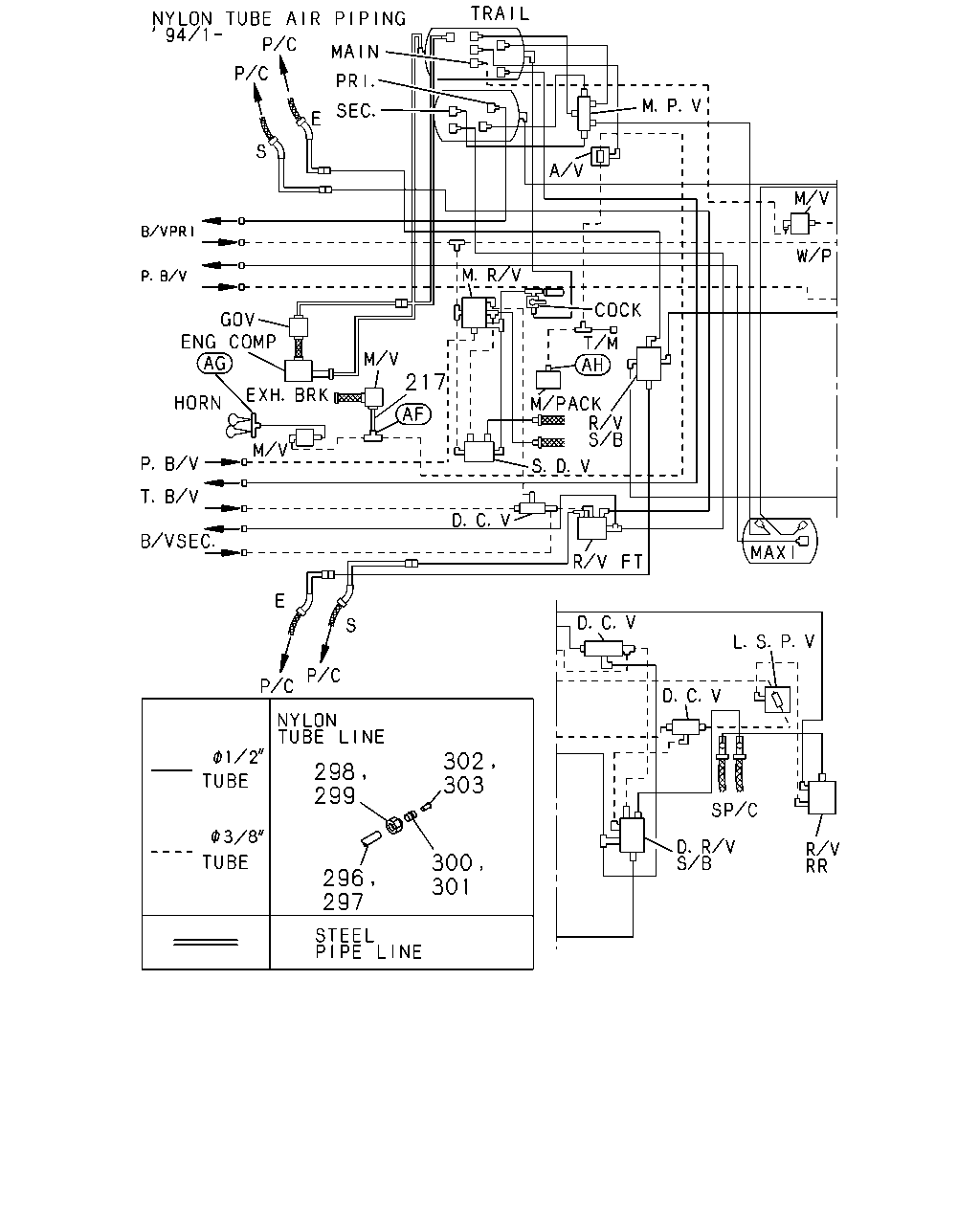

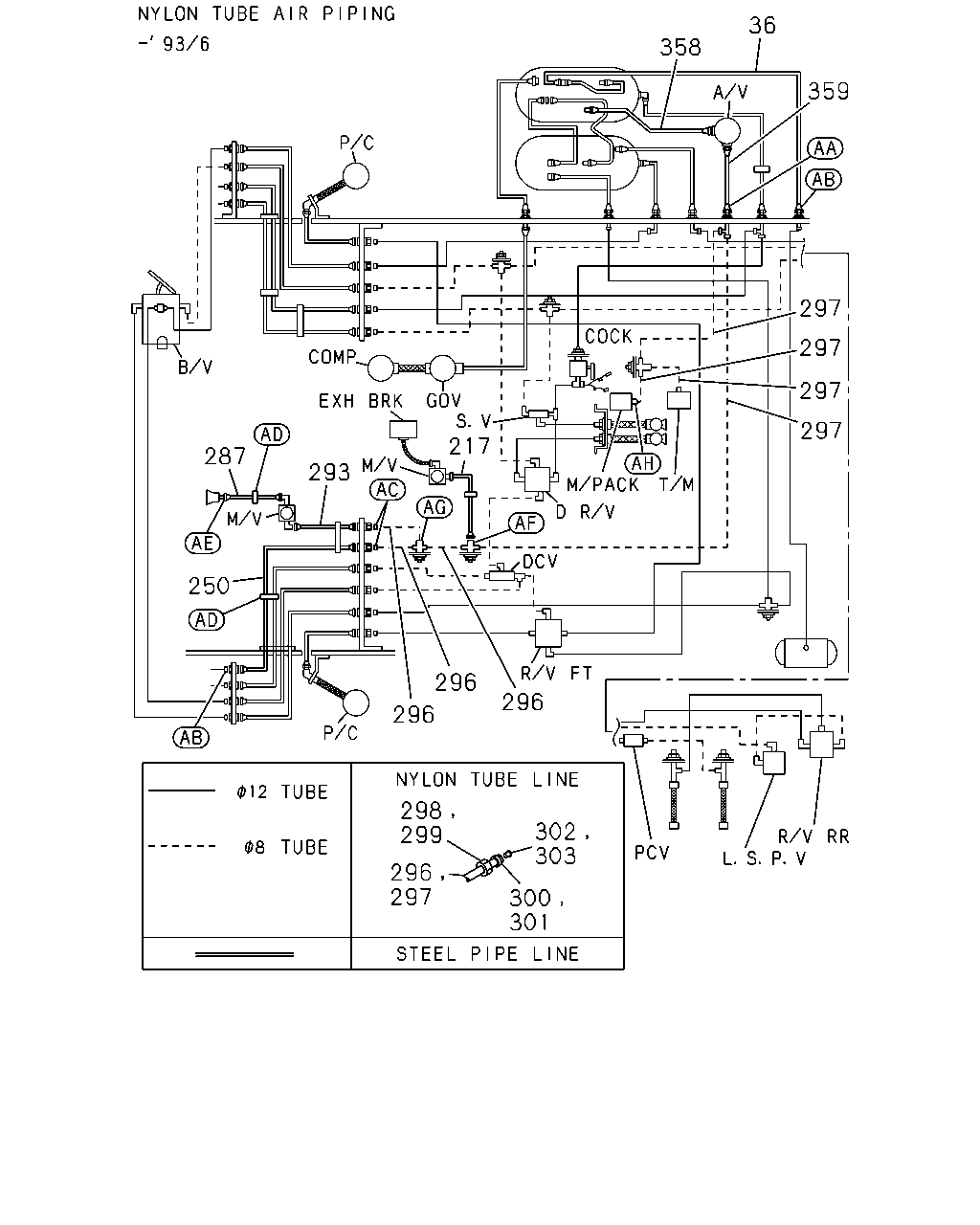

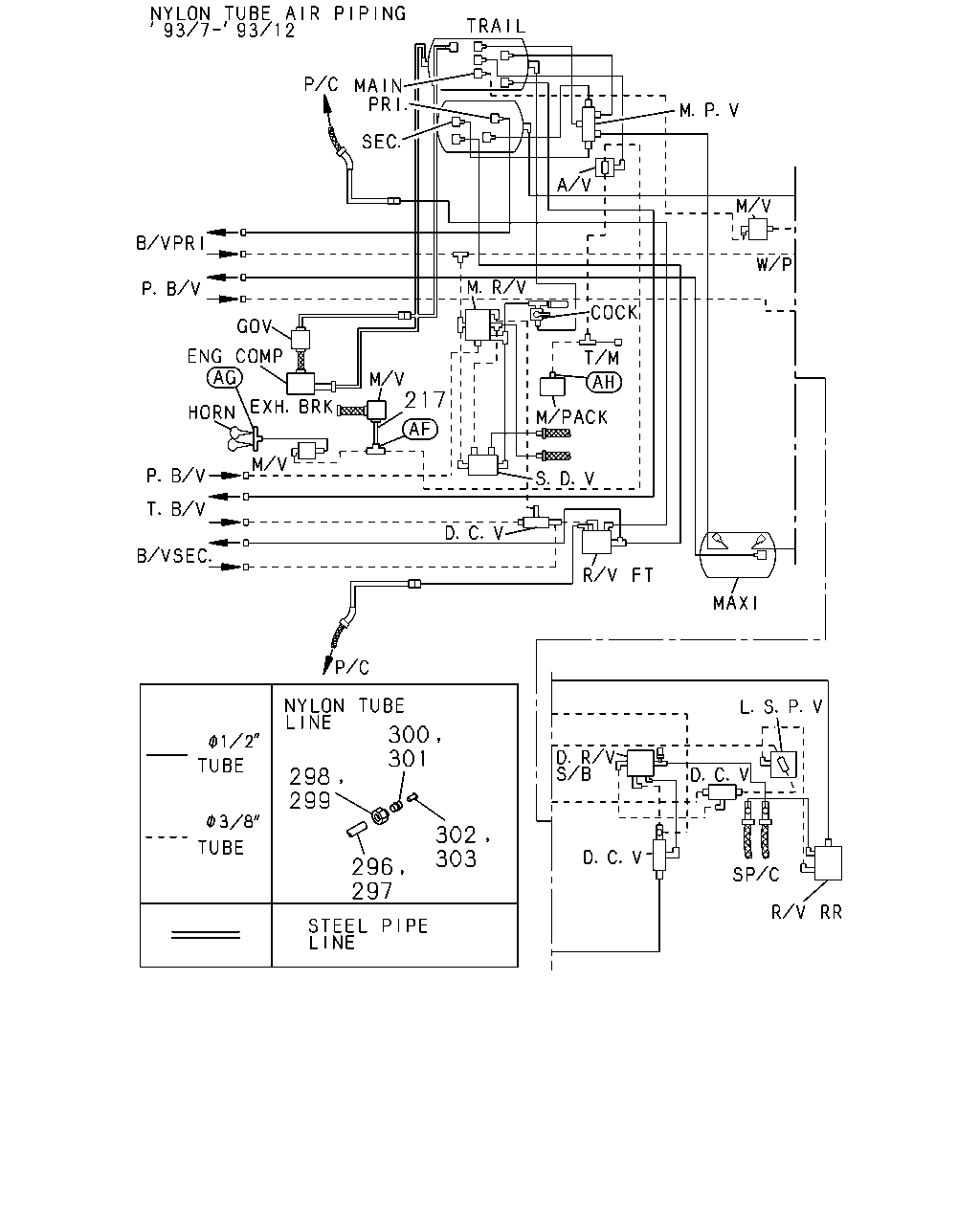

120	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (D)	1-09660-218-0	01	1	9002-9306
137	HOSE; FLEX,AIR PRESSURE GAGE DRIVER SEAT AIR SUSP W/ARM REST(SGP) (B)	0-07030-660-0	01	1	9307-
137	HOSE; FLEX,AIR PRESSURE GAGE EXC. NEW ZEALAND EQUIPMENT(PK5),DUAL AIR GAUGE<UG2> (A) L=840	1-09363-368-1	01	1	9002-
221	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204
221	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302
221	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X16 FLANGE	0-28080-816-0	01	1	9303-9306
221	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	9-01900-616-0	01	1	9002-9204
221	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	01	1	9205-9302
221	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	01	1	9303-
230	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> L=667	1-47448-466-1	01	1	9002-
230	PIPE; AIR,UNION TO UNION EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=638	1-47448-468-1	01	1	9002-
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2>	1-09654-180-3	02	1	9002-
231	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2>	1-09654-180-3	01	1	9002-
232	NUT; UNION,AIR PIPE DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	02	1	9002-
232	NUT; UNION,AIR PIPE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9002-
233	WASHER; LK,UNION,AIR PIPE DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	02	1	9002-
233	WASHER; LK,UNION,AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9002-
273	GROMMET DRIVER SEAT AIR SUSP W/ARM REST(SGP)	1-09332-102-0	01	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=12 SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=8 SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=3/8" SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=3/8" SERVICED BY L=30000 OD=3/8"	1-09368-249-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-252-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-253-0	AR	1	9307-
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	9002-9306
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M18	1-09660-213-0	AR	1	9002-9306
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> UNS 17/32-24	1-09660-557-0	AR	1	9307-
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> UNS 11/16-20	1-09660-558-0	AR	1	9307-
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE ID=8.15 OD=11 L=9.5	1-09666-042-0	AR	1	9002-9306
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE ID=12.15 OD=15 L=10	1-09666-043-0	AR	1	9002-9306
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9307-
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 1/2" TUBE ID=12.93 OD=15.85 L=10.92	1-09666-061-0	AR	1	9307-
302	RING; INSERT DUAL AIR GAUGE<UG2> NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	9002-9306
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09669-055-0	AR	1	9002-9306
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 1/2" TUBE	1-09669-107-0	AR	1	9307-
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE	1-09669-108-0	AR	1	9307-
315	BOLT; CONNECTOR HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	9-01900-616-0	04	1	9002-9204
315	BOLT; CONNECTOR HONG KONG EQUIPMENT(PQ1) M6X16 W/LK WASHER	0-50040-616-0	04	1	9205-9302
315	BOLT; CONNECTOR HONG KONG EQUIPMENT(PQ1) M6X16 FLANGE	0-28080-616-0	04	1	9303-
319	NUT; FLEX HOSE,CAB SIDE DRIVER SEAT AIR SUSP W/ARM REST(SGP) M12	9-09840-280-0	02	1	9307-
319	NUT; FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M10 H=8	1-09400-029-0	01	1	9002-
319	NUT; FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	9002-
320	WASHER; LK,FLEX HOSE,CAB SIDE DRIVER SEAT AIR SUSP W/ARM REST(SGP) ID=12.2	9-09150-512-0	02	1	9307-
320	WASHER; LK,FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> ID=10.2	9-09150-510-0	01	1	9002-
320	WASHER; LK,FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-
325	PIPE; AIR,FLEX HOSE TO UNION DUAL AIR GAUGE<UG2> EXC. NYLON TUBE AIR PIPING<Z29> L=530	1-47445-586-1	01	1	9002-
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=1594	1-47448-029-2	01	1	9002-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	1-09363-431-1	02	1	9002-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=720	1-09363-431-1	01	1	9002-
342	TUBE; CORRUGATE NYLON TUBE AIR PIPING<Z29> L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	9307-
343	UNION; NYLON TUBE DUAL AIR GAUGE<UG2> NYLON TUBE AIR PIPING<Z29>	1-09660-217-1	02	1	9002-9306
343	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29>	1-09660-603-0	02	1	9307-
343	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2>	1-09660-217-1	01	1	9002-9306
364	PROTECTOR; AIR GAUGE HOSE DUAL AIR GAUGE<UG2> L=240	5-71997-133-0	01	1	9002-
434	CLIP DUAL AIR GAUGE<UG2> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9307-
434	CLIP EXC. NEW ZEALAND EQUIPMENT(PK5),DUAL AIR GAUGE<UG2> (B) ID=14	8-94157-443-0	01	1	9307-

23 118 119 117 100 124 244 245 243 240 239 241 123 128 129 127 118 124 119 131 98 156 101 221 286 159 158 103 102 316 317 264 317 316 98 155 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

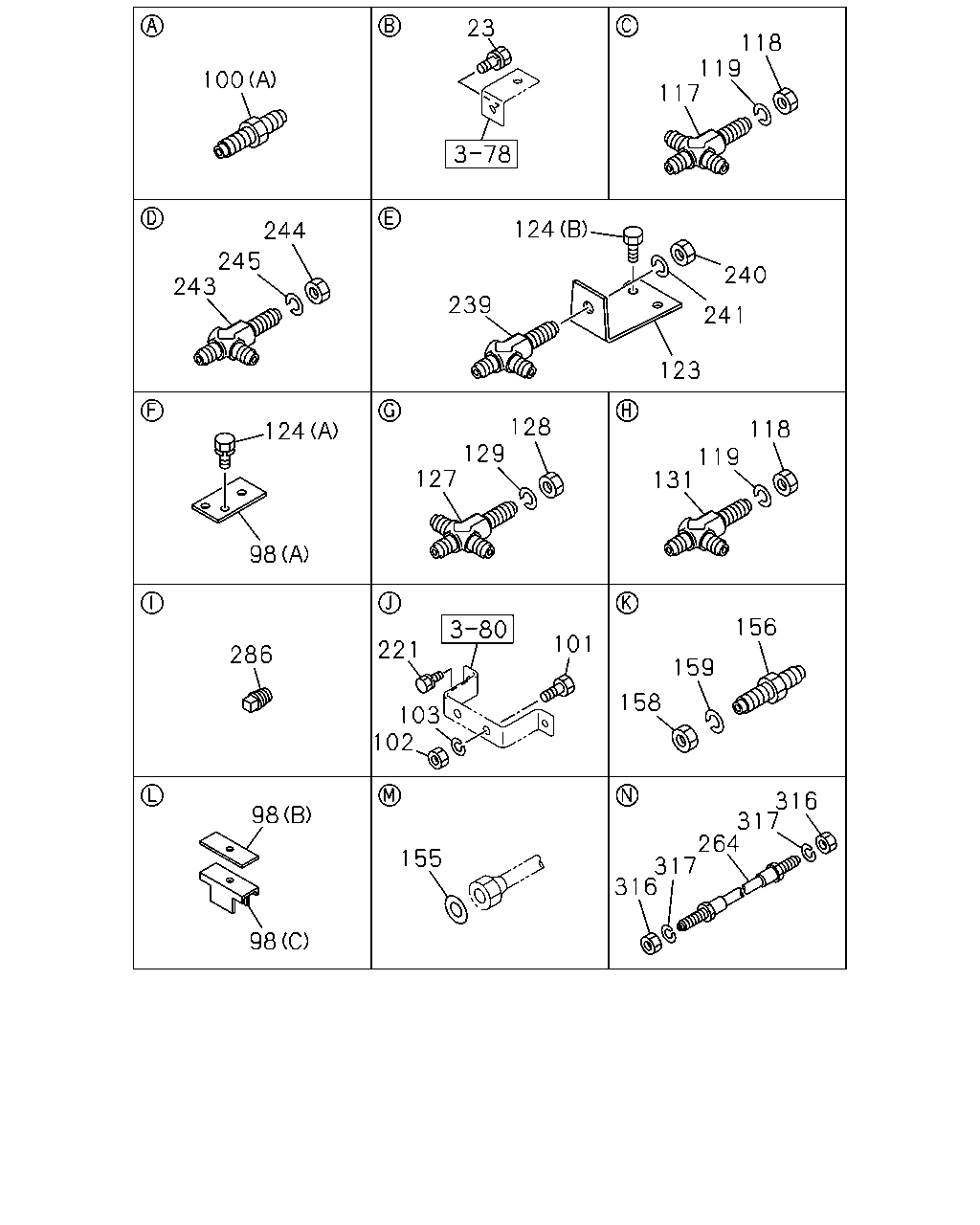

23	BOLT; BRKT,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8X28 W/LK WASHER	9-01900-828-0	01	1	9002-9204
23	BOLT; BRKT,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8X28 W/LK WASHER	0-50040-828-0	01	1	9205-9302
23	BOLT; BRKT,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M8X30 FLANGE	0-28080-830-0	01	1	9303-9306
98	BRACKET; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47475-303-1	01	1	9002-
98	BRACKET; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-47475-427-1	01	1	9003-
98	BRACKET; AIR PIPE 10PD1 STD ENG(40L) EXC. AIR DRYER<PS7> (B) L=50	1-47475-299-2	01	1	9002-
100	CONNECTOR; AIR PIPE (A) M14	1-09650-031-0	01	1	9002-9103
100	CONNECTOR; AIR PIPE (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	9104-9306
100	CONNECTOR; AIR PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	9307-
100	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B) M12 L=62.5	9-09223-206-0	01	1	9002-9009
100	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> (B) M12 L=62.5	9-09223-206-1	01	1	9010-9306
101	NIPPLE; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29>	1-09650-222-1	01	1	9002-
102	NUT; NIPPLE,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	01	1	9002-
103	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	01	1	9002-
103	WASHER; LK,NIPPLE EXC. NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	01	1	9307-9312
117	UNION; AIR PIPE DRIVER SEAT AIR SUSP W/ARM REST(SGP)	1-09656-426-1	01	1	9307-
117	UNION; AIR PIPE FULLER M/T<X9B> EXC. NEW ZEALAND EQUIPMENT(PK5) M12 & M16X2 3WAY	1-09654-086-1	01	1	9002-9306
117	UNION; AIR PIPE FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> M12 & M16X2 3WAY	1-09654-086-1	01	1	9307-
117	UNION; AIR PIPE ISUZU M/T<X9A> EXC. DRIVER SEAT AIR SUSP W/ARM REST(SGP),NYLON TUBE AIR PIPING<Z29> M16 3WAY	9-09238-910-1	01	1	9307-
117	UNION; AIR PIPE ISUZU M/T<X9A> EXC. NYLON TUBE AIR PIPING<Z29> M16	9-09228-910-0	01	1	9002-9103
117	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> M16	9-09228-910-0	01	1	9002-9103
117	UNION; AIR PIPE ISUZU M/T<X9A> EXC. NYLON TUBE AIR PIPING<Z29> M16 3WAY	9-09238-910-1	01	1	9104-9306
117	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> M16 3WAY	9-09238-910-1	01	1	9104-9306
118	NUT; UNION M16	9-99111-416-0	01	1	9002-9306
118	NUT; UNION EXC. NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	9002-
118	NUT; UNION EXC. NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	01	1	9307-
119	WASHER; LK,UNION ID=16.2	9-09150-516-0	01	1	9002-9306
119	WASHER; LK,UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9312
119	WASHER; LK,UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	01	1	9307-9312
123	BRACKET; UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-432-3	01	1	9002-
123	BRACKET; UNION FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29>	1-47475-432-3	01	1	9002-
124	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> (A) M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204
124	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9306
124	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> (A) M8X20 FLANGE	0-28080-820-0	02	1	9307-
124	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> (B) M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
124	BOLT; BRKT FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> (B) M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
124	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> (B) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306
124	BOLT; BRKT FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> (B) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306
124	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> (B) M8X25 FLANGE	0-28080-825-0	02	1	9307-
124	BOLT; BRKT FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> (B) M8X25 FLANGE	0-28080-825-0	02	1	9307-
127	UNION; AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M12	9-09228-306-1	01	1	9002-
127	UNION; AIR PIPE FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> M12	9-09228-306-1	01	1	9002-
128	NUT; PIPE UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9002-
128	NUT; PIPE UNION FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9002-
129	WASHER; LK,PIPE UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9312
129	WASHER; LK,PIPE UNION FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9312
131	UNION; AIR PIPE DUAL AIR GAUGE<UG2> EXC. NEW ZEALAND EQUIPMENT(PK5) M12 ELBOW	9-09225-206-1	01	1	9002-
131	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2> M12 3WAY	9-09228-906-1	01	1	9002-
155	GASKET; AIR PIPE AIR DRYER<PS7> ID=11 OD=18	9-09572-510-0	03	1	9002-
156	UNION; AIR PIPE EXC. AIR DRYER<PS7> M12 L=66.5	9-09223-306-1	01	1	9002-
158	NUT; UNION,AIR PIPE EXC. AIR DRYER<PS7> M12	9-09840-280-0	01	1	9002-
159	WASHER; LK,UNION,AIR PIPE EXC. AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9002-9312
221	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204
221	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302
221	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X16 FLANGE	0-28080-816-0	01	1	9303-9306
221	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	9-01900-616-0	01	1	9002-9204
221	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	01	1	9205-9302
221	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	01	1	9303-
239	UNION; AIR PIPE FULLER M/T<X9B> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),NYLON TUBEAIR PIPING<Z29>	1-09656-392-2	01	1	9002-
239	UNION; AIR PIPE ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),NYLON TUBEAIR PIPING<Z29> M12	9-09228-306-1	01	1	9002-
239	UNION; AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M12 3WAY	9-09228-906-1	01	1	9002-
240	NUT; UNION,AIR PIPE ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),NYLON TUBEAIR PIPING<Z29> M12	9-99110-512-0	01	1	9002-
240	NUT; UNION,AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	9002-
240	NUT; UNION,AIR PIPE FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	9002-
241	WASHER; LK,UNION,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9312
243	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> M14 & M16 STRAIGHT	1-09660-220-0	02	1	9002-9306
243	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29>	1-09654-220-1	01	1	9002-
244	NUT; UNION,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9002-
245	WASHER; LK,UNION,AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9312
264	HOSE; FLEX EXC. NYLON TUBE AIR PIPING<Z29> L=580	0-07404-580-0	01	1	9002-
286	PLUG; AIR PIPE JUMPER HOSE & CABLE DELETE<SJK> PT1/2	9-09204-521-0	01	1	9002-
316	NUT; FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> M14	9-99111-414-0	02	1	9002-
317	WASHER; LK,FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> ID=14.2	9-09150-514-0	02	1	9002-

7 258 10 4 320 25 51 319 319 320 169 3 27 8 137 2 26 6 6 10 4 6 25 51 155 3 27 7 2 26 8 247 178 180 249 179 248 178 190 39 421 163 41 40 180 189 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

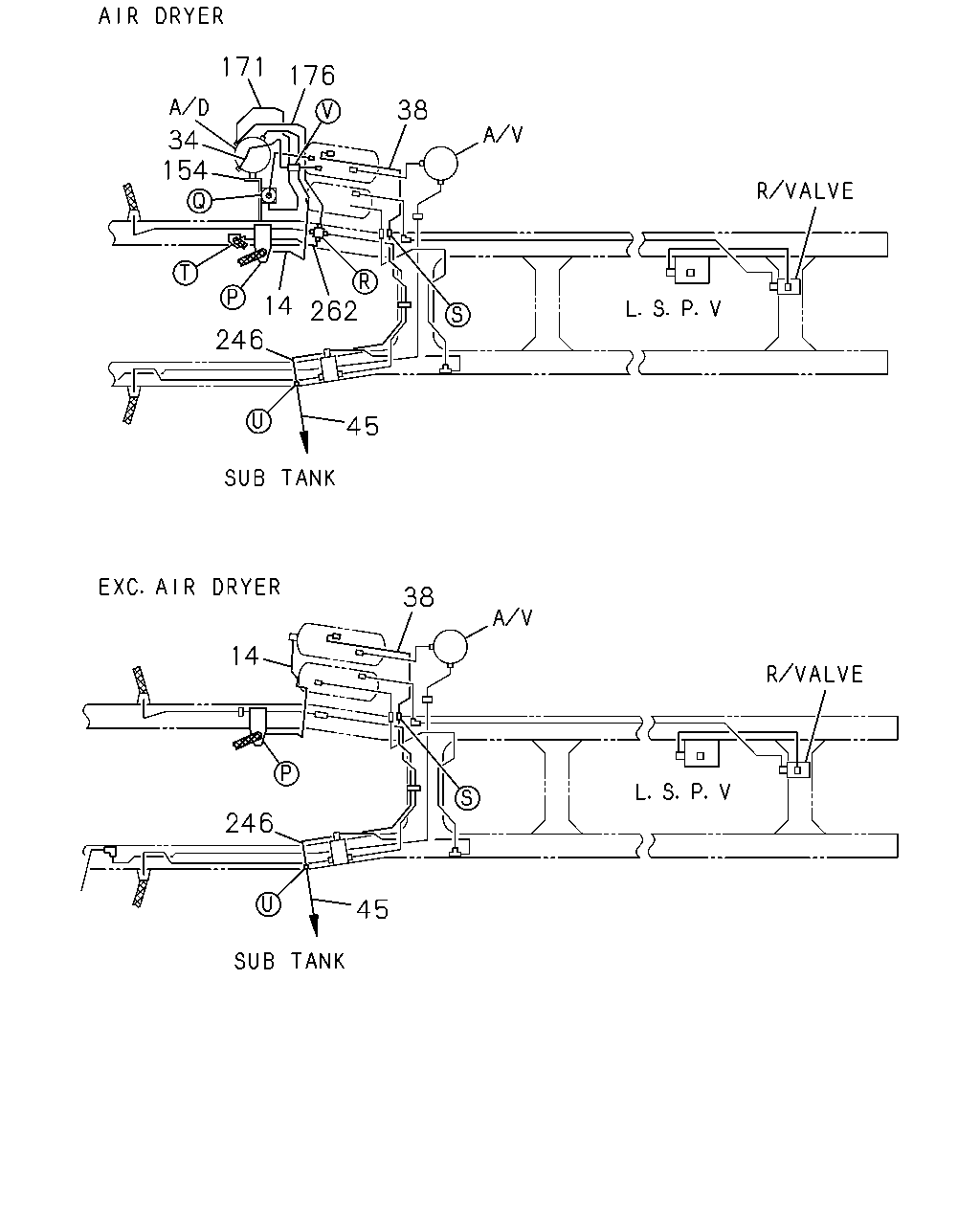

2	NUT; FLEX HOSE,AIR TANK AIR DRYER<PS7> M20	9-99111-420-0	01	1	9002-
3	WASHER; LK,FLEX HOSE,AIR TANK AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9002-
4	GASKET; FLEX HOSE AIR DRYER<PS7> ID=11 OD=18	9-09572-510-0	01	1	9002-
4	GASKET; FLEX HOSE EXC. AIR DRYER<PS7> ID=11 OD=18	9-09572-510-0	02	1	9002-
6	BRACKET; FLEX HOSE,AIR TANK 10PD1 STD ENG(40L)	1-47476-363-1	01	1	9002-
6	BRACKET; FLEX HOSE,AIR TANK 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC-N ENG(29L)	1-47475-572-0	01	1	9002-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28080-825-0	02	1	9307-
8	NUT; BRKT,FLEX HOSE,AIR TANK M8	9-09110-408-0	02	1	9002-
10	GASKET; CHECK VLV ID=11 OD=18	9-09572-510-0	01	1	9002-
25	VALVE; CHECK EXC. AIR DRYER<PS7>	1-48410-138-1	01	1	9002-
26	NUT; CHECK VLV EXC. AIR DRYER<PS7> M20	9-99111-420-0	01	1	9002-
27	WASHER; LK,CHECK VLV EXC. AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9002-
39	UNION; AIR PIPE SUB AIR TANK<SJD> M20 & M20	9-09233-312-1	01	1	9002-9306
39	UNION; AIR PIPE SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M20 & M20	9-09233-312-1	01	1	9307-
40	NUT; PIPE UNION SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9002-
41	WASHER; LK,PIPE UNION SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9002-
51	UNION AIR DRYER<PS7> M20 & M22 STRAIGHT	1-09654-166-1	01	1	9002-
137	HOSE; FLEX,AIR PRESSURE GAGE DRIVER SEAT AIR SUSP W/ARM REST(SGP) (B)	0-07030-660-0	01	1	9307-
137	HOSE; FLEX,AIR PRESSURE GAGE EXC. NEW ZEALAND EQUIPMENT(PK5),DUAL AIR GAUGE<UG2> (A) L=840	1-09363-368-1	01	1	9002-
155	GASKET; AIR PIPE AIR DRYER<PS7> ID=11 OD=18	9-09572-510-0	03	1	9002-
163	BRACKET; AIR PIPE AIR DRYER<PS7> L=50	1-47475-299-2	06	1	9002-9005
163	BRACKET; AIR PIPE AIR DRYER<PS7> L=50	1-47475-299-2	05	1	9006-9306
163	BRACKET; AIR PIPE NYLON TUBE AIR PIPING<Z29> L=50	1-47475-299-2	01	1	9002-9009
163	BRACKET; AIR PIPE EXC. AIR DRYER<PS7> L=50	1-47475-299-2	01	1	9002-9009
163	BRACKET; AIR PIPE NYLON TUBE AIR PIPING<Z29> L=50	1-47475-299-2	01	1	9010-9306
163	BRACKET; AIR PIPE AIR DRYER<PS7> L=50	1-47475-299-2	02	1	9307-
169	PIPE; AIR,UNION TO FLEX HOSE DRIVER SEAT AIR SUSP W/ARM REST(SGP) L TYPE ENG<90L> L=3024	1-47499-296-0	01	1	9307-
169	PIPE; AIR,UNION TO FLEX HOSE DRIVER SEAT AIR SUSP W/ARM REST(SGP) V TYPE ENG<91L> L=3032	1-47499-297-0	01	1	9307-9308
169	PIPE; AIR,UNION TO FLEX HOSE DRIVER SEAT AIR SUSP W/ARM REST(SGP) V TYPE ENG<91L> L=3041	1-49111-232-0	01	1	9309-
178	UNION; AIR PIPE AIR DRYER<PS7> (A) M12	1-09654-087-1	01	1	9002-
178	UNION; AIR PIPE AIR DRYER<PS7> (B) M12 L=66.5	9-09223-306-1	01	1	9002-
179	NUT; UNION AIR DRYER<PS7> M12	9-09840-280-0	02	1	9002-
180	WASHER; LK,UNION AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9401-
180	WASHER; LK,UNION AIR DRYER<PS7> ID=12.2	9-09150-512-0	02	1	9002-9312
189	BRACKET; FLEX HOSE AIR DRYER<PS7>	1-47475-874-0	01	1	9002-
190	BOLT; FLEX HOSE AIR DRYER<PS7> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
190	BOLT; FLEX HOSE AIR DRYER<PS7> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302
190	BOLT; FLEX HOSE AIR DRYER<PS7> M8X25 FLANGE	0-28080-825-0	02	1	9303-9306
190	BOLT; FLEX HOSE AIR DRYER<PS7> M8X20 FLANGE	0-28080-820-0	02	1	9307-
247	UNION; AIR PIPE SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M20 & M20	9-09233-312-1	01	1	9002-
248	NUT; PIPE UNION SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> M20	9-99111-420-0	01	1	9002-
249	WASHER; LK,PIPE UNION SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> ID=20.2	9-09150-520-0	01	1	9002-
258	CONNECTOR; NYLON TUBE DRIVER SEAT AIR SUSP W/ARM REST(SGP) (D)	1-09660-626-0	01	1	9307-
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-218-0	02	1	9002-9009
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-218-0	01	1	9010-9306
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> (B)	1-09660-218-0	01	1	9010-9306
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-
258	CONNECTOR; NYLON TUBE RTO11613 M/T FULLER(MV6),RTO11609B M/T FULLER(X4Z) NYLON TUBE AIR PIPING<Z29> (A)	1-09660-240-0	01	1	9002-9306
319	NUT; FLEX HOSE,CAB SIDE DRIVER SEAT AIR SUSP W/ARM REST(SGP) M12	9-09840-280-0	02	1	9307-
319	NUT; FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M10 H=8	1-09400-029-0	01	1	9002-
319	NUT; FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	9002-
320	WASHER; LK,FLEX HOSE,CAB SIDE DRIVER SEAT AIR SUSP W/ARM REST(SGP) ID=12.2	9-09150-512-0	02	1	9307-
320	WASHER; LK,FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> ID=10.2	9-09150-510-0	01	1	9002-
320	WASHER; LK,FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-
421	NUT; BRKT AIR DRYER<PS7> M8	9-09110-408-0	02	1	9002-

84 290 100 134 133 243 118 119 117 86 292 291 85 22 120 148 145 221 100 148 163 147 146 417 146 147 229 255 258 296 297 215 214 84 229 258 145 259 32 88 88 229 258 87 258

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	NIPPLE; AIR PIPE NYLON TUBE AIR PIPING<Z29> M18 & M20 STRAIGHT	1-09660-221-0	01	1	9002-9306
32	SLEEVE; RUBBER,AIR PIPE NYLON TUBE AIR PIPING<Z29> ID=29 OD=39 L=40	1-09337-013-0	02	1	9307-
32	SLEEVE; RUBBER,AIR PIPE NYLON TUBE AIR PIPING<Z29> ID=27 OD=31 L=150	1-09360-677-1	02	1	9307-
32	SLEEVE; RUBBER,AIR PIPE 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> ID=17 OD=21 L=40	1-09337-012-0	01	1	9411-
32	SLEEVE; RUBBER,AIR PIPE 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> ID=23 OD=27 L=40	1-09337-015-0	01	1	9411-
84	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M12 L=62.5	9-09223-206-1	01	1	9002-9306
84	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> 17/32" PT1/4	1-09660-573-0	01	1	9307-
85	NUT; UNION NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	9002-9306
86	WASHER; LK,TUBE UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9306
87	BOLT; EYE,NYLON TUBE RTO11613 M/T FULLER(MV6),RTO11609B M/T FULLER(X4Z) NYLON TUBE AIR PIPING<Z29>	1-09675-170-0	01	1	9002-9306
88	GASKET; NYLON TUBE RTO11613 M/T FULLER(MV6),RTO11609B M/T FULLER(X4Z) NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=20.0	9-09571-414-0	01	1	9002-9306
88	GASKET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=14.2 OD=23.0	9-09572-014-0	01	1	9307-
100	CONNECTOR; AIR PIPE (A) M14	1-09650-031-0	01	1	9002-9103
100	CONNECTOR; AIR PIPE (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	9104-9306
100	CONNECTOR; AIR PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	9307-
100	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (B) M12 L=62.5	9-09223-206-0	01	1	9002-9009
100	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> (B) M12 L=62.5	9-09223-206-1	01	1	9010-9306
117	UNION; AIR PIPE DRIVER SEAT AIR SUSP W/ARM REST(SGP)	1-09656-426-1	01	1	9307-
117	UNION; AIR PIPE FULLER M/T<X9B> EXC. NEW ZEALAND EQUIPMENT(PK5) M12 & M16X2 3WAY	1-09654-086-1	01	1	9002-9306
117	UNION; AIR PIPE FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> M12 & M16X2 3WAY	1-09654-086-1	01	1	9307-
117	UNION; AIR PIPE ISUZU M/T<X9A> EXC. DRIVER SEAT AIR SUSP W/ARM REST(SGP),NYLON TUBE AIR PIPING<Z29> M16 3WAY	9-09238-910-1	01	1	9307-
117	UNION; AIR PIPE ISUZU M/T<X9A> EXC. NYLON TUBE AIR PIPING<Z29> M16	9-09228-910-0	01	1	9002-9103
117	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> M16	9-09228-910-0	01	1	9002-9103
117	UNION; AIR PIPE ISUZU M/T<X9A> EXC. NYLON TUBE AIR PIPING<Z29> M16 3WAY	9-09238-910-1	01	1	9104-9306
117	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> M16 3WAY	9-09238-910-1	01	1	9104-9306
118	NUT; UNION M16	9-99111-416-0	01	1	9002-9306
118	NUT; UNION EXC. NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	9002-
118	NUT; UNION EXC. NYLON TUBE AIR PIPING<Z29> M16	9-99111-416-0	01	1	9307-
119	WASHER; LK,UNION ID=16.2	9-09150-516-0	01	1	9002-9306
119	WASHER; LK,UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9312
119	WASHER; LK,UNION EXC. NYLON TUBE AIR PIPING<Z29> ID=16.2	9-09150-516-0	01	1	9307-9312
120	CONNECTOR; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A)	1-47470-165-1	01	1	9002-
120	CONNECTOR; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B)	1-47470-167-3	01	1	9002-
120	CONNECTOR; AIR PIPE HONG KONG EQUIPMENT(PQ1) (C) M16 L=42	9-09233-010-1	01	1	9002-
120	CONNECTOR; AIR PIPE NYLON TUBE AIR PIPING<Z29> (D)	1-09660-218-0	01	1	9002-9306
133	NUT; UNION NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	9002-9009
133	NUT; UNION NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> M12	9-09840-280-0	01	1	9010-9306
134	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9009
134	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> ID=12.2	9-09150-512-0	01	1	9010-9306
145	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A)	1-09656-362-1	01	1	9002-9306
145	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> (B) M14 3WAY	1-09664-066-0	01	1	9002-9306
146	NUT; UNION NYLON TUBE AIR PIPING<Z29> M12	9-99110-412-0	01	1	9002-9304
146	NUT; UNION NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> M12	9-99110-412-0	01	1	9002-9304
146	NUT; UNION NYLON TUBE AIR PIPING<Z29> M12	9-99110-512-0	01	1	9305-9306
146	NUT; UNION NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> M12	9-99110-512-0	01	1	9305-9306
147	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9306
147	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> ID=12.2	9-09150-512-0	01	1	9002-9306
148	CONNECTOR; UNION NYLON TUBE AIR PIPING<Z29> M14 & M16 STRAIGHT	1-09660-220-0	02	1	9002-9306
163	BRACKET; AIR PIPE AIR DRYER<PS7> L=50	1-47475-299-2	06	1	9002-9005
163	BRACKET; AIR PIPE AIR DRYER<PS7> L=50	1-47475-299-2	05	1	9006-9306
163	BRACKET; AIR PIPE NYLON TUBE AIR PIPING<Z29> L=50	1-47475-299-2	01	1	9002-9009
163	BRACKET; AIR PIPE EXC. AIR DRYER<PS7> L=50	1-47475-299-2	01	1	9002-9009
163	BRACKET; AIR PIPE NYLON TUBE AIR PIPING<Z29> L=50	1-47475-299-2	01	1	9010-9306
163	BRACKET; AIR PIPE AIR DRYER<PS7> L=50	1-47475-299-2	02	1	9307-
214	NUT; UNION,AIR PIPE NYLON TUBE AIR PIPING<Z29> M12	9-99111-412-0	01	1	9307-
215	WASHER; LK,UNION,AIR PIPE NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9307-
221	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204
221	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302
221	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M8X16 FLANGE	0-28080-816-0	01	1	9303-9306
221	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	9-01900-616-0	01	1	9002-9204
221	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M6X16 W/LK WASHER	0-50040-616-0	01	1	9205-9302
221	BOLT; BRKT EXC. NYLON TUBE AIR PIPING<Z29> M6X16 FLANGE	0-28080-616-0	01	1	9303-
229	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A)	1-09650-373-0	02	1	9307-
229	ADAPTER; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) M14 & PT1/4	9-48319-149-0	01	1	9307-
243	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> M14 & M16 STRAIGHT	1-09660-220-0	02	1	9002-9306
243	UNION; AIR PIPE EXC. NYLON TUBE AIR PIPING<Z29>	1-09654-220-1	01	1	9002-
255	UNION; NYLON TUBE NYLON TUBE AIR PIPING<Z29> M12	9-09228-306-1	01	1	9307-
258	CONNECTOR; NYLON TUBE DRIVER SEAT AIR SUSP W/ARM REST(SGP) (D)	1-09660-626-0	01	1	9307-
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-218-0	02	1	9002-9009
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B)	1-09660-218-0	01	1	9010-9306
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> (B)	1-09660-218-0	01	1	9010-9306
258	CONNECTOR; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (C) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9307-
258	CONNECTOR; NYLON TUBE RTO11613 M/T FULLER(MV6),RTO11609B M/T FULLER(X4Z) NYLON TUBE AIR PIPING<Z29> (A)	1-09660-240-0	01	1	9002-9306
259	SLEEVE; RUBBER,NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=17 OD=21 L=40	1-09337-012-0	01	1	9307-
259	SLEEVE; RUBBER,NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=7.5 OD=16.8 L=50	1-09369-010-0	02	1	9307-
259	SLEEVE; RUBBER,NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=27 OD=31 L=150	1-09360-677-1	02	1	9401-
259	SLEEVE; RUBBER,NYLON TUBE RTO11613 M/T FULLER(MV6),RTO11609B M/T FULLER(X4Z) NYLON TUBE AIR PIPING<Z29> ID=7.5 OD=16.8 L=50	1-09369-010-0	02	1	9002-9306
290	UNION; AIR PIPE NYLON TUBE AIR PIPING<Z29> M12 L=62.5	9-09223-206-1	01	1	9002-9306
291	NUT; UNION NYLON TUBE AIR PIPING<Z29> M12	9-09840-280-0	01	1	9002-9306
292	WASHER; LK,UNION NYLON TUBE AIR PIPING<Z29> ID=12.2	9-09150-512-0	01	1	9002-9306
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=12 SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=8 SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=3/8" SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=3/8" SERVICED BY L=30000 OD=3/8"	1-09368-249-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-252-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-253-0	AR	1	9307-
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=8 SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-250-0	03	1	9307-
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9307-
417	GROMMET; NYLON TUBE NYLON TUBE AIR PIPING<Z29> ID=28 OD=35 T=17	9-09956-256-1	02	1	9307-

36 358 359 297 297 297 217 297 287 293 250 296 296 296 298 299 302 303 296 297 300 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
36	PIPE; AIR,AIR TANK TO UNION NYLON TUBE AIR PIPING<Z29> L=981	1-47486-148-0	01	1	9002-9009
36	PIPE; AIR,AIR TANK TO UNION NYLON TUBE AIR PIPING<Z29>	1-47491-818-0	01	1	9010-9306
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1276 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9306
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=989 SERVICED BY L=1000	1-47426-350-0	01	1	9307-
217	PIPE; VAC,UNION TO MAG VLV NYLON TUBE AIR PIPING<Z29> L=838 SERVICED BY L=900	1-47426-349-0	01	1	9002-9312
217	PIPE; VAC,UNION TO MAG VLV NYLON TUBE AIR PIPING<Z29> L=819 SERVICED BY L=900	1-47426-349-0	01	1	9401-
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) L=1185 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9112
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9201-
250	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=1391 SERVICED BY L=1500	1-47434-391-0	01	1	9002-9308
250	PIPE; AIR,UNION TO FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),DUAL AIR GAUGE<UG2> L=1566 SERVICED BY L=1620	1-47426-356-0	01	1	9309-
250	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> L=1340 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9306
250	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) EXC. DUAL AIR GAUGE<UG2> L=1411 SERVICED BY L=1500	1-47434-391-0	01	1	9002-9003
250	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) EXC. DUAL AIR GAUGE<UG2> L=1401 SERVICED BY L=1500	1-47434-391-0	01	1	9004-9308
287	PIPE; AIR,MAG VLV L=665	1-47444-990-2	01	1	9002-9212
287	PIPE; AIR,MAG VLV	1-47496-263-0	01	1	9301-9306
287	PIPE; AIR,MAG VLV EXC. NYLON TUBE AIR PIPING<Z29>	1-47496-263-0	01	1	9307-
293	PIPE ASM; AIR,UNION TO MAG VLV NYLON TUBE AIR PIPING<Z29> L=1841	1-47485-595-1	01	1	9002-9306
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=12 SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=8 SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=3/8" SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=3/8" SERVICED BY L=30000 OD=3/8"	1-09368-249-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-252-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-253-0	AR	1	9307-
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=8 SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-250-0	03	1	9307-
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9307-
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	9002-9306
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M18	1-09660-213-0	AR	1	9002-9306
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> UNS 17/32-24	1-09660-557-0	AR	1	9307-
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> UNS 11/16-20	1-09660-558-0	AR	1	9307-
299	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	9002-9306
299	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	06	1	9307-
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE ID=8.15 OD=11 L=9.5	1-09666-042-0	AR	1	9002-9306
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE ID=12.15 OD=15 L=10	1-09666-043-0	AR	1	9002-9306
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9307-
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 1/2" TUBE ID=12.93 OD=15.85 L=10.92	1-09666-061-0	AR	1	9307-
301	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09666-042-0	AR	1	9002-9306
301	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	06	1	9307-
302	RING; INSERT DUAL AIR GAUGE<UG2> NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	9002-9306
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09669-055-0	AR	1	9002-9306
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 1/2" TUBE	1-09669-107-0	AR	1	9307-
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE	1-09669-108-0	AR	1	9307-
303	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	9002-9306
303	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09669-108-0	06	1	9307-
358	PIPE; AIR,AIR TANK TO AIR VLV NYLON TUBE AIR PIPING<Z29> L=780 SERVICED BY L=800	1-47434-475-0	01	1	9002-9306
359	PIPE; AIR,AIR VLV TO UNION NYLON TUBE AIR PIPING<Z29> L=538 SERVICED BY L=600	1-47434-473-0	01	1	9002-9306

171 176 38 34 154 262 14 246 45 38 14 246 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	PIPE; AIR,FLEX HOSE TO AIR TANK L TYPE ENG<90L> AIR DRYER<PS7> L=1417	1-47487-502-0	01	1	9002-9006
14	PIPE; AIR,FLEX HOSE TO AIR TANK L TYPE ENG<90L> AIR DRYER<PS7> L=1414	1-47491-429-0	01	1	9007-
14	PIPE; AIR,FLEX HOSE TO AIR TANK L TYPE ENG<90L> EXC. AIR DRYER<PS7> L=1430	1-47486-149-0	01	1	9002-9006
14	PIPE; AIR,FLEX HOSE TO AIR TANK L TYPE ENG<90L> EXC. AIR DRYER<PS7> L=1419	1-47491-427-0	01	1	9007-
14	PIPE; AIR,FLEX HOSE TO AIR TANK 10PD1 STD ENG(40L) AIR DRYER<PS7> L=1519 SERVICED BY L=1650	1-47437-996-0	01	1	9002-9006
14	PIPE; AIR,FLEX HOSE TO AIR TANK 10PD1 STD ENG(40L) AIR DRYER<PS7> L=1526 SERVICED BY L=1650	1-49111-464-0	01	1	9007-
14	PIPE; AIR,FLEX HOSE TO AIR TANK 10PD1 STD ENG(40L) EXC. AIR DRYER<PS7> L=1554 SERVICED BY L=1650	1-47437-996-0	01	1	9002-
34	PIPE; AIR AIR DRYER<PS7> L=973 SERVICED BY L=1000	1-47434-485-1	01	1	9002-9306
34	PIPE; AIR AIR DRYER<PS7> L=973 SERVICED BY L=1000	1-49111-443-0	01	1	9307-
38	PIPE; AIR,MAIN TANK TO UNION SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> L=1317 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306
38	PIPE; AIR,MAIN TANK TO UNION SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> L=1317 SERVICED BY L=1450	1-49111-447-0	01	1	9307-
45	PIPE; AIR,UNION TO AIR TANK SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> L=762	1-47488-914-0	01	1	9002-9204
45	PIPE; AIR,UNION TO AIR TANK SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> L=814	1-47494-960-0	01	1	9205-9306
45	PIPE; AIR,UNION TO AIR TANK SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> L=814 SERVICED BY L=900	1-49111-442-0	01	1	9307-
154	PIPE; AIR,AIR TANK TO AIR GOV AIR DRYER<PS7>	1-47487-299-0	01	1	9002-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> L=992	1-47487-300-0	01	1	9002-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> L=1223 SERVICED BY L=1250	1-47434-389-0	01	1	9002-
246	PIPE; AIR,UNION TO UNION SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> L=1532 SERVICED BY L=1600	1-47437-985-0	01	1	9002-9306
246	PIPE; AIR,UNION TO UNION SUB AIR TANK<SJD> EXC. NYLON TUBE AIR PIPING<Z29> L=1533 SERVICED BY L=1600	1-49111-448-0	01	1	9307-
262	PIPE; AIR,UNION TO FLEX L TYPE ENG<90L> AIR DRYER<PS7> L=949 SERVICED BY L=1000	1-47434-386-0	01	1	9002-
262	PIPE; AIR,UNION TO FLEX 10PD1 STD ENG(40L) AIR DRYER<PS7> L=1131 SERVICED BY L=1200	1-47434-388-0	01	1	9002-

153 242 238 166 238 126 272 130 217 250 287 137 242 169 238

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
126	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> L=471	1-47488-493-0	01	1	9002-
126	PIPE; AIR,UNION TO UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> L=477 SERVICED BY L=500	9-47415-350-0	01	1	9002-
130	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1242 SERVICED BY L=1250	1-47434-389-0	01	1	9002-9306
130	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1244 SERVICED BY L=1250	1-47426-353-0	01	1	9307-
137	HOSE; FLEX,AIR PRESSURE GAGE DRIVER SEAT AIR SUSP W/ARM REST(SGP) (B)	0-07030-660-0	01	1	9307-
137	HOSE; FLEX,AIR PRESSURE GAGE EXC. NEW ZEALAND EQUIPMENT(PK5),DUAL AIR GAUGE<UG2> (A) L=840	1-09363-368-1	01	1	9002-
153	PIPE; AIR,AIR TANK TO UNION EXC. AIR DRYER<PS7> L=881 SERVICED BY L=900	1-47434-385-0	01	1	9002-9306
153	PIPE; AIR,AIR TANK TO UNION EXC. AIR DRYER<PS7> L=1030 SERVICED BY L=1100	1-47426-351-0	01	1	9307-
166	PIPE; AIR,UNION TO GOV L TYPE ENG<90L> EXC. AIR DRYER<PS7> L=976	1-47485-192-0	01	1	9002-
166	PIPE; AIR,UNION TO GOV 10PD1 STD ENG(40L) EXC. AIR DRYER<PS7> L=1147	1-47484-369-0	01	1	9002-
169	PIPE; AIR,UNION TO FLEX HOSE DRIVER SEAT AIR SUSP W/ARM REST(SGP) L TYPE ENG<90L> L=3024	1-47499-296-0	01	1	9307-
169	PIPE; AIR,UNION TO FLEX HOSE DRIVER SEAT AIR SUSP W/ARM REST(SGP) V TYPE ENG<91L> L=3032	1-47499-297-0	01	1	9307-9308
169	PIPE; AIR,UNION TO FLEX HOSE DRIVER SEAT AIR SUSP W/ARM REST(SGP) V TYPE ENG<91L> L=3041	1-49111-232-0	01	1	9309-
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1276 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9306
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=989 SERVICED BY L=1000	1-47426-350-0	01	1	9307-
217	PIPE; VAC,UNION TO MAG VLV NYLON TUBE AIR PIPING<Z29> L=838 SERVICED BY L=900	1-47426-349-0	01	1	9002-9312
217	PIPE; VAC,UNION TO MAG VLV NYLON TUBE AIR PIPING<Z29> L=819 SERVICED BY L=900	1-47426-349-0	01	1	9401-
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) L=1185 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9112
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9201-
238	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> EXC. NYLON TUBE AIR PIPING<Z29> (B) L=1321 SERVICED BY L=1370	1-47434-390-0	01	1	9002-
238	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),NYLON TUBEAIR PIPING<Z29> (B) L=1882 SERVICED BY L=2000	1-47434-395-0	01	1	9002-
238	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> (A) L=619 SERVICED BY L=660	1-47437-964-0	01	1	9002-9007
238	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> (A) L=490 SERVICED BY L=500	1-47434-472-0	01	1	9008-9306
238	PIPE; AIR,UNION TO UNION EXC. NYLON TUBE AIR PIPING<Z29> (A) L=497 SERVICED BY L=550	1-47426-407-0	01	1	9307-
238	PIPE; AIR,UNION TO UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. NYLON TUBE AIR PIPING<Z29> (B) L=1323 SERVICED BY L=2000	1-47434-395-0	01	1	9002-
242	PIPE; AIR,AIR TANK TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=964 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306
242	PIPE; AIR,AIR TANK TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=964 SERVICED BY L=1000	1-47426-414-0	01	1	9307-
250	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. DUAL AIR GAUGE<UG2>,NYLON TUBE AIR PIPING<Z29> L=1391 SERVICED BY L=1500	1-47434-391-0	01	1	9002-9308
250	PIPE; AIR,UNION TO FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),DUAL AIR GAUGE<UG2> L=1566 SERVICED BY L=1620	1-47426-356-0	01	1	9309-
250	PIPE; AIR,UNION TO FLEX HOSE NYLON TUBE AIR PIPING<Z29> EXC. DUAL AIR GAUGE<UG2> L=1340 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9306
250	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) EXC. DUAL AIR GAUGE<UG2> L=1411 SERVICED BY L=1500	1-47434-391-0	01	1	9002-9003
250	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) EXC. DUAL AIR GAUGE<UG2> L=1401 SERVICED BY L=1500	1-47434-391-0	01	1	9004-9308
272	PIPE; AIR,MAG VLV TO UNION EXC. NYLON TUBE AIR PIPING<Z29> L=1102 SERVICED BY L=1200	1-47434-388-0	01	1	9002-
287	PIPE; AIR,MAG VLV L=665	1-47444-990-2	01	1	9002-9212
287	PIPE; AIR,MAG VLV	1-47496-263-0	01	1	9301-9306
287	PIPE; AIR,MAG VLV EXC. NYLON TUBE AIR PIPING<Z29>	1-47496-263-0	01	1	9307-

217 302 303 298 299 300 301 296 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1276 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9306
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=989 SERVICED BY L=1000	1-47426-350-0	01	1	9307-
217	PIPE; VAC,UNION TO MAG VLV NYLON TUBE AIR PIPING<Z29> L=838 SERVICED BY L=900	1-47426-349-0	01	1	9002-9312
217	PIPE; VAC,UNION TO MAG VLV NYLON TUBE AIR PIPING<Z29> L=819 SERVICED BY L=900	1-47426-349-0	01	1	9401-
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) L=1185 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9112
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9201-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=12 SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=8 SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=3/8" SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=3/8" SERVICED BY L=30000 OD=3/8"	1-09368-249-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-252-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-253-0	AR	1	9307-
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=8 SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-250-0	03	1	9307-
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9307-
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	9002-9306
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M18	1-09660-213-0	AR	1	9002-9306
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> UNS 17/32-24	1-09660-557-0	AR	1	9307-
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> UNS 11/16-20	1-09660-558-0	AR	1	9307-
299	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	9002-9306
299	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	06	1	9307-
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE ID=8.15 OD=11 L=9.5	1-09666-042-0	AR	1	9002-9306
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE ID=12.15 OD=15 L=10	1-09666-043-0	AR	1	9002-9306
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9307-
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 1/2" TUBE ID=12.93 OD=15.85 L=10.92	1-09666-061-0	AR	1	9307-
301	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09666-042-0	AR	1	9002-9306
301	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	06	1	9307-
302	RING; INSERT DUAL AIR GAUGE<UG2> NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	9002-9306
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09669-055-0	AR	1	9002-9306
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 1/2" TUBE	1-09669-107-0	AR	1	9307-
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE	1-09669-108-0	AR	1	9307-
303	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	9002-9306
303	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09669-108-0	06	1	9307-

217 300 301 298 299 302 303 296 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=1276 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9306
217	PIPE; VAC,UNION TO MAG VLV L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> L=989 SERVICED BY L=1000	1-47426-350-0	01	1	9307-
217	PIPE; VAC,UNION TO MAG VLV NYLON TUBE AIR PIPING<Z29> L=838 SERVICED BY L=900	1-47426-349-0	01	1	9002-9312
217	PIPE; VAC,UNION TO MAG VLV NYLON TUBE AIR PIPING<Z29> L=819 SERVICED BY L=900	1-47426-349-0	01	1	9401-
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) L=1185 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9112
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9201-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=12 SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	9002-9306
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=8 SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=3/8" SERVICED BY L=30000 OD=3/8"	1-09368-248-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=3/8" SERVICED BY L=30000 OD=3/8"	1-09368-249-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> GREEN OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-251-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> RED OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-252-0	AR	1	9307-
296	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> ORANGE OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-253-0	AR	1	9307-
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> OD=8 SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	9002-9306
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> SERVICED BY L=30000 OD=3/8"	1-09368-250-0	03	1	9307-
297	TUBE; NYLON NYLON TUBE AIR PIPING<Z29> BLUE OD=1/2" SERVICED BY L=30000 OD=1/2"	1-09368-254-0	AR	1	9307-
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	9002-9306
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M18	1-09660-213-0	AR	1	9002-9306
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> UNS 17/32-24	1-09660-557-0	AR	1	9307-
298	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> UNS 11/16-20	1-09660-558-0	AR	1	9307-
299	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> M14	1-09660-212-0	AR	1	9002-9306
299	NUT; SLEEVE NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09660-557-0	06	1	9307-
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE ID=8.15 OD=11 L=9.5	1-09666-042-0	AR	1	9002-9306
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE ID=12.15 OD=15 L=10	1-09666-043-0	AR	1	9002-9306
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9307-
300	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 1/2" TUBE ID=12.93 OD=15.85 L=10.92	1-09666-061-0	AR	1	9307-
301	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09666-042-0	AR	1	9002-9306
301	SLEEVE; TUBE NYLON TUBE AIR PIPING<Z29> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	06	1	9307-
302	RING; INSERT DUAL AIR GAUGE<UG2> NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	9002-9306
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 12MM TUBE	1-09669-055-0	AR	1	9002-9306
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 1/2" TUBE	1-09669-107-0	AR	1	9307-
302	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 3/8" TUBE	1-09669-108-0	AR	1	9307-
303	RING; INSERT NYLON TUBE AIR PIPING<Z29> FOR 8MM TUBE	1-09669-054-0	AR	1	9002-9306
303	RING; INSERT NYLON TUBE AIR PIPING<Z29> OD=3/8"	1-09669-108-0	06	1	9307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
