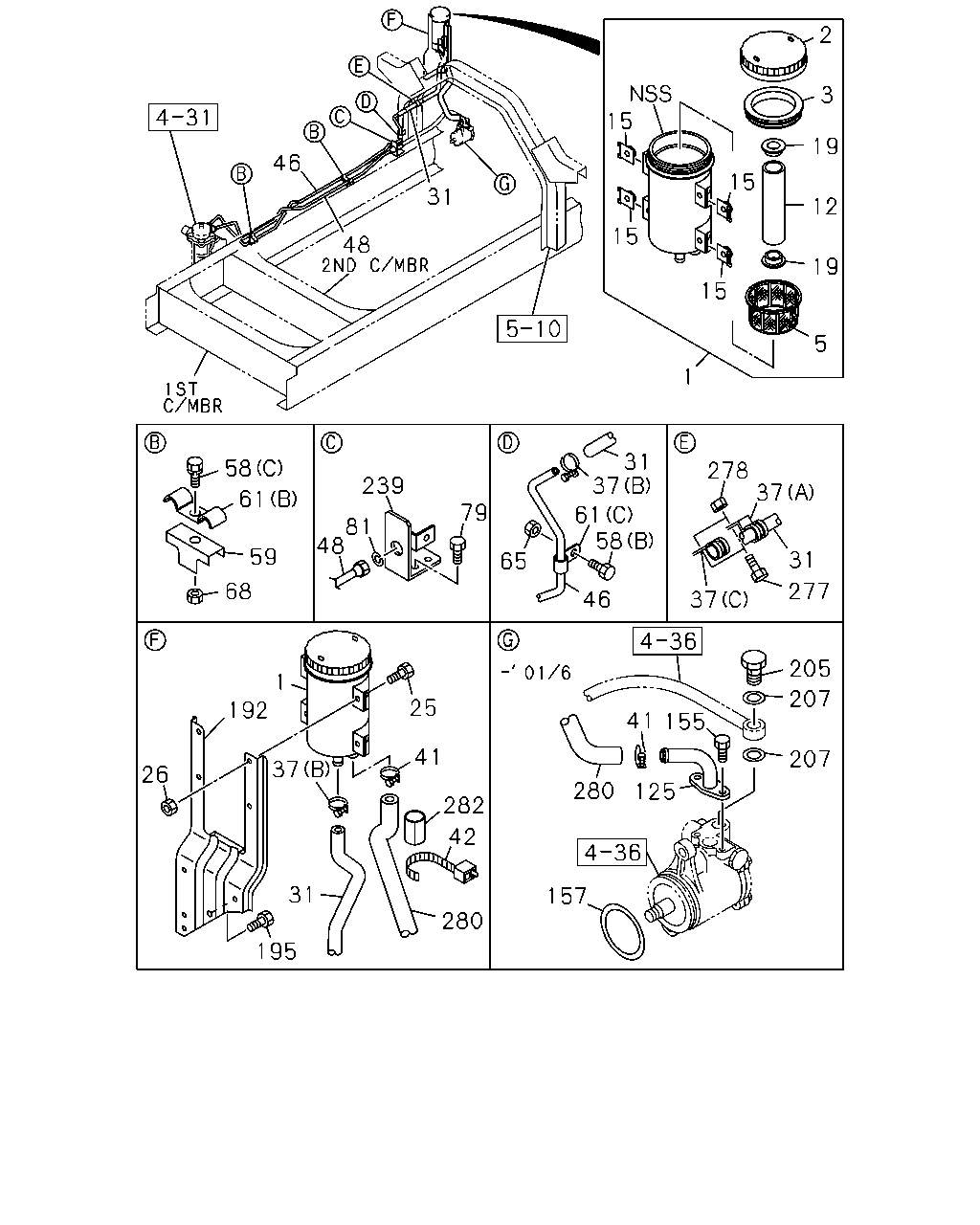

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#24829) — 513 parça

2 15 3 19 46 15 31 12 15 48 19 15 5 1 31 37 58 278 37 239 61 79 61 58 81 48 59 31 65 277 68 46 37 205 1 192 207 25 41 155 41 207 37 26 280 125 282 42 31 157 280 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-152-6	01	1	9601-9609	●
1	TANK ASM; OIL,P/S 6SD1 TCN ENG(31L)	1-21210-152-6	01	1	9610-0508	●
1	TANK ASM; OIL,P/S 6SD1 TCN ENG(31L)	1-21210-237-2	01	1	0509-1006	●
1	TANK ASM; OIL,P/S 6SD1 TCN ENG(31L)	8-98166-927-0	01	1	1007-	●
1	TANK ASM; OIL,P/S	1-21210-205-0	01	1	9601-9609		●
1	TANK ASM; OIL,P/S 6HE1 TC ENG(57L)	1-21210-205-0	01	1	9610-9803	●
1	TANK ASM; OIL,P/S	1-21210-205-0	01	1	9610-9803		●
1	TANK ASM; OIL,P/S 6HE1 TC ENG(57L)	1-21210-205-0	01	1	9804-0106	●
1	TANK ASM; OIL,P/S 6HK1 TCS ENG(80L)	1-21210-205-0	01	1	0107-0508	●
1	TANK ASM; OIL,P/S 6HK1 TCS ENG(80L)	1-21210-238-1	01	1	0509-1006	●
1	TANK ASM; OIL,P/S 6HK1 TCS ENG(80L)	8-98166-928-0	01	1	1007-	●
2	CAP; OIL TANK,P/S	1-21241-004-3	01	1	9601-9803	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	9804-1006	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	9601-9803	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	9804-	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	9601-9803	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	9804-	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9601-9609	●
12	FILTER; MICROBON,OIL TANK,P/S 6SD1 TCN ENG(31L)	1-21235-004-1	01	1	9610-0106	●
12	FILTER; MICROBON,OIL TANK,P/S 6SD1 TCN ENG(31L)	1-21235-004-1	01	1	0107-	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	9601-9609		●
12	FILTER; MICROBON,OIL TANK,P/S 6HE1 TC ENG(57L)	1-21235-011-0	01	1	9610-9803	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	9610-9803		●
12	FILTER; MICROBON,OIL TANK,P/S 6HE1 TC ENG(57L)	1-21235-011-0	01	1	9804-0106	●
12	FILTER; MICROBON,OIL TANK,P/S 6HK1 TCS ENG(80L)	1-21235-011-0	01	1	0107-	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9601-9609	●
15	PLATE; FILTER,OIL TANK 6SD1 TCN ENG(31L)	1-21249-007-1	04	1	9610-0508	●
15	PLATE; FILTER,OIL TANK 6SD1 TCN ENG(31L)	1-21249-016-0	04	1	0509-	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	02	1	9601-9609		●
15	PLATE; FILTER,OIL TANK 6HE1 TC ENG(57L)	1-21249-007-1	02	1	9610-9803	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	02	1	9610-9803		●
15	PLATE; FILTER,OIL TANK 6HE1 TC ENG(57L)	1-21249-007-1	02	1	9804-0106	●
15	PLATE; FILTER,OIL TANK 6HK1 TCS ENG(80L)	1-21249-007-1	02	1	0107-0508	●
15	PLATE; FILTER,OIL TANK 6HK1 TCS ENG(80L)	1-21249-016-0	02	1	0509-	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	9601-9803	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	9804-	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28080-820-0	04	1	9601-9606	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	04	1	9607-9609	●
25	BOLT; OIL TANK BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	04	1	9610-0512	●
25	BOLT; OIL TANK BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28080-820-0	02	1	9601-9606		●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-9609		●
25	BOLT; OIL TANK BRKT 6HE1 TC ENG(57L) M8X25 FLANGE	0-28680-825-0	02	1	9610-9803	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	02	1	9610-9803		●
25	BOLT; OIL TANK BRKT 6HE1 TC ENG(57L) M8X25 FLANGE	0-28680-825-0	02	1	9804-0106	●
25	BOLT; OIL TANK BRKT 6HK1 TCS ENG(80L) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512	●
25	BOLT; OIL TANK BRKT 6HK1 TCS ENG(80L) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
26	NUT; OIL TANK TO BRKT M8	9-09110-408-0	04	1	9601-9606	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	04	1	9607-9609	●
26	NUT; OIL TANK TO BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	04	1	9610-0602	●
26	NUT; OIL TANK TO BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	04	1	0603-	●
26	NUT; OIL TANK TO BRKT M8	9-09110-408-0	02	1	9601-9606		●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9609		●
26	NUT; OIL TANK TO BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	02	1	9610-9803	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	02	1	9610-9803		●
26	NUT; OIL TANK TO BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	02	1	9804-0106	●
26	NUT; OIL TANK TO BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	02	1	0107-0602	●
26	NUT; OIL TANK TO BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	0603-	●
31	HOSE; P/S OIL TANK,INL	1-21115-465-1	01	1	9601-9609	●
31	HOSE; P/S OIL TANK,INL 6SD1 TCN ENG(31L)	1-21115-465-2	01	1	9610-0106	●
31	HOSE; P/S OIL TANK,INL 6SD1 TCN ENG(31L)	1-21116-974-0	01	1	0107-	●
31	HOSE; P/S OIL TANK,INL	1-21113-590-0	01	1	9601-9609		●
31	HOSE; P/S OIL TANK,INL 6HE1 TC ENG(57L)	1-21113-590-0	01	1	9610-9803	●
31	HOSE; P/S OIL TANK,INL	1-21113-590-0	01	1	9610-9803		●
31	HOSE; P/S OIL TANK,INL 6HE1 TC ENG(57L)	1-21113-590-0	01	1	9804-0106	●
31	HOSE; P/S OIL TANK,INL 6HK1 TCS ENG(80L)	1-21113-590-0	01	1	0107-	●
37	CLIP; HOSE,P/S (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9601-9609	●
37	CLIP; HOSE,P/S 6SD1 TCN ENG(31L) (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9610-0106	●
37	CLIP; HOSE,P/S 6SD1 TCN ENG(31L) (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0107-	●
37	CLIP; HOSE,P/S 6SD1 TCN ENG(31L) (C) ID=24 L=24	1-09701-001-1	01	1	0107-	●
37	CLIP; HOSE,P/S (B) ID=26	1-09704-082-0	02	1	9601-9803	●	●
37	CLIP; HOSE,P/S (B) ID=26	1-09704-082-0	02	1	9804-	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	9601-9803	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	9804-	●
42	CLIP; HOSE,P/S L=250	1-09707-126-0	01	1	9601-9609	●
42	CLIP; HOSE,P/S 6SD1 TCN ENG(31L) L=250	1-09707-126-0	01	1	9610-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21115-567-0	01	1	9601-9609	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L)	1-21115-567-0	01	1	9610-0106	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L)	1-21116-973-0	01	1	0107-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HE1 TC ENG(57L)	1-21115-621-0	01	1	9610-0106	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1 TCS ENG(80L)	1-21115-621-0	01	1	0107-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=786	1-21115-336-0	01	1	9601-9803		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21115-562-0	01	1	9601-9609	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SD1 TCN ENG(31L)	1-21115-562-0	01	1	9610-0106	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SD1 TCN ENG(31L)	1-21116-972-0	01	1	0107-	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28080-840-0	02	1	9601-9606	●
58	BOLT; CLIP (C) M8X45 FLANGE	0-28080-845-0	02	1	9607-9609	●
58	BOLT; CLIP 6SD1 TCN ENG(31L) (C) M8X45 FLANGE	0-28080-845-0	02	1	9610-0512	●
58	BOLT; CLIP 6SD1 TCN ENG(31L) (C) M8X45 FLANGE	0-28050-845-0	02	1	0601-	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606		●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9609		●
58	BOLT; CLIP 6HE1 TC ENG(57L) (A) M8X25 FLANGE	0-28680-825-0	01	1	9610-9702	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	9610-9702		●
58	BOLT; CLIP 6HE1 TC ENG(57L) (A) M8X20 FLANGE	0-28680-820-0	01	1	9703-9803	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	9703-9803		●
58	BOLT; CLIP 6HE1 TC ENG(57L) (A) M8X20 FLANGE	0-28680-820-0	01	1	9804-0106	●
58	BOLT; CLIP 6HK1 TCS ENG(80L) (A) M8X20 FLANGE	0-28680-820-0	01	1	0107-0512	●
58	BOLT; CLIP 6HK1 TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28080-825-0	01	1	9601-9606		●
58	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	9607-9609		●
58	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	9610-9803	●	●
58	BOLT; CLIP 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (B) M8X30 FLANGE	0-28680-830-0	01	1	9804-0106	●
58	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	0107-0512	●
58	BOLT; CLIP (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●
59	BRACKET; CLIP,OIL PIPE	1-47475-427-1	02	1	9601-9609	●
59	BRACKET; CLIP,OIL PIPE 6SD1 TCN ENG(31L)	1-47475-427-1	02	1	9610-	●
59	BRACKET; CLIP,OIL PIPE L=60	1-47475-455-0	01	1	9601-9609		●
59	BRACKET; CLIP,OIL PIPE 6HE1 TC ENG(57L) L=60	1-47475-455-0	01	1	9610-9803	●
59	BRACKET; CLIP,OIL PIPE L=60	1-47475-455-0	01	1	9610-9803		●
59	BRACKET; CLIP,OIL PIPE 6HE1 TC ENG(57L) L=60	1-47475-455-0	01	1	9804-0106	●
59	BRACKET; CLIP,OIL PIPE 6HK1 TCS ENG(80L) L=60	1-47475-455-0	01	1	0107-	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9601-9609	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9610-	●
61	CLIP; OIL PIPE (C) ID=16 L=40	9-09525-576-0	01	1	9601-9609	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) (C) ID=16 L=40	9-09525-576-0	01	1	9610-0606	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) (C) ID=16 L=40	0-95235-576-0	01	1	0607-	●
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9601-9609		●
61	CLIP; OIL PIPE 6HE1 TC ENG(57L) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9610-9803	●
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9610-9803		●
61	CLIP; OIL PIPE 6HE1 TC ENG(57L) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9804-0106	●
61	CLIP; OIL PIPE 6HK1 TCS ENG(80L) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0107-	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9601-9609		●
61	CLIP; OIL PIPE 6HE1 TC ENG(57L) (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9610-9803	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9610-9803		●
61	CLIP; OIL PIPE 6HE1 TC ENG(57L) (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9804-0001	●
61	CLIP; OIL PIPE 6HE1 TC ENG(57L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0002-0106	●
61	CLIP; OIL PIPE 6HK1 TCS ENG(80L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0107-	●
65	NUT; BRKT M8	9-09110-408-0	02	1	9601-9606	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9609	●
65	NUT; BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	9610-0602	●
65	NUT; BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	02	1	0603-	●
65	NUT; BRKT M8	9-09110-408-0	01	1	9601-9606		●
65	NUT; BRKT M8	9-09110-408-0	01	1	9601-9606		●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9607-9609		●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9607-9609		●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9610-9803	●	●
65	NUT; BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	01	1	9610-9803	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9610-9803		●
65	NUT; BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	01	1	9804-0106	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9804-0106	●
65	NUT; BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	01	1	0107-0602	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0107-0602	●
65	NUT; BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	01	1	0603-	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	02	1	9601-9606	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9607-9609	●
68	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	9610-0602	●
68	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	02	1	0603-	●
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9601-9606		●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9607-9609		●
68	NUT; CLIP,OIL PIPE 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	01	1	9610-9803	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9610-9803		●
68	NUT; CLIP,OIL PIPE 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	01	1	9804-0106	●
68	NUT; CLIP,OIL PIPE 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	01	1	0107-0602	●
68	NUT; CLIP,OIL PIPE 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	01	1	0603-	●
79	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●
79	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	9607-9609	●
79	BOLT; BRKT 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	02	1	9610-9610	●
79	BOLT; BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28080-825-0	02	1	9611-9803	●
79	BOLT; BRKT 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	02	1	9804-0512	●
79	BOLT; BRKT 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
79	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	9601-9609		●
79	BOLT; BRKT 6HE1 TC ENG(57L) M8X12 FLANGE	0-28080-812-0	02	1	9610-9803	●
79	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	9610-9803		●
79	BOLT; BRKT 6HE1 TC ENG(57L) M8X12 FLANGE	0-28080-812-0	02	1	9804-0106	●
79	BOLT; BRKT 6HK1 TCS ENG(80L) M8X12 FLANGE	0-28080-812-0	02	1	0107-0512	●
79	BOLT; BRKT 6HK1 TCS ENG(80L) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●
81	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	9601-9609	●
81	WASHER; LK,FLEX HOSE 6SD1 TCN ENG(31L) ID=20.2	9-09150-520-0	01	1	9610-0603	●
81	WASHER; LK,FLEX HOSE 6SD1 TCN ENG(31L) ID=20.2	0-91510-520-0	01	1	0604-	●
125	CONNECTOR; P/S PUMP	1-21122-019-2	01	1	9601-9609	●
125	CONNECTOR; P/S PUMP 6SD1 TCN ENG(31L)	1-21122-019-2	01	1	9610-0106	●
125	CONNECTOR; P/S PUMP	8-94394-319-0	01	1	9601-9605		●
125	CONNECTOR; P/S PUMP	8-94390-310-0	01	1	9606-9609		●
125	CONNECTOR; P/S PUMP 6HE1 TC ENG(57L)	8-94390-310-0	01	1	9610-9803	●
125	CONNECTOR; P/S PUMP	8-94390-310-0	01	1	9610-9803		●
125	CONNECTOR; P/S PUMP 6HE1 TC ENG(57L)	8-94390-584-1	01	1	9804-0106	●
125	CONNECTOR; P/S PUMP 6HK1 TCS ENG(80L)	8-94390-584-1	01	1	0107-	●
155	BOLT; CONNECTOR M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	9601-9609	●
155	BOLT; CONNECTOR 6SD1 TCN ENG(31L) M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	9610-0106	●
155	BOLT; CONNECTOR 6HE1 TC ENG(57L) M8X16 FLANGE	0-28080-816-0	02	1	9804-0106	●
155	BOLT; CONNECTOR 6HK1 TCS ENG(80L) M8X16 FLANGE	0-28080-816-0	02	1	0107-0512	●
155	BOLT; CONNECTOR 6HK1 TCS ENG(80L) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6SD1 TCN ENG(31L) ID=77	1-09623-143-0	01	1	9601-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-178-0	01	1	9601-9609		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 TC ENG(57L). ID=96.4	1-09623-178-0	01	1	9610-9803	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-178-0	01	1	9610-9803		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 TC ENG(57L) ID=96.4	1-09623-178-0	01	1	9804-0106	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1 TCS ENG(80L) ID=96.4	1-09623-178-0	01	1	0107-	●
192	BRACKET; P/S OIL TANK	1-21219-093-2	01	1	9601-9609	●
192	BRACKET; P/S OIL TANK 6SD1 TCN ENG(31L)	1-21219-093-2	01	1	9610-	●
192	BRACKET; P/S OIL TANK	1-21119-142-1	01	1	9601-9609		●
192	BRACKET; P/S OIL TANK 6HE1 TC ENG(57L)	1-21119-142-1	01	1	9610-9803	●
192	BRACKET; P/S OIL TANK	1-21119-142-1	01	1	9610-9803		●
192	BRACKET; P/S OIL TANK 6HE1 TC ENG(57L)	1-21119-142-1	01	1	9804-0106	●
192	BRACKET; P/S OIL TANK 6HK1 TCS ENG(80L)	1-21119-142-1	01	1	0107-	●
195	BOLT; BRKT M10X20 FLANGE	0-28081-020-0	03	1	9601-9606	●
195	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	03	1	9607-9609	●
195	BOLT; BRKT 6SD1 TCN ENG(31L) M10X25 FLANGE	0-28681-025-0	03	1	9610-0406	●
195	BOLT; BRKT 6SD1 TCN ENG(31L) M10X25 FLANGE	0-28081-025-0	03	1	0407-0512	●
195	BOLT; BRKT 6SD1 TCN ENG(31L) M10X25 FLANGE	0-28051-025-0	03	1	0601-	●
195	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	02	1	9601-9606		●
195	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9607-9609		●
195	BOLT; BRKT 6HE1 TC ENG(57L) M10X30 FLANGE	0-28681-030-0	02	1	9610-9803	●
195	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9610-9803		●
195	BOLT; BRKT 6HE1 TC ENG(57L) M10X30 FLANGE	0-28681-030-0	02	1	9804-0106	●
195	BOLT; BRKT 6HK1 TCS ENG(80L) M10X30 FLANGE	0-28681-030-0	02	1	0107-0512	●
195	BOLT; BRKT 6HK1 TCS ENG(80L) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
205	BOLT; EYE,FLEX HOSE,P/S M18X36	1-09675-205-0	01	1	9601-9609	●
205	BOLT; EYE,FLEX HOSE,P/S 6SD1 TCN ENG(31L) M18X36	1-09675-205-0	01	1	9610-0106	●
207	GASKET; FLEX HOSE,P/S PUMP ID=18	9-09571-418-0	02	1	9601-9609	●
207	GASKET; FLEX HOSE,P/S PUMP 6SD1 TCN ENG(31L) ID=18	9-09571-418-0	02	1	9610-0106	●
239	BRACKET; FLEX HOSE	1-47477-639-0	01	1	9601-9609	●
239	BRACKET; FLEX HOSE 6SD1 TCN ENG(31L)	1-47477-639-0	01	1	9610-	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9601-9606	●
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	01	1	9607-9609	●
277	BOLT; HOSE CLIP 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	01	1	9610-0106	●
277	BOLT; HOSE CLIP 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512	●
277	BOLT; HOSE CLIP 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9601-9609		●
277	BOLT; HOSE CLIP 6HE1 TC ENG(57L) M8X16 FLANGE	0-28080-816-0	01	1	9610-9803	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9610-9803		●
277	BOLT; HOSE CLIP 6HE1 TC ENG(57L) M8X16 FLANGE	0-28080-816-0	01	1	9804-0106	●
277	BOLT; HOSE CLIP 6HK1 TCS ENG(80L) M8X16 FLANGE	0-28080-816-0	01	1	0107-0512	●
277	BOLT; HOSE CLIP 6HK1 TCS ENG(80L) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
278	NUT; HOSE CLIP M8	9-09110-408-0	01	1	9601-9606	●
278	NUT; HOSE CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9609	●
278	NUT; HOSE CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	01	1	9610-0106	●
278	NUT; HOSE CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	0107-0602	●
278	NUT; HOSE CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	02	1	0603-	●
280	HOSE; P/S OIL PUMP,INL	1-21115-048-1	01	1	9601-9609	●
280	HOSE; P/S OIL PUMP,INL 6SD1 TCN ENG(31L)	1-21115-048-1	01	1	9610-0106	●
280	HOSE; P/S OIL PUMP,INL 6SD1 TCN ENG(31L)	1-21116-804-0	01	1	0107-	●
280	HOSE; P/S OIL PUMP,INL	1-21115-491-0	01	1	9601-9609		●
280	HOSE; P/S OIL PUMP,INL 6HE1 TC ENG(57L)	1-21115-491-0	01	1	9610-9803	●
280	HOSE; P/S OIL PUMP,INL	1-21115-491-0	01	1	9610-9803		●
280	HOSE; P/S OIL PUMP,INL 6HE1 TC ENG(57L)	1-21115-491-0	01	1	9804-0106	●
280	HOSE; P/S OIL PUMP,INL 6HK1 TCS ENG(80L)	1-21115-491-0	01	1	0107-0206	●
280	HOSE; P/S OIL PUMP,INL 6HK1 TCS ENG(80L)	1-21116-721-0	01	1	0207-	●
282	SLEEVE; RUBBER,PIPE ID=32 OD=36 L=50	1-09337-023-0	01	1	9601-9609	●
282	SLEEVE; RUBBER,PIPE 6SD1 TCN ENG(31L) ID=32 OD=36 L=50	1-09337-023-0	01	1	9610-	●

257 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
256	NUT; UNION 6SD1 TCN ENG(31L) M20	9-99111-420-0	01	1	0107-0512	●
256	NUT; UNION 6SD1 TCN ENG(31L) M20	0-91111-520-0	01	1	0601-	●
257	WASHER; LK,UNION 6SD1 TCN ENG(31L) ID=20.2	9-09150-520-0	01	1	0107-0603	●
257	WASHER; LK,UNION 6SD1 TCN ENG(31L) ID=20.2	0-91510-520-0	01	1	0604-	●

157 125 2 3 5 19 12 19 1 131 192 26 195 25 15 37 58 125 31 61 41 157 155 65 37 280 46 130 41 65 79 131 161 44 263 58 61 59 288 68 66 232 39 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-152-6	01	1	9601-9609	●
1	TANK ASM; OIL,P/S 6SD1 TCN ENG(31L)	1-21210-152-6	01	1	9610-0508	●
1	TANK ASM; OIL,P/S 6SD1 TCN ENG(31L)	1-21210-237-2	01	1	0509-1006	●
1	TANK ASM; OIL,P/S 6SD1 TCN ENG(31L)	8-98166-927-0	01	1	1007-	●
1	TANK ASM; OIL,P/S	1-21210-205-0	01	1	9601-9609		●
1	TANK ASM; OIL,P/S 6HE1 TC ENG(57L)	1-21210-205-0	01	1	9610-9803	●
1	TANK ASM; OIL,P/S	1-21210-205-0	01	1	9610-9803		●
1	TANK ASM; OIL,P/S 6HE1 TC ENG(57L)	1-21210-205-0	01	1	9804-0106	●
1	TANK ASM; OIL,P/S 6HK1 TCS ENG(80L)	1-21210-205-0	01	1	0107-0508	●
1	TANK ASM; OIL,P/S 6HK1 TCS ENG(80L)	1-21210-238-1	01	1	0509-1006	●
1	TANK ASM; OIL,P/S 6HK1 TCS ENG(80L)	8-98166-928-0	01	1	1007-	●
2	CAP; OIL TANK,P/S	1-21241-004-3	01	1	9601-9803	●	●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	9804-1006	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	9601-9803	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	9804-	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	9601-9803	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	9804-	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9601-9609	●
12	FILTER; MICROBON,OIL TANK,P/S 6SD1 TCN ENG(31L)	1-21235-004-1	01	1	9610-0106	●
12	FILTER; MICROBON,OIL TANK,P/S 6SD1 TCN ENG(31L)	1-21235-004-1	01	1	0107-	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	9601-9609		●
12	FILTER; MICROBON,OIL TANK,P/S 6HE1 TC ENG(57L)	1-21235-011-0	01	1	9610-9803	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	9610-9803		●
12	FILTER; MICROBON,OIL TANK,P/S 6HE1 TC ENG(57L)	1-21235-011-0	01	1	9804-0106	●
12	FILTER; MICROBON,OIL TANK,P/S 6HK1 TCS ENG(80L)	1-21235-011-0	01	1	0107-	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9601-9609	●
15	PLATE; FILTER,OIL TANK 6SD1 TCN ENG(31L)	1-21249-007-1	04	1	9610-0508	●
15	PLATE; FILTER,OIL TANK 6SD1 TCN ENG(31L)	1-21249-016-0	04	1	0509-	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	02	1	9601-9609		●
15	PLATE; FILTER,OIL TANK 6HE1 TC ENG(57L)	1-21249-007-1	02	1	9610-9803	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	02	1	9610-9803		●
15	PLATE; FILTER,OIL TANK 6HE1 TC ENG(57L)	1-21249-007-1	02	1	9804-0106	●
15	PLATE; FILTER,OIL TANK 6HK1 TCS ENG(80L)	1-21249-007-1	02	1	0107-0508	●
15	PLATE; FILTER,OIL TANK 6HK1 TCS ENG(80L)	1-21249-016-0	02	1	0509-	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	9601-9803	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	9804-	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28080-820-0	04	1	9601-9606	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	04	1	9607-9609	●
25	BOLT; OIL TANK BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	04	1	9610-0512	●
25	BOLT; OIL TANK BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28080-820-0	02	1	9601-9606		●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-9609		●
25	BOLT; OIL TANK BRKT 6HE1 TC ENG(57L) M8X25 FLANGE	0-28680-825-0	02	1	9610-9803	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	02	1	9610-9803		●
25	BOLT; OIL TANK BRKT 6HE1 TC ENG(57L) M8X25 FLANGE	0-28680-825-0	02	1	9804-0106	●
25	BOLT; OIL TANK BRKT 6HK1 TCS ENG(80L) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512	●
25	BOLT; OIL TANK BRKT 6HK1 TCS ENG(80L) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
26	NUT; OIL TANK TO BRKT M8	9-09110-408-0	04	1	9601-9606	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	04	1	9607-9609	●
26	NUT; OIL TANK TO BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	04	1	9610-0602	●
26	NUT; OIL TANK TO BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	04	1	0603-	●
26	NUT; OIL TANK TO BRKT M8	9-09110-408-0	02	1	9601-9606		●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9609		●
26	NUT; OIL TANK TO BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	02	1	9610-9803	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	02	1	9610-9803		●
26	NUT; OIL TANK TO BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	02	1	9804-0106	●
26	NUT; OIL TANK TO BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	02	1	0107-0602	●
26	NUT; OIL TANK TO BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	0603-	●
31	HOSE; P/S OIL TANK,INL	1-21115-465-1	01	1	9601-9609	●
31	HOSE; P/S OIL TANK,INL 6SD1 TCN ENG(31L)	1-21115-465-2	01	1	9610-0106	●
31	HOSE; P/S OIL TANK,INL 6SD1 TCN ENG(31L)	1-21116-974-0	01	1	0107-	●
31	HOSE; P/S OIL TANK,INL	1-21113-590-0	01	1	9601-9609		●
31	HOSE; P/S OIL TANK,INL 6HE1 TC ENG(57L)	1-21113-590-0	01	1	9610-9803	●
31	HOSE; P/S OIL TANK,INL	1-21113-590-0	01	1	9610-9803		●
31	HOSE; P/S OIL TANK,INL 6HE1 TC ENG(57L)	1-21113-590-0	01	1	9804-0106	●
31	HOSE; P/S OIL TANK,INL 6HK1 TCS ENG(80L)	1-21113-590-0	01	1	0107-	●
37	CLIP; HOSE,P/S (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9601-9609	●
37	CLIP; HOSE,P/S 6SD1 TCN ENG(31L) (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9610-0106	●
37	CLIP; HOSE,P/S 6SD1 TCN ENG(31L) (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0107-	●
37	CLIP; HOSE,P/S 6SD1 TCN ENG(31L) (C) ID=24 L=24	1-09701-001-1	01	1	0107-	●
37	CLIP; HOSE,P/S (B) ID=26	1-09704-082-0	02	1	9601-9803	●	●
37	CLIP; HOSE,P/S (B) ID=26	1-09704-082-0	02	1	9804-	●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	9601-9609		●
39	CLIP; FLEX HOSE 6HE1 TC ENG(57L) ID=40	8-94226-553-0	01	1	9610-9803	●
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	9610-9803		●
39	CLIP; FLEX HOSE 6HE1 TC ENG(57L) ID=40	8-94226-553-0	01	1	9804-0106	●
39	CLIP; FLEX HOSE 6HK1 TCS ENG(80L) ID=40	8-94226-553-0	01	1	0107-	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	9601-9803	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	9804-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HE1 TC ENG(57L)	1-21115-620-0	01	1	9610-9803	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HE1 TC ENG(57L)	1-21115-903-0	01	1	9804-0106	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1 TCS ENG(80L)	1-21116-727-0	01	1	0107-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	1-21115-358-0	01	1	9601-9803		●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21115-567-0	01	1	9601-9609	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L)	1-21115-567-0	01	1	9610-0106	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L)	1-21116-973-0	01	1	0107-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HE1 TC ENG(57L)	1-21115-621-0	01	1	9610-0106	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1 TCS ENG(80L)	1-21115-621-0	01	1	0107-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=786	1-21115-336-0	01	1	9601-9803		●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28080-840-0	02	1	9601-9606	●
58	BOLT; CLIP (C) M8X45 FLANGE	0-28080-845-0	02	1	9607-9609	●
58	BOLT; CLIP 6SD1 TCN ENG(31L) (C) M8X45 FLANGE	0-28080-845-0	02	1	9610-0512	●
58	BOLT; CLIP 6SD1 TCN ENG(31L) (C) M8X45 FLANGE	0-28050-845-0	02	1	0601-	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606		●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9609		●
58	BOLT; CLIP 6HE1 TC ENG(57L) (A) M8X25 FLANGE	0-28680-825-0	01	1	9610-9702	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	9610-9702		●
58	BOLT; CLIP 6HE1 TC ENG(57L) (A) M8X20 FLANGE	0-28680-820-0	01	1	9703-9803	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	9703-9803		●
58	BOLT; CLIP 6HE1 TC ENG(57L) (A) M8X20 FLANGE	0-28680-820-0	01	1	9804-0106	●
58	BOLT; CLIP 6HK1 TCS ENG(80L) (A) M8X20 FLANGE	0-28680-820-0	01	1	0107-0512	●
58	BOLT; CLIP 6HK1 TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28080-825-0	01	1	9601-9606		●
58	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	9607-9609		●
58	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	9610-9803	●	●
58	BOLT; CLIP 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (B) M8X30 FLANGE	0-28680-830-0	01	1	9804-0106	●
58	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	0107-0512	●
58	BOLT; CLIP (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●
59	BRACKET; CLIP,OIL PIPE	1-47475-427-1	02	1	9601-9609	●
59	BRACKET; CLIP,OIL PIPE 6SD1 TCN ENG(31L)	1-47475-427-1	02	1	9610-	●
59	BRACKET; CLIP,OIL PIPE L=60	1-47475-455-0	01	1	9601-9609		●
59	BRACKET; CLIP,OIL PIPE 6HE1 TC ENG(57L) L=60	1-47475-455-0	01	1	9610-9803	●
59	BRACKET; CLIP,OIL PIPE L=60	1-47475-455-0	01	1	9610-9803		●
59	BRACKET; CLIP,OIL PIPE 6HE1 TC ENG(57L) L=60	1-47475-455-0	01	1	9804-0106	●
59	BRACKET; CLIP,OIL PIPE 6HK1 TCS ENG(80L) L=60	1-47475-455-0	01	1	0107-	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9601-9609	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9610-	●
61	CLIP; OIL PIPE (C) ID=16 L=40	9-09525-576-0	01	1	9601-9609	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) (C) ID=16 L=40	9-09525-576-0	01	1	9610-0606	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) (C) ID=16 L=40	0-95235-576-0	01	1	0607-	●
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9601-9609		●
61	CLIP; OIL PIPE 6HE1 TC ENG(57L) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9610-9803	●
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9610-9803		●
61	CLIP; OIL PIPE 6HE1 TC ENG(57L) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9804-0106	●
61	CLIP; OIL PIPE 6HK1 TCS ENG(80L) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0107-	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9601-9609		●
61	CLIP; OIL PIPE 6HE1 TC ENG(57L) (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9610-9803	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9610-9803		●
61	CLIP; OIL PIPE 6HE1 TC ENG(57L) (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9804-0001	●
61	CLIP; OIL PIPE 6HE1 TC ENG(57L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0002-0106	●
61	CLIP; OIL PIPE 6HK1 TCS ENG(80L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0107-	●
65	NUT; BRKT M8	9-09110-408-0	02	1	9601-9606	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9609	●
65	NUT; BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	9610-0602	●
65	NUT; BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	02	1	0603-	●
65	NUT; BRKT M8	9-09110-408-0	01	1	9601-9606		●
65	NUT; BRKT M8	9-09110-408-0	01	1	9601-9606		●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9607-9609		●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9607-9609		●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9610-9803	●	●
65	NUT; BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	01	1	9610-9803	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9610-9803		●
65	NUT; BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	01	1	9804-0106	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9804-0106	●
65	NUT; BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	01	1	0107-0602	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0107-0602	●
65	NUT; BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	01	1	0603-	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9601-9606		●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9607-9609		●
66	BOLT; BRKT,OIL PIPE 6HE1 TC ENG(57L) M8X25 FLANGE	0-28680-825-0	01	1	9610-9801	●
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	9610-9801		●
66	BOLT; BRKT,OIL PIPE 6HE1 TC ENG(57L) M8X20 FLANGE	0-28680-820-0	01	1	9802-9803	●
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28680-820-0	01	1	9802-9803		●
66	BOLT; BRKT,OIL PIPE 6HE1 TC ENG(57L) M8X20 FLANGE	0-28680-820-0	01	1	9804-0106	●
66	BOLT; BRKT,OIL PIPE 6HK1 TCS ENG(80L) M8X20 FLANGE	0-28680-820-0	01	1	0107-0512	●
66	BOLT; BRKT,OIL PIPE 6HK1 TCS ENG(80L) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	02	1	9601-9606	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9607-9609	●
68	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	9610-0602	●
68	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	02	1	0603-	●
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9601-9606		●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9607-9609		●
68	NUT; CLIP,OIL PIPE 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	01	1	9610-9803	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9610-9803		●
68	NUT; CLIP,OIL PIPE 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	01	1	9804-0106	●
68	NUT; CLIP,OIL PIPE 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	01	1	0107-0602	●
68	NUT; CLIP,OIL PIPE 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	01	1	0603-	●
79	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●
79	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	9607-9609	●
79	BOLT; BRKT 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	02	1	9610-9610	●
79	BOLT; BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28080-825-0	02	1	9611-9803	●
79	BOLT; BRKT 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	02	1	9804-0512	●
79	BOLT; BRKT 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
79	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	9601-9609		●
79	BOLT; BRKT 6HE1 TC ENG(57L) M8X12 FLANGE	0-28080-812-0	02	1	9610-9803	●
79	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	9610-9803		●
79	BOLT; BRKT 6HE1 TC ENG(57L) M8X12 FLANGE	0-28080-812-0	02	1	9804-0106	●
79	BOLT; BRKT 6HK1 TCS ENG(80L) M8X12 FLANGE	0-28080-812-0	02	1	0107-0512	●
79	BOLT; BRKT 6HK1 TCS ENG(80L) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●
125	CONNECTOR; P/S PUMP	1-21122-019-2	01	1	9601-9609	●
125	CONNECTOR; P/S PUMP 6SD1 TCN ENG(31L)	1-21122-019-2	01	1	9610-0106	●
125	CONNECTOR; P/S PUMP	8-94394-319-0	01	1	9601-9605		●
125	CONNECTOR; P/S PUMP	8-94390-310-0	01	1	9606-9609		●
125	CONNECTOR; P/S PUMP 6HE1 TC ENG(57L)	8-94390-310-0	01	1	9610-9803	●
125	CONNECTOR; P/S PUMP	8-94390-310-0	01	1	9610-9803		●
125	CONNECTOR; P/S PUMP 6HE1 TC ENG(57L)	8-94390-584-1	01	1	9804-0106	●
125	CONNECTOR; P/S PUMP 6HK1 TCS ENG(80L)	8-94390-584-1	01	1	0107-	●
130	ADAPTER; P/S PUMP 6HE1 TC ENG(57L)	8-94390-583-0	01	1	9804-0106	●
130	ADAPTER; P/S PUMP 6HK1 TCS ENG(80L)	8-94390-583-0	01	1	0107-	●
131	HOSE; RUBBER,P/S	8-94396-331-1	01	1	9601-9609		●
131	HOSE; RUBBER,P/S 6HE1 TC ENG(57L)	8-94396-331-1	01	1	9610-9803	●
131	HOSE; RUBBER,P/S	8-94396-331-1	01	1	9610-9803		●
131	HOSE; RUBBER,P/S 6HE1 TC ENG(57L)	8-94396-331-1	01	1	9804-0106	●
131	HOSE; RUBBER,P/S 6HK1 TCS ENG(80L)	8-94396-331-1	01	1	0107-	●
155	BOLT; CONNECTOR M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	9601-9609	●
155	BOLT; CONNECTOR 6SD1 TCN ENG(31L) M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	9610-0106	●
155	BOLT; CONNECTOR 6HE1 TC ENG(57L) M8X16 FLANGE	0-28080-816-0	02	1	9804-0106	●
155	BOLT; CONNECTOR 6HK1 TCS ENG(80L) M8X16 FLANGE	0-28080-816-0	02	1	0107-0512	●
155	BOLT; CONNECTOR 6HK1 TCS ENG(80L) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6SD1 TCN ENG(31L) ID=77	1-09623-143-0	01	1	9601-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-178-0	01	1	9601-9609		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 TC ENG(57L). ID=96.4	1-09623-178-0	01	1	9610-9803	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-178-0	01	1	9610-9803		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 TC ENG(57L) ID=96.4	1-09623-178-0	01	1	9804-0106	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1 TCS ENG(80L) ID=96.4	1-09623-178-0	01	1	0107-	●
161	NUT; P/S PIPE 6HE1 TC ENG(57L) M10 FLANGE	0-91150-110-0	01	1	9804-0106	●
161	NUT; P/S PIPE 6HK1 TCS ENG(80L) M10 FLANGE	0-91150-110-0	01	1	0107-0602	●
161	NUT; P/S PIPE 6HK1 TCS ENG(80L) M10 FLANGE	0-91180-110-0	01	1	0603-	●
192	BRACKET; P/S OIL TANK	1-21219-093-2	01	1	9601-9609	●
192	BRACKET; P/S OIL TANK 6SD1 TCN ENG(31L)	1-21219-093-2	01	1	9610-	●
192	BRACKET; P/S OIL TANK	1-21119-142-1	01	1	9601-9609		●
192	BRACKET; P/S OIL TANK 6HE1 TC ENG(57L)	1-21119-142-1	01	1	9610-9803	●
192	BRACKET; P/S OIL TANK	1-21119-142-1	01	1	9610-9803		●
192	BRACKET; P/S OIL TANK 6HE1 TC ENG(57L)	1-21119-142-1	01	1	9804-0106	●
192	BRACKET; P/S OIL TANK 6HK1 TCS ENG(80L)	1-21119-142-1	01	1	0107-	●
195	BOLT; BRKT M10X20 FLANGE	0-28081-020-0	03	1	9601-9606	●
195	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	03	1	9607-9609	●
195	BOLT; BRKT 6SD1 TCN ENG(31L) M10X25 FLANGE	0-28681-025-0	03	1	9610-0406	●
195	BOLT; BRKT 6SD1 TCN ENG(31L) M10X25 FLANGE	0-28081-025-0	03	1	0407-0512	●
195	BOLT; BRKT 6SD1 TCN ENG(31L) M10X25 FLANGE	0-28051-025-0	03	1	0601-	●
195	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	02	1	9601-9606		●
195	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9607-9609		●
195	BOLT; BRKT 6HE1 TC ENG(57L) M10X30 FLANGE	0-28681-030-0	02	1	9610-9803	●
195	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	9610-9803		●
195	BOLT; BRKT 6HE1 TC ENG(57L) M10X30 FLANGE	0-28681-030-0	02	1	9804-0106	●
195	BOLT; BRKT 6HK1 TCS ENG(80L) M10X30 FLANGE	0-28681-030-0	02	1	0107-0512	●
195	BOLT; BRKT 6HK1 TCS ENG(80L) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
232	NUT; BRKT M8	9-09110-408-0	02	1	9601-9606		●
232	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9609		●
232	NUT; BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	02	1	9610-9803	●
232	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9610-9803		●
232	NUT; BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	02	1	9804-0106	●
232	NUT; BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	02	1	0107-0602	●
232	NUT; BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	0603-	●
263	BRACKET; P/S PIPE	8-94393-981-0	01	1	9601-9609		●
263	BRACKET; P/S PIPE 6HE1 TC ENG(57L)	8-94393-981-0	01	1	9610-9803	●
263	BRACKET; P/S PIPE	8-94393-981-0	01	1	9610-9803		●
263	BRACKET; P/S PIPE 6HE1 TC ENG(57L)	8-94393-981-0	01	1	9804-9901	●
263	BRACKET; P/S PIPE 6HE1 TC ENG(57L)	8-97600-117-0	01	1	9902-0106	●
263	BRACKET; P/S PIPE 6HK1 TCS ENG(80L)	8-97600-117-0	01	1	0107-	●
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9601-9606	●
277	BOLT; HOSE CLIP M8X25 FLANGE	0-28680-825-0	01	1	9607-9609	●
277	BOLT; HOSE CLIP 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	01	1	9610-0106	●
277	BOLT; HOSE CLIP 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512	●
277	BOLT; HOSE CLIP 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9601-9609		●
277	BOLT; HOSE CLIP 6HE1 TC ENG(57L) M8X16 FLANGE	0-28080-816-0	01	1	9610-9803	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9610-9803		●
277	BOLT; HOSE CLIP 6HE1 TC ENG(57L) M8X16 FLANGE	0-28080-816-0	01	1	9804-0106	●
277	BOLT; HOSE CLIP 6HK1 TCS ENG(80L) M8X16 FLANGE	0-28080-816-0	01	1	0107-0512	●
277	BOLT; HOSE CLIP 6HK1 TCS ENG(80L) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
280	HOSE; P/S OIL PUMP,INL	1-21115-048-1	01	1	9601-9609	●
280	HOSE; P/S OIL PUMP,INL 6SD1 TCN ENG(31L)	1-21115-048-1	01	1	9610-0106	●
280	HOSE; P/S OIL PUMP,INL 6SD1 TCN ENG(31L)	1-21116-804-0	01	1	0107-	●
280	HOSE; P/S OIL PUMP,INL	1-21115-491-0	01	1	9601-9609		●
280	HOSE; P/S OIL PUMP,INL 6HE1 TC ENG(57L)	1-21115-491-0	01	1	9610-9803	●
280	HOSE; P/S OIL PUMP,INL	1-21115-491-0	01	1	9610-9803		●
280	HOSE; P/S OIL PUMP,INL 6HE1 TC ENG(57L)	1-21115-491-0	01	1	9804-0106	●
280	HOSE; P/S OIL PUMP,INL 6HK1 TCS ENG(80L)	1-21115-491-0	01	1	0107-0206	●
280	HOSE; P/S OIL PUMP,INL 6HK1 TCS ENG(80L)	1-21116-721-0	01	1	0207-	●
288	BRACKET; CLIP,P/S	1-82659-149-0	01	1	9601-9609		●
288	BRACKET; CLIP,P/S 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>	1-82659-149-0	01	1	9610-9705	●
288	BRACKET; CLIP,P/S	1-82659-149-0	01	1	9610-9705		●
288	BRACKET; CLIP,P/S 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>	1-82659-149-0	01	1	9706-9803	●	●
288	BRACKET; CLIP,P/S 6HH1 STD ENG(65L)	1-82659-149-0	01	1	9706-9803		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
