◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#24827) — 177 parça

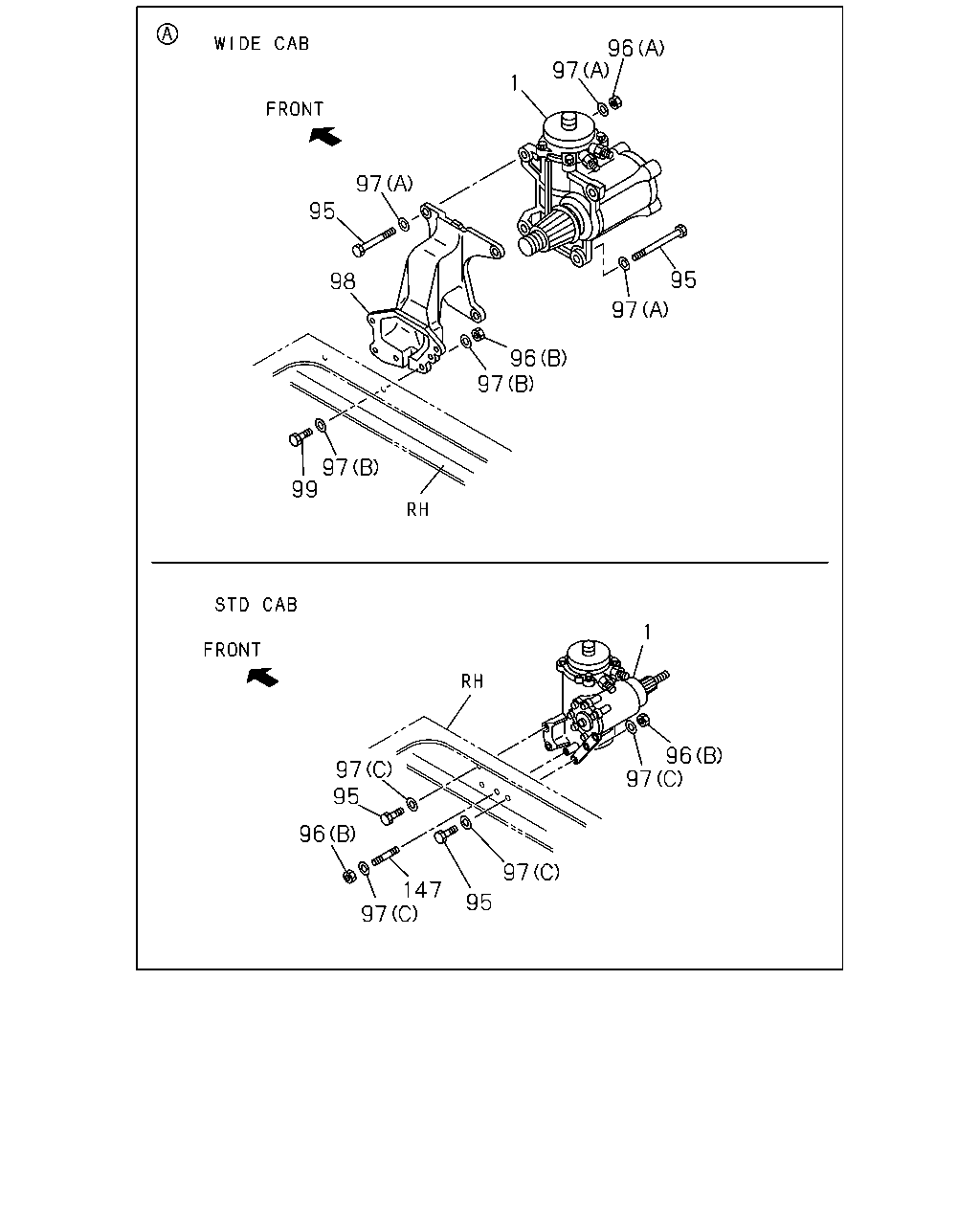

çizim 85950
96 97 1 97 95 95 98 97 96 97 97 99 1 96 97 97 95 96 97 147 97 95
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-814-0 01 1 9601-0004 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-840-4 01 1 0005- ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-834-0 01 1 9601-9803 ●
95 BOLT; STRG UNIT
M16X66 		1-09000-305-0 04 1 9601- ●
95 BOLT; STRG UNIT
M14X55 		9-92061-455-0 05 1 9601-9803 ●
96 NUT; STRG UNIT
(B) M14 		9-99110-514-0 06 1 9601-0512 ●
96 NUT; STRG UNIT
(B) M14 		0-91110-514-0 06 1 0601- ●
96 NUT; STRG UNIT
(A) M16 		9-99110-516-0 02 1 9601-0512 ●
96 NUT; STRG UNIT
(A) M16 		0-91110-516-0 02 1 0601- ●
97 WASHER; PL,STRG UNIT
(A) ID=16.2 		1-09503-223-0 06 1 9601- ●
97 WASHER; PL,STRG UNIT
(B) ID=15 		9-09651-069-0 12 1 9601-1201 ●
97 WASHER; PL,STRG UNIT
(B) ID=15 		8-98010-627-1 12 1 1202- ●
97 WASHER; PL,STRG UNIT
(C) ID=15 		9-09651-069-0 11 1 9601-9803 ●
98 BRACKET; STRG GEAR BOX 1-44226-136-1 01 1 9601- ●
99 BOLT; BRKT TO FRAME
M14X55 		9-92061-455-0 06 1 9601- ●
147 STUD; STRG UNIT
M14X37 L=66 		1-09300-095-1 01 1 9601-9803 ●

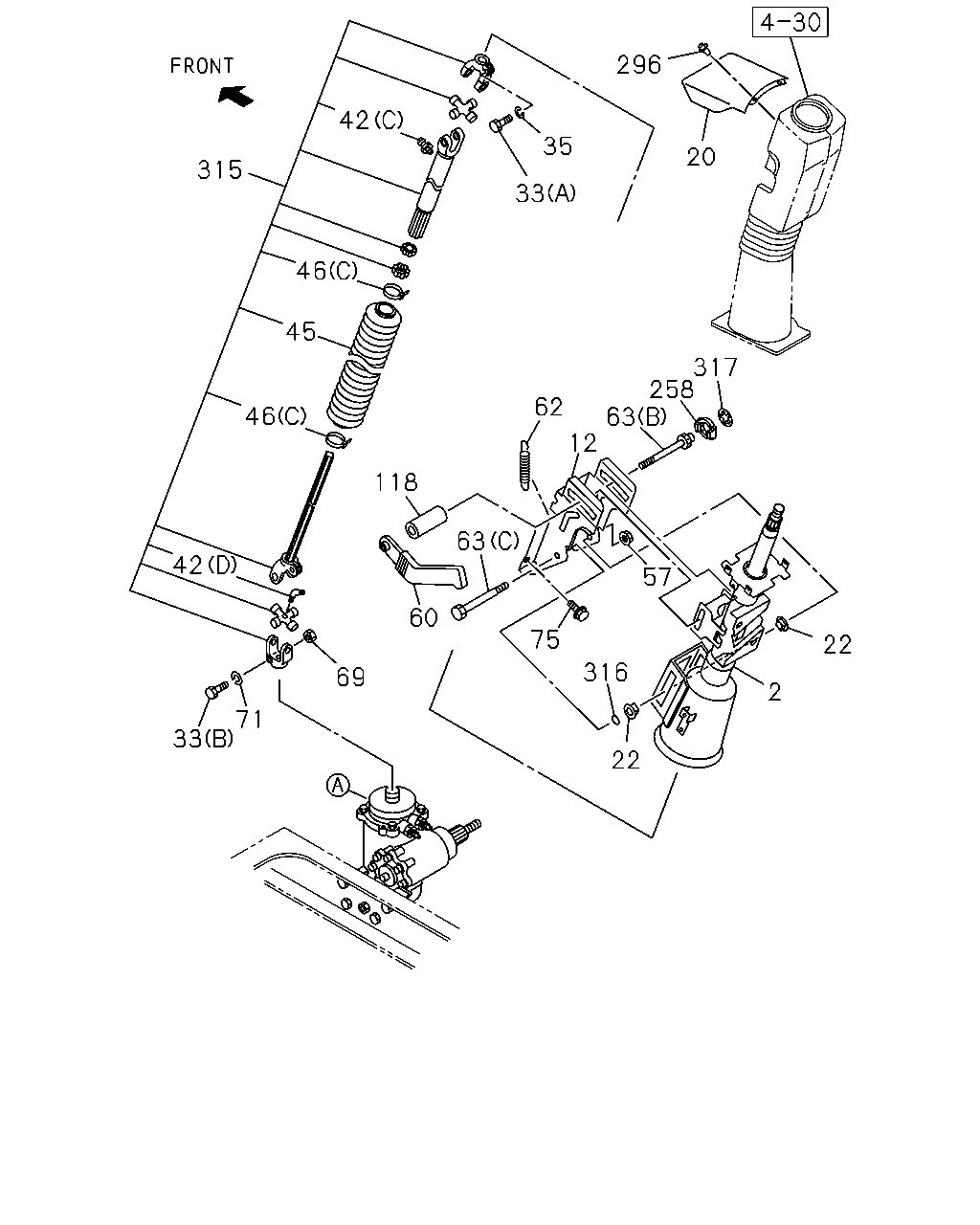

çizim 86387
296 42 35 20 315 33 46 45 317 258 63 12 62 46 118 63 42 57 60 75 22 316 69 2 71 33 22
BalonParca AdiParca NoAdetTipApplied Date A B
2 SHAFT ASM; STRG 1-44130-556-1 01 1 9601-9803 ●
2 SHAFT ASM; STRG
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-44130-556-1 01 1 9601-9803 ●
2 SHAFT ASM; STRG 1-44130-556-1 01 1 9804-9804 ●
2 SHAFT ASM; STRG 1-44130-690-0 01 1 9805-9806 ●
2 SHAFT ASM; STRG 1-44130-689-1 01 1 9807- ●
2 SHAFT ASM; STRG
DRIVING POSITION WIDE LEG SPACE(PR2) 		1-44130-586-0 01 1 9601-9803 ●
12 BRACKET; LWR,STRG COLUMN 1-44227-143-0 01 1 9805-0811 ●
12 BRACKET; LWR,STRG COLUMN 1-44227-167-0 01 1 0812- ●
20 COVER; STRG SHAFT 1-72438-121-2 01 1 9601-9803 ● ●
20 COVER; STRG SHAFT 1-72438-121-3 01 1 9804- ●
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 9805- ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 9601-9803 ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 9804-0707 ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-786-0 01 1 0708- ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-141-0 01 1 9601-9803 ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-141-0 01 1 9804-9804 ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 9805- ●
35 WASHER; LK,STRG SHAFT 1-44139-142-0 01 1 9601-9803 ● ●
35 WASHER; LK,STRG SHAFT 1-44139-142-0 01 1 9804-9804 ●
35 WASHER; LK,STRG SHAFT 1-44139-154-0 01 1 9805- ●
42 NIPPLE; GREASE,SLEEVE YOKE
(C) 		1-44135-375-0 01 1 0507- ●
42 NIPPLE; GREASE,SLEEVE YOKE
(D) 		1-44135-376-0 01 1 0507- ●
42 NIPPLE; GREASE,SLEEVE YOKE
(B) PT1/8 ELBOW 		9-09031-210-0 01 1 9703-9803 ●
42 NIPPLE; GREASE,SLEEVE YOKE
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9703-9803 ●
42 NIPPLE; GREASE,SLEEVE YOKE
(B) PT1/8 ELBOW 		9-09031-210-0 01 1 9804-9804 ●
42 NIPPLE; GREASE,SLEEVE YOKE
(A) M6 STRAIGHT 		9-09031-006-0 01 1 9601-9803 ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
(A) M6 STRAIGHT 		9-09031-006-0 01 1 9804-9804 ●
45 BOOT; STRG SHAFT 1-44139-138-0 01 1 9601-9803 ● ●
45 BOOT; STRG SHAFT 1-44139-138-0 01 1 9804-9804 ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 9805- ●
46 CLIP; BOOT
(A) 		1-44139-139-0 01 1 9601-9803 ● ●
46 CLIP; BOOT
(A) 		1-44139-139-0 01 1 9804-9804 ●
46 CLIP; BOOT
(C) 		1-44139-156-0 02 1 9805- ●
46 CLIP; BOOT
(B) 		1-44139-140-0 01 1 9601-9803 ● ●
46 CLIP; BOOT
(B) 		1-44139-140-0 01 1 9804-9804 ●
57 NUT; ADJ BOLT 1-44227-129-1 01 1 9601-9803 ● ●
57 NUT; ADJ BOLT 1-44227-129-1 01 1 9804-9804 ●
57 NUT; ADJ BOLT 1-44227-151-0 01 1 9805- ●
60 LEVER; ADJ,STRG COLUMN 1-44227-125-1 01 1 9601-9803 ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-125-1 01 1 9804-9804 ●
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 9805- ●
62 SPRING; LK,LEVER 1-44227-130-0 01 1 9601-9803 ● ●
62 SPRING; LK,LEVER 1-44227-130-0 01 1 9804-9804 ●
62 SPRING; LK,LEVER 1-44227-153-0 02 1 9805-0111 ●
62 SPRING; LK,LEVER 1-44227-153-0 01 1 0112- ●
63 BOLT; ADJ LEVER,TILT STRG
(C) 		1-44227-149-0 01 1 9805- ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-126-0 01 1 9601-9803 ● ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-126-0 01 1 9804-9804 ●
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-145-0 01 1 9805- ●
69 NUT; TILT CENTER
M10 		9-09110-510-0 01 1 9601-9803 ● ●
69 NUT; TILT CENTER
M10 		9-09110-510-0 01 1 9804-0512 ●
69 NUT; TILT CENTER
M10 		0-91110-510-0 01 1 0601- ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		9-09150-810-0 01 1 9601-9803 ● ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		9-09150-810-0 01 1 9804-0603 ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		0-91510-810-0 01 1 0604- ●
75 BOLT; STRG COLUMN
M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9601-9610 ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9611-9803 ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9804-0512 ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ●
118 NUT; LEVER,TILT BOLT 1-44227-146-0 01 1 9805-0506 ●
118 NUT; LEVER,TILT BOLT 1-44227-163-0 01 1 0507- ●
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 9805- ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9601-9803 ● ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9804- ●
315 JOINT; SPLINE 1-44135-342-0 01 1 9805-0506 ●
315 JOINT; SPLINE 1-44135-377-0 01 1 0507- ●
316 RING 1-44227-152-0 01 1 9805- ●
317 NUT; PUSH 1-44227-148-0 01 1 9805- ●

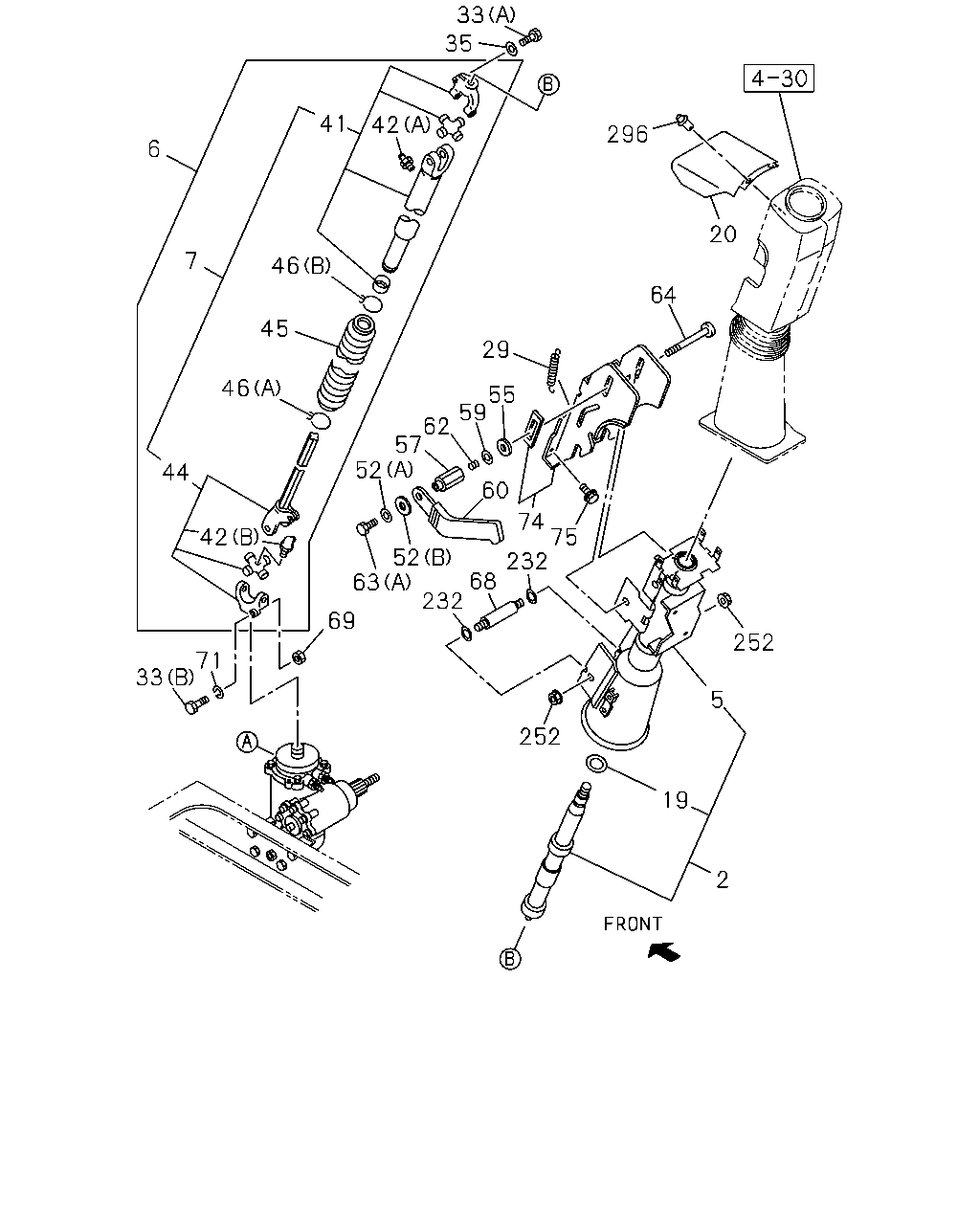

çizim 104427
6 7 46 45 46 44 42 69 71 33 63 52 232 68 232 75 74 60 55 29 59 62 57 52 252 5 19 2 252 64 20 296 33 35 42 41
BalonParca AdiParca NoAdetTipApplied Date A B
2 SHAFT ASM; STRG 1-44130-556-1 01 1 9601-9803 ●
2 SHAFT ASM; STRG
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-44130-556-1 01 1 9601-9803 ●
2 SHAFT ASM; STRG 1-44130-556-1 01 1 9804-9804 ●
2 SHAFT ASM; STRG 1-44130-690-0 01 1 9805-9806 ●
2 SHAFT ASM; STRG 1-44130-689-1 01 1 9807- ●
2 SHAFT ASM; STRG
DRIVING POSITION WIDE LEG SPACE(PR2) 		1-44130-586-0 01 1 9601-9803 ●
5 COLUMN; STRG 1-44130-645-0 01 1 9612-9803 ●
5 COLUMN; STRG
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-44130-645-0 01 1 9612-9803 ●
5 COLUMN; STRG 1-44130-645-0 01 1 9804-9804 ●
6 SHAFT; STRG LWR 1-44135-313-0 01 1 9601-9803 ● ●
6 SHAFT; STRG LWR 1-44135-313-0 01 1 9804-9804 ●
7 SHAFT; STRG 1-44135-327-0 01 1 9612-9803 ●
7 SHAFT; STRG
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-44135-327-0 01 1 9612-9803 ●
7 SHAFT; STRG 1-44135-327-0 01 1 9804-9804 ●
19 RING; SNAP,STRG SHAFT 1-44227-139-0 01 1 9612-9803 ●
19 RING; SNAP,STRG SHAFT
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-44227-139-0 01 1 9612-9803 ●
19 RING; SNAP,STRG SHAFT 1-44227-139-0 01 1 9804-9804 ●
20 COVER; STRG SHAFT 1-72438-121-2 01 1 9601-9803 ● ●
20 COVER; STRG SHAFT 1-72438-121-3 01 1 9804- ●
29 SPRING; COLUMN 1-44227-136-0 02 1 9601-9803 ● ●
29 SPRING; COLUMN 1-44227-136-0 02 1 9804-9804 ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 9601-9803 ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 9804-0707 ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-786-0 01 1 0708- ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-141-0 01 1 9601-9803 ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-141-0 01 1 9804-9804 ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 9805- ●
35 WASHER; LK,STRG SHAFT 1-44139-142-0 01 1 9601-9803 ● ●
35 WASHER; LK,STRG SHAFT 1-44139-142-0 01 1 9804-9804 ●
35 WASHER; LK,STRG SHAFT 1-44139-154-0 01 1 9805- ●
41 YOKE; SLEEVE,STRG 1-44135-314-0 01 1 9601-9803 ● ●
41 YOKE; SLEEVE,STRG 1-44135-314-0 01 1 9804-9804 ●
42 NIPPLE; GREASE,SLEEVE YOKE
(C) 		1-44135-375-0 01 1 0507- ●
42 NIPPLE; GREASE,SLEEVE YOKE
(D) 		1-44135-376-0 01 1 0507- ●
42 NIPPLE; GREASE,SLEEVE YOKE
(B) PT1/8 ELBOW 		9-09031-210-0 01 1 9703-9803 ●
42 NIPPLE; GREASE,SLEEVE YOKE
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) (B) PT1/8 ELBOW 		9-09031-210-0 01 1 9703-9803 ●
42 NIPPLE; GREASE,SLEEVE YOKE
(B) PT1/8 ELBOW 		9-09031-210-0 01 1 9804-9804 ●
42 NIPPLE; GREASE,SLEEVE YOKE
(A) M6 STRAIGHT 		9-09031-006-0 01 1 9601-9803 ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
(A) M6 STRAIGHT 		9-09031-006-0 01 1 9804-9804 ●
44 SHAFT; SPLINE,STRG 1-44135-300-0 01 1 9601-9803 ● ●
44 SHAFT; SPLINE,STRG 1-44135-300-0 01 1 9804-9804 ●
45 BOOT; STRG SHAFT 1-44139-138-0 01 1 9601-9803 ● ●
45 BOOT; STRG SHAFT 1-44139-138-0 01 1 9804-9804 ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 9805- ●
46 CLIP; BOOT
(A) 		1-44139-139-0 01 1 9601-9803 ● ●
46 CLIP; BOOT
(A) 		1-44139-139-0 01 1 9804-9804 ●
46 CLIP; BOOT
(C) 		1-44139-156-0 02 1 9805- ●
46 CLIP; BOOT
(B) 		1-44139-140-0 01 1 9601-9803 ● ●
46 CLIP; BOOT
(B) 		1-44139-140-0 01 1 9804-9804 ●
52 WASHER; PL,ADJ LEVER
(A) 		1-44227-127-0 01 1 9601-9803 ● ●
52 WASHER; PL,ADJ LEVER
(A) 		1-44227-127-0 01 1 9804-9804 ●
52 WASHER; PL,ADJ LEVER
(B) 		1-44227-137-0 01 1 9601-9803 ● ●
52 WASHER; PL,ADJ LEVER
(B) 		1-44227-137-0 01 1 9804-9804 ●
55 PLATE; GUIDE 1-44227-132-0 01 1 9601-9803 ● ●
55 PLATE; GUIDE 1-44227-132-0 01 1 9804-9804 ●
57 NUT; ADJ BOLT 1-44227-129-1 01 1 9601-9803 ● ●
57 NUT; ADJ BOLT 1-44227-129-1 01 1 9804-9804 ●
57 NUT; ADJ BOLT 1-44227-151-0 01 1 9805- ●
59 COLLAR; DIST,ADJ BOLT 1-44227-131-0 01 1 9601-9803 ● ●
59 COLLAR; DIST,ADJ BOLT 1-44227-131-0 01 1 9804-9804 ●
60 LEVER; ADJ,STRG COLUMN 1-44227-125-1 01 1 9601-9803 ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-125-1 01 1 9804-9804 ●
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 9805- ●
62 SPRING; LK,LEVER 1-44227-130-0 01 1 9601-9803 ● ●
62 SPRING; LK,LEVER 1-44227-130-0 01 1 9804-9804 ●
62 SPRING; LK,LEVER 1-44227-153-0 02 1 9805-0111 ●
62 SPRING; LK,LEVER 1-44227-153-0 01 1 0112- ●
63 BOLT; ADJ LEVER,TILT STRG
(C) 		1-44227-149-0 01 1 9805- ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-126-0 01 1 9601-9803 ● ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-126-0 01 1 9804-9804 ●
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-145-0 01 1 9805- ●
64 BOLT; ADJ,PROTECTOR 1-44227-128-0 01 1 9601-9803 ● ●
64 BOLT; ADJ,PROTECTOR 1-44227-128-0 01 1 9804-9804 ●
68 PIN; TILT CENTER 1-44227-133-1 01 1 9601-9803 ● ●
68 PIN; TILT CENTER 1-44227-133-1 01 1 9804-9804 ●
69 NUT; TILT CENTER
M10 		9-09110-510-0 01 1 9601-9803 ● ●
69 NUT; TILT CENTER
M10 		9-09110-510-0 01 1 9804-0512 ●
69 NUT; TILT CENTER
M10 		0-91110-510-0 01 1 0601- ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		9-09150-810-0 01 1 9601-9803 ● ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		9-09150-810-0 01 1 9804-0603 ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		0-91510-810-0 01 1 0604- ●
74 BRACKET; SUPPORT,STRG 1-44221-075-1 01 1 9601-9803 ● ●
74 BRACKET; SUPPORT,STRG 1-44221-075-1 01 1 9804-9804 ●
75 BOLT; STRG COLUMN
M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9601-9610 ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9611-9803 ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9804-0512 ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ●
232 SPACER; STRG SHAFT 1-44227-134-0 02 1 9601-9803 ● ●
232 SPACER; STRG SHAFT 1-44227-134-0 02 1 9804-9804 ●
252 NUT; TILT CENTER BOLT 1-44227-135-0 02 1 9601-9803 ● ●
252 NUT; TILT CENTER BOLT 1-44227-135-0 02 1 9804-9804 ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9601-9803 ● ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9804- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
