4-30 — STEERING WHEEL AND COWL (#24826) — 45 parça

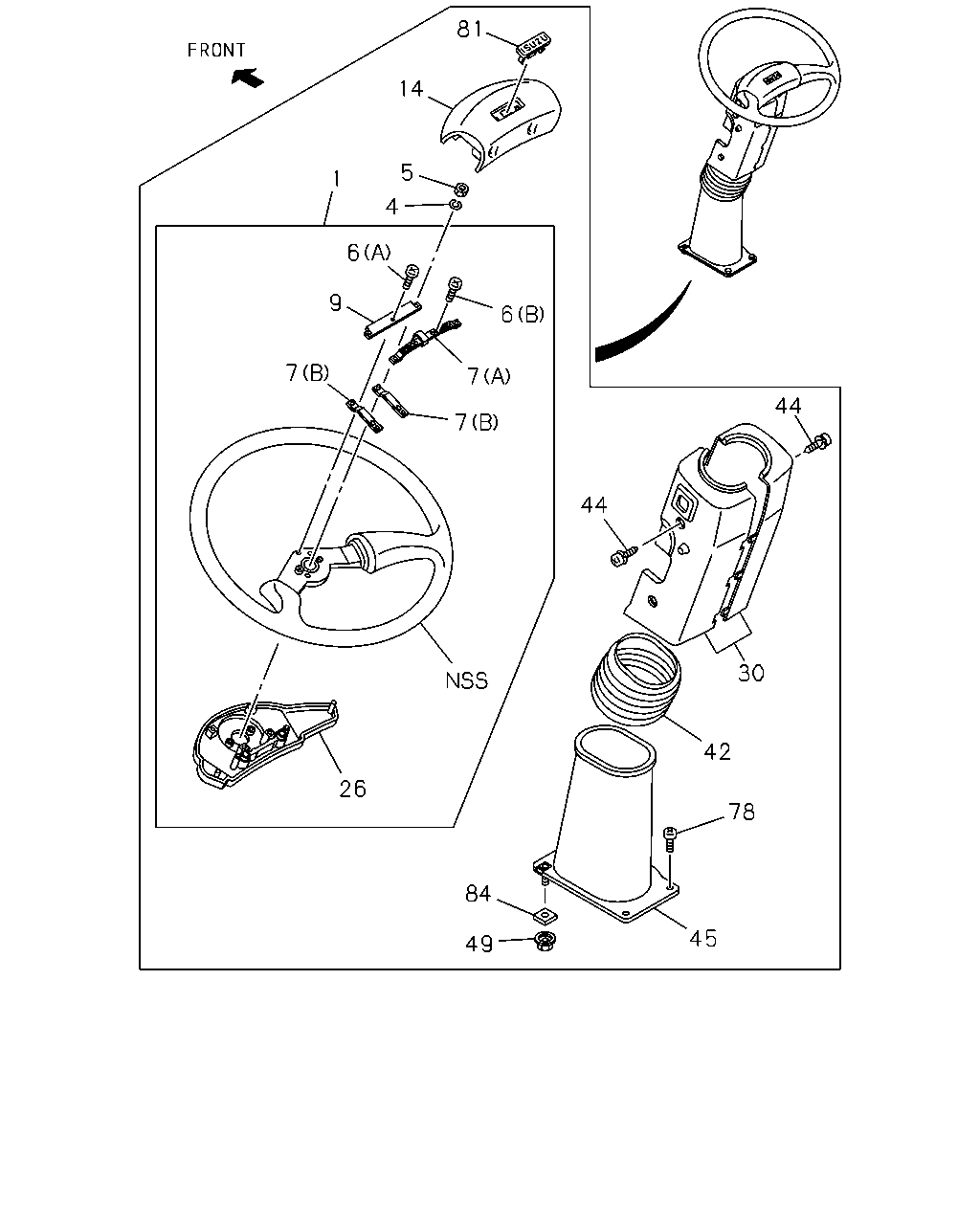

çizim 86007
81 14 5 1 4 6 9 6 7 7 44 7 44 30 42 26 78 84 45 49
BalonParca AdiParca NoAdetTipApplied Date A B
1 WHEEL; STRG 1-44110-146-0 01 1 9601-9803 ● ●
1 WHEEL; STRG 1-44110-146-1 01 1 9804- ●
4 WASHER; LK,STRG WHEEL
ID=20.2 		9-09150-520-0 01 1 9601-9803 ● ●
4 WASHER; LK,STRG WHEEL
ID=20.2 		9-09150-520-0 01 1 9804-0603 ●
4 WASHER; LK,STRG WHEEL
ID=20.2 		0-91510-520-0 01 1 0604- ●
5 NUT; STRG WHEEL TO SHAFT
M20 		9-99110-420-0 01 1 9601-9608 ● ●
5 NUT; STRG WHEEL TO SHAFT
M20 		9-99111-420-0 01 1 9609-9803 ● ●
5 NUT; STRG WHEEL TO SHAFT
M20 		9-99111-420-0 01 1 9804-0512 ●
5 NUT; STRG WHEEL TO SHAFT
M20 		0-91111-520-0 01 1 0601- ●
6 SCREW; HORN SPR CONTACT
(A) M4X10 		1-44129-034-0 01 1 9601-9803 ● ●
6 SCREW; HORN SPR CONTACT
(A) M4X10 		1-44129-034-0 01 1 9804- ●
6 SCREW; HORN SPR CONTACT
(B) M4X16 		1-44129-036-0 04 1 9601-9803 ● ●
6 SCREW; HORN SPR CONTACT
(B) M4X16 		1-44129-036-0 04 1 9804- ●
7 SPRING; HORN CONTACT
(B) 		1-44129-033-0 02 1 9601-9803 ● ●
7 SPRING; HORN CONTACT
(B) 		1-44129-033-0 02 1 9804- ●
7 SPRING; HORN CONTACT
(A) 		1-44129-037-0 01 1 9601-9803 ● ●
7 SPRING; HORN CONTACT
(A) 		1-44129-037-0 01 1 9804- ●
9 PLATE; HORN CONTACT 1-44129-038-0 01 1 9601-9803 ● ●
9 PLATE; HORN CONTACT 1-44129-038-0 01 1 9804- ●
14 BUTTON; HORN,STRG WHEEL 1-44120-045-2 01 1 9601-9803 ● ●
14 BUTTON; HORN,STRG WHEEL 1-44120-045-2 01 1 9804- ●
26 COVER; STRG WHEEL,LWR 1-44129-039-0 01 1 9601-9803 ● ●
26 COVER; STRG WHEEL,LWR 1-44129-039-1 01 1 9804- ●
30 COWL; STEERING 1-79997-342-3 01 1 9601-9803 ●
30 COWL; STEERING
EXC. DRIVING POSITION WIDE LEG SPACE(PR2) 		1-79997-342-3 01 1 9601-9803 ●
30 COWL; STEERING 1-79997-342-3 01 1 9804- ●
30 COWL; STEERING
DRIVING POSITION WIDE LEG SPACE(PR2) 		1-79998-932-0 01 1 9601-9803 ●
42 BOOT; STEERING COLUMN 1-79998-803-1 01 1 9601-9802 ● ●
42 BOOT; STEERING COLUMN 1-79996-385-0 01 1 9803-9803 ● ●
42 BOOT; STEERING COLUMN 1-79996-385-1 01 1 9804- ●
44 SCREW; STRG COWL
M6X16 		8-94479-534-0 04 1 9601-9803 ● ●
44 SCREW; STRG COWL
M6X16 		8-94479-534-0 04 1 9804-0302 ●
44 SCREW; STRG COWL
M6X12 		8-97094-854-0 04 1 0303- ●
45 BOOT; STRG SHAFT 1-79998-738-2 01 1 9601-9803 ● ●
45 BOOT; STRG SHAFT 1-79998-738-2 01 1 9804- ●
49 NUT; BOOT,STRG SHAFT
M6 FLANGE 		1-09984-141-0 02 1 9601-9803 ● ●
49 NUT; BOOT,STRG SHAFT
M6 FLANGE 		1-09984-141-0 02 1 9804-1205 ●
49 NUT; BOOT,STRG SHAFT
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1206- ●
78 BOLT; STRG
M6X20 W/LK&PL WASHER 		8-94279-202-0 02 1 9601-9803 ● ●
78 BOLT; STRG
M6X20 W/LK&PL WASHER 		8-94279-202-0 02 1 9804-9906 ●
78 BOLT; STRG
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 9907- ●
81 EMBLEM; STRG WHEEL 1-76210-638-1 01 1 9601-9803 ● ●
81 EMBLEM; STRG WHEEL 1-76210-638-1 01 1 9804- ●
84 SEAL; WATER
25X25 		8-94272-533-0 02 1 9601-9803 ● ●
84 SEAL; WATER
25X25 		8-94272-533-0 02 1 9804-1205 ●
