4-25A — REAR FINAL DRIVE (#24824) — 111 parça

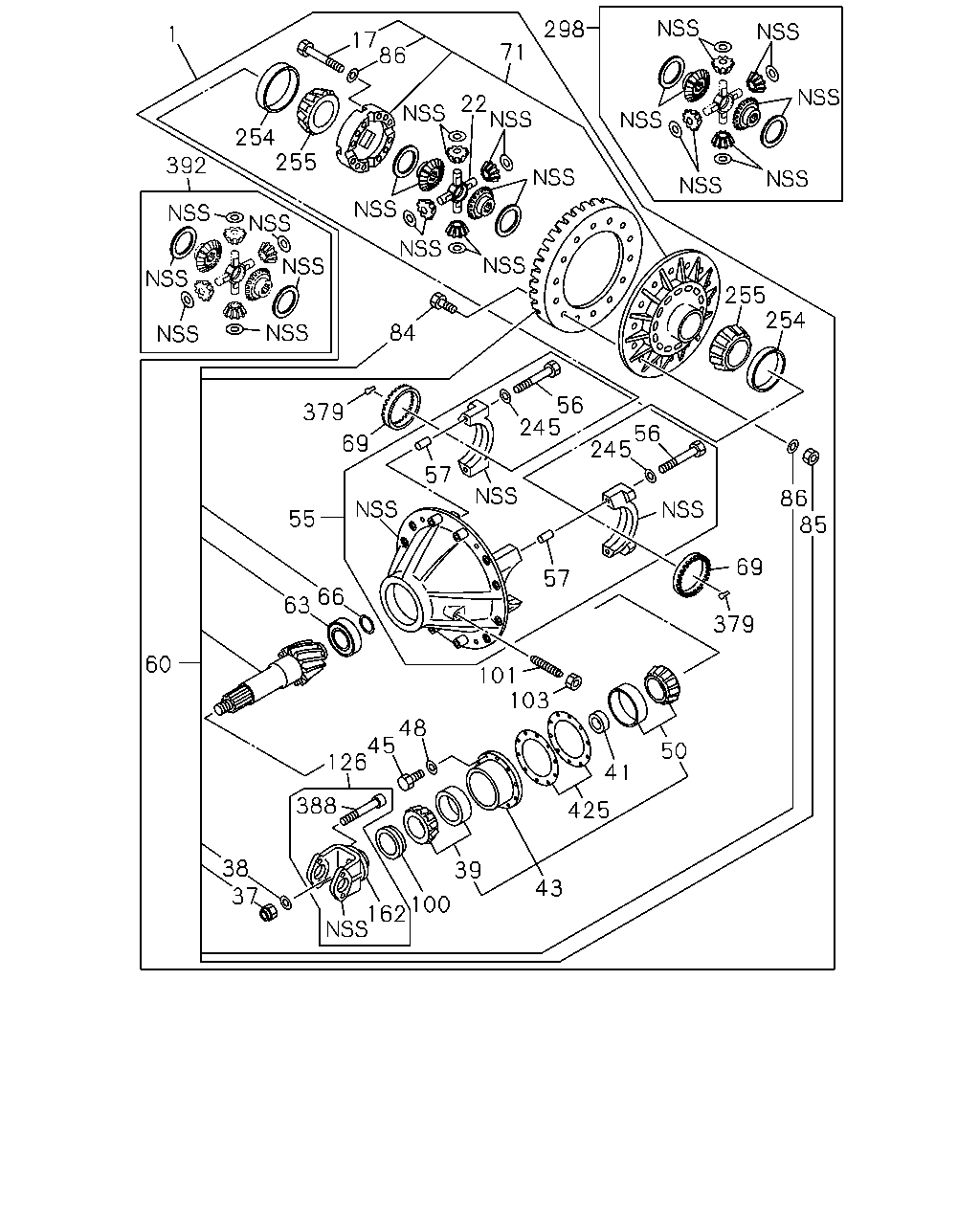

çizim 104535
298 1 17 86 71 22 254 255 392 255 254 84 56 245 379 56 245 69 57 86 85 55 69 57 66 63 379 60 101 103 48 45 126 50 41 388 425 38 37 39 43 100 162
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 DRIVE ASM; FINAL,RR
44/9 		1-41001-869-0 01 1 9601-9803 ●
1 DRIVE ASM; FINAL,RR
43/8 		1-41001-870-0 01 1 9601-0106 ●
1 DRIVE ASM; FINAL,RR
45/8 		1-41001-871-0 01 1 9601-0106 ●
1 DRIVE ASM; FINAL,RR
43/7 		1-41001-872-0 01 1 9601-0106 ●
1 DRIVE ASM; FINAL,RR
45/7 		1-41002-168-0 01 1 9610-0106 ●
1 DRIVE ASM; FINAL,RR
41/6 		1-41002-169-0 01 1 9610-0106 ●
17 BOLT; DIFF CAGE SETTING 1-41519-037-0 12 1 9601-9609 ● ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-037-0 12 1 9610-9803 ● ● ● ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-037-0 12 1 9804-0106 ● ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-054-0 01 1 9601-9609 ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-054-0 01 1 9610-9803 ● ● ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-054-0 01 1 9804-0106 ● ● ● ● ●
37 NUT; DRIVING PINION 1-41219-028-0 01 1 9601-9609 ● ● ● ●
37 NUT; DRIVING PINION 1-41219-028-0 01 1 9610-9803 ● ● ● ● ● ●
37 NUT; DRIVING PINION 1-41219-028-0 01 1 9804-0106 ● ● ● ● ●
38 WASHER; PL,DRIVING PINION 1-41349-058-0 01 1 9601-9609 ● ● ● ●
38 WASHER; PL,DRIVING PINION 1-41349-058-0 01 1 9610-9803 ● ● ● ● ● ●
38 WASHER; PL,DRIVING PINION 1-41349-058-0 01 1 9804-0106 ● ● ● ● ●
39 BEARING; FINAL PINION 1-41219-038-0 01 1 9601-9609 ● ● ● ●
39 BEARING; FINAL PINION 1-41219-038-0 01 1 9610-9803 ● ● ● ● ● ●
39 BEARING; FINAL PINION 1-41219-038-0 01 1 9804-0106 ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG 1-41229-294-0 01 1 9601-9609 ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG 1-41229-294-0 01 1 9610-9803 ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG 1-41229-294-0 01 1 9804-0106 ● ● ● ● ●
43 CAGE; FINAL PINION 1-41151-069-0 01 1 9601-9609 ● ● ● ●
43 CAGE; FINAL PINION 1-41151-069-0 01 1 9610-9803 ● ● ● ● ● ●
43 CAGE; FINAL PINION 1-41151-069-0 01 1 9804-0106 ● ● ● ● ●
45 BOLT; FINAL PINION CAGE 1-41159-008-0 08 1 9601-9609 ● ● ● ●
45 BOLT; FINAL PINION CAGE 1-41159-008-0 08 1 9610-9803 ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE 1-41159-008-0 08 1 9804-0106 ● ● ● ● ●
48 WASHER; LK,FINAL PINION 1-41159-009-0 08 1 9601-9609 ● ● ● ●
48 WASHER; LK,FINAL PINION 1-41159-009-0 08 1 9610-9803 ● ● ● ● ● ●
48 WASHER; LK,FINAL PINION 1-41159-009-0 08 1 9804-0106 ● ● ● ● ●
50 BEARING; FINAL PINION 1-41219-039-0 01 1 9601-9609 ● ● ● ●
50 BEARING; FINAL PINION 1-41219-039-0 01 1 9610-9803 ● ● ● ● ● ●
50 BEARING; FINAL PINION 1-41219-039-0 01 1 9804-0106 ● ● ● ● ●
55 CARRIER; DIFF 1-41110-110-0 01 1 9601-9609 ● ● ● ●
55 CARRIER; DIFF 1-41110-110-0 01 1 9610-9803 ● ● ● ● ● ●
55 CARRIER; DIFF 1-41110-110-0 01 1 9804-0106 ● ● ● ● ●
56 BOLT; BRG CAP 1-41119-066-0 04 1 9601-9609 ● ● ● ●
56 BOLT; BRG CAP 1-41119-066-0 04 1 9610-9803 ● ● ● ● ● ●
56 BOLT; BRG CAP 1-41119-066-0 04 1 9804-0106 ● ● ● ● ●
57 DOWEL; BRG CAP 1-41229-295-0 04 1 9601-9609 ● ● ● ●
57 DOWEL; BRG CAP 1-41229-295-0 04 1 9610-9803 ● ● ● ● ● ●
57 DOWEL; BRG CAP 1-41229-295-0 04 1 9804-0106 ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
44/9 		1-41210-538-0 01 1 9601-9803 ●
60 GEAR SET; FINAL DRIVE,RR
43/8 		1-41210-539-0 01 1 9601-0106 ●
60 GEAR SET; FINAL DRIVE,RR
45/8 		1-41210-540-0 01 1 9601-0106 ●
60 GEAR SET; FINAL DRIVE,RR
43/7 		1-41210-541-0 01 1 9601-0106 ●
60 GEAR SET; FINAL DRIVE,RR
45/7 		1-41210-562-0 01 1 9610-0106 ●
60 GEAR SET; FINAL DRIVE,RR
41/6 		1-41210-563-0 01 1 9610-0106 ●
63 BEARING; PINION PILOT 1-41219-036-0 01 1 9601-9609 ● ● ● ●
63 BEARING; PINION PILOT 1-41219-036-0 01 1 9610-9803 ● ● ● ● ● ●
63 BEARING; PINION PILOT 1-41219-036-0 01 1 9804-0106 ● ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-037-0 01 1 9601-9609 ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-037-0 01 1 9610-9803 ● ● ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-037-0 01 1 9804-0106 ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-040-0 02 1 9601-9609 ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-040-0 02 1 9610-9803 ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-040-0 02 1 9804-0106 ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-247-0 01 1 9601-9609 ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-247-0 01 1 9610-9803 ● ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-247-0 01 1 9804-0106 ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41519-039-0 12 1 9601-9609 ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41519-039-0 12 1 9610-9803 ● ● ● ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41519-039-0 12 1 9804-0106 ● ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 9601-9609 ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 9610-9803 ● ● ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 9804-0106 ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING 1-41519-035-0 24 1 9601-9609 ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING 1-41519-035-0 24 1 9610-9803 ● ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING 1-41519-035-0 24 1 9804-0106 ● ● ● ● ●
100 SEAL; OIL,FINAL PINION 1-41219-029-0 01 1 9601-9609 ● ● ● ●
100 SEAL; OIL,FINAL PINION 1-41219-029-0 01 1 9610-9803 ● ● ● ● ● ●
100 SEAL; OIL,FINAL PINION 1-41219-029-0 01 1 9804-0106 ● ● ● ● ●
101 BOLT; ADJ,DRIVEN GEAR THRUST 1-41259-001-0 01 1 9601-9609 ● ● ● ●
101 BOLT; ADJ,DRIVEN GEAR THRUST 1-41259-001-0 01 1 9610-9803 ● ● ● ● ● ●
101 BOLT; ADJ,DRIVEN GEAR THRUST 1-41259-001-0 01 1 9804-0106 ● ● ● ● ●
103 NUT; ADJ BOLT 1-41259-002-0 01 1 9601-9609 ● ● ● ●
103 NUT; ADJ BOLT 1-41259-002-0 01 1 9610-9803 ● ● ● ● ● ●
103 NUT; ADJ BOLT 1-41259-002-0 01 1 9804-0106 ● ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-301-0 01 1 9601-9609 ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-301-0 01 1 9610-9803 ● ● ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-301-0 01 1 9804-0106 ● ● ● ● ●
162 COVER; DUST,INPUT FLANGE 1-37249-161-0 01 1 9601-9609 ● ● ● ●
162 COVER; DUST,INPUT FLANGE 1-37249-161-0 01 1 9610-9803 ● ● ● ● ● ●
162 COVER; DUST,INPUT FLANGE 1-37249-161-0 01 1 9804-0106 ● ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-065-0 04 1 9601-9609 ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-065-0 04 1 9610-9803 ● ● ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-065-0 04 1 9804-0106 ● ● ● ● ●
254 CUP; DIFF BRG 1-41229-131-0 02 1 9601-9609 ● ● ● ●
254 CUP; DIFF BRG 1-41229-131-0 02 1 9610-9803 ● ● ● ● ● ●
254 CUP; DIFF BRG 1-41229-131-0 02 1 9804-0106 ● ● ● ● ●
255 CONE; DIFF BRG 1-41519-032-0 02 1 9601-9609 ● ● ● ●
255 CONE; DIFF BRG 1-41519-032-0 02 1 9610-9803 ● ● ● ● ● ●
255 CONE; DIFF BRG 1-41519-032-0 02 1 9804-0106 ● ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-029-0 01 1 9601-9609 ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-029-0 01 1 9610-9803 ● ● ● ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-029-0 01 1 9804-0106 ● ● ● ● ●
379 PIN; SPLIT 1-41129-012-0 02 1 9601-9609 ● ● ● ●
379 PIN; SPLIT 1-41129-012-0 02 1 9610-9803 ● ● ● ● ● ●
379 PIN; SPLIT 1-41129-012-0 02 1 9804-0106 ● ● ● ● ●
388 BOLT; COUPLING 1-37249-160-0 04 1 9601-9609 ● ● ● ●
388 BOLT; COUPLING 1-37249-160-0 04 1 9610-9803 ● ● ● ● ● ●
388 BOLT; COUPLING 1-37249-160-0 04 1 9804-0106 ● ● ● ● ●
392 WASHER KIT; THRUST,DIFF 1-41559-001-0 01 1 9601-9609 ● ● ● ●
392 WASHER KIT; THRUST,DIFF 1-41559-001-0 01 1 9610-9803 ● ● ● ● ● ●
392 WASHER KIT; THRUST,DIFF 1-41559-001-0 01 1 9804-0106 ● ● ● ● ●
425 SHIM SET; FINAL PINION CAGE 1-41154-089-0 01 1 9601-9609 ● ● ● ●
425 SHIM SET; FINAL PINION CAGE 1-41154-089-0 01 1 9610-9803 ● ● ● ● ● ●
425 SHIM SET; FINAL PINION CAGE 1-41154-089-0 01 1 9804-0106 ● ● ● ● ●
