Sayfa 4-20 - Isuzu EPC

4-20 — REAR AXLE CASE AND SHAFT (#24823) — 259 parça

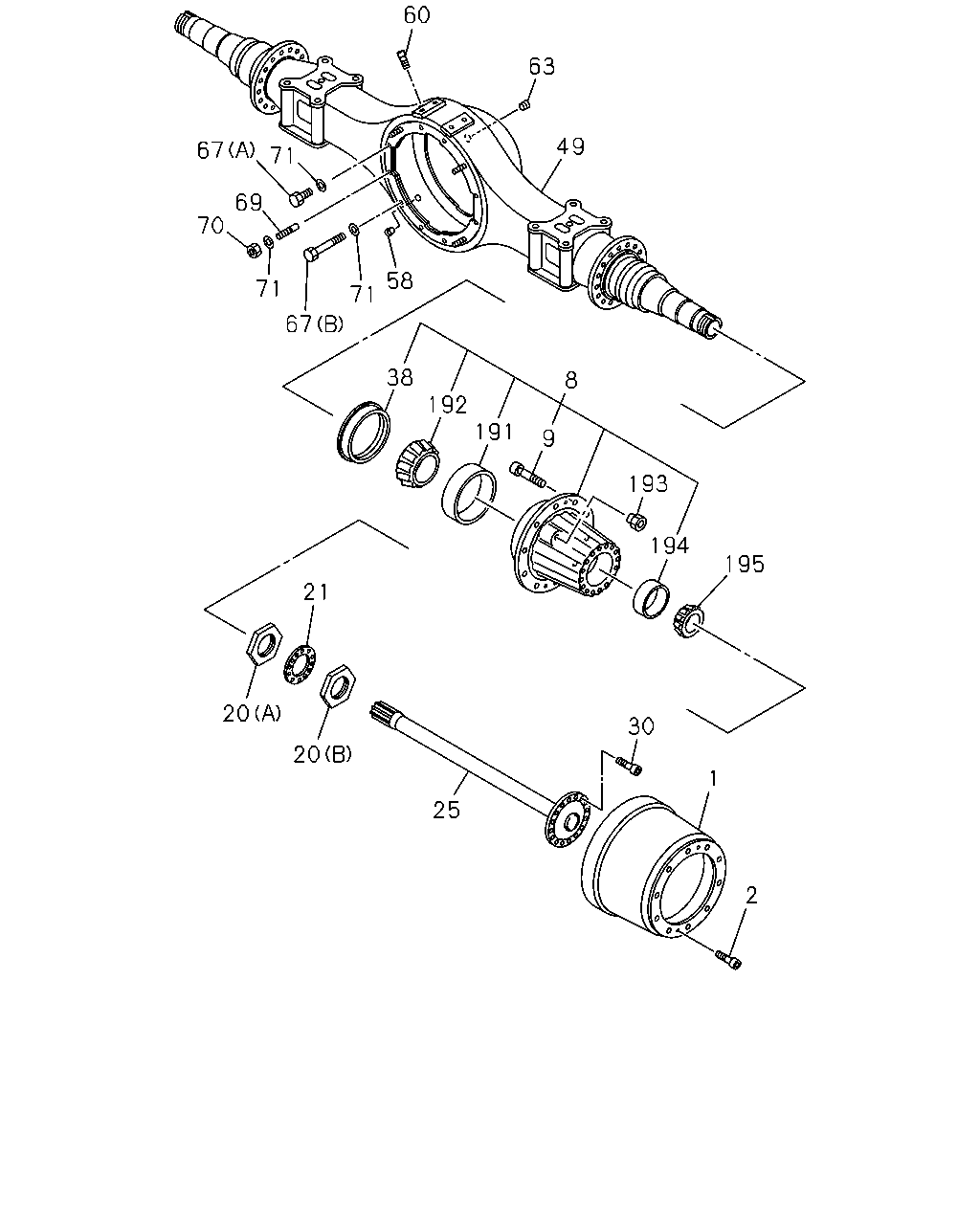

60 63 49 67 71 69 70 58 71 71 67 38 8 192 191 9 193 194 195 21 20 30 20 1 25 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	1-42315-349-0	02	1	9601-9803	●
1	DRUM; BRK,RR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-42315-349-0	02	1	9601-9803		●
1	DRUM; BRK,RR	1-42315-349-0	02	1	9804-0004	●
1	DRUM; BRK,RR FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42315-349-0	02	1	0005-0106	●
1	DRUM; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B)	1-42315-220-4	02	1	0012-0106	●
1	DRUM; BRK,RR	1-42315-220-4	02	1	0107-	●
1	DRUM; BRK,RR HEAVY DUTY PACKAGE TRUCK<RD2>	1-42315-350-0	02	1	9601-9803		●
2	BOLT; BRK DRUM	1-42319-146-0	04	1	9601-9803	●	●
2	BOLT; BRK DRUM	1-42319-146-0	04	1	9804-0004	●
2	BOLT; BRK DRUM FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42319-146-0	04	1	0005-0106	●
8	HUB; RR AXLE	1-42311-113-0	02	1	9601-9803	●
8	HUB; RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-42311-113-0	02	1	9601-9803		●
8	HUB; RR AXLE	1-42311-113-0	02	1	9804-0004	●
8	HUB; RR AXLE FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42311-113-0	02	1	0005-0106	●
8	HUB; RR AXLE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B)	1-42311-085-0	02	1	0012-0106	●
8	HUB; RR AXLE	1-42311-085-0	02	1	0107-	●
8	HUB; RR AXLE HEAVY DUTY PACKAGE TRUCK<RD2>	1-42311-114-0	02	1	9601-9803		●
9	PIN; WHEEL,RR AXLE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	0012-0106	●
9	PIN; WHEEL,RR AXLE M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	0107-0210	●
9	PIN; WHEEL,RR AXLE M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0211-	●
9	PIN; WHEEL,RR AXLE	1-42337-053-0	20	1	9601-9803	●	●
9	PIN; WHEEL,RR AXLE	1-42337-053-0	20	1	9804-0004	●
9	PIN; WHEEL,RR AXLE FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42337-053-0	20	1	0005-0106	●
20	NUT; BRG,RR HUB FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) (C) M88	9-09843-062-2	02	1	0012-0106	●
20	NUT; BRG,RR HUB (C) M88	9-09843-062-2	02	1	0107-	●
20	NUT; BRG,RR HUB (A)	1-42179-011-0	02	1	9601-9803	●	●
20	NUT; BRG,RR HUB (A)	1-42179-011-0	02	1	9804-0004	●
20	NUT; BRG,RR HUB FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) (A)	1-42179-011-0	02	1	0005-0106	●
20	NUT; BRG,RR HUB (B)	1-42179-013-0	02	1	9601-9803	●	●
20	NUT; BRG,RR HUB (B)	1-42179-013-0	02	1	9804-0004	●
20	NUT; BRG,RR HUB FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) (B)	1-42179-013-0	02	1	0005-0106	●
21	WASHER; LK,BRG NUT FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) ID=88	9-09854-112-0	02	1	0012-0106	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0107-	●
21	WASHER; LK,BRG NUT	1-42179-012-0	02	1	9601-9803	●	●
21	WASHER; LK,BRG NUT	1-42179-012-0	02	1	9804-0004	●
21	WASHER; LK,BRG NUT FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42179-012-0	02	1	0005-0106	●
25	SHAFT; AXLE,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) L=1039	1-42171-414-0	02	1	0012-0106	●
25	SHAFT; AXLE,RR L=1039	1-42171-414-0	02	1	0107-0910	●
25	SHAFT; AXLE,RR L=1050	8-98146-111-0	02	1	0911-	●
25	SHAFT; AXLE,RR	1-42171-482-0	01	1	9601-9803	●	●
25	SHAFT; AXLE,RR	1-42171-482-0	01	1	9804-0004	●
25	SHAFT; AXLE,RR FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42171-482-0	01	1	0005-0106	●
25	SHAFT; AXLE,RR	1-42171-483-0	01	1	9601-9803	●	●
25	SHAFT; AXLE,RR	1-42171-483-0	01	1	9804-0004	●
25	SHAFT; AXLE,RR FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42171-483-0	01	1	0005-0106	●
30	BOLT; HUB TO AXLE SHAFT FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) M14X58	1-09000-582-0	20	1	0012-0106	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	0107-	●
30	BOLT; HUB TO AXLE SHAFT	1-42179-008-0	32	1	9601-9803	●	●
30	BOLT; HUB TO AXLE SHAFT	1-42179-008-0	32	1	9804-0004	●
30	BOLT; HUB TO AXLE SHAFT FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42179-008-0	32	1	0005-0106	●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) NOK	1-09625-265-0	02	1	0012-0106	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	0107-	●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) TKK	1-09625-350-0	02	1	0012-0106	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	0107-	●
38	SEAL; OIL,RR HUB,INNER	1-42319-148-0	02	1	9601-9803	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-148-0	02	1	9804-0004	●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42319-148-0	02	1	0005-0106	●
49	CASE; RR AXLE	1-42160-303-0	01	1	9601-9803	●
49	CASE; RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-42160-303-0	01	1	9601-9803		●
49	CASE; RR AXLE	1-42160-303-0	01	1	9804-0004	●
49	CASE; RR AXLE FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42160-303-0	01	1	0005-0106	●
49	CASE; RR AXLE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B)	1-42190-175-0	01	1	0012-0106	●
49	CASE; RR AXLE	1-42190-175-0	01	1	0107-	●
49	CASE; RR AXLE HEAVY DUTY PACKAGE TRUCK<RD2>	1-42160-305-0	01	1	9601-9803		●
58	PLUG; DRAIN,AXLE CASE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) M24X17 FLANGE	1-09604-023-0	01	1	0012-0106	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0107-	●
58	PLUG; DRAIN,AXLE CASE	1-42119-075-0	01	1	9601-9803	●	●
58	PLUG; DRAIN,AXLE CASE	1-42119-075-0	01	1	9804-0004	●
58	PLUG; DRAIN,AXLE CASE FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42119-075-0	01	1	0005-0106	●
60	BREATHER; RR AXLE CASE EXC. HUB LUBRICATION OIL BATH<C5K>	1-09893-016-0	01	1	0012-0106	●
60	BREATHER; RR AXLE CASE	1-09893-016-0	01	1	0107-	●
60	BREATHER; RR AXLE CASE	1-09893-024-0	01	1	9601-9803	●	●
60	BREATHER; RR AXLE CASE	1-09893-024-0	01	1	9804-0004	●
60	BREATHER; RR AXLE CASE	1-09893-024-0	01	1	0005-0011	●
60	BREATHER; RR AXLE CASE HUB LUBRICATION OIL BATH<C5K>	1-09893-024-0	01	1	0012-0106	●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) M24X17 FLANGE	1-09604-022-0	01	1	0012-0106	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0107-	●
63	PLUG; OIL FILLER,AXLE CASE	1-42119-079-0	01	1	9601-9803	●	●
63	PLUG; OIL FILLER,AXLE CASE	1-42119-079-0	01	1	9804-0004	●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42119-079-0	01	1	0005-0106	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) (C) M16X45	0-20801-645-0	02	1	0012-0106	●
67	BOLT; FINAL DRIVE SETTING (C) M16X45	0-20801-645-0	02	1	0107-0211	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) (C) M16X70	9-91066-670-0	04	1	0012-0106	●
67	BOLT; FINAL DRIVE SETTING (C) M16X70	9-91066-670-0	04	1	0107-0512	●
67	BOLT; FINAL DRIVE SETTING (C) M16X70	0-10956-670-0	04	1	0601-	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) (C) M16X40	9-92061-640-0	08	1	0012-0106	●
67	BOLT; FINAL DRIVE SETTING (C) M16X40	9-92061-640-0	08	1	0107-0512	●
67	BOLT; FINAL DRIVE SETTING (C) M16X40	0-20951-640-0	08	1	0601-	●
67	BOLT; FINAL DRIVE SETTING (B)	1-42119-076-0	04	1	9601-9803	●	●
67	BOLT; FINAL DRIVE SETTING (B)	1-42119-076-0	04	1	9804-0004	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) (B)	1-42119-076-0	04	1	0005-0106	●
67	BOLT; FINAL DRIVE SETTING (A) M16X50	1-42119-077-0	04	1	9601-9803	●	●
67	BOLT; FINAL DRIVE SETTING (A) M16X50	1-42119-077-0	04	1	9804-0004	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) (A) M16X50	1-42119-077-0	04	1	0005-0106	●
69	STUD; AXLE CASE M16 L=68	1-42119-078-0	04	1	9601-9803	●	●
69	STUD; AXLE CASE M16 L=68	1-42119-078-0	04	1	9804-0004	●
69	STUD; AXLE CASE FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) M16 L=68	1-42119-078-0	04	1	0005-0106	●
70	NUT; CARRIER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) M16	9-99111-416-0	02	1	0012-0106	●
70	NUT; CARRIER M16	9-99111-416-0	02	1	0107-0211	●
70	NUT; CARRIER	1-42119-073-0	04	1	9601-9803	●	●
70	NUT; CARRIER	1-42119-073-0	04	1	9804-0004	●
70	NUT; CARRIER FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42119-073-0	04	1	0005-0106	●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) ID=16.2	9-09150-816-0	12	1	0012-0106	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	0107-0603	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	0604-	●
71	WASHER; LK,FINAL DRIVE SETTING	1-42119-074-0	12	1	9601-9803	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-42119-074-0	12	1	9804-0004	●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42119-074-0	12	1	0005-0106	●
191	CUP; BRG,HUB INNER	1-41229-131-0	02	1	9601-9803	●	●
191	CUP; BRG,HUB INNER	1-41229-131-0	02	1	9804-0004	●
191	CUP; BRG,HUB INNER FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-41229-131-0	02	1	0005-0106	●
192	CONE; BRG,HUB INNER	1-41519-032-0	02	1	9601-9803	●
192	CONE; BRG,HUB INNER EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-41519-032-0	02	1	9601-9803		●
192	CONE; BRG,HUB INNER	1-41519-032-0	02	1	9804-0004	●
192	CONE; BRG,HUB INNER FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-41519-032-0	02	1	0005-0106	●
192	CONE; BRG,HUB INNER HEAVY DUTY PACKAGE TRUCK<RD2>	1-42319-147-0	02	1	9601-9803		●
193	PLUG; HUB,RR AXLE	1-42319-149-0	02	1	9601-9803	●	●
193	PLUG; HUB,RR AXLE	1-42319-149-0	02	1	9804-0004	●
193	PLUG; HUB,RR AXLE FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42319-149-0	02	1	0005-0106	●
194	CUP; BRG,HUB OUTER	1-42179-010-0	02	1	9601-9803	●	●
194	CUP; BRG,HUB OUTER	1-42179-010-0	02	1	9804-0004	●
194	CUP; BRG,HUB OUTER FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42179-010-0	02	1	0005-0106	●
195	CONE; BRG,HUB OUTER	1-42179-009-0	02	1	9601-9803	●	●
195	CONE; BRG,HUB OUTER	1-42179-009-0	02	1	9804-0004	●
195	CONE; BRG,HUB OUTER FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42179-009-0	02	1	0005-0106	●

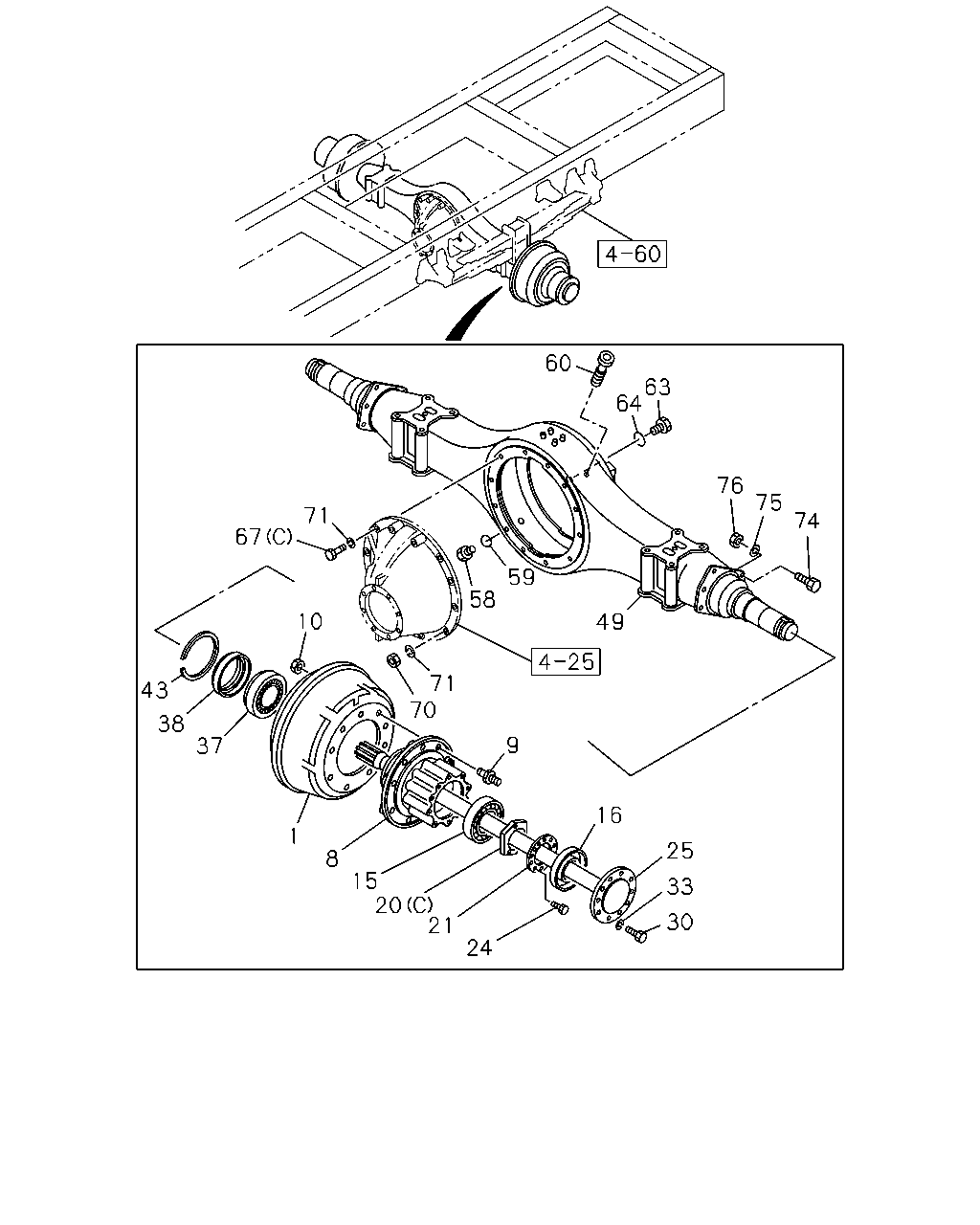

60 63 64 76 75 71 74 67 59 58 10 49 71 70 43 38 9 37 16 1 25 8 15 20 21 33 30 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	1-42315-349-0	02	1	9601-9803	●
1	DRUM; BRK,RR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-42315-349-0	02	1	9601-9803		●
1	DRUM; BRK,RR	1-42315-349-0	02	1	9804-0004	●
1	DRUM; BRK,RR FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42315-349-0	02	1	0005-0106	●
1	DRUM; BRK,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B)	1-42315-220-4	02	1	0012-0106	●
1	DRUM; BRK,RR	1-42315-220-4	02	1	0107-	●
1	DRUM; BRK,RR HEAVY DUTY PACKAGE TRUCK<RD2>	1-42315-350-0	02	1	9601-9803		●
8	HUB; RR AXLE	1-42311-113-0	02	1	9601-9803	●
8	HUB; RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-42311-113-0	02	1	9601-9803		●
8	HUB; RR AXLE	1-42311-113-0	02	1	9804-0004	●
8	HUB; RR AXLE FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42311-113-0	02	1	0005-0106	●
8	HUB; RR AXLE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B)	1-42311-085-0	02	1	0012-0106	●
8	HUB; RR AXLE	1-42311-085-0	02	1	0107-	●
8	HUB; RR AXLE HEAVY DUTY PACKAGE TRUCK<RD2>	1-42311-114-0	02	1	9601-9803		●
9	PIN; WHEEL,RR AXLE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	0012-0106	●
9	PIN; WHEEL,RR AXLE M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	20	1	0107-0210	●
9	PIN; WHEEL,RR AXLE M22X59.8,M22X53.5 RH THREAD	1-42337-069-1	20	1	0211-	●
9	PIN; WHEEL,RR AXLE	1-42337-053-0	20	1	9601-9803	●	●
9	PIN; WHEEL,RR AXLE	1-42337-053-0	20	1	9804-0004	●
9	PIN; WHEEL,RR AXLE FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42337-053-0	20	1	0005-0106	●
10	NUT; WHEEL PIN,RR AXLE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) M22	1-09400-071-0	20	1	0012-0106	●
10	NUT; WHEEL PIN,RR AXLE M22	1-09400-071-0	20	1	0107-	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1209-	●
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) JTEKT	1-09812-232-0	02	1	0012-0106	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	0107-	●
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) NOK	1-09625-226-1	02	1	0012-0102	●
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) TKK	1-09625-444-0	02	1	0012-0106	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	0107-	●
20	NUT; BRG,RR HUB FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) (C) M88	9-09843-062-2	02	1	0012-0106	●
20	NUT; BRG,RR HUB (C) M88	9-09843-062-2	02	1	0107-	●
20	NUT; BRG,RR HUB (A)	1-42179-011-0	02	1	9601-9803	●	●
20	NUT; BRG,RR HUB (A)	1-42179-011-0	02	1	9804-0004	●
20	NUT; BRG,RR HUB FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) (A)	1-42179-011-0	02	1	0005-0106	●
20	NUT; BRG,RR HUB (B)	1-42179-013-0	02	1	9601-9803	●	●
20	NUT; BRG,RR HUB (B)	1-42179-013-0	02	1	9804-0004	●
20	NUT; BRG,RR HUB FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) (B)	1-42179-013-0	02	1	0005-0106	●
21	WASHER; LK,BRG NUT FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) ID=88	9-09854-112-0	02	1	0012-0106	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0107-	●
21	WASHER; LK,BRG NUT	1-42179-012-0	02	1	9601-9803	●	●
21	WASHER; LK,BRG NUT	1-42179-012-0	02	1	9804-0004	●
21	WASHER; LK,BRG NUT FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42179-012-0	02	1	0005-0106	●
24	BOLT; LK WASHER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) M6X16 FLANGE	0-28680-616-0	06	1	0012-0106	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	06	1	0107-0512	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0601-	●
25	SHAFT; AXLE,RR FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) L=1039	1-42171-414-0	02	1	0012-0106	●
25	SHAFT; AXLE,RR L=1039	1-42171-414-0	02	1	0107-0910	●
25	SHAFT; AXLE,RR L=1050	8-98146-111-0	02	1	0911-	●
25	SHAFT; AXLE,RR	1-42171-482-0	01	1	9601-9803	●	●
25	SHAFT; AXLE,RR	1-42171-482-0	01	1	9804-0004	●
25	SHAFT; AXLE,RR FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42171-482-0	01	1	0005-0106	●
25	SHAFT; AXLE,RR	1-42171-483-0	01	1	9601-9803	●	●
25	SHAFT; AXLE,RR	1-42171-483-0	01	1	9804-0004	●
25	SHAFT; AXLE,RR FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42171-483-0	01	1	0005-0106	●
30	BOLT; HUB TO AXLE SHAFT FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) M14X58	1-09000-582-0	20	1	0012-0106	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	0107-	●
30	BOLT; HUB TO AXLE SHAFT	1-42179-008-0	32	1	9601-9803	●	●
30	BOLT; HUB TO AXLE SHAFT	1-42179-008-0	32	1	9804-0004	●
30	BOLT; HUB TO AXLE SHAFT FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42179-008-0	32	1	0005-0106	●
33	WASHER; AXLE SHAFT FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) ID=14.2	9-09150-814-0	20	1	0012-0106	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	20	1	0107-0603	●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	0604-	●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1209-	●
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) JTEKT	1-09812-233-0	02	1	0012-0106	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	0107-	●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) NOK	1-09625-265-0	02	1	0012-0106	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	0107-	●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) TKK	1-09625-350-0	02	1	0012-0106	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	0107-	●
38	SEAL; OIL,RR HUB,INNER	1-42319-148-0	02	1	9601-9803	●	●
38	SEAL; OIL,RR HUB,INNER	1-42319-148-0	02	1	9804-0004	●
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42319-148-0	02	1	0005-0106	●
43	RING; SNAP,HUB SEAL,RR AXLE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) OD=179	1-09587-057-0	02	1	0012-0106	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0107-	●
49	CASE; RR AXLE	1-42160-303-0	01	1	9601-9803	●
49	CASE; RR AXLE EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-42160-303-0	01	1	9601-9803		●
49	CASE; RR AXLE	1-42160-303-0	01	1	9804-0004	●
49	CASE; RR AXLE FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42160-303-0	01	1	0005-0106	●
49	CASE; RR AXLE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B)	1-42190-175-0	01	1	0012-0106	●
49	CASE; RR AXLE	1-42190-175-0	01	1	0107-	●
49	CASE; RR AXLE HEAVY DUTY PACKAGE TRUCK<RD2>	1-42160-305-0	01	1	9601-9803		●
58	PLUG; DRAIN,AXLE CASE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) M24X17 FLANGE	1-09604-023-0	01	1	0012-0106	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0107-	●
58	PLUG; DRAIN,AXLE CASE	1-42119-075-0	01	1	9601-9803	●	●
58	PLUG; DRAIN,AXLE CASE	1-42119-075-0	01	1	9804-0004	●
58	PLUG; DRAIN,AXLE CASE FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42119-075-0	01	1	0005-0106	●
59	GASKET; DRAIN PLUG FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) ID=26.8	9-09920-605-0	01	1	0012-0106	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0107-	●
60	BREATHER; RR AXLE CASE EXC. HUB LUBRICATION OIL BATH<C5K>	1-09893-016-0	01	1	0012-0106	●
60	BREATHER; RR AXLE CASE	1-09893-016-0	01	1	0107-	●
60	BREATHER; RR AXLE CASE	1-09893-024-0	01	1	9601-9803	●	●
60	BREATHER; RR AXLE CASE	1-09893-024-0	01	1	9804-0004	●
60	BREATHER; RR AXLE CASE	1-09893-024-0	01	1	0005-0011	●
60	BREATHER; RR AXLE CASE HUB LUBRICATION OIL BATH<C5K>	1-09893-024-0	01	1	0012-0106	●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) M24X17 FLANGE	1-09604-022-0	01	1	0012-0106	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0107-	●
63	PLUG; OIL FILLER,AXLE CASE	1-42119-079-0	01	1	9601-9803	●	●
63	PLUG; OIL FILLER,AXLE CASE	1-42119-079-0	01	1	9804-0004	●
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42119-079-0	01	1	0005-0106	●
64	GASKET; OIL FILLER,AXLE CASE FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) ID=26.8	9-09920-605-0	01	1	0012-0106	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0107-	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) (C) M16X45	0-20801-645-0	02	1	0012-0106	●
67	BOLT; FINAL DRIVE SETTING (C) M16X45	0-20801-645-0	02	1	0107-0211	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) (C) M16X70	9-91066-670-0	04	1	0012-0106	●
67	BOLT; FINAL DRIVE SETTING (C) M16X70	9-91066-670-0	04	1	0107-0512	●
67	BOLT; FINAL DRIVE SETTING (C) M16X70	0-10956-670-0	04	1	0601-	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) (C) M16X40	9-92061-640-0	08	1	0012-0106	●
67	BOLT; FINAL DRIVE SETTING (C) M16X40	9-92061-640-0	08	1	0107-0512	●
67	BOLT; FINAL DRIVE SETTING (C) M16X40	0-20951-640-0	08	1	0601-	●
67	BOLT; FINAL DRIVE SETTING (B)	1-42119-076-0	04	1	9601-9803	●	●
67	BOLT; FINAL DRIVE SETTING (B)	1-42119-076-0	04	1	9804-0004	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) (B)	1-42119-076-0	04	1	0005-0106	●
67	BOLT; FINAL DRIVE SETTING (A) M16X50	1-42119-077-0	04	1	9601-9803	●	●
67	BOLT; FINAL DRIVE SETTING (A) M16X50	1-42119-077-0	04	1	9804-0004	●
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N) (A) M16X50	1-42119-077-0	04	1	0005-0106	●
70	NUT; CARRIER FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) M16	9-99111-416-0	02	1	0012-0106	●
70	NUT; CARRIER M16	9-99111-416-0	02	1	0107-0211	●
70	NUT; CARRIER	1-42119-073-0	04	1	9601-9803	●	●
70	NUT; CARRIER	1-42119-073-0	04	1	9804-0004	●
70	NUT; CARRIER FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42119-073-0	04	1	0005-0106	●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) ID=16.2	9-09150-816-0	12	1	0012-0106	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	12	1	0107-0603	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	0604-	●
71	WASHER; LK,FINAL DRIVE SETTING	1-42119-074-0	12	1	9601-9803	●	●
71	WASHER; LK,FINAL DRIVE SETTING	1-42119-074-0	12	1	9804-0004	●
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 43/8 18" ROCKWELL(W6A),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/7 18" ROCKWELL(W6C),FINAL GEAR 45/7 18" ROCKWELL(W6M),FINAL GEAR 41/6 18" ROCKWELL(W6N)	1-42119-074-0	12	1	0005-0106	●
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) M14X50	1-09040-066-0	14	1	0012-0106	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	14	1	0107-1209	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	16	1	1210-	●
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) ID=14.2	9-09150-814-0	16	1	0012-0106	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	16	1	0107-0603	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0604-	●
76	NUT; RR BRK ASM SETTING FINAL GEAR 39/6 16.5"(W1L),FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 39/7 16.5"(W3B) M14	9-99110-514-0	16	1	0012-0106	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	16	1	0107-0512	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0601-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
