◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#24820) — 2907 parça

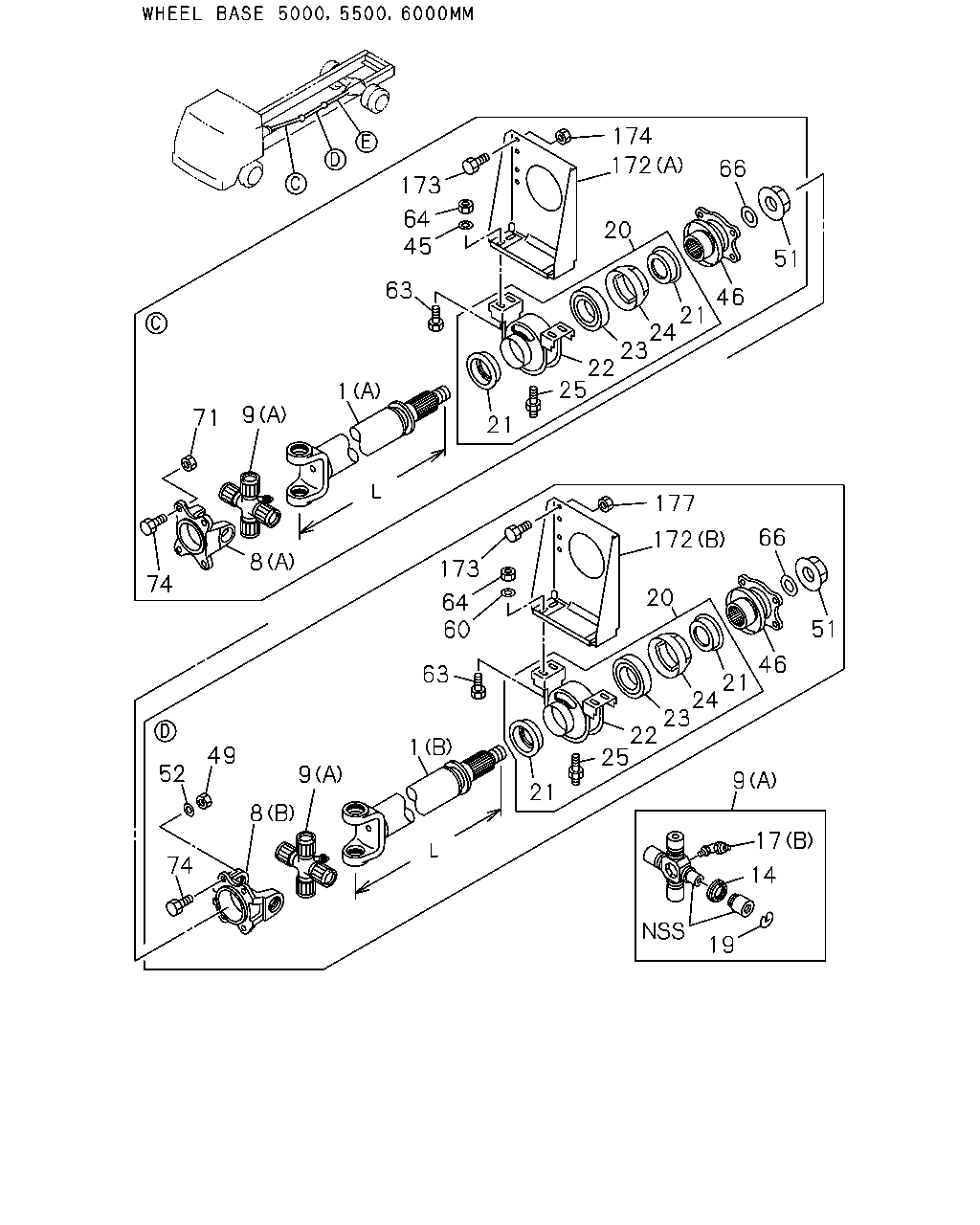

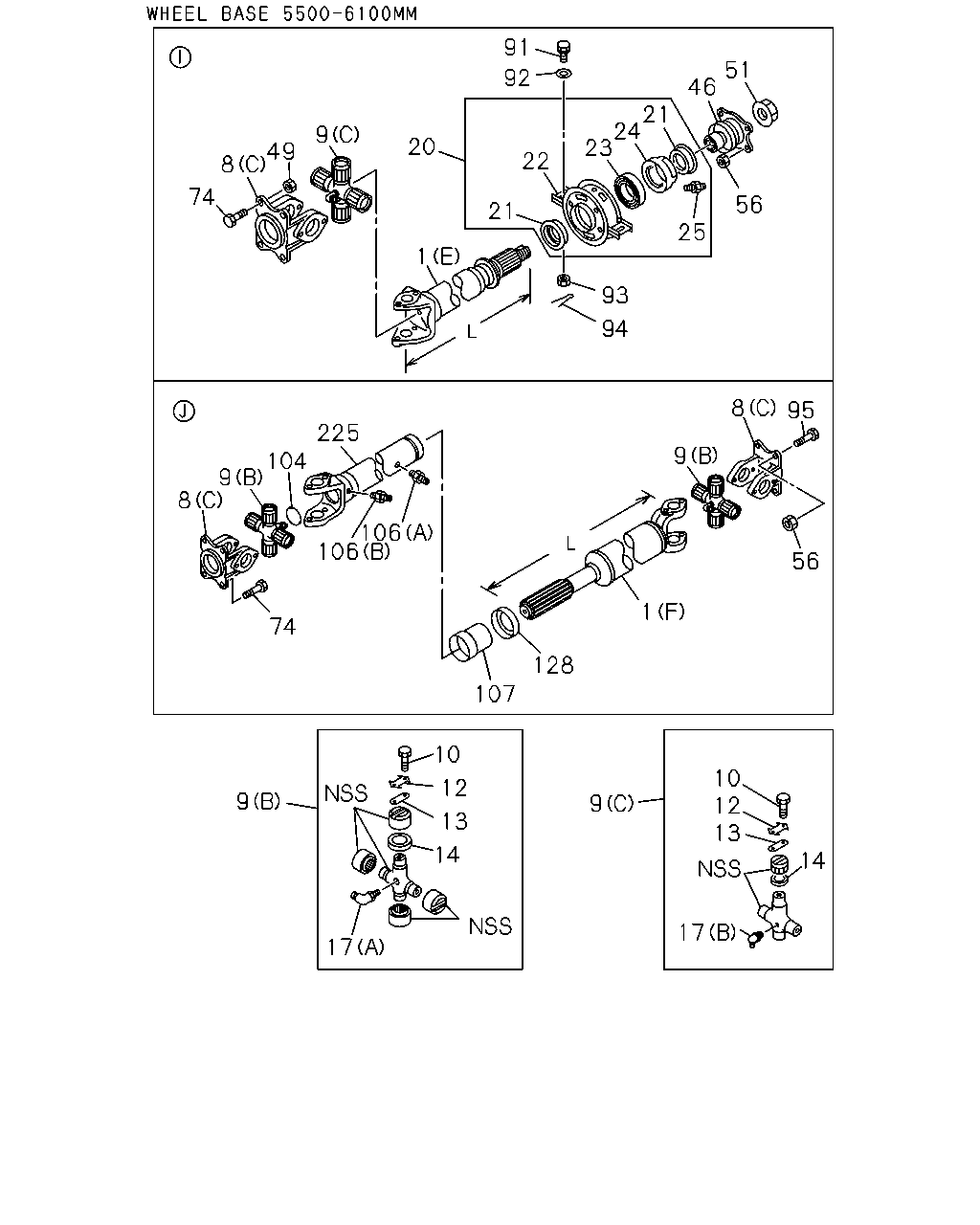

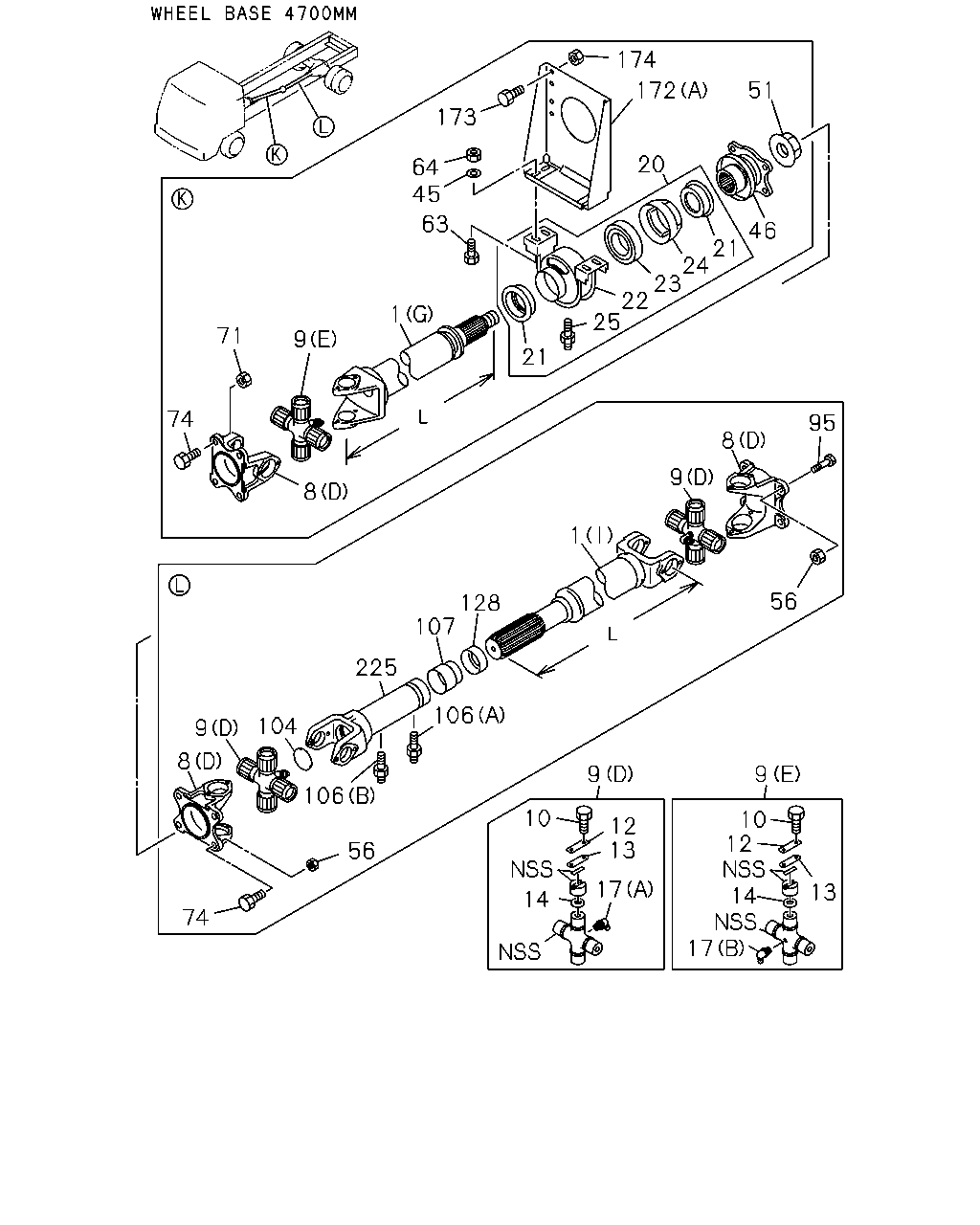

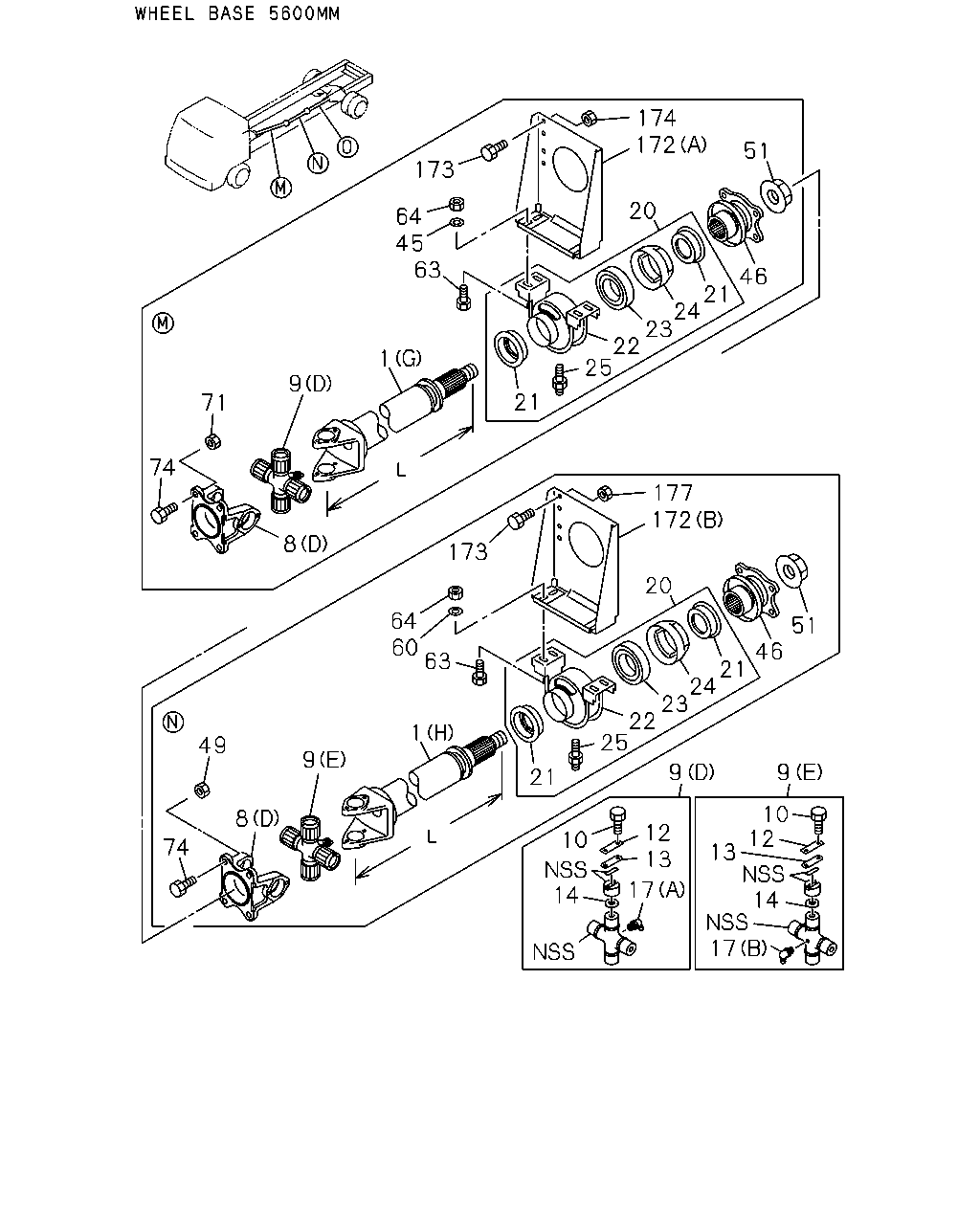

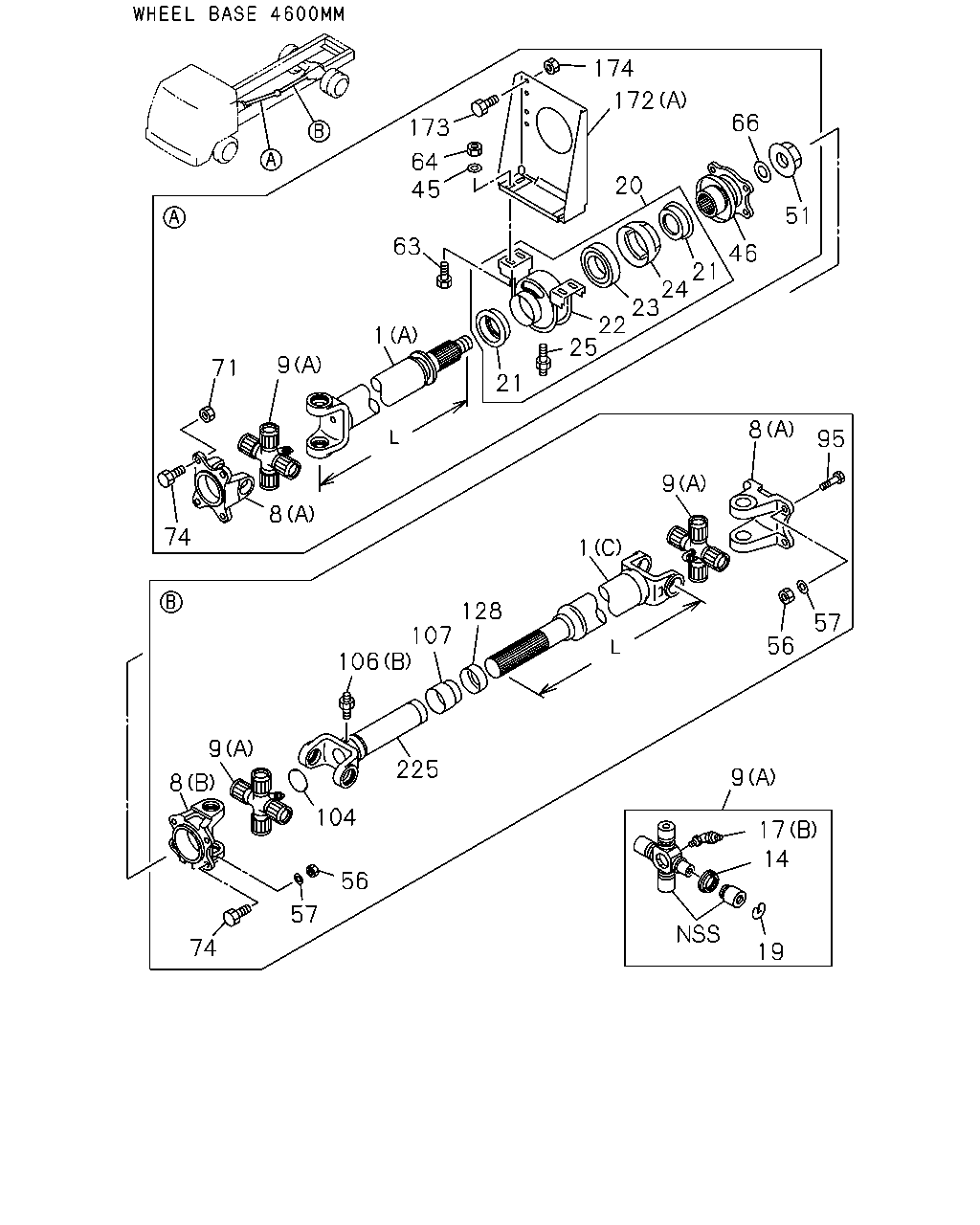

çizim 85617
106 225 9 106 104 95 8 74 9 8 56 1 128 107 9 10 12 13 14 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-0 01 1 9601-9705 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-0 01 1 9706-9803 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-1 01 1 9804-0011 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) EXC. FINAL GEAR 16.5"<B2Y> (C) L=1226 		1-37124-096-1 01 1 0012-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=828 		1-37152-299-0 01 1 9707-9803 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1092 		1-37124-348-0 01 1 9804-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) 		1-37124-954-0 01 1 0107- ● ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P46 PROP SHAFT(C4Z) (C) L=1266 		1-37123-424-3 01 1 0012-0106 ● ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=1096 		1-37151-941-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-1 01 1 9804-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-1 01 1 0005-0106 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=861 		1-37151-943-0 01 1 9601-9803 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=761 		1-37151-772-0 01 1 9601-9803 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=761 		1-37151-772-1 01 1 9804-0106 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=1081 		1-37151-641-1 01 1 9601-0106 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (H) L=1081 		1-37151-907-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=788 		1-37152-042-0 01 1 9601-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=788 		1-37152-042-0 01 1 0107- ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P90 PROP SHAFT(C5T) (F) L=1182 		1-37124-805-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (I) L=1279 		1-37123-909-0 01 1 0107- ● ●
1 SHAFT; PROP
MAL6 M/T<X9G> P90 PROP SHAFT(C5T) (D) L=968 		1-37152-131-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
MAL6 M/T<X9G> P90 PROP SHAFT(C5T) (D) L=968 		1-37152-131-0 01 1 0107- ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1216 		1-37123-465-1 01 1 9601-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1216 		1-37123-465-1 01 1 0005-0011 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) EXC. FINAL GEAR 16.5"<B2Y> (C) L=1216 		1-37123-465-1 01 1 0012-0106 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=886 		1-37152-527-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9601-9609 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9610-9706 ● ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9707-9803 ● ● ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9804-0011 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. FINAL GEAR 16.5"<B2Y> (F) L=1132 		1-37124-185-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=646 		1-37152-221-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9804-0106 ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y2L) P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9804-0106 ● ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y2L) P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 0107- ● ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y3Y) P90 PROP SHAFT(C5T) (D) L=773 		1-37152-240-0 01 1 9904-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=1346 		1-37152-057-1 01 1 9601-0004 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1288 		1-37152-043-0 01 1 9601-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1288 		1-37152-043-0 01 1 0107- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=621 		1-37151-483-0 01 1 9706-9803 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=526 		1-37152-007-0 01 1 9706-9803 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=811 		1-37151-355-0 01 1 9706-9803 ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 02 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9601-9705 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9706-9803 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 0005-0106 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 01 1 0107- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9601-9609 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9610-9706 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9707-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 0005-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9601-9706 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9601-9706 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9707-9803 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9707-9803 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 9804-0004 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0005-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9804-0004 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-069-0 AR 1 9804-9809 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-102-0 AR 1 9810-0106 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-091-0 AR 1 9601-0106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-092-0 AR 1 9601-0106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-069-0 AR 1 9601-9803 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-094-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (E) 		1-37300-095-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-091-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-092-0 AR 1 0107- ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) M10X20 		9-02061-020-0 AR 1 9601-0106 ● ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 AR 1 0107-0512 ● ● ●
10 BOLT; UJT
M10X20 		0-20951-020-0 AR 1 0601- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37356-008-0 AR 1 9601-0106 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 AR 1 0107- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37356-008-0 AR 1 0107- ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 AR 1 9601-0106 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 AR 1 0107- ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 AR 1 0107- ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) 		1-37319-012-0 AR 1 9810-0106 ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) 		1-37249-131-0 AR 1 9601-0106 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) 		9-37352-023-0 AR 1 0107- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) 		1-37249-131-0 AR 1 0107- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 9804-0106 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 9601-0106 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 9601-9803 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0107-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 0107-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601- ● ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-9609 ● ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 9601-9609 ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9610-0106 ● ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 9610-0106 ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9601-9609 ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9610-9803 ● ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9804-0004 ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 0005-0106 ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 08 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9601-9705 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9601-9705 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9706-9803 ● ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9706-9803 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9804-0004 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9804-0004 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0005-0106 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0005-0106 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 9601-0106 ● ● ●
74 BOLT; YOKE,TRANS
ZF 9S109 OD M/T(Y2L) M16X48 		1-09000-383-0 04 1 9601-0106 ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 9601-0106 ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
ZF 9S109 OD M/T(Y2L) M16X48 		1-09000-383-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0107- ● ●
95 BOLT; YOKE,FINAL
FINAL GEAR 16.5"<B2Y> M16X48 		1-09000-383-0 04 1 0012-0106 ● ● ●
95 BOLT; YOKE,FINAL
M16X48 		1-09000-383-0 04 1 0107- ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) 		1-09600-064-0 01 1 9601-9705 ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) 		1-09600-064-0 01 1 9706-9803 ● ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) 		1-09600-064-0 01 1 9804-0004 ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) 		1-09600-064-0 01 1 0005-0106 ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 9601-9609 ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 9610-9706 ● ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 9707-9803 ● ● ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 9804-0106 ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0107- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9601-9705 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9706-9803 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9804-0106 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0107-0512 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 9601-9609 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 9610-9706 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 9707-9803 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 9804-0106 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) MT6 STRAIGHT 		1-09380-006-0 01 1 0107- ● ● ●
107 COVER; RET,SLEEVE
P46 PROP SHAFT(C4Z) 		1-37249-060-0 01 1 9601-9705 ● ● ●
107 COVER; RET,SLEEVE
P46 PROP SHAFT(C4Z) 		1-37249-060-0 01 1 9706-9803 ● ● ● ●
107 COVER; RET,SLEEVE
P46 PROP SHAFT(C4Z) 		1-37249-060-0 01 1 9804-0004 ● ● ●
107 COVER; RET,SLEEVE
P46 PROP SHAFT(C4Z) 		1-37249-060-0 01 1 0005-0106 ● ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-1 01 1 0107- ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-0 01 1 9601-9609 ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-0 01 1 9610-9706 ● ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-0 01 1 9707-9803 ● ● ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-0 01 1 9804-0106 ● ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-1 01 1 0107- ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-015-0 01 1 9601-9705 ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-015-0 01 1 9706-9803 ● ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-015-0 01 1 9804-9811 ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-024-0 01 1 9812-0004 ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-024-0 01 1 0005-0106 ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) 		1-37247-021-0 01 1 0107- ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 9601-9609 ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 9610-9706 ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 9707-9803 ● ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 9804-0106 ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 0107- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-1 01 1 9601-9705 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-1 01 1 9706-9803 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-2 01 1 9804-9811 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-129-0 01 1 9812-9902 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-2 01 1 9903-0004 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-2 01 1 0005-0106 ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) L=332 		1-37241-109-1 01 1 0107- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 9601-9609 ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 9610-9706 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 9707-9803 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 9804-0106 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 0107- ● ●
çizim 85649
78 51 46 79 21 24 23 20 22 56 21 25 1 80 9 81 71 74 8 10 12 13 9 14 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-0 01 1 9601-9705 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-0 01 1 9706-9803 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-1 01 1 9804-0011 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) EXC. FINAL GEAR 16.5"<B2Y> (C) L=1226 		1-37124-096-1 01 1 0012-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=828 		1-37152-299-0 01 1 9707-9803 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1092 		1-37124-348-0 01 1 9804-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) 		1-37124-954-0 01 1 0107- ● ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P46 PROP SHAFT(C4Z) (C) L=1266 		1-37123-424-3 01 1 0012-0106 ● ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=1096 		1-37151-941-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-1 01 1 9804-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-1 01 1 0005-0106 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=861 		1-37151-943-0 01 1 9601-9803 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=761 		1-37151-772-0 01 1 9601-9803 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=761 		1-37151-772-1 01 1 9804-0106 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=1081 		1-37151-641-1 01 1 9601-0106 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (H) L=1081 		1-37151-907-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=788 		1-37152-042-0 01 1 9601-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=788 		1-37152-042-0 01 1 0107- ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P90 PROP SHAFT(C5T) (F) L=1182 		1-37124-805-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (I) L=1279 		1-37123-909-0 01 1 0107- ● ●
1 SHAFT; PROP
MAL6 M/T<X9G> P90 PROP SHAFT(C5T) (D) L=968 		1-37152-131-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
MAL6 M/T<X9G> P90 PROP SHAFT(C5T) (D) L=968 		1-37152-131-0 01 1 0107- ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1216 		1-37123-465-1 01 1 9601-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1216 		1-37123-465-1 01 1 0005-0011 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) EXC. FINAL GEAR 16.5"<B2Y> (C) L=1216 		1-37123-465-1 01 1 0012-0106 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=886 		1-37152-527-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9601-9609 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9610-9706 ● ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9707-9803 ● ● ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9804-0011 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. FINAL GEAR 16.5"<B2Y> (F) L=1132 		1-37124-185-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=646 		1-37152-221-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9804-0106 ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y2L) P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9804-0106 ● ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y2L) P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 0107- ● ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y3Y) P90 PROP SHAFT(C5T) (D) L=773 		1-37152-240-0 01 1 9904-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=1346 		1-37152-057-1 01 1 9601-0004 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1288 		1-37152-043-0 01 1 9601-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1288 		1-37152-043-0 01 1 0107- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=621 		1-37151-483-0 01 1 9706-9803 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=526 		1-37152-007-0 01 1 9706-9803 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=811 		1-37151-355-0 01 1 9706-9803 ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 02 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9601-9705 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9706-9803 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 0005-0106 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 01 1 0107- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9601-9609 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9610-9706 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9707-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 0005-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9601-9706 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9601-9706 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9707-9803 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9707-9803 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 9804-0004 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0005-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9804-0004 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-069-0 AR 1 9804-9809 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-102-0 AR 1 9810-0106 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-091-0 AR 1 9601-0106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-092-0 AR 1 9601-0106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-069-0 AR 1 9601-9803 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-094-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (E) 		1-37300-095-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-091-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-092-0 AR 1 0107- ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) M10X20 		9-02061-020-0 AR 1 9601-0106 ● ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 AR 1 0107-0512 ● ● ●
10 BOLT; UJT
M10X20 		0-20951-020-0 AR 1 0601- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37356-008-0 AR 1 9601-0106 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 AR 1 0107- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37356-008-0 AR 1 0107- ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 AR 1 9601-0106 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 AR 1 0107- ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 AR 1 0107- ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) 		1-37319-012-0 AR 1 9810-0106 ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) 		1-37249-131-0 AR 1 9601-0106 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) 		9-37352-023-0 AR 1 0107- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) 		1-37249-131-0 AR 1 0107- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 9804-0106 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 9601-0106 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 9601-9803 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0107-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 0107-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9601-9705 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9601-9705 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9706-9803 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9706-9803 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9804-0004 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9804-0004 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 0005-0106 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 0005-0106 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0107- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0107- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9601-9706 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9601-9706 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9707-0106 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9707-0106 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0107- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0107- ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9601-9705 ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9601-9705 ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9706-9803 ● ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9706-9803 ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9804-0004 ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9804-0004 ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 0005-0106 ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 0005-0106 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0107- ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0107- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9601-9706 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9601-9706 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9707-0106 ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9707-0106 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0107- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0107- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9601-9705 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9601-9705 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9706-9803 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9706-9803 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9804-0004 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9804-0004 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 0005-0106 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 0005-0106 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0107- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0107- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9601-9706 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9601-9706 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9707-0106 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9707-0106 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0107- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0107- ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9601-9705 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9601-9705 ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9706-9803 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9706-9803 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9804-0004 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9804-0004 ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 0005-0106 ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 0005-0106 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0107- ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0107- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9601-9706 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9601-9706 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9707-0106 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9707-0106 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0107- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0107- ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9601-9705 ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9601-9705 ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9706-9803 ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9706-9803 ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9804-0004 ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9804-0004 ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 0005-0106 ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 0005-0106 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0107- ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0107- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9601-9706 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9601-9706 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9707-0106 ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9707-0106 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0107- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0107- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9601-9705 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9601-9705 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9706-9803 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9706-9803 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9804-0106 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9804-0106 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0107- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0107- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9601-9705 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9601-9705 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9706-9803 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9706-9803 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9804-0004 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9804-0004 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 0005-0106 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 0005-0106 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0107- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0107- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 9601-9706 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 9601-9706 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 9707-0106 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 9707-0106 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0107- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0107- ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 H=23 		1-09449-068-0 01 1 9601-9705 ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 H=23 		1-09449-068-0 01 1 9601-9705 ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 H=23 		1-09449-068-0 01 1 9706-9801 ● ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 H=23 		1-09449-068-0 01 1 9706-9801 ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 9802-9803 ● ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 9802-9803 ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 9804-0004 ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 9804-0004 ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 0005-0106 ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 0005-0106 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0107- ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0107- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9601-9706 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9601-9706 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9707-0106 ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9707-0106 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0107- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0107- ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-9609 ● ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 9601-9609 ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9610-0106 ● ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 9610-0106 ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9601-9609 ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9610-9803 ● ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9804-0004 ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 0005-0106 ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 08 1 0107- ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-9803 ● ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9804-0106 ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9601-9705 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9601-9705 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9706-9803 ● ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9706-9803 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9804-0004 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9804-0004 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0005-0106 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0005-0106 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 9601-0106 ● ● ●
74 BOLT; YOKE,TRANS
ZF 9S109 OD M/T(Y2L) M16X48 		1-09000-383-0 04 1 9601-0106 ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 9601-0106 ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
ZF 9S109 OD M/T(Y2L) M16X48 		1-09000-383-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0107- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 9601-9803 ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 9804-0004 ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 0005-0106 ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0005-0106 ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 0107- ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0107- ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) ID=17 		1-09503-241-0 02 1 9601-9803 ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) ID=17 		1-09503-241-0 02 1 9804-0004 ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) ID=17 		1-09503-241-0 02 1 0005-0106 ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-0 02 1 0005-0106 ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) ID=17 		1-09503-241-1 02 1 0107- ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0107- ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16 SLOTTED 		9-99116-516-0 02 1 9601-9803 ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16 SLOTTED 		9-99116-516-0 02 1 9804-0004 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16 SLOTTED 		9-99116-516-0 02 1 0005-0106 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 0005-0106 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16 SLOTTED 		9-99116-516-0 02 1 0107-0605 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 0107-0605 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16 SLOTTED 		0-91116-516-0 02 1 0606-1204 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0606-1204 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) OD=3.7 L=25 		9-08114-025-0 02 1 9601-9803 ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) OD=3.7 L=25 		9-08114-025-0 02 1 9804-0004 ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) OD=3.7 L=25 		9-08114-025-0 02 1 0005-0106 ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0005-0106 ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) OD=3.7 L=25 		9-08114-025-0 02 1 0107-0606 ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0107-0606 ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) OD=3.7 L=25 		0-81124-025-0 02 1 0607- ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0607- ●
çizim 85653
95 8 9 1 128 107 56 225 106 104 9 8 106 56 74 9 10 12 13 14 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-0 01 1 9601-9705 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-0 01 1 9706-9803 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-1 01 1 9804-0011 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) EXC. FINAL GEAR 16.5"<B2Y> (C) L=1226 		1-37124-096-1 01 1 0012-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=828 		1-37152-299-0 01 1 9707-9803 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1092 		1-37124-348-0 01 1 9804-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) 		1-37124-954-0 01 1 0107- ● ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P46 PROP SHAFT(C4Z) (C) L=1266 		1-37123-424-3 01 1 0012-0106 ● ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=1096 		1-37151-941-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-1 01 1 9804-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-1 01 1 0005-0106 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=861 		1-37151-943-0 01 1 9601-9803 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=761 		1-37151-772-0 01 1 9601-9803 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=761 		1-37151-772-1 01 1 9804-0106 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=1081 		1-37151-641-1 01 1 9601-0106 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (H) L=1081 		1-37151-907-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=788 		1-37152-042-0 01 1 9601-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=788 		1-37152-042-0 01 1 0107- ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P90 PROP SHAFT(C5T) (F) L=1182 		1-37124-805-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (I) L=1279 		1-37123-909-0 01 1 0107- ● ●
1 SHAFT; PROP
MAL6 M/T<X9G> P90 PROP SHAFT(C5T) (D) L=968 		1-37152-131-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
MAL6 M/T<X9G> P90 PROP SHAFT(C5T) (D) L=968 		1-37152-131-0 01 1 0107- ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1216 		1-37123-465-1 01 1 9601-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1216 		1-37123-465-1 01 1 0005-0011 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) EXC. FINAL GEAR 16.5"<B2Y> (C) L=1216 		1-37123-465-1 01 1 0012-0106 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=886 		1-37152-527-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9601-9609 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9610-9706 ● ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9707-9803 ● ● ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9804-0011 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. FINAL GEAR 16.5"<B2Y> (F) L=1132 		1-37124-185-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=646 		1-37152-221-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9804-0106 ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y2L) P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9804-0106 ● ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y2L) P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 0107- ● ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y3Y) P90 PROP SHAFT(C5T) (D) L=773 		1-37152-240-0 01 1 9904-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=1346 		1-37152-057-1 01 1 9601-0004 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1288 		1-37152-043-0 01 1 9601-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1288 		1-37152-043-0 01 1 0107- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=621 		1-37151-483-0 01 1 9706-9803 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=526 		1-37152-007-0 01 1 9706-9803 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=811 		1-37151-355-0 01 1 9706-9803 ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 02 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9601-9705 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9706-9803 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 0005-0106 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 01 1 0107- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9601-9609 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9610-9706 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9707-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 0005-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9601-9706 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9601-9706 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9707-9803 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9707-9803 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 9804-0004 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0005-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9804-0004 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-069-0 AR 1 9804-9809 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-102-0 AR 1 9810-0106 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-091-0 AR 1 9601-0106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-092-0 AR 1 9601-0106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-069-0 AR 1 9601-9803 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-094-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (E) 		1-37300-095-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-091-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-092-0 AR 1 0107- ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) M10X20 		9-02061-020-0 AR 1 9601-0106 ● ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 AR 1 0107-0512 ● ● ●
10 BOLT; UJT
M10X20 		0-20951-020-0 AR 1 0601- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37356-008-0 AR 1 9601-0106 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 AR 1 0107- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37356-008-0 AR 1 0107- ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 AR 1 9601-0106 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 AR 1 0107- ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 AR 1 0107- ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) 		1-37319-012-0 AR 1 9810-0106 ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) 		1-37249-131-0 AR 1 9601-0106 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) 		9-37352-023-0 AR 1 0107- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) 		1-37249-131-0 AR 1 0107- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 9804-0106 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 9601-0106 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 9601-9803 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0107-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 0107-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601- ● ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-9609 ● ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 9601-9609 ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9610-0106 ● ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 9610-0106 ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9601-9609 ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9610-9803 ● ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9804-0004 ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 0005-0106 ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 08 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9601-9705 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9601-9705 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9706-9803 ● ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9706-9803 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9804-0004 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9804-0004 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0005-0106 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0005-0106 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 9601-0106 ● ● ●
74 BOLT; YOKE,TRANS
ZF 9S109 OD M/T(Y2L) M16X48 		1-09000-383-0 04 1 9601-0106 ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 9601-0106 ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
ZF 9S109 OD M/T(Y2L) M16X48 		1-09000-383-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0107- ● ●
95 BOLT; YOKE,FINAL
FINAL GEAR 16.5"<B2Y> M16X48 		1-09000-383-0 04 1 0012-0106 ● ● ●
95 BOLT; YOKE,FINAL
M16X48 		1-09000-383-0 04 1 0107- ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) 		1-09600-064-0 01 1 9601-9705 ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) 		1-09600-064-0 01 1 9706-9803 ● ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) 		1-09600-064-0 01 1 9804-0004 ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) 		1-09600-064-0 01 1 0005-0106 ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 9601-9609 ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 9610-9706 ● ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 9707-9803 ● ● ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 9804-0106 ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0107- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9601-9705 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9706-9803 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9804-0106 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0107-0512 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 9601-9609 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 9610-9706 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 9707-9803 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 9804-0106 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) MT6 STRAIGHT 		1-09380-006-0 01 1 0107- ● ● ●
107 COVER; RET,SLEEVE
P46 PROP SHAFT(C4Z) 		1-37249-060-0 01 1 9601-9705 ● ● ●
107 COVER; RET,SLEEVE
P46 PROP SHAFT(C4Z) 		1-37249-060-0 01 1 9706-9803 ● ● ● ●
107 COVER; RET,SLEEVE
P46 PROP SHAFT(C4Z) 		1-37249-060-0 01 1 9804-0004 ● ● ●
107 COVER; RET,SLEEVE
P46 PROP SHAFT(C4Z) 		1-37249-060-0 01 1 0005-0106 ● ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-1 01 1 0107- ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-0 01 1 9601-9609 ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-0 01 1 9610-9706 ● ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-0 01 1 9707-9803 ● ● ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-0 01 1 9804-0106 ● ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-1 01 1 0107- ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-015-0 01 1 9601-9705 ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-015-0 01 1 9706-9803 ● ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-015-0 01 1 9804-9811 ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-024-0 01 1 9812-0004 ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-024-0 01 1 0005-0106 ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) 		1-37247-021-0 01 1 0107- ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 9601-9609 ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 9610-9706 ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 9707-9803 ● ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 9804-0106 ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 0107- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-1 01 1 9601-9705 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-1 01 1 9706-9803 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-2 01 1 9804-9811 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-129-0 01 1 9812-9902 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-2 01 1 9903-0004 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-2 01 1 0005-0106 ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) L=332 		1-37241-109-1 01 1 0107- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 9601-9609 ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 9610-9706 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 9707-9803 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 9804-0106 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 0107- ● ●
çizim 85657
78 51 46 79 21 24 23 20 22 21 25 1 9 80 71 8 74 81 9 10 12 13 14 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-0 01 1 9601-9705 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-0 01 1 9706-9803 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-1 01 1 9804-0011 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) EXC. FINAL GEAR 16.5"<B2Y> (C) L=1226 		1-37124-096-1 01 1 0012-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=828 		1-37152-299-0 01 1 9707-9803 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1092 		1-37124-348-0 01 1 9804-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) 		1-37124-954-0 01 1 0107- ● ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P46 PROP SHAFT(C4Z) (C) L=1266 		1-37123-424-3 01 1 0012-0106 ● ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=1096 		1-37151-941-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-1 01 1 9804-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-1 01 1 0005-0106 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=861 		1-37151-943-0 01 1 9601-9803 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=761 		1-37151-772-0 01 1 9601-9803 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=761 		1-37151-772-1 01 1 9804-0106 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=1081 		1-37151-641-1 01 1 9601-0106 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (H) L=1081 		1-37151-907-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=788 		1-37152-042-0 01 1 9601-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=788 		1-37152-042-0 01 1 0107- ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P90 PROP SHAFT(C5T) (F) L=1182 		1-37124-805-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (I) L=1279 		1-37123-909-0 01 1 0107- ● ●
1 SHAFT; PROP
MAL6 M/T<X9G> P90 PROP SHAFT(C5T) (D) L=968 		1-37152-131-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
MAL6 M/T<X9G> P90 PROP SHAFT(C5T) (D) L=968 		1-37152-131-0 01 1 0107- ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1216 		1-37123-465-1 01 1 9601-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1216 		1-37123-465-1 01 1 0005-0011 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) EXC. FINAL GEAR 16.5"<B2Y> (C) L=1216 		1-37123-465-1 01 1 0012-0106 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=886 		1-37152-527-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9601-9609 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9610-9706 ● ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9707-9803 ● ● ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9804-0011 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. FINAL GEAR 16.5"<B2Y> (F) L=1132 		1-37124-185-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=646 		1-37152-221-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9804-0106 ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y2L) P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9804-0106 ● ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y2L) P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 0107- ● ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y3Y) P90 PROP SHAFT(C5T) (D) L=773 		1-37152-240-0 01 1 9904-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=1346 		1-37152-057-1 01 1 9601-0004 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1288 		1-37152-043-0 01 1 9601-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1288 		1-37152-043-0 01 1 0107- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=621 		1-37151-483-0 01 1 9706-9803 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=526 		1-37152-007-0 01 1 9706-9803 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=811 		1-37151-355-0 01 1 9706-9803 ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 02 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9601-9705 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9706-9803 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 0005-0106 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 01 1 0107- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9601-9609 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9610-9706 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9707-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 0005-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9601-9706 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9601-9706 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9707-9803 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9707-9803 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 9804-0004 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0005-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9804-0004 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-069-0 AR 1 9804-9809 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-102-0 AR 1 9810-0106 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-091-0 AR 1 9601-0106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-092-0 AR 1 9601-0106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-069-0 AR 1 9601-9803 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-094-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (E) 		1-37300-095-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-091-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-092-0 AR 1 0107- ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) M10X20 		9-02061-020-0 AR 1 9601-0106 ● ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 AR 1 0107-0512 ● ● ●
10 BOLT; UJT
M10X20 		0-20951-020-0 AR 1 0601- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37356-008-0 AR 1 9601-0106 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 AR 1 0107- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37356-008-0 AR 1 0107- ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 AR 1 9601-0106 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 AR 1 0107- ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 AR 1 0107- ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) 		1-37319-012-0 AR 1 9810-0106 ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) 		1-37249-131-0 AR 1 9601-0106 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) 		9-37352-023-0 AR 1 0107- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) 		1-37249-131-0 AR 1 0107- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 9804-0106 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 9601-0106 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 9601-9803 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0107-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 0107-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9601-9705 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9601-9705 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9706-9803 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9706-9803 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9804-0004 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9804-0004 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 0005-0106 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 0005-0106 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0107- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0107- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9601-9706 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9601-9706 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9707-0106 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9707-0106 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0107- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0107- ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9601-9705 ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9601-9705 ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9706-9803 ● ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9706-9803 ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9804-0004 ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9804-0004 ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 0005-0106 ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 0005-0106 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0107- ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0107- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9601-9706 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9601-9706 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9707-0106 ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9707-0106 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0107- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0107- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9601-9705 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9601-9705 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9706-9803 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9706-9803 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9804-0004 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9804-0004 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 0005-0106 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 0005-0106 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0107- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0107- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9601-9706 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9601-9706 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9707-0106 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9707-0106 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0107- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0107- ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9601-9705 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9601-9705 ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9706-9803 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9706-9803 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9804-0004 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9804-0004 ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 0005-0106 ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 0005-0106 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0107- ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0107- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9601-9706 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9601-9706 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9707-0106 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9707-0106 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0107- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0107- ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9601-9705 ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9601-9705 ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9706-9803 ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9706-9803 ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9804-0004 ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9804-0004 ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 0005-0106 ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 0005-0106 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0107- ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0107- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9601-9706 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9601-9706 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9707-0106 ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9707-0106 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0107- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0107- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9601-9705 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9601-9705 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9706-9803 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9706-9803 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9804-0106 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9804-0106 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0107- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0107- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9601-9705 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9601-9705 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9706-9803 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9706-9803 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9804-0004 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9804-0004 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 0005-0106 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 0005-0106 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0107- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0107- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 9601-9706 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 9601-9706 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 9707-0106 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 9707-0106 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0107- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0107- ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 H=23 		1-09449-068-0 01 1 9601-9705 ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 H=23 		1-09449-068-0 01 1 9601-9705 ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 H=23 		1-09449-068-0 01 1 9706-9801 ● ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 H=23 		1-09449-068-0 01 1 9706-9801 ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 9802-9803 ● ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 9802-9803 ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 9804-0004 ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 9804-0004 ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 0005-0106 ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 0005-0106 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0107- ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0107- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9601-9706 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9601-9706 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9707-0106 ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9707-0106 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0107- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0107- ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-9803 ● ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9804-0106 ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9601-9705 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9601-9705 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9706-9803 ● ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9706-9803 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9804-0004 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9804-0004 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0005-0106 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0005-0106 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 9601-0106 ● ● ●
74 BOLT; YOKE,TRANS
ZF 9S109 OD M/T(Y2L) M16X48 		1-09000-383-0 04 1 9601-0106 ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 9601-0106 ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
ZF 9S109 OD M/T(Y2L) M16X48 		1-09000-383-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0107- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 9601-9803 ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 9804-0004 ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 0005-0106 ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0005-0106 ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 0107- ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0107- ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) ID=17 		1-09503-241-0 02 1 9601-9803 ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) ID=17 		1-09503-241-0 02 1 9804-0004 ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) ID=17 		1-09503-241-0 02 1 0005-0106 ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-0 02 1 0005-0106 ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) ID=17 		1-09503-241-1 02 1 0107- ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0107- ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16 SLOTTED 		9-99116-516-0 02 1 9601-9803 ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16 SLOTTED 		9-99116-516-0 02 1 9804-0004 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16 SLOTTED 		9-99116-516-0 02 1 0005-0106 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 0005-0106 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16 SLOTTED 		9-99116-516-0 02 1 0107-0605 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 0107-0605 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16 SLOTTED 		0-91116-516-0 02 1 0606-1204 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0606-1204 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P90 PROP SHAFT(C5T) M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) OD=3.7 L=25 		9-08114-025-0 02 1 9601-9803 ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) OD=3.7 L=25 		9-08114-025-0 02 1 9804-0004 ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) OD=3.7 L=25 		9-08114-025-0 02 1 0005-0106 ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0005-0106 ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) OD=3.7 L=25 		9-08114-025-0 02 1 0107-0606 ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0107-0606 ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P90 PROP SHAFT(C5T) OD=3.7 L=25 		0-81124-025-0 02 1 0607- ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0607- ●
çizim 85947
8 95 9 1 128 107 106 57 56 9 225 8 104 56 57 74 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-0 01 1 9601-9705 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-0 01 1 9706-9803 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-1 01 1 9804-0011 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) EXC. FINAL GEAR 16.5"<B2Y> (C) L=1226 		1-37124-096-1 01 1 0012-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=828 		1-37152-299-0 01 1 9707-9803 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1092 		1-37124-348-0 01 1 9804-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) 		1-37124-954-0 01 1 0107- ● ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P46 PROP SHAFT(C4Z) (C) L=1266 		1-37123-424-3 01 1 0012-0106 ● ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=1096 		1-37151-941-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-1 01 1 9804-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-1 01 1 0005-0106 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=861 		1-37151-943-0 01 1 9601-9803 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=761 		1-37151-772-0 01 1 9601-9803 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=761 		1-37151-772-1 01 1 9804-0106 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=1081 		1-37151-641-1 01 1 9601-0106 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (H) L=1081 		1-37151-907-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=788 		1-37152-042-0 01 1 9601-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=788 		1-37152-042-0 01 1 0107- ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P90 PROP SHAFT(C5T) (F) L=1182 		1-37124-805-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (I) L=1279 		1-37123-909-0 01 1 0107- ● ●
1 SHAFT; PROP
MAL6 M/T<X9G> P90 PROP SHAFT(C5T) (D) L=968 		1-37152-131-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
MAL6 M/T<X9G> P90 PROP SHAFT(C5T) (D) L=968 		1-37152-131-0 01 1 0107- ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1216 		1-37123-465-1 01 1 9601-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1216 		1-37123-465-1 01 1 0005-0011 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) EXC. FINAL GEAR 16.5"<B2Y> (C) L=1216 		1-37123-465-1 01 1 0012-0106 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=886 		1-37152-527-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9601-9609 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9610-9706 ● ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9707-9803 ● ● ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9804-0011 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. FINAL GEAR 16.5"<B2Y> (F) L=1132 		1-37124-185-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=646 		1-37152-221-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9804-0106 ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y2L) P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9804-0106 ● ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y2L) P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 0107- ● ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y3Y) P90 PROP SHAFT(C5T) (D) L=773 		1-37152-240-0 01 1 9904-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=1346 		1-37152-057-1 01 1 9601-0004 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1288 		1-37152-043-0 01 1 9601-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1288 		1-37152-043-0 01 1 0107- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=621 		1-37151-483-0 01 1 9706-9803 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=526 		1-37152-007-0 01 1 9706-9803 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=811 		1-37151-355-0 01 1 9706-9803 ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 02 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9601-9705 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9706-9803 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 0005-0106 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 01 1 0107- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9601-9609 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9610-9706 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9707-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 0005-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9601-9706 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9601-9706 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9707-9803 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9707-9803 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 9804-0004 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0005-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9804-0004 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-069-0 AR 1 9804-9809 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-102-0 AR 1 9810-0106 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-091-0 AR 1 9601-0106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-092-0 AR 1 9601-0106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-069-0 AR 1 9601-9803 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-094-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (E) 		1-37300-095-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-091-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-092-0 AR 1 0107- ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) 		1-37319-012-0 AR 1 9810-0106 ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) 		1-37249-131-0 AR 1 9601-0106 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) 		9-37352-023-0 AR 1 0107- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) 		1-37249-131-0 AR 1 0107- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 9804-0106 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 9601-0106 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 9601-9803 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0107-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 0107-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9601-0106 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9601-0106 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9601-0106 ● ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-9609 ● ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 9601-9609 ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9610-0106 ● ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 9610-0106 ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9601-9609 ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9610-9803 ● ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9804-0004 ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 0005-0106 ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 08 1 0107- ● ● ●
57 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		9-09150-614-0 04 1 9601-9609 ● ● ●
57 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		9-09150-614-0 04 1 9610-9803 ● ● ● ●
57 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		9-09150-614-0 04 1 9804-0004 ● ● ●
57 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		9-09150-614-0 04 1 0005-0106 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9601-9705 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9601-9705 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9706-9803 ● ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9706-9803 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9804-0004 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9804-0004 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0005-0106 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0005-0106 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 9601-0106 ● ● ●
74 BOLT; YOKE,TRANS
ZF 9S109 OD M/T(Y2L) M16X48 		1-09000-383-0 04 1 9601-0106 ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 9601-0106 ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
ZF 9S109 OD M/T(Y2L) M16X48 		1-09000-383-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0107- ● ●
95 BOLT; YOKE,FINAL
FINAL GEAR 16.5"<B2Y> M16X48 		1-09000-383-0 04 1 0012-0106 ● ● ●
95 BOLT; YOKE,FINAL
M16X48 		1-09000-383-0 04 1 0107- ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) 		1-09600-064-0 01 1 9601-9705 ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) 		1-09600-064-0 01 1 9706-9803 ● ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) 		1-09600-064-0 01 1 9804-0004 ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) 		1-09600-064-0 01 1 0005-0106 ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 9601-9609 ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 9610-9706 ● ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 9707-9803 ● ● ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 9804-0106 ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0107- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9601-9705 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9706-9803 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9804-0106 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0107-0512 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 9601-9609 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 9610-9706 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 9707-9803 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 9804-0106 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) MT6 STRAIGHT 		1-09380-006-0 01 1 0107- ● ● ●
107 COVER; RET,SLEEVE
P46 PROP SHAFT(C4Z) 		1-37249-060-0 01 1 9601-9705 ● ● ●
107 COVER; RET,SLEEVE
P46 PROP SHAFT(C4Z) 		1-37249-060-0 01 1 9706-9803 ● ● ● ●
107 COVER; RET,SLEEVE
P46 PROP SHAFT(C4Z) 		1-37249-060-0 01 1 9804-0004 ● ● ●
107 COVER; RET,SLEEVE
P46 PROP SHAFT(C4Z) 		1-37249-060-0 01 1 0005-0106 ● ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-1 01 1 0107- ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-0 01 1 9601-9609 ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-0 01 1 9610-9706 ● ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-0 01 1 9707-9803 ● ● ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-0 01 1 9804-0106 ● ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-1 01 1 0107- ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-015-0 01 1 9601-9705 ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-015-0 01 1 9706-9803 ● ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-015-0 01 1 9804-9811 ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-024-0 01 1 9812-0004 ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-024-0 01 1 0005-0106 ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) 		1-37247-021-0 01 1 0107- ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 9601-9609 ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 9610-9706 ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 9707-9803 ● ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 9804-0106 ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 0107- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-1 01 1 9601-9705 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-1 01 1 9706-9803 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-2 01 1 9804-9811 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-129-0 01 1 9812-9902 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-2 01 1 9903-0004 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-2 01 1 0005-0106 ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) L=332 		1-37241-109-1 01 1 0107- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 9601-9609 ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 9610-9706 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 9707-9803 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 9804-0106 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 0107- ● ●
çizim 104317
174 172 66 173 64 45 20 51 63 46 21 24 23 22 25 1 9 71 21 8 95 9 8 74 1 128 57 107 106 56 9 225 9 8 104 17 14 56 57 74 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-0 01 1 9601-9705 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-0 01 1 9706-9803 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-1 01 1 9804-0011 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) EXC. FINAL GEAR 16.5"<B2Y> (C) L=1226 		1-37124-096-1 01 1 0012-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=828 		1-37152-299-0 01 1 9707-9803 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1092 		1-37124-348-0 01 1 9804-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) 		1-37124-954-0 01 1 0107- ● ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P46 PROP SHAFT(C4Z) (C) L=1266 		1-37123-424-3 01 1 0012-0106 ● ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=1096 		1-37151-941-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-1 01 1 9804-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-1 01 1 0005-0106 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=861 		1-37151-943-0 01 1 9601-9803 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=761 		1-37151-772-0 01 1 9601-9803 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=761 		1-37151-772-1 01 1 9804-0106 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=1081 		1-37151-641-1 01 1 9601-0106 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (H) L=1081 		1-37151-907-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=788 		1-37152-042-0 01 1 9601-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=788 		1-37152-042-0 01 1 0107- ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P90 PROP SHAFT(C5T) (F) L=1182 		1-37124-805-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (I) L=1279 		1-37123-909-0 01 1 0107- ● ●
1 SHAFT; PROP
MAL6 M/T<X9G> P90 PROP SHAFT(C5T) (D) L=968 		1-37152-131-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
MAL6 M/T<X9G> P90 PROP SHAFT(C5T) (D) L=968 		1-37152-131-0 01 1 0107- ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1216 		1-37123-465-1 01 1 9601-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1216 		1-37123-465-1 01 1 0005-0011 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) EXC. FINAL GEAR 16.5"<B2Y> (C) L=1216 		1-37123-465-1 01 1 0012-0106 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=886 		1-37152-527-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9601-9609 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9610-9706 ● ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9707-9803 ● ● ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9804-0011 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. FINAL GEAR 16.5"<B2Y> (F) L=1132 		1-37124-185-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=646 		1-37152-221-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9804-0106 ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y2L) P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9804-0106 ● ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y2L) P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 0107- ● ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y3Y) P90 PROP SHAFT(C5T) (D) L=773 		1-37152-240-0 01 1 9904-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=1346 		1-37152-057-1 01 1 9601-0004 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1288 		1-37152-043-0 01 1 9601-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1288 		1-37152-043-0 01 1 0107- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=621 		1-37151-483-0 01 1 9706-9803 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=526 		1-37152-007-0 01 1 9706-9803 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=811 		1-37151-355-0 01 1 9706-9803 ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 02 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9601-9705 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9706-9803 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 0005-0106 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 01 1 0107- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9601-9609 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9610-9706 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9707-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 0005-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9601-9706 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9601-9706 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9707-9803 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9707-9803 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 9804-0004 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0005-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9804-0004 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-069-0 AR 1 9804-9809 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-102-0 AR 1 9810-0106 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-091-0 AR 1 9601-0106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-092-0 AR 1 9601-0106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-069-0 AR 1 9601-9803 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-094-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (E) 		1-37300-095-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-091-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-092-0 AR 1 0107- ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) 		1-37319-012-0 AR 1 9810-0106 ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) 		1-37249-131-0 AR 1 9601-0106 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) 		9-37352-023-0 AR 1 0107- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) 		1-37249-131-0 AR 1 0107- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 9804-0106 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 9601-0106 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 9601-9803 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0107-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 0107-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9601-0106 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9601-0106 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9601-0106 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9601-9705 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9601-9705 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9706-9803 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9706-9803 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9804-0004 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9804-0004 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 0005-0106 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 0005-0106 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0107- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0107- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9601-9706 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9601-9706 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9707-0106 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9707-0106 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0107- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0107- ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9601-9705 ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9601-9705 ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9706-9803 ● ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9706-9803 ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9804-0004 ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9804-0004 ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 0005-0106 ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 0005-0106 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0107- ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0107- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9601-9706 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9601-9706 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9707-0106 ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9707-0106 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0107- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0107- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9601-9705 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9601-9705 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9706-9803 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9706-9803 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9804-0004 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9804-0004 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 0005-0106 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 0005-0106 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0107- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0107- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9601-9706 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9601-9706 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9707-0106 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9707-0106 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0107- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0107- ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9601-9705 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9601-9705 ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9706-9803 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9706-9803 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9804-0004 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9804-0004 ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 0005-0106 ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 0005-0106 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0107- ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0107- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9601-9706 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9601-9706 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9707-0106 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9707-0106 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0107- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0107- ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9601-9705 ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9601-9705 ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9706-9803 ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9706-9803 ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9804-0004 ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9804-0004 ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 0005-0106 ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 0005-0106 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0107- ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0107- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9601-9706 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9601-9706 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9707-0106 ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9707-0106 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0107- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0107- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9601-9705 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9601-9705 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9706-9803 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9706-9803 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9804-0106 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9804-0106 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0107- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0107- ● ●
45 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		9-09164-610-0 04 1 9601-9609 ● ● ●
45 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		9-09164-610-0 04 1 9610-9803 ● ● ● ●
45 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		9-09164-610-0 04 1 9804-0004 ● ● ●
45 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		9-09164-610-0 04 1 0005-0106 ● ●
45 WASHER; PL,RET TO BRKT
P60 PROP SHAFT(C2M) ID=12.5 OD=26 		9-09164-612-0 04 1 0107- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9601-9705 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9601-9705 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9706-9803 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9706-9803 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9804-0004 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9804-0004 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 0005-0106 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 0005-0106 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0107- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0107- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 9601-9706 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 9601-9706 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 9707-0106 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 9707-0106 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0107- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0107- ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 H=23 		1-09449-068-0 01 1 9601-9705 ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 H=23 		1-09449-068-0 01 1 9601-9705 ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 H=23 		1-09449-068-0 01 1 9706-9801 ● ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 H=23 		1-09449-068-0 01 1 9706-9801 ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 9802-9803 ● ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 9802-9803 ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 9804-0004 ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 9804-0004 ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 0005-0106 ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 0005-0106 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0107- ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0107- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9601-9706 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9601-9706 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9707-0106 ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9707-0106 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0107- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0107- ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-9609 ● ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 9601-9609 ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9610-0106 ● ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 9610-0106 ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9601-9609 ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9610-9803 ● ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9804-0004 ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 0005-0106 ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 08 1 0107- ● ● ●
57 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		9-09150-614-0 04 1 9601-9609 ● ● ●
57 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		9-09150-614-0 04 1 9610-9803 ● ● ● ●
57 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		9-09150-614-0 04 1 9804-0004 ● ● ●
57 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		9-09150-614-0 04 1 0005-0106 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 9601-9705 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 9601-9705 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 9706-9803 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 9706-9803 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 9804-0004 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 9804-0004 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 0005-0106 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 0005-0106 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X30 W/LK WASHER 		0-50041-230-0 04 1 0107-0512 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X30 W/LK WASHER 		0-50041-230-0 04 1 0107-0512 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X30 W/LK WASHER 		0-50541-230-0 04 1 0601-0901 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X30 W/LK WASHER 		0-50541-230-0 04 1 0601-0901 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X35 W/LK WASHER 		0-50541-235-0 04 1 0902- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X35 W/LK WASHER 		0-50541-235-0 04 1 0902- ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-110-0 04 1 9601-9608 ● ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-110-0 04 1 9601-9608 ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9609-9705 ● ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9609-9705 ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9706-9803 ● ● ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9706-9803 ● ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9804-0004 ● ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9804-0004 ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 0005-0106 ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 0005-0106 ●
64 NUT; RET TO BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91150-212-0 04 1 0107-0602 ● ●
64 NUT; RET TO BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91150-212-0 04 1 0107-0602 ●
64 NUT; RET TO BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91180-212-0 04 1 0603- ● ●
64 NUT; RET TO BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91180-212-0 04 1 0603- ●
66 WASHER
P46 PROP SHAFT(C4Z) ID=30.5 		1-09503-025-0 01 1 9601-9705 ● ● ●
66 WASHER
P46 PROP SHAFT(C4Z) ID=30.5 		1-09503-025-0 01 1 9601-9705 ● ●
66 WASHER
P46 PROP SHAFT(C4Z) ID=30.5 		1-09503-025-0 01 1 9706-9801 ● ● ● ●
66 WASHER
P46 PROP SHAFT(C4Z) ID=30.5 		1-09503-025-0 01 1 9706-9801 ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-9803 ● ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9804-0106 ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9601-9705 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9601-9705 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9706-9803 ● ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9706-9803 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9804-0004 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9804-0004 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0005-0106 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0005-0106 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 9601-0106 ● ● ●
74 BOLT; YOKE,TRANS
ZF 9S109 OD M/T(Y2L) M16X48 		1-09000-383-0 04 1 9601-0106 ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 9601-0106 ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
ZF 9S109 OD M/T(Y2L) M16X48 		1-09000-383-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0107- ● ●
95 BOLT; YOKE,FINAL
FINAL GEAR 16.5"<B2Y> M16X48 		1-09000-383-0 04 1 0012-0106 ● ● ●
95 BOLT; YOKE,FINAL
M16X48 		1-09000-383-0 04 1 0107- ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) 		1-09600-064-0 01 1 9601-9705 ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) 		1-09600-064-0 01 1 9706-9803 ● ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) 		1-09600-064-0 01 1 9804-0004 ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) 		1-09600-064-0 01 1 0005-0106 ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 9601-9609 ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 9610-9706 ● ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 9707-9803 ● ● ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 9804-0106 ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0107- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9601-9705 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9706-9803 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9804-0106 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0107-0512 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 9601-9609 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 9610-9706 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 9707-9803 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 9804-0106 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) MT6 STRAIGHT 		1-09380-006-0 01 1 0107- ● ● ●
107 COVER; RET,SLEEVE
P46 PROP SHAFT(C4Z) 		1-37249-060-0 01 1 9601-9705 ● ● ●
107 COVER; RET,SLEEVE
P46 PROP SHAFT(C4Z) 		1-37249-060-0 01 1 9706-9803 ● ● ● ●
107 COVER; RET,SLEEVE
P46 PROP SHAFT(C4Z) 		1-37249-060-0 01 1 9804-0004 ● ● ●
107 COVER; RET,SLEEVE
P46 PROP SHAFT(C4Z) 		1-37249-060-0 01 1 0005-0106 ● ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-1 01 1 0107- ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-0 01 1 9601-9609 ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-0 01 1 9610-9706 ● ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-0 01 1 9707-9803 ● ● ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-0 01 1 9804-0106 ● ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-1 01 1 0107- ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-015-0 01 1 9601-9705 ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-015-0 01 1 9706-9803 ● ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-015-0 01 1 9804-9811 ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-024-0 01 1 9812-0004 ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-024-0 01 1 0005-0106 ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) 		1-37247-021-0 01 1 0107- ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 9601-9609 ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 9610-9706 ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 9707-9803 ● ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 9804-0106 ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 0107- ● ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		1-37515-071-2 01 1 9601-9705 ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (A)=4600MM, (B)=5000MM 		1-37515-071-2 01 1 9706-9803 ●
172 BRACKET; CENTER BRG
(A)=4600MM, (B)=5000MM 		1-37515-071-2 01 1 9706-9803 ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		1-37515-071-2 01 1 9804-0106 ●
172 BRACKET; CENTER BRG
P60 PROP SHAFT(C2M) (A) 		1-37515-125-0 01 1 0107- ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (B) 		1-37515-101-0 01 1 9601-9803 ● ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (B) 		1-37515-101-0 01 1 9804-0106 ●
172 BRACKET; CENTER BRG
(A) 		1-37515-123-0 01 1 0107- ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		1-37515-102-0 01 1 9601-0004 ● ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		1-37515-102-0 01 1 0005-0106 ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (B) 		1-37515-135-0 01 1 9804-0106 ●
172 BRACKET; CENTER BRG
P60 PROP SHAFT(C2M) (B) 		1-37515-124-0 01 1 0107- ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X20 FLANGE 		0-28081-020-0 04 1 9601-9602 ● ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X20 FLANGE 		0-28081-020-0 04 1 9601-9602 ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28081-025-0 04 1 9603-9606 ● ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28081-025-0 04 1 9603-9606 ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X30 FLANGE 		0-28681-030-0 04 1 9607-9705 ● ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X30 FLANGE 		0-28681-030-0 04 1 9607-9705 ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X30 FLANGE 		0-28681-030-0 04 1 9706-9712 ● ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X30 FLANGE 		0-28681-030-0 04 1 9706-9712 ● ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9706-9712 ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28681-025-0 04 1 9801-9803 ● ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28681-025-0 04 1 9801-9803 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9801-9803 ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28681-025-0 04 1 9804-0106 ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28681-025-0 04 1 9804-0106 ●
173 BOLT; BRKT
P60 PROP SHAFT(C2M) M12X30 FLANGE 		0-28681-230-0 04 1 0107-0512 ● ●
173 BOLT; BRKT
P60 PROP SHAFT(C2M) M12X30 FLANGE 		0-28681-230-0 04 1 0107-0512 ●
173 BOLT; BRKT
P60 PROP SHAFT(C2M) M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ●
173 BOLT; BRKT
P60 PROP SHAFT(C2M) M12X30 FLANGE 		0-28651-230-0 04 1 0601- ●
174 NUT; BRKT
P46 PROP SHAFT(C4Z) M10 		9-09110-510-0 04 1 9601-9606 ● ● ●
174 NUT; BRKT
P46 PROP SHAFT(C4Z) 		0-91150-216-0 04 1 9607-9701 ● ● ●
174 NUT; BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9702-9803 ● ● ●
174 NUT; BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9804-0106 ● ●
174 NUT; BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91150-212-0 04 1 0107-0602 ● ●
174 NUT; BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91180-212-0 04 1 0603- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-1 01 1 9601-9705 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-1 01 1 9706-9803 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-2 01 1 9804-9811 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-129-0 01 1 9812-9902 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-2 01 1 9903-0004 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-2 01 1 0005-0106 ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) L=332 		1-37241-109-1 01 1 0107- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 9601-9609 ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 9610-9706 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 9707-9803 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 9804-0106 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 0107- ● ●
çizim 104318
91 51 46 92 21 24 23 9 20 49 8 22 74 56 21 25 1 93 94 8 95 225 104 9 8 9 106 106 56 1 74 128 107 10 10 12 13 12 9 9 13 14 14 17 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-0 01 1 9601-9705 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-0 01 1 9706-9803 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-1 01 1 9804-0011 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) EXC. FINAL GEAR 16.5"<B2Y> (C) L=1226 		1-37124-096-1 01 1 0012-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=828 		1-37152-299-0 01 1 9707-9803 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1092 		1-37124-348-0 01 1 9804-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) 		1-37124-954-0 01 1 0107- ● ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P46 PROP SHAFT(C4Z) (C) L=1266 		1-37123-424-3 01 1 0012-0106 ● ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=1096 		1-37151-941-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-1 01 1 9804-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-1 01 1 0005-0106 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=861 		1-37151-943-0 01 1 9601-9803 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=761 		1-37151-772-0 01 1 9601-9803 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=761 		1-37151-772-1 01 1 9804-0106 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=1081 		1-37151-641-1 01 1 9601-0106 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (H) L=1081 		1-37151-907-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=788 		1-37152-042-0 01 1 9601-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=788 		1-37152-042-0 01 1 0107- ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P90 PROP SHAFT(C5T) (F) L=1182 		1-37124-805-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (I) L=1279 		1-37123-909-0 01 1 0107- ● ●
1 SHAFT; PROP
MAL6 M/T<X9G> P90 PROP SHAFT(C5T) (D) L=968 		1-37152-131-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
MAL6 M/T<X9G> P90 PROP SHAFT(C5T) (D) L=968 		1-37152-131-0 01 1 0107- ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1216 		1-37123-465-1 01 1 9601-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1216 		1-37123-465-1 01 1 0005-0011 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) EXC. FINAL GEAR 16.5"<B2Y> (C) L=1216 		1-37123-465-1 01 1 0012-0106 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=886 		1-37152-527-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9601-9609 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9610-9706 ● ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9707-9803 ● ● ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9804-0011 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. FINAL GEAR 16.5"<B2Y> (F) L=1132 		1-37124-185-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=646 		1-37152-221-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9804-0106 ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y2L) P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9804-0106 ● ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y2L) P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 0107- ● ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y3Y) P90 PROP SHAFT(C5T) (D) L=773 		1-37152-240-0 01 1 9904-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=1346 		1-37152-057-1 01 1 9601-0004 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1288 		1-37152-043-0 01 1 9601-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1288 		1-37152-043-0 01 1 0107- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=621 		1-37151-483-0 01 1 9706-9803 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=526 		1-37152-007-0 01 1 9706-9803 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=811 		1-37151-355-0 01 1 9706-9803 ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 02 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9601-9705 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9706-9803 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 0005-0106 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 01 1 0107- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9601-9609 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9610-9706 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9707-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 0005-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9601-9706 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9601-9706 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9707-9803 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9707-9803 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 9804-0004 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0005-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9804-0004 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-069-0 AR 1 9804-9809 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-102-0 AR 1 9810-0106 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-091-0 AR 1 9601-0106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-092-0 AR 1 9601-0106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-069-0 AR 1 9601-9803 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-094-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (E) 		1-37300-095-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-091-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-092-0 AR 1 0107- ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) M10X20 		9-02061-020-0 AR 1 9601-0106 ● ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 AR 1 0107-0512 ● ● ●
10 BOLT; UJT
M10X20 		0-20951-020-0 AR 1 0601- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37356-008-0 AR 1 9601-0106 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 AR 1 0107- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37356-008-0 AR 1 0107- ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 AR 1 9601-0106 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 AR 1 0107- ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 AR 1 0107- ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) 		1-37319-012-0 AR 1 9810-0106 ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) 		1-37249-131-0 AR 1 9601-0106 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) 		9-37352-023-0 AR 1 0107- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) 		1-37249-131-0 AR 1 0107- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 9804-0106 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 9601-0106 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 9601-9803 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0107-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 0107-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9601-9705 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9601-9705 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9706-9803 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9706-9803 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9804-0004 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9804-0004 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 0005-0106 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 0005-0106 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0107- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0107- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9601-9706 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9601-9706 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9707-0106 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9707-0106 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0107- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0107- ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9601-9705 ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9601-9705 ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9706-9803 ● ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9706-9803 ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9804-0004 ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9804-0004 ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 0005-0106 ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 0005-0106 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0107- ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0107- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9601-9706 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9601-9706 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9707-0106 ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9707-0106 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0107- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0107- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9601-9705 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9601-9705 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9706-9803 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9706-9803 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9804-0004 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9804-0004 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 0005-0106 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 0005-0106 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0107- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0107- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9601-9706 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9601-9706 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9707-0106 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9707-0106 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0107- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0107- ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9601-9705 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9601-9705 ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9706-9803 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9706-9803 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9804-0004 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9804-0004 ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 0005-0106 ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 0005-0106 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0107- ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0107- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9601-9706 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9601-9706 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9707-0106 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9707-0106 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0107- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0107- ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9601-9705 ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9601-9705 ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9706-9803 ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9706-9803 ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9804-0004 ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9804-0004 ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 0005-0106 ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 0005-0106 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0107- ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0107- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9601-9706 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9601-9706 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9707-0106 ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9707-0106 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0107- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0107- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9601-9705 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9601-9705 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9706-9803 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9706-9803 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9804-0106 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9804-0106 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0107- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0107- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9601-9705 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9601-9705 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9706-9803 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9706-9803 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9804-0004 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9804-0004 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 0005-0106 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 0005-0106 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0107- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0107- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 9601-9706 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 9601-9706 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 9707-0106 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 9707-0106 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0107- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0107- ● ●
49 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9601-9705 ● ●
49 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9706-9803 ● ● ●
49 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9804-0004 ● ●
49 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 0005-0106 ●
49 NUT; YOKE
P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 9601-0106 ● ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0107- ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 H=23 		1-09449-068-0 01 1 9601-9705 ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 H=23 		1-09449-068-0 01 1 9601-9705 ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 H=23 		1-09449-068-0 01 1 9706-9801 ● ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 H=23 		1-09449-068-0 01 1 9706-9801 ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 9802-9803 ● ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 9802-9803 ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 9804-0004 ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 9804-0004 ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 0005-0106 ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 0005-0106 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0107- ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0107- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9601-9706 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9601-9706 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9707-0106 ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9707-0106 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0107- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0107- ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-9609 ● ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 9601-9609 ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9610-0106 ● ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 9610-0106 ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9601-9609 ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9610-9803 ● ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9804-0004 ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 0005-0106 ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 08 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9601-9705 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9601-9705 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9706-9803 ● ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9706-9803 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9804-0004 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9804-0004 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0005-0106 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0005-0106 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 9601-0106 ● ● ●
74 BOLT; YOKE,TRANS
ZF 9S109 OD M/T(Y2L) M16X48 		1-09000-383-0 04 1 9601-0106 ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 9601-0106 ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
ZF 9S109 OD M/T(Y2L) M16X48 		1-09000-383-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0107- ● ●
91 BOLT; HOLDER SET,CTR BRG
P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 9601-9609 ● ●
91 BOLT; HOLDER SET,CTR BRG
P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 9610-9803 ● ● ●
91 BOLT; HOLDER SET,CTR BRG
P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 9804-0004 ● ●
91 BOLT; HOLDER SET,CTR BRG
P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 0005-0106 ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 0005-0106 ●
91 BOLT; HOLDER SET,CTR BRG
P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 0107- ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 0107- ●
92 WASHER; LK,HOLDER SET,CTR BRG
P90 PROP SHAFT(C5T) ID=17 		1-09503-241-0 02 1 9601-9609 ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
P90 PROP SHAFT(C5T) ID=17 		1-09503-241-0 02 1 9610-9803 ● ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
P90 PROP SHAFT(C5T) ID=17 		1-09503-241-0 02 1 9804-0004 ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
P90 PROP SHAFT(C5T) ID=17 		1-09503-241-0 02 1 0005-0106 ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-0 02 1 0005-0106 ●
92 WASHER; LK,HOLDER SET,CTR BRG
P90 PROP SHAFT(C5T) ID=17 		1-09503-241-1 02 1 0107- ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 0107- ●
93 NUT; HOLDER SET,CTR BRG
P90 PROP SHAFT(C5T) M16 SLOTTED 		9-99116-516-0 02 1 9601-9609 ● ●
93 NUT; HOLDER SET,CTR BRG
P90 PROP SHAFT(C5T) M16 SLOTTED 		9-99116-516-0 02 1 9610-9803 ● ● ●
93 NUT; HOLDER SET,CTR BRG
P90 PROP SHAFT(C5T) M16 SLOTTED 		9-99116-516-0 02 1 9804-0004 ● ●
93 NUT; HOLDER SET,CTR BRG
P90 PROP SHAFT(C5T) M16 SLOTTED 		9-99116-516-0 02 1 0005-0106 ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		9-99116-516-0 02 1 0005-0106 ●
93 NUT; HOLDER SET,CTR BRG
P90 PROP SHAFT(C5T) M16 SLOTTED 		9-99116-516-0 02 1 0107-0605 ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		9-99116-516-0 02 1 0107-0605 ●
93 NUT; HOLDER SET,CTR BRG
P90 PROP SHAFT(C5T) M16 SLOTTED 		0-91116-516-0 02 1 0606-1204 ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		0-91116-516-0 02 1 0606-1204 ●
93 NUT; HOLDER SET,CTR BRG
P90 PROP SHAFT(C5T) M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
P90 PROP SHAFT(C5T) OD=3.7 L=25 		9-08114-025-0 02 1 9601-9609 ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
P90 PROP SHAFT(C5T) OD=3.7 L=25 		9-08114-025-0 02 1 9610-9803 ● ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
P90 PROP SHAFT(C5T) OD=3.7 L=25 		9-08114-025-0 02 1 9804-0004 ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
P90 PROP SHAFT(C5T) OD=3.7 L=25 		9-08114-025-0 02 1 0005-0106 ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0005-0106 ●
94 PIN; SPLIT,HOLDER SET CTR BRG
P90 PROP SHAFT(C5T) OD=3.7 L=25 		9-08114-025-0 02 1 0107-0606 ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0107-0606 ●
94 PIN; SPLIT,HOLDER SET CTR BRG
P90 PROP SHAFT(C5T) OD=3.7 L=25 		0-81124-025-0 02 1 0607- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0607- ●
95 BOLT; YOKE,FINAL
FINAL GEAR 16.5"<B2Y> M16X48 		1-09000-383-0 04 1 0012-0106 ● ● ●
95 BOLT; YOKE,FINAL
M16X48 		1-09000-383-0 04 1 0107- ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) 		1-09600-064-0 01 1 9601-9705 ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) 		1-09600-064-0 01 1 9706-9803 ● ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) 		1-09600-064-0 01 1 9804-0004 ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) 		1-09600-064-0 01 1 0005-0106 ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 9601-9609 ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 9610-9706 ● ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 9707-9803 ● ● ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 9804-0106 ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0107- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9601-9705 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9706-9803 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9804-0106 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0107-0512 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 9601-9609 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 9610-9706 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 9707-9803 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 9804-0106 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) MT6 STRAIGHT 		1-09380-006-0 01 1 0107- ● ● ●
107 COVER; RET,SLEEVE
P46 PROP SHAFT(C4Z) 		1-37249-060-0 01 1 9601-9705 ● ● ●
107 COVER; RET,SLEEVE
P46 PROP SHAFT(C4Z) 		1-37249-060-0 01 1 9706-9803 ● ● ● ●
107 COVER; RET,SLEEVE
P46 PROP SHAFT(C4Z) 		1-37249-060-0 01 1 9804-0004 ● ● ●
107 COVER; RET,SLEEVE
P46 PROP SHAFT(C4Z) 		1-37249-060-0 01 1 0005-0106 ● ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-1 01 1 0107- ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-0 01 1 9601-9609 ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-0 01 1 9610-9706 ● ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-0 01 1 9707-9803 ● ● ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-0 01 1 9804-0106 ● ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-1 01 1 0107- ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-015-0 01 1 9601-9705 ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-015-0 01 1 9706-9803 ● ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-015-0 01 1 9804-9811 ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-024-0 01 1 9812-0004 ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-024-0 01 1 0005-0106 ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) 		1-37247-021-0 01 1 0107- ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 9601-9609 ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 9610-9706 ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 9707-9803 ● ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 9804-0106 ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 0107- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-1 01 1 9601-9705 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-1 01 1 9706-9803 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-2 01 1 9804-9811 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-129-0 01 1 9812-9902 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-2 01 1 9903-0004 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-2 01 1 0005-0106 ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) L=332 		1-37241-109-1 01 1 0107- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 9601-9609 ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 9610-9706 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 9707-9803 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 9804-0106 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 0107- ● ●
çizim 104320
174 172 66 173 64 45 20 51 63 46 21 24 23 22 25 1 9 71 21 177 66 172 8 173 74 20 64 60 51 46 63 21 24 23 22 25 1 49 52 9 9 21 8 17 74 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-0 01 1 9601-9705 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-0 01 1 9706-9803 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-1 01 1 9804-0011 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) EXC. FINAL GEAR 16.5"<B2Y> (C) L=1226 		1-37124-096-1 01 1 0012-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=828 		1-37152-299-0 01 1 9707-9803 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1092 		1-37124-348-0 01 1 9804-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) 		1-37124-954-0 01 1 0107- ● ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P46 PROP SHAFT(C4Z) (C) L=1266 		1-37123-424-3 01 1 0012-0106 ● ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=1096 		1-37151-941-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-1 01 1 9804-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-1 01 1 0005-0106 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=861 		1-37151-943-0 01 1 9601-9803 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=761 		1-37151-772-0 01 1 9601-9803 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=761 		1-37151-772-1 01 1 9804-0106 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=1081 		1-37151-641-1 01 1 9601-0106 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (H) L=1081 		1-37151-907-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=788 		1-37152-042-0 01 1 9601-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=788 		1-37152-042-0 01 1 0107- ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P90 PROP SHAFT(C5T) (F) L=1182 		1-37124-805-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (I) L=1279 		1-37123-909-0 01 1 0107- ● ●
1 SHAFT; PROP
MAL6 M/T<X9G> P90 PROP SHAFT(C5T) (D) L=968 		1-37152-131-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
MAL6 M/T<X9G> P90 PROP SHAFT(C5T) (D) L=968 		1-37152-131-0 01 1 0107- ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1216 		1-37123-465-1 01 1 9601-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1216 		1-37123-465-1 01 1 0005-0011 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) EXC. FINAL GEAR 16.5"<B2Y> (C) L=1216 		1-37123-465-1 01 1 0012-0106 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=886 		1-37152-527-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9601-9609 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9610-9706 ● ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9707-9803 ● ● ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9804-0011 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. FINAL GEAR 16.5"<B2Y> (F) L=1132 		1-37124-185-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=646 		1-37152-221-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9804-0106 ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y2L) P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9804-0106 ● ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y2L) P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 0107- ● ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y3Y) P90 PROP SHAFT(C5T) (D) L=773 		1-37152-240-0 01 1 9904-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=1346 		1-37152-057-1 01 1 9601-0004 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1288 		1-37152-043-0 01 1 9601-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1288 		1-37152-043-0 01 1 0107- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=621 		1-37151-483-0 01 1 9706-9803 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=526 		1-37152-007-0 01 1 9706-9803 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=811 		1-37151-355-0 01 1 9706-9803 ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 02 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9601-9705 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9706-9803 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 0005-0106 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 01 1 0107- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9601-9609 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9610-9706 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9707-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 0005-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9601-9706 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9601-9706 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9707-9803 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9707-9803 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 9804-0004 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0005-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9804-0004 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-069-0 AR 1 9804-9809 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-102-0 AR 1 9810-0106 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-091-0 AR 1 9601-0106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-092-0 AR 1 9601-0106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-069-0 AR 1 9601-9803 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-094-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (E) 		1-37300-095-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-091-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-092-0 AR 1 0107- ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) 		1-37319-012-0 AR 1 9810-0106 ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) 		1-37249-131-0 AR 1 9601-0106 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) 		9-37352-023-0 AR 1 0107- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) 		1-37249-131-0 AR 1 0107- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 9804-0106 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 9601-0106 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 9601-9803 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0107-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 0107-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 9601-0106 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 9601-0106 ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 9601-0106 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9601-9705 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9601-9705 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9706-9803 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9706-9803 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9804-0004 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9804-0004 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 0005-0106 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 0005-0106 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0107- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0107- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9601-9706 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9601-9706 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9707-0106 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9707-0106 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0107- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0107- ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9601-9705 ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9601-9705 ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9706-9803 ● ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9706-9803 ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9804-0004 ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9804-0004 ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 0005-0106 ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 0005-0106 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0107- ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0107- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9601-9706 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9601-9706 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9707-0106 ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9707-0106 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0107- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0107- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9601-9705 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9601-9705 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9706-9803 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9706-9803 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9804-0004 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9804-0004 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 0005-0106 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 0005-0106 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0107- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0107- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9601-9706 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9601-9706 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9707-0106 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9707-0106 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0107- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0107- ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9601-9705 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9601-9705 ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9706-9803 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9706-9803 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9804-0004 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9804-0004 ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 0005-0106 ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 0005-0106 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0107- ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0107- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9601-9706 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9601-9706 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9707-0106 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9707-0106 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0107- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0107- ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9601-9705 ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9601-9705 ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9706-9803 ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9706-9803 ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9804-0004 ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9804-0004 ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 0005-0106 ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 0005-0106 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0107- ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0107- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9601-9706 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9601-9706 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9707-0106 ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9707-0106 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0107- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0107- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9601-9705 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9601-9705 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9706-9803 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9706-9803 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9804-0106 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9804-0106 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0107- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0107- ● ●
45 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		9-09164-610-0 04 1 9601-9609 ● ● ●
45 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		9-09164-610-0 04 1 9610-9803 ● ● ● ●
45 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		9-09164-610-0 04 1 9804-0004 ● ● ●
45 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		9-09164-610-0 04 1 0005-0106 ● ●
45 WASHER; PL,RET TO BRKT
P60 PROP SHAFT(C2M) ID=12.5 OD=26 		9-09164-612-0 04 1 0107- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9601-9705 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9601-9705 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9706-9803 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9706-9803 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9804-0004 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9804-0004 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 0005-0106 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 0005-0106 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0107- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0107- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 9601-9706 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 9601-9706 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 9707-0106 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 9707-0106 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0107- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0107- ● ●
49 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9601-9705 ● ●
49 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9706-9803 ● ● ●
49 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9804-0004 ● ●
49 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 0005-0106 ●
49 NUT; YOKE
P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 9601-0106 ● ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0107- ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 H=23 		1-09449-068-0 01 1 9601-9705 ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 H=23 		1-09449-068-0 01 1 9601-9705 ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 H=23 		1-09449-068-0 01 1 9706-9801 ● ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 H=23 		1-09449-068-0 01 1 9706-9801 ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 9802-9803 ● ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 9802-9803 ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 9804-0004 ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 9804-0004 ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 0005-0106 ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 0005-0106 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0107- ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0107- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9601-9706 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9601-9706 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9707-0106 ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9707-0106 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0107- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0107- ● ●
52 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		9-09150-614-0 04 1 9601-9705 ● ●
52 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		9-09150-614-0 04 1 9706-9803 ● ● ●
52 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		9-09150-614-0 04 1 9804-0004 ● ●
52 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		9-09150-614-0 04 1 0005-0106 ●
60 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		9-09164-610-0 04 1 9601-9705 ● ●
60 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		9-09164-610-0 04 1 9706-9803 ● ● ●
60 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		9-09164-610-0 04 1 9804-0004 ● ●
60 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		9-09164-610-0 04 1 0005-0106 ●
60 WASHER; PL,RET TO BRKT
P60 PROP SHAFT(C2M) ID=12.5 OD=26 		9-09164-612-0 04 1 0107- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 9601-9705 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 9601-9705 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 9706-9803 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 9706-9803 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 9804-0004 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 9804-0004 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 0005-0106 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 0005-0106 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X30 W/LK WASHER 		0-50041-230-0 04 1 0107-0512 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X30 W/LK WASHER 		0-50041-230-0 04 1 0107-0512 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X30 W/LK WASHER 		0-50541-230-0 04 1 0601-0901 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X30 W/LK WASHER 		0-50541-230-0 04 1 0601-0901 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X35 W/LK WASHER 		0-50541-235-0 04 1 0902- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X35 W/LK WASHER 		0-50541-235-0 04 1 0902- ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-110-0 04 1 9601-9608 ● ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-110-0 04 1 9601-9608 ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9609-9705 ● ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9609-9705 ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9706-9803 ● ● ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9706-9803 ● ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9804-0004 ● ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9804-0004 ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 0005-0106 ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 0005-0106 ●
64 NUT; RET TO BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91150-212-0 04 1 0107-0602 ● ●
64 NUT; RET TO BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91150-212-0 04 1 0107-0602 ●
64 NUT; RET TO BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91180-212-0 04 1 0603- ● ●
64 NUT; RET TO BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91180-212-0 04 1 0603- ●
66 WASHER
P46 PROP SHAFT(C4Z) ID=30.5 		1-09503-025-0 01 1 9601-9705 ● ● ●
66 WASHER
P46 PROP SHAFT(C4Z) ID=30.5 		1-09503-025-0 01 1 9601-9705 ● ●
66 WASHER
P46 PROP SHAFT(C4Z) ID=30.5 		1-09503-025-0 01 1 9706-9801 ● ● ● ●
66 WASHER
P46 PROP SHAFT(C4Z) ID=30.5 		1-09503-025-0 01 1 9706-9801 ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-9803 ● ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9804-0106 ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9601-9705 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9601-9705 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9706-9803 ● ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9706-9803 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9804-0004 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9804-0004 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0005-0106 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0005-0106 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 9601-0106 ● ● ●
74 BOLT; YOKE,TRANS
ZF 9S109 OD M/T(Y2L) M16X48 		1-09000-383-0 04 1 9601-0106 ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 9601-0106 ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
ZF 9S109 OD M/T(Y2L) M16X48 		1-09000-383-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0107- ● ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		1-37515-071-2 01 1 9601-9705 ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (A)=4600MM, (B)=5000MM 		1-37515-071-2 01 1 9706-9803 ●
172 BRACKET; CENTER BRG
(A)=4600MM, (B)=5000MM 		1-37515-071-2 01 1 9706-9803 ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		1-37515-071-2 01 1 9804-0106 ●
172 BRACKET; CENTER BRG
P60 PROP SHAFT(C2M) (A) 		1-37515-125-0 01 1 0107- ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (B) 		1-37515-101-0 01 1 9601-9803 ● ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (B) 		1-37515-101-0 01 1 9804-0106 ●
172 BRACKET; CENTER BRG
(A) 		1-37515-123-0 01 1 0107- ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		1-37515-102-0 01 1 9601-0004 ● ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		1-37515-102-0 01 1 0005-0106 ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (B) 		1-37515-135-0 01 1 9804-0106 ●
172 BRACKET; CENTER BRG
P60 PROP SHAFT(C2M) (B) 		1-37515-124-0 01 1 0107- ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X20 FLANGE 		0-28081-020-0 04 1 9601-9602 ● ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X20 FLANGE 		0-28081-020-0 04 1 9601-9602 ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28081-025-0 04 1 9603-9606 ● ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28081-025-0 04 1 9603-9606 ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X30 FLANGE 		0-28681-030-0 04 1 9607-9705 ● ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X30 FLANGE 		0-28681-030-0 04 1 9607-9705 ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X30 FLANGE 		0-28681-030-0 04 1 9706-9712 ● ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X30 FLANGE 		0-28681-030-0 04 1 9706-9712 ● ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9706-9712 ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28681-025-0 04 1 9801-9803 ● ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28681-025-0 04 1 9801-9803 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9801-9803 ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28681-025-0 04 1 9804-0106 ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28681-025-0 04 1 9804-0106 ●
173 BOLT; BRKT
P60 PROP SHAFT(C2M) M12X30 FLANGE 		0-28681-230-0 04 1 0107-0512 ● ●
173 BOLT; BRKT
P60 PROP SHAFT(C2M) M12X30 FLANGE 		0-28681-230-0 04 1 0107-0512 ●
173 BOLT; BRKT
P60 PROP SHAFT(C2M) M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ●
173 BOLT; BRKT
P60 PROP SHAFT(C2M) M12X30 FLANGE 		0-28651-230-0 04 1 0601- ●
174 NUT; BRKT
P46 PROP SHAFT(C4Z) M10 		9-09110-510-0 04 1 9601-9606 ● ● ●
174 NUT; BRKT
P46 PROP SHAFT(C4Z) 		0-91150-216-0 04 1 9607-9701 ● ● ●
174 NUT; BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9702-9803 ● ● ●
174 NUT; BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9804-0106 ● ●
174 NUT; BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91150-212-0 04 1 0107-0602 ● ●
174 NUT; BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91180-212-0 04 1 0603- ● ●
177 NUT
P46 PROP SHAFT(C4Z) M10 		9-09110-510-0 04 1 9601-9606 ● ●
177 NUT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9607-9705 ● ●
177 NUT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9706-9803 ● ● ●
177 NUT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9804-0004 ● ●
177 NUT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 0005-0106 ●
177 NUT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91150-212-0 04 1 0107-0602 ●
177 NUT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91180-212-0 04 1 0603- ●
177 NUT
P46 PROP SHAFT(C4Z) M12 		9-99110-512-0 04 1 9601-9606 ● ●
177 NUT
P46 PROP SHAFT(C4Z) M12 FLANGE 		0-91150-212-0 04 1 9607-9701 ● ●
çizim 104428
174 51 172 173 20 64 45 63 46 21 24 23 22 25 1 71 9 21 74 95 8 9 8 1 56 128 107 225 106 104 9 8 9 9 106 10 10 12 14 17 12 13 56 17 13 14 74
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-0 01 1 9601-9705 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-0 01 1 9706-9803 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-1 01 1 9804-0011 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) EXC. FINAL GEAR 16.5"<B2Y> (C) L=1226 		1-37124-096-1 01 1 0012-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=828 		1-37152-299-0 01 1 9707-9803 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1092 		1-37124-348-0 01 1 9804-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) 		1-37124-954-0 01 1 0107- ● ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P46 PROP SHAFT(C4Z) (C) L=1266 		1-37123-424-3 01 1 0012-0106 ● ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=1096 		1-37151-941-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-1 01 1 9804-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-1 01 1 0005-0106 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=861 		1-37151-943-0 01 1 9601-9803 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=761 		1-37151-772-0 01 1 9601-9803 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=761 		1-37151-772-1 01 1 9804-0106 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=1081 		1-37151-641-1 01 1 9601-0106 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (H) L=1081 		1-37151-907-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=788 		1-37152-042-0 01 1 9601-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=788 		1-37152-042-0 01 1 0107- ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P90 PROP SHAFT(C5T) (F) L=1182 		1-37124-805-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (I) L=1279 		1-37123-909-0 01 1 0107- ● ●
1 SHAFT; PROP
MAL6 M/T<X9G> P90 PROP SHAFT(C5T) (D) L=968 		1-37152-131-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
MAL6 M/T<X9G> P90 PROP SHAFT(C5T) (D) L=968 		1-37152-131-0 01 1 0107- ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1216 		1-37123-465-1 01 1 9601-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1216 		1-37123-465-1 01 1 0005-0011 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) EXC. FINAL GEAR 16.5"<B2Y> (C) L=1216 		1-37123-465-1 01 1 0012-0106 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=886 		1-37152-527-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9601-9609 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9610-9706 ● ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9707-9803 ● ● ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9804-0011 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. FINAL GEAR 16.5"<B2Y> (F) L=1132 		1-37124-185-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=646 		1-37152-221-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9804-0106 ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y2L) P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9804-0106 ● ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y2L) P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 0107- ● ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y3Y) P90 PROP SHAFT(C5T) (D) L=773 		1-37152-240-0 01 1 9904-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=1346 		1-37152-057-1 01 1 9601-0004 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1288 		1-37152-043-0 01 1 9601-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1288 		1-37152-043-0 01 1 0107- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=621 		1-37151-483-0 01 1 9706-9803 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=526 		1-37152-007-0 01 1 9706-9803 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=811 		1-37151-355-0 01 1 9706-9803 ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 02 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9601-9705 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9706-9803 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 0005-0106 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 01 1 0107- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9601-9609 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9610-9706 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9707-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 0005-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9601-9706 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9601-9706 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9707-9803 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9707-9803 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 9804-0004 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0005-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9804-0004 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-069-0 AR 1 9804-9809 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-102-0 AR 1 9810-0106 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-091-0 AR 1 9601-0106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-092-0 AR 1 9601-0106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-069-0 AR 1 9601-9803 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-094-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (E) 		1-37300-095-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-091-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-092-0 AR 1 0107- ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) M10X20 		9-02061-020-0 AR 1 9601-0106 ● ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 AR 1 0107-0512 ● ● ●
10 BOLT; UJT
M10X20 		0-20951-020-0 AR 1 0601- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37356-008-0 AR 1 9601-0106 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 AR 1 0107- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37356-008-0 AR 1 0107- ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 AR 1 9601-0106 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 AR 1 0107- ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 AR 1 0107- ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) 		1-37319-012-0 AR 1 9810-0106 ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) 		1-37249-131-0 AR 1 9601-0106 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) 		9-37352-023-0 AR 1 0107- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) 		1-37249-131-0 AR 1 0107- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 9804-0106 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 9601-0106 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 9601-9803 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0107-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 0107-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9601-9705 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9601-9705 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9706-9803 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9706-9803 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9804-0004 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9804-0004 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 0005-0106 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 0005-0106 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0107- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0107- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9601-9706 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9601-9706 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9707-0106 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9707-0106 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0107- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0107- ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9601-9705 ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9601-9705 ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9706-9803 ● ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9706-9803 ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9804-0004 ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9804-0004 ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 0005-0106 ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 0005-0106 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0107- ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0107- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9601-9706 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9601-9706 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9707-0106 ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9707-0106 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0107- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0107- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9601-9705 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9601-9705 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9706-9803 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9706-9803 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9804-0004 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9804-0004 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 0005-0106 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 0005-0106 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0107- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0107- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9601-9706 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9601-9706 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9707-0106 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9707-0106 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0107- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0107- ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9601-9705 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9601-9705 ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9706-9803 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9706-9803 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9804-0004 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9804-0004 ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 0005-0106 ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 0005-0106 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0107- ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0107- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9601-9706 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9601-9706 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9707-0106 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9707-0106 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0107- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0107- ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9601-9705 ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9601-9705 ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9706-9803 ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9706-9803 ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9804-0004 ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9804-0004 ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 0005-0106 ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 0005-0106 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0107- ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0107- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9601-9706 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9601-9706 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9707-0106 ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9707-0106 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0107- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0107- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9601-9705 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9601-9705 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9706-9803 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9706-9803 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9804-0106 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9804-0106 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0107- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0107- ● ●
45 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		9-09164-610-0 04 1 9601-9609 ● ● ●
45 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		9-09164-610-0 04 1 9610-9803 ● ● ● ●
45 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		9-09164-610-0 04 1 9804-0004 ● ● ●
45 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		9-09164-610-0 04 1 0005-0106 ● ●
45 WASHER; PL,RET TO BRKT
P60 PROP SHAFT(C2M) ID=12.5 OD=26 		9-09164-612-0 04 1 0107- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9601-9705 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9601-9705 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9706-9803 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9706-9803 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9804-0004 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9804-0004 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 0005-0106 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 0005-0106 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0107- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0107- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 9601-9706 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 9601-9706 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 9707-0106 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 9707-0106 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0107- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0107- ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 H=23 		1-09449-068-0 01 1 9601-9705 ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 H=23 		1-09449-068-0 01 1 9601-9705 ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 H=23 		1-09449-068-0 01 1 9706-9801 ● ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 H=23 		1-09449-068-0 01 1 9706-9801 ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 9802-9803 ● ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 9802-9803 ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 9804-0004 ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 9804-0004 ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 0005-0106 ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 0005-0106 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0107- ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0107- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9601-9706 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9601-9706 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9707-0106 ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9707-0106 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0107- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0107- ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-9609 ● ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 9601-9609 ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9610-0106 ● ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 9610-0106 ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9601-9609 ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9610-9803 ● ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9804-0004 ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 0005-0106 ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 08 1 0107- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 9601-9705 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 9601-9705 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 9706-9803 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 9706-9803 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 9804-0004 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 9804-0004 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 0005-0106 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 0005-0106 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X30 W/LK WASHER 		0-50041-230-0 04 1 0107-0512 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X30 W/LK WASHER 		0-50041-230-0 04 1 0107-0512 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X30 W/LK WASHER 		0-50541-230-0 04 1 0601-0901 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X30 W/LK WASHER 		0-50541-230-0 04 1 0601-0901 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X35 W/LK WASHER 		0-50541-235-0 04 1 0902- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X35 W/LK WASHER 		0-50541-235-0 04 1 0902- ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-110-0 04 1 9601-9608 ● ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-110-0 04 1 9601-9608 ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9609-9705 ● ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9609-9705 ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9706-9803 ● ● ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9706-9803 ● ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9804-0004 ● ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9804-0004 ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 0005-0106 ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 0005-0106 ●
64 NUT; RET TO BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91150-212-0 04 1 0107-0602 ● ●
64 NUT; RET TO BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91150-212-0 04 1 0107-0602 ●
64 NUT; RET TO BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91180-212-0 04 1 0603- ● ●
64 NUT; RET TO BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91180-212-0 04 1 0603- ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-9803 ● ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9804-0106 ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9601-9705 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9601-9705 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9706-9803 ● ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9706-9803 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9804-0004 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9804-0004 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0005-0106 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0005-0106 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 9601-0106 ● ● ●
74 BOLT; YOKE,TRANS
ZF 9S109 OD M/T(Y2L) M16X48 		1-09000-383-0 04 1 9601-0106 ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 9601-0106 ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
ZF 9S109 OD M/T(Y2L) M16X48 		1-09000-383-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0107- ● ●
95 BOLT; YOKE,FINAL
FINAL GEAR 16.5"<B2Y> M16X48 		1-09000-383-0 04 1 0012-0106 ● ● ●
95 BOLT; YOKE,FINAL
M16X48 		1-09000-383-0 04 1 0107- ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) 		1-09600-064-0 01 1 9601-9705 ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) 		1-09600-064-0 01 1 9706-9803 ● ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) 		1-09600-064-0 01 1 9804-0004 ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) 		1-09600-064-0 01 1 0005-0106 ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 9601-9609 ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 9610-9706 ● ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 9707-9803 ● ● ● ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 9804-0106 ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0107- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9601-9705 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9706-9803 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9804-0106 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0107-0512 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 9601-9609 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 9610-9706 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 9707-9803 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) MT6 STRAIGHT 		1-09380-006-0 01 1 9804-0106 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) MT6 STRAIGHT 		1-09380-006-0 01 1 0107- ● ● ●
107 COVER; RET,SLEEVE
P46 PROP SHAFT(C4Z) 		1-37249-060-0 01 1 9601-9705 ● ● ●
107 COVER; RET,SLEEVE
P46 PROP SHAFT(C4Z) 		1-37249-060-0 01 1 9706-9803 ● ● ● ●
107 COVER; RET,SLEEVE
P46 PROP SHAFT(C4Z) 		1-37249-060-0 01 1 9804-0004 ● ● ●
107 COVER; RET,SLEEVE
P46 PROP SHAFT(C4Z) 		1-37249-060-0 01 1 0005-0106 ● ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-1 01 1 0107- ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-0 01 1 9601-9609 ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-0 01 1 9610-9706 ● ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-0 01 1 9707-9803 ● ● ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-0 01 1 9804-0106 ● ● ●
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-132-1 01 1 0107- ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-015-0 01 1 9601-9705 ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-015-0 01 1 9706-9803 ● ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-015-0 01 1 9804-9811 ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-024-0 01 1 9812-0004 ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) 		1-37247-024-0 01 1 0005-0106 ● ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) 		1-37247-021-0 01 1 0107- ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 9601-9609 ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 9610-9706 ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 9707-9803 ● ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 9804-0106 ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-019-0 01 1 0107- ● ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		1-37515-071-2 01 1 9601-9705 ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (A)=4600MM, (B)=5000MM 		1-37515-071-2 01 1 9706-9803 ●
172 BRACKET; CENTER BRG
(A)=4600MM, (B)=5000MM 		1-37515-071-2 01 1 9706-9803 ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		1-37515-071-2 01 1 9804-0106 ●
172 BRACKET; CENTER BRG
P60 PROP SHAFT(C2M) (A) 		1-37515-125-0 01 1 0107- ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (B) 		1-37515-101-0 01 1 9601-9803 ● ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (B) 		1-37515-101-0 01 1 9804-0106 ●
172 BRACKET; CENTER BRG
(A) 		1-37515-123-0 01 1 0107- ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		1-37515-102-0 01 1 9601-0004 ● ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		1-37515-102-0 01 1 0005-0106 ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (B) 		1-37515-135-0 01 1 9804-0106 ●
172 BRACKET; CENTER BRG
P60 PROP SHAFT(C2M) (B) 		1-37515-124-0 01 1 0107- ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X20 FLANGE 		0-28081-020-0 04 1 9601-9602 ● ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X20 FLANGE 		0-28081-020-0 04 1 9601-9602 ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28081-025-0 04 1 9603-9606 ● ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28081-025-0 04 1 9603-9606 ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X30 FLANGE 		0-28681-030-0 04 1 9607-9705 ● ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X30 FLANGE 		0-28681-030-0 04 1 9607-9705 ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X30 FLANGE 		0-28681-030-0 04 1 9706-9712 ● ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X30 FLANGE 		0-28681-030-0 04 1 9706-9712 ● ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9706-9712 ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28681-025-0 04 1 9801-9803 ● ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28681-025-0 04 1 9801-9803 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9801-9803 ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28681-025-0 04 1 9804-0106 ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28681-025-0 04 1 9804-0106 ●
173 BOLT; BRKT
P60 PROP SHAFT(C2M) M12X30 FLANGE 		0-28681-230-0 04 1 0107-0512 ● ●
173 BOLT; BRKT
P60 PROP SHAFT(C2M) M12X30 FLANGE 		0-28681-230-0 04 1 0107-0512 ●
173 BOLT; BRKT
P60 PROP SHAFT(C2M) M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ●
173 BOLT; BRKT
P60 PROP SHAFT(C2M) M12X30 FLANGE 		0-28651-230-0 04 1 0601- ●
174 NUT; BRKT
P46 PROP SHAFT(C4Z) M10 		9-09110-510-0 04 1 9601-9606 ● ● ●
174 NUT; BRKT
P46 PROP SHAFT(C4Z) 		0-91150-216-0 04 1 9607-9701 ● ● ●
174 NUT; BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9702-9803 ● ● ●
174 NUT; BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9804-0106 ● ●
174 NUT; BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91150-212-0 04 1 0107-0602 ● ●
174 NUT; BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91180-212-0 04 1 0603- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-1 01 1 9601-9705 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-1 01 1 9706-9803 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-2 01 1 9804-9811 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-129-0 01 1 9812-9902 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-2 01 1 9903-0004 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) L=271 		1-37241-099-2 01 1 0005-0106 ● ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) L=332 		1-37241-109-1 01 1 0107- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 9601-9609 ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 9610-9706 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 9707-9803 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 9804-0106 ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) L=332 		1-37241-103-1 01 1 0107- ● ●
çizim 104429
174 172 51 173 20 64 45 63 46 21 24 23 22 25 1 9 21 71 74 177 172 8 173 20 64 60 63 51 46 21 24 23 22 25 1 49 9 9 9 21 10 12 8 12 13 74 10 13 14 17 14 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-0 01 1 9601-9705 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-0 01 1 9706-9803 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1226 		1-37124-096-1 01 1 9804-0011 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) EXC. FINAL GEAR 16.5"<B2Y> (C) L=1226 		1-37124-096-1 01 1 0012-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=828 		1-37152-299-0 01 1 9707-9803 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1092 		1-37124-348-0 01 1 9804-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) 		1-37124-954-0 01 1 0107- ● ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P46 PROP SHAFT(C4Z) (C) L=1266 		1-37123-424-3 01 1 0012-0106 ● ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=1096 		1-37151-941-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-1 01 1 9804-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=996 		1-37152-006-1 01 1 0005-0106 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=861 		1-37151-943-0 01 1 9601-9803 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=761 		1-37151-772-0 01 1 9601-9803 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=761 		1-37151-772-1 01 1 9804-0106 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=1081 		1-37151-641-1 01 1 9601-0106 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (H) L=1081 		1-37151-907-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=788 		1-37152-042-0 01 1 9601-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=788 		1-37152-042-0 01 1 0107- ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> P90 PROP SHAFT(C5T) (F) L=1182 		1-37124-805-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (I) L=1279 		1-37123-909-0 01 1 0107- ● ●
1 SHAFT; PROP
MAL6 M/T<X9G> P90 PROP SHAFT(C5T) (D) L=968 		1-37152-131-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
MAL6 M/T<X9G> P90 PROP SHAFT(C5T) (D) L=968 		1-37152-131-0 01 1 0107- ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1216 		1-37123-465-1 01 1 9601-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1216 		1-37123-465-1 01 1 0005-0011 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) EXC. FINAL GEAR 16.5"<B2Y> (C) L=1216 		1-37123-465-1 01 1 0012-0106 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=886 		1-37152-527-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9601-9609 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9610-9706 ● ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9707-9803 ● ● ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (F) L=1132 		1-37124-185-0 01 1 9804-0011 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. FINAL GEAR 16.5"<B2Y> (F) L=1132 		1-37124-185-0 01 1 0012-0106 ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=646 		1-37152-221-0 01 1 0107- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9601-9803 ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9804-0106 ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y2L) P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 9804-0106 ● ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y2L) P90 PROP SHAFT(C5T) (D) L=868 		1-37152-040-0 01 1 0107- ● ●
1 SHAFT; PROP
ZF 9S109 OD M/T(Y3Y) P90 PROP SHAFT(C5T) (D) L=773 		1-37152-240-0 01 1 9904-0004 ● ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=1346 		1-37152-057-1 01 1 9601-0004 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1288 		1-37152-043-0 01 1 9601-0106 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1288 		1-37152-043-0 01 1 0107- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> P46 PROP SHAFT(C4Z) (A) L=621 		1-37151-483-0 01 1 9706-9803 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> P46 PROP SHAFT(C4Z) (A) L=526 		1-37152-007-0 01 1 9706-9803 ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (B) L=811 		1-37151-355-0 01 1 9706-9803 ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-054-0 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 02 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9601-9705 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9601-9705 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9706-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-2 01 1 9706-9803 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 9804-0004 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		1-37211-056-3 01 1 0005-0106 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37211-072-1 01 1 0107- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9601-9609 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9610-9706 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9707-9803 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9804-0004 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 0005-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9601-9706 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9601-9706 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9707-9803 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 9707-9803 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 03 1 9804-0004 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0005-0106 ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0005-0106 ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 01 1 0107- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37211-066-1 02 1 9804-0004 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-069-0 AR 1 9804-9809 ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-102-0 AR 1 9810-0106 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-091-0 AR 1 9601-0106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-092-0 AR 1 9601-0106 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37300-069-0 AR 1 9601-9803 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (D) 		1-37300-094-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (E) 		1-37300-095-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37300-091-0 AR 1 0107- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-092-0 AR 1 0107- ● ●
10 BOLT; UJT
P90 PROP SHAFT(C5T) M10X20 		9-02061-020-0 AR 1 9601-0106 ● ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 AR 1 0107-0512 ● ● ●
10 BOLT; UJT
M10X20 		0-20951-020-0 AR 1 0601- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37356-008-0 AR 1 9601-0106 ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 AR 1 0107- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37356-008-0 AR 1 0107- ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 AR 1 9601-0106 ● ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 AR 1 0107- ● ●
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-020-0 AR 1 0107- ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) 		1-37319-012-0 AR 1 9810-0106 ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) 		1-37249-131-0 AR 1 9601-0106 ● ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) 		9-37352-023-0 AR 1 0107- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) 		1-37249-131-0 AR 1 0107- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 9804-0106 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 9601-0106 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 9601-9803 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0107-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 AR 1 0107-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9601-9705 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9601-9705 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9706-9803 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9706-9803 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9804-0004 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 9804-0004 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 0005-0106 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) 		1-37510-105-0 01 1 0005-0106 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0107- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37510-099-1 01 1 0107- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9601-9706 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9601-9706 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9707-0106 ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 9707-0106 ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0107- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37510-094-3 01 1 0107- ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9601-9705 ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9601-9705 ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9706-9803 ● ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9706-9803 ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9804-0004 ● ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 9804-0004 ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 0005-0106 ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) ID=54 		1-09625-161-0 02 1 0005-0106 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0107- ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) D=120 		1-09625-126-0 02 1 0107- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9601-9706 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9601-9706 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9707-0106 ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 9707-0106 ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0107- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) D=120 		1-09625-127-0 02 1 0107- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9601-9705 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9601-9705 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9706-9803 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9706-9803 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9804-0004 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 9804-0004 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 0005-0106 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37516-059-0 01 1 0005-0106 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0107- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37516-053-0 01 1 0107- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9601-9706 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9601-9706 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9707-0106 ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 9707-0106 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0107- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37516-048-2 01 1 0107- ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9601-9705 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9601-9705 ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9706-9803 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9706-9803 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9804-0004 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 9804-0004 ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 0005-0106 ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) 		9-00090-071-0 01 1 0005-0106 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0107- ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) 		9-00090-292-0 01 1 0107- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9601-9706 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9601-9706 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9707-0106 ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 9707-0106 ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0107- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-00090-256-0 01 1 0107- ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9601-9705 ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9601-9705 ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9706-9803 ● ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9706-9803 ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9804-0004 ● ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 9804-0004 ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 0005-0106 ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) 		1-37529-068-0 01 1 0005-0106 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0107- ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) 		1-37529-039-0 01 1 0107- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9601-9706 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9601-9706 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9707-0106 ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 9707-0106 ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0107- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) 		1-37529-041-0 01 1 0107- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9601-9705 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9601-9705 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9706-9803 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9706-9803 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9804-0106 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9804-0106 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0107- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0107- ● ●
45 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		9-09164-610-0 04 1 9601-9609 ● ● ●
45 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		9-09164-610-0 04 1 9610-9803 ● ● ● ●
45 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		9-09164-610-0 04 1 9804-0004 ● ● ●
45 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		9-09164-610-0 04 1 0005-0106 ● ●
45 WASHER; PL,RET TO BRKT
P60 PROP SHAFT(C2M) ID=12.5 OD=26 		9-09164-612-0 04 1 0107- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9601-9705 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9601-9705 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9706-9803 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9706-9803 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9804-0004 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 9804-0004 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 0005-0106 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) 		1-37245-071-0 01 1 0005-0106 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0107- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) 		1-37245-283-1 01 1 0107- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 9601-9706 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 9601-9706 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 9707-0106 ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 9707-0106 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0107- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) 		1-37245-271-1 01 1 0107- ● ●
49 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9601-9705 ● ●
49 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9706-9803 ● ● ●
49 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 9804-0004 ● ●
49 NUT; YOKE
P46 PROP SHAFT(C4Z) M14 		9-99110-514-0 04 1 0005-0106 ●
49 NUT; YOKE
P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 9601-0106 ● ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0107- ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 H=23 		1-09449-068-0 01 1 9601-9705 ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 H=23 		1-09449-068-0 01 1 9601-9705 ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 H=23 		1-09449-068-0 01 1 9706-9801 ● ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 H=23 		1-09449-068-0 01 1 9706-9801 ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 9802-9803 ● ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 9802-9803 ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 9804-0004 ● ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 9804-0004 ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 0005-0106 ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) M30 		8-97160-857-0 01 1 0005-0106 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0107- ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) M33 FLANGE 		1-09449-051-0 01 1 0107- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9601-9706 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9601-9706 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9707-0106 ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 9707-0106 ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0107- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) M39 FLANGE 		1-09440-046-0 01 1 0107- ● ●
60 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		9-09164-610-0 04 1 9601-9705 ● ●
60 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		9-09164-610-0 04 1 9706-9803 ● ● ●
60 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		9-09164-610-0 04 1 9804-0004 ● ●
60 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		9-09164-610-0 04 1 0005-0106 ●
60 WASHER; PL,RET TO BRKT
P60 PROP SHAFT(C2M) ID=12.5 OD=26 		9-09164-612-0 04 1 0107- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 9601-9705 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 9601-9705 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 9706-9803 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 9706-9803 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 9804-0004 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 9804-0004 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 0005-0106 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28681-035-0 04 1 0005-0106 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X30 W/LK WASHER 		0-50041-230-0 04 1 0107-0512 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X30 W/LK WASHER 		0-50041-230-0 04 1 0107-0512 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X30 W/LK WASHER 		0-50541-230-0 04 1 0601-0901 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X30 W/LK WASHER 		0-50541-230-0 04 1 0601-0901 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X35 W/LK WASHER 		0-50541-235-0 04 1 0902- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) M12X35 W/LK WASHER 		0-50541-235-0 04 1 0902- ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-110-0 04 1 9601-9608 ● ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-110-0 04 1 9601-9608 ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9609-9705 ● ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9609-9705 ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9706-9803 ● ● ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9706-9803 ● ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9804-0004 ● ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9804-0004 ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 0005-0106 ● ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 0005-0106 ●
64 NUT; RET TO BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91150-212-0 04 1 0107-0602 ● ●
64 NUT; RET TO BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91150-212-0 04 1 0107-0602 ●
64 NUT; RET TO BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91180-212-0 04 1 0603- ● ●
64 NUT; RET TO BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91180-212-0 04 1 0603- ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9601-9803 ● ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9804-0106 ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9601-9705 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9601-9705 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9706-9803 ● ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9706-9803 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9804-0004 ● ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 9804-0004 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0005-0106 ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 0005-0106 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 9601-0106 ● ● ●
74 BOLT; YOKE,TRANS
ZF 9S109 OD M/T(Y2L) M16X48 		1-09000-383-0 04 1 9601-0106 ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 9601-0106 ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
ZF 9S109 OD M/T(Y2L) M16X48 		1-09000-383-0 04 1 0107- ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0107- ● ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		1-37515-071-2 01 1 9601-9705 ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (A)=4600MM, (B)=5000MM 		1-37515-071-2 01 1 9706-9803 ●
172 BRACKET; CENTER BRG
(A)=4600MM, (B)=5000MM 		1-37515-071-2 01 1 9706-9803 ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		1-37515-071-2 01 1 9804-0106 ●
172 BRACKET; CENTER BRG
P60 PROP SHAFT(C2M) (A) 		1-37515-125-0 01 1 0107- ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (B) 		1-37515-101-0 01 1 9601-9803 ● ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (B) 		1-37515-101-0 01 1 9804-0106 ●
172 BRACKET; CENTER BRG
(A) 		1-37515-123-0 01 1 0107- ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		1-37515-102-0 01 1 9601-0004 ● ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		1-37515-102-0 01 1 0005-0106 ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (B) 		1-37515-135-0 01 1 9804-0106 ●
172 BRACKET; CENTER BRG
P60 PROP SHAFT(C2M) (B) 		1-37515-124-0 01 1 0107- ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X20 FLANGE 		0-28081-020-0 04 1 9601-9602 ● ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X20 FLANGE 		0-28081-020-0 04 1 9601-9602 ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28081-025-0 04 1 9603-9606 ● ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28081-025-0 04 1 9603-9606 ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X30 FLANGE 		0-28681-030-0 04 1 9607-9705 ● ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X30 FLANGE 		0-28681-030-0 04 1 9607-9705 ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X30 FLANGE 		0-28681-030-0 04 1 9706-9712 ● ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X30 FLANGE 		0-28681-030-0 04 1 9706-9712 ● ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9706-9712 ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28681-025-0 04 1 9801-9803 ● ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28681-025-0 04 1 9801-9803 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9801-9803 ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28681-025-0 04 1 9804-0106 ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28681-025-0 04 1 9804-0106 ●
173 BOLT; BRKT
P60 PROP SHAFT(C2M) M12X30 FLANGE 		0-28681-230-0 04 1 0107-0512 ● ●
173 BOLT; BRKT
P60 PROP SHAFT(C2M) M12X30 FLANGE 		0-28681-230-0 04 1 0107-0512 ●
173 BOLT; BRKT
P60 PROP SHAFT(C2M) M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ●
173 BOLT; BRKT
P60 PROP SHAFT(C2M) M12X30 FLANGE 		0-28651-230-0 04 1 0601- ●
174 NUT; BRKT
P46 PROP SHAFT(C4Z) M10 		9-09110-510-0 04 1 9601-9606 ● ● ●
174 NUT; BRKT
P46 PROP SHAFT(C4Z) 		0-91150-216-0 04 1 9607-9701 ● ● ●
174 NUT; BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9702-9803 ● ● ●
174 NUT; BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9804-0106 ● ●
174 NUT; BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91150-212-0 04 1 0107-0602 ● ●
174 NUT; BRKT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91180-212-0 04 1 0603- ● ●
177 NUT
P46 PROP SHAFT(C4Z) M10 		9-09110-510-0 04 1 9601-9606 ● ●
177 NUT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9607-9705 ● ●
177 NUT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9706-9803 ● ● ●
177 NUT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 9804-0004 ● ●
177 NUT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91150-210-0 04 1 0005-0106 ●
177 NUT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91150-212-0 04 1 0107-0602 ●
177 NUT
P60 PROP SHAFT(C2M) M12 FLANGE 		0-91180-212-0 04 1 0603- ●
177 NUT
P46 PROP SHAFT(C4Z) M12 		9-99110-512-0 04 1 9601-9606 ● ●
177 NUT
P46 PROP SHAFT(C4Z) M12 FLANGE 		0-91150-212-0 04 1 9607-9701 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
