3-77 — BRAKE PIPING; AIR,REAR (#24818) — 167 parça

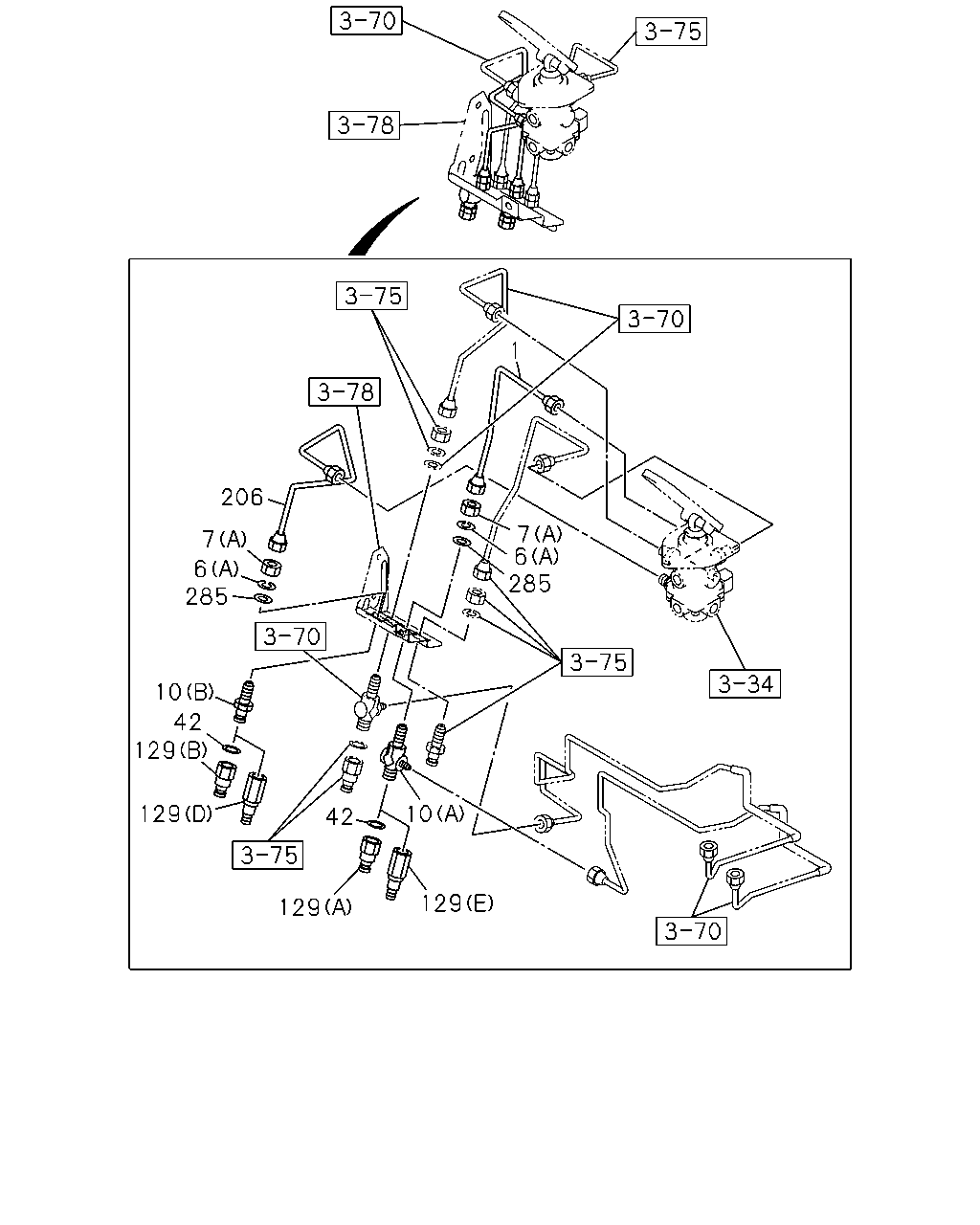

1 206 7 6 285 7 6 285 10 42 129 129 10 42 129 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=279	1-47492-449-4	01	1	9601-9803	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=279	1-47492-449-4	01	1	9804-9902	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=277	1-49121-487-0	01	1	9903-	●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	01	1	9601-9601	●	●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	9601-9803	●	●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	9804-0603	●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	02	1	0604-	●
6	WASHER; LK,FLEX HOSE (B) ID=20.2	9-09150-520-0	02	1	9601-9803	●	●
6	WASHER; LK,FLEX HOSE (B) ID=20.2	9-09150-520-0	02	1	9804-0603	●
6	WASHER; LK,FLEX HOSE (B) ID=20.2	0-91510-520-0	02	1	0604-	●
7	NUT; FLEX HOSE (A) M16	9-99111-416-0	01	1	9601-9601	●	●
7	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	9601-9803	●	●
7	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	9804-0512	●
7	NUT; FLEX HOSE (A) M16	0-91111-516-0	02	1	0601-	●
7	NUT; FLEX HOSE (B) M20	9-99111-420-0	02	1	9601-9803	●	●
7	NUT; FLEX HOSE (B) M20	9-99111-420-0	02	1	9804-0512	●
7	NUT; FLEX HOSE (B) M20	0-91111-520-0	02	1	0601-	●
10	CONNECTOR; FLEX HOSE (B)	1-09654-324-0	01	1	9601-9803	●	●
10	CONNECTOR; FLEX HOSE (B) M16 STRAIGHT	1-09654-380-0	01	1	9804-	●
10	CONNECTOR; FLEX HOSE (A)	1-09656-451-1	01	1	9601-9803	●	●
10	CONNECTOR; FLEX HOSE (A)	1-09656-721-0	01	1	9804-0103	●
10	CONNECTOR; FLEX HOSE (A)	1-09656-754-0	01	1	0104-0106	●
10	CONNECTOR; FLEX HOSE (A)	1-09656-754-0	01	1	0107-	●
42	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	01	1	9601-9601	●	●
42	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	02	1	9601-9803	●	●
129	CONNECTOR; NYLON TUBE (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	9804-	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9601-9803	●	●
129	CONNECTOR; NYLON TUBE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9804-	●
129	CONNECTOR; NYLON TUBE (A)	1-09660-728-1	01	1	9601-9803	●	●
129	CONNECTOR; NYLON TUBE (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9804-	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=406	1-47492-451-3	01	1	9601-9803	●	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=406	1-47492-451-3	01	1	9804-	●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	9601-9601	●	●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	9601-9601	●	●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	02	1	9601-9803	●	●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	02	1	9804-0605	●
285	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	02	1	0606-	●

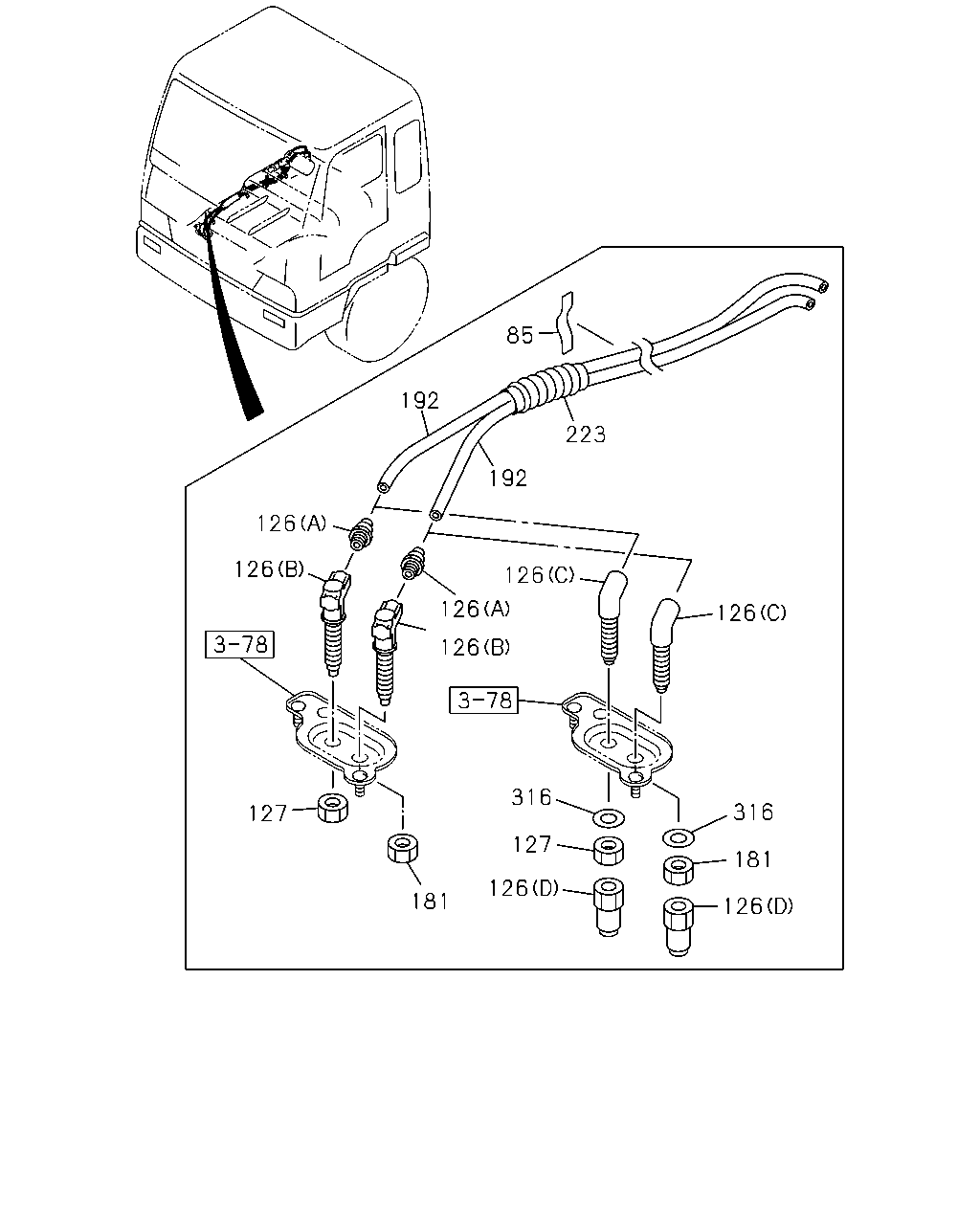

85 192 223 192 126 126 126 126 126 126 316 316 127 127 181 126 181 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
85	GASKET; NYLON TUBE 100X30	1-72498-014-1	05	1	9601-9803	●	●
85	GASKET; NYLON TUBE 100X30	1-72498-014-1	05	1	9804-9903	●
85	GASKET; NYLON TUBE 100X40	1-72498-022-1	05	1	9904-	●
126	UNION; NYLON TUBE (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9601-9803	●	●
126	UNION; NYLON TUBE (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	9804-0706	●
126	UNION; NYLON TUBE (C) DIN8 & M20 ELBOW	8-98078-117-0	02	1	0707-	●
126	UNION; NYLON TUBE (B)	1-09660-743-0	02	1	9601-9803	●	●
126	UNION; NYLON TUBE (D) DIN8 & M20 STRAIGHT	1-09661-056-0	02	1	9804-0007	●
126	UNION; NYLON TUBE (D) DIN8 & M20 STRAIGHT	1-09661-381-0	02	1	0008-0706	●
127	NUT; UNION M18	9-99111-418-0	01	1	9601-9803	●	●
127	NUT; UNION M20	9-99111-420-0	01	1	9804-0512	●
127	NUT; UNION M20	0-91111-520-0	01	1	0601-	●
181	NUT; TUBE UNION M16	9-99111-416-0	01	1	9601-9601	●	●
181	NUT; TUBE UNION M18	9-99111-418-0	01	1	9601-9803	●	●
181	NUT; TUBE UNION M20	9-99111-420-0	01	1	9804-0512	●
181	NUT; TUBE UNION M20	0-91111-520-0	01	1	0601-	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-0402	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9601-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9601-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9601-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-0212	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0403-	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9601-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	9601-	●	●
316	WASHER; PL ID=21	9-09160-520-0	02	1	9804-0605	●
316	WASHER; PL ID=21	0-91610-520-0	02	1	0606-	●

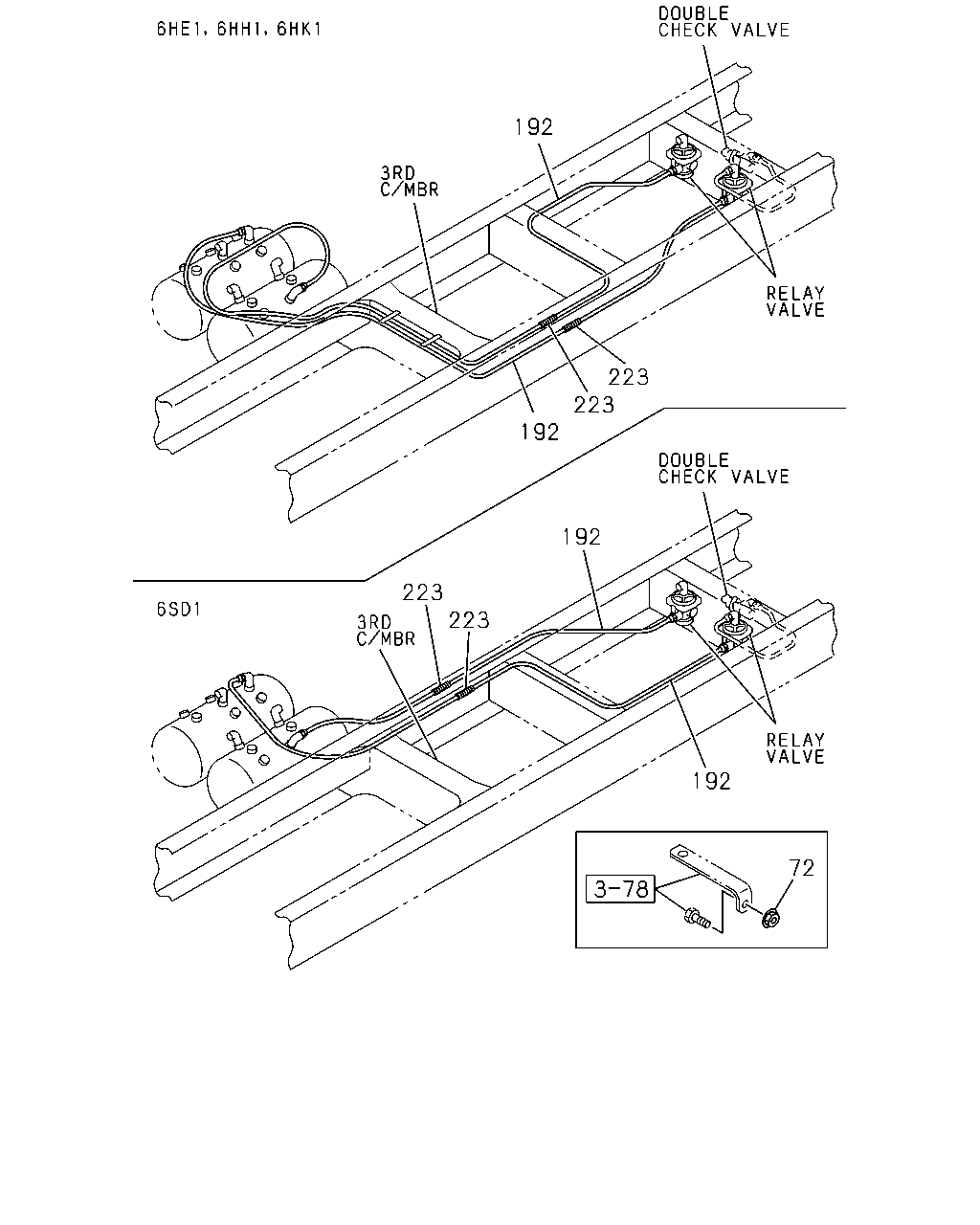

192 223 223 192 192 223 223 192 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
72	NUT; BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	01	1	0202-0602	●
72	NUT; BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	01	1	0603-	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-0402	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9601-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9601-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9601-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-0212	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0403-	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9601-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	9601-	●	●

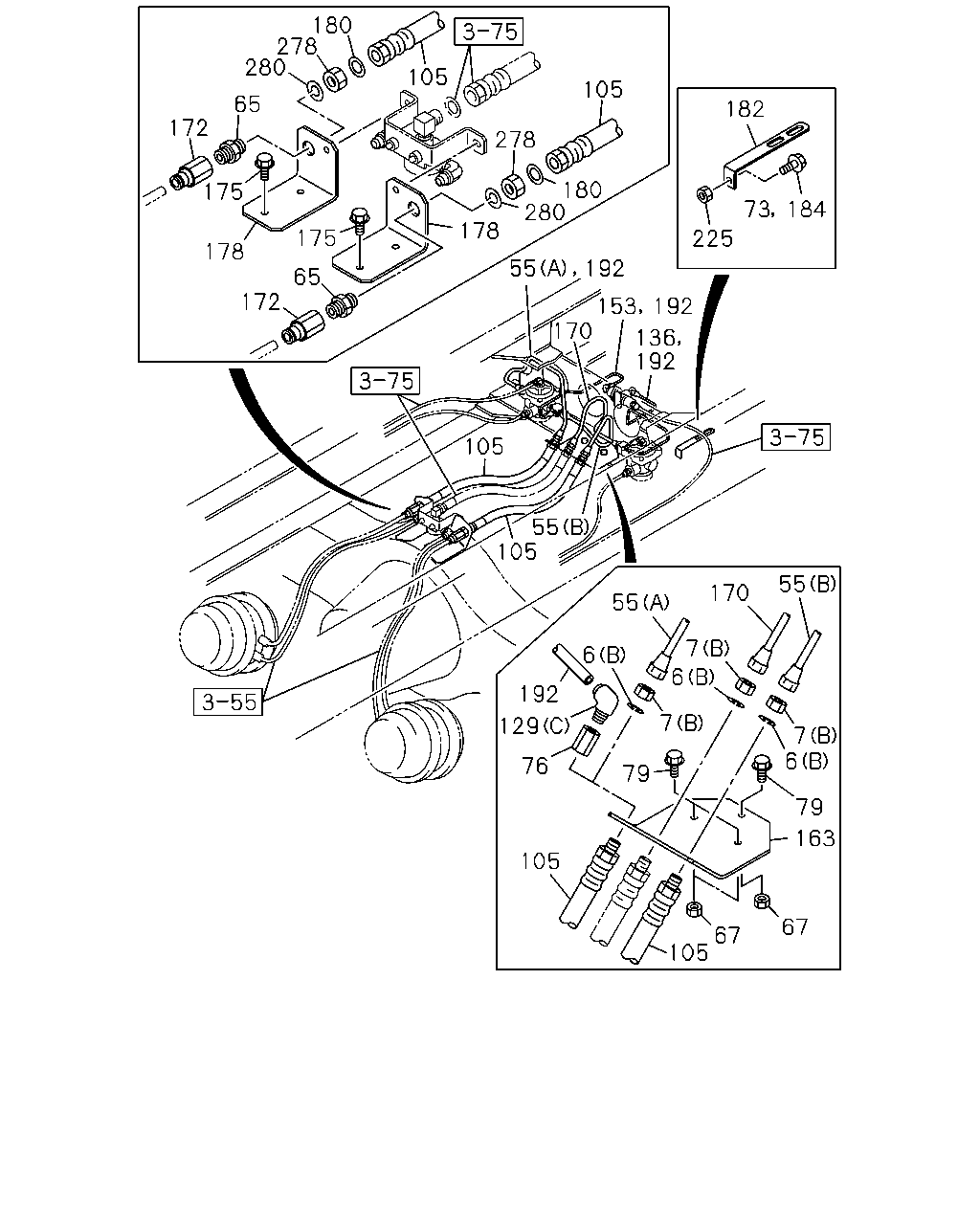

180 278 280 105 105 65 182 172 278 180 280 175 73 184 178 175 225 178 55 192 65 172 153 170 192 136 192 105 55 105 55 170 55 7 6 6 192 7 129 7 6 76 79 79 163 105 67 67 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	01	1	9601-9601	●	●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	9601-9803	●	●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	9804-0603	●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	02	1	0604-	●
6	WASHER; LK,FLEX HOSE (B) ID=20.2	9-09150-520-0	02	1	9601-9803	●	●
6	WASHER; LK,FLEX HOSE (B) ID=20.2	9-09150-520-0	02	1	9804-0603	●
6	WASHER; LK,FLEX HOSE (B) ID=20.2	0-91510-520-0	02	1	0604-	●
7	NUT; FLEX HOSE (A) M16	9-99111-416-0	01	1	9601-9601	●	●
7	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	9601-9803	●	●
7	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	9804-0512	●
7	NUT; FLEX HOSE (A) M16	0-91111-516-0	02	1	0601-	●
7	NUT; FLEX HOSE (B) M20	9-99111-420-0	02	1	9601-9803	●	●
7	NUT; FLEX HOSE (B) M20	9-99111-420-0	02	1	9804-0512	●
7	NUT; FLEX HOSE (B) M20	0-91111-520-0	02	1	0601-	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (B)	1-49113-329-0	01	1	9601-9803	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (A)	1-49113-328-0	01	1	9601-9803	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (B) L=426	1-49118-958-0	01	1	9804-	●
65	CONNECTOR; FLEX HOSE,POWER CHAMBER M20 STRAIGHT	1-09654-240-1	02	1	9601-9803	●	●
65	CONNECTOR; FLEX HOSE,POWER CHAMBER M20 STRAIGHT	1-09654-240-1	02	1	9804-	●
67	NUT; HOSE BRKT M8	9-09110-408-0	03	1	9601-9606	●	●
67	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	03	1	9607-9803	●	●
67	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	03	1	9804-0602	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	03	1	0603-	●
73	BOLT; CLIP M8X30 FLANGE	0-28080-830-0	01	1	9601-9606		●
73	BOLT; CLIP M8X35 FLANGE	0-28680-835-0	01	1	9607-9609		●
73	BOLT; CLIP 6HE1 TC ENG(57L) M8X35 FLANGE	0-28680-835-0	01	1	9610-9803	●
73	BOLT; CLIP M8X35 FLANGE	0-28680-835-0	01	1	9610-9803		●
73	BOLT; CLIP 6HE1 TC ENG(57L) M8X35 FLANGE	0-28680-835-0	01	1	9804-9903	●
76	ADAPTER; NYLON TUBE M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	9804-	●
79	BOLT; HOSE BRKT M8X20 FLANGE	0-28080-820-0	03	1	9601-9606	●	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	03	1	9607-9803	●	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	03	1	9804-0512	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	03	1	0601-	●
105	HOSE; FLEX L=610	0-07807-610-1	02	1	9601-9803	●	●
105	HOSE; FLEX L=610	0-07807-610-1	02	1	9804-0605	●
105	HOSE; FLEX L=610	0-57807-610-1	02	1	0606-	●
129	CONNECTOR; NYLON TUBE (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	9804-	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9601-9803	●	●
129	CONNECTOR; NYLON TUBE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9804-	●
129	CONNECTOR; NYLON TUBE (A)	1-09660-728-1	01	1	9601-9803	●	●
129	CONNECTOR; NYLON TUBE (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9804-	●
136	PIPE; AIR,DBL CHECK VLV TO UNION	1-49116-286-0	01	1	9601-9803	●	●
153	PIPE; AIR,RELAY VLV TO DBL CHECK VLV	1-49115-567-0	01	1	9601-9803	●	●
163	BRACKET; FLEX HOSE	1-47476-787-0	01	1	9601-9803	●	●
163	BRACKET; FLEX HOSE	1-47477-997-1	01	1	9804-	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE	1-49113-330-0	01	1	9601-9803	●	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE L=510	1-49118-957-0	01	1	9804-	●
172	ADAPTER; UNION DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9601-9803	●	●
172	ADAPTER; UNION DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9804-0004	●
172	ADAPTER; UNION DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007	●
172	ADAPTER; UNION DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-	●
175	BOLT; HOSE BRKT M8X20 FLANGE	0-28080-820-0	04	1	9601-9606	●	●
175	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	04	1	9607-9705	●	●
175	BOLT; HOSE BRKT M8X20 FLANGE	0-28080-820-0	04	1	9706-9803	●	●
175	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	04	1	9804-9901	●
175	BOLT; HOSE BRKT M8X20 FLANGE	0-28080-820-0	04	1	9902-0108	●
175	BOLT; HOSE BRKT M8X16 FLANGE	0-28080-816-0	04	1	0109-0512	●
175	BOLT; HOSE BRKT M8X16 FLANGE	0-28050-816-0	04	1	0601-	●
178	BRACKET; UNION	1-47477-517-0	01	1	9601-9803	●	●
178	BRACKET; UNION	1-47477-517-0	01	1	9804-	●
178	BRACKET; UNION	1-47477-516-0	01	1	9601-9803	●	●
178	BRACKET; UNION	1-47477-516-0	01	1	9804-	●
180	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9601-9803	●	●
180	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9804-	●
182	BRACKET; TUBE CLIP L=150 H=30	1-47477-629-2	01	1	9601-9803	●	●
182	BRACKET; TUBE CLIP L=150 H=30	1-47477-629-2	01	1	9804-9808	●
184	BOLT; TUBE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9601-9606	●	●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	9607-9803	●	●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	9804-9808	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-0402	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9601-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9601-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9601-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-0212	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0403-	●
225	NUT; TUBE CLIP M8	9-09110-408-0	01	1	9601-9606	●	●
225	NUT; TUBE CLIP M8	9-09110-408-0	01	1	9601-9606		●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9609	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9609		●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	9610-9803	●	●
225	NUT; TUBE CLIP 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	01	1	9610-9803	●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	9610-9803		●
225	NUT; TUBE CLIP 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	01	1	9804-9808	●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	9804-9808	●
225	NUT; TUBE CLIP 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	01	1	9809-9903	●
278	NUT; UNION M20	9-99111-420-0	02	1	9601-9803	●	●
278	NUT; UNION M20	9-99111-420-0	02	1	9804-0512	●
278	NUT; UNION M20	0-91111-520-0	02	1	0601-	●
280	WASHER; LK ID=20.2	9-09150-520-0	02	1	9601-9803	●	●
280	WASHER; LK ID=20.2	9-09150-520-0	02	1	9804-0603	●
280	WASHER; LK ID=20.2	0-91510-520-0	02	1	0604-	●
